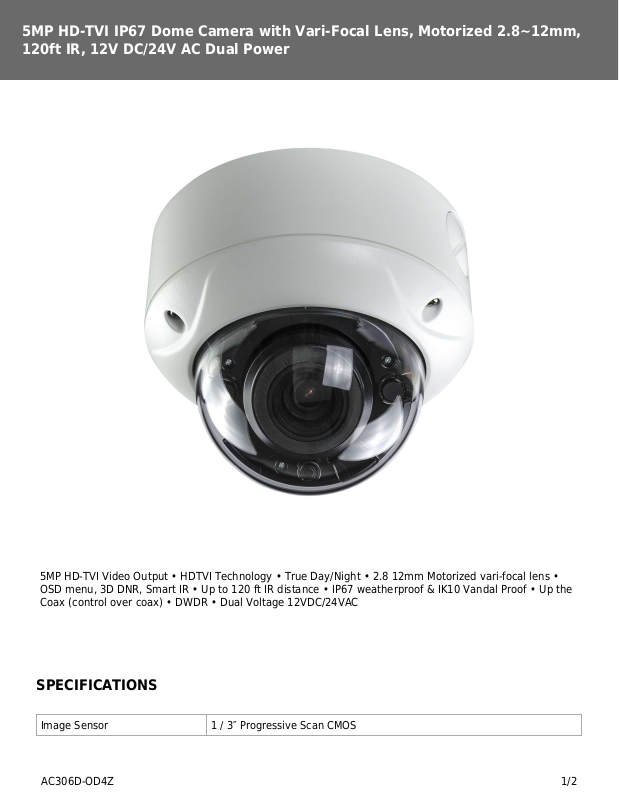

Cantek CT-AC306D-OD4Z Specsheet

5MP HD-TVI IP67 Dome Camera with Vari-Focal Lens, Motorized 2.8~12mm,
120ft IR, 12V DC/24V AC Dual Power

5MP HD-TVI Video Output • HDTVI Technology • True Day/Night • 2.8 12mm Motorized vari-focal lens •
OSD menu, 3D DNR, Smart IR • Up to 120 ft IR distance • IP67 weatherproof & IK10 Vandal Proof • Up the
Coax (control over coax) • DWDR • Dual Voltage 12VDC/24VAC

SPECIFICATIONS

Image Sensor 1 / 3″ Progressive Scan CMOS

AC306D-OD4Z 1/2

5MP HD-TVI IP67 Dome Camera with Vari-Focal Lens, Motorized 2.8~12mm,
120ft IR, 12V DC/24V AC Dual Power

video FORMAT PAL / NTSC

Effective Pixels 2560(H)*1944(V)

Min. Illumination 0.008 Lux @ (F1.2,AGC ON),0 Lux with IR

Shutter speed 1/30s to 1/50,000s

Lens 2.8 ~ 12mm @ F1.4, Angle of view: 102° – 31°

Angle Adjustment Pan: 0 – 355°, Tilt: 0 – 80°

Day & Night ICR

Wide dynamic range DWDR

Video Frame Rate 2560 × 1944@20fps

HD Video Output 1 HD-TVI output

CVBS Output N/A

Scene Indoor, Outdoor, Indoor1, LOW-LIGHT

Camera ID On/off (15 characters, position programmable)

AGC Support

D/N Mode Color/BW/Auto

Motion Detection On/Off, maximum 4 zones

BLC Support

Anti-flicker On/off

Working Temperature / Humidity −40°C – 60°C (−40°F – 140°F) Humidity 90% or less (non-condensing)

Power Supply 12 VDC, 24 VAC

Power Consumption Max. 6W

Ratings IP67, IK10

IR Range Up to 120 ft

Dimensions φ145.3 × 124.2 mm (φ5.72" × 4.89")

Weight 880 g (3.53 lb)

AC306D-OD4Z 2/2
