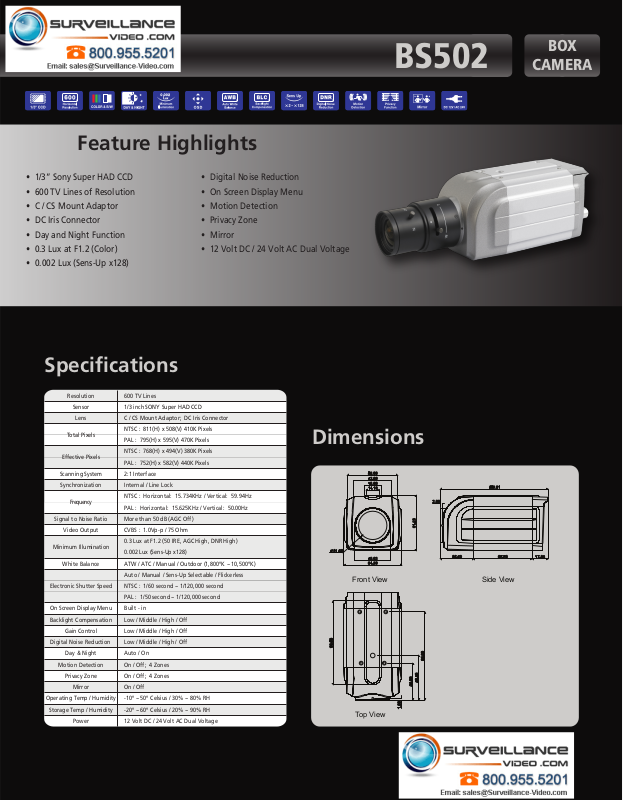

Cantek BS502 Specsheet

Built - inOn Screen Display Menu

On / Off; 4 ZonesMotion Detection

Backlight Compensation Low / Middle / High / Off

Low / Middle / High / OffGain Control

Day & Night Auto / On

Digital Noise Reduction Low / Middle / High / Off

-20º ~ 60º Celsius / 20% ~ 90% RH Storage Temp / Humidity

Privacy Zone On / Off; 4 Zones

On / OffMirror

Operating Temp / Humidity -10º ~ 50º Celsius / 30% ~ 80% RH

Electronic Shutter Speed NTSC : 1/60 second ~ 1/120,000 second

PAL : 1/50 second ~ 1/120,000 second

ATW / ATC / Manual / Outdoor (1,800ºK ~ 10,500ºK)White Balance

Signal to Noise Ratio More than 50 dB (AGC Off)

Scanning System

Synchronization

600 TV LinesResolution

C / CS Mount Adaptor; DC Iris ConnectorLens

Sensor

Total Pixels

Effective Pixels

1/3 inch SONY Super HAD CCD

2:1 Interface

Internal / Line Lock

NTSC : 811(H) x 508(V) 410K Pixels

PAL : 795(H) x 595(V) 470K Pixels

Frequency

NTSC : Horizontal: 15.734KHz / Vertical: 59.94Hz

PAL : Horizontal: 15.625KHz / Vertical: 50.00Hz

NTSC : 768(H) x 494(V) 380K Pixels

PAL : 752(H) x 582(V) 440K Pixels

CVBS : 1.0Vp-p / 75 OhmVideo Output

Minimum Illumination

0.3 Lux at F1.2 (50 IRE, AGC High, DNR High)

Auto / Manual / Sens-Up Selectable / Flickerless

0.002 Lux (Sens-Up x128)

Power 12 Volt DC / 24 Volt AC Dual Voltage

BOX

Feature Highlights

• 1/3” Sony Super HAD CCD

• 600 TV Lines of Resolution

• C / CS Mount Adaptor

• DC Iris Connector

• Day and Night Function

• 0.3 Lux at F1.2 (Color)

• 0.002 Lux (Sens-Up x128)

• Digital Noise Reduction

• On Screen Display Menu

• Motion Detection

• Privacy Zone

• Mirror

• 12 Volt DC / 24 Volt AC Dual Voltage

BS502

CAMERA

Specifications

Dimensions

Front View

Top View

Side View
