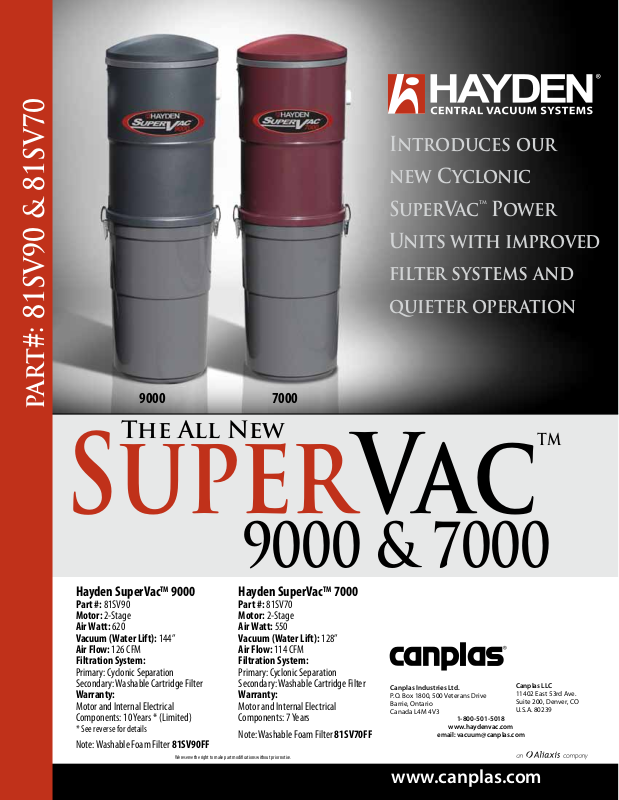

Canplas 7000 User Manual

Introduces our

new Cyclonic

SuperVactm Power

Units with improved

filter systems and

quieter operation

part#: 81SV90 & 81SV70

9000 7000

The All New

SuperVac

9000 & 7000

Hayden SuperVac

Part #: 81SV90
Motor: 2-Stage
Air Watt: 620
Vacuum (Water Lift): 144”
Air Flow: 126 CFM
Filtration System:

Primary: Cyclonic Separation
Secondary: Washable Cartridge Filter

Warranty:

Motor and Internal Electrical
Components: 10 Years * (Limited)

* See reverse for details

Note: Washable Foam Filter 81SV90FF

TM

9000

We reserve the right to make part modications without prior notice.

Hayden SuperVac

Part #: 81SV70
Motor: 2-Stage
Air Watt: 550
Vacuum (Water Lift): 128”
Air Flow: 114 CFM
Filtration System:

Primary: Cyclonic Separation
Secondary: Washable Cartridge Filter

Warranty:

Motor and Internal Electrical
Components: 7 Years

Note: Washable Foam Filter 81SV70FF

TM

7000

Canplas Industries Ltd.

P.O. Box 1800, 500 Veterans Drive
Barrie, Ontario
Canada L4M 4V3

1-800-501-5018

www.haydenvac.com

email: [e-mail]

TM

Canplas LLC

11402 East 53rd Ave.
Suite 200, Denver, CO
U.S.A. 80239

www.canplas.com

The All New

SuperVac

9000 & 7000

TM

Cartridge Filter

OR

Self contained
heavy – duty
bypass motor
and motor
module

Filter Post

Foam Filter

Filter Retainer

Cyclonic separator
cone, with rubber
sealing ring

Hayden SuperVac

Part #: 81SV90 / 81SV90FF
Warranty:

*(Limited) For the rst 7 years, Canplas will be 100% responsible
for the warranty, including parts and labour.
For the following 3 years, Canplas will be responsible for 50% of
the parts and labour cost, and the owner is responsible for the
other 50% of the parts and labour cost.

Note: Filters & Motor Brushes are considered normal wear and

tear items and are not covered under the warranty.

TM

9000 / 9000FF

GD-00247-EN-02-10

Dirt canister
with clamps

Mounting bracket
and mounting bar

Note: (bolts or screws
are not provided due
to dierent installation
requirements)
