6-10KVA Rack-mount UPS User Manual Important Safety Instructions
INMPORTANT SAFETY INSTRUCTIONS
SAVE THESE INSTRUCTIONS
This manual contains important safety instructions. Read all safety and operating instructions
before operating the uninterruptible power systems (UPS). Adhere to all warnings on the unit
and in this manual. Follow all operating and user instructions. This equipment can be operated
by individuals without previous training.
This product designed for commercial/industrial use only. It is intended for use with lift support
and other designated “critical” devices. Maximum load must not exceed that shown on the UPS
rating label. The UPS is designed for data processing equipment. If uncertain, consult your
dealer or local representative.
This UPS is designed for use on a properly grounded (earthed), 220/230/240VAC, 50 or 60Hz
supply. The factory default setting is 220VAC/50Hz. Installation instructions and warning
notices are in this manual.
The ups 06-10KVA@220/230/240VAC is designed for use with a three-wire input (L,N,G).
WARNING
THE BATTERY CAN PRESENT A RISK OF ELECTRICAL SHOCK AND HIGH SHORT
CIRCUIT CURRENT. FOLLOWING PRECAUTIONS SHOULD BE OBSERVED BEFORE
REPLACING THE BATTERY.
z Wear rubber gloves and boots.
z Remove rings, watches and other metal objects.
z Use tools with insulated handles.
z Do not lay tools or other metal objects on the batteries.
z If the battery is damaged in any way or shows signs of leakage, contact your local
representative immediately.
z Do not dispose of batteries in a fire. The batteries may explode.
z Handle, transport and recycle batteries in accordance with local representative.
WARNING
ALTHOUGH THE UPS HAS BEEN DESIGNED AND MANUFACTURED TO ENSURE
PERSONAL SAFETY, IMPROPER USE CAN RESULT IN ELECTRICAL SHOCK OR FIRE. TO
ENSURE SAFETY, OBSERVE THE FOLLOWING PRECAUTIONS:
6-10KVA Rack-mount UPS User Manual Important Safety Instructions
z Turn off and unplug the ups before cleaning it.
z Clean the UPS with a dry cloth. Do not use liquid or aerosol cleaners.
z Never block or insert any objects into the ventilation holes or other openings of the UPS.
z Do not place the ups power cord where it might be damaged.
6-10KVA Rack-mount UPS User Manual Contents
CONTENTS
1. ELECTROMAGNETIC COMPATIBILITY ............................................................ 1
2. INTRODUTION ................................................................................................... 2
3. SYSTEM DESCRIPTION .................................................................................... 6
3.1TransientVolta geSurgeSuppression(TVSS)andEMI/FRIFilters...............................................6
3.2Rectifier/PowerFactorCorrection(PFC)Circuit.........................................................................6
3.3Inverter......................................................................................................................................6
3.4BatteryCharger..........................................................................................................................7
3.5DC‐to‐DCConverter....................................................................................................................7
3.6Battery.......................................................................................................................................7
3.7DynamicBypass......................................................................................................................... 7
4. PRODUCT SPECIFICATION And PERFORMANCE .......................................... 8
4.1ModelDescription......................................................................................................................8
4.2ProductSpecificationandPerformance.....................................................................................8
5. INSTALLATION ................................................................................................. 10
5.1Unpa ckin gandInspection........................................................................................................10
5.2Rack‐mountInstallation...........................................................................................................10
5.2ConnectInput/OutputPowerCables.......................................................................................11
5.3OperatingprocedureforconnectingthelongbackuptimemodelUPSwiththeexternal
battery...........................................................................................................................................15
5.4Paralleloperation.....................................................................................................................16
6. CONTROLS And INDICATORS ........................................................................ 19
7. OPERATION ..................................................................................................... 22
7.1OperationMode.......................................................................................................................22
7.2ParallelOperation.................................................................................................................... 22
8. BATTERY MAINTENANCE ............................................................................... 25
6-10KVA Rack-mount UPS User Manual Contents
9. NOTES FOR BATTERY DISPASAL AND REPLACEMENT PROCEDURES .... 26
9.1BatteryDisposal.......................................................................................................................26
9.2ExternalBatteryReplacementProcedures...............................................................................26
9.3InternalBatteryPackReplacementProcedures .......................................................................27
10. TROUBIE SHOOTING .................................................................................... 28
10.1CheckingUPSstatus...............................................................................................................28
10.2Adjustthefactorscausedtheproblem..................................................................................28
Annex A. Intelligent Slot ........................................................................................ 33
Annex B. EPO ....................................................................................................... 34
6-10KVA Rack-mount UPS User Manual Electromagnetic Compatibility
1
1. ELECTROMAGNETIC COMPATIBILITY
* Safety
IEC/EN 62040-1-1
* EMI
Conducted Emission.........IEC/EN 62040-2 Category C3
Radiated Emission............IEC/EN 62040-2 Category C3
*EMS
ESD..................................IEC/EN 61000-4-2 Level 4
RS....................................IEC/EN 61000-4-3 Level 3
EFT..................................IEC/EN 61000-4-4 Level 4
SURGE............................IEC/EN 61000-4-5 Level 4
Low Frequency Signals..............:IEC/EN 61000-2-2
Warning: This is a product for commercial and industrial application in the second
environment-installation restrictions or additional measures may be needed to
prevent disturbances.
NOTICE：
This is a product for restricted sales distribution to informed partners. Installation restrictions or
additional measures may be needed to prevent radio interference.
Operated the UPS in an indoor enviroment only in an ambient temperature range of
0-40°C(32-104°F). Install it in a clean environment, free from moisture, flammable liquids,
gases and corrosive substance.
This UPS contains no user-serviceable parts except the internal battery pack. The UPS on/off
push buttons do not electrically isolate internal parts. Under no circumstance attempt to gain
access internally, due to the risk of electric shock or burn.
Do not continue to use the UPS if the panel indications are not in accordance with these
operating instructions or the UPS performance alters in use. Refer all fault to your dealer.
Servicing of batteries should be performed or supervised by personnel knowledgeable of
batteries and the precautions. Keep unauthorized personnel away from the batteries. Proper
disposal of batteries is required. Refer to your local laws and regulations for disposal
requirement.
DO NOT CONNECT equipment that could overload the UPS or demand DC current from the
UPS, for example: electric drills, vacuum cleaners, laser printers, hair dryer or any appliance
using half-wave rectification.
Storing magnetic media on top of the UPS may result in data loss or corruption. Turn off and
isolate the UPS before cleaning it. Use only a soft cloth, never liquid or aerosol cleaners.
6-10KVA Rack-mount UPS User Manual Introduction
2
2. INTRODUTION
Congratulations on your choice of the uninterruptible power system(UPS), the series comes in
nominal power ratings of 6000VA,10000VA. It is designed to provide conditioned power to
microcomputers and other sensitive electronic equipment.
When it is generated, alternating current is clean and stable. However, during transmission and
distribution it may be subject to voltage sags, spikes and complete power failure that may
interrupt computer operations, cause data loss and even damage equipment. The series
protects equipment from these disturbances.
The series is a compact, rack-mount, on-line UPS. An on-line UPS continuously conditions and
regulates its output voltage, whether utility power is present or not. It supplies connected
equipment with clean sine wave power. Sensitive electronic equipment operates best from sine
wave power.
For ease of use, the series features a LCD display to indicate all information for UPS, and
provide kinds of function buttons.
The ups contains a removable power distribution box factory-attached that includes a manual
bypass switch allow AC power to continue to flow from the utility input to the load while the box
is removed from the UPS.
Fig 1. Front View of Long Backup Model
6-10KVA Rack-mount UPS User Manual Introduction
3
Fig 2. Front View of standard Model
Fig 3. Rear View of 6KVA Long Backup Model
Fig 4. Rear View of 10KVA Long Backup Model
6-10KVA Rack-mount UPS User Manual Introduction
4
Fig 5. Rear View of Standard Model
USB Port（option）
RS-232 communication port. DB9 type.
EPO Port
Intelligent slot port. SNMP card for network monitoring. Intelligent card or
non-pluggable dry contact card for user extending.
Input circuit breaker
Maintenance Bypass breaker
External battery connector
Parallel kit（option）
Entries for hardwired power input and output cables
intelligent slot for Dry contacts
C13 Output receptacles
C19 Output receptacles
Output circuit breakers
6-10KVA Rack-mount UPS User Manual Introduction
5
Fig 6. The Removable Power Distribution Box factory-attached
of long backup model
Fig 7. The Removable Power Distribution Box factory-attached of standard model
6-10KVA Rack-mount UPS User Manual System Description
6
3. SYSTEM DESCRIPTION
3.1 Transient Voltage Surge Suppression (TVSS) and EMI/FRI Filters
These UPS components provide surge protection and filter both electromagnetic interference
(EMI) and radio frequency interference (RFI). They minimize any surge or interference present
in the utility line and keep the sensitive equipment protected.
3.2 Rectifier/Power Factor Correction (PFC) Circuit
In normal operation, the rectifier/power factor correction (PFC) circuit converts utility AC power
to regulated DC power for use by the inverter while ensuring that the waveform of the input
current used by the UPS is near ideal. Extracting this sine wave input current achieves two
objects:
z The utility power is used as efficiency as possible by the UPS.
z The amount of distortion reflected on the utility is reduced.
This results in cleaner power being available to other devices in the building not being
protected by the ups.
3.3 Inverter
In normal operation, the inverter utilize the DC output of the power factor correction circuit and
inverters it into precise, regulated sine wave AC power. Upon a utility power failure, the inverter
receives its required energy from the battery through the DC-to-DC converter. In both modes of
operation, the UPS inverter is on-line and continuously generating clean, precise, regulated AC
output power.
6-10KVA Rack-mount UPS User Manual System Description
7
3.4 Battery Charger
The battery charger utilizes energy from the utility power and precisely regulates it to
continuously float charge the batteries. The batteries are being charged whenever the ups is
connected to utility power.
3.5 DC-to-DC Converter
The DC-to-DC converter utilizes energy from the battery system and raises the DC voltage to
the optimum operating voltage for the inverter. The converter includes boost circuit which is
also used as PFC.
3.6 Battery
The ups L include value-regulated, non-spoilable, lead acid batteries outside. To maintain
battery design life, operate the UPS in an ambient temperature of 15-25°C.
3.7 Dynamic Bypass
The ups provide an alternate path for utility power to the connected load in the unlikely event of
a UPS malfunction. Should the UPS have an overload, over temperature or any other failure
condition, the ups automatically transfers the connected load to bypass. Bypass operation is
indicated by an audible alarm and illuminated amber Bypass LED. To manually transfer the
connected load from the inverter to bypass, press the ON/OFF button or Manual Bypass button
once.
NOTE：The bypass power path does NOT protect the connected equipment from disturbances
in the utility supply.
6-10KVA Rack-mount UPS User Manual Production Specification and Performance
8
4. PRODUCT SPECIFICATION And PERFORMANCE
4.1 Model Description
This manual is applicable to the following models:
4.2 Product Specification and Performance
1. General Specification
Model Long Standard Long Standard
Power Rating 6KVA/5.4KW 10KVA/9KW
Frequency (Hz) 50/60
Input
Voltage (176-275)VAC
Current 34A max 57A max
Battery
Voltage 192VDC
Current 37A max 60A max
Output
Voltage 220V/230V/240V
Current 27/26/25A 45/43/42A
Dimension
(W*H*D) mm
438*130*680 438*218*680 438*130*680 438*218*680
Weight (kg) 18.5 62 21.5 70.5
2. Electrical Performance
Input
Model Voltage Frequency Power Factor
6KVA and 10KVA Single-phase 40-70Hz >0.99(Full load)
Model No. Type
6KS
Standard model
10KS
6KL
Long backup model
10KL
Output
Voltage
Regulation
Power
Factor
Frequency
tolerance.
Distortion Overload capacity Crest ratio
6-10KVA Rack-mount UPS User Manual Production Specification and Performance
9
3. Operating Environment
Temperature Humidity Altitude Storage temperature
0°C-40°C <95% <1000m 0°C-70°C
NOTE：If the UPS is installed or used in a place where the altitude is above than 1000m, the
output power must be derated in use, please refer to the following:
Altitude (M) 1000 1500 2000 2500 3000 3500 4000 4500 5000
Derating Power 100% 95% 91% 86% 82% 78% 74% 70% 67%
±1% 0.9 lag
±0.1% of
normal
THD<1%
Full load
(Linear
Load)
110% load: transfers to
Bypass mode after 10
minutes
130% load: transfers to
Bypass mode after 1 min.
150% load :transfers to
Bypass mode after 30
seconds and shutdown the
output after 1 minute
3:1
maximum
6-10KVA Rack-mount UPS User Manual Installation
10
5. INSTALLATION
The system should be installed and wired only by qualified electricians in accordance with
applicable safety regulations.
NOTE：UPS operation in sustained temperature outside the range of 15-25
°
C (59°-77°F)
reduces battery life.
5.1 Unpacking and Inspection
1) Unpack the packaging and check the package contents. The shipping package contains:
● 1 UPS
● 1 user manual
● 2 mounting ears with 8 black screws
●10 terminators for the long backup model
●2 connectors（red and white）for battery with 4 contracts for the long backup model
2) Inspect the appearance of the UPS to see if there is any damage during transportation.
Do not turn on the unit and notify the carrier and dealer immediately if there is any
damage or lacking of some parts.
5.2 Rack-mount Installation
When using the ups in a rack-mount configuration, the UPS must be supported by a slide kit,
fixed rails or a shelf. The adjustable rack-mounting brackets feature retaining latches to prevent
users from inadvertently sliding the UPS or battery cabinet out of the rack.
Step 1: Install the adjustable rack-mount kit or fixed rails in proper rack-mounting position with
the screws like this.
Step 2: Attach mounting ears to the side mounting holes of UPS using the screws provided and
the ears should face forward.
6-10KVA Rack-mount UPS User Manual Installation
11
Step3: Lift the UPS module and slide it into rack enclosure. Attach the UPS module to the rack
with screws, nuts and washers (user-provided) through its mounting ears and into the rack
rails.
NOTE：Reduce the risk of tipping the rack enclosure by placing the UPS or battery cabinet in
the lowest possible rack position.
5.2 Connect Input/Output Power Cables
1. Notes for installation
1) The UPS must be installed in a location with good ventilation, far away from water,
inflammable gas and corrosive agents.
2) Ensure the air vents on the front and rear of the UPS are not blocked. Allow at least
6-10KVA Rack-mount UPS User Manual Installation
12
0.5m of space on each side.
3) Condensation to water drops may occur if the UPS is unpacked in a very low
temperature environment. In this case it is necessary to wait until the UPS is fully
dried inside out before proceeding installation and use. Otherwise there are hazards
of electric shock.
2. Installation
Installation and wiring must be performed in accordance with the local electric code and the
following instructions by professional personnel.
For safety, please cut off the mains power switch before installation. Open the battery breaker
for long backup time model (“L” model).
1) Pull out the Distribution Box .then open the terminal block cover located on the left side
of the Removable Power Distribution Box factory-attached; please refer to the
appearance diagram.
2) For 6KVA UPS, it is recommended to select the UL1015 10AWG(6mm
2
) wire or other
insulated wire which complies with AWG Standard for the UPS input and output
wirings.
3) For 10KVA UPS, it is recommended to select the UL1015 8AWG(10mm
2
) wire or other
insulated wire which complies with AWG Standard for the UPS input and output
wirings.
NOTE：Do not use the wall receptacle as the input power source for the UPS, as its rated
current is less than the UPS’s maximum input current. Otherwise the receptacle may be burned
and destroyed. For the long backup time modes, make sure that the capacity of batteries is
larger than 24AH to avoid over charging.
4） Loosen the nuts from the thread plastic cable gland . Connect the input and output wires
to the corresponding input and output terminals through the nut and the thread plastic cable
gland according to the following diagram.
Tighten the nuts onto the thread plastic cable gland
by hand.
6-10KVA Rack-mount UPS User Manual Installation
13
Fig 8. Input and Output Terminal Block Wiring Diagram of distribution box for standard model
6-10KVA Rack-mount UPS User Manual Installation
14
Fig 9. Input and Output Terminal Block Wiring Diagram of distribution box for standard model
NOTE：You must make sure that the input and output wires and the input and output terminals
are connected tightly.
5) The protective earth ground wire refers to the wire connection between the equipment
which consumes electric equipment and the ground wire. The wire diameter of protective earth
ground wire should be at least as above mentioned for each model and green wire or green
wire with yellow ribbon wire is used.
6） After having completed the installation, make sure the wiring connection is correct.
7) Please install the output breaker between the output terminal and the load, and the
breaker should with leakage current protective function if necessary.
8) To connect the load with the UPS, please turn off all the loads first, then perform the
connection and finally turn on the loads one by one.
9) No matter the UPS is connected to the utility power or not, the output of the UPS may
have electricity. The parts inside the unit may still have hazardous voltage after turning off the
UPS. To make the UPS have no output, power off the UPS, and then disconnect the utility
6-10KVA Rack-mount UPS User Manual Installation
15
power supply.
10) Suggest charging the batteries for 8 hours before use. After connection, turn the input
breaker in the “ON” position, the UPS will charge the batteries automatically. You can also use
the UPS immediately without charging the batteries first, but the backup time may be less than
the standard value.
11) If it is necessary to connect the inductive load such as a monitor or a laser printer to the
UPS, the start-up power should be used for calculating the capacity of the UPS, as its start-up
power consumption is too big when it is started.
5.3 Operating procedure for connecting the long backup time model UPS with
the external battery
Fig 10. Battery terminal connection
1. The nominal DC voltage of external battery pack is 192VDC. Each battery pack
consists of 16 pieces of 12V maintenance free batteries in series. To achieve longer
backup time, it is possible to connect multi-battery packs, but the principle of “same
voltage, same type should be strictly followed.
2. The procedure of installing battery bank should be complied with strictly. Otherwise
you may encounter the hazardous of electric shock.
1) A DC breaker must be connected between the battery pack and the UPS. The
capacity of breaker must be not less than the data specified in the general
specification.
2) Set the battery pack breaker in “OFF” position and connect the 16 pieces of
batteries in series.
3) You must connect the external battery cable to the battery first, if you connect
the cable to the UPS first, you may encounter the hazardous of electric shock.
The positive pole of the battery is connected to the UPS with red wire; the
6-10KVA Rack-mount UPS User Manual Installation
16
negative pole of the battery is connected to the UPS with black wire; the green
and yellow ribbon wire is connected to the ground of the battery cabinet.
3. To complete the connection of the external battery cable into the UPS. Do not
attempt to connect any loads to the UPS now. You should connect the input power
wire to the right position first. And then set the breaker of the battery pack in the “ON”
position. After that, set the input breaker in the “ON” position. The UPS begins to
charge the battery packs at the time.
5.4 Parallel operation
1. Brief introduction
As long as the UPS is equipped with parallel cables, up to 3 UPSs can be connected
in parallel to realize output power sharing and power redundancy.
2. Parallel installation
1) Users need to opt two standard 15-pin communication cables which length is
appropriate to be less than 3m.
2) Strictly follow the stand-alone wiring requirement to perform the input wiring of
each UPS.
3) Connect the output wires of each UPS to an output breaker panel.
4) Each UPS need an independent battery pack.
5) Please refer to the wiring diagram in the next page, and opt suitable breaker.
■ The requirement of the output wiring is as follows:
● When the distance between the UPSs in parallel and the breaker panel is
less than 20 meters, the difference between the wires of input & output of the
UPSs is required to be less than 20%.
● When the distance between the UPSs in parallel and the breaker panel is
greater than 20 meters, the difference between the wires of input & output of
the UPSs is required to be less than 10%.
The wiring diagram are shown as follows:
6-10KVA Rack-mount UPS User Manual Installation
17
UPS2 input breaker
UPS1 input breaker
UPS2 output breaker
UPS1 output breaker
Fig.11 Wiring Diagram of 6KVA and 10KVA in parallel
3. Operation
1) To perform the general operation, follow the stand-alone operating requirement.
2) Startup: The units transfer to INV mode simultaneously as they start up sequentially
in Line mode.
3) Shutdown: the units shut down sequentially in INV mode. When the last one
6-10KVA Rack-mount UPS User Manual Installation
18
completes the shutdown action, each unit will shut down the inverter simultaneously
and transfer to Bypass mode.
It is easy to operate the equipment, with no previous training. You just need to read
through this manual and operate according to the instructions in it.
Rectifier/
PFC
Inverter
Bypass
Charger
UPS 1#
Rectifier/
PFC
Inverter
Bypass
Charger
UPS 2#
Utility Power Input
Load
Output 1# Output 2#
Parallel Communication
Cables
Fig 12 Parallel Installation Diagram
6-10KVA Rack-mount UPS User Manual Controls and Indicators
19
6. CONTROLS and INDICATORS
Fig.13 Display Panel
Description of Panel
Controls Description
ON/OFF
1.Press on/off to start inverter when rectifier is OK
NOTE
Not available when UPS is set in automatically start mode
2.Press on/off directly when there is no main input, press again
to start UPS
3. Press on/off to shutdown inverter when UPS is in normal
mode.
4.Press on/off to shutdown UPS completely when UPS is in
battery mode
HOME Back to main menu
Left and right
ENTER Press to choose
Indicators Description
STATUS UPS status: green--normal mode, red--UPS is abnormal
6-10KVA Rack-mount UPS User Manual Controls and Indicators
20
REC
Rectifier indicator: green--rectifier is normal, green
flicker--rectifier is starting, red--rectifier fault, red
flicker--rectifier alarm, dark—rectifier is not working
INV
Inverter indicator: green--inverter is normal, green
flicker--inverter is starting or tracking with bypass(ECO),
red—inverter fault and load is not on inverter, red
flicker—inverter fault and load is on inverter, dark—inverter is
not working
BYP
Bypass indicator: green—bypass is normal, dark—UPS is in
normal mode and bypass is normal, red—bypass fault, red
flicker—bypass alarm
BAT
Battery indicator: green—battery charge, green flicker—battery
discharge, dark—battery is connected, red—battery fault, red
flicker—battery alarm
OUTPUT Output indicator: green—output is normal, red—output alarm

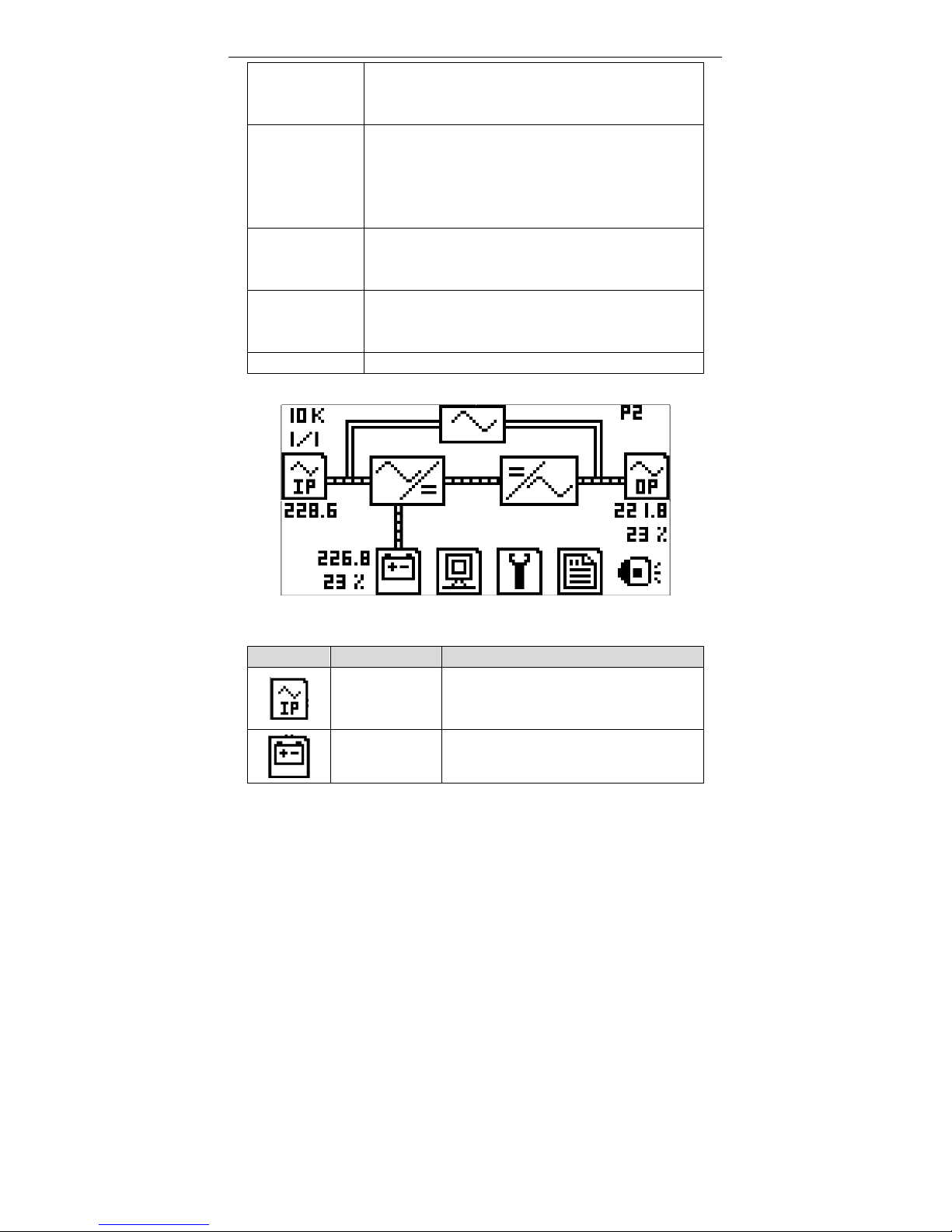

Fig 14. LCD Main Menu
Description of Main Menu
Display Function Submenu
Input information
Main input: voltage, current, frequency, PF
Bypass input:
Voltage, current, frequency, PF
Battery
information
Battery: voltage, discharge current, battery
status, battery temperature, capacity
6-10KVA Rack-mount UPS User Manual Controls and Indicators
21
Display Function Submenu
DCbus voltage
Output
information
Output information:
Voltage, current, frequency, PF
Load information:
Active power, apparent power, percent
Status of UPS
Alarms, S-code, firmware version, system
information
Set and function
Set: language, contrast, communication
set(SNT, Modbus), Modbus set
Function: function 1(transfer to bypass/escape,
fault clear, mute on/off), function 2(battery test,
maintenance test, stop test)
History log /
Rated capacity:
10KVA
1phase in/out: 1/1
/
Input voltage /
Battery voltage
and capacity
remained
/
Output voltage
and load percent
/
System working
mode
S--single mode, E--ECO mode, P-parallel
mode, 2-the unit ID is 2 in system, the units ID
in parallel system should be different
Mute on, mute off
6-10KVA Rack-mount UPS User Manual Operation
22
7. OPERATION
7.1 Operation Mode
1. Turn on the UPS in normal mode
1) After you make sure that the power supply connection is correct, and then close the
battery breaker (this step only for long backup time model), after that close the input
breaker. At this time the fans rotate and the UPS operates in Bypass mode.
2) After REC led is ready green, pressing the ON/OFF button continuously for more
than 1 second, then choose YES to enter, the INV green led flickers.
NOTE:In some application, UPS is set to start automatically, this step is not need.
3) About 1 minute later, the UPS turn into normal Line mode. If the utility power is
abnormal, the UPS will operate in Battery mode without output interruption of the
UPS.
2. Turn on the UPS from battery without utility power
1) After you make sure that the breaker of the battery pack is in the “ON” position (this
step only for long backup time model).
2) Press the ON/OFF button once to power on the LCD, then press ON/OFF button
again, choose YES to enter.
3) A few seconds later, the UPS turns into Battery mode.
3. Turn off the UPS in normal mode
1) Press ON/OFF button in condition of normal mode, then choose YES to transfer to
bypass.
2) Open the input breaker to turn off utility power supply, then open the battery breaker
to turn off UPS completely.
4. Turn off the UPS in Battery mode
1) To power off the UPS by pressing the ON/OFF button continuously for more than 1
second, then choose YES.
2) When being powered off, the UPS will turn into No Output mode. Finally not any
display is shown on the display panel and no voltage is available from the UPS
output.
NOTE：Please turn off the connected loads before turning on the UPS and turn on the loads
one by one after the UPS is working in INV mode. Turn off all of the connected loads before
turning off the UPS.
7.2 Parallel Operation
1. Parallel Machine Maintenance
6-10KVA Rack-mount UPS User Manual Operation
23
This UPS system has parallel machine function, if you want to add single machine to
parallel system, please follow operational process of joining new machine; if you must
remove UPS, please follow operational processes of removing parallel machine.
2. How to install a new parallel UPS system:
1) Before installing a new parallel UPS system, user need to prepare the input and
output wires, the output breaker, and the parallel cables.
2) Open the input and output breakers of each UPS. Connect the input wires, output
wires and battery wires.
3) Connect each UPS one by one with the parallel cables.
4) Close the battery breakers and the input breakers of all of the UPSs in the parallel
system in turn.
5) Turn on each UPS in turn and observe their display. Make sure that each UPS
displays normal and all the UPSs transfer to the INV mode normally.
3. How to remove a single UPS from the parallel system:
1) If you need to remove one UPS of the UPSs parallel system which is on normal
running, press the ON/OFF button of the UPS that is confirmed to be removed
continuously and the UPS will cut off its output immediately.
2) Turn the input breaker off, the external mains input breaker, the output breaker and
the battery breaker.
3) Press the others UPSs’s ON/OFF button. All of them transfer to the Bypass mode.
4) Remove the parallel cables of the UPS that need to be removed.
5) Press ON/OFF button of remained UPSs, then press YES to make the UPSs transfer
to INV output.
7.3 Maintenance Bypass
Maintenance Bypass Mode is used when maintenance or replacement is required. The static
transfer switch will perform a transfer of the load from the inverter to the maintenance bypass
source, with no interruption in power to the critical AC load.
NOTE: When the UPS occurs faulty and cannot work in normal, the user could contact with the
nearest office or customer service center, or the head quarter of the company, do not attempt to
repair the UPS by the user, otherwise may cause dangerous and breakdown the UPS.
1. Place the UPS in maintenance bypass mode from inverter mode：
When the UPS is in inverter mode, please place the UPS on internal bypass，make sure that
the inverter is synchronous with it, so as not to risk a short interruption in powering the load.
● Press “ON/OFF” key, choose ‘’off’’ to turn off the inverter, the inverter status indicator go
off, the buzzer alarms. The load will be transferred to internal bypass. Press
could mute
6-10KVA Rack-mount UPS User Manual Operation
24
the alarm, but the alarm message is still indicating on the LCD display to exist until the warning
eliminate.
● Move the manual bypass breaker on the rear of the UPS to the bypass position. This
requires loosening the captive screw and sliding the bracket up and away from the manual
bypass breaker. The loading supply will be provided by the maintenance bypass.
● Turn the input circuit breaker off. Please operate it very carefully. Make sure the manual
bypass breaker is still on until all the operation ends.
● Turn the battery circuit break of the external battery cabinet off and remove the battery
connection cable for the long backup model.
● Loosen the screws between the box and UPS, Then remove the power distribution box
from the UPS and set it aside, the long backup UPS will shut down at once. For the standard
UPS, Turn off the UPS in battery mode.
There is no display on LCD, only the input and output terminals in the power distribution
box attached
under power, please operate it very carefully when dismount the UPS.
NOTE: If it is required to maintain the UPS, after remove the power distribution box and battery
connection cable, please wait about 10 minutes in order that the BUS capacitor voltage in the
internal automatically discharges.
2. Place the UPS in inverter mode from maintenance bypass mode：
When finish maintenance of the UPS, please use the following steps to switch the load
supplying from maintenance bypass to inverter.
NOTE: because it does not have the maintenance circuit breaker secondary contact to insert
the message into the UPS, the recovering operation of the UPS must strictly follow the
operation procedure, otherwise may cause the damage of the system.
● Align connectors and press box onto UPS. Hold box firmly against UPS. Tighten the
screws between the box and UPS.
● Insert the battery connection cable to the right position of the UPS. Turn the battery
circuit breaker of the battery cabinet on.
● Turn the input circuit breaker of the distribution box on.
● When UPS is working in bypass mode, Turn the manual bypass breaker off. Tighten the
bracket over the manual bypass breaker with captive screws.
● Press “ON/OFF”, choose ‘’on’’ to open the inverter, UPS switch to the inverter mode.
NOTE: before you start the inverter, you must be sure that you have turned the manual bypass
breaker off, otherwise may cause dangerous and breakdown the UPS.
6-10KVA Rack-mount UPS User Manual Battery Maintenance
25
8. BATTERY MAINTENANCE
The UPS only requires minimal maintenance. The batteries used for standard models are value
regulated, sealed lead-acid, maintenance free battery. When being connected to the utility
power, whether the UPS is turned on or not, the UPS keeps charging the batteries and also
offers the protective function of overcharging and over-discharging.
zThe UPS should be charged once every 4 to 6 months if it has not been used for a long
time.
zIn the regions of hot climates, the battery should be charged and discharged every 2
months. The standard charging time should be at least 12 hours.
zUnder normal conditions, the battery life lasts 3 to 5 years. In case if the battery is found
in bad condition, earlier replacement should be made.
zBattery replacement should be performed by qualified personnel.
zReplace batteries with the same number and same type of batteries.
zDo not replace the battery individually. All the batteries should be replaced at the same
time following the instructions of the battery supplier.
6-10KVA Rack-mount UPS User Manual Battery Disposal and Replacement Procedures
26
9. NOTES FOR BATTERY DISPASAL AND REPLACEMENT
PROCEDURES
9.1 Battery Disposal
1) Before disposing of batteries, remove jewelry, watches and other metal objects.
2) Use rubber gloves and boots, use tools with insulated handles.
3) If it is necessary to replace any connection cables, please purchase the original
materials from the authorized distributors or service centers, so as to avoid overheat
or spark resulting in fire due to insufficient capacity.
4) Do not dispose of batteries or battery packs in a fire. The batteries may explode.
5) Do not open or mutilate batteries, released electrolyte is highly poisonous and
harmful to the skin and eyes.
6) Do not short the positive and negative of the battery electrode, otherwise, it may
result in electric shock or fire.
7) Make sure that there is no voltage before touching the batteries. The battery circuit is
not isolated from the input potential circuit. There may be hazardous voltage
between the battery terminals and the ground.
8) Even though the input breaker is disconnected, the components inside the UPS are
still connected with the batteries, and there are potential hazardous voltages.
Therefore, before any maintenance and repairs work is carried out, switch off the
breaker of the battery pack or disconnect the jumper wire of connecting between the
batteries.
9) Batteries contain hazardous voltage and current. Battery maintenance such as the
battery replacement must be carried out by qualified personnel who are
knowledgeable about batteries. No other persons should handle the batteries.
9.2 External Battery Replacement Procedures
1) Press ON/OFF button to transfer to bypass mode
2) Switch the maintenance switch from UPS to Manual BYP
3) Turn the battery circuit break of the external battery cabinet off
4) Remove the top cover from the battery module
5) Disconnect the battery wires one by one.
6) Remove metal bars which are used to fasten batteries.
7) Replace batteries one by one.
8) Screw metal bars back to UPS.
9) Connect the battery wires one by one. Take care of electrical shock while
connecting the last wire.
6-10KVA Rack-mount UPS User Manual Battery Disposal and Replacement Procedures
27
9.3 Internal Battery Pack Replacement Procedures
The standard model UPS is designed to allow the user to replace the internal battery pack
safely. Read the safety cautions before proceeding. Contact your local dealer or representative
or customer service center or the head quarter of the company to obtain the replacement
battery pack.
1) Press ON/OFF button to transfer to bypass mode.
2) Switch the maintenance switch from UPS to Manual BYP.
3) Remove the front cover and battery access door from the UPS for reassembly.
4) Gently disconnect the battery plugs and battery receptacles.
5) Pull the internal battery packs out of the UPS.
6) Line up and slide in the new replacement internal battery packs.
7) Gently push the battery wire into the UPS battery compartment.
8) Reconnect the battery plugs and battery receptacles.
9) Reattach the front battery door with the six screws.
10) Reattach the front cover to the UPS.
NOTE:
The internal battery pack is hot-swappable. However, caution should be exercised
because the load is unprotected from disturbances and power failures during this procedure.
Do not replace the battery while the UPS is operating in Battery Mode. This will result in a loss
of output power and will drop the connected load.
6-10KVA Rack-mount UPS User Manual Trouble shooting
28
10. TROUBIE SHOOTING
This section describes checking the UPS’s status. This section also indicates various UPS
symptoms a user may encounter and provides a troubleshooting guide in the event the UPS
develops a problem. Use the following information to determine whether external factors
caused the problem and how to remedy the situation.
10.1 Checking UPS status
It recommended that checking the UPS operation status every six months.
z Check whether the UPS is faulty: check if the Fault Indicator on or sounding an
alarm.
z Check whether the UPS is operating in Bypass mode. Normally, the UPS operates
in Normal Mode. If it is operating in Bypass Mode, stop and contact your local
representative, or Channel Support.
z Check whether the battery is discharging. When the utility input is normal, the
battery should not discharge. If the UPS is operating in Battery Mode, stop and
contact your local representative, or Channel Support.
10.2 Adjust the factors caused the problem
When the fault indicator is on, Press button to get S-code. So,S1 indicates status
and A0-A5 indicates the exact fault of UPS, S-code list is shown as follow:
Description of S-Code
Seq. Items 0 1 Solution
1
A0
1
Synchronous
Fault
Sync
Not
sync.
Check whether bypass
voltage/frequency is normal
2 2 Main Input Fault OK Fault Check whether input is normal
3 3 REC Fault OK Fault
REC over temperature, bus
over voltage, input current
unbalance, soft start fail
4 4 INV Fault OK Fault
INV over temperature, INV
IGBT broken, INV relay fault
5 5 Reserved
6 6 Reserved
7 7 Reserved
8 8 Reserved
9 9 Reserved
6-10KVA Rack-mount UPS User Manual Trouble shooting
29
Seq. Items 0 1 Solution
10 10 Reserved
11 11 Reserved
12 12 Reserved
13 13
Input phase A
over current
OK Fault
Check if rectifier IGBT is
broken, DC bus is shorted, or
IGBT drivers are lost, input
voltage display is wrong
14 14
Input phase B
over current
OK Fault
15 15
Input phase C
over current
OK Fault
16 16
Output voltage
Fault
OK Fault
Check if inverter IGBT is
broken, IGBT drivers are lost
17
A1
1 Reserved
18 2 Reserved
19 3 Reserved
20 4 Reserved
21 5 Reserved
22 6 Reserved
23 7 Reserved
24 8 Reserved
25 9
Input voltage
Fault
OK Fault Input voltage out of range
26 10
Input Frequency
Fault
OK Fault Input frequency out of range
27 11
Input Sequence
Fault
OK Fault
Input sequence is wrong, check
whether input wires connection
is ok.
28 12
REC soft-start
Fault
OK Fault
Check whether rectifier SCR is
broken, or SCR drivers are lost.
29 13 Reserved
30 14 Reserved
31 15
REC over
temperature
OK Fault
Check if the environmental
temperature is over 40, if
rectifier IGBTs is properly
6-10KVA Rack-mount UPS User Manual Trouble shooting
30
Seq. Items 0 1 Solution
installed.
32 16
Positive bus over
voltage
OK Fault UPS requires service
33
A2
1
Negative bus over
voltage
OK Fault UPS requires service
34 2 Fan Fault OK Fault At least one of fans fail.
35 3 Reserved
36 4 Reserved
37 5
Positive bus
under voltage
OK Fault UPS requires service
38 6
Negative bus
under voltage
OK Fault UPS requires service
39 7 Battery reversed OK Fault
Check if the battery wires
connection is OK
40 8 Reserved
41 9 Reserved
42 10 Reserved
43 11 Reserved
44 12 Reserved
45 13
Battery over
temperature
OK Fault
Check if environmental temp is
too high or batteries life is over
46 14 Reserved
47 15 Reserved
48 16 Reserved
49
A3
1
Battery voltage
low
OK Fault
50 2 Reserved
51 3 Battery EOD OK Fault
52 4 Reserved
53 5 Reserved
54 6 Reserved
55 7 BYP voltage Fault OK Fault
Check if bypass input voltage is
normal
6-10KVA Rack-mount UPS User Manual Trouble shooting
31
Seq. Items 0 1 Solution
56 8
Bypass SCR or
relay fault
OK Fault UPS requires service.
57 9 Reserved
58 10 Reserved
59 11
BYP frequency
over track range
OK Fault
Check if bypass input
frequency is abnormal
60 12 Reserved
61 13 Reserved
62 14
Over load time
out
OK Fault
63 15 Reserved
64 16 Reserved
65
A4
1 Manual shutdown normal
shutdo
wn
66 2 INV protect OK Fault
67 3
Transfer times
limit in one hour
OK Fault
Transfer times between
inverter and bypass is over 5
times in one hour
68 4 Reserved
69 5 Reserved
70 6 Reserved
71 7 Reserved
72 8
INV over
temperature Fault
OK Fault
Check if environmental temp is
over 40°C, or fans are
abnormal
73 9 Reserved
74 10 Reserved
75 11 Over load OK
Over
load
Check load level indicator and
remove non-essential load.
Recalculate the load and
remove number of loads
connected to UPS.
76 12 INV relay or fuse OK Fault Check if inverter relay is
6-10KVA Rack-mount UPS User Manual Trouble shooting
32
Seq. Items 0 1 Solution
Fault shorted or opened.
77 13 Reserved
78 14
Parallel
connection fault
OK Fault
Check whether parallel
connection cable disconnect.
79 15 Reserved
80 16 Reserved
81
A5
1 Reserved
82 2 Output shorted OK Fault
Shutdown UPS and open
output breaker, check if load is
effective or short internally,
check if output connector is
shorted.
83 3 Battery test None OK 2--Fault
84 4
Battery
maintenance
None OK 2--Fault
85 5 Reserved
86 6 Reserved
87 7 Reserved
88 8 Reserved
89 9 Reserved
90 10 Reserved
91 11 Reserved
92 12 Reserved
93 13 Reserved
94 14 Reserved
95 15 Reserved
96 16 Reserved
6-10KVA Rack-mount UPS User Manual Annex A. Intelligent Slot
33
Annex A. Intelligent Slot
There are two types of intelligent slot for option: DB9, phoenix terminator.
Max output current for intelligent slot is 1A.
The functions of intelligent slot are listed as fig.15:
DB9
2
6
1
7
8
4
9
3
5
Phoenix terminator
Fig.15 User wiring diagram of intelligent slot
Description of intelligent slot:
Pin NO. Function Description
1 UPS fail Low voltage if something is failure in UPS. If not, high voltage
2 General alarm Low voltage if something is abnormal. If not, high voltage
3 GND /
4 Remote shutdown UPS shutdowns rectifier and inverter if utility is normal. UPS
shutdowns completely if in battery mode. Close switch to
activate.
5 Power supply 12VDC~24VDC
6 Bypass mode High voltage if UPS works in bypass mode. If not, low voltage
7 Battery low Low voltage if battery voltage is low. If not, high voltage
8 Normal mode High voltage if UPS works in normal mode. If not, low voltage
9 Utility fail Low voltage if utility is failure. If not, high voltage.
6-10KVA Rack-mount UPS User Manual Annex B EPO
34
Annex B. EPO
EPO (emergency power off) is function to shutdown UPS completely at emergency condition.
This function can be activated through a remote contact provided by the user. It requires
opening NO and +24V at normal operation. EPO is activated when shorting NO and +24V.
Description of Input Port for Remote EPO
Position Name Purpose
P1
＋
24V +24V, connect the common terminal of NC and NO
P2 EPO_NO EPO is activated when shorting with +24V
Loading...
