Mission Oak Corner Mantel Height
Bookcase with Drawer
1

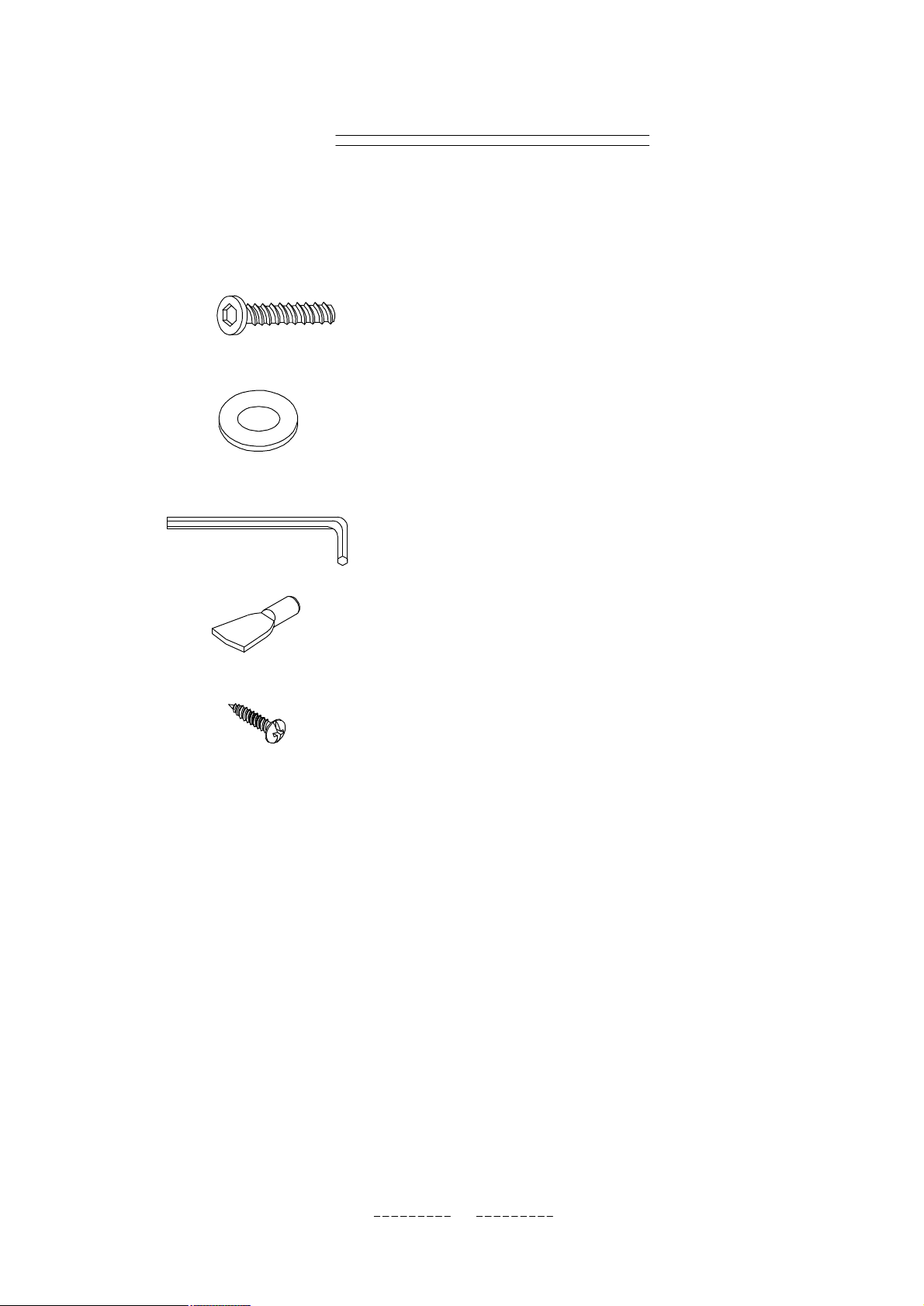

Hardware List
a
b
d
Item
Description
Bolt
1/4"x1-1/8"
Flat Washer
1/4"x16mm
Allen Wrench
Shelf Metal Clip
Qty
8PCS
8PCS
1PCc
8PCS
e
Black Screw
2PCS
2
Parts List
A
B
C
D
DescriptionItem
Top
Left Front Frame
Right Front Frame
Left Back Panel
Qty
1PC
1PC
1PC
1PC
E
F
G
H
Right Back Panel
Back Panel
Shelf Panel
Bottom Panel
1PC
1PC
2PCS
1PC
3
Assembly Instructions
Two person assembly recommended.
step 1
Insert left back panel (D) into left front frame (B)
as per following sketch, push the left back
panel down until flush to make it tight. Do the
same assembly step on right back panel (E)
and right front frame (C).
step 2
Place left side frame (D & B) upside down onto
top assembly. Make sure the wooden dowels on
left side frame go into the top holes first. Fasten
the side frame and top with bolts when the front
side frame rail is flush with drawer front.
step 3
Open the back panel (F) and insert it into left
side frame groove, place the right side frame
on the top and the groove into the back panel.
Tighten the bolts when the front side frame rail
is flush with drawer front.
step 4
Place the bottom shelf (H) inside and make sure
the back panel goes into the bottom shelf groove.
Fasten the bottom shelf with four bolts, tighten all
bolts when the shelf front rail is flush with the side
frames.
4
Assembly Instructions
Two person assembly recommended.
step 5
Place the bookcase right side up and fasten the back panel with two screws.
step 6
Insert shelf supports and place shelves on shelf suports when the front sticker on the bottom of
shelf towards to outside. Fasten the anti-tipping hardware onto pre-drilled holes of back panel.
d
5
