ASSEMBLY AND INSTALLATION
INSTRUCTIONS
TO AVOID RISK OF ELECTRICAL SHOCK, BE SURE TO SHUT OFF
WARNING:
NOTES: 1. Before installing, consult local electrical codes for wiring and grounding requirements.
2. Read and save these instructions.
Important to Know
1. Read all instructions carefully before installation and operation.
2. If you are not familiar with state and local electrical codes, it is recommended that you consult with a qualified
electrician.
3. Do not use in wet locations, use indoors only.
4. Non-replaceable LEDs.
5. LEDs emit bright light. Avoid looking directly into the light source for prolonged periods to avoid eye damage.
POWER BEFORE INSTALLING OR SERVICING THIS FIXTURE.
6. This fixture is dimmable with a forward phase electronic dimmer. Dimmers tested to be compatible with this fixture
are the Lutron: S-600P, DVCL-153P, CTCL-153P. If you are unfamiliar with electrical installation,
it is recommended to use a qualified electrician for your installation(s).

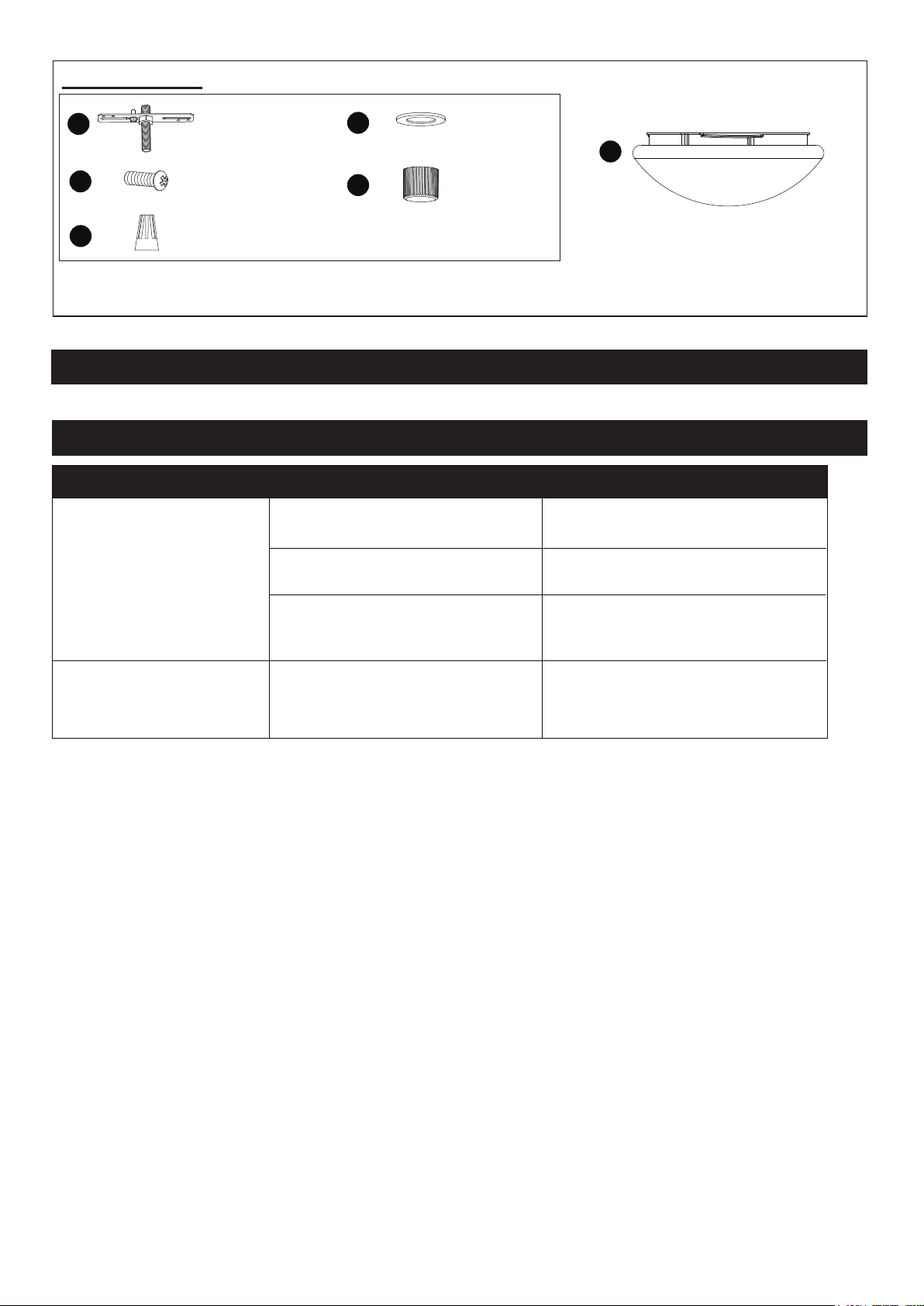

HARDWARE CONTENTS Note: Hardware not shown actual size.
AA
BB
Mounting Unit
X1
Mounting Screw
X2
DD
EE
Rubber Pad
X1
End Cap
X1
CC
Wire Connector
X3
Page1 of 3
SAFETY INFORMATION
Please read and understand this entire manual before attempting to assemble, operate or install the product.
WARNING
Turn off electricity at main fuse box (or circuit breaker box) before beginning installation by removing fuse (or switching
•
off circuit breaker).
• Be careful not to damage or cut the wire insulation (covering) during fixture installation. Do not permit wires to contact
any surface having a sharp edge. To do so may damage or cut the wire insulation, which could cause serious injury or
death from electric shock.
• LED electronics can be damaged by electro static discharge (ESD)shock. Before installation, discharge yourself
by touching a grounded bare metal surface to remove this hazard. To avoid damage, do not touch the LED module.
CAUTION
• All electrical connections must be in agreement with local codes, ordinances or the national electric code (NEC).
Contact your municipal building department to learn about your local codes, permits and/or inspections.
• Risk of fire – most dwellings built before 1985 have supply wire rated for 140°F/60ºC. Consult a qualified electrician
before installation.
PREPARATION
Before beginning assembly, installation or operation of product, make sure all parts are present. Compare parts with
package contents list and diagram on previous page. If any part is missing or damaged, do not attempt to assemble,
install or operate the product. Contact customer service for replacement parts.
Tools Required for Assembly (not included): Screwdriver, Phillips Screwdriver, Pliers, Electrical Tape, Wire Cutters,
Safety Glasses, Ladder, Wire stripper.
ASSEMBLY INSTRUCTIONS
Turn off the power at fuse or circuit box.
1. Attach mounting unit(AA) to outlet
1
box by using two mounting
screws(BB).
Note: The depth of threaded
pipe on the mounting unit may
need to be adjusted to properly
fit the fixture.
2. Connect fixture black wire to house
black wire and fixture white wire to
house white wire using wire
connectors(CC) provided. Connect
2
AA
CC
the copper wire or green/yellow wire
on the light fixture to the mounting
unit(AA) by securing it with the preinstalled
grounding screw, and then connect it to the
house grounding wire with wire connectors(CC).
Tuck all the wires into outlet box.
3. Attach the ceiling pan (A) to the
mounting unit (AA) by inserting
preinstalled threaded pipe into
the center hole of the ceiling
AA
pan(A), and then secure it with
rubber pad (DD) and the end
BB
cap (EE).
4. Attach the plastic shade (B) to the
ceiling pan (A) by aligning studs
and slots, and turn it clockwise
until it is locked in place.
Turn on the power at fuse or circuit box.
3
AA
DD
4
EE
Slot
A
A
Stud
B
Page 2 of 3
The following parts are available for re-order if damaged or missing.
Spare Parts List:
AA
BB
CC
ASSEMBLY INSTRUCTIONS (continued)
ASSEMBLY INSTRUCTIONS (continued)
CARE AND MAINTENANCE
Mounting Unit
X1
Mounting Screw
X2
Wire Connector
X3
Assembly Kit (1 SET)
DD
EE
• To clean, turn off and wipe with a damp, non-abrasive cloth.
TROUBLESHOOTING
PROBLEM
The fixture will not light
POSSIBLE CAUSE CORRECTIVE ACTION
The power is off
The circuit breaker is off
There is a bad connection
Rubber Pad
X1
B
End Cap
X1
Plastic Shade
Check to ensure the power
supply is on
Check to ensure the circuit
breaker is in the on position
Check to ensure proper wire
connections are made. Contact a
qualified electrician
The fuse blows or circuit
breaker tips when the light
is turn on
If unable to fix any of the above issues, please consult a certified electrician.
The wires are crossed or the power
wire is grounding out
Check to ensure proper wire
connections are made. Contact a
qualified electrician
5-YEAR LIMITED WARRANTY:
All products are warranted to be free of defects in material and workmanship for five (5) years from date of purchase.
This warranty is limited to the correction of any such defect, or the replacement of any such defective item(s), provided
that: (a) we are properly notified and consent to return of the item(s) in question:(b) the item (s) is / are returned with
proof of purchase date; and (c) it is found upon inspection by us that the item (s) is / are defective as noted above. This
warranty dose not cover labor costs, consequential damages, nor dose it apply to any item(s) that have been improperly
installed, overloaded, altered, or otherwise abused by the customer, its agent(s) or emplyee(s). Finishes are specially
excluded from the terms of this warranty since they are subject to environmental maintenance deemed beyond our
control. Other than the described obligation, we assume no further liability with respect to the sale or use of our products.
We make no warranty, express or implied, and disclaim any warranty of merchantability or fitness for a particular purpose.
Page 3 of 3
