The original XEED SX50 took the projector world by storm
with its breakthrough resolution, brightness and contrast
… and its breakthrough size. XEED has now evolved into
a complete range – with a projector to suit every application
and every display environment.
• CONFERENCE VENUES
• EXHIBITION CENTRES
• BOARDROOMS AND MEETING FACILITIES
• PHOTOGRAPHY PROFESSIONALS
• GRAPHIC DESIGN INDUSTRY
• LARGE-SCALE PUBLIC DISPLAYS
• ENTERTAINMENT, NIGHTLIFE AND EVENTS INDUSTRY
• THEATRE AND SPECIAL EFFECTS
SEAMLESS LCOS IMAGES
The distance between pixels in conventional LCD projectors results in images
appearing as if covered in a fine mesh. With virtually no gaps between pixels
in LCOS projectors, images produced are beautifully faithful and silky-smooth.
And with LCOS panels, moving images are smooth and flicker-free.
READ THE FINE PRINT
Professional presentations demand
professional levels of fine detail, which
is why the XEED SX6, XEED SX60 and
XEED SX50 boast SXGA+ resolution.
These projectors clearly display highly
detailed images, such as CAD drawings,
graphic designs, technical data and
medical images.
1. LCD technology
2. XEED LCOS technology
2
WORLD FIRST
For powerful presentations with
high quality, seamless images,
the XEED X600 provides a world first:
LCOS projection with XGA resolution
… and an XGA price tag.
The evolution of XEED.
1
Page 3
Revolutionary
optical technology.
Project the future.
STUNNING BRIGHTNESS
With AISYS, the light path is optimised to prevent lamp light loss and
provide ultra-powerful brightness. The XEED SX60 and XEED SX50 deliver
2500 lumens brightness – more than enough power to project clearly,
even in well-lit environments. The XEED SX6 and XEED X600 achieve a stunning
3500 lumens – perfect for projection in all conditions, even large venues.
OUTSTANDING CONTRAST
A drawback of traditional LCOS technology is its tendency to produce low contrast
results. Supremely efficient AISYS technology allows XEED projectors to deliver an
incredible 1000:1 contrast ratio for rich colours and true blacks. In Home Cinema
Mode,the XEED SX60 boosts contrast to an outstanding 2000:1 ratio, yielding
incredibly vibrant colours and deep, inky blacks – perfect for viewing movies in
darkened rooms.
COMPACT AND LIGHTWEIGHT
Canon’s advanced AISYS technology dramatically reduces the focal length required
within the optics of XEED projectors, allowing them to be significantly more compact
than traditional LCOS models, and therefore lighter. The original XEED SX50 remains
the most compact LCOS projector on the market today.
THE FUTURE IS HD
With High Definition television broadcasts set to
take off across Europe, XEED projectors are at the
ready to display HD images. The SXGA+ resolution
of the XEED SX6, XEED SX60 and XEED SX50 means
that these projectors can faithfully reproduce both
720p and 1080i High Definition images.
PROFESSIONAL COLOUR ACCURACY
Designers and photographers can be certain that their
colours are reproduced entirely accurately with the
XEED SX6, which supports the Adobe RGB colour space.
Overcoming the drawbacks of traditional LCOS projectors,
which compromised brightness, contrast and size, Canon’s
pioneering AISYS (Aspectual Illumination System) technology
allows the compact XEED range to set new projection standards.
KEEP IT QUIET
Advanced AISYS technology is more
efficient, so less cooling is required,
meaning that distracting fan noise is
reduced. In Quiet Mode the XEED SX60
is virtually silent at a mere 27dBA, while
the XEED SX6 and XEED X600 offer
a Quiet Mode running at just 31dBA.
20
dB(A)
30
dB(A)
40
dB(A)
50
dB(A)
Clock ticking
Human whisper
Birdsong
Air conditioning
27dB(A)
XEED SX60
31dB(A)
XEED SX6
XEED X600
Noise level of common sounds
Page 4
FLEXIBLE AND POWERED
Each XEED projector is equipped with
a 1.7x zoom lens, allowing for flexible
projector placement. The wide angle of
the lens permits large image projection,
even in small spaces. The models feature
Canon motorised zoom lenses, which
can be operated via the remote control.
AUTOMATIC INTELLIGENCE
A host of key functions are now
automated in the XEED SX6, XEED SX60
and XEED X600, making set-up and
operation a breeze.
With Auto Focus, the projector
automatically sets its focus to the
optimum position, taking into account
throw distance and projection angle.
Keystone Correction in the vertical axis
is automatic, rectifying distortion up to
+/- 20 degrees.
Auto Screen Colour Correction
automatically compensates for the
colour of the projection surface to
to effortlessly deliver a perfect image
with natural-looking colours.
Auto Input selection means the projector
detects the active input terminal and
configures itself accordingly.
Frame Lock is also automatic, ensuring
correct synchronisation when using
a computer to display fast animation.
Making life easy.
Thanks to advances in technology, the new XEED projectors
are easier to use than ever, with greatly enhanced automatic
features. You won’t need a degree in computer science to get
your presentations or movies working just the way you want
them – the projectors do all the thinking for you.

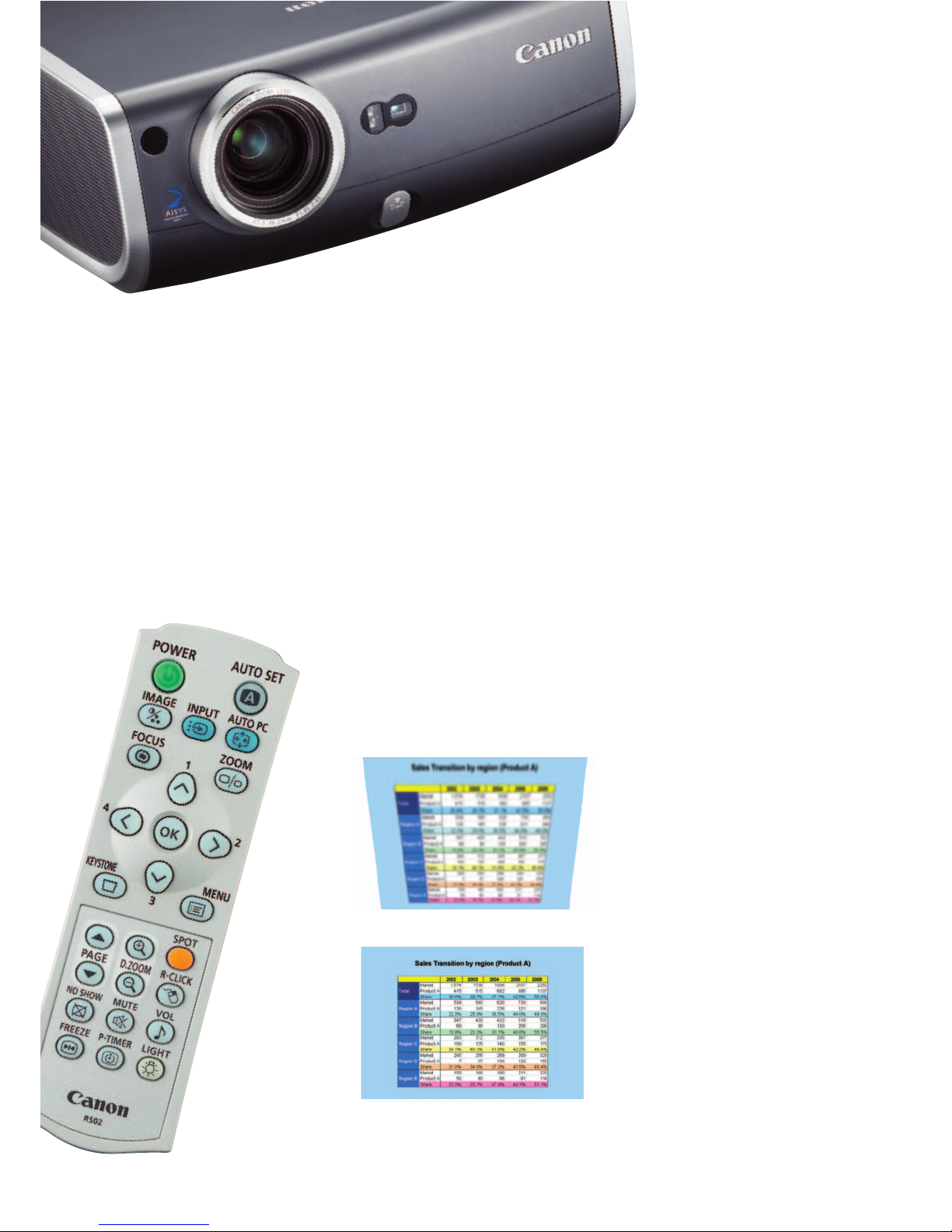

Without Auto Focus and Keystone Correction
Focus and Keystone are adjusted
automatically, in a matter of seconds
Page 5
OPTIONAL ACCESSORIES
With XEED’s advanced connectivity it’s easy to connect and project.
Remote
Control
Soft Case
DVI-I Computer
Connection Cable
Component
Video Cable
AC Mains
Power Cable
USB Cable
The advanced connectivity available with XEED
projectors means you can easily connect and project
images from just about any source you might
think of – whether it’s a laptop computer, DVD player,
satellite television decoder, digital camcorder or even
the latest games console. The DVI terminal ensures
that image signals from digital sources – including the
Complete Connectivity.
Canon’s genuine projector accessories include a remote
control unit and various input and output cables for
connection to different Audio-Visual devices or for use
with the wireless mouse function. An optional ceiling
mounting bracket is also available for more permanent
projector installation, and an optional network adapter
allows control and monitoring of your projector
from the convenience of your computer desktop.
Accessories.
VIDEO INPUT AND OUTPUT
1. DVI-I 29-pin
Digital RGB / Digital Video /
Analogue RGB Input 1
2. Mini D-sub 15-pin
Analogue RGB Input 2
(Component / SCART via adapter cable)
3. Mini D-sub 15-pin
Analogue RGB (Monitor) Output
4. Min-DIN 4-pin
S-Video Input
5. RCA x 1
Composite Video Input
AUDIO INPUT
6. 3.5mm
2
mini-jack
Stereo Audio Input
PROJECTOR CONTROL
7.USB Type B
Mouse Control
8. Mini-DIN 8-pin
Service Port
INBOX ACCESSORIES
latest High-Definition equipment – are reproduced
perfectly. The XEED SX6, XEED SX60 and XEED X600
support the HDCP standard, so encrypted material
can be viewed. The dedicated RGB output makes
presenters’ lives easier by allowing an external
prompt monitor to be connected to the projector.
1
2 3
85 46 7
SCART Cable
Replacement Lamp Ceiling Attachment
Page 6
As the flagship model, the XEED SX6
is the ultimate projector for maximum
quality, high impact presentations.
LCOS technology combines with SXGA+
resolution and Canon’s unique AISYS
optical system to provide detailed,
seamless projection with an incredible
brightness of 3,500 lumens.
• Astounding detail, with native SXGA+
resolution and full HD compatibility
• Ultra-bright images with Canon’s superior
AISYS optical system and 3,500 lumens
• Seamless high-definition images and
clean video performance with LCOS
display technology
• High 1000:1 contrast ratio for vivid
images and deep colours
• Near-silent operation, just 31dBA in
Quiet Mode
• Flexible projector placement with
wide angle 1.7x powered zoom lens
• Auto Focus and Auto Input Selection
• Automatic Keystone Correction ensures
image edges stay parallel
• Auto Screen Colour Correction for natural
image colours when projecting onto
coloured surfaces
• HDCP-enabled DVI-I port for pin-sharp
images from digital sources, including
encrypted content
The XEED SX60 delivers bright, high contrast projection for crystal clear presentations and video
playback. With SXGA+ resolution, near-silent operation and a dedicated Home Cinema mode,
it will appeal to business users and movie enthusiasts alike.
• Incredible detail with native SXGA+
resolution and full HD compatibility
• Bright images with Canon’s superior
AISYS optical system and 2,500 lumens
• Seamless high-definition images
and clean video performance with
LCOS technology
• High 1000:1 contrast ratio for vivid
images (increasing to 2000:1 in
Home Cinema mode)
• Virtually silent operation, just 27dBA in
Quiet Mode
• Flexible projector placement with
wide angle 1.7x powered zoom lens
• Auto Focus, Auto Input Selection
and Auto Keystone Correction
• Auto Screen Colour Correction for natural
image colours when projecting onto
coloured surfaces
• HDCP-enabled DVI-I port for pin-sharp
images from digital sources, including
encrypted content
Page 7
In a triumph of miniaturisation, Canon’s
engineers developed the world’s first truly
portable SXGA+ resolution projector. With
a compact form rivalling that of many XGA
projectors, the XEED SX50 represents
a breakthrough in modern business
presentations.
• Incredible detail with SXGA+ resolution
(1400 x 1050 pixels)
• Bright, high-contrast images from
Canon’s unique AISYS optical system,
yielding 2,500 lumens
• Seamless high-definition images
and clean video performance with
LCOS technology
• High 1000:1 contrast ratio for
vivid images
• Low operating noise, 34dBA in
Quiet Mode
• Wide angle lens for large images even
in small rooms
• Flexible projector placement with
1.7x zoom
• Vertical and Horizontal Keystone Correction
ensures that image edges stay parallel,
regardless of projector placement
• Connects to DVD and HD sources,
with DVI-I port and RGB out for
external monitor connection
• World’s smallest and lightest LCOS
projector, weighing just 3.9 kilograms
As the world’s first projector to feature
the astounding clarity of LCOS technology
combined with XGA resolution, the
XEED X600 projects superior quality,
high-brightness images from a
petite frame.
• Superb detail and seamless images with
LCOS technology and XGA resolution
• Ultra-bright images with Canon’s superior
AISYS optical system and 3,500 lumens
• High 1000:1 contrast ratio for
vivid images
• Near-silent operation, just 31dBA in
Quiet Mode
• Flexible projector placement with
wide angle 1.7x powered zoom lens
• Auto Focus and Auto Input Selection
• Automatic Keystone Correction ensures
image edges stay parallel
• Auto Screen Colour Correction for
natural colours when projecting
onto coloured surfaces
• HDCP-enabled DVI-I port for pin-sharp
images from digital sources, including
encrypted content
Page 8
Specifications
Canon Inc
www.canon.com
Canon Europa NV
www.canon-europe.com
© Canon Europa NV 2006
MULTIMEDIA PROJECTOR
Product Name
Product Class
LCD PANEL
Type
Size and Number
Aspect Ratio
Native Resolution
OPTICS
Light Source
Lens F Number and Focal Length
Zoom Magnification and Control
Focus Control
Lens Shift
IMAGE AND AUDIO
Brightness
Uniformity
Contrast Ratio
Projection Distance Coverage
Screen Size
Digital Zoom Magnification
Keystone Correction Range
Digital RGB Compatibility
Analogue RGB Compatibility
Video Colour Systems
HD / Component Scan Systems
Horizontal Video Resolution
Scanning Frequency
Display Modes
Image Enhancement Options
Built-In Audio
CONNECTORS
Digital RGB / Digital Video Input /
Analogue RGB Input 1
Analogue RGB Input 2
Analogue RGB Output
Component Video Input
S-Video Input
Composite Video Input
Audio Input
Mouse Control
Service Port / Projector Control
MECHANISMS
Front Elevation Mechanism
Maximum Elevation Angle
RATINGS
Dimensions (W x H x D)
Weight
Rated Supply Voltage
Power Consumption
Noise Level
Operating Environment
Storage Environment
Warranty
XEED SX6
Ultra-Portable
LCOS Reflective Display,
TFT Active Matrix
0.7" diagonal, 3 panels
4:3
1400 x 1050 (SXGA+),
1470000 pixels
270W NSH lamp
F1.85 – F2.5; f=21.7 – 35.8mm
1.7x Motorised
Motorised Auto Focus
9:1, fixed
3,500 lumens
88%
1000:1 (full on / full off)
1.2m – 9.0m
(3.0m – 4.9m for 100" image)
40" – 300" (81 x 61cm – 610 x 457cm)
1x – 12x
Vertical: +/- 20° (Auto / Manual)
Horizontal: +/- 20° (Manual)
D-SXGA+ / D-WXGA / D-SXGA / D-XGA /
D-SVGA / D-VGA
UXGA (compressed) / SXGA+ / WXGA / SXGA /
XGA /SVGA / VGA
PAL / PAL-M / PAL-N / NTSC / NTSC4.43 / SECAM
1080i / 1035i / 720p / 575p / 575i /
480p / 480i
550 TV lines
Horizontal: 15-100kHz,
Vertical: 50-100Hz,
Clock: 170MHz
Standard, Presentation, Movie & Photo,
Adobe RGB, sRGB
12-bit Digital Gamma Correction,
6-axis Colour Adjust
1.0W RMS, Monaural
DVI-I 29-pin
(HDCP compatible)
Mini D-Sub 15-pin
Mini D-Sub 15-pin
Via 3 x RCA adaptor cable (supplied)
Mini-DIN 4-pin
RCA x 1
3.5mm
2
stereo mini-jack
USB Type B
Mini-DIN 8-pin
One-touch mechanical foot
11.9°
266 x 114 x 336mm
4.7kg
100V – 240V AC, 50/60Hz
Normal Mode: 355W / Quiet Mode: 290W /
Standby: 7W
Normal Mode: 35dBA / Quiet Mode: 31dBA
+5°C to +35°C
-30°C to +60°C
3 years (90 days for lamp)
XEED SX50
Ultra-Portable
LCOS Reflective Display,
TFT Active Matrix
0.7" diagonal, 3 panels
4:3
1400 x 1050 (SXGA+),
1470000 pixels
200W NSH lamp
F1.85 – F2.5; f=22.0 – 37.0 mm
1.7x Manual
Manual Focus
9:1, fixed
2,500 lumens
85%
1000:1 (full on / full off)
1.2m – 9.1m
(3.0m – 5.0m for 100" image)
40" – 300" (81 x 61cm – 610 x 457cm)
1x – 12x
Vertical: +/- 20° (Manual)
Horizontal: +/- 20° (Manual)
D-SXGA+ / DSXGA / D-XGA / D-SVGA / D-VGA
UXGA (compressed) / SXGA+ / SXGA /
XGA / SVGA / VGA
PAL / PAL-M / PAL-N / NTSC / NTSC4.43 / SECAM
1080i / 1035i / 720p / 575p / 575i /
480p / 480i
550 TV lines
Horizontal: 15-100kHz,
Vertical: 50-100Hz,
Clock: 170MHz
Standard, Presentation, Cinema, sRGB
Digital Gamma Correction,
6-axis Colour Adjust
1.0W RMS, Monaural
DVI-I 29-pin
(HDCP not supported)
Mini D-Sub 15-pin
Mini D-Sub 15-pin
(shared with RGB Input 2)
Via 3 x RCA adaptor cable (supplied)
Mini-DIN 4-pin
RCA x 1
3.5mm
2
stereo mini-jack
USB Type B
Mini-DIN 8-pin
One-touch mechanical foot
10.0°
284mm x 96mm x 286mm
3.9kg
100V – 240V AC, 50/60Hz
Normal Mode: 290W / Quiet Mode: 240W /
Standby: 6W
Normal Mode: 37dBA / Quiet Mode: 34dBA
+5°C to +35°C
-10°C to +60°C
3 years (90 days for lamp)
XEED X600
Ultra-Portable
LCOS Reflective Display,
TFT Active Matrix
0.7" diagonal, 3 panels
4:3
1024 x 768 (XGA),
786432 pixels
270W NSH lamp
F1.85 – F2.5, f=21.7 – 35.8mm
1.7x Motorised
Motorised Auto Focus
9:1, fixed
3,500 lumens
88%
1000:1 (full on / full off)
1.2m – 9.0m
(3.0 – 4.9m for 100" image)
40" – 300" (81 x 61cm – 610 x 457cm)
1x – 12x
Vertical: +/- 20° (Auto / Manual)
Horizontal +/- 20° (Manual)
D-XGA / D-SVGA / D-VGA
UXGA (compressed) / SXGA+ (compressed) /
WXGA (compressed) / SXGA (compressed) /
XGA / SVGA / VGA
PAL / PAL-M / PAL-N / NTSC / NTSC4.43 / SECAM
1080i / 1035i / 720p / 575p / 575i /
480p / 480i
550 TV lines
Horizontal: 15-100kHz,
Vertical: 50-100Hz,
Clock: 170MHz
Standard, Presentation, Movie, sRGB
12-bit Digital Gamma Correction,
6-axis Colour Adjust
1.0W RMS, Monaural
DVI-I 29-pin
(HDCP compatible)
Mini D-Sub 15-pin
Mini D-Sub 15-pin
Via 3 x RCA adaptor cable (supplied)
Mini-DIN 4-pin
RCA x 1
3.5mm
2
stereo mini-jack
USB Type B
Mini-DIN 8-pin
One-touch mechanical foot
11.9°
266 x 114 x 336mm
4.7kg
100V – 240V AC, 50/60Hz
Normal Mode: 355W / Quiet Mode: 290W /
Standby: 7W
Normal Mode: 35dBA / Quiet Mode: 31dBA
+5°C to +35°C
-30°C to +60°C
3 years (90 days for lamp)
XEED SX60
Ultra-Portable
LCOS Reflective Display,
TFT Active Matrix
0.7" diagonal, 3 panels
4:3
1400 x 1050 (SXGA+),
1470000 pixels
180W NSH lamp
F1.85 – F2.5; f=21.7 – 35.8mm
1.7x Motorised
Motorised Auto Focus
9:1, fixed
2,500 lumens
88%
1000:1 (full on / full off)
2000:1 (full on / full off) in Home Cinema Mode
1.2m – 9.0m
(3.0m – 4.9m for 100" image)
40" – 300" (81 x 61cm – 610 x 457cm)
1x – 12x
Vertical: +/- 20° (Auto / Manual)
Horizontal +/- 20° (Manual)
D-SXGA+ / D-WXGA / D-SXGA / D-XGA /
D-SVGA / D-VGA
UXGA (compressed) / SXGA+ / WXGA / SXGA /
XGA /SVGA / VGA
PAL / PAL-M / PAL-N / NTSC / NTSC4.43 / SECAM
1080i / 1035i / 720p / 575p / 575i /
480p / 480i
550 TV lines
Horizontal: 15-100kHz,
Vertical: 50-100Hz,
Clock: 170MHz
Standard, Presentation, Movie,
Home Cinema, sRGB
12-bit Digital Gamma Correction,
6-axis Colour Adjust
1.0W RMS, Monaural
DVI-I 29-pin
(HDCP compatible)
Mini D-Sub 15-pin
Mini D-Sub 15-pin
Via 3 x RCA adaptor cable (supplied)
Mini-DIN 4-pin
RCA x 1
3.5mm
2
stereo mini-jack
USB Type B
Mini-DIN 8-pin
One-touch mechanical foot
11.9°
266 x 114 x 336mm
4.6kg
100V – 240V AC, 50/60Hz
Normal Mode: 250W / Quiet Mode: 225W /
Standby: 7W
Normal Mode: 30dBA / Quiet Mode: 27dBA
+5°C to +35°C
-30°C to +60°C
3 years (90 days for lamp)
Some images are simulated for clarity of reproduction. All data is based on Canon standard testing methods except where indicated.
Specifications are subject to change without notice. ™ and ®: All company and/or product names are trademarks and/or registered
trademarks of their respective manufacturers in their markets and/or countries.
To learn more about the XEED multimedia projector range visit www.canon-europe.com/xeed
Loading...
