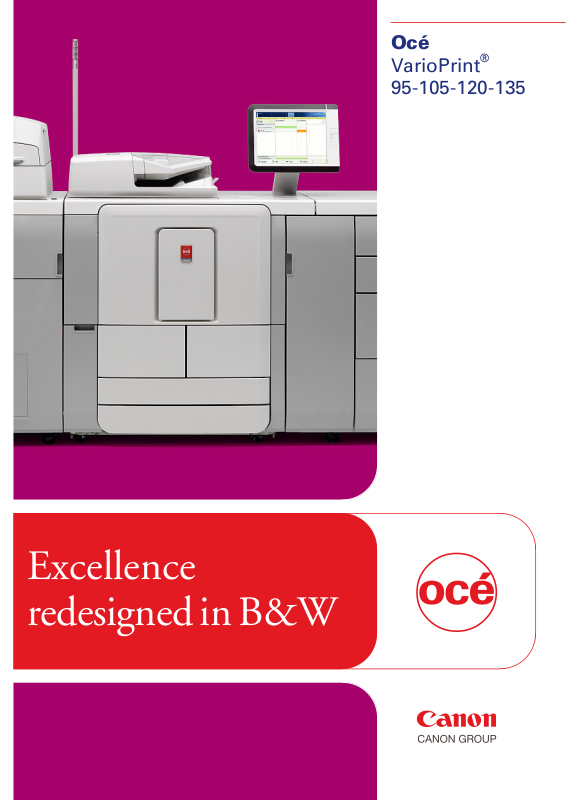

Page 1
Océ
®
VarioPrint
95-105-120-135
Excellence
redesigned in B&W
o
Page 2
Technology
Description
Imaging technology
Toner
Resolution
Features
Print speed
Océ VarioPrint 135
Océ VarioPrint 120
Océ VarioPrint 105
Océ VarioPrint 95
Segment
Recommended
monthly print volume
Maximum monthly
print volume
Controller
Description
Operating system
Processor
Memory
Hard disk
Interface
Page Description
Language
Fonts
Protocols
Printer drivers
Security
Features
Optional licenses
Black & white printer / scanner / copier
Océ DirectPress
®
Mono-component toner
600 x 2400 dpi
Toner Transfer Fusing (TTF), HeatXchange®, Operator
attention light with adjustable warn-ahead functions,
On-the-fly toner and paper refill, Automatic duplexing
(up to 300 gsm), Active registration
138 ipm (A4 duplex), 72 ipm (A3 duplex), 68 ipm (SRA3
duplex)
123 ipm (A4 duplex), 64 ipm (A3 duplex), 60 ipm (SRA3
duplex)
107 ipm (A4 duplex), 56 ipm (A3 duplex), 52 ipm (SRA3
duplex)
97 ipm (A4 duplex), 50 ipm (A3 duplex), 47 ipm (SRA3
duplex)
VarioPrint 135: 200,000 - 350,000 images
VarioPrint 120: 100,000 - 250,000 images
VarioPrint 105: 100,000 - 250,000 images
VarioPrint 95: 80,000 - 200,000 images
VarioPrint 135: 2,200,000 images
VarioPrint 120: 2,000,000 images
VarioPrint 105: 1,800,000 images
VarioPrint 95: 1,600,000 images
Integrated high-performance Océ PRISMAsync controller
for Océ VarioPrint 95-105-120-135
Windows XP
®
2 GHz
2 GB
160 GB
10/100/1000 Base-T
Adobe®PostScript®3, PDF 1.7, PCL 6 / HPGL 2, XPS
136 Type1 fonts for roman languages
Use of PostScript fonts via Settings editor
TCP/IP (LPR/LPD, socket), SMB static/auto IP (via
DHCP), SNMP v1/v2/v3 (printer MIB, private MIB,
Job monitoring MIB)
Windows Server 2003/2008/2008 R2®, Windows Client
XP®, Windows 7®, legacy Windows and MAX/Linux
CUPS, SAP Device Type (SAP R/3 4.6 and higher)
Common Criteria EAL3, E-shredding, Firewall, Secure
printing, User authentication
Job scheduler (8 hours ahead), DocBox for advanced job
editing, One queue and job management for copying and
printing , Spool-while-rip-while-print-while-clean-up,
Multi-job processing, Multitasking (print/copy/scan),
JDF connector compatible, Remote meter reading,
Remote diagnostics, Remote software upgrade
DocBox
Schedule
Remote viewer
Scan-to-File / Scan-to-Email
E-shredding
Multiple queues
Remote service
Streaming printing
Accounting
Font sets: Korean, Japanese, Simplified Chinese,
Traditional Chinese
DPlink (integration in customer Xerox infrastructure)
KDKlink (integration in customer Kodak infrastructure)
General
Operation
Warm-up time
First copy time
First print time
Front-to-back
registration tolerance
Dimensions main
engine (WxDxH)
Weight main engine
Certificates
Environmental
Sound power level
Ozone emissions
Power requirement
Power consumption
Optimum temperature
Paper module
Paper trays
Paper feed technology
Features
Paper weight
Paper size
External paper module
Description
Paper trays
Maximum paper
capacity
Paper feed technology
Features
Paper weight
Paper size
Printing
Print resolution
Front-to-back
registration tolerance
Maximum imageable
area
Screen frequency
Grey levels
Features
Integrated 15" full colour touchscreen operator panel,
Full engine / controller integration with one point of
control,
Remote monitoring: on desktop via Remote User
Interface
Remote services for secure and easy transmission of meter
readings, remote diagnostics and remote firmware
upgrades
150 - 270 seconds, depending on amount of toner in
cleaner
3.9 seconds (simplex)
5.1 seconds (simplex and ripped)
+ / - 0.5 mm (A4 images)
1130 x 765 x 1222 mm
1130 x 765 x 1430 mm (with Operator panel)
263 kg (with Scanner / Automatic document feeder)
EPA Energy Star® / TEC compliancy, RoHS, Cetecom
/ CE Class A, FCC Class A, UL / TüV / CE
Standby mode: max 47.3 dB
Print mode: max 75.3 dB
None (engine)
1-Phase, Europe: 120/200 - 240 V; 50 Hz
Sleep mode: 39 W
Low power mode: 210 W
Operation VarioPrint 95: 1.7 kW, VarioPrint 105: 1.8
kW, VarioPrint 120: 2.0 kW, VarioPrint 135: 2.2 kW
17° C - 30° C
2 x 1500 sheets, 2 x 500 sheets (80 gsm)
Friction feed, Paper Logic
Automatic paper size detection, Tray-empty detection,
On-the-fly loading, Custom-paper-size support
50 - 300 gsm
Bulk trays: A4, B5
Multi-size trays: 140 x 182 mm - 320 x 488 mm
Optional external paper module
2 x 1700 sheets, 2 x 600 sheets (80 gsm; all paper sizes)
4,600 sheets (all sizes)
Suction feed, Air separation, Paper Logic
Automatic paper size detection, Tray-empty detection,
On-the-fly loading, Custom-paper-size support
50 - 300 gsm
203 x 203 mm - 320 x 488 mm (all trays)
Adobe PostScript 3: 1200 x 1200 dpi, 600 x 2400 dpi
PCL: 600 x 600 dpi
Maximum +/- 0.5 mm
Adobe PostScript 3: 3 mm from side; maximum 308 x
484 mm
PCL: 6 mm from side
Adobe PostScript 3: maximum 200 lpi
PCL: maximum 106 lpi
Adobe PostScript 3: 200
PCL: 125
RIP at rated engine speed, Pre-RIP,
Print-while-rip-while-spool (Streaming), Mixplex
2
Page 3
Copying
Copy resolution
Exposure control
Zoom
Screen frequency
Grey levels
Features
Scanning
Resolution
Pull scan
Colour scanning
Destination
File format
Features
Scanner (Duplex Colour Image Reader-D1)
Description
Capacity
Resolution
Scan speed
Scan-to-File speed
Copy speed
Original size
Custom sizes
Paper weight
Stacker & stapler (Finisher-AF1)
Description
Maximum stapling
capacity
Output capacity
straight delivery
Output capacity
stapled
Paper weight
Paper size
Option
Booklet maker (Saddle Finisher-AF2)
Description
Maximum saddle
stitching capacity
Output capacity
Paper weight
Paper size
Option
600 x 1200 dpi
Auto / Manual (9-step scale), Text, Text / Photo, Photo
25 - 400%; automatic
200 lpi
200
Automatic quality optimalisation for text/photo
75 dpi, 100 dpi, 150 dpi, 200 dpi, 300 dpi (default), 600
dpi
Via Network TWAIN Driver
Optional
Scan-to-Email, Scan-to-DocBox, Scan-to-FTP,
Scan-to-USB
PDF (single-page and multiple-page), TIFF, JPEG /
sRBG (colour scanning)
Scan profiles, Status overview, Scan-once-print-many,
Scan-while-warming-up, Scan-while-print,
Subset-scanning
One-pass duplex document feeder and black & white /
colour scanner
300 sheets (80 gsm)
600 x 600 dpi
A4, simplex / duplex, Black & white, 600 x 600 dpi: 100
ipm
A4, simplex / duplex, Colour, 600 x 300 dpi: 105 ipm
A4, simplex / duplex, Colour, 600 x 600 dpi: 25 ipm
One-set job: as defined for Scan speed
Multi-set job: as defined for Print speed
A5, A5-R, A4, A4-R, A3-R, B6, B5, B5-R, B4-R
140 x 128 mm - 432 x 305 mm
Black & white: 38 - 220 gsm (simplex), 50 - 220 gsm
(duplex)
Colour: 64 - 220 gsm
Finisher offering (offset) stacking and stapling with staple
cut functionality for thin sets
A4, B5: 100 sheets (80 gsm)
A4-R, B4, A3: 50 sheets (80 gsm)
Top tray: 1000 sheets A3 or A4
Lower tray: 2000 sheets A4 or 1000 sheets A3
Top tray: 100 sets
Lower tray: 100 sets
50 - 300 gsm
Stapling: A4, A4-R, A3, B5, B4
Stacking: all sizes supported by main engine
Built-in 2/4 or 4 hole punch unit for media up to 200
gsm
Booklet maker with stacking, stapling and saddle stitching
capabilities
2 - 25 sheets (80 gsm)
On Conveyor belt: 30 booklets (80 gsm)
Unlimited stacking by delivering booklets to external
catch tray
Booklet pages: 50 - 200 gsm
Booklet cover: up to 300 gsm
Before folding: A3, A4-R, B5, B4, SRA3
Custom sizes: 210 - 279.4 mm - 330.2 x 487.7 mm
Built-in 2/4 or 4 hole punch unit for media up to 200
gsm
Inserter (Document Insertion Unit-F1)
Description
Paper trays
Maximum paper
capacity
Media
Paper weight
Paper size
Option for
Leading-edge trimmer (Booklet Trimmer-D1)
Description
Trim capacity
Trim width
Output capacity
Waste tray capacity
Paper weight
Paper size
Option for
Two-knife trimmer (Two-Knife Booklet Trimmer-A1)
Description
Trim capacity
Trim width
Output capacity
Waste tray capacity
Paper weight
Paper size
Option for
Stacker (High Capacity Stacker-E1)
Description
Output capacity
Paper weight
Paper size
Folding unit (Paper Folding Unit-F1)
Description
Capacity
Paper weight
Paper size
Option for
Perfect binder (Perfect Binder-C1)
Description
Binding capacity
Paper weight
Paper size
Sheet and cover insertion unit
2
2 x 200 (80 gsm)
Plain paper, Coloured paper, Coated paper, Preprinted
paper
50 - 300 gsm
Up to 320 x 488 mm
Finisher-AF1, Saddle Finisher-AF2
Leading-edge booklet trimmer with Conveyor belt
50 sheets: 48 book pages (80 gsm) + 2 cover sheets (up
to 300 gsm)
2 - 20 mm
30 booklets
1500 trimmed strips
50 - 300 gsm
As defined for Saddle Finisher-AF2
Saddle Finisher-AF2
Top-, bottom-edge booklet trimmer with Conveyor belt
and Output tray
50 sheets: 48 book pages (80 gsm) + 2 cover sheets (up
to 300 gsm)
2 - 15 mm top and bottom
30 booklets
1500 trimmed strips
50 - 300 gsm
As defined for Saddle Finisher-AF2
Saddle Finisher-AF2 with Booklet Trimmer-D1
Straight and offset stacking on cart. Up to two stackers
can be installed in line. Additional optional stacker cart
available.
On cart: 10,000 sheets (80 gsm; A4) or 5,000 sheets (80
gsm, A3)
Top tray: 1000 sheets (80 gsm)
As defined for main engine
As defined for main engine
Main tray: minimum 257 x 182 mm
Top tray: minimum 182 x 182 mm
Folding unit for Z-folding, Letter folding and Double
parallel folding
60 mm (approximately 40 letter-folded sheets)
Z-folding, Letter fold in, Letter fold out: 50 - 105 gsm
Double parallel folding: 50 - 90 gsm
Z-folding: A3, B4
Letter fold in, Letter fold out, Double parallel folding:
A4
Finisher-AF1, Saddle Finisher-AF2
Hot-melt glue binding with selectable leading-edge or
3-side trimming and cover insertion.
Preprinted covers can be inserted via the Post inserter
Approximately 10 - 200 sheets; 1 - 25 mm
Book pages: 50 - 163 gsm
Cover sheets: 90 - 300 gsm
Inner size: B5 - 225 x 320 mm
Cover size: B4 - 13"x 19"
3
Page 4
Beyond the Ordinary
o
Printing for
Professionals
Creating global leadership in printing
Canon and Océ have joined forces to create the global leader in
the printing industry. For our customers this combines Canon
and Océ technology with the support of the Océ direct sales and
service organisations. Look to the new Canon-Océ combination
for:
• Enterprise printing in the office and corporate printroom
• Large format printing of technical documentation, signage and
display graphics
• Production printing for marketing service bureaus and graphic
arts
• Business Services for document process outsourcing
Canon Europe Ltd.
Edition 2011-23
© 2011 Océ
Illustrations and specifications do not necessarily apply to products and services
offered in each local market. Technical specifications are subject to change without
prior notice.
Océ, Océ VarioPrint, Océ DirectPress, Océ ScreenPoint, Océ Paper Logic, Océ Copy
Press, Océ EnergyLogic, Océ HeatXchange and Océ PRISMA software are registered
trademarks of Océ-Technologies B.V. Kodak is a registered trademark of Eastman
Kodak Company. Xerox FreeFlow is a registered trademark of Xerox Corporation.
PostScript is a registered trademark of Adobe Systems Incorporated. All other
trademarks are the property of their respective owners.
3 The Square
Stockley Park
Uxbridge UB11 1ET
United Kingdom
For information and services, visit us at:
canon-europe.com
Loading...
