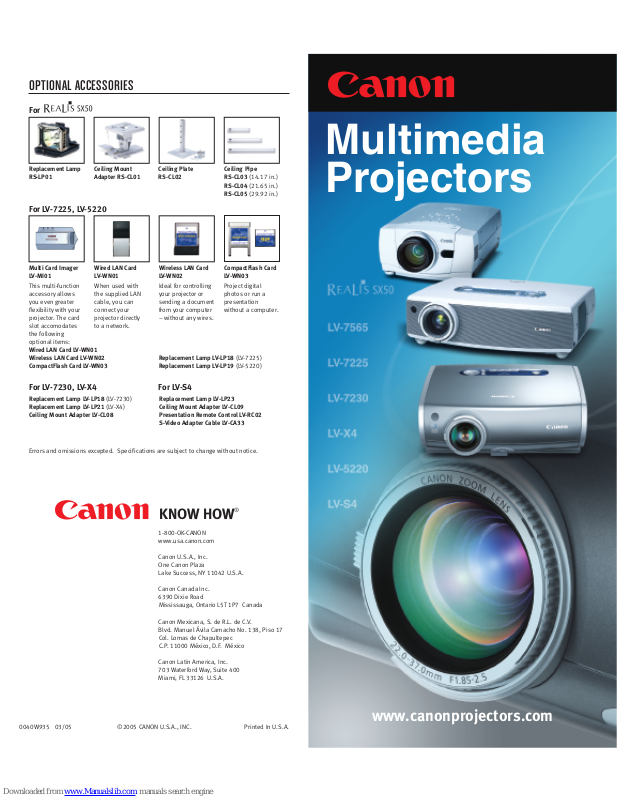

Page 1
C
KNOW HOW
®
1-800-OK-CANON
www.usa.canon.com
Canon U.S.A., Inc.
One Canon Plaza
Lake Success, NY 11042 U.S.A.
Canon Canada Inc.
6390 Di
x
ie R
oad
Mississauga, Ontario L5T 1P7 Canada
Canon Mexicana, S. de R.L. de C.V.
Blvd. Manuel Ávila Camacho No. 138, Piso 17
Col. Lomas de Chapultepec
C.P. 11000 México, D.F. México
Canon Latin America, Inc.
703 Waterford Way, Suite 400
Miami, FL 33126 U.S.A.
0040W935 03/05 ©2005 CANON U.S.A., INC. Printed In U.S.A.
www.canonprojectors.com
C
Multimedia
Projectors
OPTIONAL ACCESSORIES
For
Replacement Lamp Ceiling Mount Ceiling Plate Ceiling Pipe
RS-LP01 Adapter RS-CL01 RS-CL02 RS-CL03 (14.17 in.)
RS-CL04 (21.65 in.)
RS-CL05 (29.92 in.)
For LV-7225, LV-5220
For LV-7230, LV-X4 For LV-S4
Replacement Lamp LV-LP18 (LV-7230) Replacement Lamp LV-LP23
Replacement Lamp LV-LP21 (LV-X4) Ceiling Mount Adapter LV-CL09
Ceiling Mount Adapter LV-CL08 Presentation Remote Control LV-RC02
S-Video Adapter Cable LV-CA33
Errors and omissions excepted. Specifications are subject to change without notice.
Multi Card Imager
LV-MI01
This multi-function
accessory allows
you even greater
flexibility with your
projector. The card
slot accomodates
the following
optional items:
Wired LAN Card LV-WN01
Wireless LAN Card LV-WN02
CompactFlash Card LV-WN03
Wired LAN Card
LV-WN01
When used with
the supplied LAN
cable, you can
connect your
projector directly
to a network.
Wireless LAN Card
LV-WN02
Ideal for controlling
your projector or
sending a document
from your computer
– without any wires.
Replacement Lamp LV-LP18 (LV-7225)
Replacement Lamp LV-LP19 (LV-5220)
CompactFlash Card
LV-WN03
Project digital
photos or run a
presentation
without a computer.
Page 2
3
2
SXGA
+
1400 X 1050
2500
ANSI LUMENS

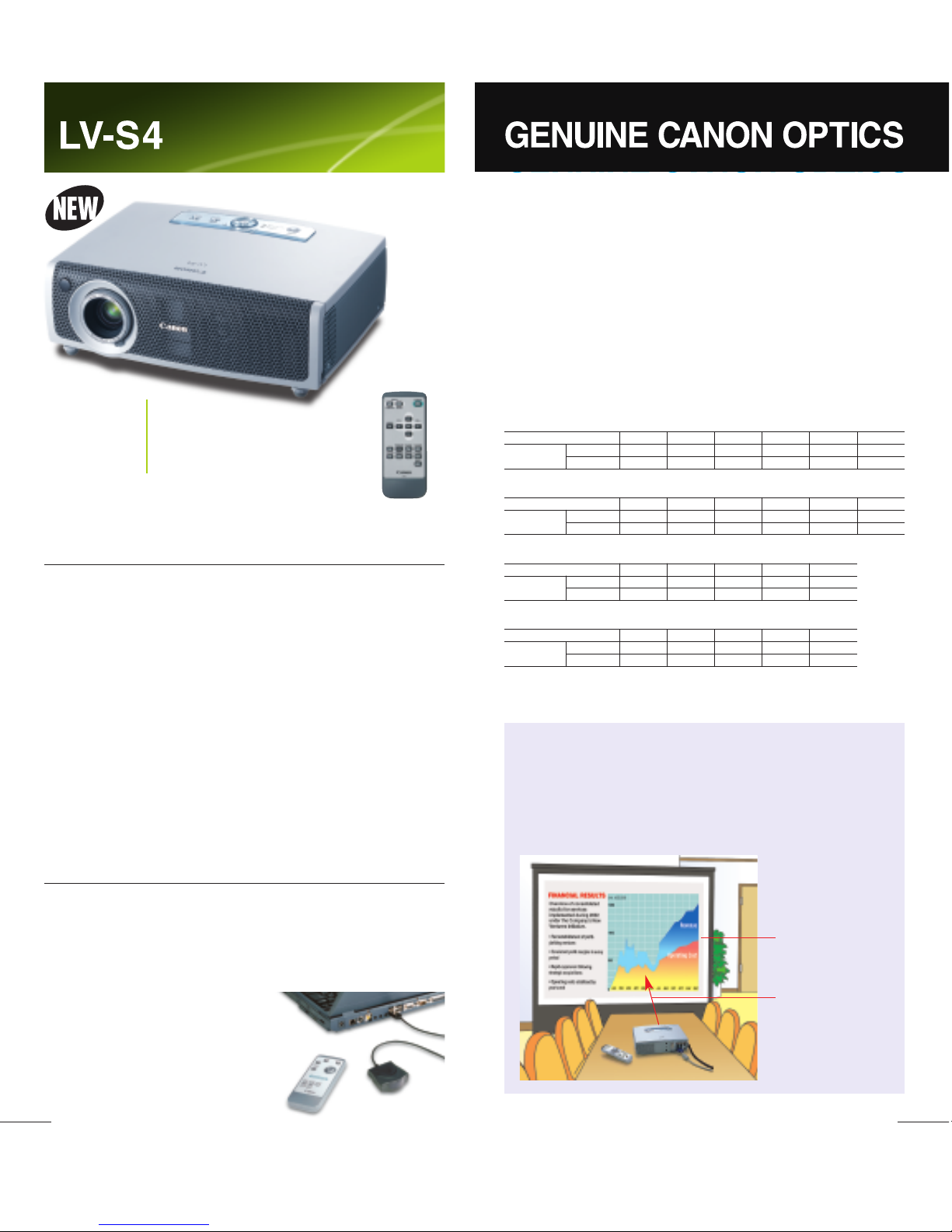

GENUINE CANON OPTICS
Nearly 70 years of expertise in designing and crafting precision lenses
for photography, broadcast TV cameras, and camcorders goes into
every lens we manufacture. The REALiS SX50’s lens offers one of the
indu
stry’s widest zoom ranges (1.7x), and an impressively short throw
distance, and produces images
with superior color and clarity.
An innovative lens design delivers
high picture quality and reduces
flare and ghosting.
EXCLUSIVE AISYS TECHNOLOGY
AISYS stands for Aspectual Illumination System – it is the engine of the
projector. This patented, proprietary optical technology makes it possible to increase brightness and contrast, while reducing the projector’s
size. It allows the REALiS SX50 to fully unlock the performance of LCOS.
AISYS structure
SXGA+RESOLUTION
To match the increasing demand for high resolution display technology,
the REALiS SX50 features native SXGA+resolution – perfect for displaying crisp video, photographs, fine text, spreadsheets, CAD drawings,
and engineering diagrams. Compared to mainstream projectors that
offer XGA resolution (1024 x 768), the REALiS SX50 features SXGA
+
resolution (1400 x 1050), for an expanded display range, capable of
reproducing even the smallest details with razor sharp precision.
SXGA+can also display true 16:9 high definition broadcast images.
Size comparison: SXGA+and others
Cylindrical Lens Array
Condenser Lens
Compressor Lens
8.6 LBS. (3.9KG)
FEATURES
•
Native SXGA+Resolution (1400 x 1050), Projects UXGA (Compressed)
• 2500 ANSI Lumens (85% Uniformity)
• Exclusive AISYS Optical Engine
• Lens: f= 22.0 to 37.0mm, F1.85 to 2.5, 1.7x Ultra-Wide Zoom
• 100" Screen: 9.8 to 16.4 ft. (3.0 to 5.0m)
• Throw Distance: 3.9 to 29.9 ft. (1.2 to 9.1m)
• Projected Image Size: 40" to 300"
• 1000:1 Contrast Ratio
• Progressive Scanning (480i/575i) with 2:3 Pulldown Response (480i)
• Quiet Operation: 34 dB (Silent Mode)
• Front or Rear Projection, Ceiling Mount Compatible
• DVI-I (RGB Digital)/VGA (RGB Analog) Input Terminals
• Component Video Input (with Supplied Adapter Cable)
• S-Video and Composite Input
• Digital Keystone Adjustment: ±20 Degrees (Vertical & Horizontal)
• 6-Axis Color Adjustment
• Dynamic and Manual Gamma Correction
• Greenboard Mode
•
Siz
e (W
x
D
x
H): 11.2 x 11.3 x 3.8 in. (284 x 286 x 96mm)
KIT CONTENTS
•
Pr
oj
ect
or •
Wireless Remote Control (AA Batteries Included)
• Computer Cable (DVI-VGA) • Component Video Adapter Cable
• Mouse Control Cable (USB) • Lens Cap • Soft Carrying Case
• Power Cable • Warranty Card • User’s Manual
* Please see back cover for optional accessories.

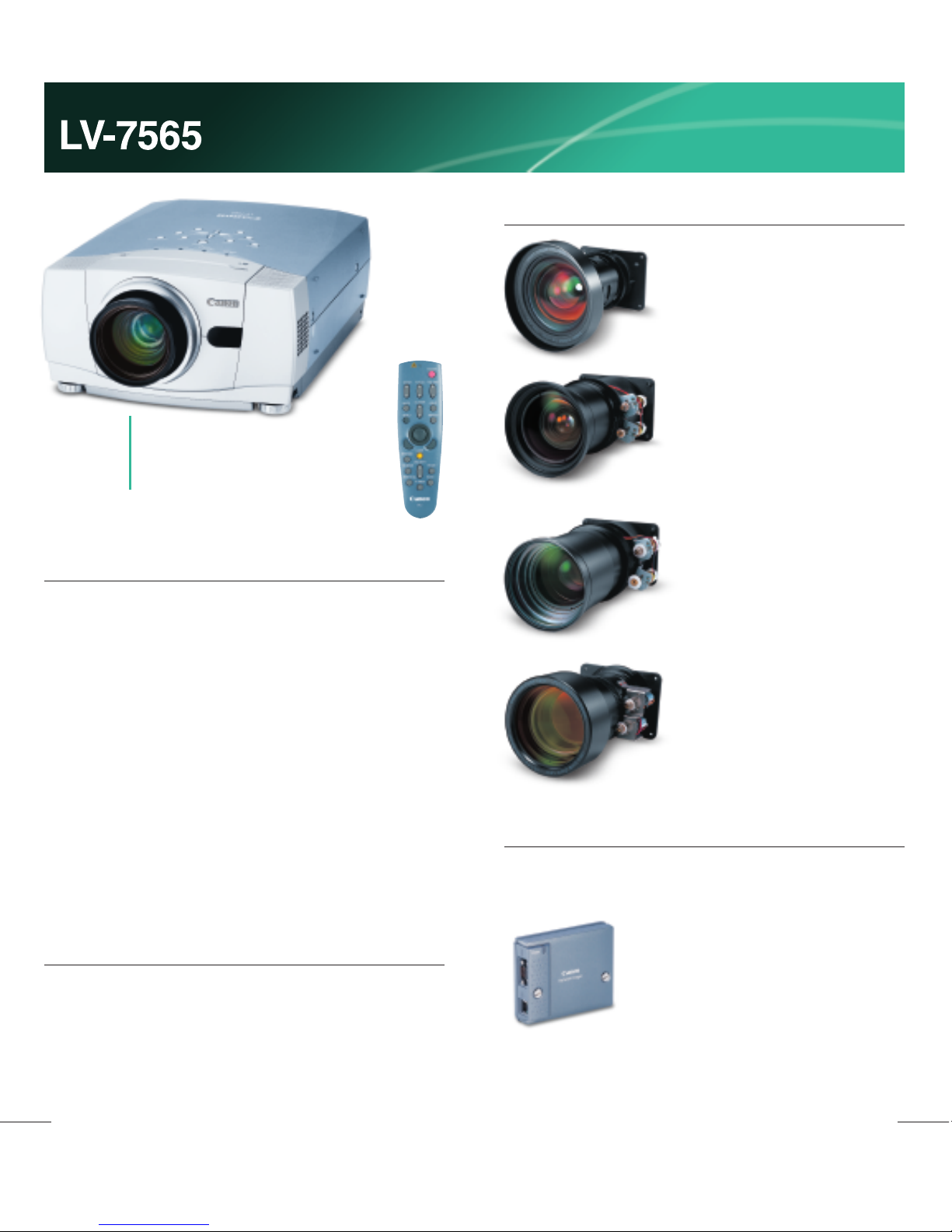

Page 3
54
FEATURES
• Native XGA Resolution (1024 x 768)
• 5100 ANSI Lumens (Turbo Bright Mode)/4300 ANSI Lumens
(Normal Mode)
• 90% Uniformity
• Lens: f= 48.2 to 62.6mm, F1.7 to 2.0, 1.3x Zoom
• Lens Shifting: 1:1 to 10:0
• Throw Distance: 4.6 to 48.2 ft. (1.4 to 14.7m)
• Projected Image Size: 31" to 400"
• 1000:1 Contrast Ratio
• Progressive Scanning (480i, 575i, 1035i, 1080i) with 2:3 Pulldown
Response (480i)
• Quiet Operation: 35 dB (Silent Mode)
• Customizable Logo Display
• DVI-D (RGB Digital) Terminal, HDCP Compatible
• VGA (RGB Analog) Input/Output
• Other Input Terminals: 5BNC, Component, S-Video, Composite
• Digital Keystone Adjustment: ±40 Degrees (V), ±10 Degrees (H)
• Image Adjustment Features: Color Management, Auto Picture Control,
G
amm
a Adju
s
tment
• Size (W x D x H) : 12.6 x 18.3 x 6.6 in. (319 x 465.2 x 168mm)
KIT CONTENTS
• Projector • Power Cable • VGA Computer Cable • MAC/VGA Adapter
•
W
ir
el
e
ss/Wired Remote Control (AA Batteries Included)
•
W
ired Remote Cable • Mouse Control Cable (PS/2, Serial, and Mac)
• Lens Cap • Dust Cover • Warranty Card • User’s Manual
* A body only version, LV-7565F is also available.
XGA
1024 X 768
5100
ANSI LUMENS
20.5 LBS. (9.3KG)
OPTIONAL ACCESSORIES FOR THE LV-7565
Network Imager LV-NI01
The LV-NI01 connects the LV-7565 to your computer network, enabling
remote management of the projector through a simple, graphic user
interface. This makes a number of tasks
e
asier, such as programming for operation
on a daily or weekly schedule, input mode
switching and picture adjustment. Send
s
t
at
u
s alerts via email. Furthermore, it offers
r
emot
e transfer of images, and centralized
control of multiple projectors.
DVI Cable LV-CA29
Replacement Lamp LV-LP22
Ceiling Mount Adapter LV-CL07
OPTIONAL PROJECTOR LENSES FOR THE LV-7565
Ultra Wide Angle Lens LV-IL01
• Lens: f=22.33mm, F2.5
• Projected Image Size: 70" to 120"
• Throw Distance: 3.7 to 6.4 ft.
(1.13 to 1.96m)
Wide Angle Zoom Lens LV-IL02
• Lens: f=34.33 to 48.02mm,
F2.5 to 3.06, 1.4x zoom
• Projected Image Size: 40" to 300"
• Throw Distance: 3.2 to 25.4 ft.
(0.98 to 7.74m)
Long Focus Zoom Lens LV-IL03
• Lens: f=63.5 to 111.5mm,
F2.03 to 2.89, 1.8x zoom
• Projected Image Size: 60" to 300"
• Throw Distance: 8.9 to 46.7 ft.
(2.73 to 14.23m)
Ultra Long Focus Zoom Lens LV-IL04
• Lens: to 155.2mm, F2.06 to 2.73,
1.4x zoom
• Projected Image Size: 40" to 300"
• Throw Distance: 11.4 to 82.0 ft.
(3.48 to 25.0m)
Lens changes must be performed by an authorized
Canon representative.

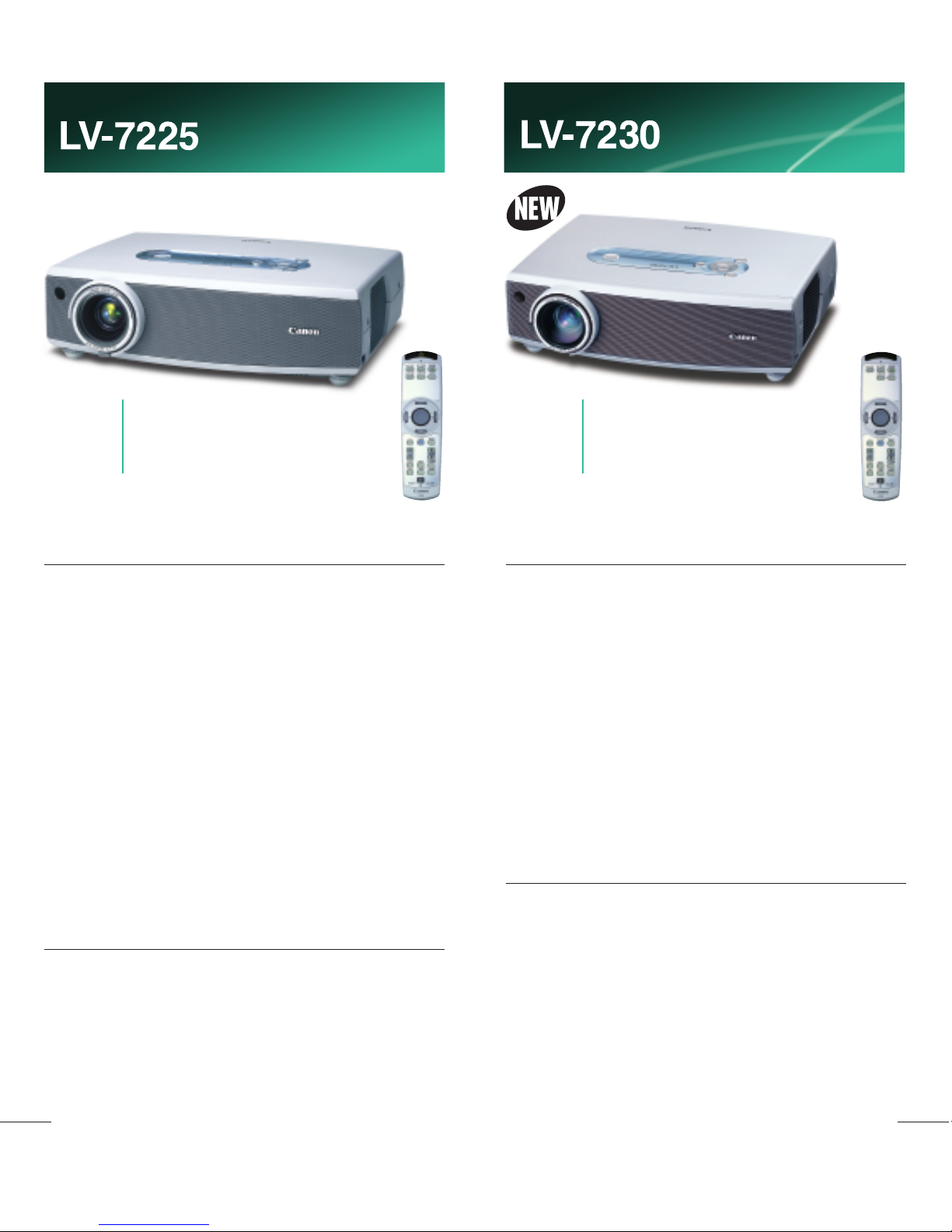

Page 4
6
7
FEATURES
• Native XGA Resolution (1024 x 768)
• 2500 ANSI Lumens (85% Uniformity)
• Lens: f= 20.0 to 32.0mm, F1.7 to 2.5, 1.6x Ultra-Wide Zoom
• 100" Screen: 8.2 to 13.1 ft. (2.5 to 4.0m)
• Throw Distance: 3.3 to 25.3 ft. (1.0 to 7.7m)
• Projected Image Size: 40" to 300"
• 350:1 Contrast Ratio
• Progressive Scanning (480i/575i) with 2:3 Pulldown Response (480i)
• Quiet Operation: 34 dB (Silent Mode)
• Auto Fan Control with Control Selection at Power Off
• Customizable Logo Display
• PIN Code Lock and Function Key Lock
• DVI-I (RGB Digital) Terminal, HDCP Compatible
• VGA (RGB Analog) Input/Output
• Component Video Input (with Supplied Adapter Cable)
• S-Video and Composite Video Input Terminals
• Auto Vertical Keystone
• Digital Keystone Adjustment: ±40 Degrees (V), ±20 Degrees (H)
• Image Adjustment Features: Greenboard Mode, Gamma Adjustment
•
Siz
e (W
x D x H): 11.8 x 8.9 x 3.2 in. (300 x 227 x 82mm)
KIT CONTENTS
• Projector • Wireless Remote Control (AA Batteries Included)
• Power Cable • Computer Cable (DVI-VGA)
•
C
omponent
V
ideo Ad
apt
er Cable • Mouse Control Cable (USB)
• Lens Cap • PIN Code Seal • Soft Carrying Case
• Warranty Card • User’s Manual
* Please see back cover for optional accessories.
XGA
1024 X 768
2500
ANSI LUMENS
6.4 LBS. (2.9KG)
FEATURES
• Native XGA Resolution (1024 x 768)
• 2000 ANSI Lumens (85% Uniformity)
• Lens: f= 20.3 to 32.5mm, F1.7 to 2.5, 1.6x Ultra-Wide Zoom
• 100" Screen: 8.2 to 13.1 ft. (2.5 to 4.0m)
• Throw Distance: 3.3 to 25.3 ft. (1.0 to 7.7m)
• Projected Image Size: 40" to 300"
• 380:1 Contrast Ratio
• Progressive Scanning (480i/575i) with 2:3 Pulldown Response (480i)
• Quiet Operation: 34 dB (Silent Mode)
• PIN Code Lock and Function Key Lock
• VGA (RGB Analog) Input/Output
• Component Video Input (with Supplied Adapter Cable)
• S-Video and Composite Video Input Terminals
• Digital Keystone Adjustment: ±20 Degrees (Vertical Only)
• Image Adjustment Features: Greenboard Mode, Gamma Adjustment
• Size (W x D x H): 11.8 x 8.9 x 3.2 in. (300 x 227 x 82mm)
KIT CONTENTS
• Projector • Wireless Remote Control (AA Batteries Included)
• Power Cable • VGA Computer Cable • Component Video Adapter Cable
• Mouse Control Cable (USB) • Lens Cap • PIN Code Seal
• Soft Carrying Case • Warranty Card • User’s Manual
* Please see back cover for optional accessories.
6.4 LBS. (2.9KG)
XGA
1024 X 768
2000
ANSI LUMENS

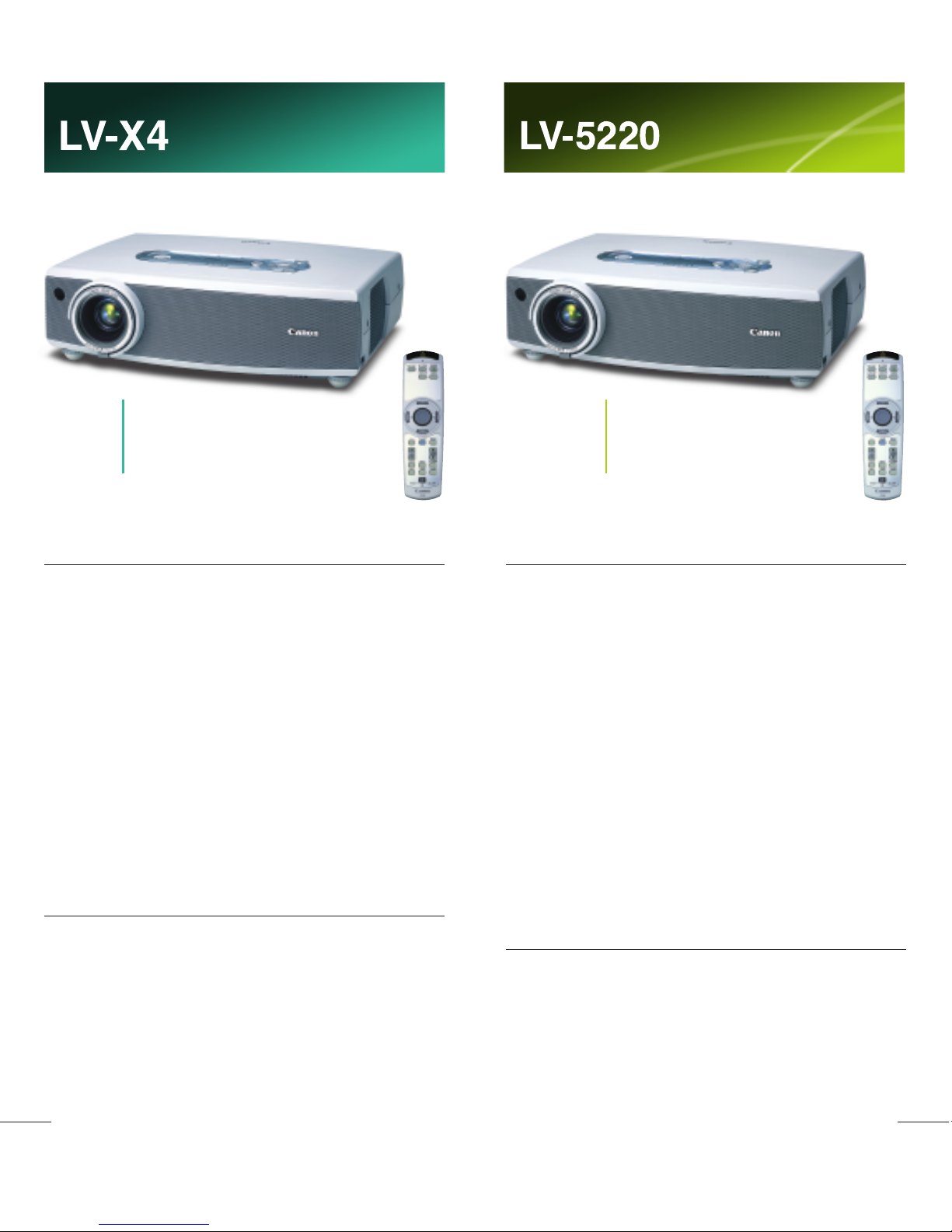

Page 5
9
8
FEATURES
• Native XGA Resolution (1024 x 768)
• 1500 ANSI Lumens (90% Uniformity)
• Lens: f= 20.3 to 32.5mm, F1.7 to 2.5, 1.6x Ultra-Wide Zoom
• 100" Screen: 8.2 to 13.1 ft. (2.5 to 4.0m)
• Throw Distance: 3.3 to 25.3 ft. (1.0 to 7.7m)
• Projected Image Size: 40" to 300"
• 400:1 Contrast Ratio
• Progressive Scanning (480i/575i) with 2:3 Pulldown Response (480i)
• Quiet Operation: 36 dB (Silent Mode)
• Auto Fan Control with Control Selection at Power Off
• Customizable Logo Display
• PIN Code Lock and Function Key Lock
• VGA (RGB Analog) Input/Output
• Component Video Input (with Supplied Adapter Cable)
• S-Video and Composite Video Input Terminals
• Digital Keystone Adjustment: ±20 Degrees (Vertical Only)
• Image Adjustment Features: Greenboard Mode, Gamma Adjustment
• Size (W x D x H): 11.8 x 8.9 x 3.2 in. (300 x 227 x 82mm)
KIT CONTENTS
• Projector • Wireless Remote Control (AA Batteries Included)
•
P
o
wer Cable • VGA Computer Cable • Component Video Adapter Cable
•
Mouse Control Cable (USB) • Lens Cap • PIN Code Seal
• Soft Carrying Case • Warranty Card • User’s Manual
* Pl
e
a
se see b
ack cover for optional accessories.
6.4 LBS. (2.9KG)
FEATURES
• Native SVGA Resolution (800 x 600)
• 2000 ANSI Lumens (85% Uniformity)
• Lens: f= 20.0 to 32.0mm, F1.7 to 2.5, 1.6x Ultra-Wide Zoom
• 100" Screen: 8.2 to 13.1 ft. (2.5 to 4.0m)
• Throw Distance: 3.3 to 25.3 ft. (1.0 to 7.7m)
• Projected Image Size: 40" to 300"
• 400:1 Contrast Ratio
• Progressive Scanning (480i/575i) with 2:3 Pulldown Response (480i)
• Quiet Operation: 34 dB (Silent Mode)
• Auto Fan Control with Control Selection at Power Off
• Customizable Logo Display
• PIN Code Lock and Function Key Lock
• DVI-I (RGB Digital) Terminal, HDCP Compatible
• VGA (RGB Analog) Input/Output
• Component Video Input (with Supplied Adapter Cable)
• S-Video and Composite Video Input Terminals
• Auto Vertical Keystone
• Digital Keystone Adjustment: ±40 Degrees (V), ±20 Degrees (H)
• Image Adjustment Features: Greenboard Mode, Gamma Adjustment
•
Size (W x D x H): 11.8 x 8.9 x 3.2 in. (300 x 227 x 82mm)
KIT CONTENTS
•
Projector • Wireless Remote Control (AA Batteries Included)
• Power Cable • Computer Cable (DVI-VGA)
•
C
omponent
V
ideo Ad
apt
er C
able • Mouse Control Cable (USB)
•
L
en
s
Cap • PIN Code Seal • Soft Carrying Case
• Warranty Card • User’s Manual
* Please see back cover for optional accessories.
6.4 LBS. (2.9KG)
2000
ANSI LUMENS
SVGA
800 X 600
XGA
1024 X 768
1500
ANSI LUMENS
Page 6
BENEFIT FROM OUR OPTICAL EXPERIENCE
The heart of any projector is its optics. Nearly 70 years of expertise
in designing and crafting precision lenses for photography, broadcast
TV cameras, and camcorders goes into every lens we manufacture.
Our projector lenses deliver a remarkably broad zoom ranges and
incredibly short throw distances, and consistently produce images
with superior color and clarity.
CANON THROW DISTANCE CHART
* For more detailed throw distance information, please visit us at
wwwwww..ccaannoonnpprroojjeeccttoorrss..ccoomm
Projection Image Size
40” 100” 150” 182” 200” 300”
Wide 3.9’ 9.8’ 14.8’ 18.0’ 19.7’ 29.9’
Tele 6.6’ 16.4’ 24.6’ 29.9’ - -
11
10
FEATURES
• Native SVGA Resolution (800 x 600)
• 1500 ANSI Lumens (85% Uniformity)
• Lens: f= 18.3 to 21.9mm, F1.6 to 1.8, 1.2x Zoom
• 100" Screen: 10.5 to 12.5 ft. (3.2 to 3.8m)
• Throw Distance: 4.3 to 21.3 ft. (1.3 to 6.5m)
• Projected Image Size: 34" to 200"
• 300:1 Contrast Ratio
• Progressive Scanning (480i/575i) with 2:3 Pulldown Response (480i)
• Quiet Operation: 33 dB (Silent Mode)
• PIN Code Lock and Function Key Lock
• VGA (RGB Analog) Input/Output
• Component Video Input (with Supplied Adapter Cable)
• S-Video (with Optional Cable) and Composite Video Input Terminals
• Digital Keystone Adjustment: ±20 Degrees (Vertical Only)
• Image Adjustment Features: Greenboard Mode, Gamma Adjustment
• Size (W x D x H): 10.6 x 7.8 x 3.3 in. (270 x 197.2 x 83.1mm)
KIT CONTENTS
• Projector • Wireless Remote Control (AA Batteries Included)
• Power Cable • VGA Computer Cable •
Component Video Adapter Cable
• Lens Cap • PIN Code Seal • Soft Carrying Case • Warranty Card
•
U
ser's
Manual
Presentation Remote Control LV-RC02 (Optional)
Offers key projector functions used
during a presentation and mouse
c
ontr
o
l for your PC.
* Please see back cover for optional accessories.
MAXIMUM IMPACT IN MINIMUM SPACES
Normally, a projector must be positioned far away from a screen
to project a large image. This is not the case with Canon projectors.
They feature wide-angle zoom lenses, allowing you to achieve big,
vibrant images from as little as 8.2 feet (2.5m), making them ideal
for a small conference room or a home theater.
*
LV-7225, LV-7230, LV-5220,
and L
V
-
X4 model
s
only.
100" Display
8.2' Throw Distance*
REALiS SX50
Projection Image Size
31”
40” 100” 200” 300” 400”
Wide - 4.5’ 11.8’ 24.0’ 36.1’ 48.2’
Tele 4.6’ 6.0’ 15.4’ 31.0’ 46.6’ -
LV-7565 (Standard Lens)
LV-7225/LV-7230/LV-5220/LV-X4
Projection Image Size 34” 40” 100” 150” 200”
Wide - 4.3’ 10.5’ 16.1’ 21.3’
Tele 4.3’ 4.9’ 12.5’ 19.0’ -
Projection Image Size 40” 100” 150” 190” 300”
Wide
3.3’
8.2’
12.5’ 16.1’ 25.3’
Tele 5.2’ 13.1’ 19.7’ 25.3’ -
LV-S4
Projection
Distance
Projection
Distance
Projection
Distance
Projection
Distance
1500
ANSI LUMENS
5.1 LBS. (2.3KG)
SVGA
800 X 600
Loading...
