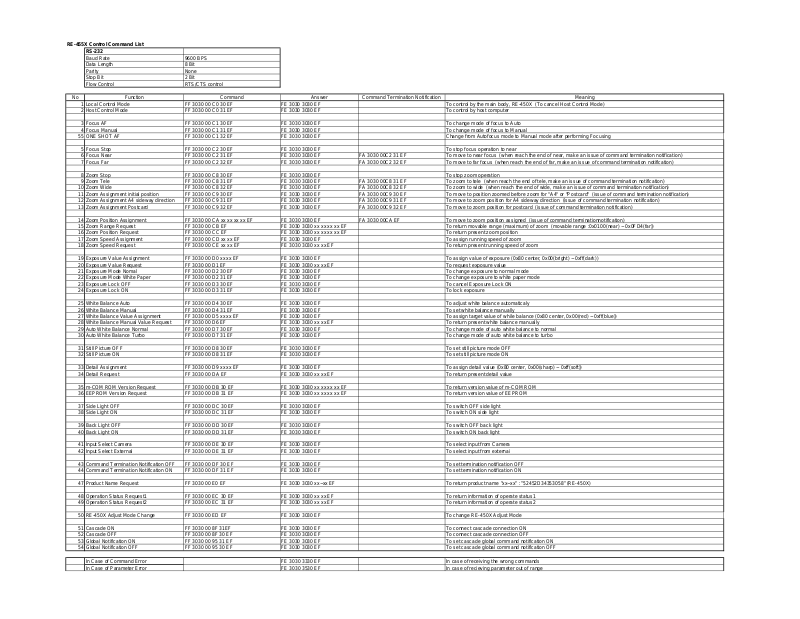

RE-455X Control Command List |
|
|
|
|
|
|
RS-232 |
|
|
|
|
|
Baud Rate |
9600 BPS |
|
|
|
|
Data Length |
8 Bit |
|
|
|
|
Parity |
None |
|
|
|
|
Stop Bit |
2 Bit |
|
|
|
|
Flow Control |
RTS/CTS control |
|
|
|
|
|
|
|
|
|
No |
Function |
Command |
Answer |
Command Termination Notification |
Meaning |
1 |
Local Control Mode |
FF 3030 00 C0 30 EF |
FE 3030 3030 EF |
|
To control by the main body, RE-450X (To cancel Host Control Mode) |
2 |
Host Control Mode |
FF 3030 00 C0 31 EF |
FE 3030 3030 EF |
|
To control by host computer |
|
|
|
|
|
|
3 |
Focus AF |
FF 3030 00 C1 30 EF |
FE 3030 3030 EF |
|
To change mode of focus to Auto |
4 |
Focus Manual |
FF 3030 00 C1 31 EF |
FE 3030 3030 EF |
|
To change mode of focus to Manual |
55 |
ONE SHOT AF |
FF 3030 00 C1 32 EF |
FE 3030 3030 EF |
|
Change from Autofocus mode to Manual mode after performing Focusing |
|
|
|
|
|
|
5 |
Focus Stop |
FF 3030 00 C2 30 EF |
FE 3030 3030 EF |
|
To stop focus operation to near |
6 |
Focus Near |
FF 3030 00 C2 31 EF |
FE 3030 3030 EF |
FA 3030 00C2 31 EF |
To move to near focus (when reach the end of near, make an issue of command termination notification) |
7 |
Focus Far |
FF 3030 00 C2 32 EF |
FE 3030 3030 EF |
FA 3030 00C2 32 EF |
To move to far focus (when reach the end of far, make an issue of command termination notification) |
|
|
|
|
|
|
8 |
Zoom Stop |
FF 3030 00 C8 30 EF |
FE 3030 3030 EF |
|
To stop zoom operation |
9 |
Zoom Tele |
FF 3030 00 C8 31 EF |
FE 3030 3030 EF |
FA 3030 00C8 31 EF |
To zoom to tele (when reach the end of tele, make an issue of command termination notification) |
10 |
Zoom Wide |
FF 3030 00 C8 32 EF |
FE 3030 3030 EF |
FA 3030 00C8 32 EF |
To zoom to wide (when reach the end of wide, make an issue of command termination notification) |
11 |
Zoom Assignment initial position |
FF 3030 00 C9 30 EF |
FE 3030 3030 EF |
FA 3030 00C9 30 EF |
To move to position zoomed before zoom for "A4" or "Postcard" (issue of command termination notification) |
12 |
Zoom Assignment A4 sideway direction |
FF 3030 00 C9 31 EF |
FE 3030 3030 EF |
FA 3030 00C9 31 EF |
To move to zoom position for A4 sideway direction (issue of command termination notification) |
13 |
Zoom Assignment Postcard |
FF 3030 00 C9 32 EF |
FE 3030 3030 EF |
FA 3030 00C9 32 EF |
To move to zoom position for postcard (issue of command termination notification) |
|
|
|
|
|
|
14 |
Zoom Position Assignment |
FF 3030 00 CA xx xx xx xx EF |
FE 3030 3030 EF |
FA 3030 00CA EF |
To move to zoom position assigned (issue of command terminationnotification) |
15 |
Zoom Range Request |
FF 3030 00 CB EF |
FE 3030 3030 xx xx xx xx EF |
|
To return movable range (maximum) of zoom (movable range :0x0100(near) ~ 0x0FD4(far)) |
16 |
Zoom Position Request |
FF 3030 00 CC EF |
FE 3030 3030 xx xx xx xx EF |
|
To return present zoom position |
17 |
Zoom Speed Assignment |
FF 3030 00 CD xx xx EF |
FE 3030 3030 EF |
|
To assign running speed of zoom |
18 |
Zoom Speed Request |
FF 3030 00 CE xx xx EF |
FE 3030 3030 xx xx EF |
|
To return present running speed of zoom |
|
|
|
|
|
|
19 |
Exposure Value Assignment |
FF 3030 00 D0 xx xx EF |
FE 3030 3030 EF |
|
To assign value of exposure (0x80 center, 0x00(bright) ~ 0xff(dark)) |
20 |
Exposure Value Request |
FF 3030 00 D1 EF |
FE 3030 3030 xx xx EF |
|
To request exposure value |
21 |
Exposure Mode Nomal |
FF 3030 00 D2 30 EF |
FE 3030 3030 EF |
|
To change exposure to normal mode |
22 |
Exposure Mode White Paper |
FF 3030 00 D2 31 EF |
FE 3030 3030 EF |
|
To change exposure to white paper mode |
23 |
Exposure Lock OFF |
FF 3030 00 D3 30 EF |
FE 3030 3030 EF |
|
To cancel Exposure Lock ON |
24 |
Exposure Lock ON |
FF 3030 00 D3 31 EF |
FE 3030 3030 EF |
|
To lock exposure |
|
|
|
|
|
|
25 |
White Balance Auto |
FF 3030 00 D4 30 EF |
FE 3030 3030 EF |
|
To adjust white balance automaticaly |
26 |
White Balance Manual |
FF 3030 00 D4 31 EF |
FE 3030 3030 EF |
|
To set white balance manually |
27 |
White Balance Value Assignment |
FF 3030 00 D5 xx xx EF |
FE 3030 3030 EF |
|
To assign target value of while balance (0x80 center, 0x00(red) ~ 0xff(blue)) |
28 |
White Balance Manual Value Request |
FF 3030 00 D6 EF |
FE 3030 3030 xx xx EF |
|
To return present white balance manually |
29 |
Auto White Balance Normal |
FF 3030 00 D7 30 EF |
FE 3030 3030 EF |
|
To change mode of auto white balance to normal |
30 |
Auto White Balance Turbo |
FF 3030 00 D7 31 EF |
FE 3030 3030 EF |
|
To change mode of auto white balance to turbo |
|
|
|
|
|
|
31 |
Still Picture OFF |
FF 3030 00 D8 30 EF |
FE 3030 3030 EF |
|
To set still picture mode OFF |
32 |
Still Picture ON |
FF 3030 00 D8 31 EF |
FE 3030 3030 EF |
|
To set still picture mode ON |
|
|
|
|
|
|
33 |
Detail Assignment |
FF 3030 00 D9 xx xx EF |
FE 3030 3030 EF |
|
To assign detail value (0x80 center, 0x00(sharp) ~ 0xff(soft)) |
34 |
Detail Request |
FF 3030 00 DA EF |
FE 3030 3030 xx xx EF |
|
To return present detail value |
|
|
|
|
|
|
35 |
m-COM ROM Version Request |
FF 3030 00 DB 30 EF |
FE 3030 3030 xx xx xx xx EF |
|
To return version value of m-COM ROM |
36 |
EEPROM Version Request |
FF 3030 00 DB 31 EF |
FE 3030 3030 xx xx xx xx EF |
|
To return version value of EEPROM |
|
|
|
|
|
|
37 |
Side Light OFF |
FF 3030 00 DC 30 EF |
FE 3030 3030 EF |
|
To switch OFF side light |
38 |
Side Light ON |
FF 3030 00 DC 31 EF |
FE 3030 3030 EF |
|
To switch ON side light |
|
|
|
|
|
|
39 |
Back Light OFF |
FF 3030 00 DD 30 EF |
FE 3030 3030 EF |
|
To switch OFF back light |
40 |
Back Light ON |
FF 3030 00 DD 31 EF |
FE 3030 3030 EF |
|
To switch ON back light |
|
|
|
|
|
|
41 |
Input Select Camera |
FF 3030 00 DE 30 EF |
FE 3030 3030 EF |
|
To select input from Camera |
42 |
Input Select External |
FF 3030 00 DE 31 EF |
FE 3030 3030 EF |
|
To select input from externai |
|
|
|
|
|
|
43 |
Command Termination Notification OFF |
FF 3030 00 DF 30 EF |
FE 3030 3030 EF |
|
To set termination notification OFF |
44 |
Command Termination Notification ON |
FF 3030 00 DF 31 EF |
FE 3030 3030 EF |
|
To set termination notification ON |
|
|
|
|
|
|
47 |
Product Name Request |
FF 3030 00 E0 EF |
FE 3030 3030 xx~xx EF |
|
To return product name ”xx~xx” : ”52452D34353058” (RE-450X) |
|
|
|
|
|
|
48 |
Operation Status Request1 |
FF 3030 00 EC 30 EF |
FE 3030 3030 xx xx EF |
|
To return information of operate status1 |
49 |
Operation Status Request2 |
FF 3030 00 EC 31 EF |
FE 3030 3030 xx xx EF |
|
To return information of operate status2 |
|
|
|
|
|
|
50 |
RE-450X Adjust Mode Change |
FF 3030 00 ED EF |
FE 3030 3030 EF |
|
To change RE-450X Adjust Mode |
|
|
|
|
|
|
51 |
Cascade ON |
FF 3030 00 8F 31EF |
FE 3030 3030 EF |
|
To connect cascade connection ON |
52 |
Cascade OFF |
FF 3030 00 8F 30 EF |
FE 3030 3030 EF |
|
To connect cascade connection OFF |
53 |
Global Notification ON |
FF 3030 00 95 31 EF |
FE 3030 3030 EF |
|
To set cascade global command notification ON |
54 |
Global Notification OFF |
FF 3030 00 95 30 EF |
FE 3030 3030 EF |
|
To set cascade global command notification OFF |
|
|
|
|
|
|
|
In Case of Command Error |
|
FE 3030 3330 EF |
|
In case of receiving the wrong commands |
|
In Case of Parameter Error |
|
FE 3030 3530 EF |
|
In case of recieving parameter out of range |
|
|
|
|
|
|
|
In Case of Mode Error |
Control Mode Error |
FE 3030 3930 EF |
|
In case of receiving command No.3~No.46 in status of Local Control Mode |
|
|
White Balance Mode Error |
FE 3030 3931 EF |
|
In case of receiving command No.27 in status of in Host Control Mode |
|
|
Focus Mode Error |
FE 3030 3932 EF |
|
In case of receiving command No.5~No.7 in status of Host Control Mode |
|
Zoom Speed |
|
|
|
|
|
speed1 (0x00) |
Minimum Speed |
|
|
|
|
speed2 (0x01) |
|
|
|
|
|
speed3 (0x02) |
|
|
|
|
|
speed4 (0x03) |
|
|
|
|
|
speed5 (0x04) |
|
|
|
|
|
speed6 (0x05) |
Default |
|
|
|
|
speed7 (0x06) |
|
|
|
|
|
speed8 (0x07) |
Maximum Speed |
|
|
|
|
<Operation Status 1> |
|
|
|
|
|
|
"1" |
|
|
|
|
bit7 |
Local Control Mode |
|
|
|
|
bit6 |
Command Termination Notification ON |
|
|
|
|
bit5 |
Video Mode PAL |
|
|
|
|
bit4 |
Cascade Connection ON |
|
|
|
|
bit3 |
Global Notification ON |
|
|
|
|
bit2 |
White Balance Turbo Mode |
|
|
|
|
bit1 |
Exposure Lock ON |
|
|
|
|
bit0 |
Gamma Mode 0 |
|
|
|
|
<Operation Status 2> |
|
|
|
|
|
|
"1" |
|
|
|
|
bit7 |
Side Light ON |
|
|
|
|
bit6 |
|
|
|
|
|
bit5 |
Input Select External Mode |
|
|
|
|
bit4 |
White Balance Auto Mode |
|
|
|
|
bit3 |
White Paper Mode |
|
|
|
|
bit2 |
Focus Auto Mode |
|
|
|
|
bit1 |
In Process of Zoom |
|
|
|
|
bit0 |
In Process of Output Still Picture |
|
|
|
