Canon LV-7240, LV-X5, LV-7245, RE-455X, LV-7565 User Manual

C

KNOW HOW

®

1-800-OK-CANON
www.usa.canon.com

Canon U.S.A., Inc.
One Canon Plaza
Lake Success, NY11042 U.S.A.

Canon Canada Inc.
6390 Dixie Road
Mississauga, Ontario L5T 1P7 Canada

Canon Latin America, Inc.
703 Waterford Way, Suite 400
Miami, FL 33126 U.S.A.

Canon Mexicana, S. de R.L. de C.V.
Blvd. Manuel Ávila Camacho No. 138, Piso 17
Col. Lomasde Chapultepec
C.P. 11000 México, D.F. México

0040W935 08/05 ©2005 CANON U.S.A., INC. Printed In U.S.A.

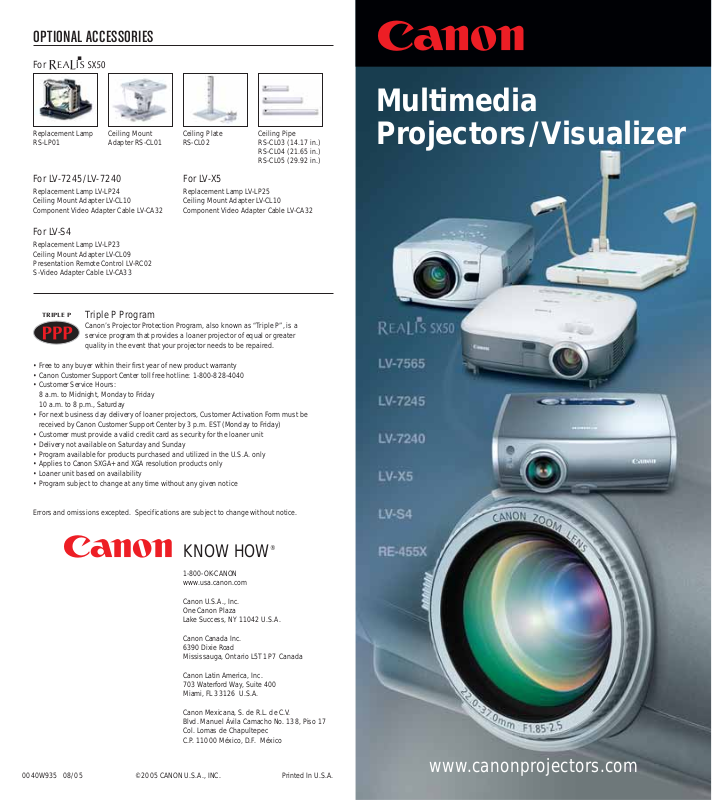

C

Multimedia
Projectors/Visualizer

OPTIONAL ACCESSORIES

For

ReplacementLamp Ceiling Mount Ceiling Plate Ceiling Pipe
RS-LP01 Adapter RS-CL01 RS-CL02 RS-CL03 (14.17 in.)

RS-CL04 (21.65 in.)
RS-CL05 (29.92 in.)

For LV-7245/LV-7240 For LV-X5

ReplacementLamp LV-LP24 ReplacementLamp LV-LP25
Ceiling MountAdapter LV-CL10 Ceiling MountAdapter LV-CL10
ComponentVideo Adapter Cable LV-CA32 ComponentVideo Adapter Cable LV-CA32

For LV-S4

ReplacementLamp LV-LP23
Ceiling MountAdapter LV-CL09
Presentation Remote Control LV-RC02
S-Video Adapter Cable LV-CA33

Triple P Program

Canon’s Projector Protection Program, also known as “Triple P”, is a
service program that provides a loaner projector of equal or greater
quality in the event thatyour projector needs to be repaired.

• Free to any buyer within their first year of new productwarranty

• Canon CustomerSupport Center toll free hotline: [phone]

• Customer Service Hours:
8 a.m. to Midnight, Monday to Friday
10 a.m. to 8 p.m., Saturday

• For next business day delivery of loaner projectors, Customer Activation Form mustbe
received by Canon CustomerSupport Center by3 p.m. EST (Monday to Friday)

• Customer mustprovide a valid credit card as security for the loaner unit

• Delivery not available on Saturdayand Sunday

• Program available for productspurchased and utilized in the U.S.A. only

• Applies to Canon SXGA+ and XGA resolution products only

• Loaner unit based on availability

• Program subject to change at any time withoutany given notice

Errors and omissions excepted. Specifications are subject to change without notice.

www.canonprojectors.com

TRIPLE P

3

2

SXGA

+

1400 X 1050

2500

ANSI LUMENS

GENUINE CANON OPTICS

Nearly 70 yearsof expertise in designing and crafting precision lenses
for photography, broadcastTV cameras, and camcorders goes into
every lens we manufacture. The REALiS SX50’slens offers one of the
industry’s widest zoom ranges(1.7x), and an impressively short throw

distance, and producesimages
with superior color and clarity.
An innovative lens design delivers
high picture quality and reduces
flare and ghosting.

EXCLUSIVE AISYS TECHNOLOGY

AISYSstands for Aspectual Illumination System – itis the engine of the
projector. Thispatented, proprietary optical technology makesit possi­ble to increase brightnessand contrast, while reducing the projector’s
size. It allows the REALiS SX50 to fully unlockthe performance of LCOS.

AISYSstructure

SXGA+RESOLUTION

To match the increasing demand for high resolution displaytechnology,
the REALiS SX50 features native SXGA+resolution – perfect for display­ing crisp video, photographs, fine text, spreadsheets, CAD drawings,
and engineering diagrams. Compared to mainstream projectorsthat
offer XGA resolution (1024 x768), the REALiS SX50 features SXGA

+

resolution (1400 x1050), for an expanded display range, capable of
reproducing even the smallestdetails with razor sharp precision.
SXGA+can also displaytrue 16:9 high definition broadcast images.

Size comparison: SXGA+and others

CylindricalLens Array

Condenser Lens

Compressor Lens

8.6 LBS. (3.9KG)

FEATURES

•

Native SXGA+Resolution (1400 x1050), Projects UXGA (Compressed)

• 2500 ANSI Lumens(85% Uniformity)

• Exclusive AISYS OpticalEngine

• 1000:1 Contrast Ratio

• Lens: f=22.0 to 37.0mm, F1.85 to 2.5, 1.7x Ultra-Wide Zoom

• 100" Screen: 9.8 to 16.4 ft. (3.0 to 5.0m)

• Throw Distance: 3.9 to 29.9 ft. (1.2 to 9.1m)

• Projected Image Size: 40" to 300"

• Throw Ratio 1.48 to 2.45:1 (D:W)

• DigitalKeystone Adjustment: ±20 Degrees (Vertical & Horizontal)

• 6-AxisColor Adjustment

• Dynamicand Manual Gamma Correction

• Greenboard Mode

• Progressive Scanning (480i/575i) with 2:3 Pulldown Response (480i)

• Frontor Rear Projection, Ceiling MountCompatible

• DVI-I (RGB Digital)/VGA (RGB Analog) Input Terminals

• ComponentVideo Input (with Supplied Adapter Cable)

• S-Video and Composite Input

• QuietOperation: 34 dB (Quiet Mode)

• Size (Wx D x H): 11.2 x 11.3 x3.8 in. (284 x286 x 96mm)

• 3 Year Partsand Labor Warranty –120 Day Lamp Life Warranty

KIT CONTENTS

•Projector • Wireless Remote Control (AA Batteries Included)

•Computer Cable (DVI-VGA) • Component Video Adapter Cable

•Mouse Control Cable (USB) • LensCap • Soft Carrying Case

•Power Cable • WarrantyCard • User’s Manual

* Please see backcover for optionalaccessories, “Triple P” program and other information.

54

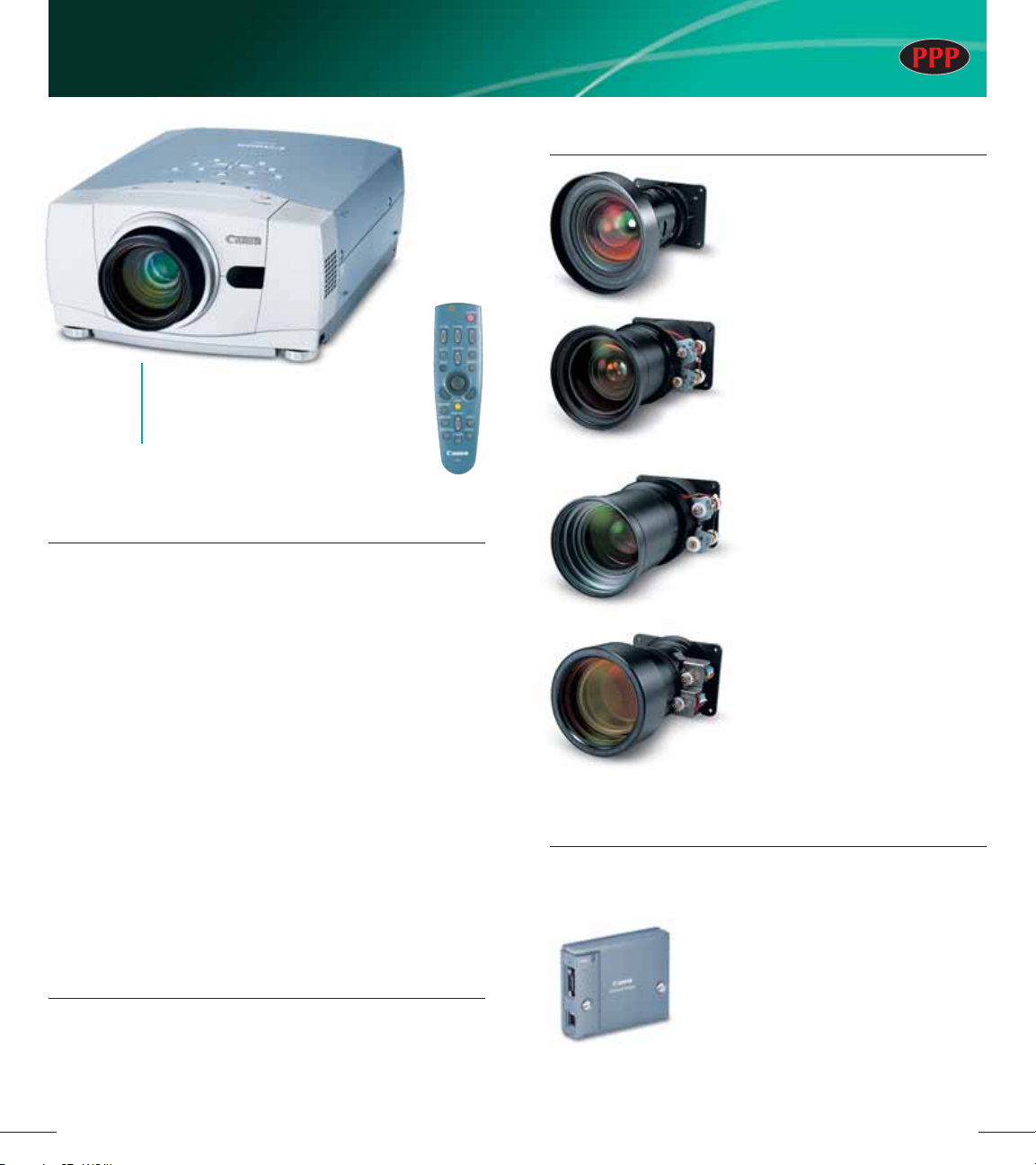

FEATURES

• Native XGA Resolution (1024 x768)

• 5100 ANSI Lumens (Turbo Bright Mode)/4300 ANSI Lumens

(Normal Mode)

• 90% Uniformity

• 1000:1 Contrast Ratio

• Lens: f=48.2 to 62.6mm, F1.7 to 2.0, 1.3x Zoom

• LensShifting: 1:1 to 10:0

• Throw Distance: 4.6 to 48.2 ft. (1.4 to 14.7m)

• Projected Image Size: 31" to 400"

• Throw Ratio 1.77 to 2.30:1 (D:W)

• DigitalKeystone Adjustment: ±40 Degrees (V), ±10 Degrees(H)

• Image Adjustment Features: Color Management, Auto Picture Control,

Gamma Adjustment

• Progressive Scanning (480i, 575i, 1035i, 1080i) with 2:3 Pulldown

Response (480i)

• Customizable Logo Display

• DVI-D (RGB Digital) Terminal, HDCP Compatible

• VGA (RGB Analog) Input/Output

• Other InputTerminals: 5BNC, Component, S-Video, Composite

• QuietOperation: 35 dB (Quiet Mode)

• Size (Wx D x H): 12.6 x 18.3 x 6.6 in. (319 x 465.2 x 168mm)

• 3 Year Partsand Labor Warranty –120 Day Lamp Life Warranty

KIT CONTENTS

•Projector • Power Cable • VGA Computer Cable • MAC/VGA Adapter

•Wireless/Wired Remote Control (AA BatteriesIncluded)

•Wired Remote Cable • Mouse ControlCable (PS/2, Serial, and Mac)

•Lens Cap • Dust Cover • Warranty Card • User’s Manual

XGA

1024 X 768

5100

ANSI LUMENS

20.5 LBS. (9.3KG)

OPTIONAL ACCESSORIES FOR THE LV-7565

Network Imager LV-NI01

The LV-NI01 connects the LV-7565 to your computer network, enabling
remote management of the projector through a simple, graphic user

interface. Thismakes a number of tasks
easier, such asprogramming for operation
on a daily or weekly schedule, input mode
switching and picture adjustment. Send
status aler ts via email. Furthermore, it offers
remote transfer of images, and centralized
control of multiple projectors.

DVI Cable LV-CA29
ReplacementLamp LV-LP22
Ceiling MountAdapter LV-CL07

OPTIONAL PROJECTOR LENSES FOR THE LV-7565

Ultra Wide Angle LensLV-IL01

• Lens: f=22.33mm, F2.5

• Throw Distance: 3.7 to 6.4 ft.
(1.13 to 1.96m)

• Projected Image Size: 70" to 120"

• Throw Ratio: 0.8:1 (D:W)

Wide Angle Zoom LensLV-IL02

• Lens: f=34.33 to 48.02mm,
F2.5 to 3.06, 1.4x zoom

• Throw Distance: 3.2 to 25.4 ft.
(0.98 to 7.74m)

• Projected Image Size: 40" to 300"

• Throw Ratio: 1.25 to 1.8:1 (D:W)

Long FocusZoom Lens LV-IL03

• Lens: f=63.5 to 111.5mm,
F2.03 to 2.89, 1.8x zoom

• Throw Distance: 8.9 to 46.7 ft.
(2.73 to 14.23m)

• Projected Image Size: 60" to 300"

• Throw Ratio: 2.29 to 4.17:1 (D:W)

Ultra Long FocusZoom Lens LV-IL04

• Lens: to 155.2mm, F2.06 to 2.73,

1.4x zoom

• Throw Distance: 11.4 to 82.0 ft.
(3.48 to 25.0m)

• Projected Image Size: 40" to 300"

• Throw Ratio: 4=4.15 to 5.78:1 (D:W)

Lens changes must be performed byan authorized
Canon representative.

* A body only version, LV-7565Fis also available. Please see backcover for the “Triple P” program.

LV-7565

6

7

FEATURES

• Native XGA Resolution, Projects UXGA (Compressed)

• 2500 ANSI Lumens(85% Uniformity)

• QuickStart (9 seconds) and QuickCooling (30 seconds)

• 400:1 ContrastRatio

• Lens: f=21.6 to 25.9mm, F1.7 to 2.0, 1.2xWide Zoom

• 100" screen: 9.8 to 11.8 ft. (3.0 to 3.6m)

• Throw Distance: 2.3 to 35.8 ft. (0.7 to 10.9m)

• Projected Image size: 21" to 300"

• Throw Ratio 1.46 to 1.77:1 (D:W)

• AutomaticKeystone Correction (±30 DegreesVertical)

• WallColor Correction

• InputButtons with Light-Up Indicators

• EasyMenu Display

• 2 VGA Input(Connect two laptopsat the same time), 1 VGA Output

• ComponentVideo Input (with optionalAdapter cable)

• S-Video and Composite Video InputTerminals

• Long Life Lamp: Up to 3000 hoursin Quiet Mode

• QuietOperation: 30dB (Quiet Mode)

• Size (Wx D x H): 11.6 x 10.2 x3.7 in. (294 x260 x 93mm)

• 3 Year Partsand Labor Warranty –120 Day Lamp Life Warranty

KIT CONTENTS

•Projector • Wireless Remote Control (AAA Batteries Included)

•VGA Computer Cable • Remote Mouse Receiver

• Lens Cap • SoftCarrying Case • Power Cable

•Carrying Handle (w/screws and screwdriver)

•CD-ROM User’s manual • WarrantyCard

XGA

1024 X 768

2500

ANSI LUMENS

7.0 LBS. (3.0KG)

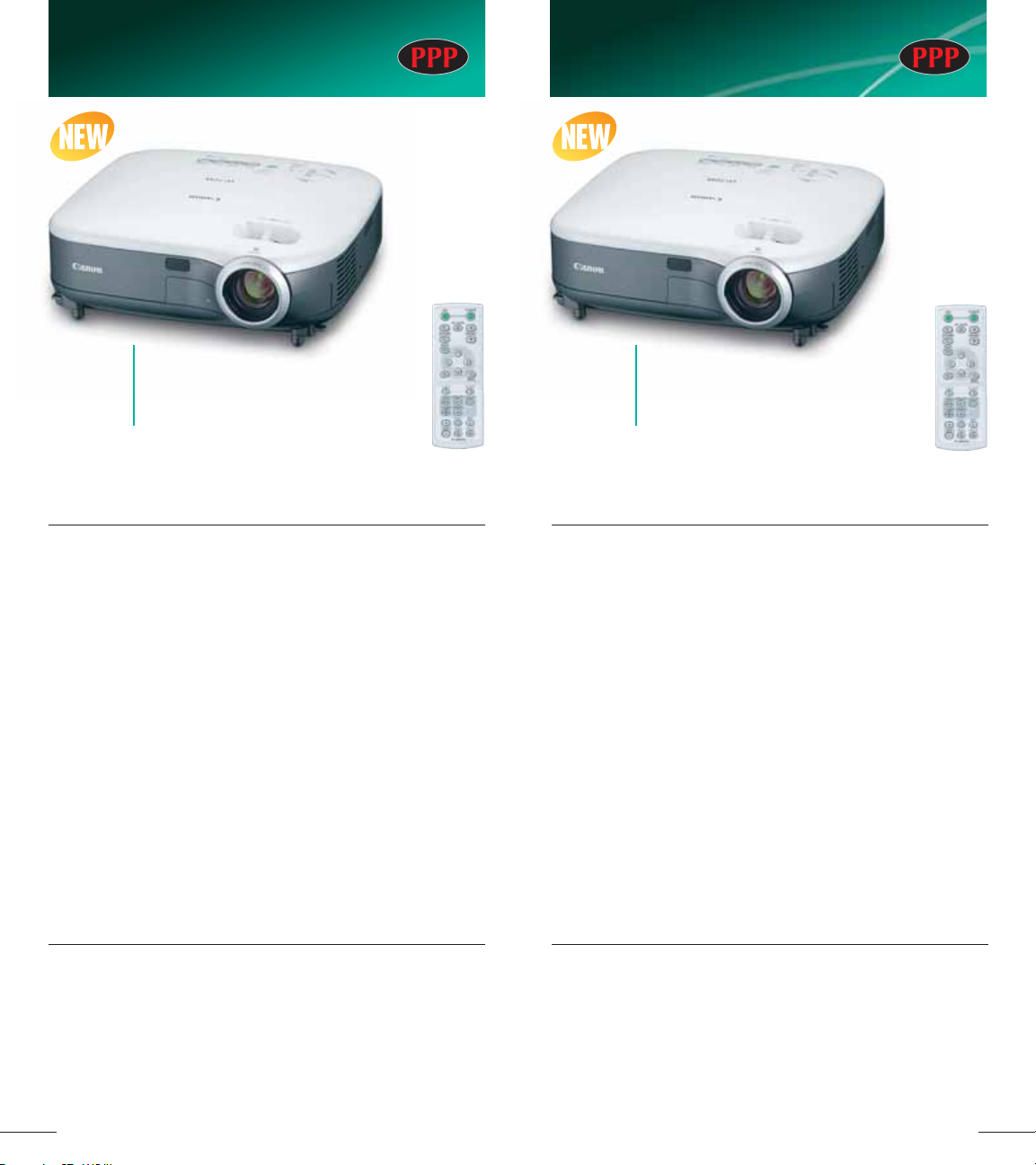

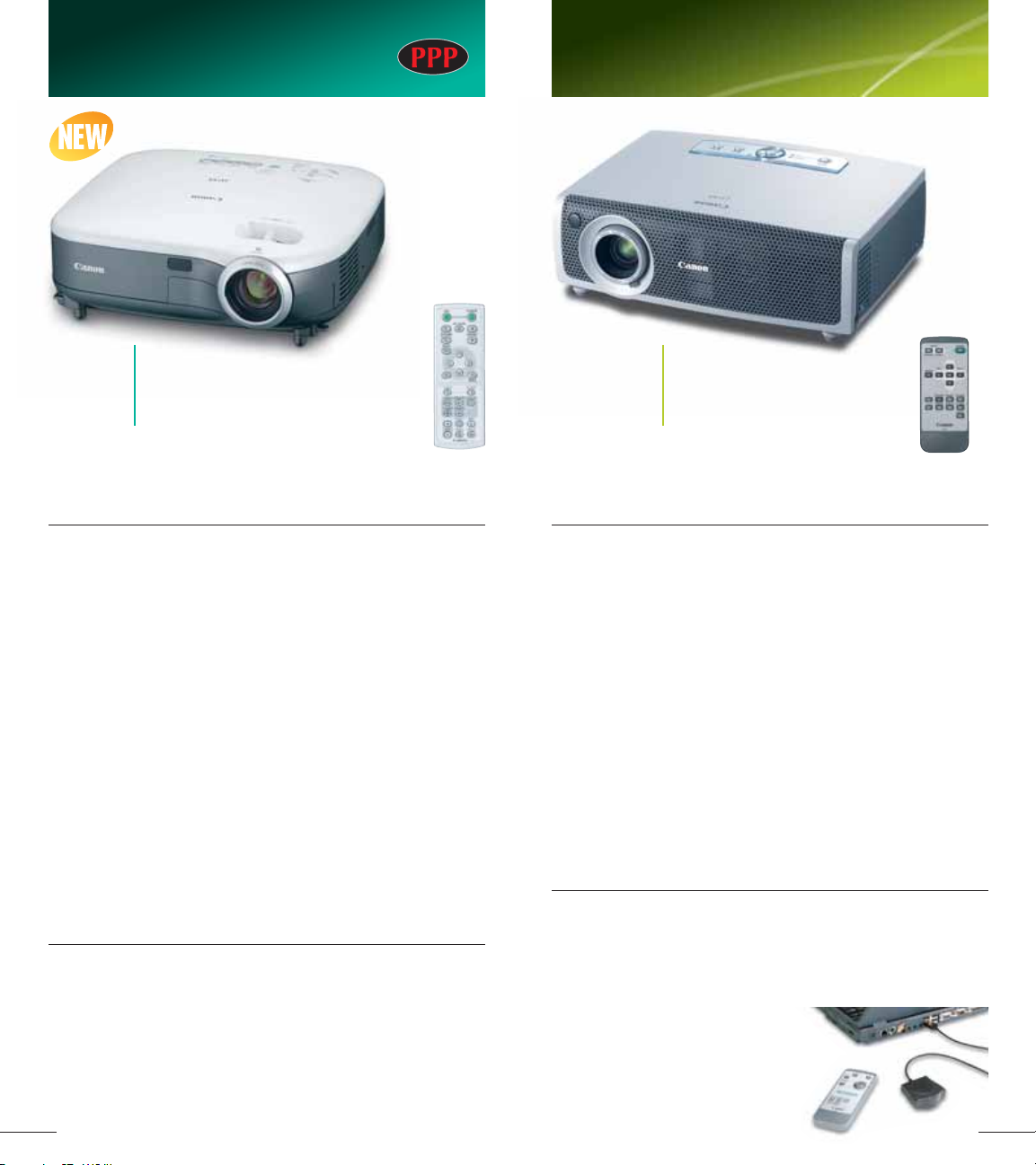

FEATURES

• Native XGA Resolution, ProjectsUXGA (Compressed)

• 2100 ANSI Lumens(85 % Uniformity)

• QuickStart (9 seconds) and QuickCooling (30 seconds)

• 400:1 ContrastRatio

• Lens: f=21.6 to 25.9mm, F1.7 to 2.0, 1.2xWide Zoom

• 100" screen: 9.8 to 11.8 ft. (3.0 to 3.6m)

• Throw Distance: 2.3 to 35.8 ft. (0.7 to 10.9m)

• Projected Image size: 21" to 300"

• Throw Ratio: 1.46 to 1.77:1 (D:W)

• AutomaticKeystone Correction (±30 DegreesVertical)

• WallColor Correction

• InputButtons with Light-Up Indicators

• EasyMenu Display

• 2 VGA Input(Connect two laptopsat the same time), 1 VGA Output

• ComponentVideo Input (with optionalAdapter cable)

• S-Video and Composite Video InputTerminals

• Long Life Lamp: Up to 3000 hoursin Quiet Mode

• QuietOperation: 30dB (Quiet Mode)

• Size (Wx D xH): 11.6 x 10.2 x3.7 in. (294 x 260 x 93mm)

• 3 Year Partsand Labor Warranty –120 Day Lamp Life Warranty

KIT CONTENTS

•Projector • Wireless Remote Control (AAA Batteries Included)

•VGA Computer Cable • Remote Mouse Receiver

• Lens Cap • SoftCarrying Case • Power Cable

•Carrying Handle (w/screws and screwdriver)

•CD-ROM User’s manual • WarrantyCard

7.0 LBS. (3.0KG)

XGA

1024 X 768

2100

ANSI LUMENS

* Please see backcover for optionalaccessoriesand the “Triple P” program. * Please see backcover for optionalaccessoriesand the “Triple P” program.

LV-7245 LV-7240

8

FEATURES

• Native XGA Resolution, ProjectsUXGA (Compressed)

• 1500 ANSI Lumens(85% Uniformity)

• QuickStart (9 seconds) and QuickCooling (30 seconds)

• 400:1 ContrastRatio

• Lens: f=21.6 to 25.9mm, F1.7 to 2.0, 1.2xWide Zoom

• 100" screen: 9.8 to 11.8 ft. (3.0 to 3.6m)

• Throw Distance: 2.3 to 35.8 ft. (0.7 to 10.9m)

• Projected Image size 21" to 300"

• Throw Ratio: 1.46 to 1.77:1 (D:W)

• AutomaticKeystone Correction (±30 DegreesVertical)

• WallColor Correction

• InputButtons with Light-Up Indicators

• EasyMenu Display

• 2 VGA Input(Connect two laptopsat the same time), 1 VGA Output

• ComponentVideo Input (with optionalAdapter cable)

• S-Video and Composite Video InputTerminals

• Long Life Lamp: Up to 4000 hoursin Quiet Mode

• QuietOperation: 28dB (Quiet Mode)

• Size (Wx D xH): 11.6 x 10.2 x3.7 in. (294 x 260 x 93mm)

• 3 Year Partsand Labor Warranty –120 Day Lamp Life Warranty

KIT CONTENTS

•Projector • Wireless Remote Control (AAA Batteries Included)

•VGA Computer Cable • LensCap • Soft Carrying Case

•Power Cable • CD-ROM User’s manual • Warranty Card

7.0 LBS. (3.0KG)

XGA

1024 X 768

1500

ANSI LUMENS

FEATURES

• Native SVGA Resolution (800 x 600)

• 1500 ANSI Lumens(85% Uniformity)

• Lens: f=18.3 to 21.9mm, F1.6 to 1.8, 1.2x Wide Zoom

• 100" Screen: 10.5 to 12.5 ft. (3.2 to 3.8m)

• Throw Distance: 4.3 to 21.3 ft. (1.3 to 6.5m)

• Projected Image Size: 34" to 200"

• Throw Ratio: 1:59 to 1.89:1 (D:W)

• Digital Keystone Adjustment: ±20 Degrees (Vertical Only)

• Image Adjustment Features: Greenboard Mode, Gamma Adjustment

• Progressive Scanning (480i/575i) with 2:3 Pulldown Response (480i)

• PIN Code Lockand Function Key Lock

• VGA (RGB Analog) Input/Output

• Component Video Input (with Supplied Adapter Cable)

• S-Video (with Optional Cable) and Composite Video InputTerminals

• QuietOperation: 33dB (Quiet Mode)

• Size (W x D x H): 10.6 x 7.8 x3.3 in. (270 x197.2 x 83.1mm)

• 3 Year Partsand Labor Warranty –120 Day Lamp Life Warranty

KIT CONTENTS

•Projector • Wireless Remote Control(AA Batteries Included)

•Power Cable • VGA Computer Cable •

ComponentVideo Adapter Cable

•Lens Cap • PIN Code Seal • Soft Carrying Case • Warranty Card

• User’s Manual

Presentation Remote ControlLV-RC02 (Optional)

Offers key projector functions used
during a presentation and mouse
control for your PC.

1500

ANSI LUMENS

5.1 LBS. (2.3KG)

SVGA

800 X 600

* Please see backcover for optionalaccessoriesand the “Triple P” program. * Please see backcover for optionalaccessories.

9

LV-X5 LV-S4

BENEFIT FROM OUR OPTICAL EXPERIENCE

The heart of any projector is its optics. Nearly70 years of expertise
in designing and crafting precision lensesfor photography, broadcast
TV cameras, and camcorders goes into every lenswe manufacture.
Our projector lenses deliver a remarkablybroad zoom ranges and
incredibly short throw distances, and consistently produce images
with superior color and clarity.

CANON THROW DISTANCE CHART

* For more detailed throw distance information, please visit us at

wwwwww..ccaannoonnpprroojjeeccttoorrss..ccoomm

Projection Image Size 40" 100" 150" 182" 200" 300"

Wide 3.9' 9.8' 14.8' 18.0' 19.7' 29.9'
Tele 6.6' 16.4' 24.6' 29.9' - -

11

10

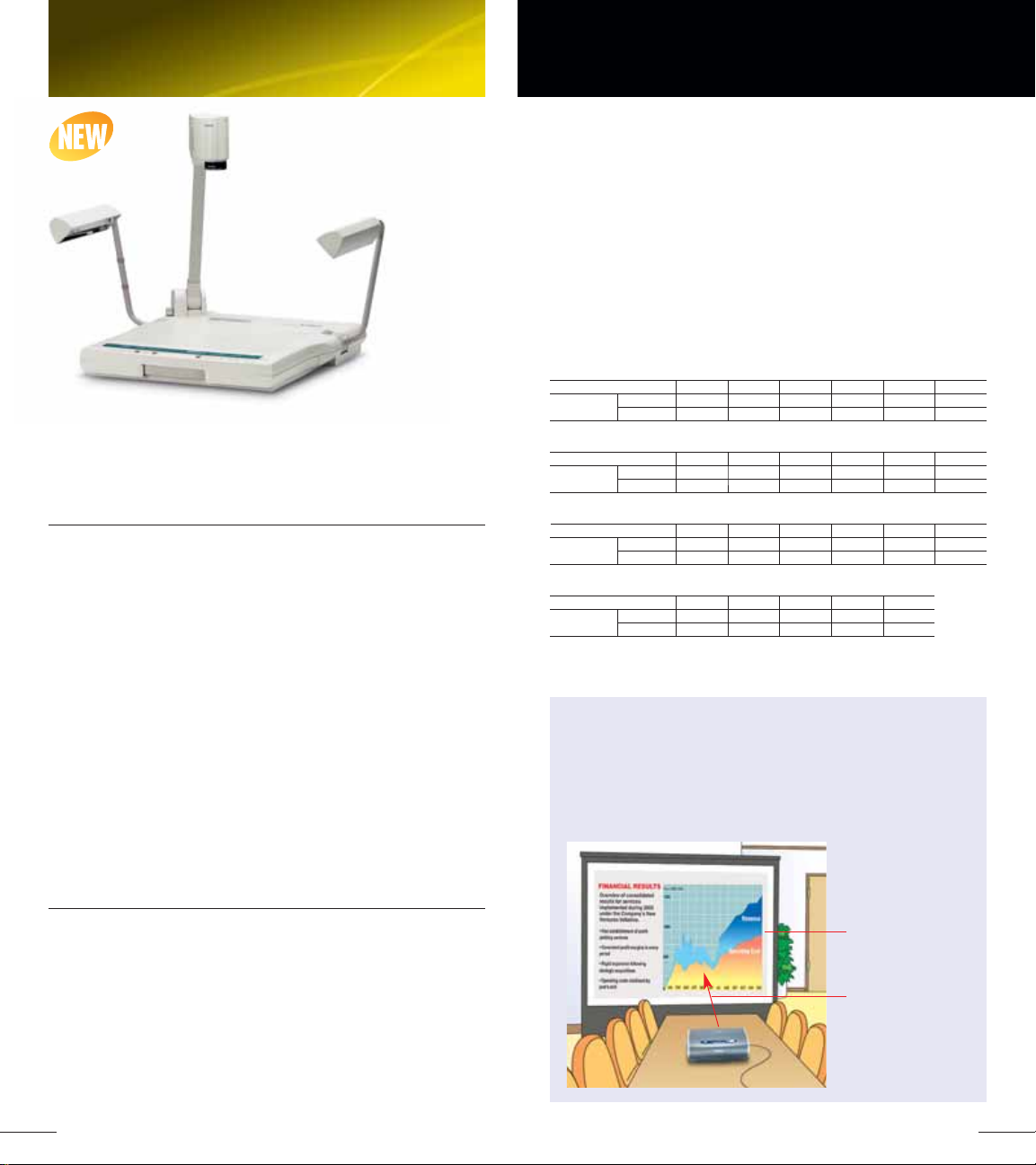

FEATURES

• DisplayPaper Documents and 3-D Objects

• XGA Resolution (1024 x768)

• Superior Canon Optics: 12xOptical Power Zoom Lens

• Connects easilyto your projector, Computer Monitor, TV, VCR, or
DVD Recorder

• ConvenientFront PanelControls

• White Paper Mode – Enhances the appearance oftext documents

• Zoom Preset– Automaticallyzooms to cover an 8-1/2" x11" document

• Image Freeze

• Auto and ManualFocusing, Exposure and White Balance

• One ShotAuto Focus – Ideal when switching objects frequently

• Adjustable Twin FluorescentLamps – Providesuniform lighting

• VGA Input/Output

• S-Video and Composite Output

• Foldable Design for ExcellentPortability

• Size (Wx D x H): In Use: 28.4 x 20.7 x21.9 in. (722 x525 x 556mm)

Folded: 19.1 x 20.7 x 7.2 in. (486 x 525 x 183mm)

• 1 Year Partsand Labor Warranty

KIT CONTENTS

•VGA Cable • AC Cable (with Connector) • Dust Cover

•User's Manual • Warranty Card

MAXIMUM IMPACT IN MINIMUM SPACES

Normally, a projector mustbe positioned far away from a screen
to project a large image. This isnot the case with Canon projectors.
They feature wide-angle zoom lenses, allowing you to achieve big,
vibrant images from as little as 9.8 feet (2.5m), making them ideal
for a small conference room.

100" Display

9.8' Throw Distance*

REALiSSX50

Projection Image Size 31" 40" 100" 200" 300" 400"

Wide - 4.5' 11.8' 24.0' 36.1' 48.2'
Tele 4.6' 6.0' 15.4' 31.0' 46.6' -

LV-7565 (Standard Lens)

LV-7245/LV-7240/LV-X5

Projection Image Size 34" 40" 100" 150" 200"

Wide - 4.3' 10.5' 16.1' 21.3'
Tele 4.3' 4.9' 12.5' 19.0' -

Projection Image Size 21" 40" 100" 150" 200" 300"

Wide – 3.8' 9.8' 14.7' 19.7' 29.5'
Tele 2.4' 4.7' 11.8' 17.8' 23.8' 35.8'

LV-S4

Projection

Distance

Projection

Distance

Projection

Distance

Projection

Distance

CANON TECHNOLOGY

* RealisSX50, LV-7245,

LV-7240, and LV-X5
models only.

20.7 LBS. (9.4KG)

XGA

1024 X 768

RE-455X
