MAIN UNIT
Challenge Your Document Production Standards
The Canon imageRUNNER 7086 device offers the speed and versatility to serve as a complete document
publishing and communications device for busy corporate departments. The system can tackle the
diverse range of document production tasks common to walk-up and networked environments including
booklet finishing, professional hole-punching, paper folding, and more. By including Canon’s Universal
Send technology you can also leverage the system as a high-speed scanning and document distribution
solution for your workflow needs.
Best of all, the imageRUNNER 7086 model is Internet-ready and offers customization capabilities
®
through Canon MEAP
control across your entire corporate network.
technology, so you can be assured of the tightest possible integration and device
Type: Digital Multifunctional
Imaging System
Imaging System: Laser Dry Electrostatic Transfer
Developing System: Dry Monocomponent Toner
Projection
Main Unit CPU: Dual Canon Custom Processors
Interface Connection: 10/100Base-TX (RJ-45), USB 2.0
High Speed
Image Server Memory: Standard 1GB RAM + 40GB HDD
Max. Mail Boxes Supported: 100 (Max. Page Capacity:
Approximately 20,000 pages)
Max. Copy Reservation: 20 Jobs
Acceptable Originals: Sheets, Books, 3-Dimensional
Objects up to 4.4 lb.
Max. Original Size: 11" x 17"
Max. Copy Size: 11" x 17"
Min. Copy Size: 3-15/16" x 5-7/8" (Stack Bypass)
Scanning Resolution: 600 x 600 dpi
Copy Resolution: 1200 x 600 dpi
(Interpolated)
Halftone: 256-Level Grayscale
Exposure Control: Automatic or Manual (Text, Photo,
or Text/Photo)
Copy Speed: 86 cpm (Letter)
43 cpm (11" x 17")
First-Copy Time: 3.0 Seconds (From Platen)
Warm-Up Time: 6 Minutes or Less
Multiple Copies: 1 – 9,999
Duplexing: Standard Automatic Trayless
Duplexing
Magnification
From Glass: 25% - 400% (In 1% increments)
From Feeder: 25% - 200% (In 1% increments)
Preset Reduction: 25%, 50%, 64%, 73%, 78%
Preset Enlargement: 121%, 129%, 200%, 400%
Standard Paper Supply: Dual Front-Loading Drawers
(1,500 Sheets each)
Dual Front-Loading Cassettes
(550 Sheets each)
50-Sheet Stack Bypass
Optional Paper Supply: 3,500-Sheet Paper
Deck-W1/X1
Paper Capacity: Standard: 4,150 Sheets
Maximum: 7,650 Sheets
Acceptable Paper Weight: 17 lb. Bond to 110 lb. Index
(All Sources)
Power Consumption: 2kW
Plug: NEMA 6-15R
Photoconductor Yield: 6 Million Impressions
Toner Yield: 47,000 Images @ 6% Coverage
Duplex Automatic Document Feeder
Tray Capacity: 100 Sheets
Scanning Speed: 65 Sheets Per Minute (Letter)
Acceptable Original Sizes: Statement to 11" x 17"
Acceptable Size Originals: Same Width, Different Width
Acceptable Paper Weight: 13 lb. to 32 lb. Bond
OPTIONAL ACCESSORIES
Paper Deck-W1/Paper Deck-X1
Paper Capacity: 3,500 Sheets
Number of Drawers: 1
Acceptable Paper Weight: 17 lb. Bond to 110 lb. Index
Acceptable Paper Size
Paper Deck-W1: Letter
Paper Deck-X1: Letter-R, Letter, Legal, 11" x 17"
Perfect Binder-A1*
Bind Method: Perfect Binding
Cutting Method: Stack Rotation 3-Direction, or
1-Direction (for Open Edge) Cut
Finished Book Size:
(After 3-Direction Cutting)
Width: 7-1/8" to 11-1/4"
Length: 5-5/8" to 8-1/4"
Book Thickness: 10 to 200 Sheets Using 17 to
24 lb. Bond
10 to 150 Sheets Using 24 to
28 lb. Bond
10 Sheets Using 28 lb. Bond to
110 lb. Index
Cover Source Location: Stack Bypass, Paper Drawers,
Paper Deck (Imageable) Document
Insertion Unit (For Pre-Printed Cov ers)
Stacker Tray Capacity: 3.94" (100mm) (Equivalent to 10
100-page Books with 17 lb. Bond)
Glue Supplies & Yield: Glue-A1 (33 lb./15kg):
Estimated Yield: 5,000 Sets of
100 Sheet Books (20 lb. Bond)
Glue-A2 (11 lb./5kg):
Estimated Yield: 1,650 Sets of
100 Sheet Books (20 lb. Bond)
Glue Warm-Up Time: 380 Seconds or Less
Glue Unit Capacity: Bind Approximately 180 100-page
Books Using 20 lb. Bond Paper
Trim Range
Width: 7mm – 27mm
Length: 7mm – 39mm
Adjustable in 1mm increments
Trimmer Waste Capacity: Space for 3-Sided Cuttings From
Approximately 15 100-page Books
Document Insertion Unit (Standard With Perfect Binder-A1)
Acceptable Media: Covers and Inserts
Number of Trays: 2
Tray Capacity
Upper Tray: 200 Sheets (20 lb. Bond)
Lower Tray: 200 Sheets (20 lb. Bond)
Acceptable Paper Weight: 17 lb. Bond to 158 lb. Index
Acceptable Paper Sizes
Upper Tray: Letter, Letter-R, Executive
Lower Tray: 11” x 17”, Legal, Letter, Letter-R,
Executive
Finisher-V1/Saddle Finisher-V2
Number of Trays: 2/3
Tray Capacity
Top Tray: 3,000 Sheets
Lower Tray: 2,000 Sheets
Saddle-Stitch Tray: 30 Booklets or Limitless
Acceptable Paper Weight
Finisher-V1: 17 lb. Bond to 110 lb. Index
Saddle Finisher-V2: 17 lb. Bond to 110 lb. Index
Acceptable Paper Size: 11" x 17", Legal, Letter, Letter-R,
Statement-R, Executive
Staple Positions: Corner Stapling, Double Stapling
Max. Stapling Capacity: 100 Sheets (Letter, Executive)
50 Sheets (11" x 17", Legal,
Letter-R)
Type of Staple: Staple-N1 (5,000 x 3)

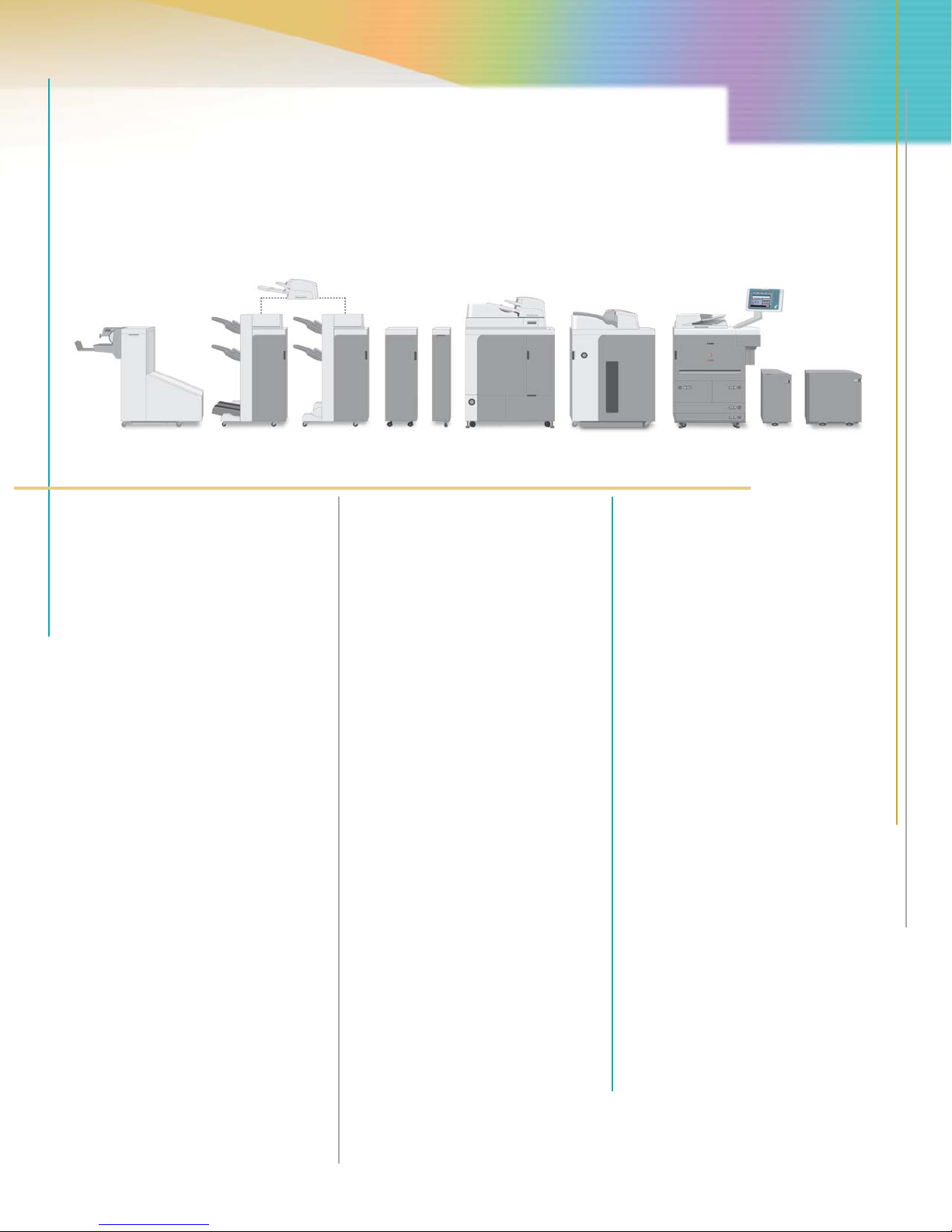

Page 3
Document
Insertion
Unit-C1
Professional
Puncher-A1*
Booklet
Trimmer-C1
Saddle
Finisher-V2
Finisher-V1
Professional Puncher-A1* (For Finisher-V1/Saddle Finisher-V2)
Type: External In-Line Punch Unit
Hole-Punching Method: Press Punch Unit
Acceptable Punch
Paper Weight: 20 lb. Bond to 110 lb. Index
Acceptable Punch Paper Size: Letter
Punch Speed: Up to 105 ppm (Depending
on speed of main unit)
Punch Patterns (Optional): Plastic Comb (19-Hole)
Twin Loop (32-Hole)
Twin Loop (21-Hole)
Color Coil (44-Hole)
Velo Bind (11-Hole)
Loose-leaf Bind (3-Hole)
Proclick (32-Hole)
Puncher Unit-V1 (For Finisher-V1/Saddle Finisher-V2)
Type: Internal Punch Unit
Hole-Punching Method: Press Punch System
Acceptable Punch
Paper Weight: 17 lb. Bond to 110 lb. Index
Acceptable Punch Paper Size
Two Holes: Legal, Letter-R
Three Holes: 11" x 17", Letter
Punch Speed: Up to 105 ppm (Depending
on speed of main unit)
Document Insertion Unit-C1 (For Finisher-V1/Saddle Finisher-V2)
Number of Trays: 2
Capacity
Upper Tray: 200 Sheets
Lower Tray: 200 Sheets
Acceptable Paper Weight: 17 lb. Bond to 158 lb. Index
Acceptable Paper Size
Upper Tray: Letter, Letter-R, Executive
Lower Tray: 11" x 17", Legal, Letter, Letter-R,
Executive
Paper Folding Unit-D1 (For Finisher-V1/Saddle Finisher-V2)
Folding Method: Roller Pressure Folding
Folding Type: Z-Fold
Acceptable Paper Weight: 17 lb. Bond to 20 lb. Bond
Acceptable Paper Size: 11" x 17"
Booklet Trimmer-C1 (For Saddle Finisher-V2)
Margin Trimming: Open-End Only
Trim Thickness: 40 Sheets
Waste Tray Capacity: 1,500 Sheets of Trimmed Strip
Acceptable Paper Weight: 17 lb. Bond to 110 lb. Index
Output Tray Capacity: 30 Booklets
Paper
Perfect Binder-A1*
Folding
Unit-D1
CONNECTIVITY OPTIONS
Universal Send Kit-E1
Sending Methods: E-mail, I-fax, File Server
Address Book Capacity: 1,800 Destinations
Commucation Protocol
File: FTP(TCP/IP), SMB (TCP/IP),
E-mail/I-Fax: SMTP, POP3, I-Fax (Simple, Full)
Supported Data Format
File/E-mail: TIFF, PDF, PDF(OCR), Encrypted
I-Fax: TIFF(MH, MR, MMR)
Canon Multi-PDL Printer Kit-H2
Processor: Dual Canon Custom Processors
Memory: 1 GB – Shared
Storage: 40 GB – Shared
PDL Support: PCL 5e, PCL 6, PostScript
Resolution: 1200 x 1200 dpi: UFR II, PCL 6,
Interface Connections
Standard: 10/100Base-TX (RJ-45),
Network OS: Windows
imagePASS-S2
Type: External Print Controller
CPU: Intel®Celeron®D @ 2.8GHz
Operating System: System 8e
Memory: 256MB RAM (Standard)
Hard Disk Drive: 80GB (Standard)
Interface Connections: 10/100/1000Base-TX (RJ-45)
Supported PDLs: Adobe PostScript
Resolution: PCL 5e: 2400 x600 dpi
(FTP, SMB, IPX, WebDAV),
User Inbox
NCP(IPX), WebDAV
PDF, Digital Dence Signature PDF,
Digital User Signature PDF
®
3
Emulation, UFR II
PostScript 3 Emulation
2400 x 600 dpi: PCL 5e
USB 2.0 High Speed
®
98/Me/2000/XP
Windows Server 2003/
Windows Vista
Solaris 1.1x, 2.5x or Later
Macintosh
Novell
™
®
OS 8.0 or Later (PPD)
®
NetWare®v3.2, 4.1, 4.11,
4.2, 5, 5.1, 6, 6.5 (IPX/SPX)
512MB RAM (Maximun)
®3™
, PCL 5e/6
(Interpolated)
PCL 6/PS3: 1200 x 1200 dpi**
High-Capacity
Stacker-A1
Main Unit
Paper
Deck-W1
Printer Drivers: Windows 98/Me/2000/XP
Server 2003/Windows Vista
Citrix MetaFrame
Macintosh OS X (OS 10.2 or Later)
Internal Fonts: 136 Adobe Type 1 Roman PS fonts
Network Operating System: Apple Macintosh OS 9.1 (PPD),
OS X (10.2.8 or Later)
Solaris 8.0 or Later
Sun OS 4.1.3 or Later
Windows 2000/XP/Server 2003/
Windows Vista/Novell NetWare
v4.2, 5.1, 6.1
EFI Options: Hot Folders and Virtual Printers,
Impose v2.6, 256 RAM
OtherAccessories
• Cassette-AB1
• Tab Feeding Attachment-A1
• Document Tray-L1
• Braille Label Kit-A1
• Control Card Reader-D1
• Control Card Sets
• Universal Send Searchable PDF Kit-A1
• Universal Send PDF Security Feature Set-A1
• Digital User Signature Kit-A1
• Encrypted Secure Print Software-C1
• Web Access Software-F1
• Remote Operator’s Software Kit-A1
• Expansion Bus-D1
• Access Management System Kit-A1
• HDD Data Encryption Kit-B2
• HDD Data Erase Kit-A1
• Voice Guidance Kit-A2
• Secure Watermark Kit-A1
• Barcode Printing Kit-A1
• Finisher Option Power Supply Unit-R1
• High Capacity Stacker-A1
• Stacker Dolly-A1
• Punch Tools for Professional Puncher-A1
• ADF Access Handle-A1
*The Professional Puncher-A1 cannot be installed simul-
taneously with the Perfect Binder-A1. The Professional
Puncher-A1 and the Puncher Unit-V1 can be installed
simultaneously.
**1200 x 1200 dpi resolution for PCL printing is not supported
on Windows 9x/Me Clients.
NOTE: Some accessories require additional equipment or may
be prerequisites for other options. Check with your Canon
Authorized Dealer for details.
Paper
Deck-X1
Page 4
Device Dimensions and Power Requirements Chart
Product/Accessory Name Dimensions (H x W x D) Weight Power
Main Unit 58" x 47-7/8" x 30-7/8" 551 lb. 208V, 60Hz, 12A
Paper Deck-W1 22-1/2" x 12-3/4" x 23" 90.4 lb.
Paper Deck-X1 22-5/8" x 23-3/8" x 24-1/2" 101 lb.
High-Capacity Stacker-A1 48-9/10" x 33-9/10" x 30-1/5" 440 lb. 120V, 10A
Perfect Binder-A1 53-1/2" x 36-1/4" x 31-1/8" 696 lb. 208V, 15A
Finisher-V1 46-1/2" x 31-1/2" x 31-1/4" 278 lb.
Saddle Finisher-V2 46-1/2" x 31-1/2" x 31-1/4" 392 lb.
Document Insertion 8-3/8" x 24-5/8" x 26-1/4" 37.5 lb.
Unit-C1 (213mm x 625mm x 667mm) (17kg)
Paper Folding Unit-D1 41" x 7-1/8" x 31" 97 lb.
Booklet Trimmer-C1 41" x 62-1/10" x 30-2/5" 335 lb.
Professional Puncher-A1 38-1/2" x 12" x 28-1/2" 170 lb.
* When Finisher is equipped with Paper Folding Unit-D1 and/or Document Insertion Unit-C1.
** When Finisher is equipped with Professional Puncher-A1, Booklet Trimmer-C1, High-Capacity Stacker-A1, and/or Perfect Binder-A1.
(1474mm x 1216mm x 783mm) (250kg)
(570mm x 323mm x 583mm) (41kg)
(574.5mm x 593mm x 621mm) (46kg)
(1240mm x 860mm x 765mm) (200kg)
(1360mm x 920mm x 791mm) (316kg)
(1180mm x 800mm x 792mm) (126kg)
(1180mm x 800mm x 792mm) (178kg)
(1040mm x 179mm x 786mm) (44kg)
(1040mm x 1575mm x 770mm) (152kg)
(978mm x 305mm x 723mm) (77kg)
Directly From Main Unit
Directly From Main Unit*
or
208V, 60Hz, 12A**
From Finisher-V1 or
Saddle Finisher-V2
As an ENERGY STAR®Partner, Canon U.S.A., Inc. has determined that these products meet
the ENERGY STAR guidelines for energy efficiency. ENERGY STAR and the ENERGY STAR mark
are registered U.S. marks. Windows and Windows NT are registered trademarks and Windows
Vista is a trademark of Microsoft Corporation in the United States and/or other countries.
Adobe and PostScript are registered trademarks or trademarks of Adobe Systems Incorporated
in the United States and/or other countries. Macintosh is a registered trademark of Apple
Computer, Inc. Intel and Celeron are registered trademarks of Intel Corporation. Novell and
NetWare are registered trademarks of Novell, Inc. in the United States and other countries.
Solaris and Sun are trademarks or registered trademarks of Sun Microsystems, Inc. in the
United States and other countries. EFI and Command WorkStation are registered trademarks
and FreeForm is a trademark of Electronics for Imaging, Inc. in the U.S. Patent and Trademark
Office and certain other foreign jurisdictions. eCopyShareScan is a trademark of eCopy, Inc.
CANON, IMAGERUNNER and MEAP are registered trademarks of Canon Inc. in the United States
and may also be registered trademarks or trademarks in other countries. IMAGEWARE is a registered trademark of Canon U.S.A., Inc. in the United States and is a trademark of Canon Inc. in
certain countries. IMAGEANYWARE is a trademarkof Canon. All
referenced product names and other marks are trademarks of their respective owners.
Specifications subject to change without notice.
©2007 Canon U.S.A., Inc. All rights reserved.
0607R-7086SS-PDF-TM
printed on recycled
paper in the U.S.A.
1-800-OK-CANON
www.usa.canon.com
Canon U.S.A., Inc.
One Canon Plaza
Lake Success, NY 11042
Loading...
