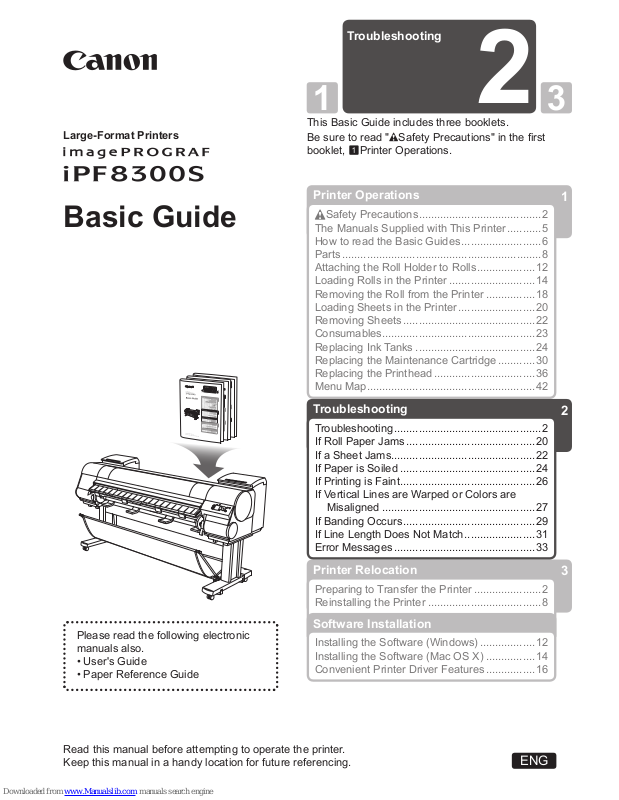

Canon imagePROGRAF iPF8300S Basic Guide No.2 Basic Manual

1

Printer Operations

Troubleshooting

2

Be sure to read " Safety Precautions" in the fi rst
booklet, Printer Operations.

Read this manual before attempting to operate the printer.
Keep this manual in a handy location for future referencing.

This Basic Guide includes three booklets.

ENG

3

Printer Relocation

Software Installation

2

Troubleshooting

Basic Guide

Large-Format Printers

Please read the following electronic
manuals also.

• User's Guide

• Paper Reference Guide

Safety Precautions ........................................2

The Manuals Supplied with This Printer ...........5

How to read the Basic Guides ..........................6

Parts .................................................................8

Attaching the Roll Holder to Rolls ...................12

Loading Rolls in the Printer ............................14

Removing the Roll from the Printer ................18

Loading Sheets in the Printer ......................... 20

Removing Sheets ........................................... 22

Consumables..................................................23

Replacing Ink Tanks .......................................24

Replacing the Maintenance Cartridge ............ 30

Replacing the Printhead ................................. 36

Menu Map.......................................................42

Troubleshooting ................................................2

If Roll Paper Jams .......................................... 20

If a Sheet Jams...............................................22

If Paper is Soiled ............................................24

If Printing is Faint ............................................26

If Vertical Lines are Warped or Colors are

Misaligned ..................................................27

If Banding Occurs ...........................................29

If Line Length Does Not Match .......................31

Error Messages .............................................. 33

Preparing to Transfer the Printer ......................2

Reinstalling the Printer .....................................8

Installing the Software (Windows) .................. 12

Installing the Software (Mac OS X) ................14

Convenient Printer Driver Features ................16

2

Paper Problems

Phenomenon

Roll paper cannot be inserted into
the paper feed slot

The roll paper is warped. Straighten out curls and reload the roll.

Cannot load sheets Press the Load button and select the paper source.The paper source selection is

incorrect.

Paper is not cut straight The paper is bent or curled at the

cut position.

Straighten out any curling by the edges of the paper.

Reload the paper correctly.Paper rises by the ends of the cut

position before it is cut.

Paper is not cut In the printer driver, No or Print

Cut Guideline is specified in Auto
Cut .

In the Control Panel menu,
Cutting Mode is set to Eject or
Manual .

Specify Yes in Auto Cut in the printer driver.

If the Cutting Mode is Eject , press the Cut button to
cut the paper.

Cause Corrective Action

Troubleshooting

This section gives troubleshooting tips in case of problems.

Paper is jammed by the paper feed
slot.

(→ , If Roll Paper Jams)
(→

, If a Sheet Jams)

Remove the jammed paper.

You are using paper that cannot be
cut with the Cutter Unit .

Specify Manual in Cutting Mode in the Control
Panel menu and use scissors or a cutting tool to cut
the roll after printing.

(→"Specifying the Cutting Method for Rolls," User's
Guide)

The paper source selection is
incorrect.

Press the Load button and select the paper source.

The Cutter Unit is not installed. Install the Cutter Unit .

(→"Replacing the Cutter Unit," User's Guide)

The Cutter Unit is not installed
correctly.

Reinstall the Cutter Unit correctly.

The Cutter Unit blade is worn out. Replace the Cutter Unit .

(→"Replacing the Cutter Unit," User's Guide)

(→"Replacing the Cutter Unit," User's Guide)

Rolls are not cut when you are
using the Media Take-up Unit .

Either cut the roll paper by pressing the Cut button or
lift the Release Lever and cut the roll with scissors.

If the Cutting Mode is Manual , cut rolls with scissors
or the like.

(→"Removing Printed Documents from the Media
Take-up Unit (Optional)," User's Guide)

Cut Speed is not configured
correctly in the Control Panel
menu.

Change the Cut Speed setting in the Control Panel
menu.

(→

, Menu Map)

Margins are wide Rolls are advanced a specific

amount before cutting to prevent
problems with cutting and paper
ejection.

This operation is normal.

During cutting, printed documents
fall out at an angle.

In the Control Panel menu, set Cutting Mode to
Eject . Hold documents after printing, as they are cut.

(→"Specifying the Cutting Method for Rolls," User's
Guide)

3

Troubleshooting

Phenomenon Cause Corrective Action

The media take-up unit continues
rotating

There is a foreign object in the
path of the Media Take-up
Sensor .

Remove the foreign object from the Media Take-up

Sensor path. Arrange the Basket Cloth and Basket
Rod so they do not interfere with the Media Take-up
Sensor .

The size of clear film cannot be
detected

The Platen is soiled with ink or
other substances.

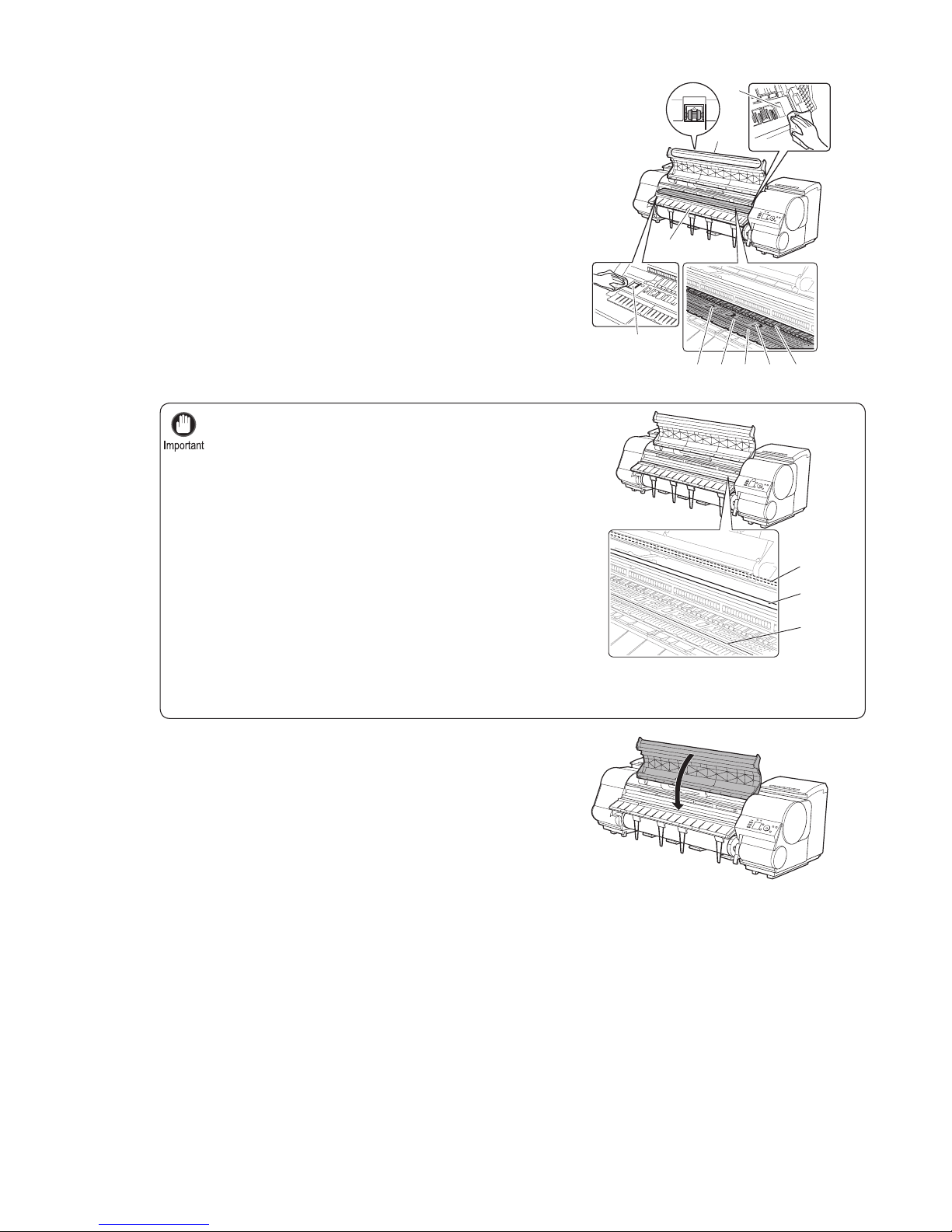

Open the Top Cover and clean the entire Platen .
(→

, If Paper is Soiled)

If the Media Take-up Unit continues rotating, contact
your Canon dealer for assistance.

The Media Take-up Sensor cord
is not connected to the Right
Media Take-up Unit correctly.

Reconnect the Media Take-up Sensor cord as
follows.

(→"Using the Media Take-up Unit (Optional)," User's
Guide)

Turn the printer off.1.
Disconnect the Media Take-up Sensor cord from

the Right Media Take-up Unit and reconnect it
firmly, all the way in.

2.

Turn the printer on.3.

4

Troubleshooting

Printing Does Not Start

Phenomenon

The Data Lamp on the Control
Panel does not light up

The printer does not respond even
if print jobs are sent

1.

2.

1.

2.

Ink Filling.. is displayed

Make sure the power cord is securely plugged in, all
the way. Press the Power button to turn on the printer.

Set Pause Print to Off .

In Windows, select the printer by clicking Select
Printer or Printer in the printing dialog box and try
printing again.

In Windows, restart the print job as follows.

In Mac OS X, open the dialog box of the printer driver,
select the printer from the list of Printer , and try
printing again.

Select the printer icon in the Printers and Faxes (or
Printers ) window.
Clear Pause Printing in the File menu to restart the
print job.

In Mac OS X, restart the print job as follows.

Click Print & Fax . (This is identified as Printer
Setup Utility or Print Center in other versions of
Mac OS X.)

Select the printer, and then Resume Printer (or
Start Jobs ) in the Printers menu to restart the print
job.

Wait until the system has been filled with ink. This
process may take about nine minutes.

The printer is not on.

In the Control Panel menu, Pause
Print is On .

The target printer was not selected
when printing. (The printer is in
Sleep mode.)

The print job is paused. (The
printer is in Sleep mode.)

The printer was forced off during
operation.

Cause Corrective Action

The display screen indicates
Agitating

The time for agitation varies depending on how long
the printer was off. (Between about a minute and a
half to twenty minutes.)

Ink agitation is in progress.

(→"Pausing Printing," User's Guide)

You have selected Save in mail
box in Output Method on the
printer.

Print the job saved on the printer's hard disk.

Print jobs are pending. Manage the jobs on hold and print as needed.

(→"Printing Saved Jobs," User's Guide)

(→"Managing Pending Jobs (Printing or Deleting Jobs
on Hold)," User's Guide)

Please wait until ink agitation is finished.

5

Troubleshooting

The printer stops during a print job

Phenomenon

The printer ejects blank, unprinted
paper

The leading edge of rolls may be cut to straighten
it if you have selected Trim Edge First > On or
Automatic in the Control Panel menu.

Print a test pattern to check the nozzles and make
sure the Printhead is in good condition for printing.

Use the correct imagePROGRAF printer driver for the
printer and try printing again.

(→"Cutting the Leading Edge of Roll Paper
Automatically," User's Guide)

The leading edge of the roll paper
was cut to straighten it.

The Printhead nozzles are
clogged.

A print job was received from an
incompatible printer driver.

(→"Checking for Nozzle Clogging," User's Guide)

An error message is shown on the
Display Screen

Check the error message and take action as
necessary.

Remove the used roll and insert a new roll.

An error message is displayed
during printing.

The last portion of roll paper was
used during a print job, and paper
could not be advanced because
the trailing edge is taped to the roll.

Status Corrective Action

(→ , Error Messages)

(→ , Removing the Roll from the Printer)
(→"Removing the Roll Holder from Rolls," User's

Guide)
(→"Loading and Printing on Rolls," User's Guide)

Contact your Canon dealer for assistance.The printer is damaged.

6

Troubleshooting

Problems with the Printing Quality

Phenomenon

Printing is faint

3.

1.

2.

You may be printing on the wrong
side of the paper.

The ink was not dry when paper
was cut.

The Printhead nozzles are
clogged.

Because the printer was left
without ink tanks installed for some
time, ink has become clogged in
the ink supply system.

Paper is jammed inside the Top
Cover .

Printing may be faint if Print
Quality in Advanced Settings
in the printer driver is set to
Standard or Fast .

Print on the printing surface.

Close the Top Cover .

Specify a longer drying period in the Control Panel
menu, in Paper Details > Roll DryingTime .

Print a test pattern to check the nozzles and see if
they are clogged.

After the ink tanks have been installed for 24 hours,
run Head Cleaning B from the Control Panel .

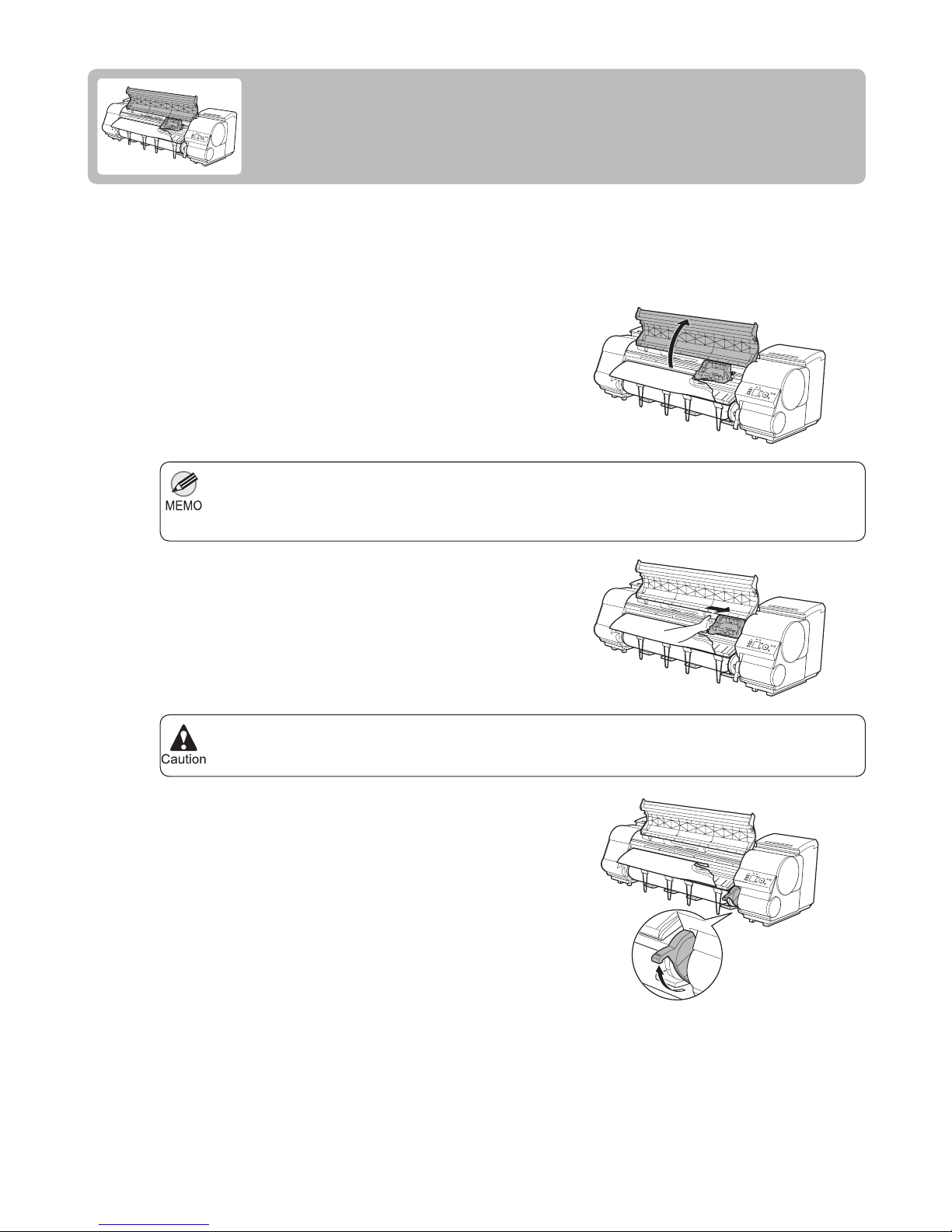

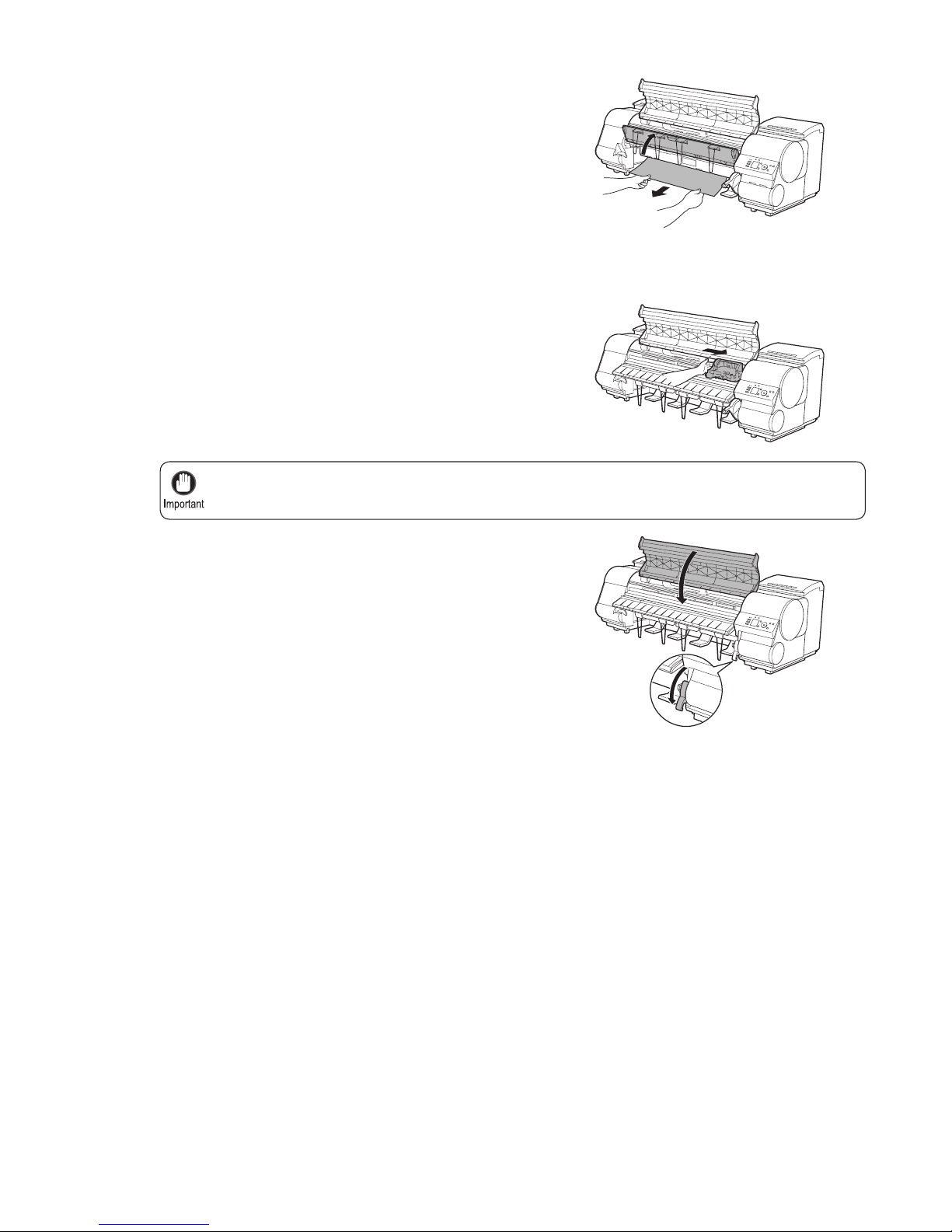

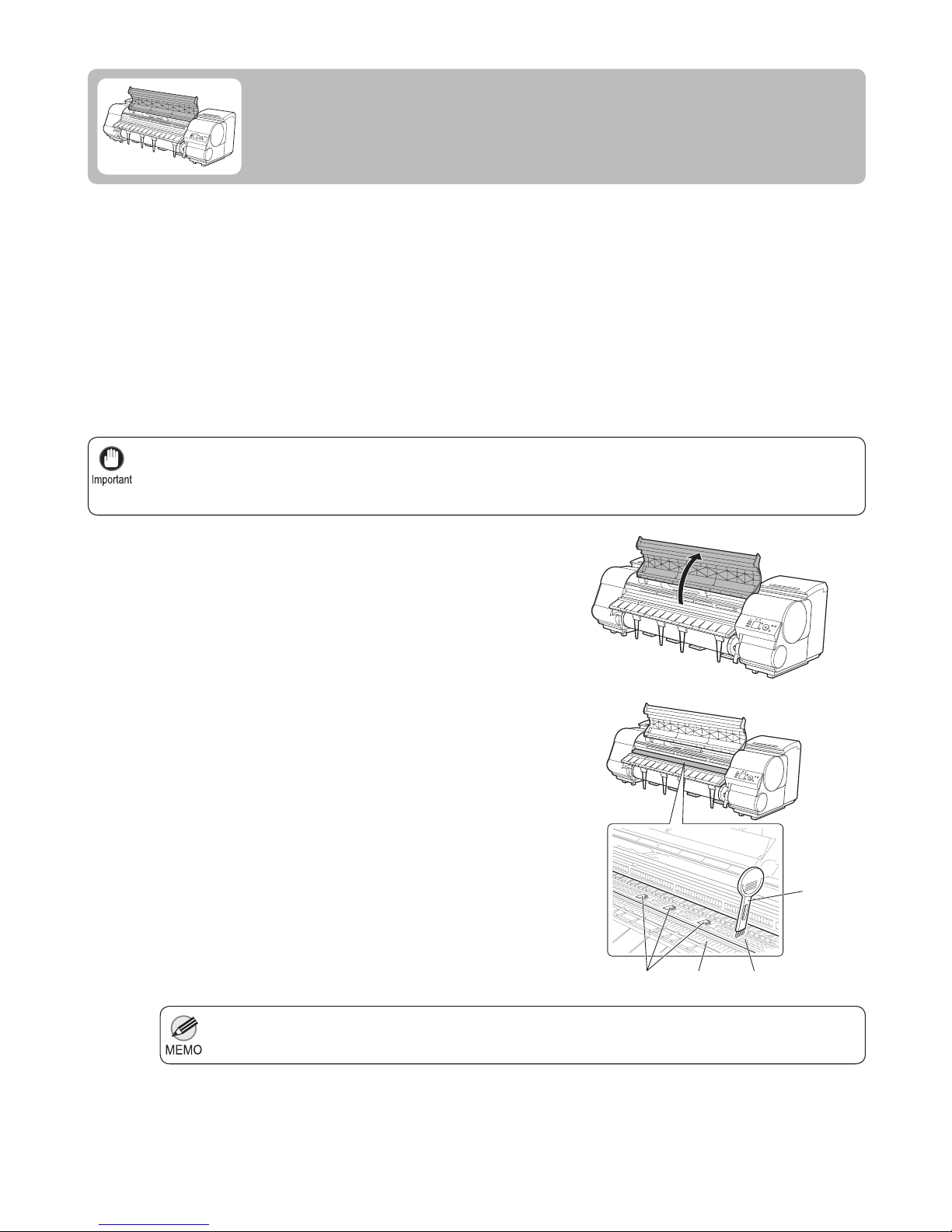

Follow the steps below to remove the jammed piece
of paper inside the Top Cover .

Open the Top Cover and make sure the Carriage
is not over the Platen .

Remove any scraps of paper inside the Top Cover .

In Advanced Settings of the printer driver, choose
Highest quality or High in Print Quality .

Cause Corrective Action

(→"Checking for Nozzle Clogging," User's Guide)

(→

, If Printing is Faint)

(→

, Menu Map)

Printing in Fast or Standard mode is faster and
consumes less ink than in Highest quality or High
modes, but the printing quality is lower.

(→"Giving Priority to Particular Graphic Elements and
Colors for Printing," User's Guide)

(→

, If Roll Paper Jams)

(→

, If a Sheet Jams)

You are printing on paper that
tends to generate dust when cut.

In the Control Panel menu, set CutDustReduct. in
Paper Details to On .

(→"Reducing Dust from Cutting Rolls," User's Guide)

7

Troubleshooting

Phenomenon

Cause Corrective Action

Paper rubs against the printhead

1.

2.

The type of paper specified in the
printer driver does not match the
type loaded in the printer.

The Printhead is set too low in the
Control Panel menu.

Paper has been loaded incorrectly,
causing it to wrinkle.

You are printing on heavyweight
paper or paper that curls or
wrinkles easily after absorbing ink.

Load paper of the same type as you have specified in
the printer driver.

Make sure the same type of paper is specified in the
printer driver as you have loaded in the printer.

Press the Stop button and stop printing.
Change the type of paper in the printer driver and

try printing again.

In the Control Panel menu, set Head Height to
Automatic .

Reload the paper.

When printing on CAD Tracing Paper or other film-
based media, choose a VacuumStrngth setting of
Standard , Strong , or Strongest in the Control Panel
menu. If rubbing still occurs, in the Control Panel
menu, use a higher Head Height setting.

When printing on Heavyweight Coated Paper or
other paper-based media, choose a VacuumStrngth
setting of Strong or Strongest in the Control Panel
menu. If rubbing still occurs, in the Control Panel
menu, use a higher Head Height setting.

When printing on paper 0.1 mm (0.004 in) thick or
less, choose a VacuumStrngth setting of Weakest
in the Control Panel menu. If rubbing still occurs, in
the Control Panel menu, use a higher Head Height
setting.

(→

, Loading Rolls in the Printer)

(→

, Loading Sheets in the Printer)

(→

, Loading Rolls in the Printer)

(→

, Loading Sheets in the Printer)

(→"Troubleshooting Paper Abrasion and Blurry
Images (Head Height)," User's Guide)

(→"Troubleshooting Paper Abrasion and Blurry
Images (Head Height)," User's Guide)

(→"Adjusting the Vacuum Strength (VacuumStrngth),"
User's Guide)

(→"Adjusting the Vacuum Strength (VacuumStrngth),"
User's Guide)

(→"Adjusting the Vacuum Strength (VacuumStrngth),"
User's Guide)

(→"Troubleshooting Paper Abrasion and Blurry
Images (Head Height)," User's Guide)

(→"Troubleshooting Paper Abrasion and Blurry
Images (Head Height)," User's Guide)

When you have loaded paper, the
paper you have loaded does not
match the type selected on the
Control Panel .

Be sure to select the correct type of paper in the
Control Panel menu when loading paper.

(→

, Loading Rolls in the Printer)

(→ , Loading Sheets in the Printer)

Since the leading edge of the
paper strongly warps upward or
ripples, the leading edge of the
paper rubs against the printhead.

Set Cutting Mode to Manual on the Control Panel
menu, and select Off for the paper leading edge
detection setting.

In this case, when keeping track of the amount
of roll paper left, set ManageRemainRoll to
Off before loading the roll paper and then set
ManageRemainRoll to On after loading the roll
paper.

(→"Specifying the Cutting Method for Rolls," User's
Guide)

(→"Keeping Track of the Amount of Roll Paper Left,"
User's Guide)

8

Troubleshooting

Phenomenon Cause Corrective Action

1.

2.

When printing on CAD Tracing Paper or other film-
based media, choose a VacuumStrngth setting of
Standard , Strong , or Strongest in the Control Panel
menu. If rubbing still occurs, in the Control Panel
menu, use a higher Head Height setting.

Straighten out the wrinkles or curls and reload the
paper. Do not use paper that has been printed on
previously.

Make sure the same type of paper is specified on the
printer as in the printer driver.

Make sure the same paper type is specified in the
printer driver as on the printer.

Press the Stop button and stop printing.
Change the type of paper in the printer driver and

try printing again.

If this function is not needed, set CutDustReduct. to
Off in the Control Panel menu.

Clean the Ejection Guide .

In the Control Panel menu, set Head Height to
Automatic .

When printing on Heavyweight Coated Paper or
other paper-based media, choose a VacuumStrngth
setting of Strong or Strongest in the Control Panel
menu. If rubbing still occurs, in the Control Panel
menu, use a higher Head Height setting.

The edges of the paper are dirty Open the Top Cover and clean the Platen .The Platen has become dirty after

borderless printing or printing on
small paper.

The paper is wrinkled or warped.

The type of paper as specified on
the printer does not match the type
specified in the printer driver.

A cut line is printed because
CutDustReduct. is On in the
Control Panel menu to reduce
cutting dust.

The Ejection Guide is soiled.

The Printhead

is set too low in the

Control Panel menu.

You are printing on heavyweight
paper or paper that curls or
wrinkles easily after absorbing ink.

(→

, If Paper is Soiled)

(→"Changing the Type of Paper," User's Guide)

(→

, Loading Rolls in the Printer)

(→

, Loading Sheets in the Printer)

(→

, Menu Map)

(→"Troubleshooting Paper Abrasion and Blurry
Images (Head Height)," User's Guide)

(→"Adjusting the Vacuum Strength (VacuumStrngth),"
User's Guide)

(→"Troubleshooting Paper Abrasion and Blurry
Images (Head Height)," User's Guide)

(→"Adjusting the Vacuum Strength (VacuumStrngth),"
User's Guide)

(→"Troubleshooting Paper Abrasion and Blurry
Images (Head Height)," User's Guide)

(→"Cleaning the Printer Exterior," User's Guide)

9

Troubleshooting

Phenomenon

Cause Corrective Action

In the Control Panel menu, set CarriageScanWdth
to Fixed .

The back side of the paper is dirty The Platen has become dirty after

borderless printing or printing on
small paper.

Open the Top Cover and clean the Platen .
(→

, If Paper is Soiled)

The surface of the paper is dirty Clean the Paper Retainer .

In the Control Panel menu, set Roll DryingTime to
at least 1 min.

The Paper Retainer is soiled.

You are using a paper that does
not dry easily.

(→

, If Paper is Soiled)

(→

, Menu Map)

When paper that does not dry easily is used for
printing, it may curl during printing and touch the
output tray.

(→

, Menu Map)

In this case, in the Control Panel menu, set Scan
Wait Time to an option other than Off .

However, note that printing will now take longer.

Open the Top Cover and clean the Platen . After this,
manually advance the roll onto the Platen before
printing.

(→

, If Paper is Soiled)

(→"Feeding Roll Paper Manually," User's Guide)

(→

, Menu Map)

The Platen has become soiled
because you have set Width

Detection to Off in the Control
Panel menu.

Set Width Detection to On in the Control Panel
menu, and then open the Top Cover and clean the
Platen .

(→ , If Paper is Soiled)

The Platen suction is too strong. In the Control Panel menu, reduce the level of

VacuumStrength .
(→"Adjusting the Vacuum Strength (VacuumStrngth),"

User's Guide)

Immediately after borderless
printing, the trailing edge margin is
soiled during regular printing

Depending on your printing
environment, after borderless
printing in which the leading and
trailing edge of the roll is cut
automatically, any ink adhering to
the cutter unit may rub off on the
next printed document.

Follow these steps to change the Between Pages
setting of Drying Time to a value between about
30 seconds and 3 minutes before trying borderless
printing again.

1.2.On the Main sheet of the printer driver, click
Advanced Settings in Media Type .

Select an ink drying time in the list for the Between
Pages setting of Drying Time .

10

Troubleshooting

Printed colors are inaccurate Color adjustment has not been

activated in the Advanced
Settings of the printer driver.

The Printhead nozzles are
clogged.

Adjust the settings of the color management software,
referring to the software documentation as needed.

There may be a slight difference
in how colors are printed after
Printhead replacement because
of individual variation among
printheads.

Colors have not been adjusted on
the computer or monitor.

In the Windows printer driver,
Application Color Matching
Priority is not selected.

In the Advanced Settings of the printer driver, access
Color Settings in Color Mode to adjust colors.

Print a test pattern to check the nozzles and see if
they are clogged.

Execute color calibration.

Refer to the computer and monitor documentation to
adjust the colors.

Click Special Settings on the Layout sheet of the
printer driver and select Application Color Matching
Priority in the dialog box.

(→"Checking for Nozzle Clogging," User's Guide)

Printhead characteristics gradually
change through repeated use, and
colors may change.

Execute color calibration.

Color may change slightly even
on the same model of printer if
you use a different version of the
firmware or printer driver, or when
you print under different settings or
in a different printing environment.

Follow these steps to prepare the printing
environment.

Use the same version of firmware or printer driver.1.
Specify the same value for all settings items.2.
Execute color calibration.3.

When reinstalling the printer driver,
you changed the region selection
of the Media Configuration Tool .

Prepare paper compatible with calibration in the newly
selected region and perform calibration again.

Changing the region selection
of the Media Configuration Tool
deletes the region-specific paper
information originally registered
on the printer before installation.
Using paper with deleted
information when executing color
calibration will prevent the resulting
calibration adjustment value from
being applied to all other types of
the paper.

Phenomenon Cause Corrective Action

(→"Using Color Calibration for Color Adjustment,"
User's Guide)

(→"Using Color Calibration for Color Adjustment,"
User's Guide)

(→"Using Color Calibration for Color Adjustment,"
User's Guide)

(→"Using Color Calibration for Color Adjustment,"
User's Guide)

11

Troubleshooting

Phenomenon Cause Corrective Action

In the Control Panel menu, Adj.
Priority is set to Print Length .

Setting Adj. Priority to Print Quality in the Control
Panel menu and adjusting the feed amount may

improve results.

The type of paper specified in the
printer driver does not match the
type loaded in the printer.

(→"Adjusting the Feed Amount," User's Guide)

The Printhead is out of alignment. Adjust the Printhead alignment.

(→

, If Vertical Lines are Warped or Colors are

Misaligned)

The Printhead nozzles are
clogged.

Print a test pattern to check the nozzles and see if
they are clogged.

(→"Checking for Nozzle Clogging," User's Guide)

Streaks may occur if you set the
Print Quality too low.

Choose a higher level of Print Quality in the
Advanced Settings of the printer driver and try
printing again.

Printing in Fast or Standard mode is faster and
consumes less ink than in Highest quality or High
modes, but the printing quality is lower.

(→"Giving Priority to Particular Graphic Elements and
Colors for Printing," User's Guide)

Banding in different colors occurs The paper feed amount is out of

adjustment.

Adjust the feed amount.
(→"Adjusting the Feed Amount," User's Guide)

Printing does not proceed
smoothly because print jobs are
interrupted during transmission.

Exit other applications and cancel other print jobs.

Make sure the same type of paper is specified in the
printer driver as you have loaded in the printer.

Press the Stop button to stop printing.1.
Change the type of paper in the printer driver and
try printing again.

2.

Load paper of the same type as you have specified in
the printer driver.

(→

, Loading Rolls in the Printer)

(→

, Loading Sheets in the Printer)

12

Troubleshooting

Colors in printed images are
uneven

Line Drawing/Text is selected
when printing images in many solid
colors.

You are printing on paper that curls
easily.

Printed colors may be uneven if
you set the Print Quality too low.

Color may be uneven between
dark and light image areas.

Density may be uneven if you use
Glossy Paper or Coated Paper .

When borderless printing is used,
the edge of the paper is cut during
printing. Thus, ink density may be
slightly uneven at the edges.

The Printhead is out of alignment.

Allowing printed documents to dry
on top of each other may cause
uneven colors.

In Print Priority in the Advanced Settings of the
printer driver, choose Image .

Printed colors may appear uneven on the leading
edge of paper that is susceptible to curling. Select
a stronger level in VacuumStrngth in the Control
Panel menu to increase suction against the paper, or
specify a trailing margin of 20 mm (0.79 in) or more.

Choose a higher level of Print Quality in the
Advanced Settings of the printer driver.

Select Unidirectional Printing in the Advanced
Settings of the printer driver.

In Advanced Settings of the printer driver, choose
Highest quality or High in Print Quality .

Specify No in Auto Cut in the printer driver before
printing. In this case, the paper can be printed without
borders on the left and right sides only. Cut the printed
document ejected from the printer, and then use
scissors or a cutting tool to cut away the edges on the
top and bottom.

Adjust the Printhead alignment.

Choose a higher level of Print Quality in the
Advanced Settings of the printer driver.

To avoid uneven colors, we recommend drying each
sheet separately.

Phenomenon Cause Corrective Action

Printing in Fast or Standard mode is faster and
consumes less ink than in Highest quality or High
modes, but the printing quality is lower.

(→"Giving Priority to Particular Graphic Elements and
Colors for Printing," User's Guide)

(→

, If Vertical Lines are Warped or Colors are

Misaligned)

The type of paper specified in the
printer driver does not match the
type loaded in the printer.

Load paper of the same type as you have specified in
the printer driver.

Make sure the same type of paper is specified in the
printer driver as you have loaded in the printer.

(→ , Loading Rolls in the Printer)
(→

, Loading Sheets in the Printer)

Press the Stop button to stop printing.1.
Change the type of paper in the printer driver and

try printing again.

2.

(→"Giving Priority to Particular Graphic Elements and
Colors for Printing," User's Guide)

(→"Adjusting the Vacuum Strength (VacuumStrngth),"
User's Guide)

Scan Wait Time > Area in the
Control Panel menu is set to
Leading edge .

"When Scan Wait Time > Area is set to Leading
edge , colors may be uneven 110–160 mm from the
leading edge. (The position varies depending on the
Print Quality setting.)

In this case, select Scan Wait Time > Area > Entire
area .
However, note that printing will now take longer.

(→

, Menu Map)

13

Troubleshooting

The length of printed images is
inaccurate in the feeding direction

Set Adj. Priority to Print Length in the Control
Panel menu, and then execute Adjust Length .

In the Control Panel menu, Adj.
Priority is set to Print Quality .

(→"Adjusting the Feed Amount," User's Guide)

Phenomenon Cause Corrective Action

The type of paper specified in the
printer driver does not match the
type loaded in the printer.

Make sure the same type of paper is specified in the
printer driver as you have loaded in the printer.

Load paper of the same type as you have specified in
the printer driver.

Press the Stop button to stop printing.1.
Change the type of paper in the printer driver and

try printing again.

2.

(→

, Loading Rolls in the Printer)

(→

, Loading Sheets in the Printer)

Image edges are blurred or white
banding occurs

In the Control Panel menu, reduce the level of
VacuumStrngth .

The Platen suction is too strong.

Close the blue Switch on the platen so that it matches
the paper size.

Incorrect Printhead alignment
value.

The type of paper specified in the
printer driver does not match the
type loaded in the printer.

When printing fine lines or text at high precision on
glossy or semi-glossy photo or proofing paper, set the
optimal Printhead height before aligning the printhead.

(→"Enhancing Printing Quality," User's Guide)

The contrast becomes uneven
during printing

The paper feed amount is out of
adjustment.

Adjust the feed amount.
(→"Adjusting the Feed Amount," User's Guide)

Make sure the same type of paper is specified in the
printer driver as you have loaded in the printer.

The type of paper specified in the
printer driver does not match the
type loaded in the printer.

Load paper of the same type as you have specified in
the printer driver.

(→

, Loading Rolls in the Printer)

(→

, Loading Sheets in the Printer)

Press the Stop button and stop printing.1.
Change the type of paper in the printer driver and

try printing again.

2.

(→"Adjusting the Vacuum Strength (VacuumStrngth),"
User's Guide)

(→"Setting the Blue Switch on the Platen," User's
Guide)

Load paper of the same type as you have specified in
the printer driver.

(→

, Loading Rolls in the Printer)

(→ , Loading Sheets in the Printer)

Make sure the same type of paper is specified in the
printer driver as you have loaded in the printer.

Press the Stop button and stop printing.1.
Change the type of paper in the printer driver and

try printing again.

2.

In the Control Panel menu, use a lower Head Height
setting.

(→"Troubleshooting Paper Abrasion and Blurry
Images (Head Height)," User's Guide)

14

Troubleshooting

Phenomenon Cause Corrective Action

Documents are printed in
monochrome

In the Advanced Settings of the
printer driver, Monochrome or
Monochrome (Photo) is specified
in Color Mode .

The Printhead nozzles are
clogged.

In the Advanced Settings of the printer driver, specify
Color in Color Mode and try printing again.

Print a test pattern to check the nozzles and see if
they are clogged.

(→"Checking for Nozzle Clogging," User's Guide)

Line thickness is not uniform

1.

2.

Access the printer driver Properties dialog box from
Print in the File menu of the source application, and
follow these steps to print.

In the Special Settings dialog box
of the Windows printer driver, Fast
Graphic Process is selected.

Clear the option Open Preview When Print Job
Starts on the Main sheet.

Clear the option Page Layout on the Layout sheet.
Click the Special Settings button on the Layout

sheet to display the Special Settings dialog box,
and then clear the option Fast Graphic Process .

3.

The blue Switch on the platen is
set incorrectly.

Move the Switch numbered corresponding to the size
of paper for printing opposite to the ● position.

(→"Setting the Blue Switch on the Platen," User's
Guide)

The type of paper specified in the
printer driver does not match the
type loaded in the printer.

Load paper of the same type as you have specified in
the printer driver.

Press the Stop button and stop printing.1.
Change the type of paper in the printer driver and

try printing again.

2.

Make sure the same type of paper is specified in the
printer driver as you have loaded in the printer.

(→

, Loading Rolls in the Printer)

(→

, Loading Sheets in the Printer)

Incorrect Printhead alignment
value.

When printing fine lines or text at high precision on
glossy or semi-glossy photo or proofing paper, set the
optimal Printhead height before aligning the printhead.
(→"Enhancing Printing Quality," User's Guide)

Depending on the type of paper,
the thickness of printed lines may
be noticeably inconsistent.

Specify Proof in Print Priority in the printer driver.
(→"Giving Priority to Particular Graphic Elements and

Colors for Printing," User's Guide)

Images are printed crooked In the Control Panel menu, set Skew Check Lv. to

Standard .

In the Control Panel menu, Skew
Check Lv. is set to Loose or Off .

In the Control Panel menu, Width
Detection is set to Off .

Set Width Detection to On in the Control Panel
menu.

In the Control Panel menu, use a lower Head Height
setting.

(→"Troubleshooting Paper Abrasion and Blurry
Images (Head Height)," User's Guide)

15

Troubleshooting

Lines or colors are misaligned The Printhead is not being aligned

correctly.

Adjust the Printhead alignment.
(→

, If Vertical Lines are Warped or Colors are

Misaligned)
(→"Manual Adjustment to Straighten Lines and Colors

(Head Posi. Adj.)," User's Guide)

The type of paper specified in the
printer driver does not match the
type loaded in the printer.

Make sure the same type of paper is specified in the
printer driver as you have loaded in the printer.

Load paper of the same type as you have specified in
the printer driver.

Press the Stop button and stop printing.1.
Change the type of paper in the printer driver and

try printing again.

2.

(→ , Loading Rolls in the Printer)
(→

, Loading Sheets in the Printer)

When printing fine lines or text at high precision on
glossy or semi-glossy photo or proofing paper, set the
optimal Printhead height before aligning the printhead.

(→"Printing Fine Lines/Text or Photos at Higher
Precision," User's Guide)

Phenomenon Cause Corrective Action

Depending on the type of paper,
printed lines may be noticeably
misaligned.

Specify Proof in Print Priority in the printer driver.
(→"Giving Priority to Particular Graphic Elements and

Colors for Printing," User's Guide)

In the Control Panel menu, use a lower Head Height
setting.

(→"Troubleshooting Paper Abrasion and Blurry
Images (Head Height)," User's Guide)

16

Troubleshooting

Cannot Print Over Network

Phenomenon

Cannot print over a TCP/IP
network

Make sure the printer's IP address is configured
correctly.

Make sure the printer's TCP/IP network settings are
configured correctly.

Make sure the computer's TCP/IP network settings
are configured correctly.

The printer's IP address is not
configured correctly.

The printer's TCP/IP network
settings are not configured
correctly.

The computer you are trying
to print from is not configured
correctly.

(→"Configuring the IP Address Using
imagePROGRAF Device Setup Utility," User's Guide)

(→"Configuring the IP Address Using the Printer
Control Panel," User's Guide)

(→"Configuring the Printer's TCP/IP Network
Settings," User's Guide)

(→"Configuring the Printer Driver Destination
(Windows)," User's Guide)

(→"Configuring the Destination in TCP/IP Networks,"
User's Guide)

Cannot connect the printer to the
network

The Ethernet cable is not
connected correctly to the printer's
Ethernet port.

1.2.Make sure the printer is connected to the network
with the correct Ethernet cable, and then turn the
printer on. For instructions on connecting the cable,
refer to the Setup Guide .
Make sure the Link indicator is lit.

The top and bottom indicators are lit if the printer
is connected via 1000Base-T. The bottom indicator
is green if the printer is connected via 100BASE­TX, and the top indicator is orange if connected via
10BASE-T.

If the Link indicator is not lit, check the following
points.

Cause Corrective Action

Make sure the hub is on.•
Make sure the end of the Ethernet cable is

connected correctly.

•

Make sure there is no problem with the Ethernet
cable.

•

Check the communication mode with the hub.•

Insert the Ethernet cable until it clicks and locks
in place.

If there is any problem, replace the Ethernet
cable.

Although the printer normally detects the hub
communication mode and transmission rate
automatically (in auto negotiation mode),
sometimes the hub settings cannot be detected.
In this case, confi gure the connection method
manually, specifying the communication mode in
use.

(→"Confi guring the Communication Mode
Manually," User's Guide)

17

Troubleshooting

Cannot print over a NetWare
network

Make sure the printer's NetWare settings are
configured correctly. In particular, make sure a valid
frame type is selected.

Make sure the computer's NetWare settings are
configured correctly.

Check the following points.

The printer's NetWare settings are
not configured correctly.

The computer you are trying
to print from is not configured
correctly.

The NetWare server and services
are not configured correctly.

1.

2.

3.

4.

Make sure the NetWare file server is running.
Make sure there is enough free disk space on the

NetWare file server. Insufficient disk space may
prevent you from processing large print jobs.

Start NWADMIN or PCONSOLE and confirm that
the print service is configured correctly and the print
queue is available.
If data transmission to a printer on another subnet
fails, deactivate NCP burst mode in that printer's
network protocol settings.

If the printer is used in queue server mode, specify
" Other/Unknown " as the printer type.

5.

Phenomenon Cause Corrective Action

(→"Configuring the Printer's NetWare Network
Settings," User's Guide)

(→"Configuring NetWare Network Settings," User's
Guide)

Cannot print over AppleTalk or
Bonjour networks

Activate AppleTalk on the printer.

Make sure the computer's AppleTalk settings are
configured correctly.

Due to the nature of Bonjour, you cannot print if the
printer is on another network behind a router. Make
sure the computer and printer are on the same
network. For information about network settings, ask
your network administrator.

The AppleTalk protocol is not
enabled on the printer.

The computer you are trying
to print from is not configured
correctly.

The computer and printer are not
on the same network.

(→"Configuring the Printer's AppleTalk Network
Settings," User's Guide)

(→"Configuring the Destination for AppleTalk
Networks," User's Guide)

(→"Configuring the Destination for Bonjour Network,"
User's Guide)

18

Troubleshooting

Other Problems

Phenomenon

The printer does not go on Plug the power cord into the outlet, and then turn on

the printer.

The printer is unplugged.

Check the voltage of the outlet and breaker.
Use a power source that conforms to the printer
specifications.

The specified voltage is not
supplied.

Cause Corrective Action

The printer makes a strange sound The following sounds do not indicate a problem with

the printer.

The printer makes a sound during
operation.

There is a sound of suction from the Platen .•

Roll paper makes a fl uttering sound during printing.•

You suddenly hear the sound of cleaning operations.•

You suddenly hear the sound of ink agitation.•

To prevent paper from rising, paper is held against
the Platen by suction from Vacuum holes under it.

There may be a fl uttering sound when large paper is
advanced.

At regular intervals, for printer maintenance,
cleaning operations will begin automatically, even if
the printer is in Sleep mode.

At regular intervals, to ensure optimal printing
quality, the ink is agitated automatically, even if the
printer is in Sleep mode. Ink agitation takes about a
minute and a half.

(→"Specifications," User's Guide)

The printer may have shut down
incorrectly last time. This may
happen after power outages or if
the printer is unplugged before it is
turned off.

Please wait a while, because it may take several
minutes to finish checking the hard disk.

The printer takes time to start up

In this case, the next time power
is restored, the printer's hard disk
is checked, and startup may take
some time.

If an error message is displayed after the hard disk
check, follow the instructions indicated to resolve the
problem.

In other cases, contact your Canon dealer.

The ink is also agitated automatically under the
following conditions. Note that other operations are
not possible while Agitating is displayed on the
control panel.

After data transmission•

After the printer is turned on•

After ink tank replacement•

19

Troubleshooting

Phenomenon Cause Corrective Action

Messages advising to check the
maintenance cartridge are not
cleared

The printer consumes a lot of ink

Remove the new Maintenance Cartridge you have just
installed and insert it again firmly.

Restart the printer.

In print jobs such as photos, images are filled with
color. This consumes a lot of ink. This does not
indicate a problem with the printer.

Head Cleaning B in the Control Panel menu
consumes a lot of ink. This does not indicate a
problem with the printer. Unless the printer has
been moved or stored for a long period or you are
troubleshooting Printhead problems, we recommend
not performing Head Cleaning B , to the extent
possible.

After initial installation or at the first-time use after
transfer, ink flows into the system between the Ink
Ta nk and Printhead , which may cause the ink level
indicators to drop to 80%. This does not indicate a
problem with the printer.

The printer has not detected the
new Maintenance Cartridge that
was used to replace the old one.

Many full-page color images are
printed.

Head Cleaning B in the Control
Panel menu is executed
frequently.

You have just finished initial
installation, when more ink is
consumed to fill the system.

Check for nozzle clogging.The printhead nozzles are

clogged.

(→"Checking for Nozzle Clogging," User's Guide)

20

If you push the Carriage to the left edge, the blade of the Cutter Unit will be lowered in preparation to
cut the paper. Be careful not to pinch your fi ngers between the Carriage and Platen if you have pushed
the Carriage to the left edge or if a paper jam occurs during cutting.

•

If the leading edge of the roll jams in the carriage such as when the paper curls strongly, you may be
able to avoid paper jamming by setting the roll cutting method to Manual and setting the detection of
paper leading edge to [Off].

•

(→"Specifying the Cutting Method for Rolls," User's Guide)

1
2

3

4

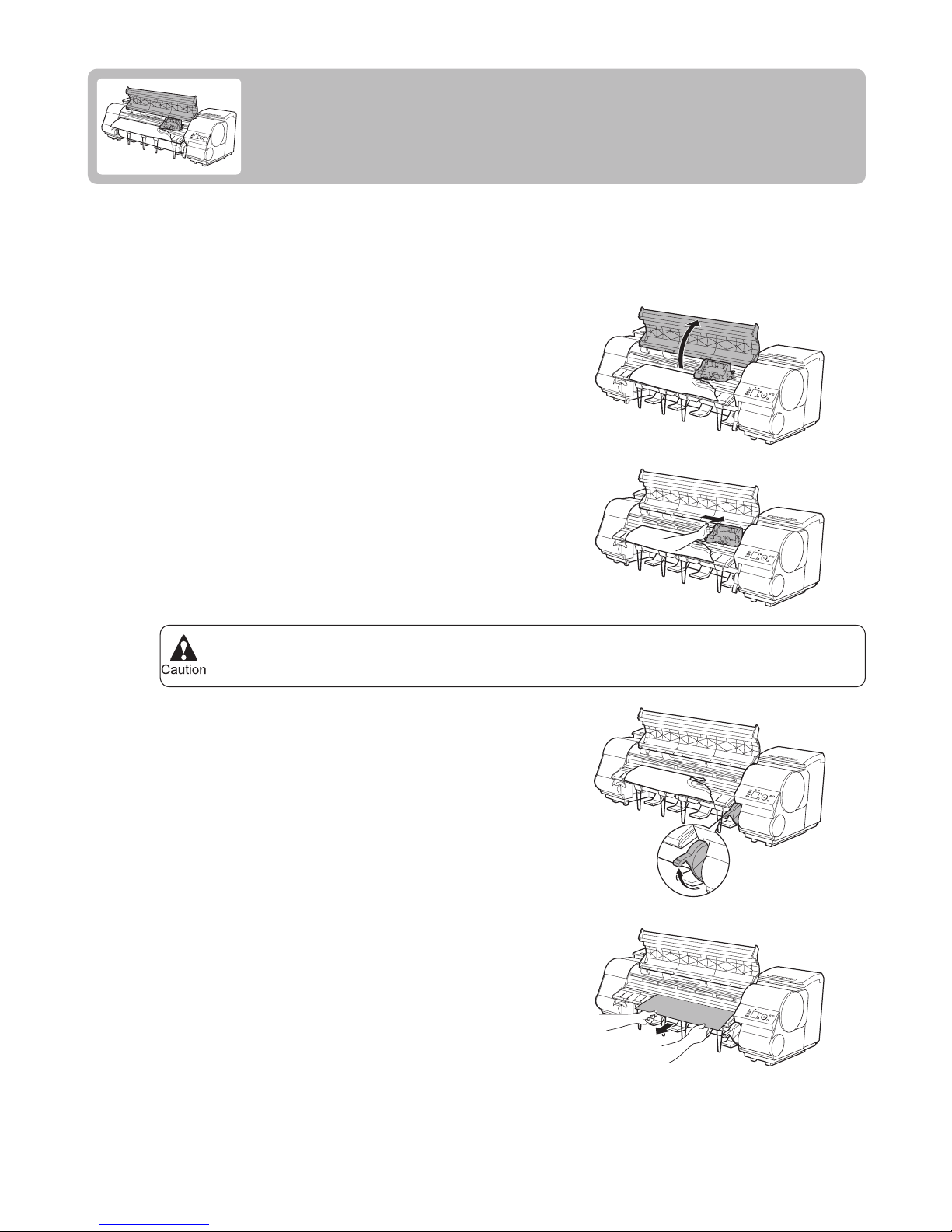

If roll paper jams, follow the steps below to remove jams.

Turn the printer off.
(→"Turning the Printer On and Off," User's Guide)

Open the Top Cover .

If Roll Paper Jams

Clear jammed roll paper as follows.

If the Carriage is out, move the Carriage out of the way,
away from the paper.

Lift the Release Lever .

21

If Roll Paper Jams

Always move the Carriage to the right side. If the Carriage is on the left, a Carriage error may occur
when you turn on the printer.

•

For a neater edge, cut the edge of the paper.•
(→"Specifying the Cutting Method for Rolls," User's Guide)

Do not force the roll paper into alignment with the Paper Alignment Line (b). This may prevent the
paper from being advanced straight.

•

5

6

7

8

9

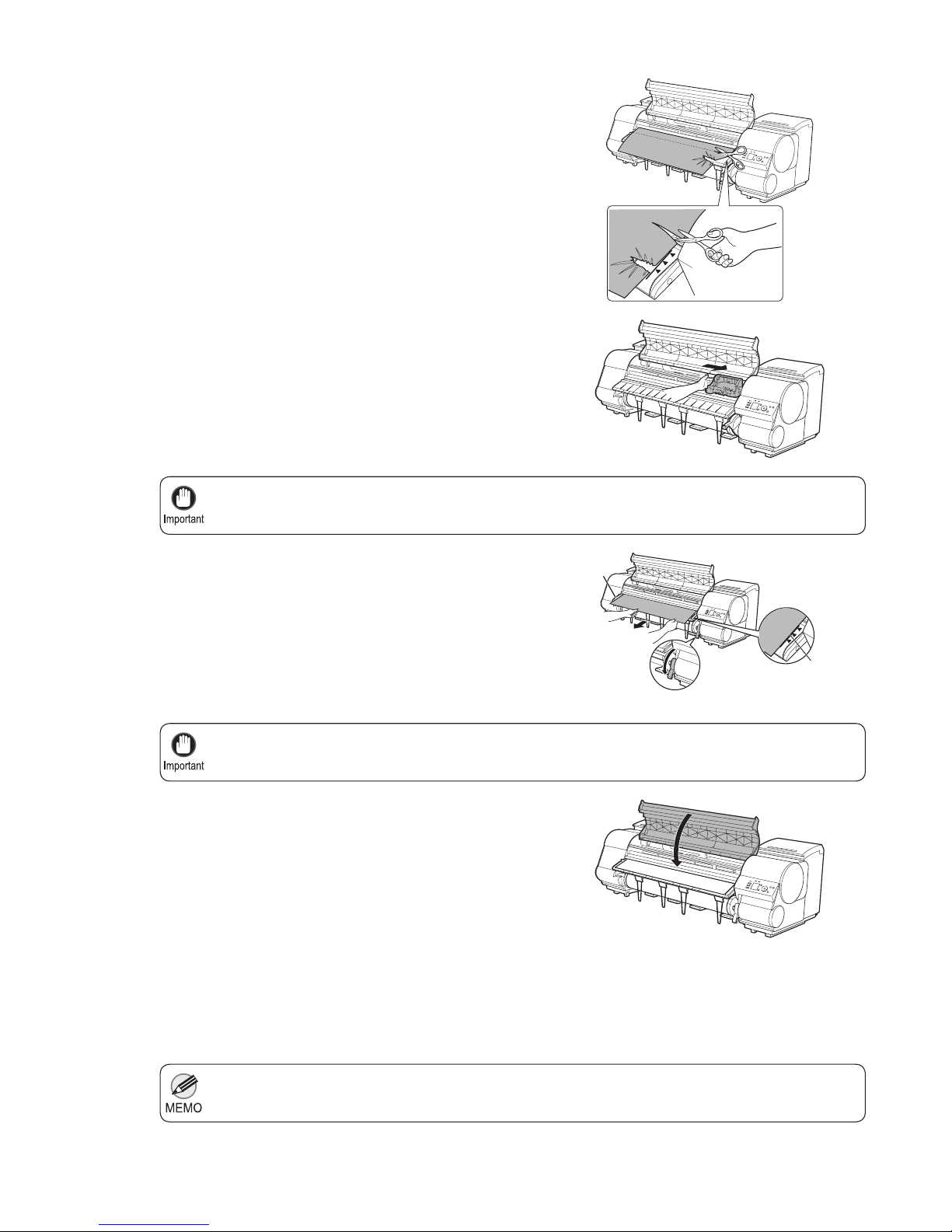

Holding the paper on both sides, pull the jammed portion
out toward the front. Use scissors or a cutting tool to cut
away the printed or wrinkled portion.

If the Carriage is on the left, move the Carriage to the
right until it stops.

Hold the edge of the roll paper in the middle as you
gently pull it evenly to the position of the Ejection Guide
(a). Align the right side of the roll paper with the Paper
Alignment Line (b), keeping this side parallel to the line,
and then lower the Release Lever .

Close the Top Cover .

Turn the printer on.
(→"Turning the Printer On and Off," User's Guide)

The roll is now advanced. After it is fi nished being
advanced, you can resume printing.

b

a

22

If you push the Carriage to the left edge, the blade of the Cutter Unit will be lowered in preparation to
cut the paper. Be careful not to pinch your fi ngers between the Carriage and Platen if you have pushed
the Carriage to the left edge or if a paper jam occurs during cutting.

•

1
2

3

4

5

If a sheet jams, follow the steps below to remove it.

Turn the printer off.
(→"Turning the Printer On and Off," User's Guide)

Open the Top Cover .

If the Carriage is out, move the Carriage out of the way,
away from the paper.

If a Sheet Jams

Clear jammed sheets as follows.

Lift the Release Lever .

If the paper is visible, hold the paper and pull it out toward
the front.

23

If a Sheet Jams

Always move the Carriage to the right side. If the Carriage is on the left, a Carriage error may occur
when you turn on the printer.

•

6

7

8

9

If the paper is not visible, lift the Ejection Guide , remove
the Roll Holder , and clear the paper jam from below.

If the Carriage is on the left, move the Carriage to the
right until it stops.

Lower the Release Lever and close the Top Cover .

Turn the printer on.
(→"Turning the Printer On and Off," User's Guide)

After removing the paper, make sure there are no other
scraps of paper in the printer, and then lower the Ejection
Guide .

24

If the Platen inside the Top Cover becomes dirty, it may soil the underside of paper. We recommend cleaning the
Platen after borderless printing or printing on small paper.

•

If the Ejection Guide is dirty, it may soil the edge of the paper when the paper is cut. We recommend cleaning the
Ejection Guide even if it does not appear dirty, because it may actually be covered with paper dust.

•

If the Cleaning Brush is dirty, rinse it in water.•

1

2

Clean inside the Top Cover about once a month to maintain better printing quality and help prevent problems.
Also clean inside the Top Cover in the following situations to ensure optimal operation.

Open the Top Cover .

If paper dust has accumulated in the Vacuum holes (a)
on the Platen , in the Borderless Printing Ink Grooves
(b), or on the cutter guide (c), use the Cleaning Brush (d,
provided with the printer) to wipe it away.

If the printed surface or the underside of paper is dirty after printing•

After you have used up a roll•

After borderless printing•

After printing on small paper•

If you have replaced the roll•

After printing on paper that generates a lot of cutting debris•

After printing on paper that generates a lot of paper dust•

If the message Blue platen switch is dirty. is displayed•

If Paper is Soiled

Clean inside the top cover of the printer as follows.

d

cba

25

If Paper is Soiled

Do not touch the Linear Scale (a), Carriage Shaft (b),
or Fixed Blade (c).

•

Do not use a dry cloth to wipe inside the Top Cover . This may create a static charge, which may attract
dust and affect the printing quality.

•

Do not touch the clear sheet on the side of the Top Cover Roller . This may damage the roller.•

3

4

Using a damp cloth that you have wrung out completely,
wipe inside the Top Cover to clean it. Wipe away any ink
residue and paper dust (debris from cutting) on the Top

Cover Roller (a), all over the Platen (b), on the Paper
Retainer (c), the Borderless Printing Ink Grooves (d),

the Ejection Guide (e), the cutter guide (f), around the
vacuum holes at left (g), around the Borderless Printing
Ink Grooves at right (h), on the blue Switch (i), and so
on.

Close the Top Cover .

i

h

g

e

fd

c

b

a

a

b

c

26

Nozzles are periodically checked to ensure they are clear. Confi gure the setting for the checking interval on the
Control Panel menu in Nozzle Check .

•

(→ , Menu Map)

If printing does not improve after Head Cleaning B , try repeating Head Cleaning B once or twice. If this still does
not improve printing, the Printhead may have reached the end of its useful life. Contact your Canon dealer for
assistance.

•

Do not remove the Maintenance Cartridge or ink tanks during either Head Cleaning A or Head Cleaning B .•

If the Tab Selection screen is not displayed, press the Menu button.•

1

2
3

6

4
5

If printing is faint, cleaning the Printhead may improve results.
Choose one of two types of Printhead cleaning ( Head Cleaning A or Head Cleaning B ), depending on the problem

to resolve.

On the Tab Selection screen of the Control Panel , press
◄ or ► to select the Settings/Adj. tab (

).

Press the OK button.

Press ▲ or ▼ to select Maintenance , and then press the
OK button.

Print a test pattern to check the nozzles, and determine
whether cleaning has cleared the nozzles.
(→"Checking for Nozzle Clogging," User's Guide)

If Printing is Faint

Clean the printhead as follows.

Head Cleaning A •
Use this mode if printing is faint or contains foreign substances. This method of cleaning consumes the least

amount of ink. It takes about four minutes to complete.

Head Cleaning B •
Use this mode if no ink is ejected at all, or if Head Cleaning A does not solve the problem. It takes about fi ve

minutes to complete.

The Set./Adj. Menu is displayed.

Press ▲ or ▼ to select Head Cleaning , and then press
the OK button.

Press ▲ or ▼ to select Head Cleaning A or Head
Cleaning B , and then press the OK button.

Head cleaning is now executed.

678

Tot.Print Area(m2):

Maint.C Remain.: 80%

Ready
OK:Setting/Adj. Menu

27

Because the results of adjustment vary depending on the type of paper used for adjustment, use the same type
of paper as you will use for printing. Even if you will print on a different type of paper, we recommend using
Auto(Advanced) for adjustment.

•

This function is not available with CAD Tracing Paper , CAD Translucent Matte Film , or CAD Clear Film .•
If adjustment is not possible as expected using highly transparent fi lm or similar media, try another type of paper, or

try Manual adjustment.
(→"Manual Adjustment to Straighten Lines and Colors (Head Posi. Adj.)," User's Guide)

If Auto(Advanced) does not improve printing, try adjustment in Manual mode.•

Advanced adjustment can enable superior printing quality when printing fi ne lines or text at high precision on glossy
or semi-glossy photo or proofi ng paper.

•

(→"Manual Adjustment to Straighten Lines and Colors (Head Posi. Adj.)," User's Guide)

(→"Enhancing Printing Quality," User's Guide)

If vertical lines in printed documents are warped or colors are out of alignment, execute Head Posi. Adj. . The
printer will print and read a test pattern, and the Printhead position will be adjusted automatically.

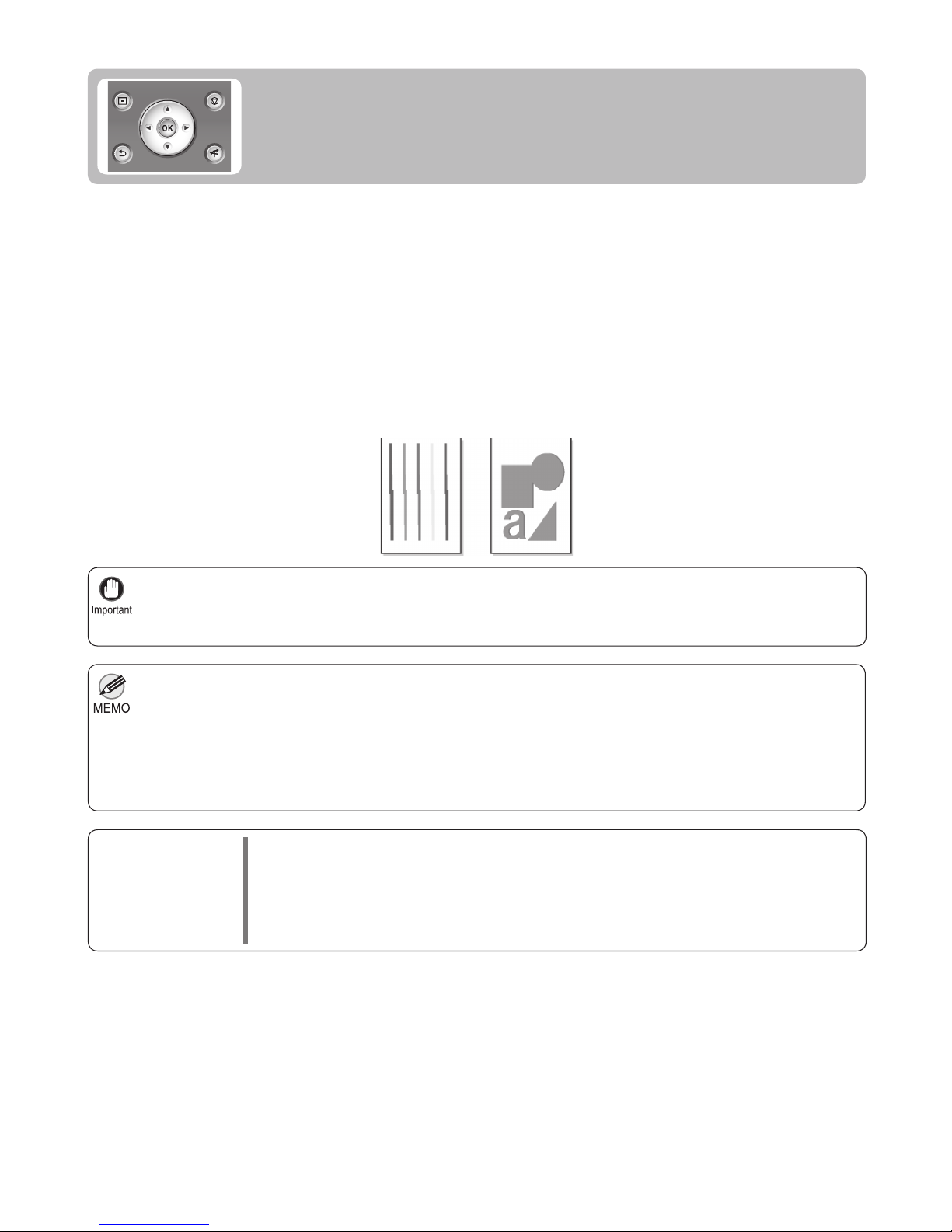

If Vertical Lines are Warped or Colors
are Misaligned

This section describes how to perform automatic adjustment of the printhead to
straighten lines and colors.

There are three modes for automatic Printhead adjustment: Auto(Standard) , Auto(Advanced) and
Auto(Expansion) .

Auto(Standard) •
Fixes slight distortion and color misalignment.
Auto(Advanced) •
Try adjustment in this mode if Auto(Standard) does not improve printing.
Auto(Expansion) •
Try adjustment in this mode if vertical lines are warped or colors are out of alignment when the printer driver

option Print Priority is set to Proof .

Items to Prepare

When Using Rolls•
An unused roll at least 10 inches wide

When Using Sheets•
Auto(Standard) : Three sheets of unused paper, A4/Letter size (or one sheet when using A2)
Auto(Advanced) : 11 sheets of unused paper, A4/Letter size (or three sheets when using A2)
Auto(Expansion) : Seven sheets of unused paper, A4/Letter size (or two sheets when using A2)

28

If Vertical Lines are Warped or Colors are Misaligned

If the Tab Selection screen is not displayed, press the Menu button.•

Always make sure the loaded paper matches the type of paper specifi ed on the printer. Adjustment
cannot be completed correctly unless the loaded paper matches the settings.

•

Auto(Expansion) may be unavailable in some cases, even if it is displayed in the menu.•
If so, execute Auto(Advanced) once.

1

2

3
4
5

7

6

Load paper.

On the Tab Selection screen of the Control Panel , press
◄ or ► to select the Settings/Adj. tab (

).

Press the OK button.

Press ▲ or ▼ to select Adjust Printer , and then press
the OK button.

Press ▲ or ▼ to select Head Posi. Adj. , and then press
the OK button.

A test pattern is printed for adjustment.
Adjustment is now fi nished if you have printed on a roll.

If you are printing on sheets, a confi rmation message is
displayed requesting you to continue printing. Press the
OK button and follow the instructions displayed.

Perform adjustment as follows.

(→

, Attaching the Roll Holder to Rolls)

(→

, Loading Rolls in the Printer)

(→

, Loading Sheets in the Printer)

The Set./Adj. Menu is displayed.

Press ▲ or ▼ to select Auto(Standard) ,
Auto(Advanced) , or Auto(Expansion) , and then press
the OK button.

678

Tot.Print Area(m2):

Maint.C Remain.: 80%

Ready
OK:Setting/Adj. Menu

29

Always check the Adj. Priority values before using Auto(GenuinePpr) or Auto(OtherPaper) .•

Adjustment is not possible with Auto(GenuinePpr) and Auto(OtherPaper) when using highly transparent media.•

If additional fi ne-tuning is necessary after Auto(GenuinePpr) and Auto(OtherPaper) , execute Adj. Fine Feed .•

This may take some time, depending on the type of paper.•

Use paper of the same type and size for adjustment as you will use for printing.•

Always make sure the loaded paper matches the type of paper specifi ed in the settings. Adjustment
cannot be completed correctly unless the loaded paper matches the settings.

•

Use Adjust Length to ensure that lines in CAD drawings are printed at exactly the right length.•

(→"Selecting a Feed Amount Adjustment Method (Feed Priority)," User's Guide)

In this case, use Manual adjustment.

(→"Fine-Tuning the Paper Feed Amount (Adj. Fine Feed)," User's Guide)

(→

, If Line Length Does Not Match)

(→"Manual Banding Adjustment (Adj. Quality)," User's Guide)

1

Perform adjustment as follows.

If printed images are affected by banding in different colors across the sheet, execute Adj. Quality for automatic
adjustment of the paper feed amount.
There are two modes of automatic adjustment to correct banding: Auto(GenuinePpr) and Auto(OtherPaper) . In
either mode, the printer prints and reads a test pattern for automatic adjustment of the feed amount.

Items to Prepare

When Using Rolls•
An unused roll at least 10 inches wide

When Using Sheets•
Auto(GenuinePpr) : One sheet of unused paper, A4/Letter size
Auto(OtherPaper) : Two sheets of unused paper, A4/Letter size (or one sheet when using A2)

If Banding Occurs

This topic describes how to adjust the feed amount automatically.

Load paper.
(→

, Attaching the Roll Holder to Rolls)

(→

, Loading Rolls in the Printer)

(→ , Loading Sheets in the Printer)

Use this mode with paper identifi ed in the Paper Reference Guide . (→

, The Manuals Supplied with This

Printer)

Use this mode with paper not in the Paper Reference Guide , or if Auto(GenuinePpr) does not eliminate
banding.

Auto(GenuinePpr) •

Auto(OtherPaper) •

30

If Banding Occurs

If the Tab Selection screen is not displayed, press the Menu button.•

2

3
4
5

7

8

6

On the Tab Selection screen of the Control Panel , press
◄ or ► to select the Settings/Adj. tab (

).

Press the OK button.

Press ▲ or ▼ to select Adjust Printer , and then press
the OK button.

Press ▲ or ▼ to select Feed Priority , and then press the
OK button.

Press ▲ or ▼ to select Auto(GenuinePpr) or
Auto(OtherPaper) , and then press the OK button.
A test pattern is printed for adjustment.
Adjustment is now fi nished if you have printed on a roll or
a sheet of A2 size or larger.

If you are printing on sheets smaller than A2 size for
Auto(OtherPaper) , a confi rmation message is shown on
the Display Screen requesting you to continue printing.

The Set./Adj. Menu is displayed.

Press ▲ or ▼ to select Adj. Quality , and then press the
OK button.

Press the OK button and follow the instructions on the
Display Screen .

678

Tot.Print Area(m2):

Maint.C Remain.: 80%

Ready
OK:Setting/Adj. Menu

31

Use paper of the same type and size for adjustment as you will use for printing.•

Always make sure the loaded paper matches the type of paper specifi ed in the settings. Adjustment
cannot be completed correctly unless the loaded paper matches the settings.

•

Always check the Adj. Priority values before using Adjust Length .•
(→"Selecting a Feed Amount Adjustment Method (Feed Priority)," User's Guide)

If the Tab Selection screen is not displayed, press the Menu button.•

1

2

To ensure that lines in CAD drawings are printed at exactly the right length, use Adjust Length to adjust the
amount that paper is advanced.

Additionally, two modes are available in both AdjustmentPrint and Change Settings : A:High or B:Standard/
Draft . Choose the mode that suits your particular printing application.

B:Standard/Draft •

A:High •

Items to Prepare

When Using Rolls•
An unused roll at least 10 inches wide

When Using Sheets•
One sheet of unused paper of at least A4/Letter size

Perform adjustment as follows.

Load paper.

On the Tab Selection screen of the Control Panel , press
◄ or ► to select the Settings/Adj. tab (

).

If Line Length Does Not Match

Adjust the length of printed lines as follows.

(→

, Attaching the Roll Holder to Rolls)

(→

, Loading Rolls in the Printer)

(→

, Loading Sheets in the Printer)

There are two options in Adjust Length : AdjustmentPrint and Change Settings .

Change Settings •

AdjustmentPrint •

High-precision ruler

High-precision ruler

After a test pattern is printed, you will measure the discrepancy based on the results of printing.

No test pattern is printed. Instead, you will measure a document already printed to determine the discrepancy.

This setting is applied when Highest quality or High is selected in Print Quality in the printer driver.

This setting is applied when Standard or Fast is selected in Print Quality in the printer driver.

678

Tot.Print Area(m2):

Maint.C Remain.: 80%

Ready
OK:Setting/Adj. Menu

32

If Line Length Does Not Match

A test pattern is printed in black when you choose A:High or in magenta if you choose B:Standard/
Draft .

•

To cancel printing the test pattern for adjustment, hold down the Stop button. When Stop printing? is
displayed, press ▲ or ▼ to select Yes , and then press the OK button.

•

4
5
6
7

8

3

Press ▲ or ▼ to select Adjust Printer , and then press
the OK button.

Press ▲ or ▼ to select Feed Priority , and then press the
OK button.

Press ▲ or ▼ to select Adjust Length , and then press
the OK button.

Press ▲ or ▼ to select AdjustmentPrint or Change
Settings , and then press the OK button.

Press ▲ or ▼ to enter the amount of discrepancy, and
then press the OK button.

When you select AdjustmentPrint , a test pattern is
printed for you to measure the scale and calculate the
discrepancy. The scale bar shows " Millimeter " in 50 mm
increments and " Inch " in 1-inch increments.

If the scale is shorter than the actual size, use a positive
setting value. If it is longer, use a negative value.
The feed amount can be adjusted in 0.02% increments.

Press the OK button.
The Set./Adj. Menu is displayed.

Millimeter Inch

33

Error messages

Check the message and take the appropriate action.

Before borderless printing, move the blue platen switch. •
Blue platen switch is dirty. •
Borderless printng not possible. •
Borderless printng not possible. Paper stretched or shrank. •
Calibration There is a problem with the multi-sensor. •
Cannot adjust paper feed. •
Cannot adjust printhead. •
Cannot calibrate. •
Cannot cut this paper. •
Cannot execute this command. Use other paper. •
Cannot feed paper. •
Check printed document. •
Close Ink Tank Cover •
End of paper feed. •
ERROR Exxx-xxxx (x represents a letter or number) •
Excessive temperature or humidity. •
Execute printhead cleaning. •
File read error. •
GARO Wxxxx (x represents a number) •
Hard disk error. •
Hardware error. xxxxxxxx-xxxx (x represents a letter or number) •
Ink insuffi cient. •
Ink tank is empty. •
Insuffi cient paper for job •
Mail box full. Delete unwanted data •
Mail box full. Now printing without saving data. •
Mail box nearly full. •
Maint. cart. The level is low •
Maintenance cartridge full. •
Maintenance cartridge problem. •
Maximum jobs stored. •
Media take-up unit ready. •
MediaType Mismatch •
Move the blue platen switch No.xx to the right. (xx represents a number) •
Multi-sensor error •
No ink left. •
No ink tank loaded. •
No maintenance cartridge. •
No Maintenance Cartridge capacity. •
No sheets. •
No x printhead (x is L, R, or not displayed) •
Not much ink is left. •
Paper loaded askew. •
Paper mismatch •
Paper position not suitable for borderless printing. •
Paper size not detected. •

Error Messages

Respond to error messages as follows.

34

Error Messages

PaprWidth Mismatch •
Parts replacement time has passed. •
PHeads: wrong pos. •
Please calibrate using above paper. •
Please execute calibration. •
Prepare for parts replacement. •
Regular printing is selected, but a roll is loaded. •
Rel lever is in wrong position. •
Remaining level of the ink cannot be correctly detected. •
Rewinding error. •
Roll printing is selected. •
Roll printing is selected, but sheets are loaded. •
Sheet printing is selected. •
The mail box is full. •
The paper is too small. •
The paper is too small. •
The roll is empty. •
This paper cannot be used as size is not supported. •
Top cover is open. •
Turn on the media take-up unit. •
Unknown fi le. •
Wrong ink tank. •
Wrong maintenance cartridge. •
Wrong x printhead. (x is L, R, or not displayed) •
x printhead error (x is L, R, or not displayed) •

35

Error Messages

Error Message Cause Corrective Action

GARO Wxxxx (x represents a
number)

There is a problem with the print
job.

Try printing again, using the correct printer driver.

It is also possible to continue printing in this state.
However, you may not be able to obtain the desired

printing results.

No ink left. There is no ink left. Open the Ink Tank Cover and replace the Ink Tank for

which the Ink Lamp is flashing.

Ink insufficient. The ink level is low, so you cannot

print, clean the Printhead , or do
other operations that require ink.

Press the OK button and replace the Ink Tank that is
low with a new Ink Tank .

Not much ink is left. Not much ink is left. Prepare a new Ink Tank .

We recommend replacing the Ink Tank with a new Ink
Ta nk at this point if you plan to print large-format or
high-quantity jobs.

Close Ink Tank Cover The Ink Tank Cover is open. Close the Ink Tank Cover .

Wrong ink tank. The Ink Tank in the printer is

incompatible.

Load an Ink Tank specified for use with the printer.

(→

, Replacing Ink Tanks)

(→

, Replacing Ink Tanks)

(→

, Replacing Ink Tanks)

Sheet printing is selected. You have attempted to print on a

sheet, but no sheet is loaded.

Press ▲ or ▼ to select Load Paper , and then press
the OK button. Load a sheet, and then print.

Press ▲ or ▼ and select Stop Printing or press the
Stop button to stop printing.

Check printed document. The Printhead nozzles are

becoming clogged.

If printing is faint, clean the Printhead .
(→ , If Printing is Faint)

(→"Loading and Printing on Sheets," User's Guide)

Ink tank is empty. There is no ink left in an ink tank. Open the Ink Tank Cover and replace the Ink Tank for

which the Ink Lamp is flashing.

No ink tank loaded. There is no Ink Tank in the printer. Load the Ink Tank .

(→

, Replacing Ink Tanks)

(→

, Replacing Ink Tanks)

There is a problem with the Ink
Ta nk .

Replace it with a new Ink Tank .
(→

, Replacing Ink Tanks)

Top cover is open. The printer has detected that the

Top Cover is open.

Open the Top Cover fully, remove any foreign objects,
and close the Top Cover again.

ERROR Exxx-xxxx (x represents
a letter or number)

An error requiring service may
have occurred.

Write down the error code and message, turn off the
printer, and contact your Canon dealer for assistance.

If the error occurs again, turn off the printer and wait a
while before restoring power.

Remaining level of the ink
cannot be correctly detected.

Ink level detection cannot work
correctly if you use refill ink tanks.

The refill ink tank can no longer be used. See the
section " Ink level detection " and take the appropriate
action. (→"Ink Level Detection," User's Guide)

36

Error Messages

Calibration There is a problem
with the multi-sensor.

The performance of a sensor
inside the printer may be impaired.

Press the OK button and cancel calibration. Contact
your Canon dealer for assistance.

Error Message Cause Corrective Action

End of paper feed. You are pressing the ▲ button on

the Control Panel and trying to
rewind the roll to the edge.

Release the ▲ button.

Cannot adjust paper feed. The Printhead nozzles are

clogged.

Execute Adj. Quality again, as follows.

Press the OK button to clear the error.
Print a test pattern to check the nozzles.

Clean the Printhead if the nozzles are clogged.

2.

3.

1.

(→"Checking for Nozzle Clogging," User's Guide)

(→

, If Printing is Faint)

Highly transparent film is loaded
that cannot be used for automatic
feed amount adjustment.

Press the OK button to clear the error, and then adjust
the feed amount manually.

Execute Adj. Quality again.4.
(→

, If Banding Occurs)

(→"Manual Banding Adjustment (Adj. Quality)," User's
Guide)

Regular printing is selected, but
a roll is loaded.

A sheet has come out of the printer
during printing.

No sheets.

A print job for printing on sheets
was sent when a roll is loaded.

Press ▲ or ▼ to select Stop Printing , and then press
the OK button to stop printing.

Lift the Release Lever and remove the paper.1.
If Not finished printing. Finish printing

remaining jobs? is shown on the Display Screen ,
press the OK button.

2.

Printing will resume, starting from the page on
which the error occurred.

Press ▲ or ▼ to select Remove Roll Paper , and
then press the OK button to stop printing.

1.

After removing the roll, load and print on a sheet of
the type and size of paper you have specified in the
printer driver.

2.

(→

, Removing the Roll from the Printer)

(→"Loading and Printing on Sheets," User's Guide)

Paper can be retracted only up
to 17 mm (0.7 in) when using the
Media Take-up Unit .

Release the ▲ button.

You are using a roll with the Media
Take-up Unit , but a print job
requiring sheets was sent.

Press the OK button to stop printing.1.
After removing the roll, load and print on a sheet of

the type and size of paper you have specified in the
printer driver.

2.

(→

, Removing the Roll from the Printer)

(→"Loading and Printing on Sheets," User's Guide)

37

Error Messages

Error Message Cause Corrective Action

Insufficient paper for job The printer has received

a print job longer than the
amount of roll paper left when
ManageRemainRoll in the
Control Panel menu is On .

Press ▲ or ▼ to select Print , and then press the OK
button to resume printing.

However, the roll paper may run out during the
print job and you may not be able to print all of the
document.

Press ▲ or ▼ to select Change Paper , and then
press the OK button.

Change the Paper Source of the printer driver, or
replace the roll with a roll that has enough paper for
the print job, and then print.

When using the Media Take-up Unit , press ▲ or ▼
to select Stop Printing , and then press the OK button
to stop printing. Remove the printed document from
the Media Take-up Unit , replace the roll with a roll
that has enough paper for the print job, and then try
printing again.

(→

, Removing the Roll from the Printer)

Cannot calibrate. The paper for printing a test

pattern is soiled. Otherwise, you
have loaded colored paper.

Press the OK button to clear the error.
Load unused paper compatible with color calibration.
(→"Types of Paper," User's Guide)

The test pattern was printed too
faintly.

Press the OK button to clear the error.

Direct sunlight or strong lighting
may be shining on the printer and
causing the sensor to malfunction.

Press the OK button to clear the error.

Take steps to remedy faint printing.
(→

, Troubleshooting)

Take steps to ensure the printer is not used when
exposed to direct sunlight or strong lighting.

(→

, Loading Rolls in the Printer)

(→"Removing Printed Documents from the Media
Take-up Unit (Optional)," User's Guide)

Excessive temperature or
humidity.

The temperature or humidity where
the printer is installed is out of the
acceptable range for operation.

Press ▲ or ▼ to select Stop , and then press the OK
button to stop printing.

Press ▲ or ▼ to select Continue , and then press the
OK button to continue with color calibration. However,
note that correct adjustment may not be possible.

Use the printer under suitable environmental
conditions. Also note that various environmental
conditions are recommended for various types of
paper. For details on the recommended environmental
conditions, see the Paper Reference Guide .
(→"Types of Paper," User's Guide)

Press ▲ or ▼ and select Stop Printing or press the
Stop button to stop printing.

When using the Media Take-up Unit , press ▲ or
▼ to select Print , and then press the OK button to
resume printing.

Please execute calibration. There is not even one color

calibration execution result.

Execute color calibration.

This is displayed when paper is
loaded in the printer and Prompt
Execution is set to On on the
Control Panel menu.

(→"Using Color Calibration for Color Adjustment,"
User's Guide)

Set Prompt Execution to Off on the Control Panel
menu.

(→

, Menu Map)

38

Error Messages

Error Message Cause Corrective Action

Cannot execute this command.
Use other paper.

Paper compatible with color
calibration is not loaded.

Always make sure the loaded paper matches the
type of paper in the printer paper settings. Adjustment
cannot be completed correctly unless the loaded
paper matches the settings.

Press the OK button to clear the error.1.
Load paper that is compatible with color calibration.2.
See the Paper Reference Guide .
(→"Types of Paper," User's Guide)

Cannot cut this paper. There are sheets left on the

Ejection Guide .

(→

, Loading Rolls in the Printer)

In other cases, the Cutter Unit
may be damaged.

Contact your Canon dealer for assistance.

Lift the Release Lever and remove the paper.1.
Load paper.2.
Lower the Release Lever .3.

There is a foreign object by the
Output Tray , obstructing the
Cutter Unit .

Lift the Top Cover and remove the foreign object.1.
If Not finished printing. Finish printing

remaining jobs? is shown on the Display Screen ,
press the OK button.

2.

Printing will resume, starting from the page on
which the error occurred.

You are not using the printer under
the recommended environmental
conditions for the paper.

Use the printer only where the recommended
environmental conditions for the paper are met.
Note that various environmental conditions are
recommended for various types of paper. For details
on the recommended environmental conditions, see
the Paper Reference Guide .

(→"Types of Paper," User's Guide)

You are using paper that is not
compatible with automatic cutting.

Specify Manual as the cutting method and use
scissors or a cutting tool to cut the roll.

1.

Lift the Release Lever and remove the paper.2.

(→"Specifying the Cutting Method for Rolls," User's
Guide)
For information about paper that is compatible with
automatic cutting, see the Paper Reference Guide .

(→"Types of Paper," User's Guide)

If Not finished printing. Finish printing
remaining jobs? is shown on the Display Screen ,
press the OK button.

4.

Printing will resume, starting from the page on
which the error occurred.

This paper cannot be used as
size is not supported.

Paper that is too large for the
printer has been loaded.

Lift the Release Lever and load paper of the correct
size.

Paper that is too small for the
printer has been loaded.

Lift the Release Lever and load paper of the correct
size.

Paper has been loaded that is too
small to print the test pattern for
printhead adjustment or nozzle
checking.

Lift the Release Lever and load unused paper A4/
Letter (vertical) or larger. More than one sheet may be
required depending on the adjustment.

(→"Paper Sizes," User's Guide)

(→"Paper Sizes," User's Guide)

39

Error Messages

Error Message Cause Corrective Action

Hardware error. xxxxxxxx-xxxx
(x represents a letter or number)

The last portion of roll paper was
used during a print job. The paper
was not advanced because the
trailing edge is taped to the roll.

Turn off the printer and remove the roll from the printer
before restoring power.

Fastening tape or the Belt
Stopper has not been removed
inside the Top Cover .

Turn off the printer, open the Top Cover and remove
the tape or the Belt Stopper before restoring power.

An error requiring service may
have occurred.

Turn off the printer and wait at least three seconds
before restoring the power.

Hard disk error. The format of the printer's hard

disk is invalid.

Press the OK button to start reformatting the hard
disk. When formatting is finished, data on the printer
hard disk is erased and the printer automatically
restarts.

If the message is displayed again, write down the
error code and message, turn off the printer, and
contact your Canon dealer for assistance.

File read error. Files on the printer's hard disk

have become corrupted.

Restart the printer. Only the corrupted files will be
deleted, and the printer will restart.

Unknown file. Data sent to keep the printer up to

date (such as paper information) is
in the wrong format.

Check the data. Turn off the printer and wait a while
before restoring power, and then resend the data.

You have uploaded firmware for a
different model.

Check the firmware version. Turn off the printer and
wait a while before restoring power, and then resend
the firmware.

If the message is displayed again, contact your Canon
dealer for assistance.

Please calibrate using above
paper.

It has become the time for
prompting the execution of color
calibration.

Execute color calibration.

Set Prompt Execution to Off on the Control Panel
menu.

(→"Using Color Calibration for Color Adjustment,"

User's Guide)
This is displayed when paper is
loaded in the printer and Prompt
Execution is set to On on the
Control Panel menu.

(→ , Menu Map)

40

Error Messages

Error Message Cause Corrective Action

Blue platen switch is dirty. The blue Switch on the platen is

dirty.

Open the Top Cover and clean the blue Switch on

the platen.

(→

, If Paper is Soiled)

Move the blue platen switch
No.xx to the right. (xx represents
a number)

The printer has detected that the
blue Switch on the platen needed
in maintenance during printing is
set away from the ● mark.

Set blue Switch on the platen that is identified in the

message toward the ● side.

(→"Setting the Blue Switch on the Platen," User's

Guide)

The print job received specifies
a type or width of paper that is
not compatible with borderless
printing.

Follow these steps to change the settings of the print

job to enable borderless printing.

Borderless printng not possible.

Press ▲ or ▼ to select Stop Printing , and then
press the OK button.

1.

Make sure the correct printer driver for the printer is
selected and try printing again.

2.

For information on types of paper compatible with
borderless printing, refer to the Paper Reference
Guide .

Select None when you have set Detect Mismatch on

the control panel to Warning .

Press ▲ or ▼ to select Print With Border , and

then press the OK button to continue printing. The

document will be printed with a border.

Press ▲ or ▼ to select Stop Printing , and then press

the OK button to stop printing.

Prepare for parts replacement. It is almost time to replace

consumables for which service is
required.

You can continue to use the printer for some time

until Parts replacement time has passed. will be

displayed.

Contact your Canon dealer for assistance.

(→"Types of Paper," User's Guide)

The loaded paper is a size not
compatible with borderless
printing.

Replace the paper with paper compatible for

borderless printing as follows.

Press ▲ or ▼

to select Print With Border , and
then press the OK button to continue printing. The
document will be printed with a border.

Parts replacement time has
passed.

It is past the recommended time
to replace consumables for which
service is required.

Contact your Canon dealer for assistance.

Before borderless printing,
move the blue platen switch.

The blue Switch on the platen was
set to the side opposite ● when a
borderless print job was received.

Press ▲ or ▼ to select Change Paper , and then
press the OK button to remove the roll.

1.

Replace the paper with paper compatible for
borderless printing.

2.

(→ , Removing the Roll from the Printer)
(→"Removing the Roll Holder from Rolls," User's

Guide)

(→

, Attaching the Roll Holder to Rolls)

(→

, Loading Rolls in the Printer)
The printer now starts printing the print job.
For information on types of paper compatible with

borderless printing, refer to the Paper Reference
Guide .
(→"Types of Paper," User's Guide)

Before borderless printing, set the blue Switch on the
platen to the ● side.

(→"Setting the Blue Switch on the Platen," User's
Guide)

However, note that this error may cause paper jams
and affect the printing quality.

41

Error Messages

Error Message Cause Corrective Action

Execute printhead cleaning. The Printhead nozzles are

clogged.

Follow these steps to clean the Printhead .

If the message is still displayed when printing, replace
the Printhead .

Stop printing by pressing ▲ or ▼ to select Stop
Printing .
Clean the Printhead .2.

1.

(→ , If Printing is Faint)

(→

, Replacing the Printhead)

Press ▲ or ▼ to select Print , and then press the OK
button to resume printing. However, note that this
error may affect the printing quality.

If OK is shown on the Display Screen , clean the
Printhead .

If the message is still displayed when printing, replace
the Printhead .

Clean the Printhead .2.
(→

, If Printing is Faint)

(→

, Replacing the Printhead)

Press the OK button on the Control Panel to stop
printing.

1.

Wrong x printhead. (x is L, R, or
not displayed)

An incompatible Printhead has
been installed.

Open the Top Cover . Replace the Printhead L
with a new one if " Printhead L " is displayed and the
Printhead R if " Printhead R " is displayed. If neither
left or right is indicated, replace both Printhead L and
Printhead R with new ones.

(→ , Replacing the Printhead)

x printhead error (x is L, R, or not
displayed)

There is a problem with the
Printhead .

Follow these steps to replace the Printhead .

No x printhead (x is L, R, or not
displayed)

No Printhead is installed. Install the Printhead L if " Printhead L " is displayed

and the Printhead R if " Printhead R " is displayed. If
neither left or right is indicated, install both Printhead
L and Printhead R .

(→

, Replacing the Printhead)

Open the Top Cover .1.
Replace the Printhead L with a new one if

" Printhead L " is displayed and the Printhead R if
" Printhead R " is displayed. If neither left or right is
indicated, replace both Printhead L and Printhead
R with new ones.

2.

(→ , Replacing the Printhead)

Follow these steps to replace the Printhead .

Turn off the printer, wait a while, and then turn it on
again.

1.

Replace the Printhead L with a new one if
" Printhead L " is displayed and the Printhead R if
" Printhead R " is displayed. If neither left or right is
indicated, replace both Printhead L and Printhead
R with new ones.

2.

(→

, Replacing the Printhead)

PHeads: wrong pos. The printheads are installed in the

wrong positions.

Open the Top Cover and switch the Printhead used
once in the right side to the right side. Switch the
Printhead used once in the left side to the left side.

42

Error Messages

Error Message Cause Corrective Action

Mail box full. Delete unwanted
data

100 jobs are stored in the personal
box.

Mail box nearly full. The free hard disk space left for

personal boxes in the printer's
hard disk does not have 1 GB,
combined.

Delete unneeded jobs stored in personal boxes.
(→"Deleting Saved Jobs," User's Guide)

The mail box is full. There is no more space on the

printer's hard disk.

Press the Stop button and stop printing.

Delete print jobs from the queue.

Delete unneeded jobs stored in personal boxes.

(→"Managing the Job Queue (Deleting or Preempting
Other Jobs)," User's Guide)

(→"Deleting Saved Jobs," User's Guide)

Press the Stop button and stop printing.

Delete print jobs from the queue.
(→"Modifying Queued Jobs (Deleting or Preempting

Other Jobs)," User's Guide)

Delete unneeded jobs stored in personal boxes.
(→"Deleting Saved Jobs," User's Guide)

Mail box full. Now printing
without saving data.

No more space is available on the
printer's hard disk, so jobs are now
printed without saving them. (Print
jobs can no longer be saved on the
hard disk.)

After printing, this message is cleared.

Maximum jobs stored. 100 jobs are stored in the personal

box.

Delete unneeded jobs stored in personal boxes.
(→"Deleting Saved Jobs," User's Guide)

Cannot adjust printhead. The Printhead nozzles are

clogged.

Execute Head Posi. Adj. again, as follows.

Press the OK button to clear the error.1.
Print a test pattern to check the nozzles.2.

Clean the Printhead if the nozzles are clogged.3.

Execute Head Posi. Adj. again.4.

The Printhead cannot be aligned;
highly transparent film is loaded.

Press the OK button to clear the error.

(→"Checking for Nozzle Clogging," User's Guide)

(→

, If Vertical Lines are Warped or Colors are
Misaligned)

(→ , If Printing is Faint)

(→

, If Vertical Lines are Warped or Colors are

Misaligned)

We recommend using a type of paper that you often
use, other than film, for Printhead adjustment.

Delete unneeded jobs stored in personal boxes.
(→"Deleting Saved Jobs," User's Guide)

43

Error Messages

Error Message Cause Corrective Action

No maintenance cartridge. The Maintenance Cartridge is not

installed.

Install the Maintenance Cartridge .

No Maintenance Cartridge
capacity.

The Maintenance Cartridge cannot
absorb enough ink for Printhead
cleaning or other operation.

After confirming that the printer has stopped
operating, replace the Maintenance Cartridge .

Maint. cart. The level is low The Maintenance Cartridge is

almost full.

You can continue to print, but prepare a new
Maintenance Cartridge to use when the message for
replacement is displayed.

Wrong maintenance cartridge. A Maintenance Cartridge for

a different model of printer is
installed.

Replace it with the Maintenance Cartridge for your
particular model.

(→

, Replacing the Maintenance Cartridge)

(→ , Replacing the Maintenance Cartridge)

Maintenance cartridge problem. An incompatible or used

Maintenance Cartridge has been
installed.

Install an unused Maintenance Cartridge specified for
use with the printer.

Maintenance cartridge full. The Maintenance Cartridge is full. After confirming that the printer has stopped

operating, replace the Maintenance Cartridge .

(→

, Replacing the Maintenance Cartridge)

(→

, Replacing the Maintenance Cartridge)

Multi-sensor error Direct sunlight or strong lighting

may be shining on the printer and
causing the sensor to malfunction.

Take steps to ensure the printer is not used when
exposed to direct sunlight or strong lighting.

The performance of a sensor
inside the printer may be impaired.

Contact your Canon dealer for assistance.

Rewinding error. There is some foreign object near

the Media Take-up Unit sensor
and the roll cannot be detected.

Remove the foreign object near the sensor.

Media take-up unit ready. The Take-up Reel setting in

the printer Set./Adj. Menu was
changed from Enable to Disable ,
but a print job was received before
the roll was removed.

Press ▲ or ▼ to select Stop Printing , and then press
the OK button to stop printing.

The Media Take-up Unit sensor
is soiled and the roll cannot be
detected.

Wipe the sensor with a dry cloth to clean it.

The roll is out of range of detection
by the Media Take-up Unit
sensor.

Reload the roll.

The Media Take-up Unit sensor is
damaged.

Contact your Canon dealer for assistance.

A paper jam has occurred and the
roll cannot be rewound.

Remove the paper from the Media Take-up Unit .

(→

, Loading Rolls in the Printer)

Press the OK button to clear the error.

The mode switches from take-up mode to regular
mode after you change the Take-up Reel setting
in the Set./Adj. Menu from Enable to Disable and
lift the Release Lever to remove a roll, or after you
execute Paper Cutting .

Press ▲ or ▼ to select Print , and then press the OK
button to resume printing.

Turn on the media take-up unit. The Media Take-up Unit was off

when you selected Enable for
Take-up Reel .

Turn on the Media Take-up Unit .

44

Error Messages

The paper is too small.

Error Message Cause Corrective Action

The paper is too small. The loaded paper is too small. Replace the paper with paper of A4/Letter (vertical)

size or larger as follows.

Press ▲ or ▼ to select Change Paper , press the
OK button, and remove the paper.

(→

, Removing Sheets)

(→"Loading and Printing on Sheets," User's Guide)

2.1.Switch to paper A4/Letter (vertical) or larger.

The printer will resume printing.

Press ▲ or ▼ to select Stop Printing , and then press
the OK button to stop printing.

Replace roll with 10 in. wide or
larger roll.

The loaded paper is too small. Replace the roll with a roll 10 inches in width or larger

as follows.

Press ▲ or ▼ to select Change Paper , and then
press the OK button to remove the roll.

(→

, Removing the Roll from the Printer)

(→

, Attaching the Roll Holder to Rolls)

2.1.Replace the roll with a roll 10 inches wide or larger.

The printer will resume printing.

Press ▲ or ▼ to select Stop Printing , and then press
the OK button to stop printing.

Replace paper with A4/LTR
(vertical) or larger

(→"Removing the Roll Holder from Rolls," User's
Guide)

(→

, Loading Rolls in the Printer)

(When you are attempting to print
a test print sheet or other printer
status information.)

(When you are attempting to print
a test print sheet or other printer
status information.)

The paper is too small. When Detect Mismatch in the

Control Panel menu is set to
Pause or Hold Job , paper smaller
than the size specified in the
printer driver is loaded.

Press ▲ or ▼ to select Print , and then press the OK
button to resume printing.

However, note that this error may cause paper jams
and affect the printing quality.

Adjust the paper size setting in the printer driver to
match the size loaded in the printer as follows.

Press ▲ or ▼ to select Stop Printing , and then
press the OK button to stop printing.

1.

Change the paper size setting in the printer driver to
the size loaded in the printer and try printing again.

2.

Replace the loaded paper with paper of a size that
matches the size setting in the printer driver as
follows.

Press ▲ or ▼ to select Change Paper , and then
press the OK button to stop printing.

1.

Replace the loaded paper to match the paper width
setting in the printer driver and try printing again.

2.

When Detect Mismatch in the
Control Panel menu is set to
Warning , paper smaller than the
size specified in the printer driver
is loaded.

You can continue to print, but note that this error may
cause problems in the printing results.

45

Error Messages

Error Message Cause Corrective Action

Paper loaded askew. Paper loaded crooked was

detected when the paper was
advanced.

Follow these steps to reload the roll.

Lift the Release Lever .1.
Adjust the right edge of the roll to make it parallel to

the orange Paper Alignment Line .

2.

If this error recurs after you reload the roll, remove
the Roll Holder from the printer, push the roll firmly in
until it touches the Roll Holder flange, and reload the
Roll Holder in the printer.

Follow these steps to reload the sheet.

Lift the Release Lever .1.
Pull out the sheet.2.
Lower the Release Lever .3.

(→

, Loading Rolls in the Printer)

(→

, Attaching the Roll Holder to Rolls)

(→ , Loading Sheets in the Printer)

Lower the Release Lever .3.

Adjust the right edge of the sheet to make it parallel
to the right Paper Alignment Line and the trailing
edge of the sheet to make it parallel to the paper
alignment line under the Paper Retainer .

4.

Paper mismatch You tried to print a test pattern

for printer adjustment on several
sheets, but sheets of different
types or sizes of paper were used.

When printing a test pattern for adjustment, use
sheets of the same size and type of paper, in the
required quantity.

Replace the paper as follows and perform adjustment
again.

Press ▲ or ▼ to select Stop Printing , and then
press the OK button to stop printing.

1.

Replace the paper.2.

Press ▲ or ▼ to select Change Paper , press the OK
button, and replace the paper.
(→"Loading and Printing on Sheets," User's Guide)

The printer now starts printing the test pattern.

Execute adjustment again from the control panel
menu.

3.

(→"Loading and Printing on Sheets," User's Guide)

46

Error Messages

Error Message Cause Corrective Action

Paper size not detected. Paper has been loaded askew, or

warped paper has been loaded.

Follow these steps to reload the roll.

If this error recurs after you reload the roll, remove
the Roll Holder from the printer, push the roll firmly in
until it touches the Roll Holder flange, and reload the
Roll Holder in the printer.

Lift the Release Lever .1.

Because the Platen is soiled with
ink or other substances, the size of
the clear film cannot be detected.

Open the Top Cover and clean the entire Platen .

Adjust the right edge of the roll to make it parallel to
the right Paper Alignment Line .

2.

Follow these steps to reload the sheet.

(→

, Loading Sheets in the Printer)

If Not finished printing. Finish printing
remaining jobs? is shown on the Display Screen ,
press the OK button.

3.

Printing will resume, starting from the page on
which the error occurred.

(→

, Loading Rolls in the Printer)

(→

, Attaching the Roll Holder to Rolls)

Lift the Release Lever .1.
Adjust the right edge of the sheet to make it parallel

to the right Paper Alignment Line and the trailing
edge of the sheet to make it parallel to the paper
alignment line under the Paper Retainer .

2.

If Not finished printing. Finish printing
remaining jobs? is shown on the Display Screen ,
press the OK button.

3.

Printing will resume, starting from the page on
which the error occurred.

(→

, If Paper is Soiled)

Borderless printng not possible.
Paper stretched or shrank.

The loaded roll has expanded or
contracted due to environmental
conditions, making it wider or
narrower than the supported width
for borderless printing.

Press the OK button to stop printing.

Use each type of paper only where the recommended
environmental conditions are met. For details on
environmental conditions for various paper, see the
Paper Reference Guide .
(→"Types of Paper," User's Guide)

47

Error Messages

Error Message Cause Corrective Action

MediaType Mismatch When Detect Mismatch in the

Control Panel menu is set to
Pause , the type of paper loaded
does not match the type specified
in the printer driver.

Follow these steps to ensure the paper type matches
on the printer and in the printer driver.

Follow these steps to ensure the paper type matches
on the printer and in the printer driver.

You tried to print a test pattern
for printer adjustment on several
sheets, but sheets of different
types of paper were used.

When printing a test pattern for adjustment, use
sheets of the same type of paper, in the required
quantity. Replace the paper as follows and perform
adjustment again.

Press ▲ or ▼ to select Change Paper , and then
press the OK button.

1.

Replace the loaded paper with paper of the type
and size you have specified in the printer driver.

2.

(→"Loading and Printing on Rolls," User's Guide)
(→"Loading and Printing on Sheets," User's Guide)

Press ▲ or ▼ to select Stop Printing , and then
press the OK button to stop printing.

1.

Either change the type of paper specified in the
printer driver settings or replace the loaded paper
and change the paper type setting on the printer.

2.

(→"Loading and Printing on Rolls," User's Guide)
(→"Loading and Printing on Sheets," User's Guide)

Press ▲ or ▼ to select Print , and then press the OK
button to resume printing.

However, note that this error may cause paper jams
and affect the printing quality.

When Detect Mismatch in the
Control Panel menu is set to
Warning , the type of paper loaded
does not match the type specified
in the printer driver.

You can continue to print, but note that this error may
cause problems in the printing results.

Lift the Release Lever and stop printing.1.
Replace the paper.2.

Execute adjustment again from the control panel
menu.

3.

(→"Loading and Printing on Sheets," User's Guide)

Follow these steps to ensure the paper type matches
on the printer and in the printer driver.

Press ▲ or ▼ to select Stop Printing , and then
press the OK button.

1.

Change the paper type setting in the printer driver
to the type loaded in the printer and try printing
again.

2.

48

Error Messages

Error Message Cause Corrective Action

Paper position not suitable for
borderless printing.

Because paper expands or
contracts depending on the
environment of use, it may
become narrower or wider than
the supported width for borderless
printing.

Press ▲ or ▼ to select Stop Printing , and then press
the OK button to stop printing.

Select None when you have set Detect Mismatch in
the Control Panel menu to Warning .

Use each type of paper only where the recommended
environmental conditions are met. For details on
environmental conditions for various paper, see the
Paper Reference Guide .

Select None when you have set Detect Mismatch in
the Control Panel menu to Warning .

Press ▲ or ▼ to select Print With Border , and
then press the OK button to continue printing. The
document will be printed with a border.

(→"Types of Paper," User's Guide)

However, note that this error may affect the printing
quality.

The paper is loaded askew. Press ▲ or ▼ to select Change Paper and straighten

the paper so that the edges are between the ink
grooves for borderless printing.

Insert the roll firmly until it touches the flange of the
Roll Holder .

(→

, Attaching the Roll Holder to Rolls)

However, note that this error may affect the printing
quality.

Press ▲ or ▼ to select Stop Printing , and then press
the OK button to stop printing.

49

Error Messages

Error Message Cause Corrective Action

Cannot feed paper. A paper jam occurred in the printer

during printing.

Lift the Release Lever and remove the jammed
paper.

1.

Load paper.2.
Lower the Release Lever .3.

Rel lever is in wrong position. The Release Lever is up. Lower the Release Lever .

(→

, If Roll Paper Jams)
(→

, If a Sheet Jams)

(→

, Loading Rolls in the Printer)

(→ , Loading Sheets in the Printer)

If the error occurs again, turn off the printer and wait a
while before restoring power.

PaprWidth Mismatch When Detect Mismatch in the

Control Panel menu is set to
Pause or Warning , the width of
the loaded roll does not match the
width specified in Fit Roll Paper
Width in the printer driver.

Press ▲ or ▼ to select Print , and then press the OK
button to resume printing.

However, note that this error may cause paper jams
and affect the printing quality.

Make sure the roll width selected in the dialog box
displayed when you select Fit Roll Paper Width in
the printer driver matches the width of the roll loaded
in the printer, and then try printing again.

Press ▲ or ▼ to select Stop Printing , and then press
the OK button to stop printing.

Follow these steps to replace the roll to match the
width specified in the printer driver.

Press ▲ or ▼ to select Change Paper , and then
press the OK button to remove the roll.

1.

Replace the paper with paper compatible for
borderless printing.

2.

(→

, Removing the Roll from the Printer)
(→"Removing the Roll Holder from Rolls," User's

Guide)

(→

, Attaching the Roll Holder to Rolls)
(→

, Loading Rolls in the Printer)
The printer now starts printing the print job.

If Not finished printing. Finish printing
remaining jobs? is shown on the Display Screen ,
press the OK button.

4.

Printing will resume, starting from the page on
which the error occurred.

50

Error Messages

Error Message Cause Corrective Action

The roll is empty. The roll is empty. Follow these steps to replace the used roll with a new

roll of the same type and size.

Lift the Release Lever and remove the roll.1.

Load the new roll.2.

If no barcode was printed on the roll, specify the
type of paper.

3.

When you have selected ManageRemainRoll >
On in the control panel menu and a barcode is not
printed on the roll, also specify the paper length.

4.

(→ , Removing the Roll from the Printer)
(→"Removing the Roll Holder from Rolls," User's

Guide)

(→

, Attaching the Roll Holder to Rolls)
(→

, Loading Rolls in the Printer)

(→"Specifying the Paper Length," User's Guide)

(→"Changing the Type of Paper," User's Guide)

If Not finished printing. Finish printing
remaining jobs? is shown on the Display Screen ,
press the OK button.

5.

Printing will resume, starting from the page on
which the error occurred.

There is remaining roll paper, but
because it could not be advanced,
it could not be detected.

Choose a higher level of Print Quality in the
Advanced Settings of the printer driver.

(→"Giving Priority to Particular Graphic Elements and
Colors for Printing," User's Guide)

Roll printing is selected. You have attempted to print on a

roll, but no roll is loaded.

Press ▲ or ▼ to select Load Roll Paper , and then
press the OK button. Load the roll, and then print.

Press ▲ or ▼ and select Stop Printing or press the
Stop button to stop printing.

(→

, Attaching the Roll Holder to Rolls)

(→

, Loading Rolls in the Printer)

Roll printing is selected, but
sheets are loaded.

A print job for rolls was received
when a sheet is loaded.

Press ▲ or ▼ to select Stop Printing , and then press
the OK button to stop printing.

Press ▲ or ▼ to select Eject Paper , press the OK
button, and remove the sheet.

(→

, Removing Sheets)
Load a new roll.
(→ , Loading Rolls in the Printer)

Follow these steps to load and print on a roll.

The printer now starts printing the print job.

1.

2.

The unused portion of the roll is heavy, and this is
placing a burden on the printer. It may be helpful
to change the printing mode, which will change the
paper feed timing.

51

A

Adj. Quality (adjustment quality) ................................. 29

Adjust Length..............................................................31

B

Banding ......................................................................29

Borderless Printing Ink Grooves ................................. 24

C

Carriage ................................................................ 20, 22

Carriage Shaft ............................................................25

Cleaning Brush ........................................................... 24

Cutter guide ................................................................ 24

E

Ejection Guide ......................................................21, 23

F

Faint print....................................................................26

Fixed Blade.................................................................25

H

Head Cleaning A ......................................................... 26

Head Cleaning B ........................................................26

Head Posi. Adj. (head position adjustment)................27

J

Jammed roll paper ...................................................... 20

Jammed sheets ..........................................................22

L

Line length that does not match .................................31

Linear Scale................................................................25

P

Paper Alignment Line ................................................. 21

Paper Retainer ...........................................................25

Paper soiling ............................................................... 24

Platen .........................................................................24

R

Release Lever ......................................................20, 22

T

Top Cover ...................................................................24

Top Cover Roller ......................................................... 25

V

Vacuum holes .............................................................25

W

Warped vertical lines or misaligned colors ................27

Index

© CANON INC. 2011 PRINTED IN JAPANQT5-3333-V1

Canon Inc.

30-2, Shimomaruko 3-chome, Ohta-ku, Tokyo 146-8501, Japan

Canon U.S.A., Inc.

One Canon Plaza, Lake Success, NY 11042 U.S.A

Canon Europe Ltd.

3 The Square, Stockley Park, Uxbridge, Middlesex, UB11 1ET United Kingdom

Canon (China) Co., Ltd.

15F Jinbao Building No.89 Jinbao Street, Dongcheng District, Beijing 100005, China

Canon Australia Pty. Ltd.

1 Thomas Holt Drive, North Ryde, Sydney, N.S.W.2113, Australia

*QT53333V1*
