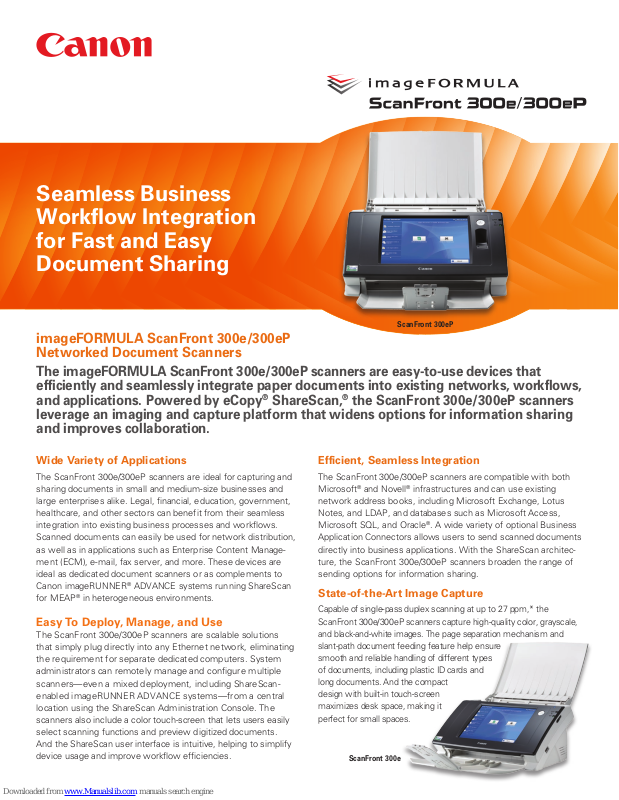

Page 1
Seamless Business
Workflow Integration
for Fast and Easy
Document Sharing
ScanFront 300eP
imageFORMULA ScanFront 300e/300eP
Networked Document Scanners
The imageFORMULA ScanFront 300e/300eP scanners are easy-to-use devices that
efficiently and seamlessly integrate paper documents into existing networks, workflows,
and applications. Powered by eCopy® ShareScan,® the ScanFront 300e/300eP scanners
leverage an imaging and capture platform that widens options for information sharing
and improves collaboration.
Wide Variety of Applications
The ScanFront 300e/300eP scanners are ideal for capturing and
sharing documents in small and medium-size businesses and
large enterprises alike. Legal, financial, education, government,
healthcare, and other sectors can benefit from their seamless
integration into existing business processes and workflows.
Scanned documents can easily be used for network distribution,
as well as in applications such as Enterprise Content Management (ECM), e-mail, fax server, and more. These devices are
ideal as dedicated document scanners or as complements to
Canon imageRUNNER
for MEAP
®
in heterogeneous environments.
®
ADVANCE systems running ShareScan
Easy To Deploy, Manage, and Use
The ScanFront 300e/300eP scanners are scalable solutions
that simply plug directly into any Ethernet network, eliminating
the requirement for separate dedicated computers. System
administrators can remotely manage and configure multiple
scanners—even a mixed deployment, including ShareScanenabled imageRUNNER ADVANCE systems—from a central
location using the ShareScan Administration Console. The
scanners also include a color touch-screen that lets users easily
select scanning functions and preview digitized documents.
And the ShareScan user interface is intuitive, helping to simplify
device usage and improve workflow efficiencies.
Efficient, Seamless Integration
The ScanFront 300e/300eP scanners are compatible with both
Microsoft
network address books, including Microsoft Exchange, Lotus
Notes, and LDAP, and databases such as Microsoft Access,
Microsoft SQL, and Oracle
Application Connectors allows users to send scanned documents
directly into business applications. With the ShareScan architecture, the ScanFront 300e/300eP scanners broaden the range of
sending options for information sharing.
®
and Novell® infrastructures and can use existing
®
. A wide variety of optional Business
State-of-the-Art Image Capture
Capable of single-pass duplex scanning at up to 27 ppm,* the
ScanFront 300e/300eP scanners capture high-quality color, grayscale,
and black-and-white images. The page separation
slant-path document feeding feature help ensure
smooth and reliable handling of different types
of documents, including plastic ID cards and
long documents. And the compact
design with built-in touch-screen
maximizes desk space, making it
perfect for small spaces.
ScanFront 300e
mechanism and
Page 2
Enhanced Security
The ScanFront 300e/300eP scanners support native integration
to Microsoft Active Directory and Novell eDirectory for log-in
authentication to help prevent unauthorized access. Additionally,
the scanners can create audit trails, including activity logging
and document tracking, as well as offer a Fingerprint Reader for
device-level user authentication.
Specifications
Type: Compact Network Scanner
Document Feeding: Automatic or Manual
Document Size
Width: 2” – 8.5”
Length: 2.1” – 14”
Document Weight
Automatic Feeding: 14 lb. to 57 lb. Bond
Feeder Capacity: 50 Sheets
Grayscale: 8-bit
Color: 24-bit
Scanning Element: CIS Sensor
Light Source: RGB LED
Scanning Modes: Color, Grayscale, Black and White, Halftone,
Text Enhance, and Auto Color Detection
Color Dropout/Enhance: Red, Green, Blue
Optical Resolution: 600 dpi
Output Resolution: 100/150/200/300/400/600 dpi
Scanning Speed 300eP 300e
Simplex Duplex Simplex Duplex
Black and White:* 27 ppm 47 ipm 26 ppm 40 ipm
Grayscale:* 26 ppm 42 ipm 25 ppm 33 ipm
Color:** 23 ppm 40 ipm 18 ppm 28 ipm
Operation Panel: 8.4” SVGA TFT Liquid Crystal Display with Touch-Panel
Fingerprint Sensor: Optical Sweep Type Sensor (ScanFront 300eP)
Dimensions (H x W x D): 6.3” x 12.2” x 8.7”
Weight: 7.9 lb.
Power Consumption: 29W or Less
Suggested Daily Volume: Approx. 3,000 Scans
Environment in Mind
The ScanFront 300e/300eP scanners are part of Canon’s
Generation Green program. They also comply with the EU RoHS
and WEEE directives for the reduction of hazardous substances
and waste products.
Options: Exchange Roller Kit
Network Functions: Scan-To-E-mail (SMTP Microsoft Exchange, Lotus Notes),
Other Features: Auto Color Detection, Automatic Page Size Detection,
Item Number: ScanFront 300e: 6586B001
* Examples based on typical settings, rated in pages/images per minute with letter-sized documents,
portrait-feeding direction, up to 200 dpi.
** Examples based on typical settings, rated in pages/images per minute with letter-sized documents,
portrait-feeding direction, up to 150 dpi.
Scan-To-Fax (SMTP-via Internet fax service only,
Microsoft Exchange, Lotus Notes), Scan-To-Folder,
Scan-To-Print, Scan-To-FTP
Bleed-Through Removal, Color Dropout/Enhance Color,
Deskew, Fingerprint Reader (ScanFront 300eP),
Skip Blank Page, Text Orientation Recognition, Ultrasonic
Double-Feed Detection (300eP)
ScanFront 300eP: 6587B001
None of these statements should be construed as legal advice, as Canon U.S.A. does not provide
legal counsel or compliance consultancy, including without limitation, Sarbanes-Oxley, HIPAA, GLBA,
Check 21 or the USA Patriot Act. Each customer must have its own qualified counsel determine the
advisability of a particular solution as it relates to regulatory and statutory compliance.
CANON, IMAGERUNNER, and MEAP are registered trademarks of Canon Inc. in the United States and
may also be registered trademarks or trademarks in other countries. IMAGEFORMULA and SCANFRONT
are registered trademarks of Canon Electronics Inc. eCopy and ShareScan are registered trademarks
or trademarks of Nuance Communications, Inc. or its affiliates in the United States or other countries.
All other referenced product names and marks are trademarks of their respective owners and are
hereby acknowledged. Specifications and availability subject to change without notice.
©2013 Canon U.S.A., Inc. All rights reserved.
0913-SF300e/300eP-PDF-SP
