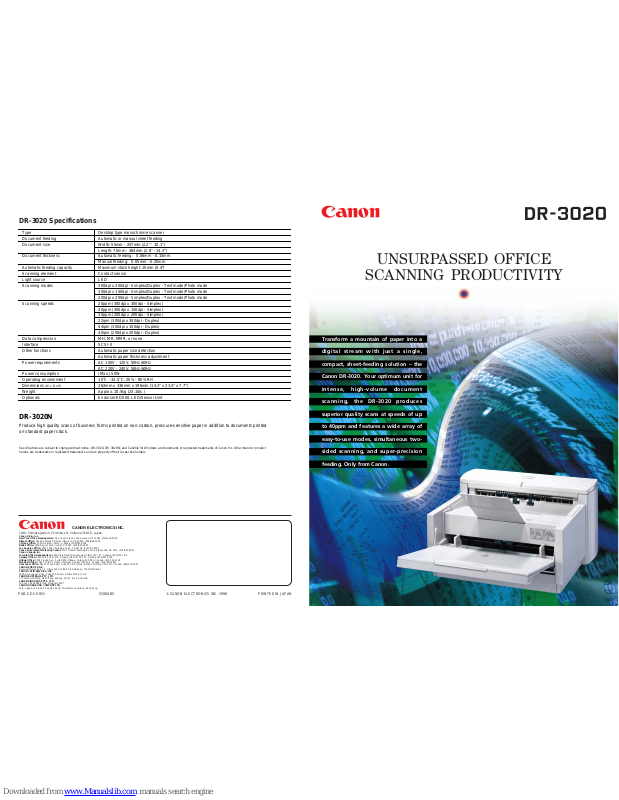

Canon imageFORMULA DR-3020 Specifications

Type
Document feeding
Document size

Document thickness

Automatic feeding capacity
Scanning element
Light source
Scanning modes

Scanning speeds

Data compression
Interface
Other functions

Power requirements

Power consumption
Operating environment
Dimensions (W x D x H)
Weight
Optionals

Desktop type monochrome scanner
Automatic or manual sheet feeding
Width: 55mm - 257mm (2.2" - 10.1")
Length: 70mm - 364mm (2.8" - 14.3")
Automatic feeding: 0.06mm - 0.15mm
Manual feeding: 0.05mm - 0.20mm
Maximum stack height: 10mm (0.4")
Contact sensor
LED
300dpi x 300dpi - Simplex/Duplex - Text mode/Photo mode
300dpi x 150dpi - Simplex/Duplex - Text mode/Photo mode
200dpi x 200dpi - Simplex/Duplex - Text mode/Photo mode
20ppm (300dpi x 300dpi - Simplex)
40ppm (300dpi x 150dpi - Simplex)
30ppm (200dpi x 200dpi - Simplex)
22ipm (300dpi x 300dpi - Duplex)
44ipm (300dpi x 150dpi - Duplex)
40ipm (200dpi x 200dpi - Duplex)
MH, MR, MMR, or none
SCSI-II
Automatic paper size detection
Automatic paper thickness adjustment
AC 100V - 120V, 50Hz/60Hz
AC 220V - 240V, 50Hz/60Hz
(Max.) 50W
10˚C - 32.5˚C, 20% - 80% RH
362mm x 336mm x 196mm (14.3" x 23.4" x 7.7")
Approx. 10.5kg (23.1lbs.)
Endorser ED500, LED/Sensor Unit

DR-3020 Specifications

PRINTED IN JAPAN

© CANON ELECTRONICS INC. 1998

PUB.CE-CE-951

0198AB5

CANON ELECTRONICS INC.

1248, Shimokagemori, Chichibu-shi, Saitama 369-18, Japan

Canon U.S.A. Inc.
New York Office/Headquarters: One Canon Plaza, Lake Success, NY 11042, [phone]
Atlanta Office:5625 Oakbrook Parkway, Norcross, GA 30093, [phone]
Chicago Office:100 Park Blvd., Itasca, IL 60143, [phone]
Dallas Office: 3200 Regent Blvd., Irving TX 75063, [phone]
Los Angeles Office:15955 Alton Parkway, Irvine, CA 92718, [phone]
Canon Government Marketing Center:5701 General Washington Drive, Alexandria, VA 2312, [phone]
Canon Canada, Inc.
Toronto Office/Headquarters: 6390 Dixie Road Mississauga, Ontario L5T 1P7, Canada, [phone]
Calgary Office: 2828 16th Street, N.E. Calgary, Alberta T2E 7K7, Canada, [phone]
Ottawa Office: 1565 Carling Ave., Suite #500, Ottawa, Ontario K1Z 8R1, Canada, [phone]
Montreal Office: 10657 Cote De Liesse, Montreal, Quebec H8T 1A5, Canada, [phone]
Vancouver Office: 5811 Cooney Road, Suite 202, Richmond, British Columbia, V6X 3M1, Canada, [phone]
CANON EUROPA N.V.

Bovenkerkerweg 59-61, P.O.Box 2262, 1180 EG Amstelveen, The Netherlands

CANON LATIN AMERICA, INC.

6505, Blue Lagoon Drive, Suite 325, Miami, Florida 33126, U.S.A.

CANON AUSTRALIA PTY. LTD.

1 Thomas Holt Drive, North Ryde, Sydney, N.S.W. 2113, Australia

CANON SINGAPORE PTE. LTD.

79 Anson Road #09-01/06, Singapore 0207

CANON HONGKONG COMPANY LTD.

10/F, Lippo Sun Plaza, 28 Canton Road, Tsimshatsui, Kowloon, Hong Kong

UNSURPASSED OFFICE

SCANNING PRODUCTIVITY

Transform a mountain of paper into a

digital stream with just a single,

compact, sheet-feeding solution – the

Canon DR-3020. Your optimum unit for

intense, high-volume document

scanning, the DR-3020 produces

superior quality scans at speeds of up

to 40ppm and features a wide array of

easy-to-use modes, simultaneous two-

sided scanning, and super-precision

feeding. Only from Canon.

DR-3020N

Produce high quality scans of business forms printed on non-carbon, pressure-sensitive paper in addition to documents printed
on standard paper stock.

Specifications are subject to change without notice. DR-3020, DR-3020N, and Canofile for Windows are trademarks or registered trademarks of Canon Inc. Other brand or product
names are trademarks or registered trademarks and are property of their respective holders.

As digital conversion of paper documents becomes an essential workplace procedure, you’ll find an uncompromising ally
in the Canon DR-3020 – a versatile desktop scanner promising great results for all your high-volume, office scanning needs.

The Compact Solution to
High Quality Document Scanning

When you need to scan a pile of documents in a hurry, there’s no beating the
DR-3020’s smooth operation! Simply stack as many as 100 sheets onto the
feeder tray, let automatic paper size detection do its job, and scan up to 40
pages per minute – or 22 pages using the two-sided scanning mode! The DR­3020’s automatic paper feeding is exceptionally accurate, ensuring that your
work progresses with no interruptions – whether you’re scanning B4-size
paper, letters, forms, or business cards.

Excellent speed and precision

The DR-3020’s Text Mode is perfect for character­based documents, while its Photo Mode delivers
optimal scans of materials incorporating photos or
graphic representations. Image capture in either mode
can be made at resolutions of up to 300dpi x 300dpi,
plus the DR-3020’s duplexing capability offers
simultaneous two-sided scans of documents
containing information on both sides of the page. All this versatility comes
with no extra hassles – just place the appropriate Function Sheet on top of
your stack, and the DR-3020 adjusts its operations automatically!

A variety of easy-to-use modes

Document management from within your PC network is simply the most
practical way to deal with an incessant deluge of paper documents. And with
the Canon DR-3020, not only do you dramatically reduce paper circulation in
your office, but you get all the necessary scanning power in an extremely
compact unit as well. High-volume digital document conversion begins with
just this one convenient scanner that fits comfortably on any desktop!

Remarkably compact design

In order to maximize its role in your office network, the
Canon DR-3020 supports both TWAIN and ISIS
drivers for use with an extensive range of application
software. The DR-3020 can also be used in tandem
with the Canofile for Windows software package, to
create a complete image filing system for scanning,
searching, and retrieving PC-archived documents! A
built-in SCSI interface makes connection to your
system as effortless as possible.

System-friendly operation

If your business involves the day-to-day
handling of forms printed on non-carbon,
pressure-sensitive paper, then the DR-

3020N is exactly the scanner you’re looking
for. Outfitted with special silicon rollers and an auto-lock
lever, the DR-3020N offers expert handling of document
such as vouchers, invoices, and order forms – and
includes all the benefits of the standard DR-3020!
The DR-3020N’s innovative design
guarantees to lessen both the time
and trouble of scanning business
forms for PC-based document

management purposes.

LOCK AUTO

Options for even greater functionality

Infinitely practical for
banking applications, the
Canon Endorser ED500
can be used to endorse
everything for checks to
A4 /Letter-size papers.
Dates, serial numbers,
and other data are
reliably printed on every

scanned document, and a
movable stamp allows for precise
positioning of endorsements. Installation
with the DR-3020 is quick and easy,
requiring absolutely no extra cable
connections.

The Canon Endorser ED500

Meet the specialist
for non-carbon, pressure­sensitive paper!

Optical Character Recognition is an indispensable tool in the
digital workplace, supplying content to applications as diverse
as word-processing, spreadsheets, and translation programs.
To promote more accurate OCR scanning of
customer/client information into your
database, the DR-3020 can be matched
with an optional LED/Sensor Unit that
automatically filters out any red lines and
areas found on application forms and other
fill-’em-out documentation.

Vastly improved OCR scanning
