Canon EOS R100 User guide

Download

Page 1

Advanced User Guide

CT2-D288-A

Page 2

Contents

Introduction. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

Package Contents. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

Supplemental Information. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

Compatible Accessories. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

Instruction Manuals. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

Quick Start Guide. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

About This Guide. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16

Compatible Cards. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18

Safety Instructions. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19

Handling Precautions. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22

Part Names. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26

Software/Apps. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34

Preparation and Basic Operations. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38

Charging the Battery. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39

Inserting/Removing the Battery and Card. . . . . . . . . . . . . . . . . . . . . . . . . . . . 42

Turning on the Power. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 48

Attaching and Detaching RF/RF-S Lenses. . . . . . . . . . . . . . . . . . . . . . . . . . . 51

Attaching and Detaching EF/EF-S Lenses. . . . . . . . . . . . . . . . . . . . . . . . . . . . 56

Using the Viewfinder. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 60

Basic Operations. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 61

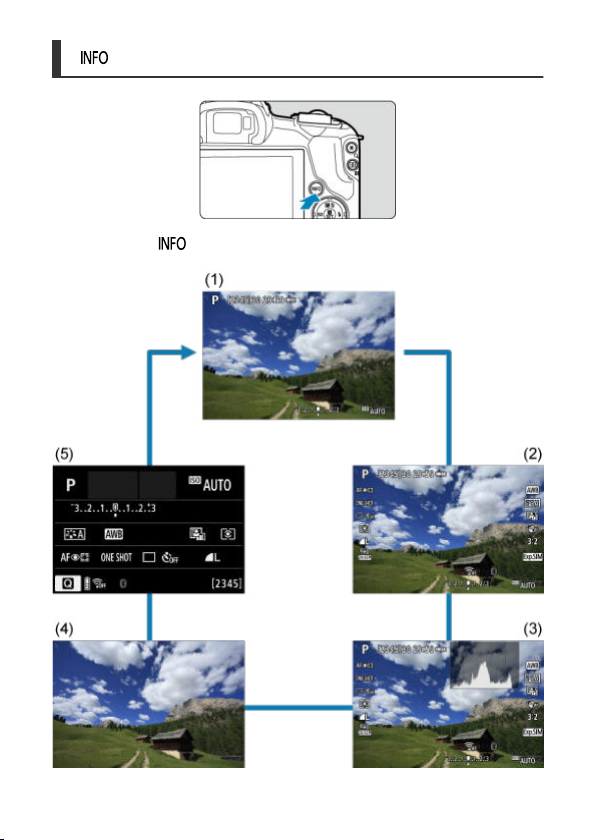

Setting the Screen Display Level. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 68

Menu Operations and Settings. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 75

Quick Control. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 82

Basic Zone. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 85

Scene Intelligent Auto. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 86

Hybrid Auto. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 95

Special Scene Mode. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 99

Portrait Mode. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 102

Landscape Mode. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 103

Sports Mode. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 104

Page 3

Panning Mode. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 105

Close-up Mode. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 107

Food Mode. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 108

Night Portrait Mode. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 109

Handheld Night Scene Mode. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 111

HDR Backlight Control Mode. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 113

Silent Shutter Mode. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 114

Creative Filters Mode. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 115

Creative Zone. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 122

P: Program AE. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 123

Tv: Shutter-Priority AE. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 125

Av: Aperture-Priority AE. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 128

M: Manual Exposure. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 132

Long (Bulb) Exposures. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 135

AF, Drive, and Exposure Settings. . . . . . . . . . . . . . . . . . . . . . . . . . . . 137

AF Operation. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 138

AF Method. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 144

Manual Focus. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 157

Drive Mode. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 161

Using the Self-Timer. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 162

Remote Control Shooting. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 164

Metering Mode. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 166

Exposure Compensation. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 168

Exposure Lock (AE Lock). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 170

Flash Photography. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 172

Shooting with the Built-in Flash. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 173

Flash Function Settings. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 177

Shooting with Speedlites. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 194

Shooting and Recording. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 196

Still Photo Shooting. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 197

Tab Menus: Still Photo Shooting. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 199

Image Quality. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 206

Page 4

Still Image Aspect Ratio. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 209

Exposure Compensation/AEB Settings. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 211

ISO Speed Settings for Still Photos. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 213

Auto Lighting Optimizer. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 216

Highlight Tone Priority. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 218

White Balance Settings. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 219

White Balance Correction. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 227

Color Space. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 230

Picture Style Selection. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 231

Picture Style Customization. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 235

Picture Style Registration. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 240

Lens Aberration Correction. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 243

Noise Reduction Features. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 250

Appending Dust Delete Data. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 254

Continuous AF. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 258

Focus Mode. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 259

AF-Assist Beam Firing. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 260

Lens Electronic MF. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 261

Focus/Control Ring. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 262

Image Stabilizer (IS Mode). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 263

Review Duration. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 265

Metering Timer. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 266

Exposure Simulation. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 267

Shooting Information Display. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 268

Viewfinder Display Format. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 277

Display Performance. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 278

General Still Photo Shooting Precautions. . . . . . . . . . . . . . . . . . . . . . . . . . . 279

Movie Recording. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 282

Tab Menus: Movie Recording. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 283

Movie Recording. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 287

Movie Recording Quality. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 295

Sound Recording. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 302

Time-Lapse Movies. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 305

Page 5

Movie Servo AF. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 316

Digital Zoom. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 319

Shutter Button Function for Movies. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 321

Movie Self-Timer. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 323

Movie Digital IS. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 324

Miniature Effect Movies. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 326

Other Menu Functions. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 329

General Movie Recording Precautions. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 335

Playback. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 338

Tab Menus: Playback. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 339

Image Playback. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 342

Index Display (Multiple-Image Display). . . . . . . . . . . . . . . . . . . . . . . . . . . . . 345

Magnified Image Display. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 348

Movie Playback. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 350

Editing a Movie’s First and Last Scenes. . . . . . . . . . . . . . . . . . . . . . . . . . . . 354

Frame Extraction from 4K Movies or 4K Time-Lapse Movies. . . . . . . . . . . . 357

Digest Movie Editing. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 360

Playback on a TV Set. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 363

Protecting Images. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 365

Erasing Images. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 369

Rotating Still Photos. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 376

Changing Movie Orientation Information. . . . . . . . . . . . . . . . . . . . . . . . . . . . 378

Rating Images. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 380

Print Ordering (DPOF). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 386

Photobook Set-up. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 391

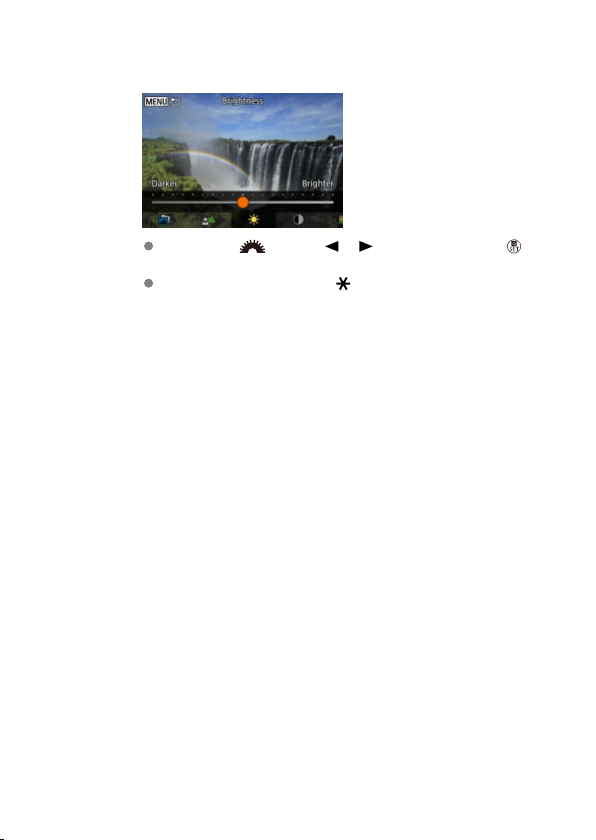

Creative Assist. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 396

Creative Filters. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 399

Red-Eye Correction. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 403

Resizing. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 405

Cropping. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 407

Slide Show. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 410

Setting Image Search Conditions. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 415

Resuming from Previous Playback. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 418

Page 6

Browsing Images with the Dial. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 419

Playback Information Display. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 421

AF Point Display. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 424

HDMI HDR Output. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 425

Wireless Features. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 426

Tab Menus: Wireless Settings. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 427

Wi-Fi/Bluetooth Connection

Connecting to a Smartphone. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 430

Connecting to a Computer via Wi-Fi. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 470

Connecting to a Printer via Wi-Fi. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 477

Sending Images to a Web Service. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 491

Wi-Fi Connection via Access Points. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 507

Connecting to a Wireless Remote Control. . . . . . . . . . . . . . . . . . . . . . . . . . . 515

Reconnecting via Wi-Fi. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 519

Registering Multiple Connection Settings. . . . . . . . . . . . . . . . . . . . . . . . . . . 521

Airplane Mode. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 522

Wi-Fi Settings. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 523

Bluetooth Settings. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 524

Nickname. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 525

GPS Settings. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 526

Changing or Deleting Connection Settings. . . . . . . . . . . . . . . . . . . . . . . . . . 530

Resetting Communication Settings. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 532

View Info Screen. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 533

Virtual Keyboard Operations. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 534

Responding to Error Messages. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 535

Wireless Communication Function Precautions. . . . . . . . . . . . . . . . . . . . . . . 545

Security. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 547

Checking Network Settings. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 548

Wireless Communication Status. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 549

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 428

Set-up. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 551

Tab Menus: Set-up. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 552

Folder Settings. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 555

Page 7

File Numbering. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 558

Card Formatting. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 563

Auto Rotate. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 566

Adding Orientation Information to Movies. . . . . . . . . . . . . . . . . . . . . . . . . . . 568

Date/Time/Zone. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 569

Language. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 574

Video System. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 575

Beeps. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 576

Power Saving. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 577

Eco Mode. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 578

Display Settings. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 579

Screen Brightness. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 581

Viewfinder Brightness. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 582

HDMI Resolution. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 583

Resetting the Camera. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 584

Custom Functions (C.Fn). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 585

Other Information. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 597

My Menu. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 598

Tab Menus: My Menu. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 599

Registering My Menu. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 600

Reference. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 606

Importing Images to a Computer. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 607

Troubleshooting Guide. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 610

Error Codes. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 625

ISO Speed in Movie Recording. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 626

Information Display. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 627

Specifications. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 641

Trademarks and Licensing. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 661

Page 8

Introduction

Before starting to shoot, be sure to read the following

To avoid shooting problems and accidents, first read the

Precautions. Also read this Advanced User Guide carefully to ensure that you use the

camera correctly.

Take some test shots, and understand about product liability

After shooting, play images back and check whether they have been properly recorded. If the camera or memory card is faulty and images cannot be recorded or transferred to a computer, Canon cannot be held liable for any loss or inconvenience caused.

Copyrights

Copyright laws in some countries prohibit the unauthorized use of images recorded with the camera (or music/images with music transferred to the memory card) for purposes other than personal enjoyment. Also be aware that certain public performances, exhibitions, etc. may prohibit photography even for private enjoyment.

Package Contents

•

• Supplemental Information

• Compatible Accessories

• Instruction Manuals

• Quick Start Guide

• About This Guide

• Compatible Cards

• Safety Instructions

• Handling Precautions

• Part Names

• Software/Apps

Safety Instructions and Handling

Page 9

Package Contents

Before use, make sure the following items are included in the package. If anything is missing, contact your dealer.

(with body cap (Camera Cover R-F-5))

The camera does not come with a memory card ( ), interface cable, or HDMI cable. If you purchased a Lens Kit, check that the lenses are included. Be careful not to lose any of these items. No software CD-ROM is included. Software ( ) can be downloaded from the Canon website.

Caution

When you need Lens Instruction Manuals, download them from the Canon website

( Lens Instruction Manuals (PDF files) are for lenses sold separately, and when a lens kit is purchased, some accessories included with the lens may not match those listed in the Lens Instruction Manual.

Camera

Battery Pack LP-E17

(with protective cover)

Battery Charger LC-E17

Strap

Page 10

Supplemental Information

Refer to the following website for information on lenses compatible with camera features, and for supplemental information about the camera.

https://cam.start.canon/H001/

Page 11

Compatible Accessories

Check the following website for details on compatible accessories.

https://cam.start.canon/H002/

Page 12

Instruction Manuals

Instruction Manual (included with the camera)

Provides basic camera instructions.

Advanced User Guide

Complete instructions are provided in this Advanced User Guide. For the latest Advanced User Guide, refer to the following website.

https://cam.start.canon/C015/

Lens/Software Instruction Manual

Download from the following website and refer to the supplemental information.

https://cam.start.canon/

Note

Select [ : Manual/software URL] to display the QR code on the camera screen.

Page 13

Quick Start Guide

Insert the battery (

Upon purchase, charge the battery to start using ( ).

Insert the card (

Insert the card with the label facing the front of the camera until it clicks into place.

Page 14

Attach the lens ( ).

Align the red mount index on the lens with the red mount index on the camera to attach the lens.

Set the power switch to <

> ( , ).

All the necessary camera settings is set automatically. If the [Date/Time/Zone] setting screen is displayed, see Date/Time/

Zone.

Focus on the subject (

A tracking frame [ ] for AF appears over any face detected. Press the shutter button halfway, and the camera will focus on the subject.

If < > blinks on the screen, manually raise the built-in flash.

>, then set the Mode dial to

Page 15

Take the picture ( ).

Press the shutter button completely to take the picture.

Review the picture.

The image just captured will be displayed for approx. 2 sec. on the screen.

To display the image again, press the < > button ( ).

Page 16

About This Guide

Icons in This Guide

Basic Assumptions for Operational Instructions and Sample Photos

Icons in This Guide

Indicates the dial.

Indicates the direction to press the cross keys (<

Indicates the lens control ring.

Indicates the Quick Control/Set button.

Indicates the duration (in * seconds) of the operation for the button you pressed, as

timed after you release the button.

In addition to the above, the icons and symbols used on the camera's buttons and displayed on the screen are also used in this guide when discussing relevant operations and functionality.

to the right of titles indicates functions only available in Creative Zone modes (<P>,

<Tv>, <Av>, or <M>).

Links to pages with related topics.

Warning to prevent shooting problems.

Supplemental information.

Tips or advice for better shooting.

Troubleshooting advice.

>).

Page 17

Basic Assumptions for Operational Instructions and Sample Photos

Before following any instructions, make sure the power switch is set to < > ( ). It is assumed that all the menu settings and Custom Functions are set to their defaults. Illustrations in this guide show the camera with the RF-S18-45mm F4.5-6.3 IS STM lens attached as an example. The sample photos displayed on the camera and used in this guide are for instructional purposes only. In references to using EF or EF-S lenses, it is assumed that a mount adapter is used.

Page 18

Compatible Cards

The following cards can be used with the camera regardless of capacity. If the card is new or was previously formatted (initialized) by another camera or computer, format the card with this camera (

SD/SDHC/SDXC memory cards

UHS-I cards supported.

Cards That Can Record Movies

When recording movies, use a card with ample performance (fast enough writing and reading speeds) for the movie recording size (

In this guide, “card” refers to SD memory cards, SDHC memory cards, and SDXC memory cards. *A card is not included. Please purchase it separately.

Page 19

Safety Instructions

Be sure to read these instructions in order to operate the product safely. Follow these instructions to prevent injury or harm to the operator of the product or others.

WARNING:

Keep the product out of the reach of young children. Keep batteries out of the reach of children. A strap wrapped around a person's neck may result in strangulation. The parts or provided items of cameras or accessories are dangerous if swallowed. If swallowed, seek immediate medical assistance. The battery is dangerous if swallowed. If swallowed, seek immediate medical assistance.

PRODUCT CONTAINS BUTTON/COIN CELL BATTERY Button/coin cell batteries are hazardous and must be kept out of reach of children at all times, whether new or used. These batteries can cause severe or fatal injuries in 2 hours or less if swallowed or placed inside any part of the body. If it is suspected a button/coin cell battery has been swallowed or placed inside any part of the body, seek medical attention immediately.

Use only power sources specified in this instruction manual for use with the product.

Do not disassemble or modify the product.

Do not expose the product to strong shocks or vibration.

Do not touch any exposed internal parts.

Stop using the product in any case of unusual circumstances such as the presence of

smoke or a strange smell.

Do not use organic solvents such as alcohol, benzine or paint thinner to clean the

product.

Do not get the product wet. Do not insert foreign objects or liquids into the product.

Do not use the product where flammable gases may be present. This may cause electric shock, explosion or fire.

Do not leave a lens or a camera/camcorder with a lens attached, exposed without the

lens cap attached. The lens may concentrate the light and cause fire.

Do not touch the product connected to a power outlet during lightning storms. This may cause electric shock.

Denotes the risk of serious injury or death.

Page 20

Observe the following instructions when using commercially available batteries or

provided battery packs.

• Use batteries/battery packs only with their specified product.

• Do not heat batteries/battery packs or expose them to fire.

• Do not charge batteries/battery packs using non-authorized battery chargers.

• Do not expose the terminals to dirt or let them come into contact with metallic pins or other metal objects.

• Do not use leaking batteries/battery packs.

• When disposing of batteries/battery packs, insulate the terminals with tape or other means.

This may cause electric shock, explosion or fire. If a battery/battery pack leaks and the material contacts your skin or clothing, flush the exposed area thoroughly with running water. In case of eye contact, flush thoroughly with copious amounts of clean running water and seek immediate medical assistance.

Observe the following instructions when using a battery charger or AC adapter.

• Periodically remove any dust buildup from the power plug and power outlet using a dry cloth.

• Do not plug in or unplug the product with wet hands.

• Do not use the product if the power plug is not fully inserted into the power outlet.

• Do not expose the power plug and terminals to dirt or let them come into contact with metallic pins or other metal objects.

• Do not touch the battery charger or AC adapter connected to a power outlet during lightning storms.

Do not place heavy objects on the power cord. Do not damage, break or modify the power cord. Do not wrap the product in cloth or other materials when in use or shortly after use when the product is still warm in temperature. Do not unplug the product by pulling the power cord. Do not leave the product connected to a power source for long periods of time. Do not charge batteries/battery packs at temperatures outside the range of 5 - 40 °C (41

- 104 °F).

This may cause electric shock, explosion or fire.

Do not allow the product to maintain contact with the same area of skin for extended

periods of time during use. This may result in low-temperature contact burns, including skin redness and blistering, even if the product does not feel hot. The use of a tripod or similar equipment is recommended when using the product in hot places and for people with circulation problems or less sensitive skin.

Follow any indications to turn off the product in places where its use is forbidden. Not doing so may cause other equipment to malfunction due to the effect of electromagnetic waves and even result in accidents.

Do not leave batteries near pets. Pets biting a battery could cause leakage, overheating, or explosion, resulting in product damage or fire.

Page 21

CAUTION:

Do not fire the flash near the eyes. It may hurt the eyes.

Do not look at the screen or through the viewfinder for prolonged periods of time. This may induce symptoms similar to motion sickness. In such a case, stop using the product immediately and rest for a while before resuming use.

Flash emits high temperatures when fired. Keep fingers, any other part of your body,

and objects away from the flash unit while taking pictures. This may cause burns or malfunction of the flash.

Do not leave the product in places exposed to extremely high or low temperatures. The product may become extremely hot/cold and cause burns or injury when touched.

Strap is intended for use on the body only. Hanging the strap with any product attached

on a hook or other object may damage the product. Also, do not shake the product or

expose the product to strong impacts.

Do not apply strong pressure on the lens or allow an object to hit it. This may cause injury or damage to the product.

Only mount the product on a tripod that is sufficiently sturdy.

Do not carry the product when it is mounted on a tripod. This may cause injury or may result in an accident.

Do not touch any parts inside the product. This may cause injury.

If any abnormal skin reaction or irritation occurs during or following the use of this

product, refrain from further use and get medical advice/attention.

Follow the cautions below. Otherwise physical injury or property damage may result.

Page 22

Handling Precautions

Camera care

This camera is a precision instrument. Do not drop it or subject it to physical shock.

The camera is not waterproof and cannot be used underwater. If the camera gets wet,

contact a Canon Service Center immediately. Wipe off any water droplets with a dry and

clean cloth. If the camera has been exposed to salty air, wipe it with a clean, well-wrung

wet cloth.

Never leave the camera near anything having a strong magnetic field such as a magnet

or electric motor. Also, avoid using or leaving the camera near anything emitting strong

radio waves, such as a large antenna. Strong magnetic fields can cause camera

malfunction or destroy image data.

Do not leave the camera in excessive heat, such as in a car in direct sunlight. High

temperatures can cause the camera to malfunction.

The camera contains precision electronic circuitry. Never attempt to disassemble the

camera yourself.

Do not block shutter curtain operation with your finger or other objects. Doing so may

cause a malfunction.

Only use a commercially available blower to blow away dust on the lens, viewfinder, or

other parts. Do not use cleaners that contain organic solvents to clean the camera body

or lens. For stubborn dirt, take the camera to the nearest Canon Service Center.

Do not touch the camera's electrical contacts with your fingers. This is to prevent the

contacts from corroding. Corroded contacts can cause camera malfunction.

If the camera is suddenly brought in from the cold into a warm room, condensation may

form on the camera and internal parts. To prevent condensation, first put the camera in

a sealed plastic bag and let it adjust to the warmer temperature before taking it out of

the bag.

If condensation forms on the camera, to avoid damage, do not use the camera or

remove the lens, card, or battery. Turn the camera off and wait until the moisture has

fully evaporated before resuming use. Even after the camera is completely dry, if it is still

internally cold, do not remove the lens, card, or battery until the camera has adjusted to

the ambient temperature.

If the camera will not be used for an extended period, remove the battery and store the

camera in a cool, dry, well-ventilated location. Even while the camera is in storage,

press the shutter button a few times once in a while to check that the camera is still

working.

Avoid storing the camera where there are chemicals that result in rust and corrosion

such as in a chemical lab.

If the camera has not been used for an extended period, test all its functions before

using it. If you have not used the camera for some time or if there is an important shoot

such as a foreign trip coming up, have the camera checked by your nearest Canon

Service Center or check the camera yourself and make sure it is working properly.

The camera may become hot after repeated continuous shooting or still photo/movie

shooting over an extended period. This is not a malfunction.

If there is a bright light source inside or outside the image area, ghosting may occur.

When shooting with backlighting, keep the sun sufficiently away from the angle of view.

Always keep intense light sources such as the sun, lasers, and other intense artificial

light sources out of the image area and not near it. Concentrated intense light may

cause smoke or damage the image sensor or other internal components.

Page 23

Attach the lens cap to prevent direct sunlight and other light from entering the lens when

you are not shooting.

Page 24

Screen and viewfinder

The following does not affect images captured by the camera.

Although the screen and viewfinder are manufactured with very high precision

technology with over 99.99% effective pixels, 0.01% or fewer of the pixels may be dead,

and there may also be spots of black, red, or other colors. This is not a malfunction.

If the screen is left on for a prolonged period, screen burn-in may occur where you see

remnants of what was displayed. However, this is only temporary and will disappear

when the camera is left unused for a few days.

The screen display may seem slightly slow in low temperatures or may look black in

high temperatures, but it will return to normal at room temperature.

Cards

To protect the card and its recorded data, note the following:

Do not drop, bend, or wet the card. Do not subject it to excessive force, physical shock,

or vibration.

Do not touch the card's electronic contacts with your fingers or anything metallic.

Do not affix any stickers, etc. on the card.

Do not store or use the card near anything that has a strong magnetic field, such as a

television, speakers, or magnets. Also avoid places prone to having static electricity.

Do not leave the card in direct sunlight or near a heat source.

Store the card in a case.

Do not store the card in hot, dusty, or humid locations.

Cards may become hot after long sessions of repeated continuous shooting or still photo

shooting/movie recording. This is not a malfunction.

Lens

After detaching the lens from the camera, put down the lens with the rear end up and

attach the rear lens cap to avoid scratching the lens surface and electrical contacts

(1).

Page 25

Smudges on the image sensor

You can use a commercially available blower to remove dust or debris on the image

sensor that appears in images.

Besides dust entering the camera from outside, in rare cases, lubricant from the

camera's internal parts may adhere to the front of the sensor.

If smudges are visible on images, have the sensor cleaned by a nearest Canon Service

Center.

Page 26

Part Names

(1) (2)

(3)

(7)

(6)

(4)

(5)

(9)

(21)

(26)

(17) (18)

(16)

(15)

(14)

(13)

(12)

(11)

(10)

(8)

(19)

(20)

(24)

(25)

(23)

(22)

Attaching the Strap

Page 27

(1) Mode dial

(2) <

> Dial

(3) Shutter button

(4) Movie shooting button

(5) RF lens mount index

(6) Image sensor

(7) Grip

(8) Contacts

(9) Lens mount

(10) Built-in flash

(11) Microphone (monaural)

(12) Speaker

(13) <

> Focal plane mark

(14) Strap mount

(15) AF-assist beam/red-eye reduction/self-timer/remote control lamp

(16) Terminal cover

(17) Lens release button

(18) Lens lock pin

(19) <

> External microphone IN terminal

(20) Remote control terminal

(21) Dioptric adjustment slider

(22) Tripod socket

(23) Card/battery compartment cover

(24) Card/battery compartment cover lock

(25) Serial number (body number)

(26) Body cap

Page 28

(1)

(4)

(6)

(13)

(12)

(11)

(10)

(9)

(19)

(17) (18)

(16)

(5)

(22)

(21)

(20)

(7) (8)

(2)

(3)

(14)

(15)

Page 29

(1) Hot shoe

(2) Eyecup

(3) Viewfinder eyepiece

(4) Screen

(5) <

/ > Power switch

(6) Viewfinder sensor

(7) Terminal cover

(8) Access lamp

(9) <

(10) <

(11) <

(12) <

(13) <

(14) <

(15) <

(16) <

(17) <

(18) <

(19) <

(20) <

(21) <

> Info button

> Quick Control/Set button

/ > Left/ISO speed setting button

/ / > Down/self-timer/drive mode selection button

> Playback button

/ > AE lock/FE lock/magnify button

/ > AF point selection/index/reduce button

/ / > Up/exposure compensation/erase button

/ > Right/Flash button

> Cross keys

> Menu button

> Digital terminal

> HDMI micro OUT terminal

(22) DC cord hole

Page 30

Mode dial

Features on the Mode dial are grouped into Basic Zone, Creative Zone, and movie recording modes.

(1) Basic Zone

All you do is press the shutter button. The camera sets everything to suit the subject or scene for shooting.

: Scene Intelligent Auto ( )

: Hybrid Auto ( )

: Special scene ( )

Portrait Food

Landscape Night Portrait

Sports Handheld Night Scene

Panning

Close-up Silent Mode

: Creative filters ( )

Grainy B/W Miniature effect

Soft focus

Fish-eye effect

Water painting effect

Toy camera effect

HDR Backlight Control

HDR art standard

HDR art vivid

HDR art bold

HDR art embossed

Page 31

(2) Creative Zone

These modes give you more control for shooting various subjects as desired.

P Program AE

Tv Shutter-priority AE

Av Aperture-priority AE

M Manual exposure

(3) Movie recording

For a variety of movie recording (

Page 32

Battery Charger LC-E17

Charger for Battery Pack LP-E17 (

(1) Power plug

(2) Charge lamp

(3) Full-charge lamp

(4) Battery slots

Page 33

Attaching the Strap

Pass the end of the strap through the strap mount from the bottom, then pass it through the strap buckle as shown. Pull the strap to take up any slack and make sure the strap will not loosen from the buckle.

Page 34

Software/Apps

Software/App Overview

Installing Computer Software

Installing Smartphone Apps

Software Instruction Manuals

Software/App Overview

This section summarizes software used with EOS cameras. Note that installing the software requires an internet connection. The software cannot be installed in environments without an internet connection.

Computer software

EOS Utility

Enables you to transfer captured images from the camera to a connected computer, set

various camera settings from the computer, and shoot remotely from the computer.

Digital Photo Professional

Software recommended for users who shoot RAW images. Enables image viewing,

editing, printing, and more.

Picture Style Editor

Enables you to edit existing Picture Styles or create and save original Picture Style files.

This software is for users who are familiar with image processing.

Smartphone apps

Camera Connect

Enables you to transfer captured images from the camera to a smartphone over a wired

or wireless connection, set various camera settings from the smartphone, and shoot

remotely from the smartphone.

Digital Photo Professional Express

App for RAW image processing and image editing on a smartphone or tablet. Requires

a paid subscription.

Page 35

Installing Computer Software

Always install the latest version of the software. In this case, previous versions are overwritten.

Caution

Do not install software while the camera is connected to the computer. The software will not be installed correctly. Installation is not possible without an internet connection. Older versions of the software do not support RAW image processing or correct display for images from this camera.

Download the software.

Connect to the internet from a computer and access the following Canon website.

https://cam.start.canon/

Depending on the software, you may need to enter the camera's serial number. The serial number is on the bottom of the camera.

Extract the installer on the computer.

For Windows

Click the displayed installer file to start the installer.

For macOS

Double-click the dmg file to open the installation window.

Double-click the icon in this window to start the installer.

Follow the on-screen instructions to install the software.

Page 36

Installing Smartphone Apps

Always install the latest version.

Apps can be installed from Google Play or App Store.

You can also access Google Play and App Store from the following Canon website.

https://cam.start.canon/

Page 37

Software Instruction Manuals

Check the following website for software instruction manuals.

https://cam.start.canon/

Page 38

Preparation and Basic Operations

This chapter describes preparatory steps before you start shooting and the basic camera operations.

•

Charging the Battery

• Inserting/Removing the Battery and Card

• Turning on the Power

• Attaching and Detaching RF/RF-S Lenses

• Attaching and Detaching EF/EF-S Lenses

• Using the Viewfinder

• Basic Operations

• Setting the Screen Display Level

• Menu Operations and Settings

• Quick Control

Page 39

Charging the Battery

Detach the protective cover provided with the battery.

Fully insert the battery into the charger.

Do the opposite to remove the battery.

Page 40

Charge the battery.

Flip out the charger prongs as shown and plug the charger into a power outlet.

Charging starts automatically and the charge lamp (1) lights up in orange. When the battery is fully charged, the full-charge lamp (2) will light up in green.

Charging a depleted battery takes approx. 2 hr. at room temperature (23°C/73°F).

The time required to charge the battery will vary greatly depending on the ambient temperature and the battery's remaining capacity. For safety, charging in low temperatures (5–10°C/41–50°F) takes longer (up to approx. 4 hr.).

Upon purchase, the battery is not fully charged.

Charge the battery before use.

Charge the battery on the day before or on the day it is to be used.

Charged batteries gradually lose their charge, even when they are not used.

After charging the battery, remove it and disconnect the charger from the power

outlet.

When not using the camera, remove the battery.

If the battery is left in the camera for a prolonged period, a small amount of power

current will keep being released, resulting in excess discharge and shorter battery life.

Store the battery with the protective cover attached. Storing the battery when it is fully

charged may lower the battery performance.

Page 41

The battery charger can also be used in foreign countries.

The battery charger is compatible with a 100 V AC to 240 V AC 50/60 Hz power source.

If necessary, attach a commercially available plug adapter for the respective country or

region. Do not attach any portable voltage transformer to the battery charger. Doing so

may damage the battery charger.

If the battery becomes exhausted quickly even after having been fully charged,

the battery has reached the end of its service life.

Purchase a new battery.

Caution

After disconnecting the charger's power plug, do not touch the prongs for approx. 5 sec. The provided charger cannot charge any battery other than Battery Pack LP-E17.

Page 42

Inserting/Removing the Battery and Card

Insertion

Formatting the Card

Removal

Insert a fully charged Battery Pack LP-E17 and card in the camera. The captured images are recorded onto the card.

Insertion

Slide the card/battery compartment cover lock and open the cover.

Insert the battery.

Insert the end with the electrical contacts.

Insert the battery until it locks in place.

Page 43

Insert the card.

Insert the card with the label facing the front of the camera until it clicks into place.

Caution

Make sure the card's write-protect switch (1) is set upward to enable writing and erasing.

Close the cover.

Press the cover closed, then slide the card/battery compartment cover lock to lock it.

Caution

You cannot use batteries other than the Battery Pack LP-E17.

Page 44

Formatting the Card

If the card is new or was previously formatted (initialized) by another camera or computer, format the card with this camera (

Page 45

Removal

Slide the card/battery compartment cover lock and open the cover.

Set the power switch to < >.

Make sure the access lamp (1) is off before opening the card/ battery compartment cover.

If [Saving...] is displayed on the screen, close the cover.

Removing the battery.

Press the battery lock lever as shown by the arrow and remove the battery.

To prevent short-circuits, always attach the included protective cover

) to the battery.

(

Page 46

Remove the card.

Gently push in the card, then let it go to eject.

Pull the card straight out, then close the cover.

Caution Do not remove cards immediately after a red [

shooting. Cards may be hot, due to high internal camera temperature. Set the power

switch to < cards immediately after shooting may cause you to drop and damage them. Be careful when removing cards.

Note

The number of shots available varies depending on remaining card capacity and settings such as image quality and ISO speed.

> and stop shooting for a while before removing cards. Removing hot

] icon is displayed as you are

Page 47

Caution

When the access lamp is lit or blinking, it indicates that images are being written to, read from, or erased from the card, or data is being transferred. Do not open the card/battery compartment cover. To avoid corrupting image data or damaging cards or the camera, never do any of the following while the access lamp is lit or blinking.

• Removing the card.

• Removing the battery.

• Shaking or striking the camera.

• Unplugging or plugging in a power cord (when using optional household power outlet accessories).

If the card already contains recorded images, the image number may not start from 0001 (

). If a card-related error message is displayed on the screen, remove and reinsert the card. If the error persists, use a different card. If you can transfer images on the card to a computer, transfer all the images and then format the card with the camera ( Do not touch the card's contacts with your fingers or metal objects. Do not expose the contacts to dust or water. If smudges adhere to the contacts, contact failure may result. Multimedia cards (MMC) cannot be used. (Card error will be displayed.)

). The card may then return to normal.

Page 48

Turning on the Power

Setting the Date, Time, and Time Zone

Setting the Display Language

Battery Level Indicator

< >

The camera turns on. You can now shoot still photos and record movies.

< >

The camera is turned off and does not function. Set the power switch to this position when not using the camera.

Note

[Saving...] is displayed if you set the power switch to < > during image recording to the card, and the camera will turn off after recording is finished.

Setting the Date, Time, and Time Zone

If the [Date/Time/Zone] setting screen is displayed after you turn on the camera, complete the

Date/Time/Zone settings.

Page 49

Setting the Display Language

To change the interface language, see

Language.

Page 50

Battery Level Indicator

When the power switch is set to <

Battery level is sufficient.

Battery level is low, but the camera can still be used.

Battery will be exhausted soon (blinks).

Charge the battery.

>, the battery level will be indicated.

Note

Doing any of the following will exhaust the battery faster:

• Pressing the shutter button halfway for a prolonged period.

• Activating the AF frequently without taking a picture.

• Using Image Stabilizer.

• Using the Wi-Fi function or Bluetooth function.

• Using the screen frequently.

The number of available shots may decrease depending on the actual shooting conditions. Lens operations are powered by the camera's battery. Certain lenses may exhaust the battery faster than others. In low ambient temperatures, shooting may not be possible even with a sufficient battery level.

Page 51

Attaching and Detaching RF/RF-S Lenses

Attaching a Lens

Detaching a Lens

Caution

Do not look at the sun directly through any lens. Doing so may cause loss of vision. When attaching or detaching a lens, set the camera's power switch to < >.

If the front part (focusing ring) of the lens rotates during autofocusing, do not touch the rotating part.

Tips for avoiding smudges and dust

When changing lenses, do it quickly in a place with minimal dust. When storing the camera without a lens attached, be sure to attach the body cap to the camera. Remove smudges and dust on the body cap before attaching it.

Page 52

Attaching a Lens

Remove the caps.

Remove the rear lens cap (1) and body cap (2) by turning them as shown by the arrows.

Attach the lens.

Align the red mount index on the lens with the red mount index on the camera and turn the lens as shown by the arrow until it clicks in place.

Page 53

Set the focus mode to <

< > stands for autofocus.

< > stands for manual focus. Autofocus is disabled.

For RF lenses without a focus mode switch

Set [

: Focus mode] to [AF].

Note

Not available in < > or < > mode.

Page 54

For RF lenses with a focus mode switch

Set the lens focus mode switch to < lens takes precedence, the camera setting has no effect.

Remove the front lens cap.

>. Because the setting on the

Page 55

Detaching a Lens

While pressing the lens release button, turn the lens as shown by the arrow.

Turn the lens until it stops, then detach it.

Attach the rear lens cap to the lens you removed.

Page 56

Attaching and Detaching EF/EF-S Lenses

Attaching a Lens

Detaching a Lens

All EF and EF-S lenses can be used by attaching an optional Mount Adapter EF-EOS R

The camera cannot be used with EF-M lenses.

Attaching a Lens

Remove the caps.

Remove the rear lens cap (1) and body cap (2) by turning them as shown by the arrows.

Page 57

Attach the lens to the adapter.

Align the red or white mount index on the lens with the corresponding mount index on the adapter and turn the lens as shown by the arrow until it clicks into place.

(3) Red index

(4) White index

Attach the adapter to the camera.

Align the red mount indexes (5) on the adapter and camera and turn the lens as shown by the arrow until it clicks into place.

Page 58

Set the lens's focus mode switch to <

< > stands for autofocus.

< > stands for manual focus. Autofocus is disabled.

Remove the front lens cap.

Page 59

Detaching a Lens

While pressing the lens release button, turn the adapter as shown by

the arrow.

Turn the lens until it stops, then detach it.

Detach the lens from the adapter.

Hold down the lens release lever on the adapter and turn the lens counterclockwise.

Turn the lens until it stops, then detach it.

Attach the rear lens cap to the lens you removed.

Caution

For lens precautions, see Attaching and Detaching RF/RF-S Lenses.

Page 60

Using the Viewfinder

Dioptric Adjustment

Look through the viewfinder to activate it. You can also restrict display to either the screen or viewfinder (

Dioptric Adjustment

Slide the dioptric adjustment slider.

Slide the slider left or right to make the viewfinder display look sharp.

Caution

The viewfinder and screen cannot be activated at the same time. At some aspect ratios, black bars are displayed on the top and bottom or left and right edges of the screen. These areas are not recorded.

Page 61

Basic Operations

Holding the Camera

Shutter Button

< > Dial

< > Control Ring

< > Info Button

Page 62

Holding the Camera

To obtain sharp images, hold the camera still to minimize camera shake.

(1) Horizontal shooting

(2) Vertical shooting

1. With your right hand, hold the camera firmly by the camera grip.

2. With your left hand, support the lens from below.

3. Rest your right index finger lightly on the shutter button.

4. Rest your arms and elbows lightly against the front of your body.

5. To maintain a stable stance, place one foot slightly ahead of the other.

6. Hold the camera near your face and look through the viewfinder.

Page 63

Shutter Button

The shutter button has two steps. You can press the shutter button halfway. Then you can further press the shutter button completely.

Pressing halfway

This activates autofocusing and the automatic exposure system that sets the shutter speed and aperture value. The exposure value (shutter speed and aperture value) is displayed on the screen or in the

viewfinder for 8 sec. (metering timer/

Pressing completely

This releases the shutter and takes the picture.

Preventing camera shake

Hand-held camera movement during the moment of exposure is called camera shake. It can cause blurred pictures. To prevent camera shake, note the following:

• Hold the camera still, as shown in

• Press the shutter button halfway to autofocus, then slowly press the shutter button completely.

Holding the Camera.

Page 64

Note

The camera will still pause before taking a picture if you press the shutter button completely without pressing it halfway first, or if you press the shutter button halfway and immediately press it completely. Even during menu display or image playback, you can return to shooting standby by pressing the shutter button halfway.

Page 65

< > Dial

Watch the screen as you turn the < > dial.

Use this dial to set the shutter speed, aperture value, etc.

Page 66

< > Control Ring

Exposure compensation can be set by turning an RF lens control ring while pressing the shutter button halfway in <P>, <Tv>, <Av>, or <M> mode.

Caution

[ : Focus/control ring] must be set when using lenses that have a combination focus/control ring but have no switch to switch between these features ( The control ring of Control Ring Mount Adapter EF-EOS R has no effect.

Page 67

< > Info Button

Each press of the < > button changes the information shown. The following sample screens are for still photos.

* In Basic Zone modes, the screen by (5) is not displayed.

Page 68

Setting the Screen Display Level

Menu Display

Shooting Mode Guide

Feature Guide

You can set how information is displayed on the screen according to your preference. Change the settings as necessary.

Display the main tabs.

Press the < > button to display the menu screen.

Page 69

Select the [

] tab.

Turn the < > dial or press the < >< > keys to select the [ ] tab, then press <

Menu Display

You can choose from [Standard] or [Guided] as the type of menu display. When set to [Guided], the camera displays main tab descriptions after you press the <

When set to [Standard], the camera only displays the menu screen after you press the <

> button. The default setting is [Guided].

Select [

: Menu display].

> button.

Page 70

Select the display type.

(1) Main tabs

Note

The [ ] tab (My Menu tab) is not displayed when [Guided] is set. For access to My Menu (

), change the menu display level to [Standard].

Page 71

Shooting Mode Guide

A brief description of the shooting mode can be displayed when you switch shooting modes. The default setting is [Enable].

Select [

Select [Enable].

Turn the Mode dial.

: Mode guide].

A description of the selected shooting mode will appear.

Page 72

Press the <

The rest of the description will appear.

To clear the mode guide, press < >.

In < >/< > mode, you can display the shooting mode selection screen.

> key.

Page 73

Feature Guide

A brief description of functions and items can be displayed when you use Quick Control or menu settings. The default setting is [Enable].

Select [

Select [Enable].

: Feature guide].

Page 74

Sample screens

Quick Control screen

Menu Screen

(1) Feature guide

Note

To clear a description, continue performing operations.

Page 75

Menu Operations and Settings

Menu Screen

Menu Setting Procedure

Dimmed Menu Items

(1) < > button

(2) <

(3) Screen

(4) <

(5) <

> button

> Dial

Page 76

Menu Screen

The menu tabs and items displayed vary depending on the shooting mode.

Basic Zone

Movie recording

Creative Zone

(1) Secondary tabs

(2) Menu settings

(3) Menu items

Page 77

Menu Setting Procedure

When set to [

: Menu display: Guided]

Display the main tabs.

When you press the < > button, the main tabs (1) and a description of the selected tab will appear.

Select a main tab.

Turn the < > dial to switch between main tabs.

You can also switch main tabs by pressing the < > button.

Display the menu screen.

Press the < > button to display the menu screen.

To return to the main tab screen, press the < > button.

Page 78

Select a secondary tab.

Use the < >< > keys or turn the < > dial to select a secondary tab.

Select an item.

Use the < >< > keys to select an item, then press the < > button.

Select an option.

Use the < >< > or < >< > keys to select an option. (Some options are selected with the <

>< > keys.)

The current setting is indicated in blue.

>< > keys and others with the

Page 79

Set an option.

Press the < > button to set it.

If you change the setting from the default, it will be indicated in blue (available only for the menu items under the [

Exit the setting.

Press the < > button twice to exit the menu and return to shooting standby.

Note

The description of menu functions hereafter assumes that the menu screen is displayed.

To cancel the operation, press the < > button.

] tab).

Page 80

When set to [ : Menu display: Standard]

Display the menu screen.

Press the < > button to display the menu screen.

Select a tab.

Press the < > button to switch between main tabs (1).

Use the < >< > keys or turn the < > dial to select a secondary tab.

After this, operations are the same as when set to [ : Menu display: Guided]. See

step 5.

To exit the setting, press the < > button once.

When set to [ : Menu display: Guided], starting with

Page 81

Dimmed Menu Items

Example: When set to [Highlight tone priority]

Dimmed menu items cannot be set. The menu item is dimmed if another function setting is overriding it.

You can see the overriding function by selecting the dimmed menu item and pressing the <

> button.

If you cancel the overriding function's setting, the dimmed menu item will become settable.

Caution

You may not be able to see the overriding function for certain dimmed menu items.

Note

You can reset menu functions to default settings in [Basic settings], in [ : Reset camera] (

Page 82

Quick Control

During Shooting

During Playback

You can directly select and set the settings displayed on the screen.

During Shooting

Press the <

Select an item.

Press the < >< > keys for selection.

When the screen above is displayed, press the <

> button ( ).

>< >< >< > keys for selection.

Page 83

Select an option.

Turn the < > dial or press the < >< > keys to adjust the setting. Some items are set by pressing a button after this.

Press the < > button to return to the original screen.

Page 84

During Playback

Press the <

Select an item.

Press the < >< > keys for selection.

Select an option.

Turn the < > dial or press the < >< > keys to adjust the setting. Some items are set by pressing a button after this.

To configure items for which a [ ] icon appears at the bottom of the screen, press the <

To cancel this operation, press the < > button.

Press the < > button to return to the original screen.

Caution

For image rotation, set [ : Auto rotate] to [On ] ( ). When [ : Auto rotate] is set to [On

option but not rotated on the camera.

] or [Off], images will be tagged with your selected [ Rotate stills]

> button.

Note

For images from other cameras, available options may be restricted.

Page 85

Basic Zone

This chapter describes how to use the Basic Zone modes on the Mode dial for best results. With Basic Zone modes, all you do is point and shoot, and the camera sets everything automatically.

• Scene Intelligent Auto

• Hybrid Auto

• Special Scene Mode

• Portrait Mode

• Landscape Mode

• Sports Mode

• Panning Mode

• Close-up Mode

• Food Mode

• Night Portrait Mode

• Handheld Night Scene Mode

• HDR Backlight Control Mode

• Silent Shutter Mode

• Creative Filters Mode

Page 86

Scene Intelligent Auto

Shooting Moving Subjects

Scene Icons

Shooting with Effects Applied (Creative Assist)

< > is a fully automatic mode. The camera analyzes the scene and sets the optimum settings automatically. It can also adjust focus automatically on either the still or

moving subject by detecting the motion of the subject (

Set the Mode dial to <

Press the <

Read the message and select [OK].

> button.

Page 87

Aim the camera at what you will shoot (the subject).

Essentially, the camera focuses on the closest subject. AF points (1) are displayed over any faces or eyes detected.

When a frame (AF point) appears on the screen, aim it over the subject.

Focus on the subject.

Press the shutter button halfway to focus. If

> blinks, manually raise the built-in flash.

Under low light, the AF-assist beam ( ) is automatically activated if needed.

Once the subject is in focus, that AF point turns green and the camera beeps (One-Shot AF).

An AF point in focus on a moving subject turns blue and tracks subject movement (Servo AF).

Page 88

Take the picture.

Press the shutter button completely to take the picture.

The image just captured will be displayed for approx. 2 sec. on the screen.

To retract the built-in flash, push it down with your fingers.

Caution

Subject movement (whether subjects are still or moving) may not be detected correctly for some subject or shooting conditions.

Note

AF operation (One-Shot AF or Servo AF) is set automatically when you press the shutter button halfway. Even when automatically set to One-Shot AF, the camera will switch to Servo AF if subject motion is detected while you are pressing the shutter button halfway.

The < > mode makes the colors look more impressive in nature, outdoor, and sunset scenes. If you do not obtain the desired color tones, change the mode to a

Creative Zone mode (

again (

) and select a Picture Style other than [ ], then shoot

Minimizing blurred photos

Be careful about camera shake in handheld shots. To avoid camera shake, consider using a tripod. Use a sturdy tripod that can bear the weight of the shooting equipment. Attach the camera securely to the tripod. Consider using a remote switch (sold separately, ) or wireless remote control (sold separately,

Page 89

FAQ

Focusing is not possible (indicated by an orange AF point).

Aim the AF point over an area with good contrast, then press the shutter button halfway (

). If you are too close to the subject, move away and shoot again.

Multiple AF points are displayed simultaneously.

Focus has been achieved at all those points.

The shutter speed display is blinking.

Since it is too dark, taking the picture may result in a blurred subject due to camera shake. Using a tripod, the built-in flash, or an external flash (

Pictures are too dark.

Raise the built-in flash in advance to enable automatic flash firing, in case subjects in daytime shots are backlit, or when shooting under low light.

Pictures taken with flash are too bright.

Pictures may be bright (overexposed) if you shoot subjects at close range in flash photography. Move away from the subject and shoot again.

The bottom part of pictures taken with flash is unnaturally dark.

Shooting subjects that are too close may make the shadow of the lens visible in your shots. Move away from the subject and shoot again. If you are using a lens hood, try removing it before shooting.

Note

Note the following if you are not using the built-in flash.

Under low light, when camera shake tends to occur, hold the camera steady or use a tripod. When using a zoom lens, you can reduce the blur caused by camera shake by setting the lens to the wide-angle end. When shooting portraits under low light, tell subjects to stay still until you have finished shooting. Any movement as you shoot will make the person look blurry in the picture.

) is recommended.

Page 90

Shooting Moving Subjects

Pressing the shutter button halfway tracks moving subjects to keep them in focus. Keep the subject on the screen as you hold down the shutter button halfway, and at the decisive moment, press the shutter button completely.

Page 91

Scene Icons

The camera detects the scene type and sets everything automatically to suit the scene. In still photo shooting, an icon representing the detected scene appears in the upper left of the screen (

Page 92

Shooting with Effects Applied (Creative Assist)

Press the <

Read the message and select [OK].

Select an effect.

> button.

Use the < > dial or < >< > keys to select an effect, then press the <

> button.

Page 93

Select the effect level and other details.

Set with the < > dial or < >< > keys, then press the < > button.

To reset the setting, press the < > button, then select [OK].

Page 94

Creative Assist effects

[ ] Preset

Select one of the preset effects. Note that [Saturation], [Color tone 1], and [Color tone 2] are not available with [B&W].

[ ] Background blur

Adjust background blur. Choose higher values to make backgrounds sharper. To blur the background, choose lower values. [Auto] adjusts background blurring to match the brightness. Depending on lens brightness (f/number), some positions may not be available.

[ ] Brightness

Adjust image brightness.

[ ] Contrast

Adjust contrast.

[ ] Saturation

Adjust the vividness of colors.

[ ] Color tone 1

Adjust amber/blue color tone.

[ ] Color tone 2

Adjust green/magenta color tone.

[ ] Monochrome

Set the toning effect for monochrome shooting.

Note

[Background blur] is not available in flash photography. These settings are reset when you switch shooting modes or set the power switch

to <

>. To save the settings, set [ : Retain Creative Assist data] to

[Enable].

Saving effects

To save the current setting to the camera, press the < Assist] setting screen, then select [OK]. Up to three presets can be saved as [USER*]. After three have been saved, an existing [USER*] preset must be overwritten to save a new one.

> button on the [Creative

Page 95

Hybrid Auto

Type of Digest Movie

With < > mode, you can make a short movie of the day just by shooting still photos. The camera records 2–4-second clips of scenes before each shot, which are later combined in a digest movie (

Set the Mode dial to <

Press the <

Read the message and select [OK].

Compose your shots and shoot.

> button.

Page 96

Note

For more impressive digest movies, keep the camera aimed at subjects for about 4 sec. before shooting still photos.

Battery life is shorter in this mode than in < > mode, because digest movies are recorded for each shot. A digest movie may not be recorded if you shoot a still photo immediately after

turning the camera on, selecting < ways. Any sounds and vibrations from your camera or lens operations will be recorded in digest movies.

Digest movie image quality is for NTSC or for PAL. This varies depending on the video system setting. The camera does not beep in response to operations such as pressing the shutter button halfway or using the self-timer. Digest movies are saved as separate movie files in the following cases even if they

were recorded on the same day in <

• Digest movie recording time reaches approx. 29 min. and 59 sec. (and may also be saved separately if size exceeds approx. 4 GB).

> mode, or operating the camera in other

> mode.

• Digest movie is protected.

• Daylight saving time, video system, or time zone settings are changed.

Recorded shutter sounds cannot be modified or erased. When using EOS Utility to shoot, set [Image saving location] in EOS Utility to [Computer and camera memory card] or [Camera memory card only].

Page 97

Type of Digest Movie

Both still photos and clips are captured when you shoot in < specify whether to include the still photos in the resulting digest movie.

Set the Mode dial to <

Select [

: Digest type].

> mode, but you can

Page 98

Select an option.

Include stills

Digest movies include still photos.

No stills

Digest movies do not include still photos.

Page 99

Special Scene Mode

The camera will automatically choose the appropriate settings when you select a shooting mode for your subject or scene.

* <

> stands for Special Scene.

Set the Mode dial to <

Press the <

Select a shooting mode.

> button.

Use the < > dial or < >< > keys to select a shooting mode, then press the <

> button.

Page 100

Note

You can also set the shooting mode in [ : Shooting mode]. When [ : Mode guide] is set to [Disable], after step 1, press the < > button to access the Quick Control screen, use the < select a shooting mode, then press the <

> dial or < >< > keys to

> button.

100
