Canon EB15, EB10 User Manual

Page 1

This equipment (H12206) conforms with the essential requirements of EC Directive 1999/5/EC. We declare that this product conforms with the EMC requirements of EC Directive 1999/5/EC at nominal mains input 230V, 50Hz although the rated input of the product is 200V–240V, 50/60Hz. If you move to another EU country and are experiencing trouble please call the Canon Help Desk.

(For Europe Only)

Copyright © 2001 by Canon, Inc. All rights reserved. No part of this publication may be reproduced, transmitted, transcribed, stored in a retrieval system, or translated into any language or computer language in any form or by any means, electronic, mechanical, magnetic, optical, chemical, manual, or otherwise, without the prior written permission of Canon, Inc.

Trademarks

Canon and BJ are registered trademarks. Bubble Jet and UHQ are trademarks of Canon Inc. All other product and brand names are registered trademarks, trademarks or service marks of their

respective owners.

As an ENERGY STAR® Partner, Canon has determined that these products meet the ENERGY STAR

guidelines for energy efficiency.

Page 2

Using this guide

This guide provides detailed information on how to set up, operate, maintain, and troubleshoot your fax.

Please read the list below to become familiar with the symbols, terms, and abbreviations used in this guide.

Cautions tell you how to avoid actions that could injure you or damage your fax. In order to use your fax safely, always observe these cautions.

Notes provide advice on using your fax more effectively, describe operating restrictions, and tell you how to avoid minor difficulties. Reading these is recommended to make the most of your fax and its

functions.

(see p. xx) Indicates a page number that you can refer to for more information on the

topic of the previous sentence or paragraph. default A setting that remains in effect unless you change it. document The original sheet(s) of paper you send or receive with your fax. menu A list of settings from which you select an item to set up or change. A menu

has a title which appears on the LCD.

1 and 2 buttons Used to select an item in a menu. Press 2 to select the next item, and press

1 to select the previous item.

transaction number When you send or receive a document, your fax automatically assigns the

document a unique transaction number. A transaction number is a four-digit

number that will help you keep track of documents you send and receive. TX/RX NO. TX/RX NO. is the abbreviation used for “transaction number.” TX Denotes Transmission. RX Denotes Reception. In addition, this guide uses brackets to identify the buttons you press when performing different

functions: [Stop].

This guide contains information for two Canon models. Please note that the illustrations of the fax in this guide may differ from your model. Instructions for specific models are labelled with the fax names.

Customer support

Your fax is designed with the latest technology to provide trouble-free operation. If you encounter a problem with the fax’s operation, try to solve it by using the information in Chapter 10. If you cannot solve the problem or if you think your fax needs servicing, contact your local authorised Canon dealer or the Canon help line.

iii

Page 3

Important safety instructions

Read these safety instructions thoroughly before using your fax.

Except as specifically described in this guide, do not attempt to service the fax yourself. Never attempt to disassemble the fax: opening and removing its interior covers will expose you to

dangerous voltages and other risks. For all service, contact your local authorised Canon dealer or the Canon help line.

■ Handling and maintenance

• Follow all warnings and instructions marked on the fax.

• Do not subject the fax to strong physical shock or vibration.

• Always unplug the fax before moving or cleaning it.

• To avoid paper jams, never unplug the power cord, open the printer cover, or remove paper from

the multi-purpose tray while printing.

• When transporting the fax, leave the BJ cartridge installed in the cartridge holder and tape the

cartridge holder to the right side of the fax. This will prevent ink spilling inside the fax.

• Always lift the fax as shown below. Never lift it by any of its attachments.

• Do not push objects of any kind into the slots or openings on the cabinet as they may touch

dangerous voltage points or short out parts. This could result in fire or electric shock.

• Do not allow small objects (such as pins, paper clips, or staples) to fall into the fax. If something

does fall into the fax, unplug it immediately and contact your local authorised Canon dealer or the Canon help line.

• To avoid spillage in or around the fax, do not eat or drink near it. If you spill liquid or if any

substance falls into the fax, unplug the fax immediately and contact your local authorised Canon dealer or the Canon help line.

• Keep the fax clean. Dust accumulation can prevent the fax from operating properly.

• Unplug the fax from the wall outlet and refer service to qualified personnel under the following

conditions:

– When the power cord or plug is damaged or frayed. – If liquid has spilled into the fax. – If the fax has been exposed to rain or water. – If the fax does not operate normally when you have followed the instructions in this guide.

Adjust only those controls that are covered by the instructions in this guide. Improper adjustment of other controls may result in damage and may require extensive work by a qualified technician to restore the product to normal operation.

– If the fax has been dropped or the cabinet has been damaged. – If the fax exhibits a distinct change in performance, indicating a need for servicing.

Page 4

Important safety instructions

■ Location

• Place the fax on a flat, stable, vibration-free surface that is strong enough to support its weight

(approx. 5.8 kg).

• Place the fax in a cool, dry, clean, well ventilated place.

– Make sure the area is free from dust. – Make sure the location is not affected by extreme temperature changes, and always stays

between 10° and 32.5°C.

– Make sure the area’s relative humidity is always between 20% and 85%.

• Keep the fax away from direct sunlight as this can damage it. If you have to place it near a

window, install heavy curtains or blinds.

• Do not use the fax near water. Make sure that no wet or humid objects come into contact with the fax.

• Do not use or store the fax outdoors.

• Do not install the fax near devices that contain magnets or generate magnetic fields, such as speakers.

• If possible, place the fax near an existing telephone outlet to avoid the expense of installing a new one.

• Place the fax near a standard 200–240 V AC power outlet.

• To ensure reliable operation of the fax and to protect it from overheating (which can cause it to

operate abnormally and create a fire risk), do not block the exhaust vent and never block or cover any openings on the fax by placing it on a bed, sofa, rug, or other similar surface. Do not place the fax in a cupboard or built-in installation, or near a radiator or other heat source unless proper ventilation is provided. Install the fax approximately 10 cm away from walls and other equipment. For the dimensions of the fax, see p. S-1.

• Do not stack boxes or furniture around the power outlet. Keep the area free so you can reach the

outlet quickly. If you notice anything unusual (smoke, strange odours, noises) around the fax, unplug it immediately. Contact your local authorised Canon dealer or the Canon help line.

• Do not allow anything to rest on the power cord, and do not place the fax where the cord will be

walked on. Make sure the cord is not knotted or kinked.

■ Power supply

• During electrical storms, disconnect the power cord from the power outlet. (Please note that any

documents stored in the fax’s memory will be deleted when you unplug the fax.)

• Whenever you unplug the fax, wait at least five seconds before you plug it in again.

• If dust accumulates around the plug of the power cord when it is connected to a power outlet,

unplug the fax and wipe the plug with a clean, dry cloth.

This product emits low level magnetic flux. If you use a cardiac pacemaker and feel abnormalities, please move away from this product and

consult your doctor.

Page 5

Table of Contents

INTRODUCTION

1. SETTING UP

Using this guide ............................................................ iii

Customer support......................................................... iii

Important safety instructions....................................... iv

Handling and maintenance....................................................................iv

Location ..................................................................................................... v

Power supply ............................................................................................ v

Unpacking ...................................................................1-2

Removing the shipping materials ...................................................... 1-3

Assembling the fax ..................................................... 1-4

Attaching components ........................................................................ 1-4

Making connections ................................................... 1-5

Connecting the handset, telephone line and external devices .... 1-5

Connecting the AC power cord.......................................................... 1-7

Installing the BJ cartridge ..........................................1-8

Guidelines.............................................................................................. 1-8

Installing the BJ cartridge in your fax .............................................. 1-9

Loading paper ...........................................................1-12

Selecting the right kind of paper ..................................................... 1-12

Paper guidelines................................................................................. 1-12

Loading paper in the multi-purpose tray ........................................ 1-13

Testing the fax..................................................................................... 1-13

Setting the TEL LINE TYPE ....................................... 1-14

Dialling through a switchboard (PBX) ..................... 1-15

Registering the access type and the outside line access

number .......................................................................................... 1-15

2. PREPARING

TO USE YOUR FAX

Main components of your fax ..................................2-2

Fax controls — the operation panel........................... 2-3

Guidelines for entering numbers, letters, and

symbols ......................................................................2-5

Correcting mistakes............................................................................. 2-7

Registering sender information ................................. 2-8

Personalising your fax......................................................................... 2-8

Setting the date and time.................................................................... 2-9

Registering your fax/telephone number and name ...................... 2-10

Registering one-touch speed dialling numbers

and names ...............................................................2-12

Registering coded speed dialling numbers

and names ...............................................................2-14

Registering group dialling numbers and names ..2-15

Automatic dialling .................................................... 2-18

Sending a document using one-touch speed dialling,

coded speed dialling or group dialling numbers ................... 2-18

Sending a document using directory dialling................................ 2-19

Special dialling.........................................................2-20

Using alternative telephone networks (UK only).2-21

Attaching the M label ........................................................................ 2-21

Registering an alternative telephone network.............................. 2-21

Sending with an alternative telephone network........................... 2-23

Registering speed dialling with the M button................................ 2-24

Page 6

Table of Contents

3. HANDLING

DOCUMENTS

4. HANDLING

P APER

5. MAKING

COPIES

6. SENDING

DOCUMENTS

Preparing documents ................................................3-2

Types of documents you can scan.................................................... 3-2

Problem documents............................................................................. 3-2

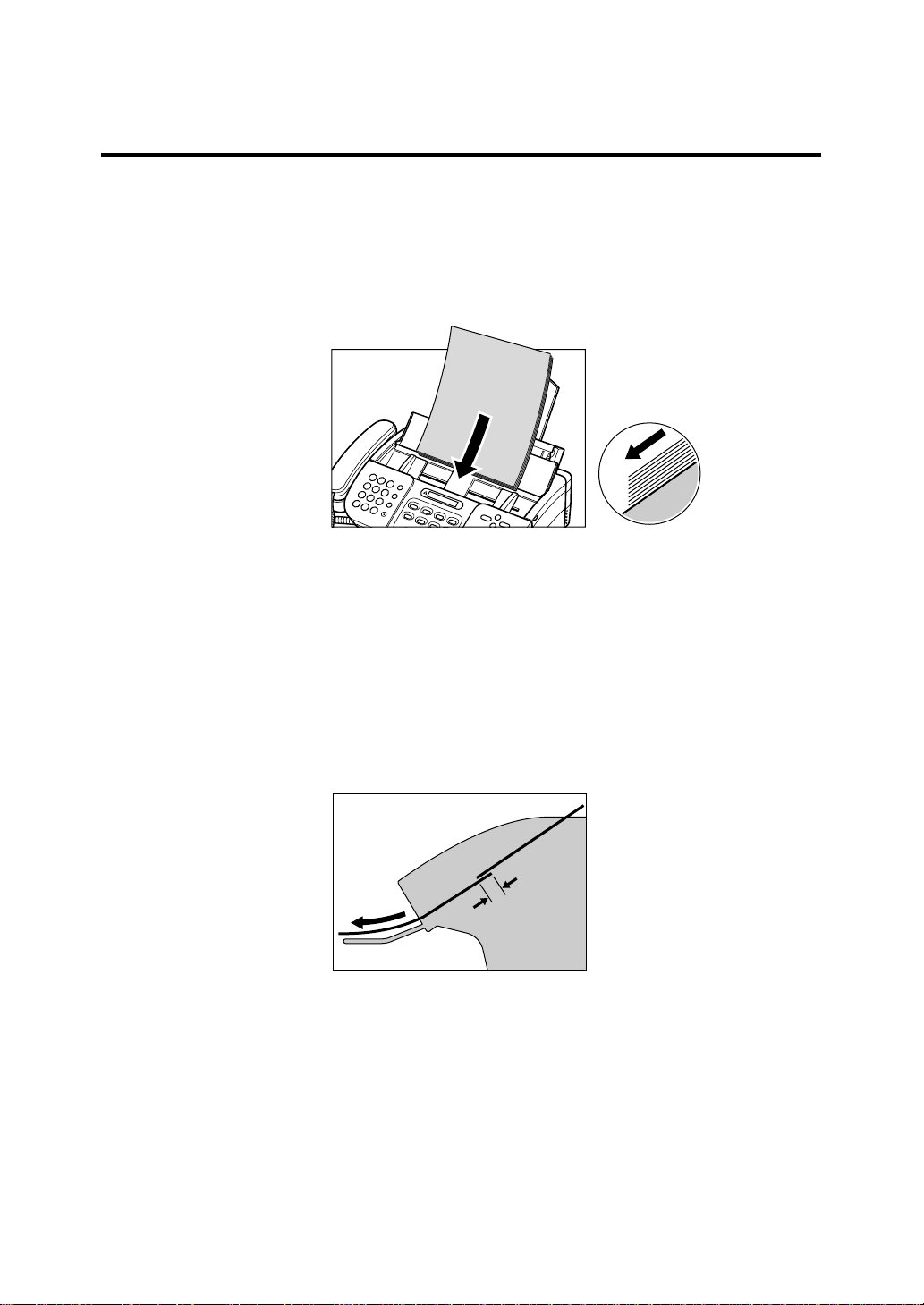

Loading documents...................................................3-3

Problems with multipage documents ............................................... 3-4

Adding pages to the document.......................................................... 3-4

Paper requirements .................................................... 4-2

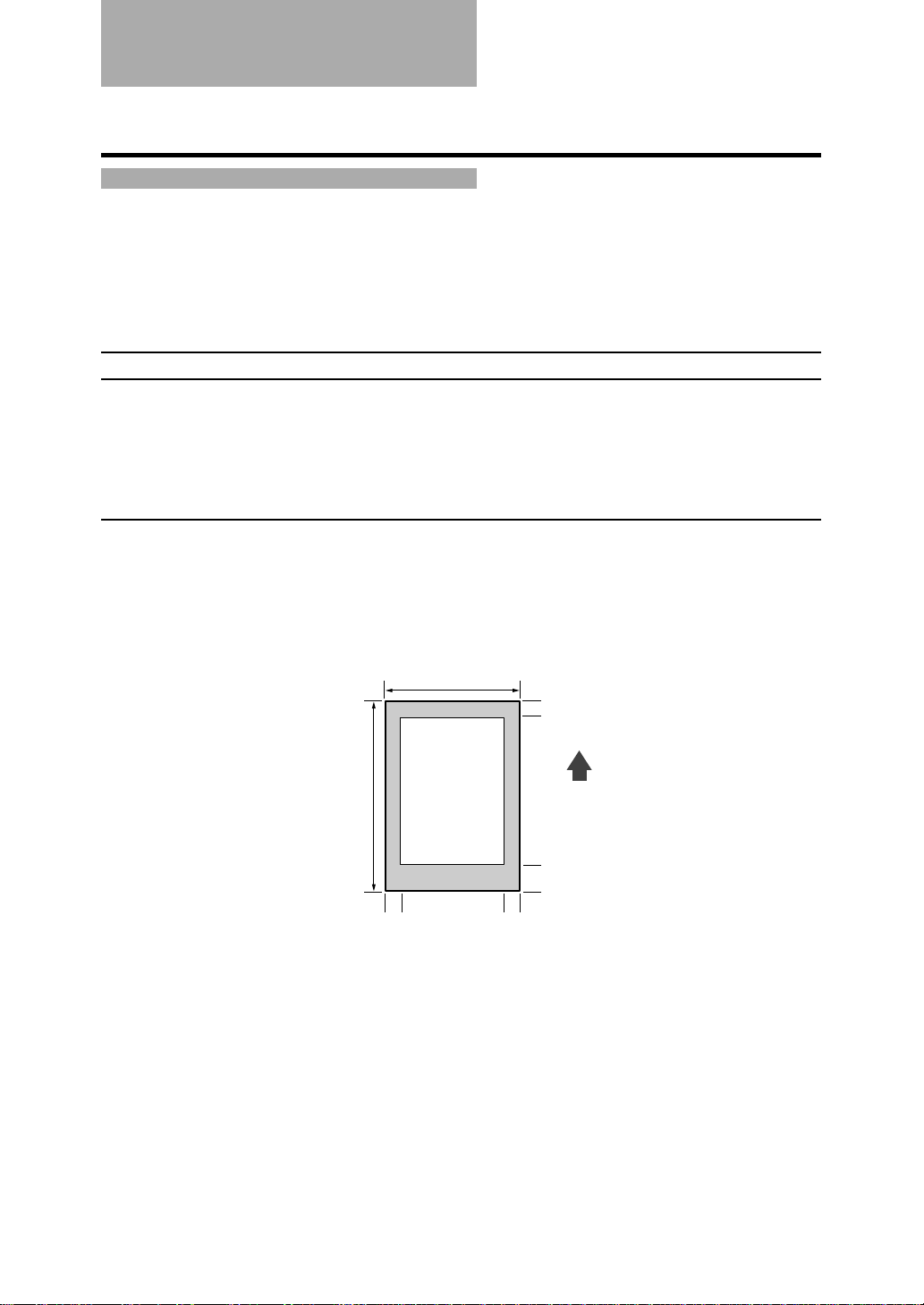

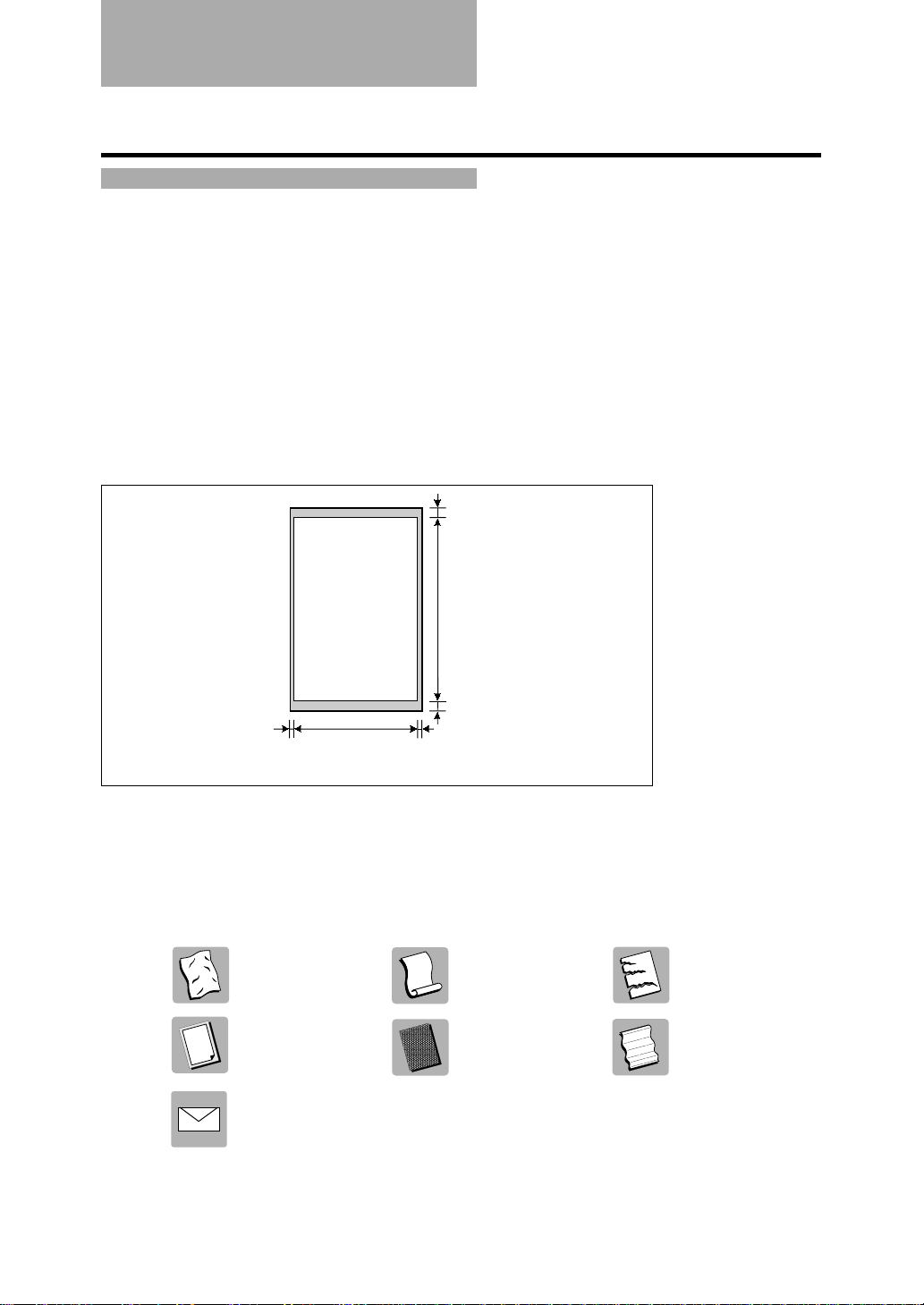

Printable area ....................................................................................... 4-2

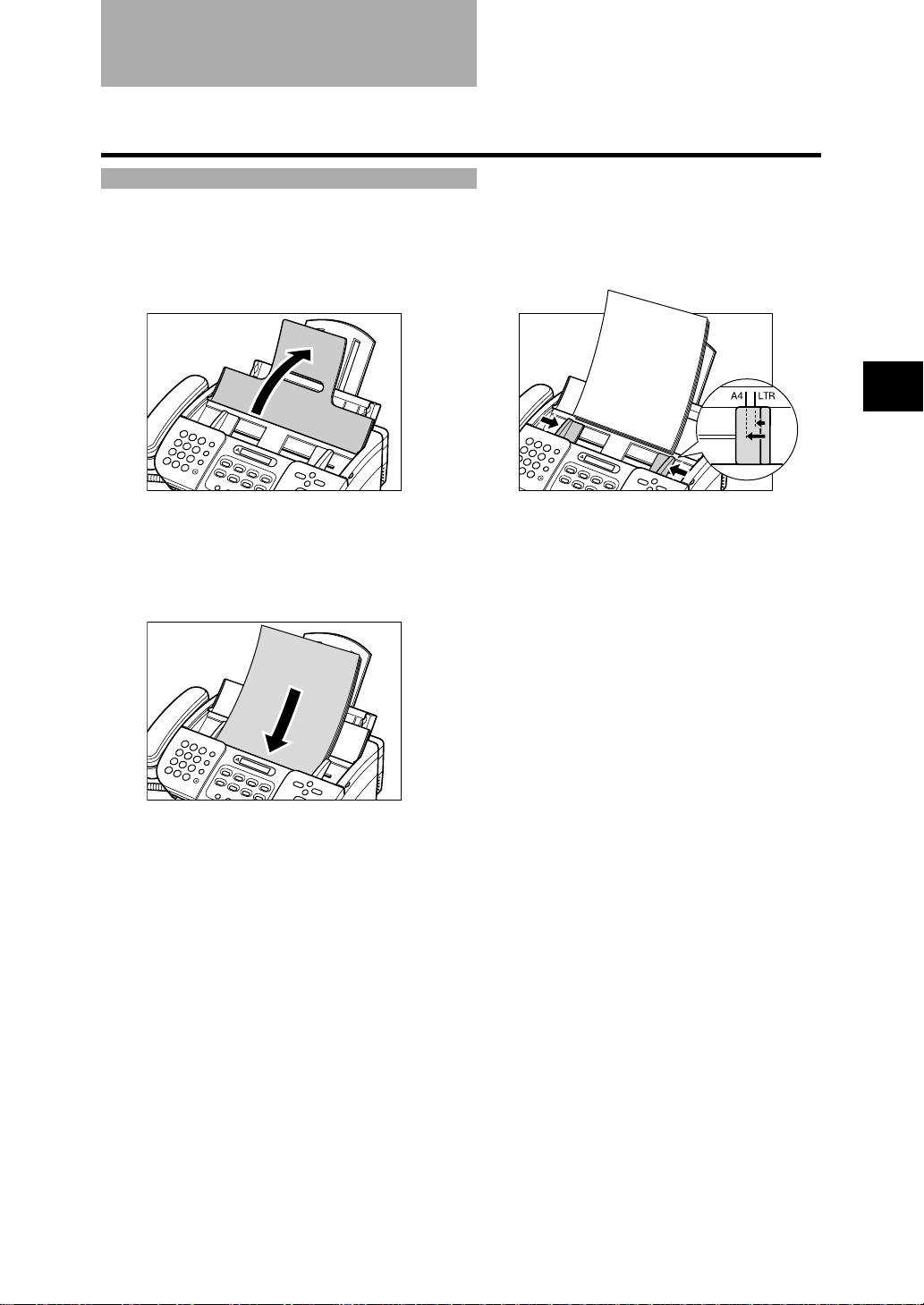

Loading paper ....................................................................................... 4-2

Copying documents....................................................5-2

Preparing to send a document ................................. 6-2

Adjusting the quality of your documents.......................................... 6-2

Sending methods.................................................................................. 6-3

Dialling methods................................................................................... 6-4

Sending documents ..................................................6-5

Memory sending................................................................................... 6-5

Manual sending.................................................................................... 6-6

Messages displayed during sending ................................................ 6-7

Cancelling sending ....................................................6-8

Redialling when the line is busy ..............................6-9

Manual redialling ................................................................................. 6-9

Automatic redialling............................................................................. 6-9

Delayed sending ......................................................6-12

Sending other documents while the fax is set

for delayed sending .................................................................... 6-13

Cancelling delayed sending ............................................................. 6-13

Sequential broadcasting .........................................6-15

Sending a document to more than one location........................... 6-15

Documents stored in memory................................6-16

Printing a list of documents in memory .......................................... 6-16

Printing a document in memory....................................................... 6-16

Deleting a document from memory................................................. 6-17

7. RECEIVING

DOCUMENTS

Different ways to receive a document ....................7-2

Receiving documents automatically: FAX ONLY MODE................. 7-3

Receiving both documents and telephone calls automatically:

Fax/Tel mode .................................................................................. 7-5

Receiving documents manually: MANUAL MODE ......................... 7-8

Receiving documents with an answering machine:

ANS.MACHINE MODE (FAX-EB10 only).................................. 7-10

vii

Page 7

8. USING THE BUILT -IN ANSWERING MACHINE (T AM MODE) (F AX-EB15 only)

Table of Contents

Other features ..........................................................7-11

Receiving documents while performing other tasks.................... 7-11

Receiving documents in memory when a problem occurs......... 7-11

Polling to receive documents........................................................... 7-12

Cancelling receiving ................................................ 7-13

Telstra FaxStream™ Duet (Australia only) ............7-14

Setting the fax for network switch .................................................. 7-14

Operation for network switch system............................................. 7-15

Telecom FaxAbility (New Zealand only)................7-16

Setting the fax network ..................................................................... 7-16

Operation for network switch system............................................. 7-17

Recording the outgoing message............................8-2

Types of messages that can be recorded........................................ 8-2

Recording the outgoing message...................................................... 8-2

Setting TAM MODE ................................................... 8-3

Setting the recording time for a telephone message..................... 8-4

Setting TOLL SAVER............................................................................. 8-5

Setting TAM MONITOR ....................................................................... 8-6

Recording voice memos............................................8-7

Deleting messages...................................................... 8-8

Playing telephone messages .................................... 8-9

Remote control features ......................................... 8-10

Registering the password for remote control ............................... 8-10

Using remote control ......................................................................... 8-11

Forwarding telephone messages........................... 8-13

Setting the forwarding number........................................................ 8-13

Setting the number of redial times .................................................. 8-14

Setting PIN ENTRY ............................................................................. 8-15

When a forwarded call is received.............................

8-16

9. SETTINGS AND ACTIVITY REPORTS

viii

Selecting a menu .......................................................9-2

Activity reports ..........................................................9-8

How to print a report............................................................................ 9-8

Activity report ....................................................................................... 9-9

One-touch speed dialling list............................................................ 9-10

Coded speed dialling list ................................................................... 9-10

Group dialling list................................................................................ 9-10

User’s data list .................................................................................... 9-11

Doc. memory list................................................................................. 9-11

TX (Transmission) report ................................................................... 9-12

RX (Reception) report ........................................................................ 9-13

Multi TX/RX (Transaction) report ..................................................... 9-13

Restricting use of the fax........................................9-14

Locking the fax.................................................................................... 9-14

Changing the access password ...................................................... 9-15

Cancelling the restriction setting .................................................... 9-16

Page 8

Table of Contents

Clearing jams ............................................................ 10-2

10. SOLUTIONS

TO COMMON PROBLEMS

Specifications ..................................................................................................... S-1

Index .....................................................................................................................I-1

Jams in the Automatic Document Feeder (ADF)........................... 10-2

Jams in the multi-purpose tray ........................................................ 10-3

Periodic cleaning....................................................... 10-4

Cleaning the exterior of the fax........................................................ 10-4

Cleaning the interior of the fax......................................................... 10-4

Testing and cleaning the BJ cartridge print head ........................ 10-7

Replacing the BJ cartridge............................................................... 10-8

Troubleshooting...................................................... 10-11

Paper feeding problems.................................................................. 10-11

Faxing problems ............................................................................... 10-12

Copying problems............................................................................. 10-16

Telephone problems ........................................................................ 10-16

Print quality problems...................................................................... 10-17

General problems............................................................................. 10-17

LCD messages......................................................... 10-18

In case of a power failure ....................................... 10-23

During a power failure..................................................................... 10-23

Memory clear report........................................................................ 10-23

Page 9

Page 10

SETTING UP

Unpacking ................................................................... 1-2

Removing the shipping materials ........................................ 1-3

Assembling the fax ..................................................... 1-4

Attaching components ..................................................... 1-4

Making connections ................................................... 1-5

Connecting the handset, telephone line and external devices ... 1 - 5

Connecting the AC power cord .......................................... 1-7

Installing the BJ cartridge ..........................................1-8

Guidelines ..................................................................... 1-8

Installing the BJ cartridge in your fax .................................. 1-9

Loading paper ........................................................... 1-12

Selecting the right kind of paper ....................................... 1-12

Paper guidelines ........................................................... 1-12

Loading paper in the multi-purpose tray ............................. 1-13

Testing the fax .............................................................. 1-13

Setting the TEL LINE TYPE ....................................... 1-14

Dialling through a switchboard (PBX) ..................... 1-15

Registering the access type and the outside line access

number .................................................................. 1-15

Page 11

Unpacking

As you unpack your fax, save the carton and packing material in case you want to move or ship the fax in the future.

Carefully remove all items from the box.

• It is best to have someone hold the box while you lift the fax and its protective packaging out of

the carton.

Make sure you have the following items:

BX-20 Black BJ cartridge

Handset

Main unit

Output tray extension

You should also have the following:

• B.T. adaptor (UK only) • One-touch sheet

• M label (UK only) • Power cord

• Documentation • Telephone line

• Warranty*

If any of these items are damaged or missing, notify your Canon dealer immediately.

* This item is only included in some countries.

1-2

Page 12

Unpacking

Removing the shipping materials ______________

Remove the shipping materials as shown below.

Remove the shipping tapes from the top

of the fax.

Open the document tray q, then open the

operation panel partially by gently pulling it towards you (it only opens slightly) w.

Remove the protective piece from the

multi-purpose tray.

Remove the protective sheet from the

Automatic Document Feeder (ADF). Close the operation panel by pressing it down from the centre until it locks into place.

SETTING UP

Open the printer cover using the printer

cover tab. (see p. 2-2)

Remove the shipping tape from the side

of the fax. Close the printer cover and document tray.

1-3

Page 13

Assembling the fax

To see how the fax looks fully assembled, see Main components of your fax, p. 2-2.

Attaching components ________________________

Your fax comes with the document tray already attached. However, if you accidentally remove the tray, reattach it by fitting the tabs on the tray into the slots on the fax.

1-4

Your fax comes with the output tray already attached. However, if you accidentally remove the tray, reattach it by fitting the tabs of the output tray into the slots on the fax.

For user convenience, the one-touch sheet provided with your fax should be fitted over the one-touch speed dialling buttons, Internet button and special function buttons on the centre of the operation panel.

Attach the output tray extension to the fax by fitting the tabs on the tray into the slots on the fax.

Page 14

Making connections

Connecting the handset, telephone line and external devices _______________________________

There are three jacks on the rear of the fax for connection of the following:

• Telephone line

• Handset

• Extension phone (i.e. an additional telephone that you may wish to place away from the fax to

answer calls from a different location) or answering machine*.

If you only have one telephone line and plan to use the fax for receiving both fax and voice calls, you will need to connect the handset or an answering machine* to the fax.

Be sure to connect any external devices before using the fax. Follow the procedure below to connect the handset.

Place the handset in its cradle as shown.

Connect the handset to the h jack on the

rear of the fax.

SETTING UP

Ringer volume switch

Adjust the volume of the ringer. Use a pen or other pointed object to adjust the switch to HIGH, LOW or OFF.

* An answering machine can be connected to the FAX-EB10 only.

1-5

Page 15

Follow the procedure below to connect the telephone line and any external devices.

Connect one end of the telephone line to

the L jack on the rear of the fax. Then connect the other end of the line to the telephone jack on your wall.

• Due to the range of specifications, Canon cannot guarantee that all answering machines* will be

compatible with your fax.

• If you have connected an external device to your fax, be sure to select the correct receive mode. (see Chapter 7)

• To connect an extension phone as well as an answering machine, connect the extension phone to the answering machine, and then connect the answering machine* to your fax.

• If the extension phone does not have its own power supply, any redial data in the extension phone memory may be lost after an extended fax transmission.

Connect an extension phone or

answering machine* to the t jack on the rear of the fax.

Users in the UK only

When you connect an external device to your fax, be sure to connect the B.T. adaptor provided with the fax.

Follow the procedure below to connect the B.T. adaptor.

Connect the extension phone or answering machine* to the B.T. adaptor. Then connect the B.T. adaptor to the t jack on the rear of the fax.

* An answering machine can be connected to the FAX-EB10 only.

1-6

Page 16

Making connections

Connecting the AC power cord________________

Plug the fax into a 200–240 volt AC 50/60 Hz outlet.

Plug the power cord connector into the

rear of the fax.

There is no power switch on the fax. The power is on as long as the fax is plugged in.

Plug the other end of the power cord into

a properly grounded AC power outlet.

SETTING UP

1-7

Page 17

Installing the BJ cartridge

The first time you set up your fax, you have to install the BJ cartridge before you can begin receiving and copying documents.

For information on replacing the BJ cartridge, see p. 10-8.

Guidelines _____________________________________

Follow these guidelines to ensure optimum performance of your BJ cartridge.

• Use only a Canon BX-20 Black BJ cartridge in your fax.

• Store BJ cartridges at room temperature.

• Keep BJ cartridges in their packaging until you are ready to use them. This is to prevent the BJ

cartridge from drying out.

• Replace BJ cartridges after one year of use.

• Never remove the BJ cartridge unless you are going to replace it. When left exposed, the cartridge

print head dries out, making it unusable.

• To change a BJ cartridge, be sure to press [Cartridge] (on the operation panel) to move the cartridge holder to the centre.

• Make sure the cartridge holder is in its home position (on the right side of the fax) when you are not using the fax. If it is not in its home position, press [Cartridge]. Leaving the cartridge holder out of its home position will cause the BJ cartridge to remain uncapped and dry out.

• Store BJ cartridges out of the reach of

The ink in the BJ cartridge is difficult to clean up if spilled. Follow the precautions below when handling the BJ cartridge.

• Carefully remove packaging from BJ cartridges.

• Do not attempt to disassemble or refill BJ cartridges.

• Do not shake or drop BJ cartridges or tip the print head downwards.

children. If a child inadvertently ingests ink, consult a physician immediately.

• Do not touch the precision components on the BJ cartridge.

Do not touch this area.

1-8

Page 18

Installing the BJ cartridge

Installing the BJ cartridge in your fax _________

When there is no BJ cartridge installed in your fax, PUT IN CARTRIDGE is displayed on the LCD. Follow the procedure below to install the BJ cartridge.

Make sure the fax is plugged in.

Open the document tray.

When you plug in the fax for the first time, the cartridge holder automatically moves to

the centre of the fax so you can install the BJ cartridge. If this does not happen, press [Cartridge].

Cartridge

Open the printer cover using the printer

cover tab. (see p. 2-2)

SETTING UP

1-9

Page 19

Raise the blue cartridge lock lever on the

cartridge holder.

Remove the BJ cartridge from its

package, then remove the orange protective cap q and tape w.

Do not touch these precision

components.

• Discard the cap and tape. Never attempt to reattach them to the BJ cartridge print head.

• Install the BJ cartridge immediately after removing the cap and tape.

With the label facing outwards, insert

the BJ cartridge into the cartridge holder. Lower the blue cartridge lock lever until it locks into position.

Close the printer cover.

Close the document tray.

Press [Cartridge].

Cartridge

The cartridge holder moves to its home position on the right side of the fax and begins cleaning the BJ cartridge print head. This process takes about 55 seconds.

1-10

Page 20

• Do not try to manually move or stop the

cartridge holder since this may damage the fax.

• Do not touch the components shown or any metal parts since this may adversely affect operation of the fax and/or affect print quality.

Installing the BJ cartridge

Circuit board

SETTING UP

Ribbon cable

If you need to unplug the fax, wait until it is in standby mode (time and receive mode displayed on the LCD). Otherwise the cartridge holder may not be in its home position; causing the BJ cartridge to

remain uncapped and dry out.

Round shaft

Guide rail

1-11

Page 21

Loading paper

Selecting the right kind of paper ______________

The quality of the paper you use affects the print quality of the fax. Using paper that meets the following guidelines will ensure the best possible printing results.

Paper guidelines _______________________________

• Be sure to load paper of the correct size, weight, and quantity recommended for your fax. (see p. 4-2)

• Store all paper wrapped and on a flat surface until ready to use. Keep opened packs in their original packaging, in a cool, dry location.

• Store paper at 18°–24°C, 40%–60% relative humidity.

• To avoid paper jams and poor print quality, do not print on damp, curled, wrinkled, or torn paper.

• Use cut-sheet paper only, not paper that comes on a roll.

• Use only paper that has a thickness of between 0.08 and 0.13 mm. Thick paper may damage the BJ

cartridge print head.

• Do not load paper beyond the paper limit mark (P) or beyond the tab on the multi-purpose tray. Doing so may cause problems. Also, make sure there are no gaps on either side of the paper stack.

Paper limit mark

No gaps here

• The capacity of the output tray is 50 sheets of paper. To prevent paper jams, remove paper from the output tray before the count reaches 50.

• Let the paper run out before refilling the multi-purpose tray. Avoid mixing new stock with paper already loaded.

• Do not leave paper stacked in the multi-purpose tray for long periods of time since it may bend or curl and cause problems.

• Certain environmental conditions, such as extreme temperatures or humidity, can cause some paper to misfeed in the multi-purpose tray. If you have trouble, feed one sheet at a time.

• Depending on the density of the printed pages, the ink may need time to dry. Within two or three seconds, the ink becomes smudge resistant. After drying for several minutes, the ink becomes water-resistant.

• If your printed page contains a large amount of graphics, the ink on the page may be damp due to the print density. Leave the page in the output tray for 30 to 60 seconds to allow the ink to dry. Then remove the page carefully without touching any surfaces.

• If paper curls after printing, remove it immediately; otherwise paper jams may occur.

• The platen (a roller inside the fax) may become inked if you print data beyond the width of the

page. If this happens, clean inside the fax. (see p. 10-4)

Tab

1-12

Page 22

Loading paper

Loading paper in the multi-purpose tray_______

Follow the procedure below to load paper in the multi-purpose tray.

Make sure the paper thickness lever is

set to m (left).

• Do not set the paper thickness lever

while the fax is printing since this will cause problems.

• The paper thickness lever should always be set to m (left) for the best printing results.

Fan the stack of paper that you want to feed into the fax. Then tap the edge of the stack on a flat surface to even the stack.

Raise the paper rest until it stops q, then

move the paper guide to the left to match the size of your paper w.

Insert the stack into the multi-purpose

tray q, and align the right edge of the stack with the right side of the multipurpose tray. Then slide the paper guide snugly against the left edge of the stack w.

SETTING UP

• The multi-purpose tray holds up to 100 sheets of 75 g/m2 plain paper.

• Make sure the stack does not exceed the paper limit mark (P).

Testing the fax _________________________________

After you have assembled the fax, installed the BJ cartridge, and loaded the paper, you can make sure the fax is printing properly by making several copies of a document. (see p. 5-2)

If you have problems printing, see Chapter 10.

1-13

Page 23

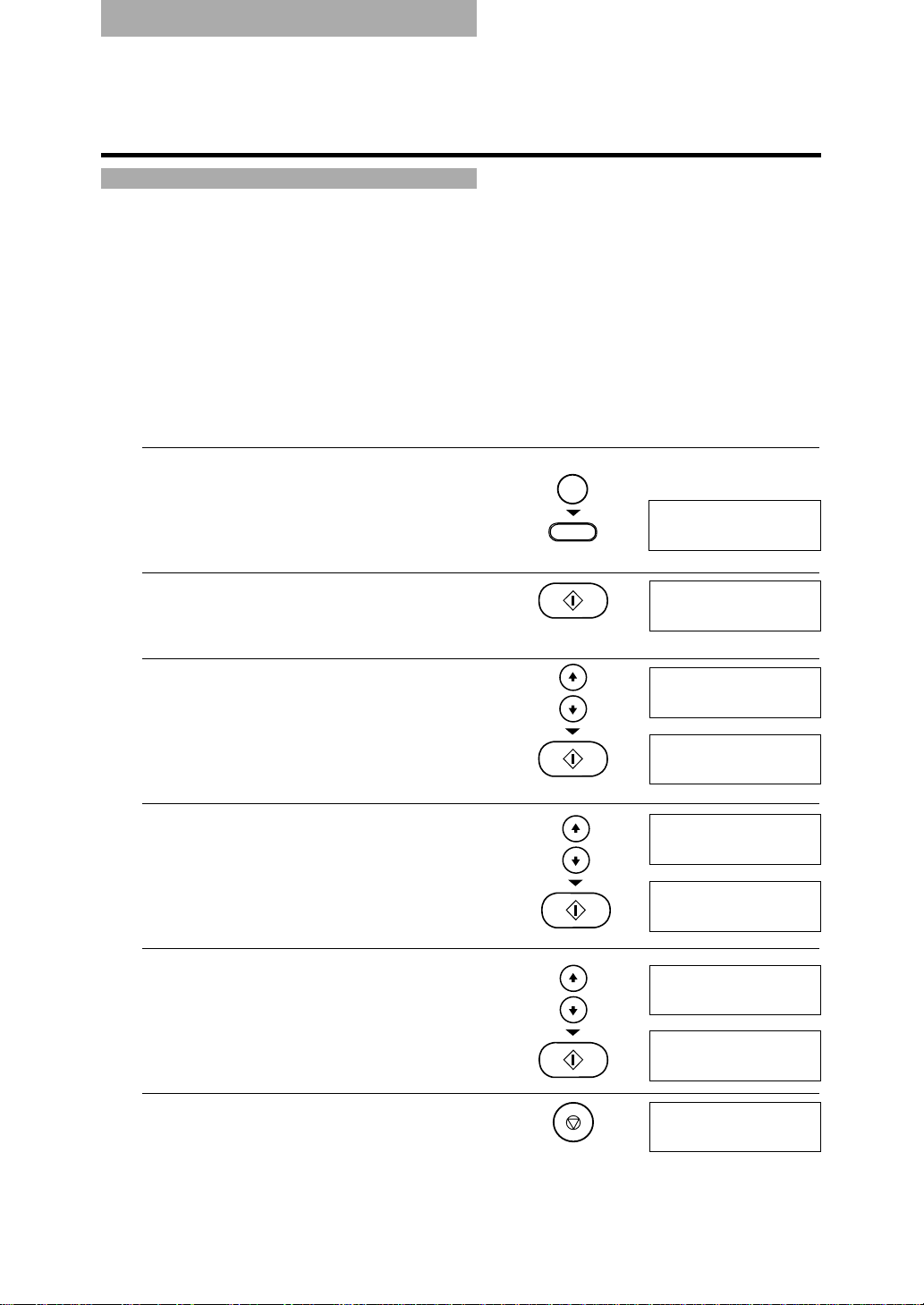

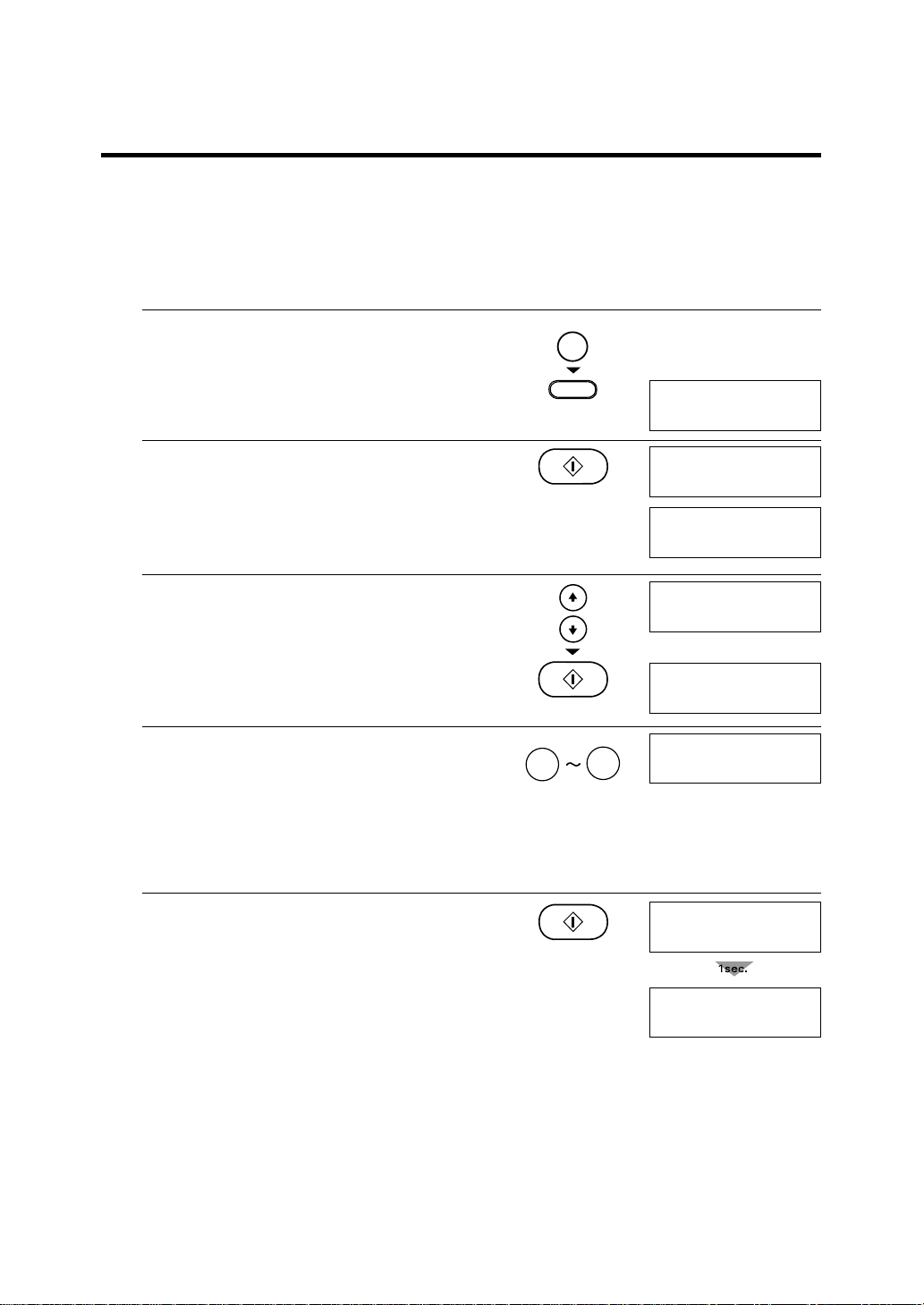

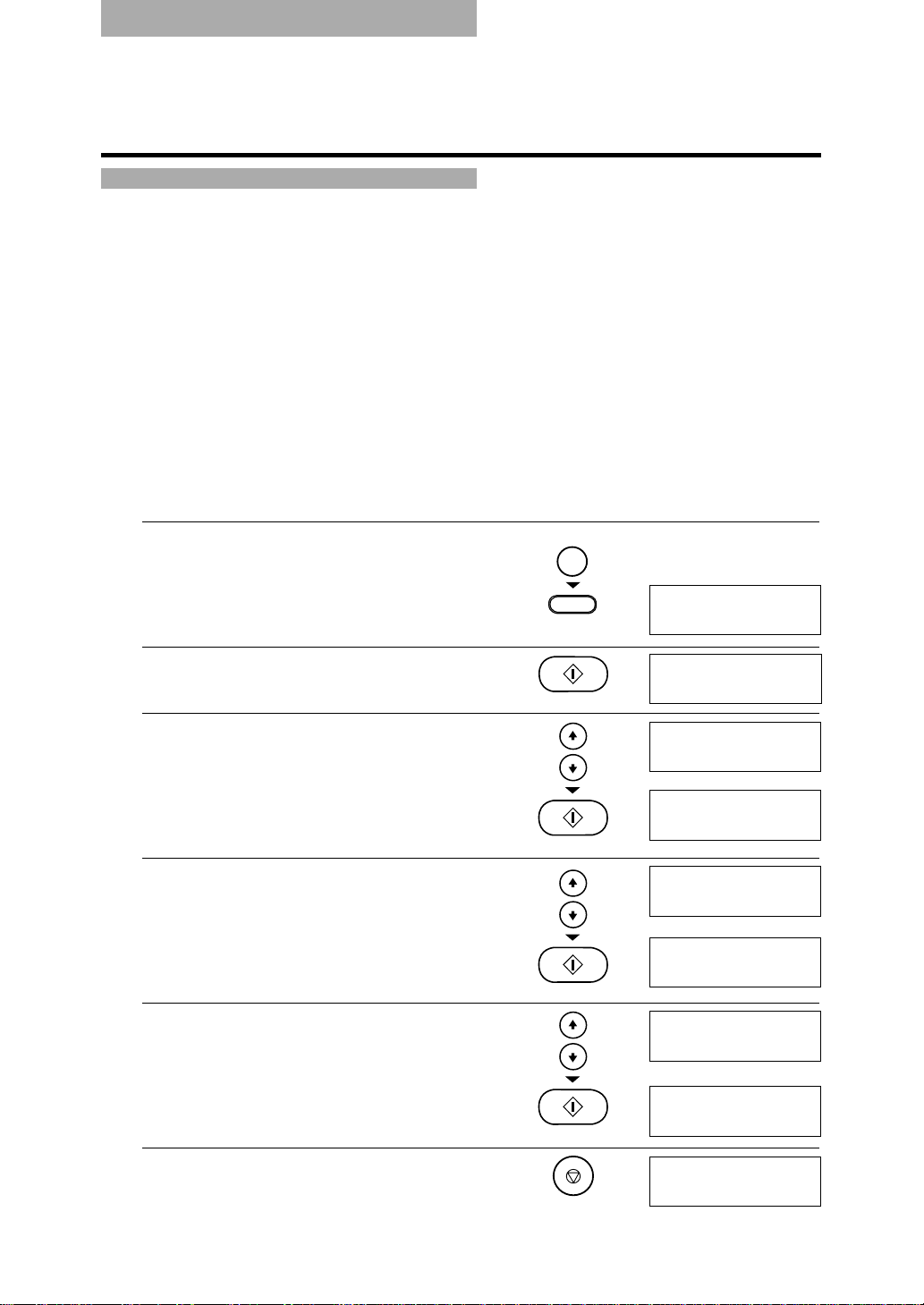

Setting the TEL LINE TYPE

Your fax is factory-set to work with rotary pulse telephone lines*. If you have a tone line, you will need to change the telephone line setting.

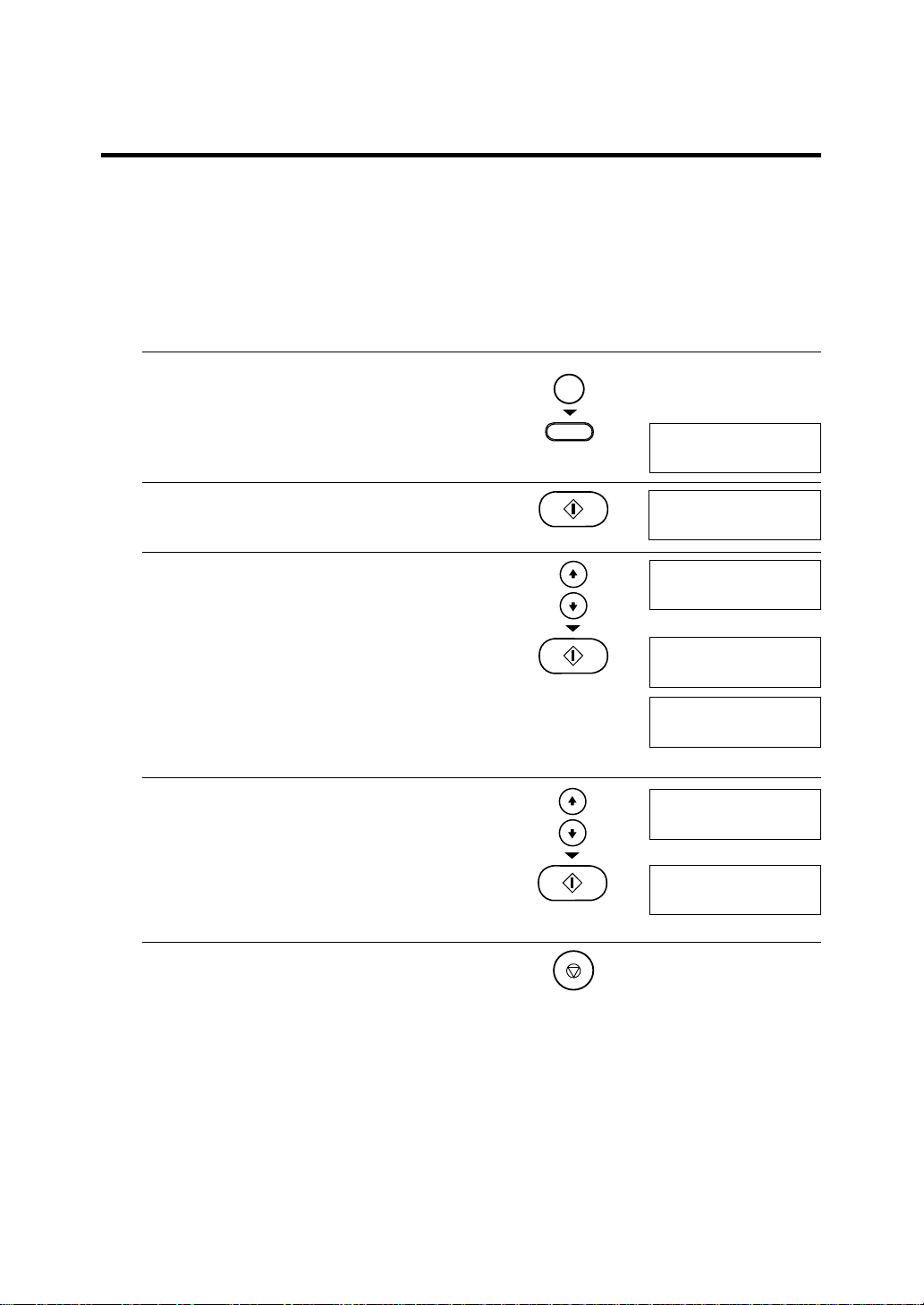

Follow the procedure below to set TEL LINE TYPE.

Press [Function].

▼

Press [Registration].

Press [Start/Copy] twice.

Use [ 1] or [ 2] to select TEL LINE TYPE.

▼

Press [Start/Copy].

Use [ 1] or [ 2] to select TOUCH TONE.

Function

Registration

DA TA REGSTRATION

USER SETTINGS

DATE & TIME

TEL LINE TYPE

Ex:

ROTARY PULSE

TOUCH TONE

Press [Start/Copy].

Press [Stop].

Registration ends and the fax returns to standby mode.

* The factory setting for the UK, Australia, New Zealand and Singapore is TOUCH TONE.

1-14

R-KEY SETTING

Page 24

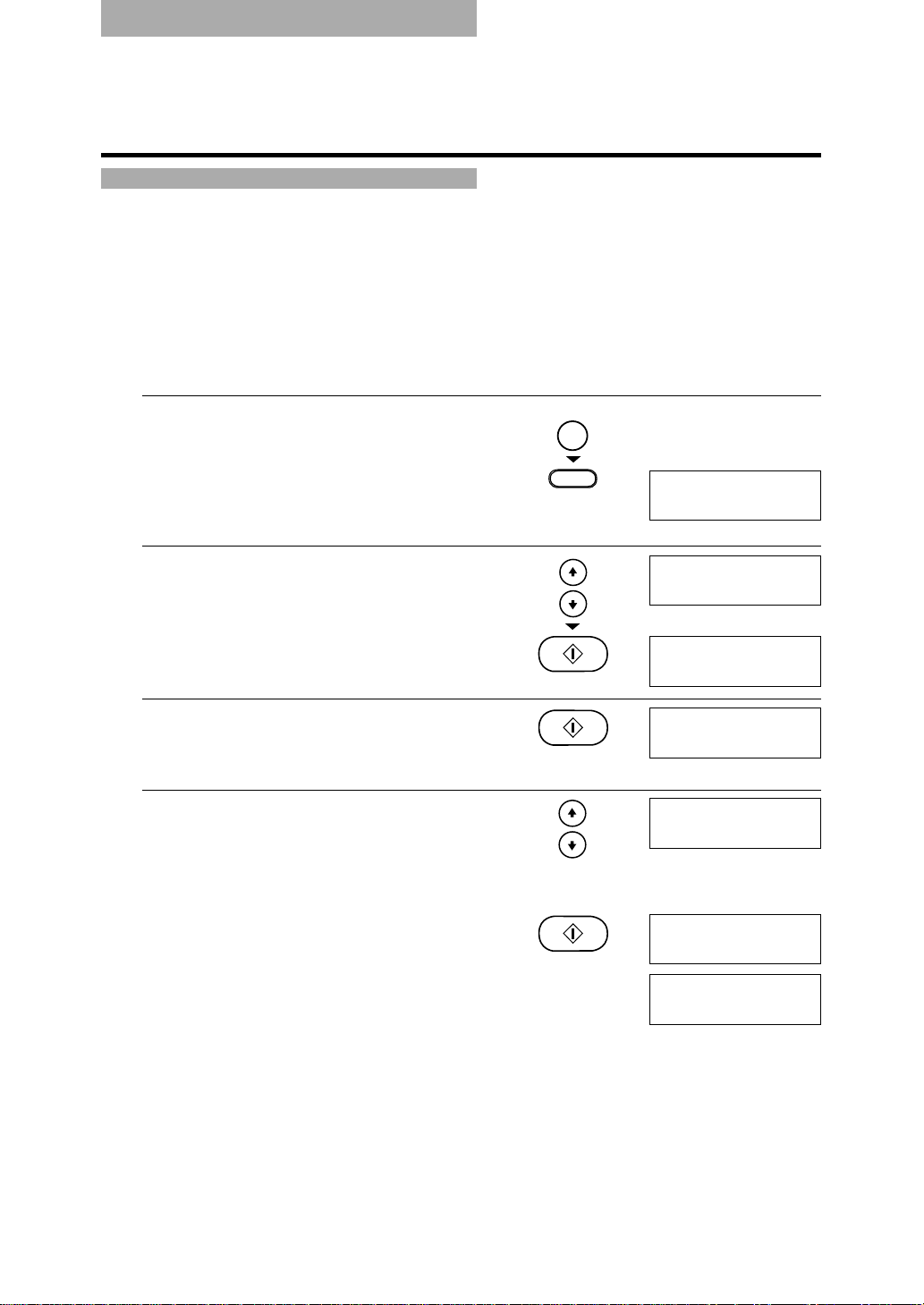

Dialling through a switchboard (PBX)

A PBX (private branch exchange) is an on-site telephone switchboard.

• If your fax is connected through a switchboard, dial an outside line access number first. Then dial the rest of the number.

• If you want to dial with automatic dialling, you may have to insert a pause between the outside line number and the telephone number when you register the number for one-touch or coded speed dialling. To enter a pause, press [Redial/Pause].

• When you have to make calls to an outside line or an extension, you may have to press the [R] button. Before you can use the [R] button, you need to register the access type and outside access line number under it. (see below)

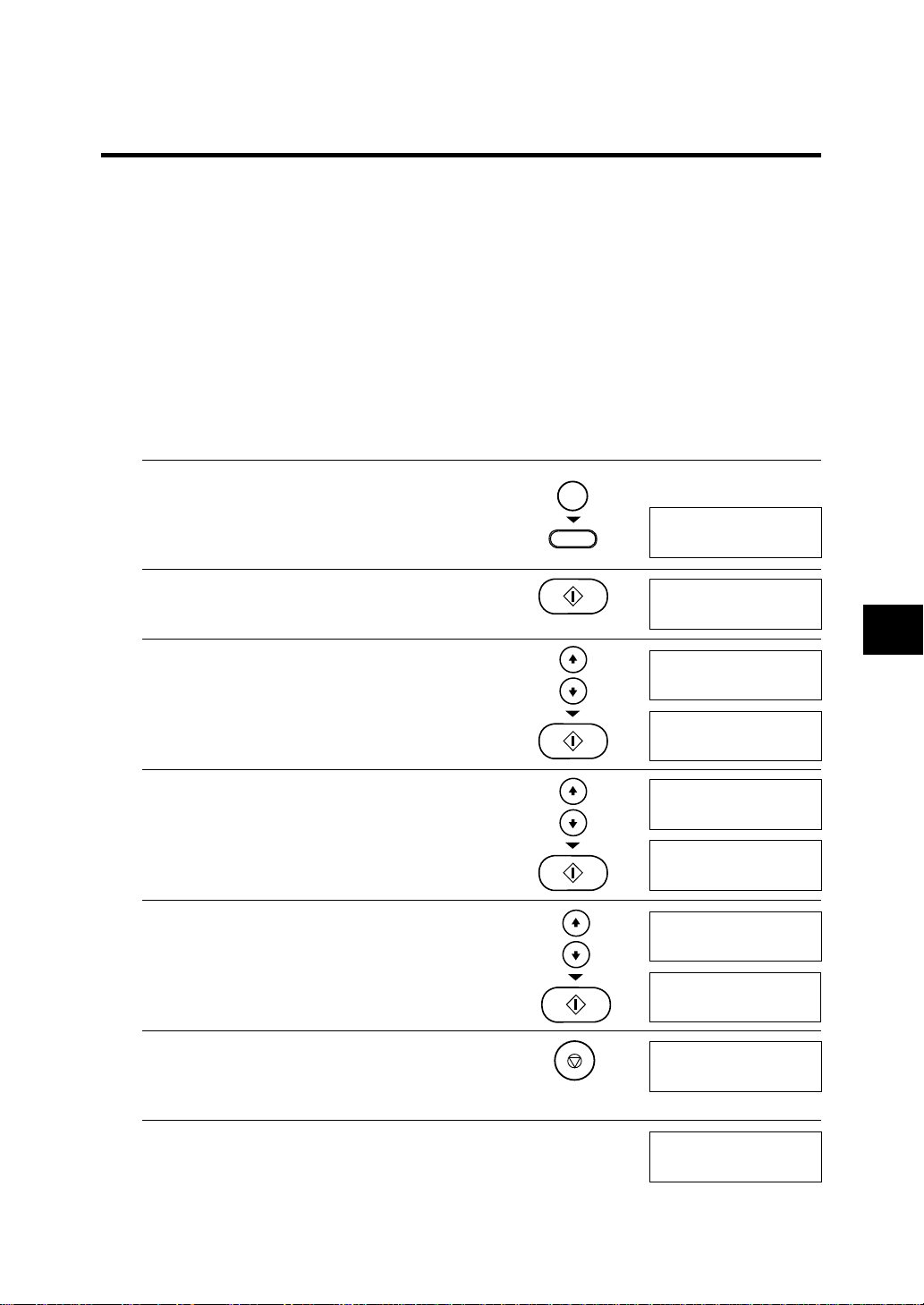

Registering the access type and the outside line access number ____________________________

When the fax is connected to a PBX or other telephone switching system, you can register the access type and outside access line number under the [R] button. Once you have registered them, you simply need to press [R] before dialling a fax or telephone number.

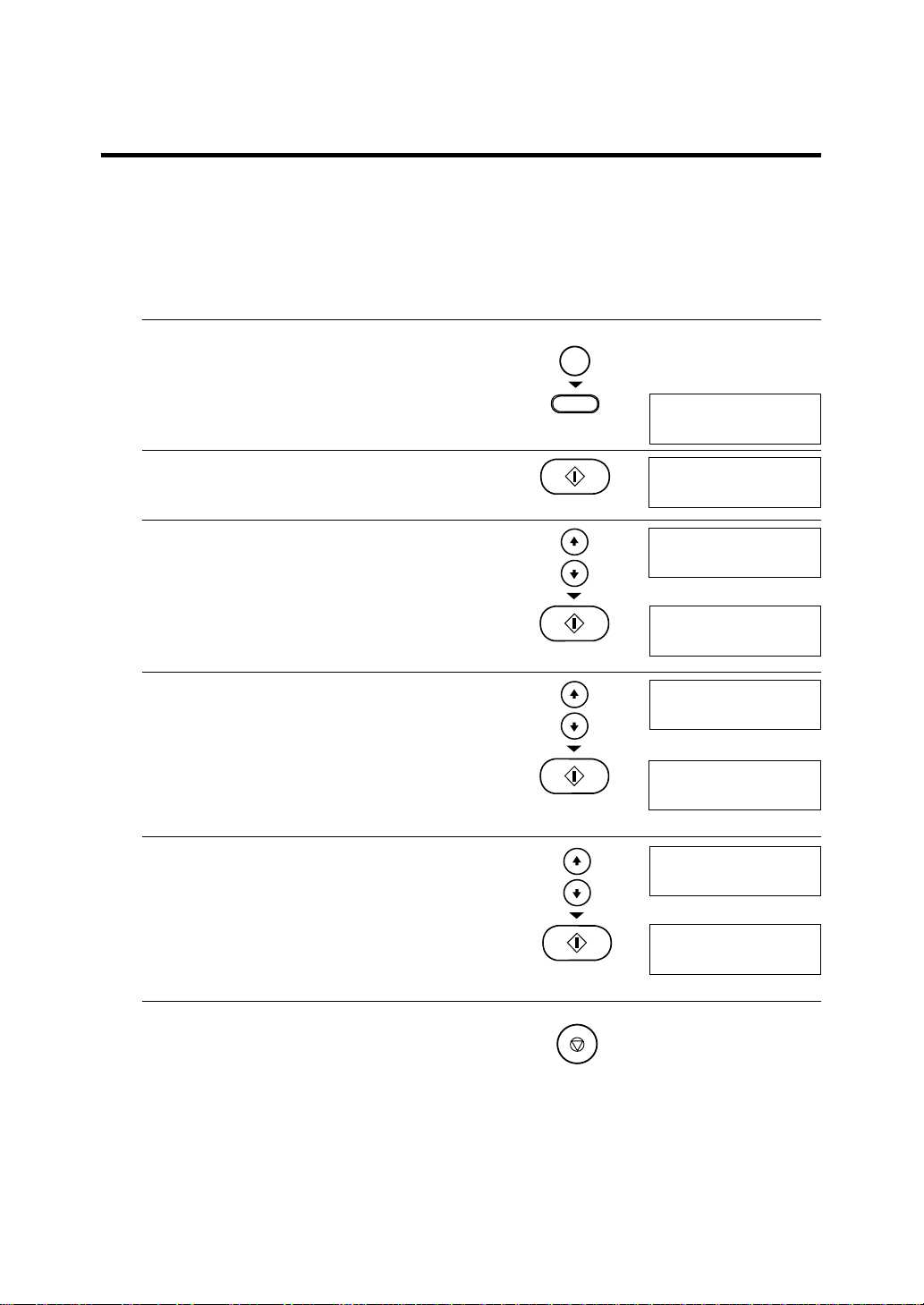

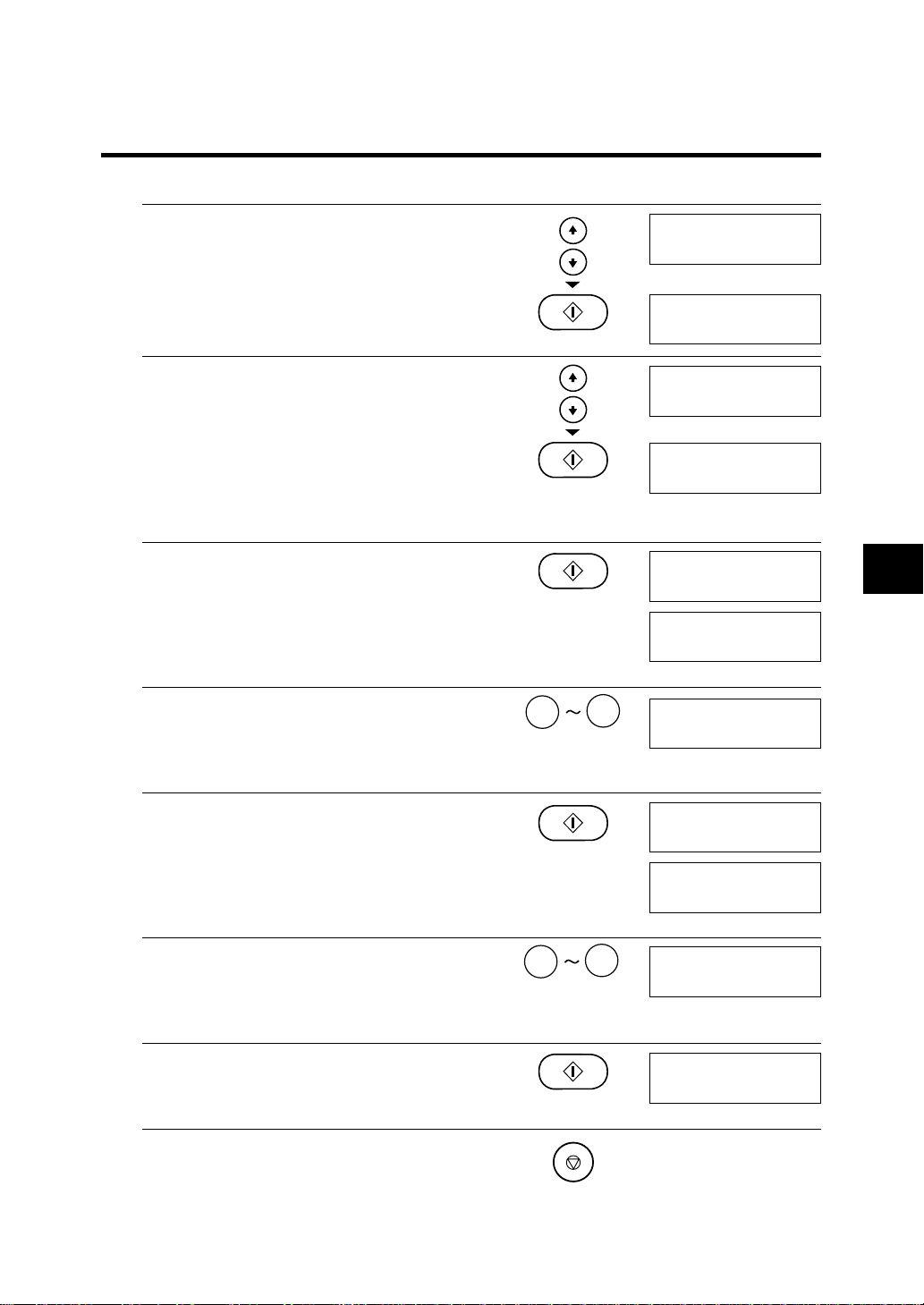

Follow the procedure below to register the access type and outside access line number under the [R] button.

SETTING UP

Press [Function].

▼

Press [Registration].

Press [Start/Copy] twice.

Use [ 1] or [ 2] to select R-KEY SETTING.

▼

Press [Start/Copy].

Function

Registration

DA TA REGSTRATION

USER SETTINGS

DATE & TIME

R-KEY SETTING

Ex:

PSTN

1-15

Page 25

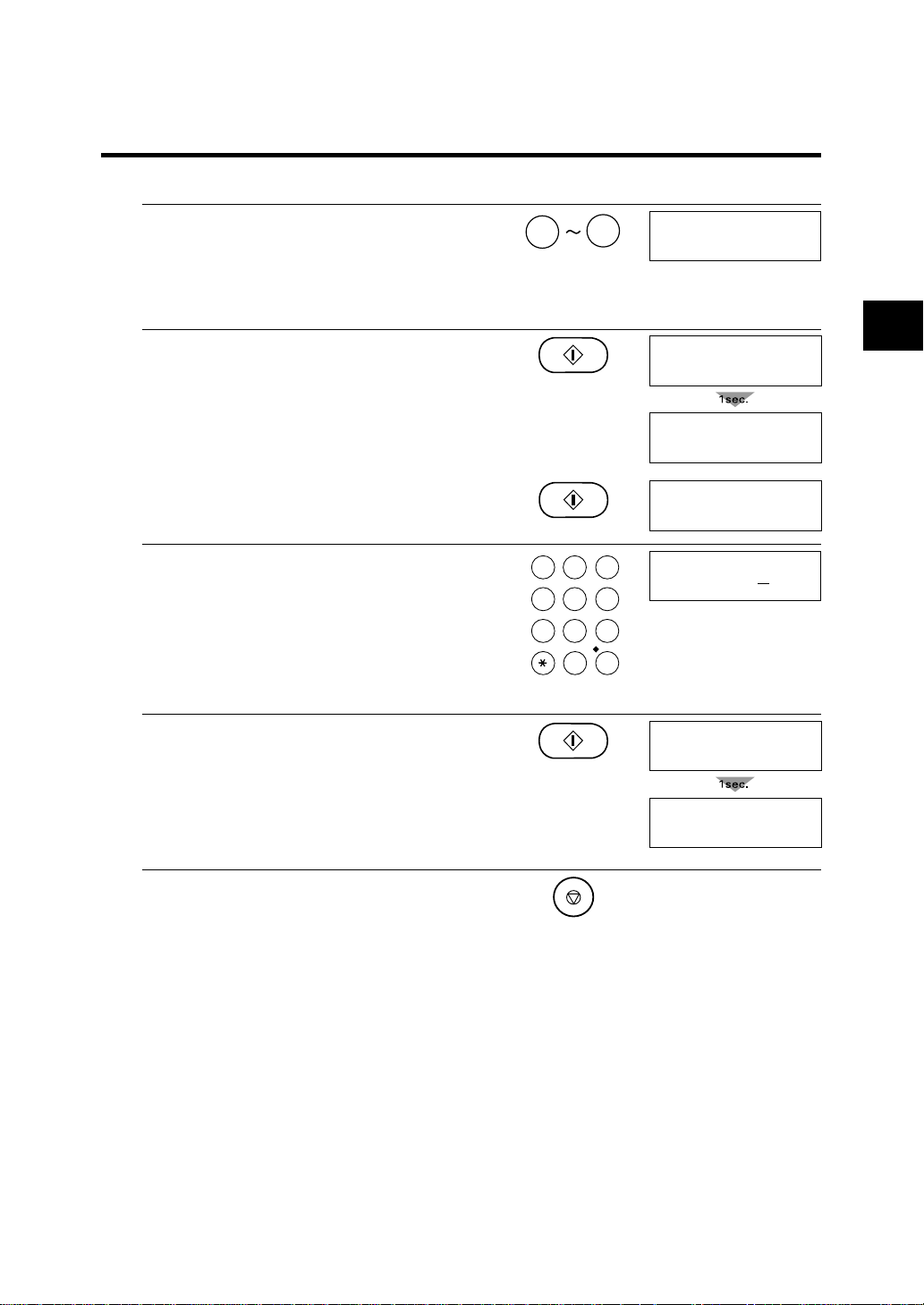

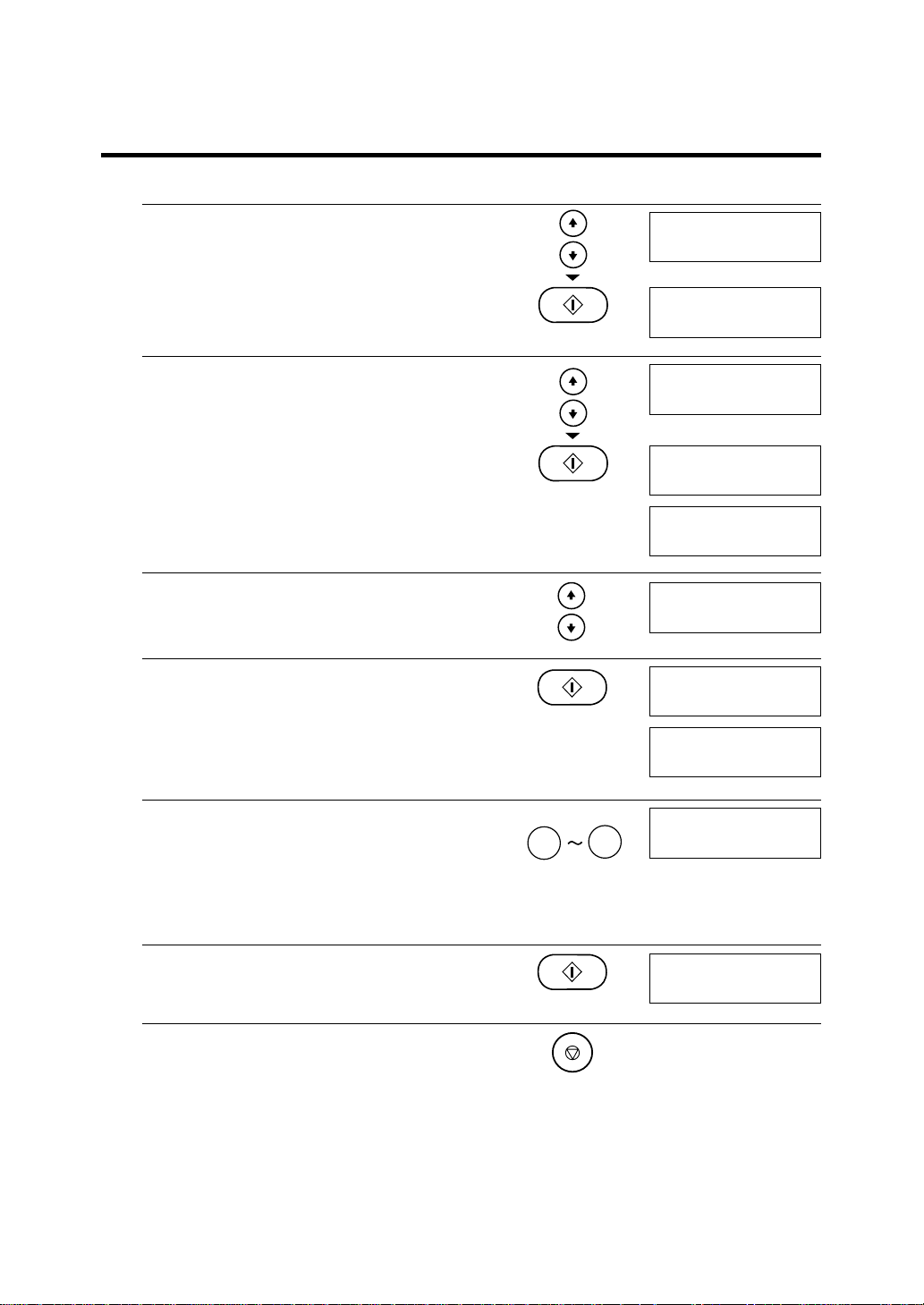

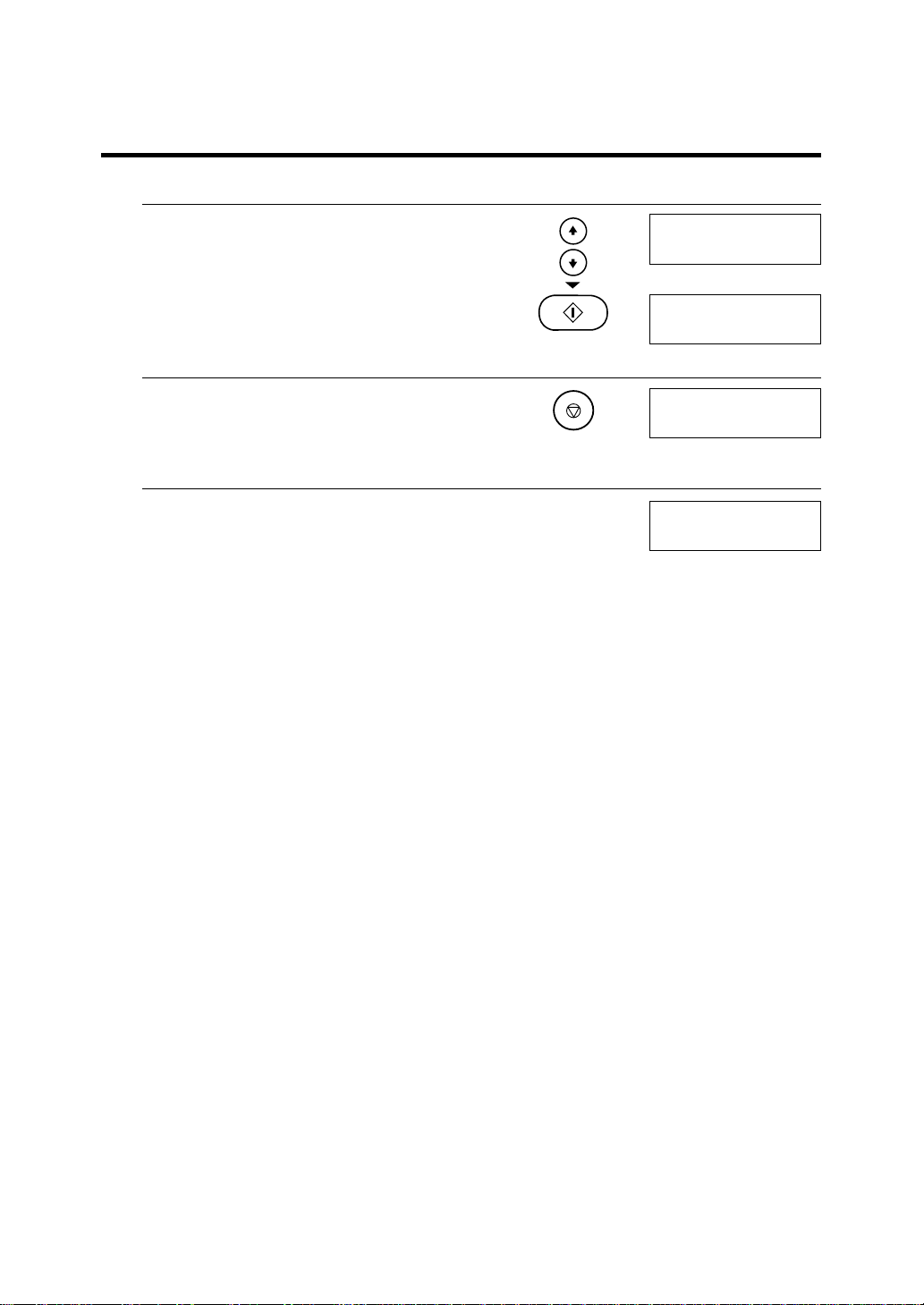

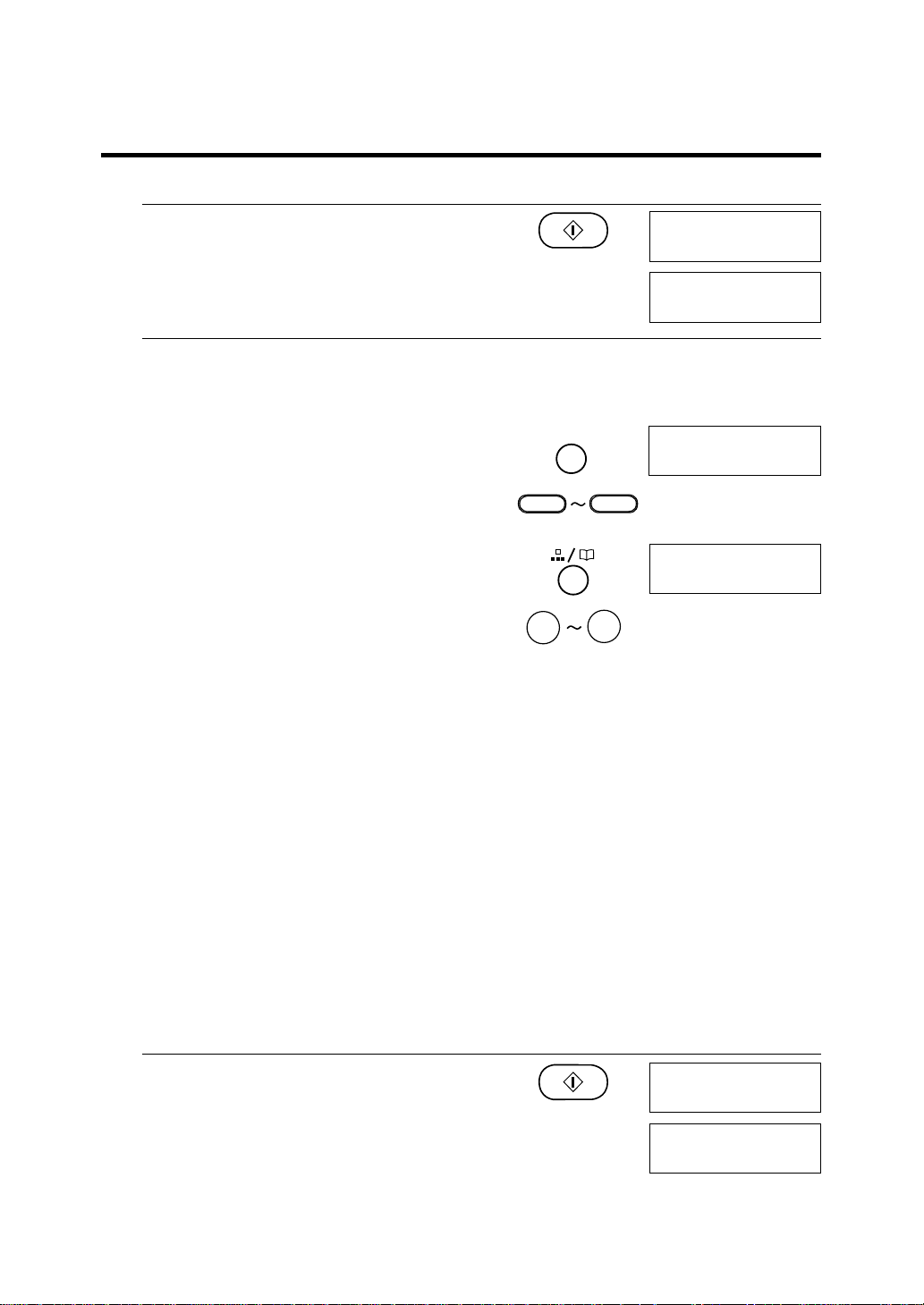

Use [ 1] or [ 2] to select PBX.

▼

Press [Start/Copy] twice.

Use [ 1] or [ 2] to select the access line type for the switching system.

You can select EARTH CONNECTION*, PREFIX or HOOKING.

▼

Press [Start/Copy].

If you chose PREFIX in step 5: Press [Start/Copy].

▼

Enter the outside line access number (up to 19 digits) using the numeric buttons and then press [Redial/Pause].

▼

Press [Start/Copy].

PBX

ACCESS TYPE

Ex:

EARTH CONNECTION

Ex:

PREFIX

ACCESS NUMBER

Ex:

123456P

Press [Stop].

Registration ends and the fax returns to standby mode.

* EARTH CONNECTION is not available in Australia, New Zealand, Hong Kong, Malaysia, or Singapore.

1-16

Page 26

PREPARING TO USE

PREPARING TO USE YOUR FAX

YOUR FAX

Main components of your fax ..................................2-2

Fax controls — the operation panel........................... 2-3

Guidelines for entering numbers, letters, and

symbols ...................................................................... 2-5

Correcting mistakes ......................................................... 2-7

Registering sender information ................................. 2-8

Personalising your fax ...................................................... 2-8

Setting the date and time .................................................. 2-9

Registering your fax/telephone number and name ................ 2-10

Registering one-touch speed dialling numbers

and names ...............................................................2-12

Registering coded speed dialling numbers

and names ...............................................................2-14

Registering group dialling numbers and names ..2-15

Automatic dialling .................................................... 2-18

Sending a document using one-touch speed dialling,

coded speed dialling or group dialling numbers .............. 2-18

Sending a document using directory dialling ....................... 2-19

Special dialling......................................................... 2-20

Using alternative telephone networks (UK only).2-21

Attaching the M label ..................................................... 2-21

Registering an alternative telephone network ...................... 2-21

Sending with an alternative telephone network ................... 2-23

Registering speed dialling with the M button ....................... 2-24

Page 27

Main components of your fax

Paper rest

ADF (Automatic Document Feeder) and printer cover

Document tray

Paper guide Document guides

Multi-purpose tray

Printer cover tab Operation panel

(see p. 2-3)

Output tray

Output tray extension

2-2

Handset

Paper thickness lever Cartridge holder

Please note that your fax may differ from the illustration above.

Page 28

Fax controls — the operation panel

LCD

ABC DEF

JKL MNOGHI

TUV WXYZPQRS

02 03 0401

D.T. Report Registration

06 0705

PollingTimer Clear Cleaning

Resolution Cartridge FunctionR

Internet

PREPARING TO USE YOUR FAX

See below

ABC DEF

JKL MNOGHI

TUV WXYZPQRS

R button (see p. 1-15) Resolution button (see pp. 5-2, 6-2) Cartridge button (see pp. 1-8, 10-9) Function button/light (see below)

One-touch speed dialling/ Internet/Special function buttons (see below)

These are the buttons on the FAX-EB15 operation panel. See p. 2-4 for buttons on the FAX-EB10 operation panel.

Hold button (see p. 2-6)

This button is also used to enter a space when entering data.

Redial/Pause button (see pp. 2-20, 6-9)

Coded Dial/Directory button (see pp. 2-15, 2-19)

Microphone (FAX-EB15 only) Numeric buttons (see p. 2-5)

02 03 0401

D.T. Report Registration

06 0705

PollingTimer Clear Cleaning

Resolution Cartridge FunctionR

Internet

D.T. button (see p. 2-20) Report button (see p. 9-8) Registration button (see p. 9-2) Timer button (see p. 6-12) Polling button (see p. 7-12) Clear button (see p. 2-7) Cleaning button (see pp. 10-7, 10-8) Internet button* (see the separate Internet Fax Manual)

The buttons on the centre of the operation panel have the following two functions:

• One-touch speed dialling buttons (see pp. 2-16, 2-18)

When the [Function] button’s light is off, the buttons marked 01 to 07* can be used for one-touch speed dialling.

• Internet button*

When the [Function] button’s light is off, the Internet button can be used to send documents via the Internet. (For further information, see the separate Internet Fax Manual.)

• Special function buttons

When the [Function] button’s light is on, the special function buttons (function marked under each button) can be used to perform various operations.

*If you have not set up the Internet feature, the Internet button can also be used for one-touch speed dialling.

The Internet feature is only available in some countries.

2-3

Page 29

■ FAX-EB10

■ FAX-EB15

Scroll buttons (see p. 9-2)

Cursor buttons (see pp. 2-6, 2-7)

Receive mode button (see Chapter 7)

Stop button Start/Copy button Hook button (see p. 6-6)

Scroll buttons (see p. 9-2)

2-4

Fast forward/Rewind (Cursor)

buttons (see pp. 2-6, 2-7, 8-9)

TAM button (see p. 8-3)

Play button (see p. 8-9) Record button (see pp. 8-2, 8-7) Delete button (see p. 8-8)

Stop button Start/Copy button Hook button (see p. 6-6)

Page 30

Guidelines for entering numbers, letters, and symbols

When you come to a step that requires you to enter a name or number, see the table below to determine which numeric button to press for the character you want.

Button Uppercase Letter Lowercase Letter Number Mode

Mode (:A) Mode (:a) (:1)

ABC

DEF

GHI

JKL

MNO

PQRS

TUV

WXYZ

PREPARING TO USE YOUR FAX

Uppercase letter mode (:A)

Lowercase letter mode (:a)

Number mode (:1)

After 60 seconds of no operation panel input, the fax returns to standby mode and any unregistered changes are lost.

2-5

Page 31

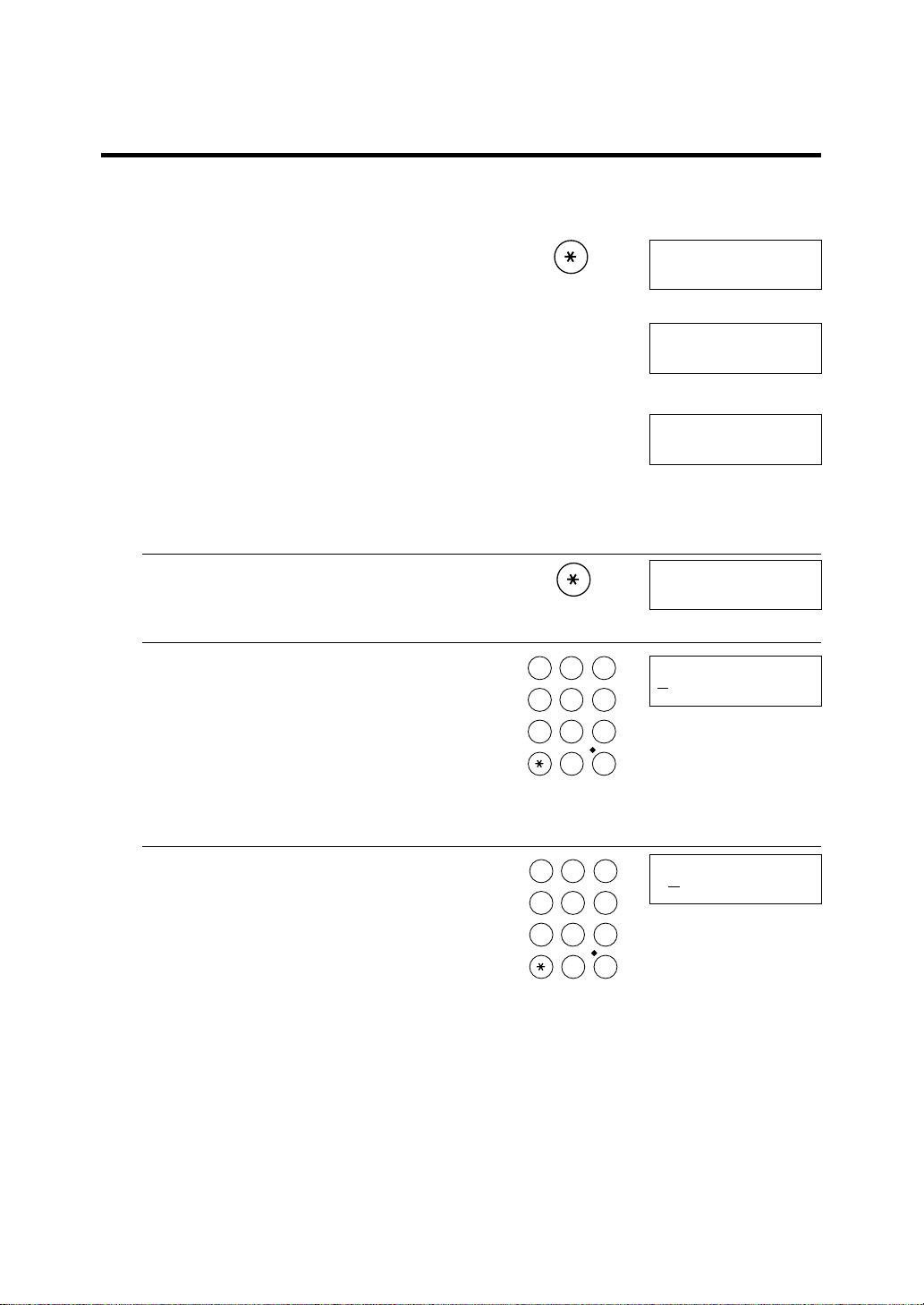

■ Switching between number and letter modes

Press [:] to select uppercase letter mode (:A), lowercase letter mode (:a), or number mode (:1).

■ Entering letters

_:A

(Uppercase letter mode)

_:a

(Lowercase letter mode)

_:1

(Number mode)

Press [ :] to switch to uppercase letter mode (:A) or lowercase letter mode (:a).

Press the numeric button that contains the letter you want.

• Press repeatedly until the letter you want appears. Each button cycles through the letters it contains.

• If you are unsure which button to press for the letter you want, see p. 2-5.

• You can also press [1] or [2] to cycle through the letters the button contains.

Continue entering other letters using the numeric buttons.

• If the next letter you want to enter is under a different numeric button, simply press that button until the letter you want appears.

-orIf the next letter you want to enter is under the same numeric button you pressed in step 2, press [4] to move the cursor to the right. Then press that same numeric button repeatedly until the letter you want appears.

• To enter a space, press [Hold].

GHI

PQRS TUV

7 8

GHI

PQRS TUV

7 8

Ex:

_:A

ABC

DEF

Ex:

JKL

MNO

WXYZ

ABC

DEF

JKL

MNO

WXYZ

C:A

Ex:

CA:A

2-6

Page 32

■ Entering numbers

Press [ :] to switch to number mode (:1).

Guidelines for entering numbers, letters, and symbolsGuidelines for entering numbers, letters, and symbols

_:1

Press the numeric button that contains the number you want.

To enter a space, press [Hold].

Continue entering other numbers using the numeric buttons.

Ex:

1_ :1

Ex:

10_ :1

■ Entering symbols

Press [#] repeatedly until the symbol you want appears.

If you want to enter another symbol, press [4] to move the cursor to the right, then press

Ex:

#:1

Ex:

#–:1

[#] repeatedly until the symbol you want appears.

Correcting mistakes ___________________________

You can clear an entire entry by pressing [Clear]. Alternatively, follow the procedure below to correct individual characters:

PREPARING TO USE YOUR FAX

Use [ 3] or [ 4] to move the cursor under the incorrect character.

Use the numeric buttons to enter the correct character over the incorrect character.

When you have finished making corrections,

GHI

PQRS TUV

7 8

ABC

JKL

Ex:

CANEN :A

DEF

Ex:

MNO

WXYZ

CANON :A

press [Start/Copy] to register your new entry.

2-7

Page 33

Registering sender information

Personalising your fax _________________________

■ Identifying your documents

When sending a document, you can have your fax number and your name (known as your ID), and the current date and time printed out by the receiving fax machine. This information is called your TTI (Transmit Terminal Identification) and appears at the top of the faxed document in small type.

By identifying the documents you send, the receiving party will be able to recognise your fax messages at a glance. The illustration below shows a sample document with the identifying information.

27/12 2001 10:12 FAX 123 4567 CANON CANON CANADA 001

The page number

THE SLEREXE COMPANY LIMITED

SAPORS LANE•BOOLE•DORSET•BH25 8ER

TELEPHONE BOOLE (945 13) 51617 – FAX 123456

Our Ref. 350/PJC/EAC

The name of the party who is receiving the document

Your name or company name

Your fax/telephone number

The date and time you sent the document

The top line includes the name of the receiving party if you send the document using one-touch speed dialling or coded speed dialling and you registered the party’s name.

2-8

Page 34

Registering sender information

Setting the date and time _____________________

Follow the procedure below to set the date and time for your fax. The date and time appear on the LCD as well as on the documents you send.

Press [Function].

▼

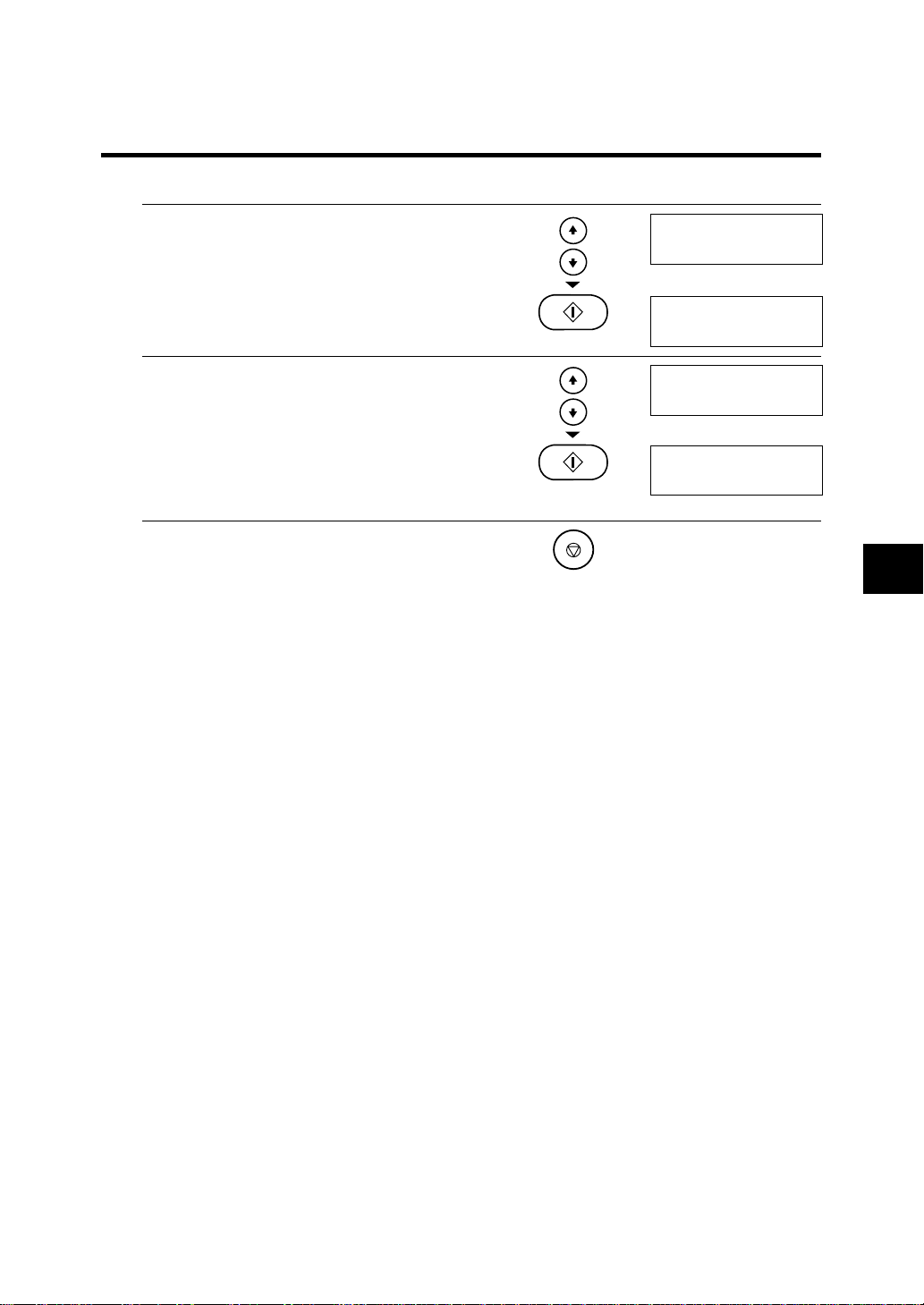

Press [Registration].

Function

PREPARING TO USE YOUR FAX

Press [Start/Copy] three times.

Use the numeric buttons to enter the date and time using the day-month-year format (DD/MM YYYY).

• Set the time using the 24-hour clock system. Precede single digits with a zero. Example: 7:30 a.m. = 07:30

• Correct errors by moving the cursor under the incorrect number using [3] or [4] and entering the correct number.

• To change the date format, see SYSTEM SETTINGS, p. 9-6.

Press [Start/Copy].

Wait a second for UNIT TELEPHONE # to appear.

Registration

DA TA REGSTRATION

USER SETTINGS

DATE & TIME

Ex:

20/12 2001 13:30

Ex:

27/12 2001 15:00

DATA ENTRY OK

UNIT TELEPHONE #

Press [Stop].

Registration ends and the fax returns to standby mode.

2-9

Page 35

Registering your fax/telephone number and name

Follow the procedure below to register your fax/telephone number and name or company name so that this information appears at the top of each document you send.

Press [Function].

▼

Press [Registration].

Press [Start/Copy] twice.

Use [ 1] or [ 2] to select UNIT TELEPHONE #.

▼

Press [Start/Copy].

Enter your fax number (up to 20 digits) using the numeric buttons.

• You can enter a plus sign (+) or space to make your number easier to read. To enter a plus sign (+), press [:].

• Correct errors by pressing [Clear] and re-enter the number.

Function

Registration

DA TA REGSTRATION

USER SETTINGS

DATE & TIME

UNIT TELEPHONE #

Ex:

TEL=

Ex:

TEL= 123 4567

2-10

Press [Start/Copy].

Wait a second for UNIT NAME to appear.

DATA ENTRY OK

UNIT NAME

Page 36

Press [Start/Copy].

Enter your name (up to 24 characters) using the numeric buttons. (see p. 2-5)

Correct errors by moving the cursor under the incorrect character using [3] or [4] and entering the correct character.

Press [Start/Copy].

Press [Stop].

Registration ends and the fax returns to standby mode.

Registering sender information

Ex:

_: A

ABC

DEF

Ex:

GHI

PQRS TUV

7 8

JKL

MNO

WXYZ

CANON : A

DATA ENTRY OK

PREPARING TO USE YOUR FAX

2-11

Page 37

Registering one-touch speed dialling numbers and names

The quickest way to dial a fax number is to use one-touch speed dialling. This allows you to dial a number by pressing a single button. Before you can use one-touch speed dialling, you must register the receiving number with your fax. One-touch speed dialling allows you to register a fax number (up to 120 digits) under a one-touch speed dialling button (01 to 07)*. You can also register the name of the party (up to 16 characters); the name appears on the printout of the one-touch speed dialling list. See One-touch speed dialling list, p. 9-8. Follow the procedure below to register numbers and names for one-touch speed dialling.

Press [Function].

▼

Press [Registration].

Use [ 1] or [ 2] to select TEL REGISTRATION.

▼

Press [Start/Copy].

Use [ 1] or [ 2] to select the number of the one- touch button you want to use for the number.

If a number is already registered under this one-touch speed dialling button, the number or GROUP DIAL is displayed on the LCD.**

▼

Press [Start/Copy] twice.

Function

Registration

DA TA REGSTRATION

TEL REGISTRA TION

1-TOUCH SPD DIAL

Ex:

01=

Ex:

04=

TELEPHONE NUMBER

TEL=_

* If you have not set up the Internet feature, speed dialling numbers can also be registered under the

Internet button.

** To delete the name and number registered under the one-touch speed dialling button, press [Clear] after

you perform steps 1 to 4 above.

2-12

Page 38

Registering one-touch speed dialling numbers and names

Enter the party’s number (up to 120 digits) using the numeric buttons. (see p. 2-5)

• Correct errors by pressing [Clear] and re-entering the number.

• Press [3] to delete the rightmost digit.

Ex:

TEL=2 50921_

Press [Start/Copy] to register the number.

Wait a second for NAME to appear.

▼

Press [Start/Copy].

Enter the party’s name (up to 16 characters) using the numeric buttons. (see p. 2-5)

Correct errors by moving the cursor under the incorrect character using [3] or [4] and entering the correct character.

Press [Start/Copy] to register the name.

GHI

PQRS TUV

7 8

DATA ENTRY OK

NAME

_:A

ABC

DEF

Ex:

JKL

MNO

WXYZ

CANON ITALI A :A

DATA ENTRY OK

Ex:

05=

PREPARING TO USE YOUR FAX

To assign additional one-touch speed dialling numbers, start from step 4 . To finish, press [Stop].

2-13

Page 39

Registering coded speed

dialling numbers and names

Use coded speed dialling to dial a fax number at the press of three buttons. A fax/telephone number can be registered under each two-digit speed dialling code (00-99) and you can register up to 100 locations, with each number containing up to 120 digits. You can also register the name of the party (up to 16 characters); the name appears on the printout of the coded speed dialling list. See Coded speed dialling list, p. 9-8. Follow the procedure below to register numbers and names for coded speed dialling.

Press [Function].

▼

Press [Registration].

Use [ 1] or [ 2] to select TEL REGISTRATION.

▼

Press [Start/Copy].

Use [ 1] or [ 2] to select CODED SPEED DIAL.

▼

Press [Start/Copy].

Use [ 1] or [ 2] to select the two-digit code under which you want to register the number.

If a number is already registered under this coded speed dialling code, the number or GROUP DIAL is displayed on the LCD.*

▼

Press [Start/Copy] twice.

Function

Registration

DA TA REGSTRATION

TEL REGISTRA TION

1-TOUCH SPD DIAL

CODED SPEED DIAL

Ex:

A00=

Ex:

A32=

TELEPHONE NUMBER

Enter the party’s number (up to 120 digits) and name the same way you registered them for one-touch speed dialling.

(See steps 5 to 8, Registering one-touch speed dialling numbers and names, p. 2-12.)

To assign additional coded speed dialling numbers, start from step 4. To finish, press [Stop].

* To delete the name and number registered under the coded speed dialling code, press [Clear] after you

2-14

perform steps 1 to 4 above.

Ex:

TEL=_

TEL=81 773 3173_

Page 40

Registering group dialling

numbers and names

The quickest way to send a document to multiple destinations is to use group dialling. This allows you to send a document to fax numbers registered in a group by either pressing a single button, or by pressing [Coded Dial/Directory] and then entering the two-digit code under which the group is registered. Before you can use group dialling, you must register a group of fax numbers for one-touch or coded speed dialling with your fax. You can register up to 106 fax numbers* in a group, with each number containing up to 120 digits. You can also register the name of the group (up to 16 characters); the name appears on the printout of the group dialling list. See Group dialling list, p. 9-8. Follow the procedure below to register numbers and names for group dialling.

PREPARING TO USE YOUR FAX

Press [Function].

▼

Press [Registration].

Use [ 1] or [ 2] to select TEL REGISTRATION.

▼

Press [Start/Copy].

Use [ 1] or [ 2] to select GROUP DIAL.

▼

Press [Start/Copy].

Select a one-touch speed dialling button or coded speed dialling code under which you want to register the group.

❚To register a group under a one-touch speed dialling button:

Use [1] or [2] to select the button under which you want to register the group (01 to 07)**.

• If a one-touch speed dialling button has already been registered, 1-TOUCH SPD or GROUP DIAL appears.

❚To re gister a group under a coded speed dialling code:

Press [Coded Dial/Directory], then use the numeric buttons to enter the code under which you want to register the group (00 to 99).

• If a coded speed dialling code has already been registered, CODED SPEED or GROUP DIAL appears.

If you wish to register a group under a button or code already registered for speed dialling, or you

want to re-register a group, you must delete the old information first. (see pp. 2-12, 2-14)

* If you have not set up the Internet feature, you can register up to 107 fax numbers. ** If you have not set up the Internet feature, speed dialling numbers can also be registered under the Internet

button.

Function

DA TA REGSTRATION

Registration

TEL REGISTRA TION

1-TOUCH SPD DIAL

GROUP DIAL

Ex:

01=

Ex:

03=

Ex:

A21=

2-15

Page 41

Press [Start/Copy] twice.

Enter the one-touch and/or coded speed dialling numbers you want to register in the group.

❚To enter a destination registered for one-touch speed

dialling: Press [Function], then press the one-touch speed dialling button(s) under which the number(s) you want to register in the group are registered.

❚To enter a destination registered for coded speed

dialling: Press [Coded Dial/Directory], then use the numeric buttons to enter the two-digit code under which the number you want to register in the group is registered. Repeat for other codes.

• The number registered under the one-touch speed dialling button or coded speed dialling code you enter appears. GROUP DIAL appears if you select a group.

• You cannot use the numeric buttons to enter numbers not registered for one-touch or coded speed dialling.

• You can enter the numbers of buttons or codes that have groups registered under them.

• To add destinations to a group already registered, simply enter them as explained in this step.

• If you enter the wrong destination, or if you want to delete a destination already registered in a group, use [1] or [2] to select that entry, then press [Clear].

• To cancel group dialling for the button or code you selected, press [Clear] until all entries are deleted, then press [Start/Copy]. Press [Stop] to return to standby mode. All fax numbers and the name of the group registered under that button or code will be deleted.

Function

01 07

TELEPHONE NUMBER

TEL=

Ex:

01= 905 795 1111

Clear

Ex:

A03= 516p488 6700

Press [Start/Copy] twice.

NAME

_:A

*If you have not set up the Internet feature, speed dialling numbers can also be registered under the Internet

button.

2-16

Page 42

Enter the party’s name (up to 16 characters) using the numeric buttons. (see p. 2-5)

Correct errors by moving the cursor under the incorrect character using [3] or [4] and entering the correct character.

Press [Start/Copy] to register the name.

To assign additional group dialling numbers, start from step 4. To finish, press [Stop].

Registering group dialling numbers and names

ABC

DEF

Ex:

GHI

PQRS TUV

7 8

JKL

MNO

WXYZ

Canon GROUP 1_ :1

DATA ENTRY OK

Ex:

04=1-TOUCH SPD

PREPARING TO USE YOUR FAX

2-17

Page 43

Automatic dialling

Sending a document using one-touch speed dialling, coded speed dialling or group dialling numbers _______________________________________

To use this feature you must first register numbers for one-touch speed dialling (see pp. 2-12, 2-13), coded speed dialling (see p. 2-14) or group dialling (see pp. 2-15 to 2-17).

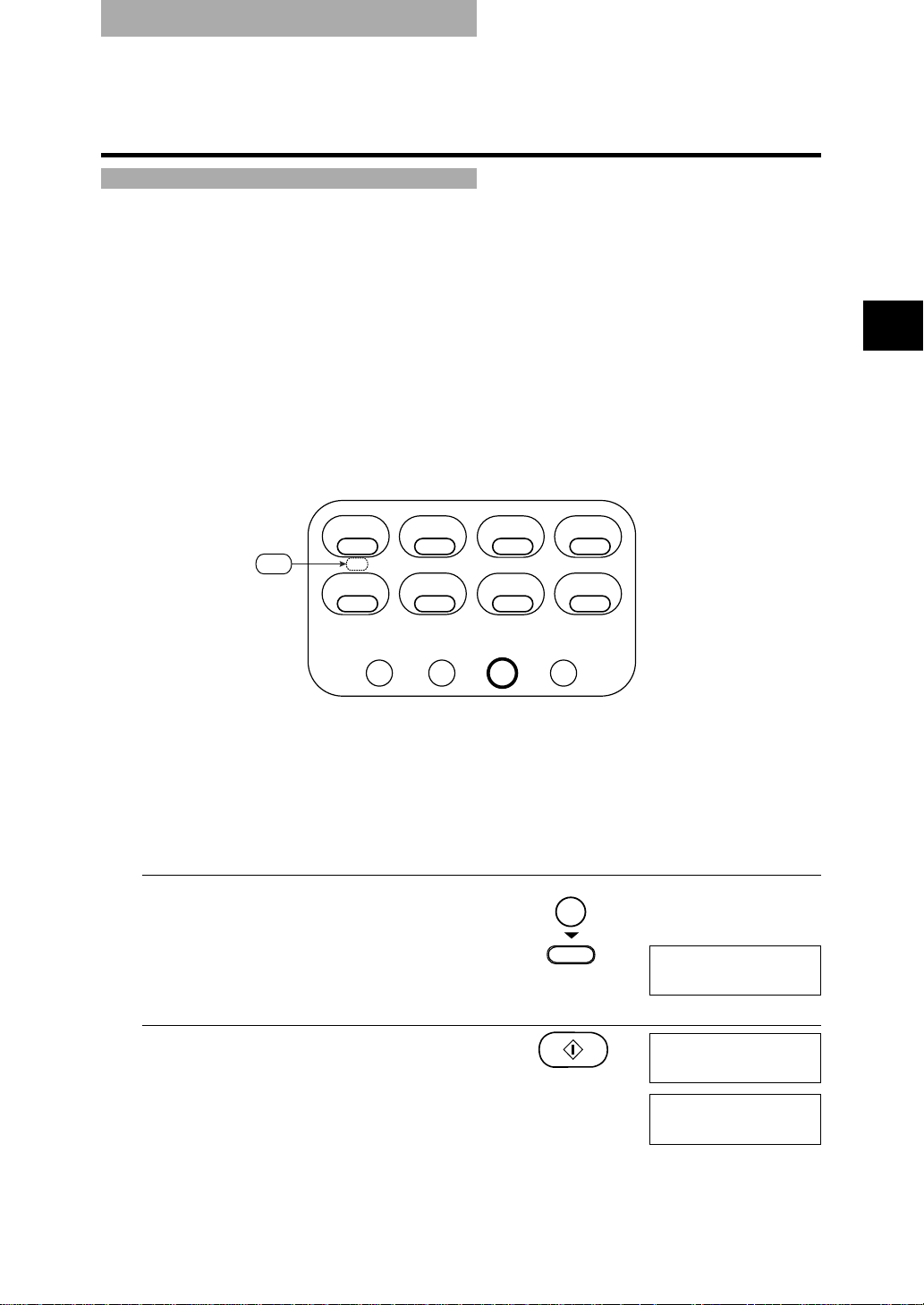

Follow the procedure below to send a document using a one-touch speed dialling, coded speed dialling or group dialling number.

Load the document face down into the Automatic Document Feeder (ADF).

See Loading documents, p. 3-3. You can set the scanning resolution and the contrast. (see p. 6-2)

Press the one-touch speed dialling button under which the number you wish to fax is registered.

01 07

Clear

DOCUMENT READY

Ex:

TEL= 905 795 1111

-or-

Press [Coded Dial/Directory] and enter the appropriate two-digit coded speed dialling code.

The registered number appears.

• If a group is already registered under a one-touch speed dialling button or coded speed dialling code, TEL=GROUP DIAL appears.

• If no number is registered for the one-touch speed dialling button or coded speed dialling code you pressed, the LCD shows NO DATA. Make sure you pressed the correct button or entered the correct code and that the number you want to dial is registered correctly.

• If an e-mail address or URL has been registered for the one-touch speed dialling button or coded speed dialling code you pressed, the LCD shows NOT AVAILABLE.

• If you make a mistake, press [Stop]. Then press the correct one-touch speed dialling button or press [Coded Dial/Directory] and re-enter the code.

• If an error message appears on the LCD, correct the error and press [Stop]. If necessary, see Faxing problems, p. 10-12.

Ex:

TEL= 1 49 39 25 25

*If you have not set up the Internet feature, speed dialling numbers can also be registered under the Internet

button.

2-18

Page 44

Automatic dialling

Sending a document using directory dialling__

This feature is convenient when you know the other party’s name but cannot recall the one-touch speed dialling button, the code for coded speed dialling, or the group where the number is registered. This procedure can also be used to look up the other party’s name and retrieve the number for dialling.

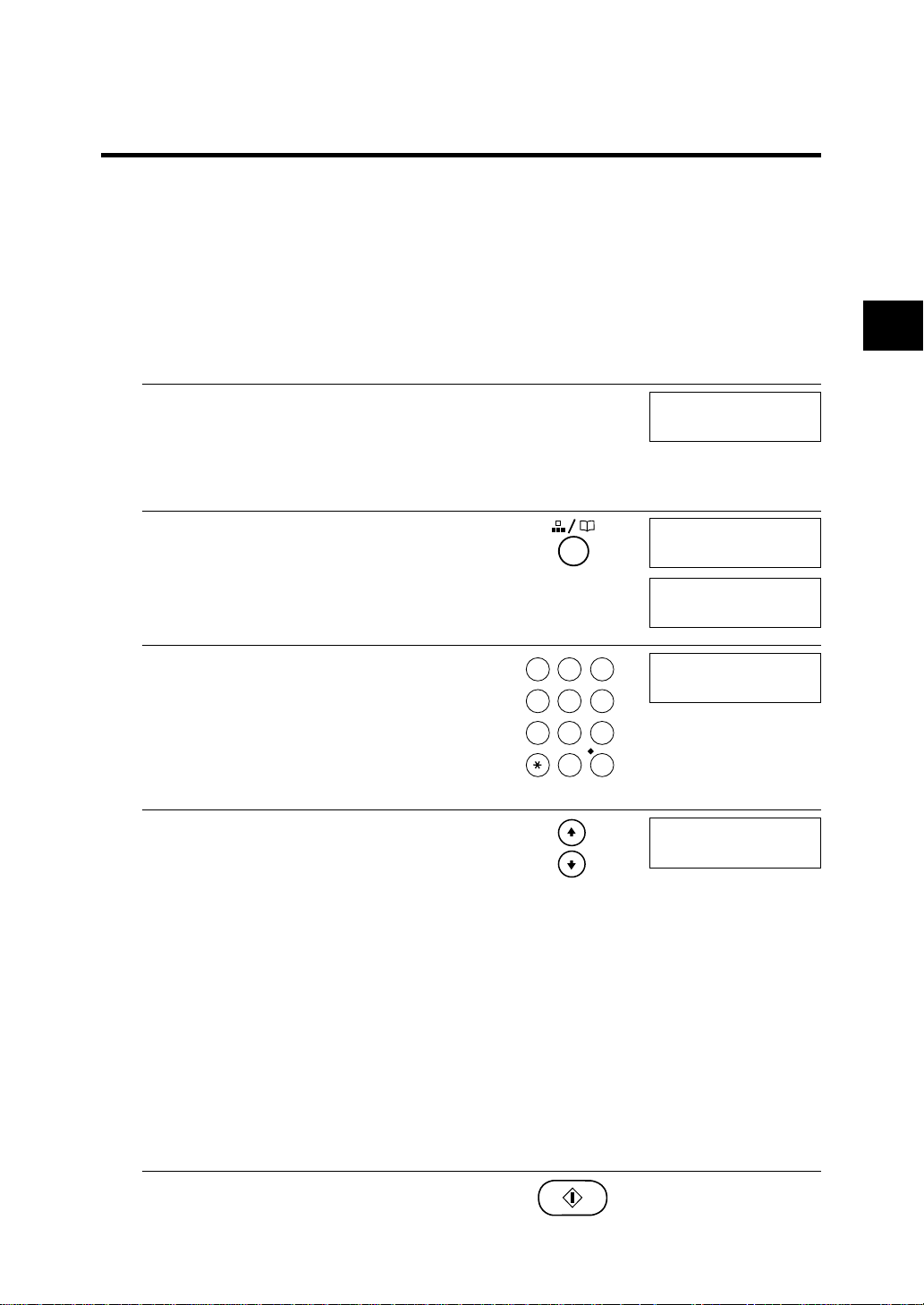

Follow the procedure below to send a document using directory dialling.

Load the document face down into the Automatic Document Feeder (ADF).

See Loading documents, p. 3-3. You can set the scanning resolution and the contrast. (see p. 6-2)

Press [Coded Dial/Directory] twice.

Press a numeric button to enter the first letter of the name of the party you are searching for.

GHI

PQRS TUV

7 8

ABC

DEF

JKL

MNO

WXYZ

DOCUMENT READY

1ST LETT OF NAME

Ex:

01 Canon CANADA

PREPARING TO USE YOUR FAX

Press [ 1] or [ 2] to display the other names and numbers registered for the button letter group.

• The names for one-touch speed dialling numbers are prefixed with two digits and the names for coded speed dialling numbers are prefixed with an asterisk (A) and two digits.

• When you reach the last number and name registered for the letter group, you will return to the first number and name in the group.

• After you press a button, if you see NO DATA on the LCD, this means there are no names that begin with a letter of the button you just pressed.

• If the LCD does not change after you press [1] or [2], this means only one name and number is registered for the button you just pressed.

• Use [3] or [4] to display the telephone number registered for the name.

With the telephone number you want to dial displayed, press [Start/Copy] to start the document transmission.

Ex:

A32 Canon UK

2-19

Page 45

Special dialling

This section explains how to dial long-distance numbers and confirm a dial tone.

■ Long-distance dialling

When you register a long-distance number, you may have to insert a pause within or after the number. For long-distance dialling, the location and length of the pause may differ depending on the telephone system. To enter a pause, press [Redial/Pause]. A pause within a number is 2 seconds long*. The length of this pause can be adjusted. See MID PAUSE SET, p. 9-4. A pause at the end of a number is fixed at 10 seconds.

■ Confirming a dial tone**

When you register a number, you may have to confirm the dial tone in the middle of a fax/telephone number before entering the rest of the number. This is called dial tone detection. When dial tone detection is required, press [D.T.]; a small dot (.) appears on the LCD.

* 4 seconds long in the UK and Hong Kong. Users in Hong Kong cannot enter continuous pauses. ** This feature is ineffective in the UK, Hong Kong, Australia, New Zealand, Singapore, and Malaysia.

2-20

Page 46

Using alternative telephone networks (UK only)

The fax has a built-in feature that allows you to send documents and make telephone calls with an alternative long-distance service, such as the UK Call, Global Call, and Day Call Services of Cable and Wireless Communications Limited available to users in the UK. If you subscribe to such a service, you can save money on most long-distance and international communications. The procedures described below show you how to use your fax with the services of Cable and Wireless Communications Limited. For details on using your fax with other alternative telephone services, contact your local authorised Canon dealer or the Canon help line.

Attaching the M label__________________________

If you are using an alternative long-distance service, attach the M label provided with your fax below the button shown here. This will help you identify the button you must press when using one of these services.

02 03 0401

D.T. Report Registration

06 0705

Internet

PREPARING TO USE YOUR FAX

PollingTimer Clear Cleaning

Resolution Cartridge FunctionR

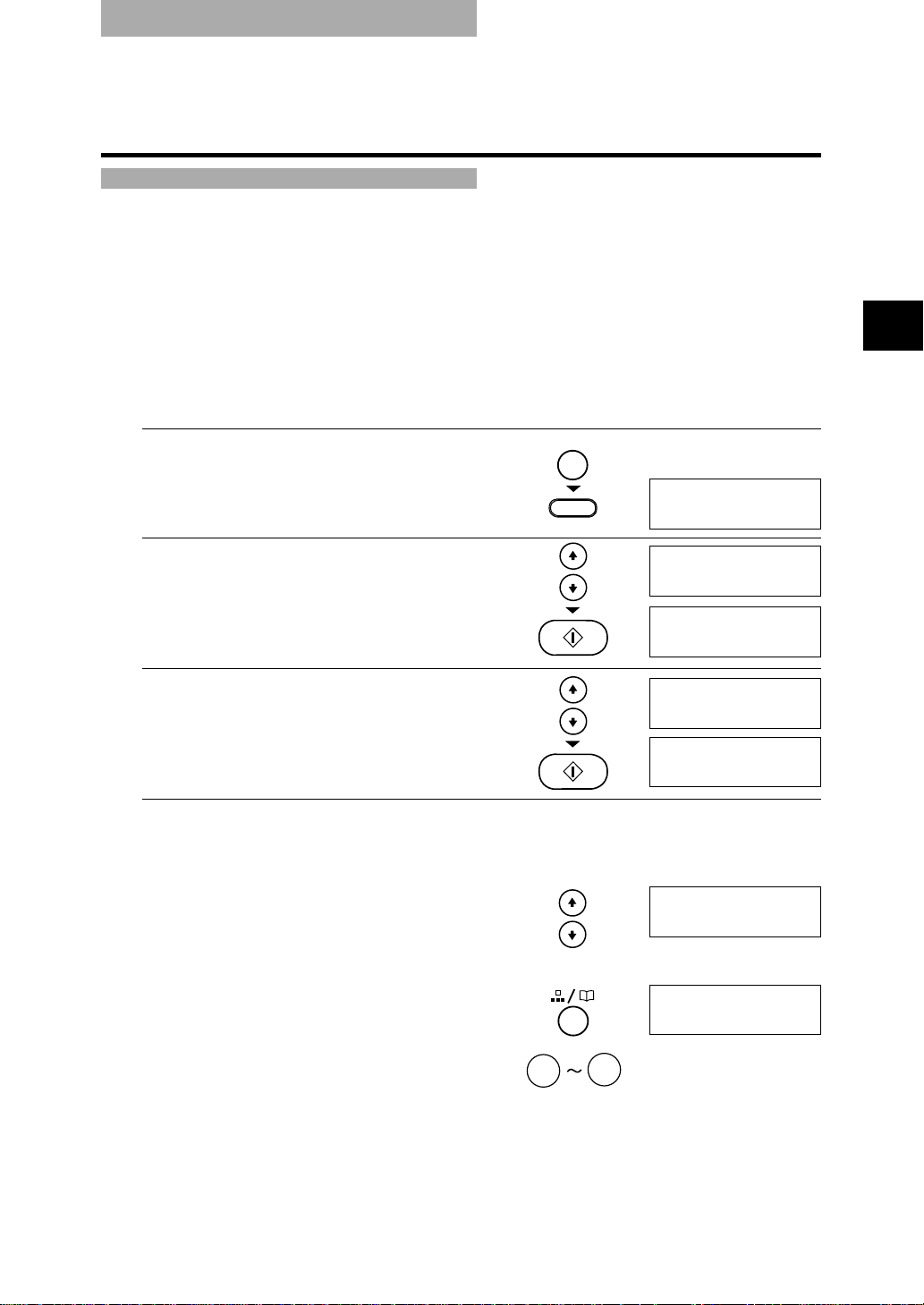

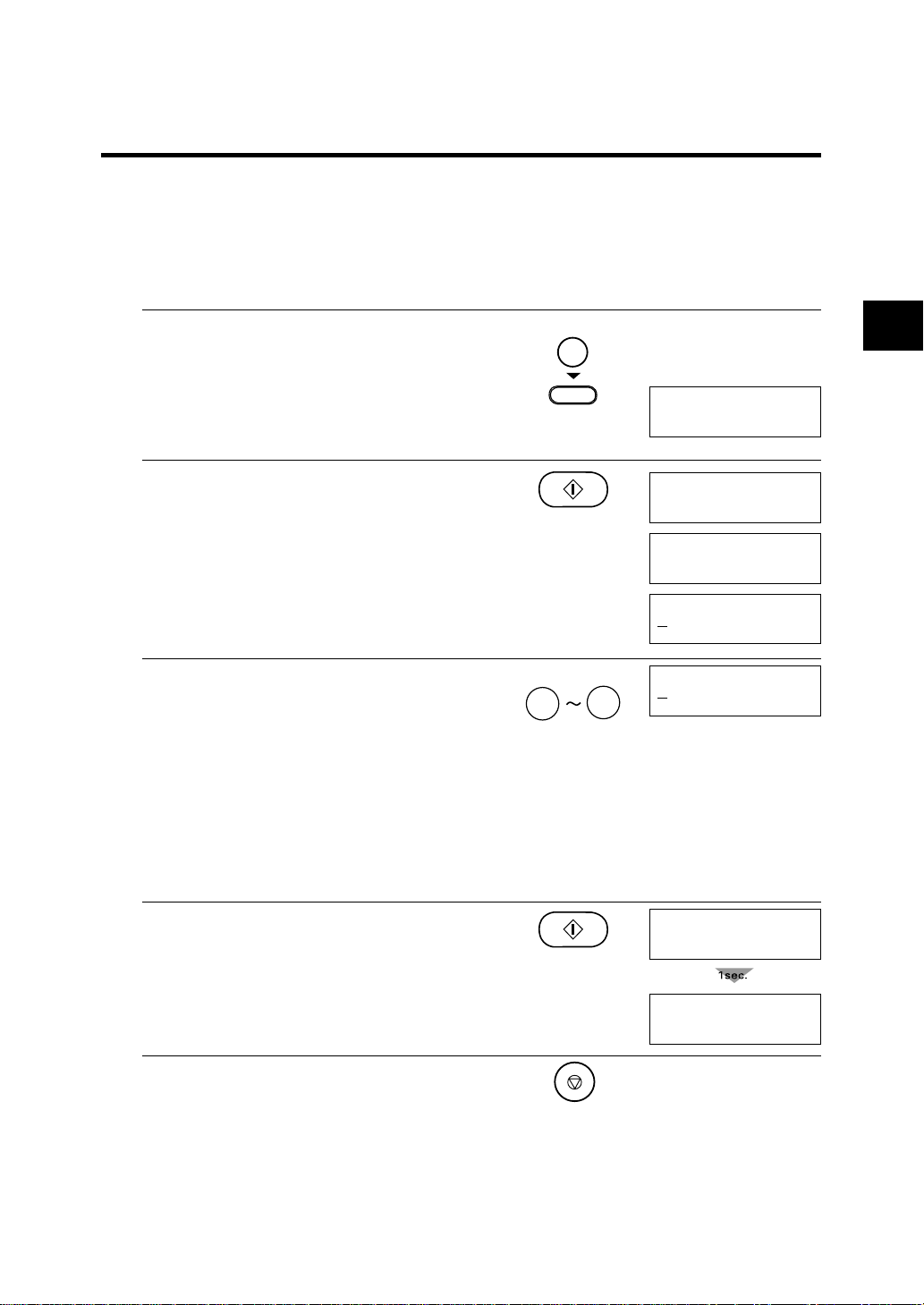

Registering an alternative telephone network _

Follow the procedure below to register the access and ID codes under the M button for an alternative network.

Press [Function].

▼

Press [Registration].

Press [Start/Copy] twice.

Function

Registration

DA TA REGSTRATION

USER SETTINGS

DATE & TIME

2-21

Page 47

Use [ 1] or [ 2] to select M-KEY SETTING.

▼

Press [Start/Copy].

Use [ 1] or [ 2] to select ON.

▼

Press [Start/Copy] twice.

Use [ 1] or [ 2] to select the access code.

You can select 132 or 131P.

Press [Start/Copy] twice.

If your access code is 132, you do not have to enter the ID code. Press [Stop] to return to standby mode.

M-KEY SETTING

Ex:

OFF

ACCESS CODE

Ex:

132

Ex:

131P

ID CODE

Ex:

2-22

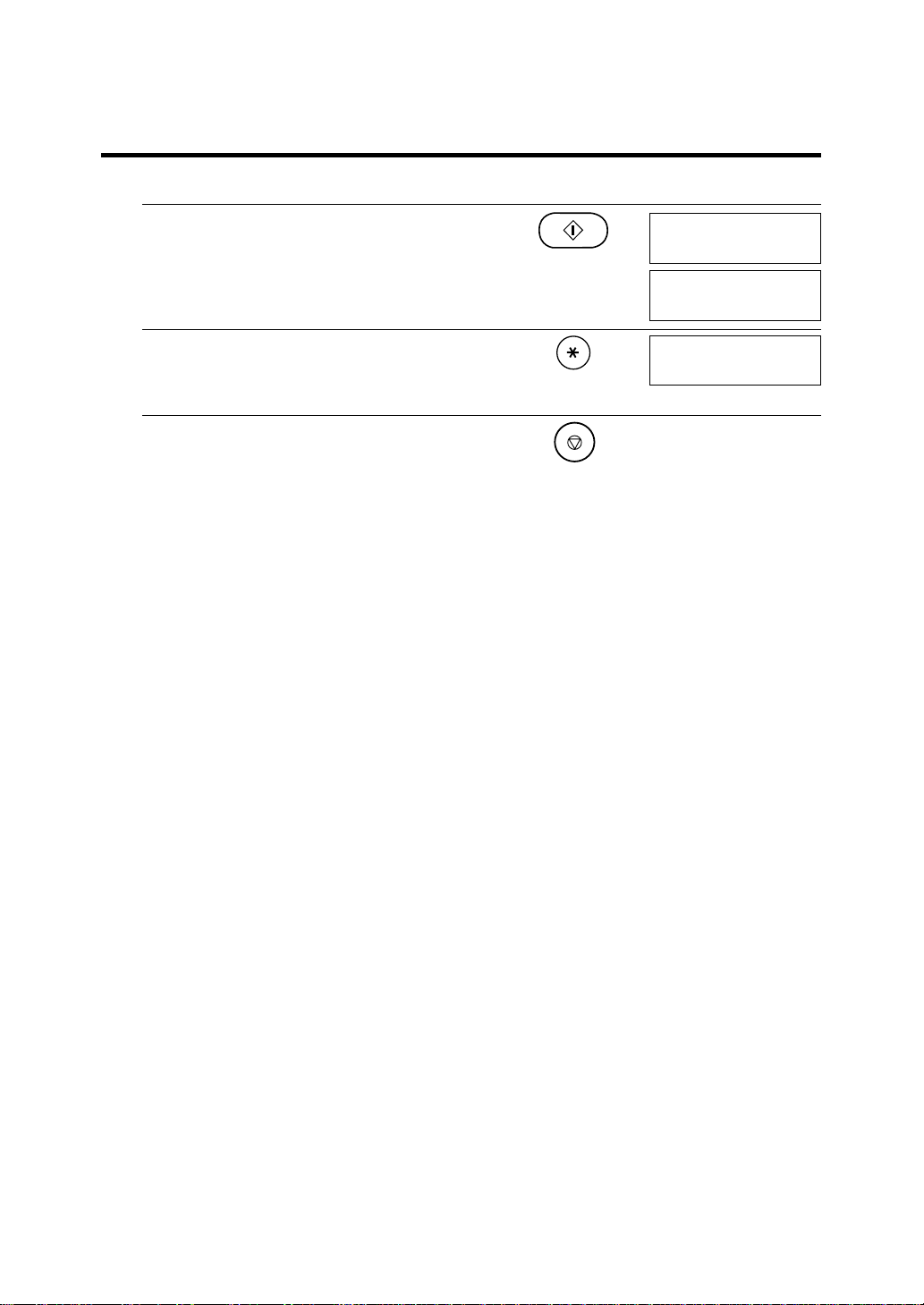

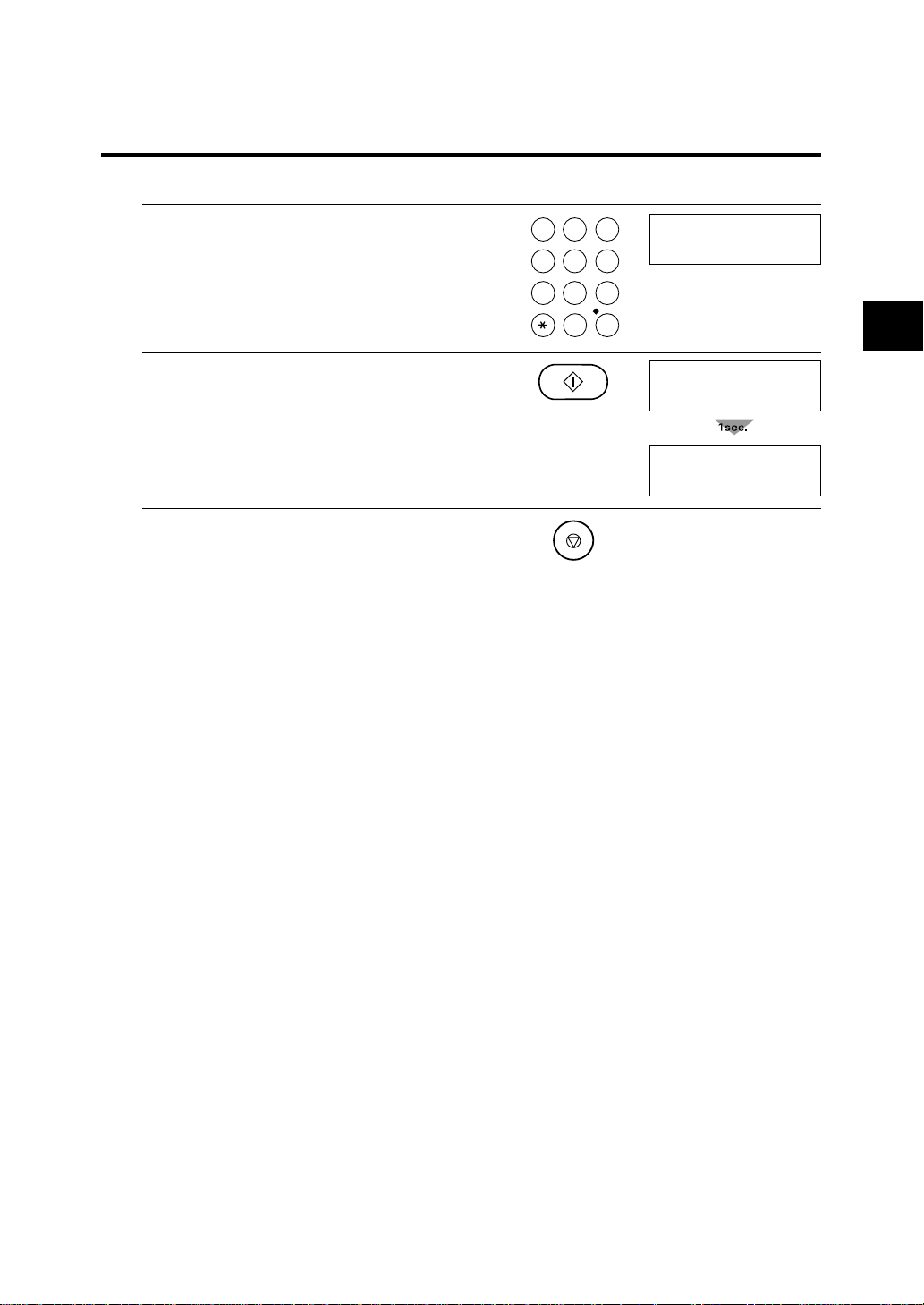

Enter the ID code (up to 20 digits) using the numeric buttons.

• This code is given to you by Cable and Wireless Communications Limited.

• If an ID code is already registered, you will see a string of asterisks (AAAAAAA) on the LCD.

Press [Start/Copy].

Press [Stop].

Registration ends and the fax returns to standby mode.

Ex:

1234567890

REPORT SETTINGS

Page 48

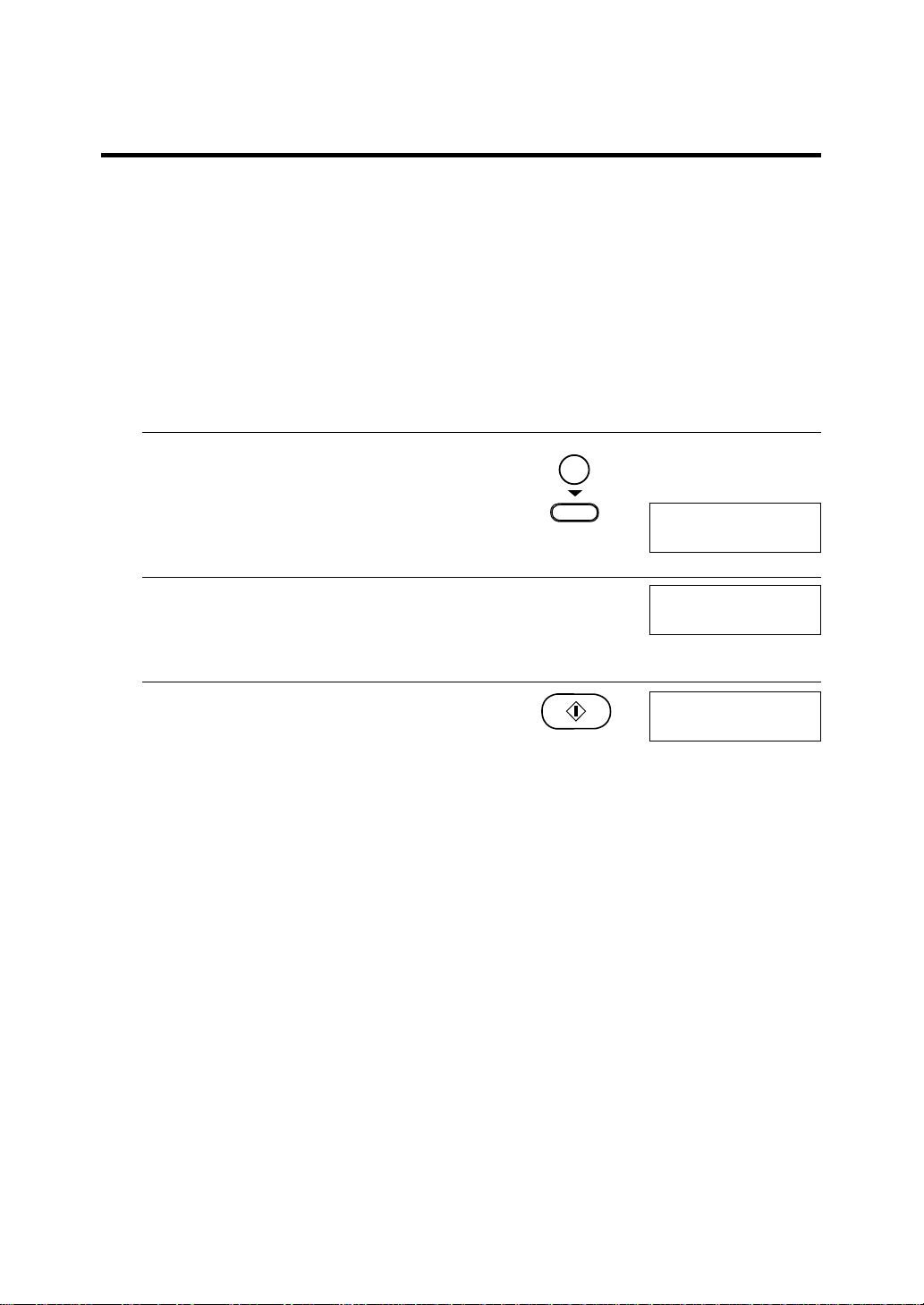

Using alternative telephone networks (UK only)

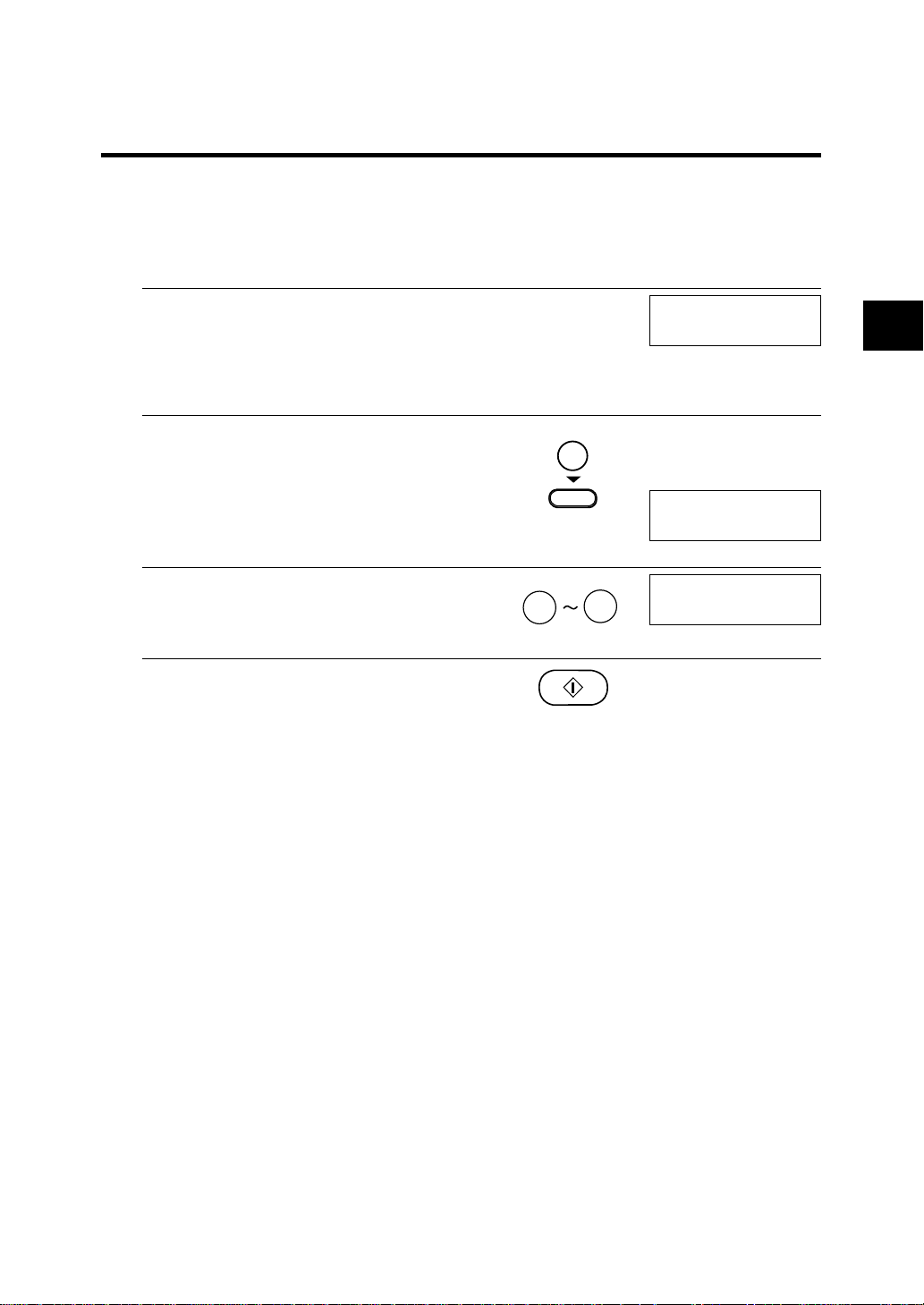

Sending with an alternative telephone network

Follow the procedure below to send using a registered long-distance service.

Load the document face down into the Automatic Document Feeder (ADF).

See Loading documents, p. 3-3. You can set the scanning resolution and contrast. (see p. 6-2)

DOCUMENT READY

PREPARING TO USE YOUR FAX

Press [Function].

▼

Press [M].

Dial the receiving party’s fax number.

Press [Start/Copy].

The fax automatically dials the access code and ID code registered under the [M] button. Next, the fax dials the number of the receiving party and connects the call. In order to protect your codes, the access code and ID code are not printed on activity reports.

Function

TEL= M

Ex:

TEL= M12345

2-23

Page 49

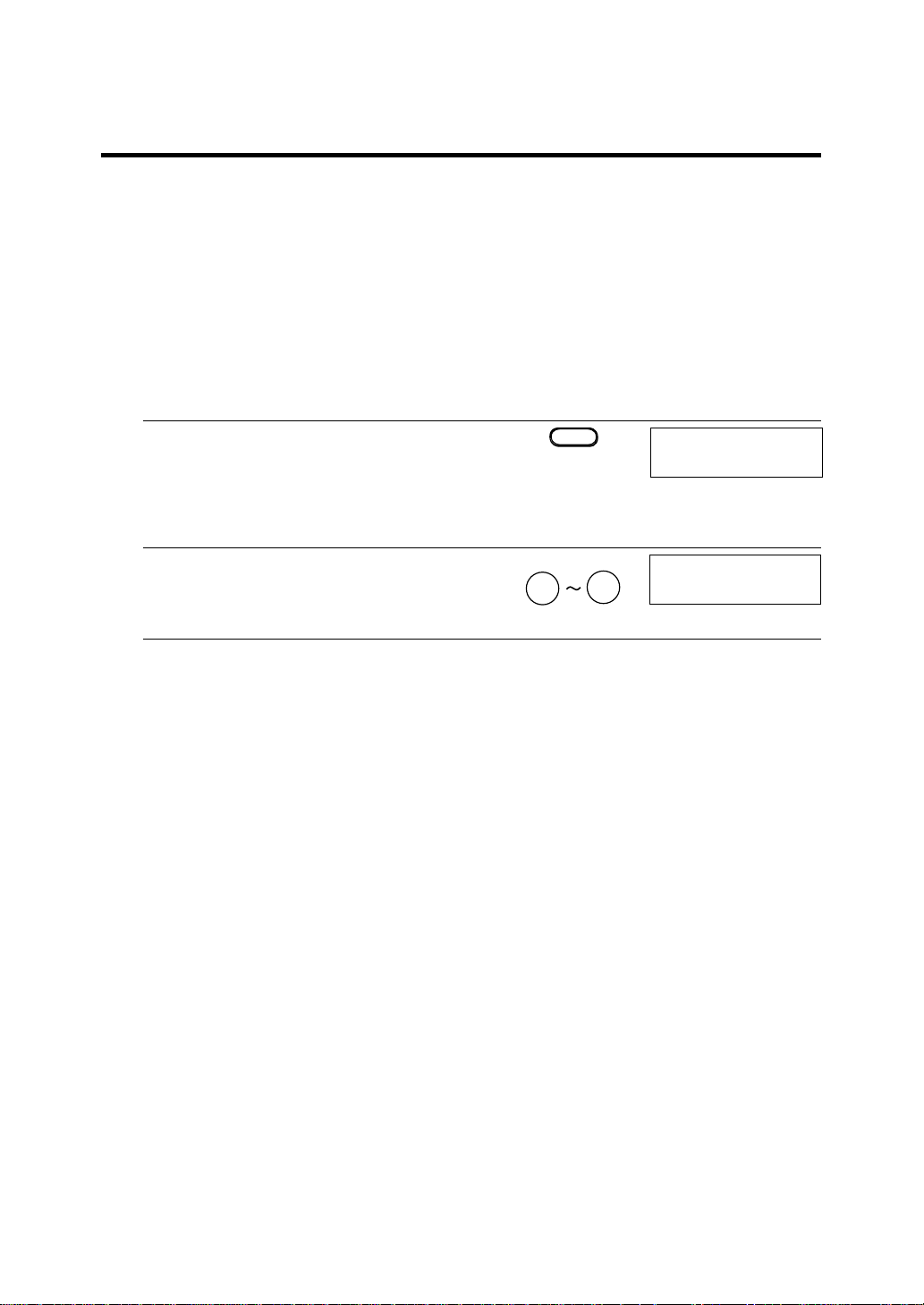

Registering speed dialling with the M button _

This allows you to send documents and make telephone calls over the services provided by Cable and Wireless Communications Limited at the press of one or a few buttons.

Follow the procedure below to enter your access code and ID code when you register a number for one-touch or coded speed dialling.

You must register the access and ID codes under the M button before you can register the M button under a one-touch speed dialling button or coded speed dialling code. (see pp. 2-21, 2-22)

When you are registering a number for one-touch or coded speed dialling, press [M] when you come to the step that requires you to enter the fax/telephone number of the other party.

Enter the number using the numeric buttons.

Continue with the procedure for registering a number for one-touch or coded speed dialling.

After you have registered the number for speed dialling, you can simply press the one-touch speed dialling button or press [Coded Dial/Directory] and enter the coded speed dialling code to dial the fax/telephone number using the services provided by Cable and Wireless Communications Limited.

Ex:

TEL=M_

Ex:

TEL=M4167951111_

2-24

Page 50

HANDLING

HANDLING DOCUMENTS

DOCUMENTS

Preparing documents ................................................3-2

Types of documents you can scan ...................................... 3-2

Problem documents ......................................................... 3-2

Loading documents ................................................... 3-3

Problems with multipage documents ................................... 3-4

Adding pages to the document ........................................... 3-4

Page 51

Preparing documents

Types of documents you can scan _____________

■ Size

The fax can scan standard A4-, letter-, or legal-size documents.

■ Thickness

Each sheet of the document should be of the same thickness and between 0.06 mm and 0.13 mm thick, with a paper weight between 50 g/m2 and 90 g/m2.

■ Scanned area

The actual area scanned by the fax is shown below.

2.0

2.0 m

3.5 mm

1.0

The margin on either side of the sheet and the margin on the top and bottom are not picked up by the scanner.

208 mm

1.0 ± 3.5 mm

293 mm

2.0 ± 2.0 m

Problem documents ___________________________

To prevent document jams in the ADF, do not attempt to load the following types of document into the fax.

Wrinkled or creased paper

Carbon paper or carbon-backed paper

Envelopes

Curled or rolled paper

Coated paper or glossy paper

Torn paper

Onion skin or thin paper

3-2

• Remove all staples, paper clips, etc. before loading the document into the ADF.

• Make sure any glue, ink or correction fluid on the paper is completely dry before loading the

document into the ADF.

• Make a photocopy of any document that will not feed into the fax so that you can then load the copy

into the ADF.

Page 52

Loading documents

Follow the procedure below to load documents into the Automatic Document Feeder (ADF).

Open the document tray.

Gently insert the top of the document

face down into the ADF until you hear a beep.

Adjust the document guides to the width

of the document.

HANDLING DOCUMENTS

Tap multipage documents on a flat surface to even the edges before inserting them into the ADF.

• For a multipage document, the pages are fed one by one from the bottom of the stack.

• Wait until all pages of your document have been scanned before starting a new job.

• Make sure you follow the procedure above to load documents into the ADF. If the document is not

loaded into the ADF correctly, it may not feed into the fax properly; resulting in a jam, or in pages not being sent.

• If you want to send a document with more than 20 pages, divide the document into 2 sections and

send each section in a separate transmission.

3-3

Page 53

Problems with multipage documents__________

If you have trouble feeding multipage documents from the Automatic Document Feeder (ADF) into the fax, remove the stack and tap it on a flat surface to even the edges. Then slant the stack so that its front edge is bevelled, and insert the stack into the ADF.

To avoid feeding problems, make sure the document meets the document requirements. (see p. 3-2)

Adding pages to the document ________________

You can load up to 20 A4- or letter-size sheets, or 10 legal-size sheets at a time into the ADF. For longer documents, wait until the final sheet has started feeding, then load up to 20 more sheets (10 for legal-size). If you want to add pages while the fax is sending a document, insert the first new page so that it overlaps the last page by about 2 cm.

3-4

2 cm

Where possible, you should avoid adding pages to the document you are sending as this may lead to a jam in the ADF or a paper misfeed.

Page 54

HANDLING PAPER

Paper requirements .................................................... 4-2

Printable area ................................................................ 4-2

Loading paper ................................................................ 4-2

HANDLING PAPER

Page 55

Paper requirements

Your fax supports A4-, letter-, and legal-size paper in portrait orientation. You can use regular copier paper, cotton bond paper, or typical letterhead. Your fax does not require special ink jet paper. Always use paper without curls, folds, staples, or damaged edges. Look at the label on the package to see if the paper has a preferred side for printing.

You can stack the following paper in the multi-purpose tray.

Size (W × L) Weight Quantity

A4 (210 × 297 mm/8.27 × 11.69 in.) 64–90 g/m

Letter (215.9 × 279.4 mm/8.5 × 11 in.)

Legal (215.9 × 355.6 mm/8.5 × 14 in.)

Be sure to test paper before purchasing large quantities.

Approx. 100 sheets* (Max. 10 mm stack)

Printable area__________________________________

The shaded area below shows the printable area of A4-size paper. Be sure to print within this area.

210 mm

3 mm

297 mm

3.4 mm

FEED

DIRECTION

7 mm

3.4 mm

Loading paper _________________________________

For details on loading paper in the multi-purpose tray, see p. 1-13.

4-2

* 75 g/m2 paper

Page 56

MAKING

COPIES

Copying documents ..................................................5-2

MAKING COPIES

Page 57

Copying documents

One of the convenient features of the fax is its ability to make high quality copies. You can make up to 99 copies of one document at a time.

It is recommended that the output tray is extended when making copies. If the tray does not extend easily, use your other hand to support the fax while extending the tray.

Follow the procedure below to copy a document.

Open the document tray.

Load the document face down into the Automatic Document Feeder (ADF).

See Loading documents, p. 3-3.

Press [Start/Copy].

DOCUMENT READY

COPY 100% 01

Press [Resolution].

You can select TEXT or PHOTO.

To make a reduction of your document, use [ 1] or [ 2] to select the percentage.

You can select 100%, 90%, 80% or 70%.

Enter the number of copies (up to 99) using the numeric buttons.

To make a correction to the number of copies, make sure the [Function] button’s light is on and then press [Clear] and re-enter the number.

Press [Start/Copy].

To stop copying anytime, press [Stop]. You ma y then need to lift the operation panel to remove the document. See Jams in the Automatic Document Feeder, p. 10-2.

You will be unable to make multiple copies if MEMORY FULL appears on the LCD. Print or delete any documents stored in memory (see pp. 6-16, 6-17, 7-11) to free up space in the fax’s memory, then

start again. Also, if you are copying multiple pages with many graphics, separate the pages into smaller stacks or make the desired number of copies one at a time as needed.

Resolution

Ex:

TEXT

Ex:

COPY 80% 01

Ex:

COPY 80% 02

COPY

5-2

Page 58

SENDING

DOCUMENTS

Preparing to send a document ................................. 6-2

Adjusting the quality of your documents ............................... 6-2

Sending methods ............................................................ 6-3

Dialling methods ............................................................. 6-4

Sending documents ..................................................6-5

Memory sending ............................................................. 6-5

Manual sending .............................................................. 6-6

Messages displayed during sending .................................... 6-7

Cancelling sending ....................................................6-8

Redialling when the line is busy ..............................6-9

Manual redialling ............................................................ 6-9

Automatic redialling ........................................................ 6-9

Delayed sending ......................................................6-12

Sending other documents while the fax is set

for delayed sending ................................................. 6-13

Cancelling delayed sending ............................................. 6-13

Sequential broadcasting .........................................6-15

Sending a document to more than one location ................... 6-15

Documents stored in memory................................6-16

Printing a list of documents in memory ............................... 6-16

Printing a document in memory ........................................ 6-16

Deleting a document from memory .................................... 6-17

SENDING DOCUMENTS

Page 59

Preparing to send a document

Before you send a document, see Chapter 3: HANDLING DOCUMENTS.

Adjusting the quality of your documents______

■ Setting the scanning resolution

Resolution is a measure of the fineness or clarity of a printout. Low resolutions may cause text and graphics to have a jagged appearance, while higher resolutions provide smoother curves and lines, crisp text and graphics, and a better match to traditional typeface designs.

The higher the resolution, the higher the output quality, but the slower the scanning speed.

Press [Resolution] to select the resolution.

You can select FAX STANDARD, FAX FINE or FAX PHOTO.

After about 10 seconds, the fax returns to standby mode.

You can change the resolution setting while the document is being scanned for sending. However, please note that your new setting will only be effective from the next page scanned.

Resolution

Ex:

FAX PHOTO

■ Setting the scanning contrast

Contrast is the difference in brightness between the lightest and darkest parts of a printed document. You can adjust the contrast your fax uses to send or copy documents, according to how light or dark your document is.

Follow the procedure below to set the scanning contrast.

Press [Function].

▼

Press [Registration].

Press [Start/Copy] twice.

Function

Registration

DA TA REGSTRATION

USER SETTINGS

DATE & TIME

6-2

Page 60

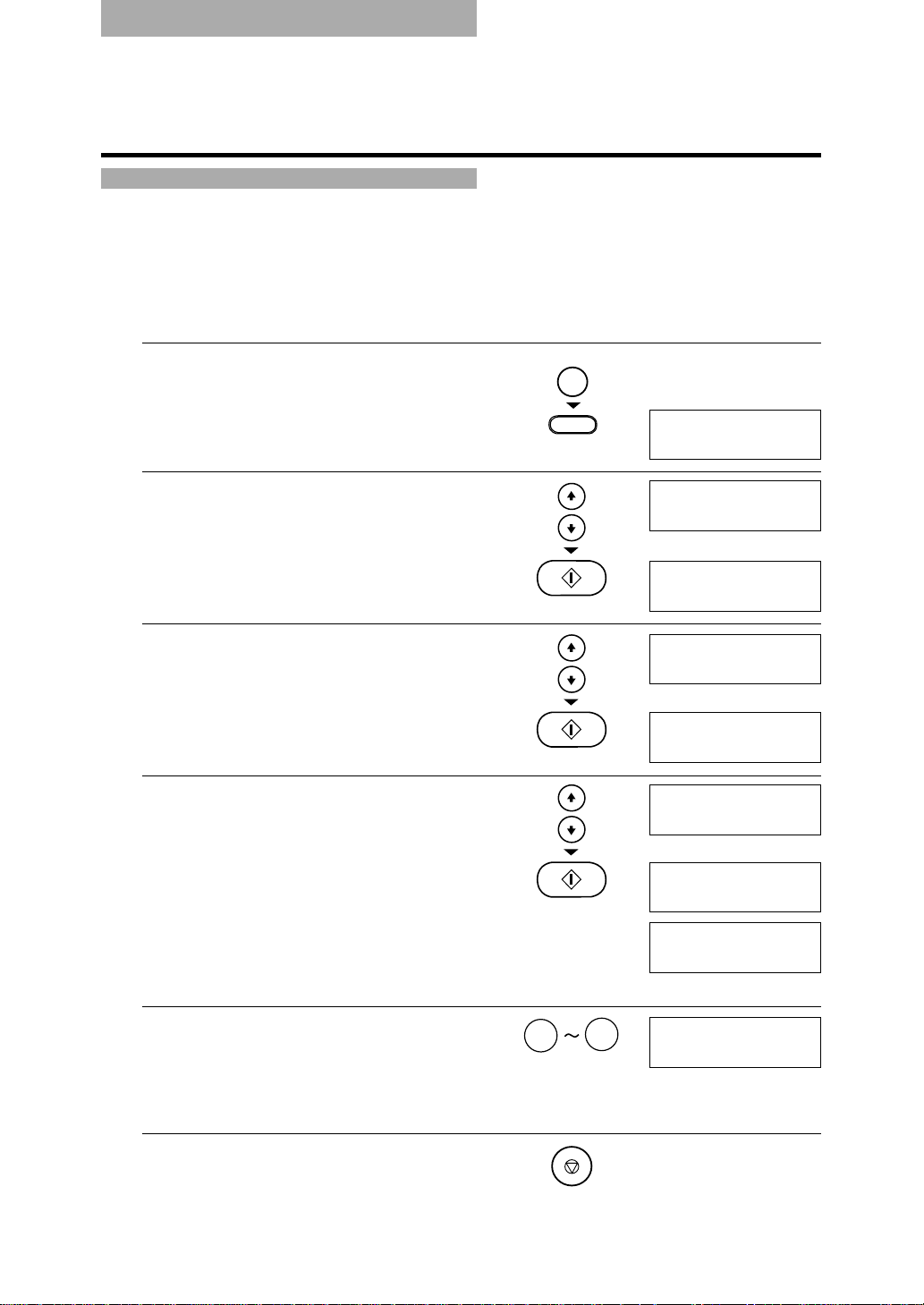

Preparing to send a document

Use [ 1] or [ 2] to select SCAN CONTRAST.

▼

Press [Start/Copy].

Use [ 1] or [ 2] to adjust the scanning contrast.

You can select STANDARD, DARKER or LIGHTER.

▼

Press [Start/Copy].

Press [Stop].

Setting ends and the fax returns to standby mode.

SCAN CONTRAST

Ex:

STANDARD

Ex:

DARKER

OFFHOOK ALARM

Sending methods ______________________________

SENDING DOCUMENTS

■ Memory sending (see p. 6-5)

Each time you send a document, the fax quickly scans the document into memory and then sends the document from memory after it has dialled the receiving party. This is called memory sending. Memory sending allows you to remove the original document immediately after scanning. If MEMOR Y FULL appears on the LCD when you load the document into the ADF, dial the receiving number and press [Start/Copy]. In this case, the document is not scanned into memory but is sent directly to the receiving party.

■ Manual sending (see p. 6-6)

If you would like to speak with the receiving party before sending a document to them, use manual sending. When sending manually, you dial, converse normally and then press [Start/Copy] to begin sending. For manual sending, you need to have the handset (included with your fax) or an optional extension phone connected.

■ Internet fax (see the separate Internet Fax Manual)

6-3

Page 61

Dialling methods ______________________________

There are several methods of dialling the receiving party’s number, depending on how your fax is set up.

■ Regular dialling

Dial a fax number using the numeric buttons. Remember that when using regular dialling, you must press [Start/Copy] after entering the number.

■ One-touch speed dialling (see p. 2-12)

Dial a fax number that has been registered under a one-touch speed dialling button by simply pressing the corresponding one-touch speed dialling button.

■ Coded speed dialling (see p. 2-14)

Dial a fax number that has been registered under a coded speed dialling code by pressing [Coded Dial/Directory] and the two-digit code under which the number is registered. Scroll through coded speed dialling locations by pressing [Coded Dial/Directory] and then using [1] or [2] to scroll through a list of coded speed dialling codes under which numbers have been registered.

■ Group dialling (see p. 2-15)

Dial fax numbers registered in a group by either pressing a single button, or by pressing [Coded Dial/Directory] and then entering the two-digit code under which the group is registered.

■ Directory dialling (see p. 2-19)

Dial a fax number after looking up the receiving party’s name and retrieving the number.

6-4

Page 62

Sending documents

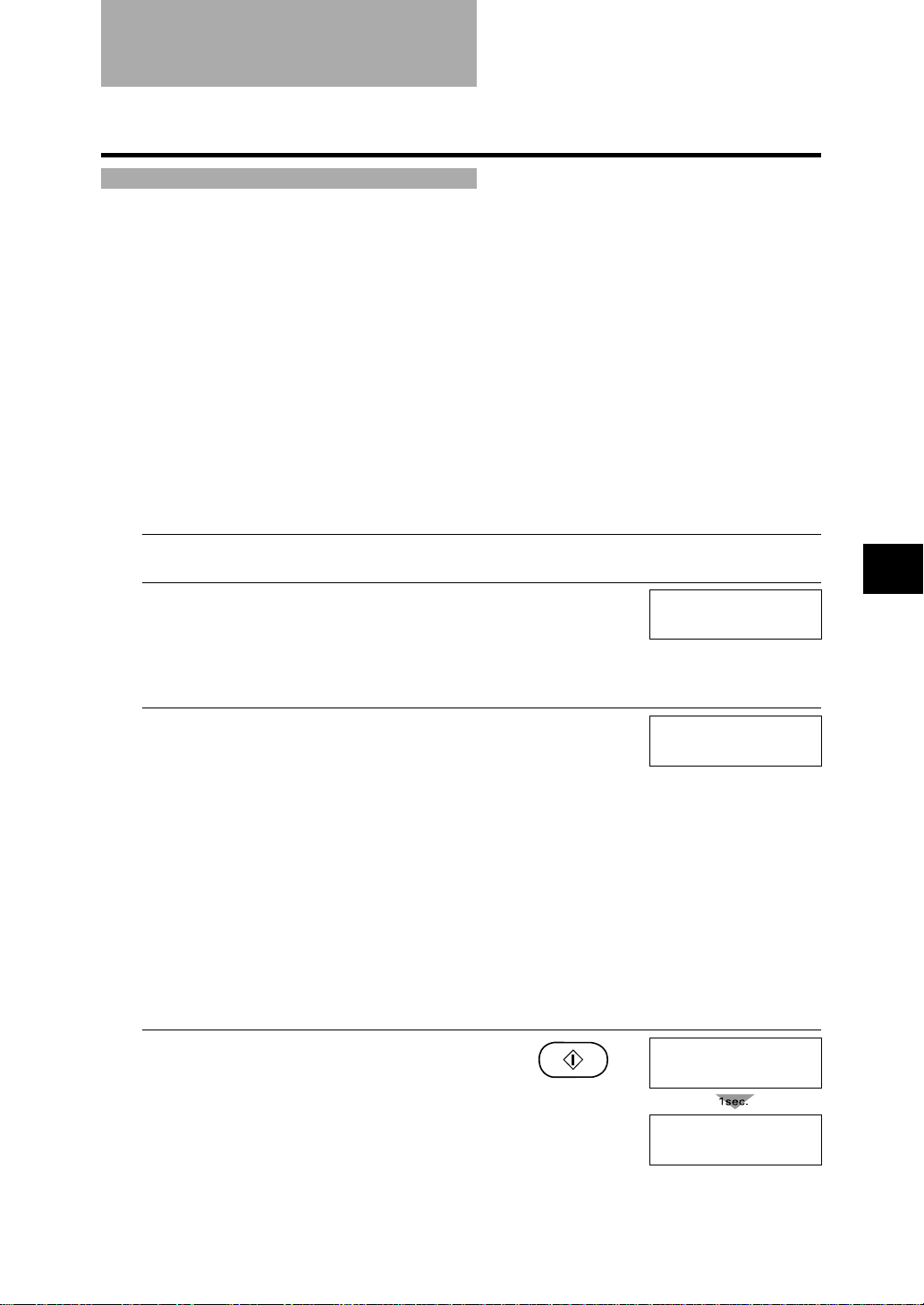

Memory sending _______________________________

When you send a document, the fax uses memory sending to send your document. With memory sending, the fax quickly scans the document into memory. Then, after it dials the receiving party, it sends the document from memory. This means you do not have to wait for the fax to finish sending before you can retrieve your original document. You can send up to 20* A4-size pages at a time with memory sending (based on the Canon FAX Standard Chart No.1, standard resolution).

If MEMORY FULL appears on the LCD when you load the document into the ADF, simply dial the receiving number and press [Start/Copy]. In this case, the document is not scanned into memory but is

sent directly to the receiving party.

Follow the procedure below to send a document.

Open the document tray.

Load the document face down into the Automatic Document Feeder (ADF).

See Loading documents, p. 3-3. You can set the scanning resolution and contrast. (see p. 6-2)

Dial the receiving party’s fax number.

Use one of the dialling methods described earlier in this chapter. (see p. 6-4)

Press [Start/Copy].

If the TIME OUT setting is set to ON the fax will start scanning automatically. (see p. 9-4)

▼

The fax scans the document into memory and begins sending.

• If an error occurs during sending, the fax beeps intermittently for a few seconds. If this happens, try

sending the document again.

• The fax automatically redials if the receiving party does not answer or if the line is busy. (You can

specify the number of times it redials; see AUTO REDIAL, p. 9-4.)

• If an error message appears on the LCD, correct the error and then press [Stop]. See LCD messages,

p. 10-18.

• You may not be able to use memory sending if the percentage of currently used memory shown on

the LCD is close to 100%. If the memory becomes full while the fax is scanning your document into memory, MEMORY FULL is displayed on the LCD. If this should happen, you can wait until enough memory is available and the fax begins to scan the document again automatically, or you can choose to print or delete one of the documents already scanned into the memory (see pp. 6-16, 6-17). If you want to remove the document from the fax and try to send it again later, open the operation panel and remove the document. In this case, see Jams in the Automatic Document Feeder, p. 10-2.

DOCUMENT READY

Ex:

TEL= 34567890

SCANNING P.001

SENDING DOCUMENTS

*A maximum of 50 pages can be scanned into the fax memory. A maximum of 20 pages can be loaded into

the ADF .

6-5

Page 63

Manual sending ________________________________

If you would like to first speak with the person you are sending the document to, use manual sending. You need to connect the handset (included with your fax) or an optional extension phone to the fax for manual sending.

Follow the procedure below to send a document using manual sending.

Open the document tray.

Load the document face down into the Automatic Document Feeder (ADF).

See Loading documents, p. 3-3. You can set the scanning resolution and contrast. (see p. 6-2)

Pick up the handset or press [Hook] and dial the receiving party’s fax number.

Use one of the dialling methods described earlier in this chapter. (see p. 6-4)

If a person answers, converse normally, then ask them to press the start button on their fax. Press [Start/Copy] and hang up.

If you hear a high pitch tone, press [Start/Copy] and hang up.

DOCUMENT READY

Ex:

TEL= 34567890

6-6

• You can press [Hold] during a call to put the call on hold for up to 10 minutes. After 10 minutes have

passed, the call will be taken off hold automatically. If the handset is in its cradle when this occurs, the call is disconnected.

• The fax will beep if the handset is not hung up properly. Make sure the handset is seated properly in

its cradle. If you do not want the fax to beep, disable the OFFHOOK ALARM setting. (see p. 9-3)

• If an error occurs during sending, the fax beeps intermittently for a few seconds. If this happens, try

sending the document again.

• If an error message appears on the LCD, correct the error and then press [Stop]. See LCD messages,

p. 10-18.

Page 64

Sending documents

Messages displayed during sending ___________

When your fax sends a document, the following messages are displayed as the call progresses.

The LCD tells you when scanning begins.

TX/RX NO. 0003

⇓

SCANNING P.001

⇓

The fax is dialling the receiving party’s phone number.

DIALLING

The receiving party’s phone is ringing.

CALLING

After a few moments the LCD begins changing every second.

TX/RX NO. 0003

⇓

CANON INC.

Receiving party’s name (For some models, the receiving party’s name may not be displayed.)

⇓

7893456

Receiving party’s number

⇓

ECM TX P.002

TX P.002

or If ECM is off, “TX P.xxx” is displayed.

After the document is sent, the fax beeps once (after manual sending only) and the LCD tells you when the transmission has ended.

SENDING DOCUMENTS

TRANSMITTING OK

6-7

Page 65

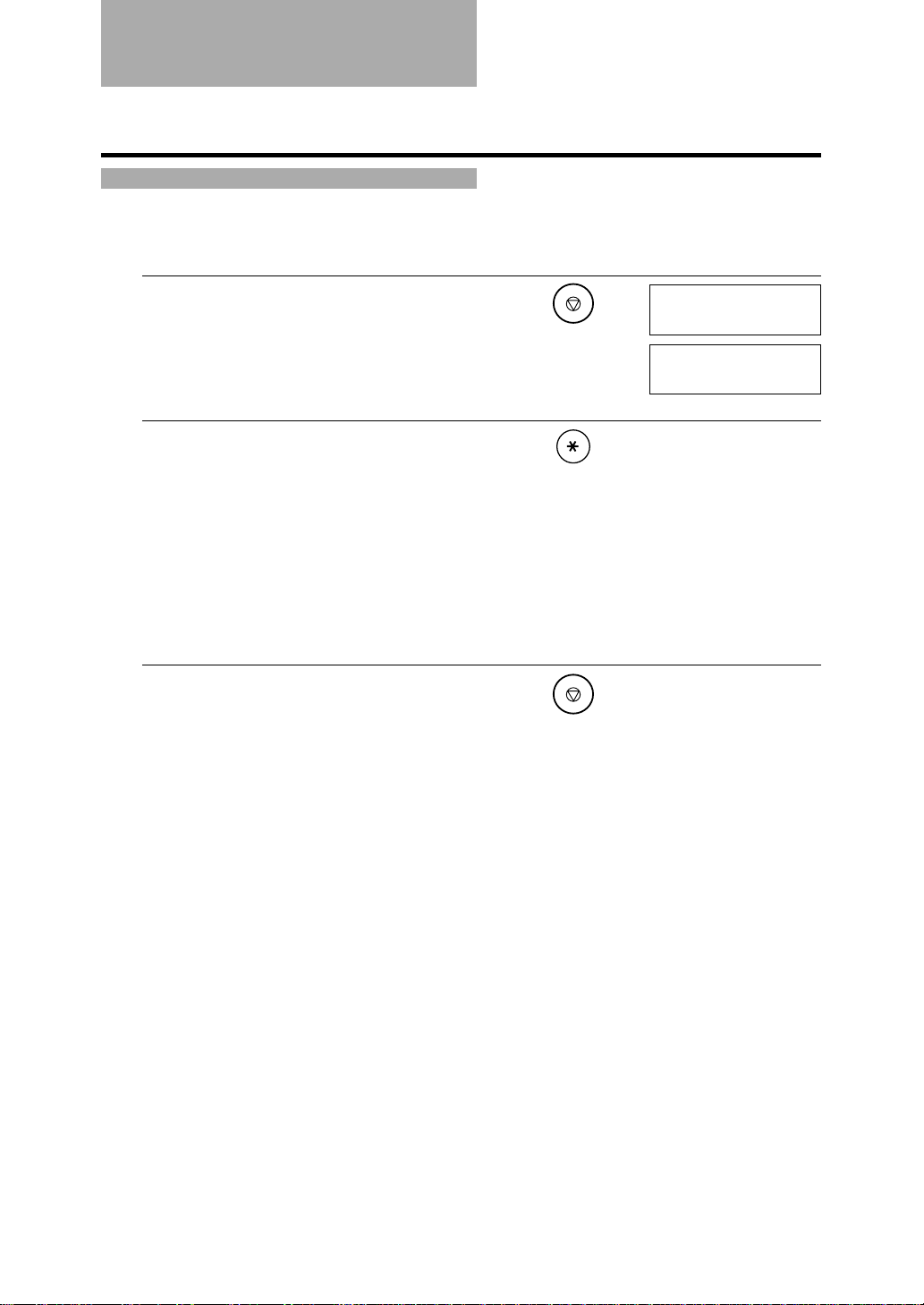

Cancelling sending

Follow one of the procedures below to stop sending a document before transmission is completed.

■ Cancelling memory sending

Press [Stop].

The fax asks you to confirm that you want to cancel sending.

Press [ :] to cancel sending.

• Sending is not cancelled until you press [:].

• If you change your mind and want to continue

sending, press [#].

• To cancel transmission of a document waiting to be sent, you will have to delete it from memory. (see p. 6-17)

• The fax prints an ERROR TX REPORT. (see p. 9-12)

■ Cancelling manual sending

CANCEL? AYES #NO

YES=(A) NO=(#)

Press [Stop].

• The transmission is cancelled.

• The fax prints an ERROR TX REPORT.

(see p. 9-12)

When you cancel sending, you may need to open the operation panel to remove the document from the Automatic Document Feeder (ADF). See Jams in the Automatic Document Feeder, p. 10-2.

6-8

Page 66

Redialling when the line is busy

There are two methods of redialling: manual redialling and automatic redialling. This section explains these two methods.

Manual redialling ______________________________

Press [Redial/Pause] to dial the last number you dialled with the numeric buttons. (This starts redialling regardless of whether automatic redialling is enabled.)

■ Cancelling manual redialling

To cancel manual redialling, press [Stop].

Automatic redialling___________________________

■ What is automatic redialling?

When you are sending a document using memory sending and the receiving party’s line is busy, the fax waits the specified time and then dials the same number again. You can set the fax to redial several times if previous attempts fail because of a busy signal. This feature is called automatic redialling.

SENDING DOCUMENTS

After the initial dial attempt, the fax is factory-set to wait two minutes and then try to dial again. If the second attempt fails because the line was busy, the fax will again wait for two minutes and make a final attempt to complete the call.

Automatic redialling can be turned off and on. The number of redialling attempts and the time interval between attempts can also be adjusted. (see AUTO REDIAL, p. 9-4)

If all redialling attempts are unsuccessful, the fax will cancel the transmission and print an ERROR TX REPORT to remind you that the transmission was not completed. (see p. 9-12)

When automatic redialling is in use, the LCD alternately displays AUTO REDIAL and the transaction number (TX/RX NO. xxxx) while it is waiting to redial.

6-9

Page 67

■ Cancelling automatic redialling

Automatic redialling cannot be cancelled with the [Stop] button while the fax is waiting to redial. Follow the procedure below to cancel automatic redialling.

Wait until the fax begins redialling.

DIALLING

Press [Stop].

The fax asks you to confirm that you want to cancel automatic redialling.

Press [ :] to cancel redialling.

• Redialling is not cancelled until you press [:].

• If you change your mind and want to continue

redialling, press [#].

• The fax prints an ERROR TX REPORT. (see p. 9-12)

If you want to cancel a transmission while the fax is waiting to redial, you will have to delete the document from memory. (see p. 6-17)

CANCEL? AYES #NO

YES=(A) NO=(#)

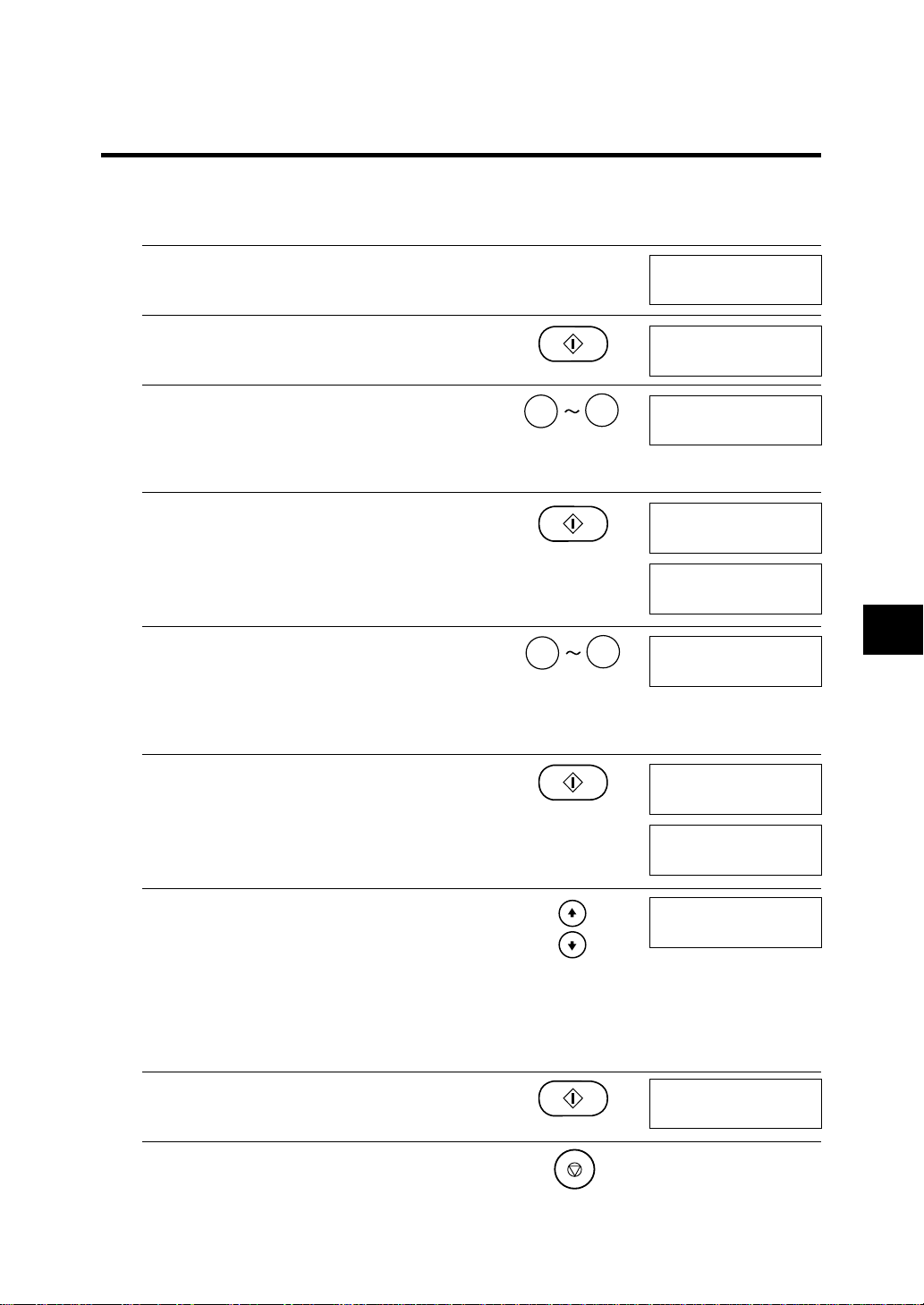

■ Setting the options for automatic redialling

You can set the following options for automatic redialling:

• Whether or not the fax redials automatically.

• The number of times the fax attempts to redial.

• The time interval between redialling attempts.

Follow the procedure below to set the automatic redialling settings.

Press [Function].

▼

Press [Registration].

Press [Start/Copy].

6-10

Function

Registration

DA TA REGSTRATION

USER SETTINGS

Page 68

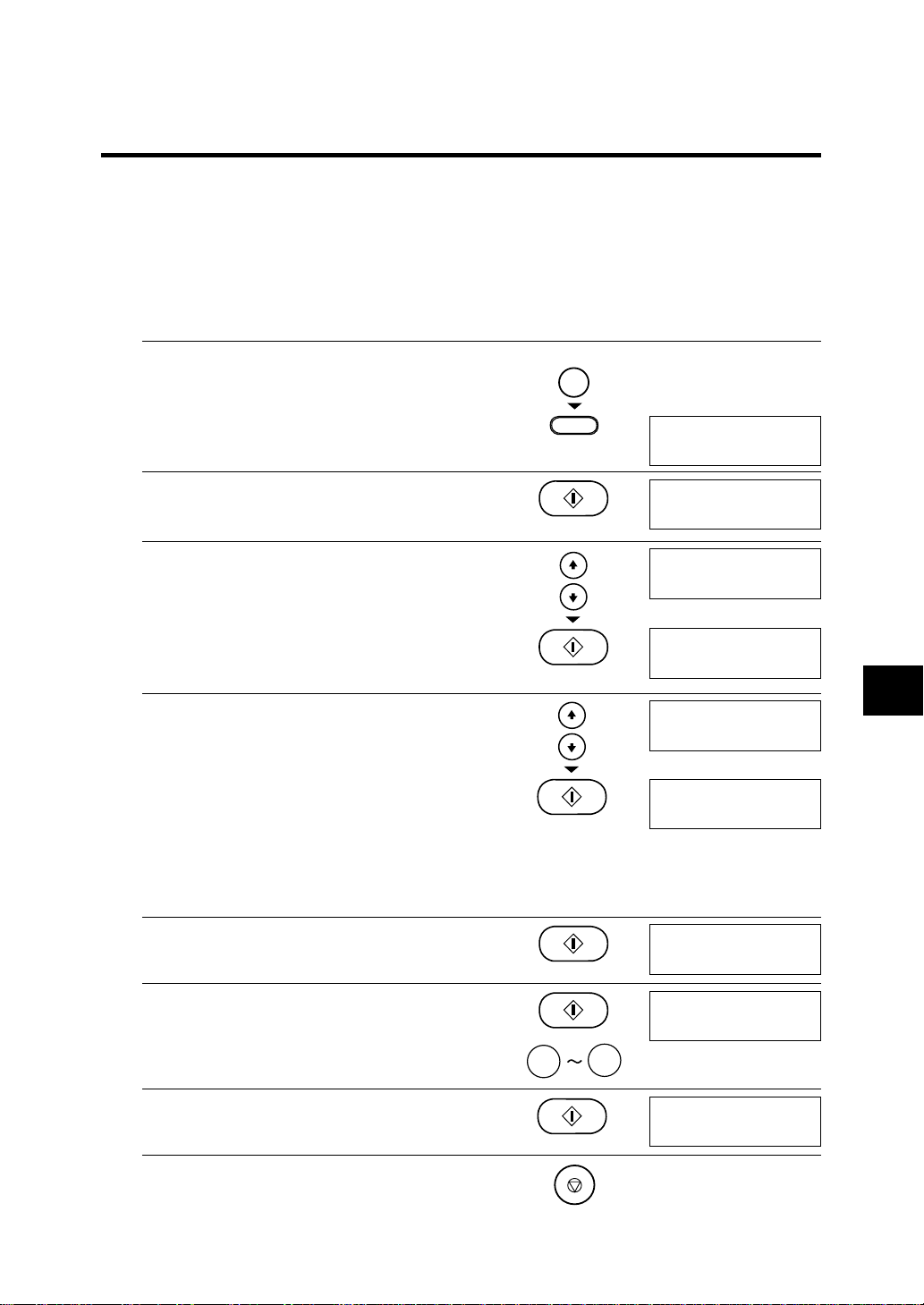

Use [ 1] or [ 2] to select TX SETTINGS.

▼

Press [Start/Copy].

Use [ 1] or [ 2] to select AUTO REDIAL.

▼

Press [Start/Copy].

• To disable automatic redialling, use [1] or [2] to select OFF, then press [Start/Copy]. Press [Stop] to return to standby mode.

• To enable automatic redialling, use [1] or [2] to select ON and continue with the steps below.

Press [Start/Copy] twice.

Redialling when the line is busy

TX SETTINGS

ECM TX

AUTO REDIAL

Ex:

REDIAL TIMES

Ex:

2TIMES

SENDING DOCUMENTS

Use the numeric buttons to enter the number of times you want the fax to redial.

• You can select from 1 to 10 times*.

• The default setting is twice.

Press [Start/Copy] twice.

Use the numeric buttons to enter the time interval between redialling attempts.

• You can select from 1 to 99 minutes**.

• The default setting is 2 minutes.

Press [Start/Copy].

Press [Stop].

The fax returns to standby mode.

* Up to 2 times in Australia, 3 times in Hong Kong, 5 times in New Zealand, and 15 times in Malaysia. ** Minimum interval is 2 minutes in Singapore.

Ex:

5TIMES

REDIAL INTERVAL

Ex:

TIME OUT

2MIN.

5MIN.

6-11

Page 69

Delayed sending

Your fax can send documents automatically at a preset time. This allows you to take advantage of lower late night long-distance rates offered by some telephone companies.

It is possible to set the fax to send transmissions at 30 different preset times. See Sending a document to more than one location for details, p. 6-15.

Follow the procedure below to send a document using delayed sending.

Open the document tray.

Load the document face down into the Automatic Document Feeder (ADF).

See Loading documents, p. 3-3. You can set the scanning resolution and contrast. (see p. 6-2)

DOCUMENT READY

Press [Function].

▼

Press [Timer].

Press [Start/Copy].

Enter the desired sending time (24-hour clock) using the numeric buttons.

• Set the time using the 24-hour clock system.

Precede single digits with a zero. Example: 7:30 a.m. = 07:30

• Press [Clear] if you need to re-enter the time.

• You can also use [3] or [4] to move the cursor.

Press [Start/Copy].

Function

Timer

Ex:

SET TIME 15:00

Ex:

SET TIME 23:00

SELECT LOCA TIONS

TEL=

6-12

Enter the receiving party’s fax number.

• You can enter the receiving party’s fax number

using the numeric buttons, one-touch speed dialling, coded speed dialling, or group dialling (see p. 2-18). If necessary, press [Function] to turn its light off.

• If you use the numeric buttons, press [Start/Copy]

after entering the number to register it before going on to the next number.

Ex:

TEL= 34567890

Page 70

Delayed sending

Press [Start/Copy].

The fax scans the document into memory.

When the set time comes, the fax dials and sends the document.

DELAYED TX

Ex:

TX/RX NO. 0005

SCANNING P.001

Sending other documents while the fax is set for delayed sending____________________________

You can send, receive, and copy other documents even when the fax is set for sending at a preset time.

The fax can only register one preset sending operation at a time.

SENDING DOCUMENTS

To send or copy other documents after setting the fax for delayed sending, simply send or copy using any other sending procedure in this guide.

Delayed sequential broadcasting is applicable for sending one document to more than one location at a later time when multiple fax numbers are dialled. (see p. 6-15)

Cancelling delayed sending____________________

Follow the procedure below to cancel delayed sending.

Press [Function].

▼

Press [Timer].

Use [ 1] or [ 2] to select DELETE FILE.

To check the contents of a file, select PRINT. (see p. 6-16)

▼

Press [Start/Copy].

Function

Timer

DELETE FILE

Ex:

TX/RX NO. 0006

6-13

Page 71

Use [ 1] or [ 2] to select the file you want to delete.

Use [3] or [4] to display the telephone number and the time for which delayed sending has been set.

▼

Press [Start/Copy].

Press [ :] to delete the file.

• The file is not deleted until you press [:].

• If you change your mind and want to continue

sending, press [#].

• If you want to cancel delayed sending for any other documents, repeat the procedure from step 3.

Press [Stop].

The fax returns to standby mode.

Ex:

TX/RX NO. 0005

OK TO DELETE?

YES=(A) NO=(#)

ERASING END

6-14

Page 72

Sequential broadcasting

Sending a document to more than one location

Sequential broadcasting sends one document to more than one location. You can send to a total of 108 locations* as follows:

One-touch speed dialling = 7 locations** Coded speed dialling = 100 locations Regular dialling (Numeric buttons dialling) = 1 location

You can enter the one-touch speed dialling and coded speed dialling locations in any order. You simply press the one-touch speed dialling button, or press [Coded Dial/Directory] followed by the two-digit code. You can also include one location using regular dialling. Remember that when using regular dialling, you must press [Start/Copy] after entering the number. You can send up to 50 A4-size pages (based on the Canon FAX Standard Chart No.1, standard resolution).

Open the document tray.

Load the document face down into the Automatic Document Feeder (ADF).

See Loading documents, p. 3-3. You can set the scanning resolution and contrast. (see p. 6-2)

DOCUMENT READY

SENDING DOCUMENTS

Dial the receiving party’s fax number.

• You can send to up to 108 locations*.

• Simply enter the numbers one after the other: press

the desired one-touch speed dialling button or press [Coded Dial/Directory] followed by the two-digit code.

• You can enter only one number directly with the numeric buttons using regular dialling. Remember to press [Start/Copy] after entering the number.

• You can also press [Redial/Pause] to redial the last number dialled with the numeric buttons.

• You must press each button within 10 seconds of the preceding one. The fax begins the operation approximately 10 seconds after you press the last button.

Press [Start/Copy].

• The fax reads the document into memory and begins sending.

• To cancel a transmission, press [Stop] during dialling or transmission. All transmissions in the sequence are cancelled.

* When the Internet feature has not been set up, you can send a document to 109 locations. ** When the Internet feature has not been set up, you can send to 8 locations.

Ex:

TEL= 34567890

Ex:

TX/RX NO. 0007

SCANNING P.001

6-15

Page 73

Documents stored in memory

Printing a list of documents in memory _______

Your fax can print a list of documents stored in memory, along with the transaction number (TX/RX NO.) of each document. Once you know the transaction number of a document in memory, you can print it or delete it. See Doc. memory list, p. 9-8.

Printing a document in memory _______________

Follow the procedure below to print a document stored in memory.

Press [Function].

▼

Press [Registration].

Use [ 1] or [ 2] to select MEMORY REFERENCE.

▼

Press [Start/Copy].

Use [ 1] or [ 2] to select PRINT DOCUMENT.

▼

Press [Start/Copy].

Use [ 1] or [ 2] to select the transaction number (TX/RX NO.) of the document you want to print.

• If you are unsure of the transaction number (TX/RX NO.), print the Doc. memory list. (see p. 9-8)

• Use [3] or [4] to display details of the transaction (destination, for example).

Function

Registration

DA TA REGSTRATION

MEMORY REFERENCE

DOC. MEMORY LIST

PRINT DOCUMENT

Ex:

TX/RX NO. 0001

Ex:

TX/RX NO. 0003

6-16

Press [Start/Copy].

1ST PG ONL Y?

YES=(A) NO=(#)

Page 74

Documents stored in memory

Press [ :] to print the first page only, or press [#] to print all pages of the document.

The fax prints the document.

To continue printing other documents in memory, repeat the procedure from step 4. To finish, press [Stop].

Deleting a document from memory ___________

Follow the procedure below to delete a document from memory.

Press [Function].

▼

Press [Registration].

Use [ 1] or [ 2] to select MEMORY REFERENCE.

▼

Press [Start/Copy].

Use [ 1] or [ 2] to select DELETE DOCUMENT.

▼

Press [Start/Copy].

Use [ 1] or [ 2] to select the transaction number (TX/RX NO.) of the document you want to delete.

• If you are unsure of the transaction number (TX/RX NO.), print the Doc. memory list. (see p. 9-8)

• Use [3] or [4] to display details of the transaction (destination, for example).

Function

Registration

DA TA REGSTRATION

MEMORY REFERENCE

DOC. MEMORY LIST

DELETE DOCUMENT

Ex:

TX/RX NO. 0001

Ex:

TX/RX NO. 0003

SENDING DOCUMENTS

6-17

Page 75

Press [Start/Copy].

The fax asks you to confirm that you want to delete the document.

Press [ :] to delete the document.

If you change your mind and want to keep the document in memory, press [#].

To continue deleting other documents in memory, repeat the procedure from step 4. To finish, press [Stop].

OK TO DELETE?

YES=(A) NO=(#)

ERASING END

6-18

Page 76

RECEIVING

DOCUMENTS

Different ways to receive a document ....................7-2

Receiving documents automatically: FAX ONLY MODE ............ 7-3

Receiving both documents and telephone calls automatically:

Fax/Tel mode ............................................................ 7-5

Receiving documents manually: MANUAL MODE ................... 7-8

Receiving documents with an answering machine:

ANS.MACHINE MODE (FAX-EB10 only) .............................. 7-10

Other features .......................................................... 7-11

Receiving documents while performing other tasks .............. 7-11

Receiving documents in memory when a problem occurs ...... 7-11

Polling to receive documents ........................................... 7-12

Cancelling receiving ................................................7-13

Telstra FaxStream™ Duet (Australia only) ............7-14

Setting the fax for network switch .................................... 7-14

Operation for network switch system ................................ 7-15

Telecom FaxAbility (New Zealand only)................ 7-16

Setting the fax network .................................................. 7-16

Operation for network switch system ................................ 7-17

RECEIVING DOCUMENTS

Page 77

Different ways to receive a document

Your fax provides you with several modes for receiving documents. To determine which mode best suits your requirements, see the table below.

Receive Mode

F AX ONLY MODE

F AX/TEL A UTO SW (Fax/Tel mode)

MANUAL MODE

ANS.MACHINE MODE (FAX-EB10 only)

Once you have decided which mode is suitable for your needs, set the mode as described in this chapter. You can change the mode at any time.

Main Use

Fax

Fax/Tel

Tel

Fax/Tel

Operation

Answers all calls as fax calls. Receives documents automatically and disconnects voice calls.

Automatically switches between fax and voice calls. Receives documents automatically and rings for voice calls.

Rings for every call, regardless of whether the call is a fax call or a voice call. For a fax call, you have to manually activate reception of the fax.

Receives documents automatically and routes voice calls to the answering machine.

Requirements

Separate telephone line for fax use only.

Handset, telephone, or extension phone connected to the fax.

Answering machine connected to the fax.

Details

p. 7-3

p. 7-5

p. 7-8

p. 7-10

7-2

Page 78

Different ways to receive a document

Receiving documents automatically: FAX ONLY MODE__________________________________________

If you have a separate telephone line for your fax, set FAX ONLY MODE for the fax to answer all calls as fax calls.

■ Setting FAX ONLY MODE (FAX-EB10 only)

Your fax is factory-set to FAX ONLY MODE. If you have not changed the receive mode to Fax/Tel mode, simply follow the procedure below.

Press [Receive Mode] to select FAX ONLY MODE.

After a few seconds, the LCD changes to this display:

If FaxOnly does not appear on the LCD, follow the procedure below to set this mode.

F AX ONLY MODE

▼

Ex:

15:00 FaxOnly

■ Setting FAX ONLY MODE (All models)

Press [Function].

▼

Press [Registration].

Press [Start/Copy].

Use [ 1] or [ 2] to select RX SETTINGS.

▼

Press [Start/Copy].

Use [ 1] or [ 2] to select RX MODE.

▼

Press [Start/Copy].

Function

Registration

RECEIVING DOCUMENTS

DA TA REGSTRATION

USER SETTINGS

RX SETTINGS

ECM RX

RX MODE

Ex:

FAX/TEL AUTO SW

7-3

Page 79

Use [ 1] or [ 2] to select FAX ONLY MODE.

▼

Press [Start/Copy].

Press [Stop].

Setting ends and the fax returns to standby mode.

Check that FaxOnly is displayed on the LCD.

If FaxOnly is not displayed, repeat this procedure from step 1.

The fax assumes all incoming calls are from fax machines sending documents. It receives the documents automatically and disconnects all voice calls.

The fax does not ring when it receives a fax call. If you want to be alerted when a fax call is received, connect the handset, or an optional extension phone to the fax, and enable the INCOMING RING

setting. (see p. 9-5)

Ex:

FAX ONLY MODE

INCOMING RING

15:00 FaxOnly

7-4

Page 80

Different ways to receive a document

Receiving both documents and telephone calls automatically: Fax/Tel mode ___________________

Set this mode if you want your fax to automatically switch between voice and fax calls.

For this mode, you need to connect the handset, or an optional extension phone to your fax. (see pp. 1-5, 1-6)

■ Setting Fax/Tel mode

Follow the procedure below to set the receive mode to FAX/TEL AUTO SW (Fax/Tel mode).

Press [Function].

▼

Press [Registration].

Press [Start/Copy].

Use [ 1] or [ 2] to select RX SETTINGS.

▼

Press [Start/Copy].

Use [ 1] or [ 2] to select RX MODE.

▼

Press [Start/Copy].

Use [ 1] or [ 2] to select FAX/TEL AUTO SW.

▼

Press [Start/Copy].

Function

DA TA REGSTRATION

Registration

USER SETTINGS

RECEIVING DOCUMENTS

RX SETTINGS

ECM RX

RX MODE

Ex:

FAX ONLY MODE

FAX/TEL AUTO SW

Press [Stop].

Setting ends and the fax returns to standby mode.

Check that FaxTel is displayed on the LCD.

If FaxTel is not displayed, repeat this procedure from step 1.

RING START TIME

Ex:

15:00 FaxTel

Ex:

15:00 FaxTel

7-5

Page 81

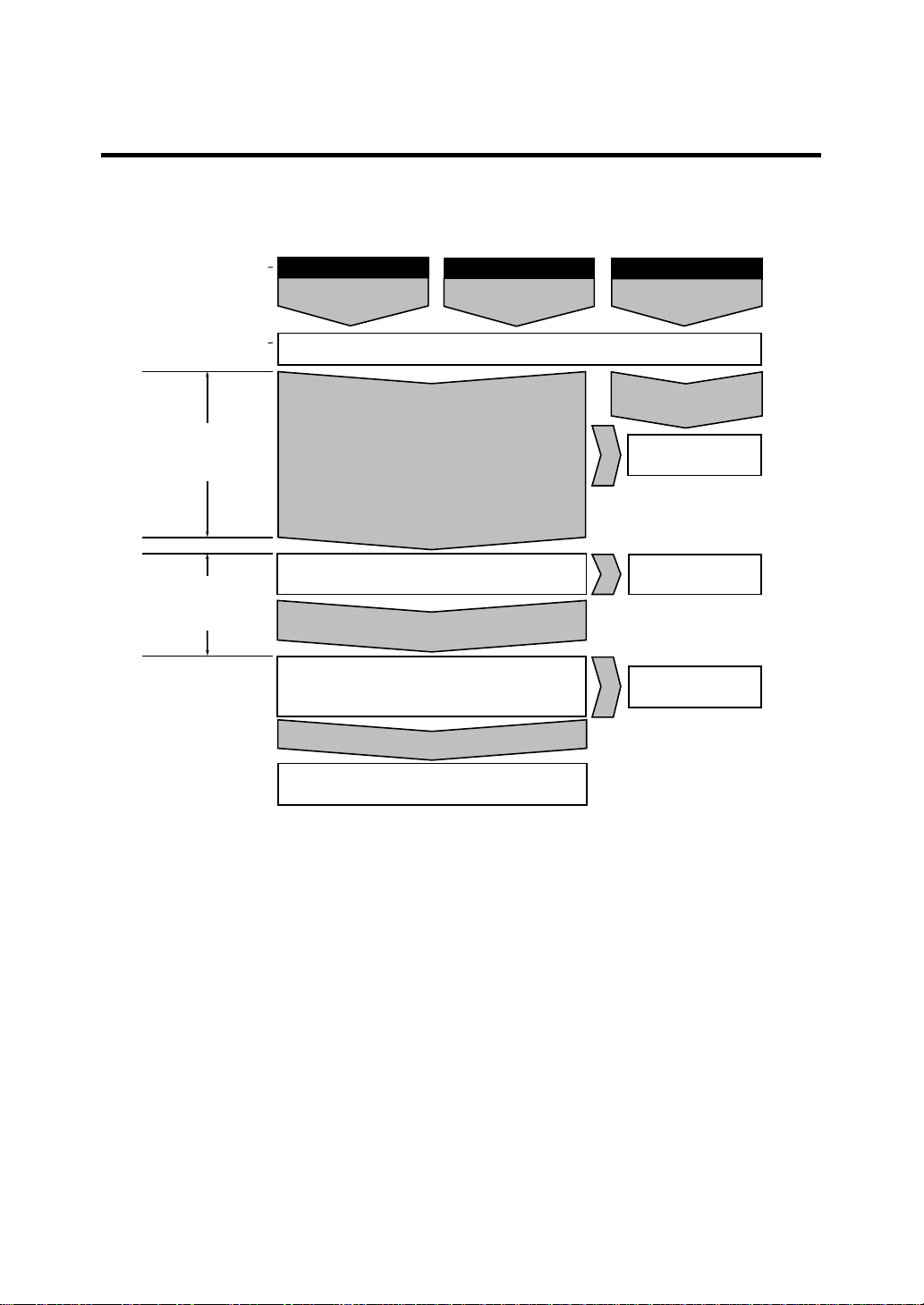

■ What happens when Fax/Tel mode is selected

Type of call

Telephone charges begin for the caller.

RING START TIME

(Factory default

setting

8 sec.)

F/T RING TIME (Factory default setting = 22 sec.)

Telephone

The fax answers without ringing.

The fax listens for the fax tone.

(For 8 sec.)

The fax tone is not detected.

The fax starts ringing.

If you don’t pick up the handset

(Within 22 sec.).

DEFAULT ACTION

Choose between:

RECEIVE (Factory default setting) and DISCONNECT.

RECEIVE

(Factory default setting)

Fax

Sending document

manually

The fax tone is detected.

Fax

Sending document

automatically

The document is

received automatically

(The fax tone is detected and the fax switches to receive mode.)

Pick up the

handset to talk.

DISCONNECT

The fax disconnects the call.

Not all fax machines are capable of sending a fax tone. For those cases if you set the DEFAULT ACTION to RECEIVE, the fax switches to receive mode automatically and starts receiving the document. If no document comes in, it disconnects the call after approximately 40 seconds.

■ Setting the options for Fax/Tel mode

If you set Fax/Tel mode, you can control precisely how the fax handles incoming calls by adjusting the following settings:

• Adjust the time the fax takes to check whether a call is from a fax machine or a telephone (RING ST ART TIME setting).

• Adjust the length of time the fax rings when the call is a voice call (F/T RING TIME setting).

• Set whether the fax switches to receive mode after the ring time set in F/T RING TIME has

elapsed (DEFAULT ACTION setting).

7-6

Page 82

Different ways to receive a document

Follow the procedure below to set the Fax/Tel mode options.

Follow steps 1 to 5 on page 7-5.

Press [Start/Copy].

Use the numeric buttons to enter the time the fax waits before ringing when it receives a call.

• You can select from 0 to 30 seconds.

• The default setting is eight seconds.

Press [Start/Copy] twice.

RING ST ART TIME

Ex:

8SEC

Ex:

9SEC

F/T RING TIME

Ex:

22SEC

Use the numeric buttons to enter the time the fax rings while waiting for someone to pick up the handset.

• You can select from 10 to 60 seconds.

• The default setting is 22 seconds.

Press [Start/Copy] twice.

Use [ 1] or [ 2] to select RECEIVE or DISCONNECT.

• This setting tells the fax what to do if the handset is not picked up within the specified ring time set in step 5.

• Select RECEIVE to receive the call, or DISCONNECT to disconnect the call.

• The default setting is RECEIVE.

Press [Start/Copy].

Ex:

DEF AULT ACTION

Ex:

DISCONNECT

INCOMING RING

30SEC

RECEIVE

RECEIVING DOCUMENTS

Press [Stop].

Setting ends and the fax returns to standby mode.

7-7

Page 83

Receiving documents manually: MANUAL MODE__________________________________________

In MANUAL MODE, if you connect the handset or an optional extension phone to the fax, you can receive voice calls as well as manually activate reception of documents. You can activate reception from the fax or from the extension phone connected to the fax. This is called remote receiving.

• For this mode, you need to connect the handset, or an optional extension phone to your fax.

■ Setting MANUAL MODE (FAX-EB10 only)

Follow the procedures below to set the receive mode to MANUAL MODE.

■ Setting MANUAL MODE (FAX-EB15 only)

(see pp. 1-5, 1-6)

• Make sure the REMOTE RX setting is enabled. (see p. 9-5)

Press [Receive Mode] to select MANUAL MODE.

MANUAL MODE

▼

Ex:

15:00 Manual

7-8

Follow steps 1 to 4 on page 7-5.

Use [ 1] or [ 2] to select MANUAL MODE.

▼

Press [Start/Copy].

Press [Stop].

Setting ends and the fax returns to standby mode.

Check that Manual is displayed on the LCD.

If Manual is not displayed, repeat this procedure from step 1.

Ex:

FAX ONLY MODE

MANUAL MODE

INCOMING RING

Ex:

15:00 Manual

Ex:

15:00 Manual

Page 84

Different ways to receive a document

■ Receiving a document manually

Follow the procedure below to receive a document manually.

Check that Manual is displayed on the LCD. (see p. 7-8)

Check that the handset or an optional extension phone is connected to the fax. (see pp. 1-5, 1-6)

When you hear the handset or optional extension phone ring, pick up the handset.

❚ If you hear a person’s voice:

Start your conversation. If the caller wants to send a document after talking to you, ask them to press the start button on their fax machine. When you hear a slow beep, press [Start/Copy] on the fax to begin receiving the document. Hang up the handset.

• If the extension phone is located away from your

fax, dial 25 (the remote receiving ID) on the extension phone and hang up.

• The fax begins receiving the document.

❚ If you hear a slow beep tone:

Someone is trying to send you a document.

• If the extension phone is located away from your

fax, dial 25 (the remote receiving ID) on the extension phone and hang up.

• The fax begins receiving the document.

Ex:

15:00 Manual

RECEIVING DOCUMENTS

Be sure to hang up the handset after you press [Start/Copy] otherwise the call will be disconnected.

7-9

Page 85

Receiving documents with an answering machine: ANS.MACHINE MODE (FAX-EB10 only) _______________________________

Connecting an answering machine to your fax allows you to receive documents and telephone messages while you are out.

In ANS.MACHINE MODE, your fax allows the answering machine to answer incoming calls, then listens for the fax tone and automatically receives the document if it detects this tone.

For this mode, you need to connect an answering machine to your fax. (see pp. 1-5, 1-6)

■ Setting ANS.MACHINE MODE

Follow the procedure below to set the receive mode to ANS.MACHINE MODE.

Press [Receive Mode] to select ANS.MACHINE MODE.

ANS.MACHINE MODE

▼

Ex:

15:00 AnsMode

■ Using your fax with an answering machine

Follow these guidelines when using your fax with an answering machine.

• Set the answering machine to answer on the first or second ring.

• When recording an outgoing message on the answering machine: – The entire message must be no longer than 15 seconds. For example:

“Hello. I can’t answer the phone right now, but please leave a message after the beep. I’ll return your call as soon as possible.”

7-10

Page 86

Other features

Receiving documents while performing other tasks___________________________________________

Your fax is a multitasking device so it can receive documents and voice calls while you are performing other tasks. If you receive a document while performing certain tasks, the fax stores the incoming document in memory. As soon as you finish your task, the fax automatically prints the document.

Receiving documents in memory when a problem occurs ________________________________

If your fax encounters a problem when receiving a document, it automatically stores the unprinted pages in memory, and the LCD displays REC’D IN MEMORY as well as one or more messages. For an explanation of the message(s) and details on the action to take, see p. 10-18.

• The fax memory can store up to approximately 50 pages.*

• You can set the fax not to store documents in memory if a problem occurs during reception.

(see MEMORY RX, p. 9-5)

• Once the pages are printed, they are deleted from memory.

• If the memory becomes full, you will not be able to receive the remaining pages. Contact the sending

party and ask them to resend the remainder of the document.

RECEIVING DOCUMENTS

* Based on Canon FAX Standard Chart No. 1, standard mode.

7-11

Page 87

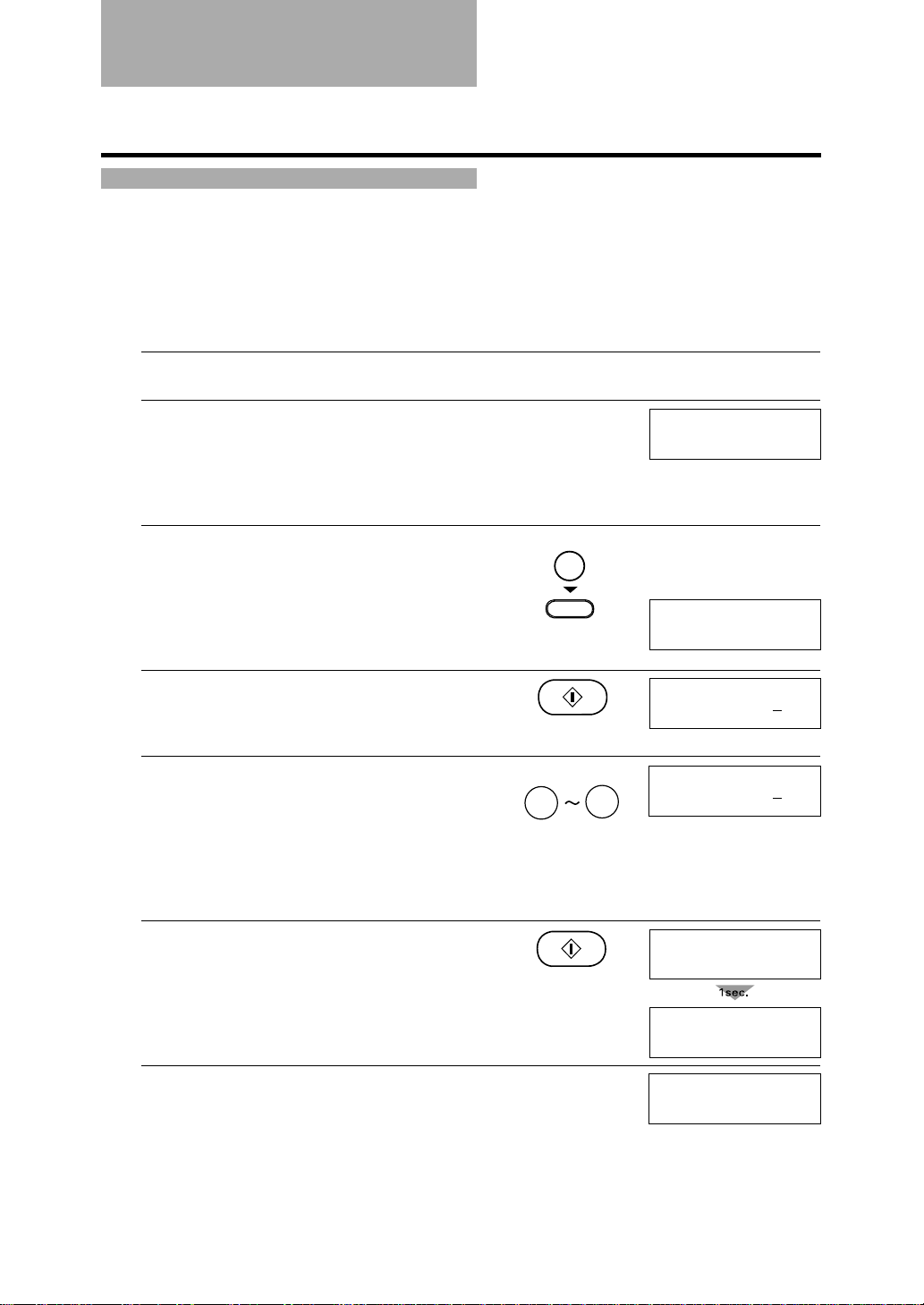

Polling to receive documents__________________

The polling feature allows you to request a document to be faxed to you from another fax machine. The sending party only needs to make sure the document is on a fax machine and ready to be sent. Thus, when your fax polls the other fax machine, the document is sent automatically. The fax can poll any fax machine that supports polling.

• Before attempting to poll a fax machine, make sure that the other fax machine supports polling.

• Your fax cannot be polled by another fax machine.

Follow the procedure below to poll another fax machine.

Press [Function].

▼

Press [Polling].

Dial the fax number of the fax machine you wish to poll.

Use one of the dialling methods described on page 6-4.

Press [Start/Copy].

Your fax begins receiving the document.

If the other party is using a Canon fax machine which has the Polling ID function, ask them to set the Polling ID of their fax machine to 255 (11111111 binary number).

For details on the Polling ID, see the other party’s fax machine manual. In all other cases the Polling ID is not a concern.

Function

Polling

TEL=

Ex:

TEL

Ex:

TX/RX NO. 0047

34567890

7-12

Page 88

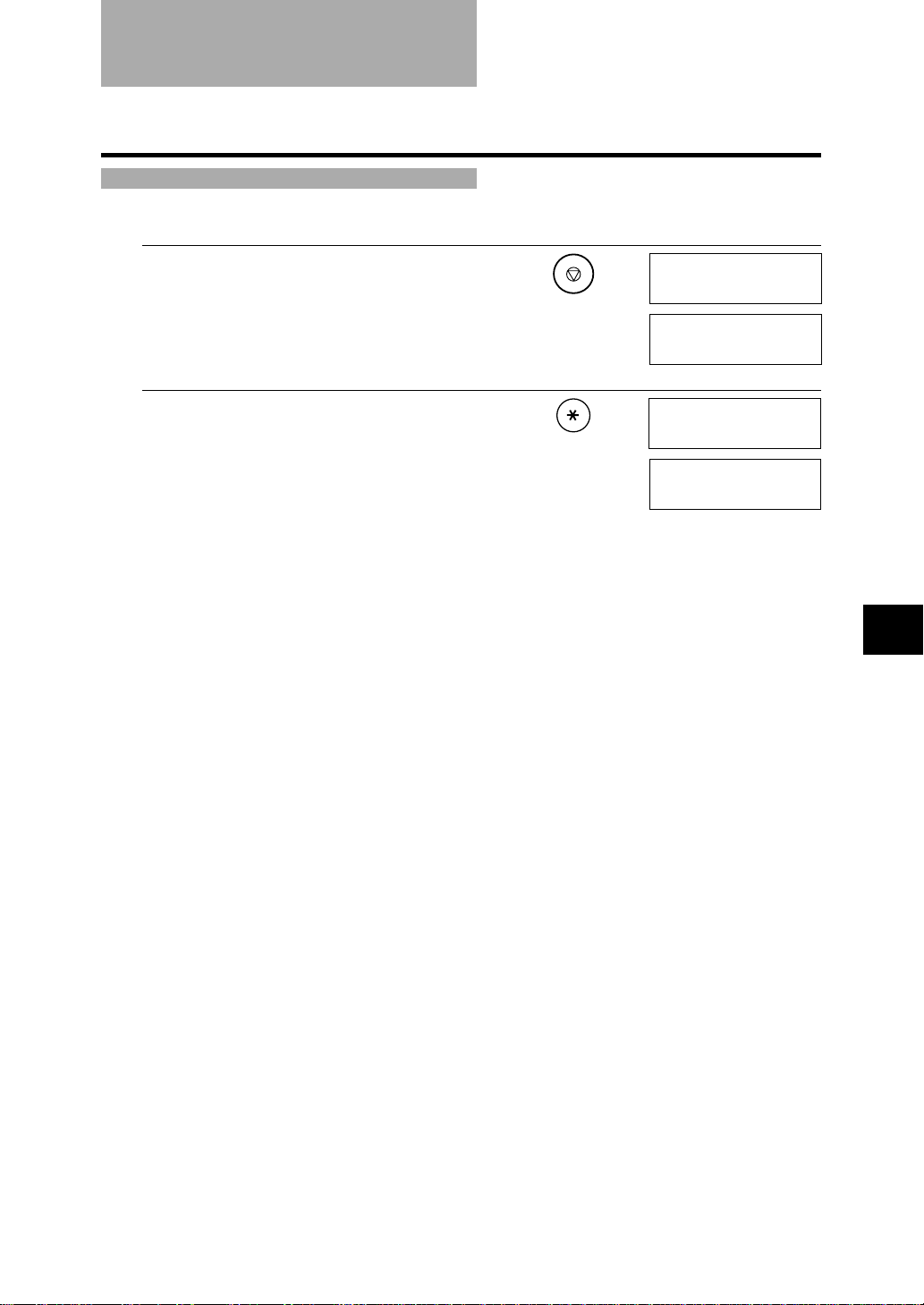

Cancelling receiving

Follow the procedure below if you want to stop receiving a document before reception is completed.

Press [Stop].

The fax asks you to confirm that you want to cancel receiving.

Press [ :] to cancel receiving.

• Receiving is not cancelled until you press [:].

• If you change your mind and want to continue

receiving, press [#].

CANCEL? AYES #NO

YES=(A) NO=(#)

TX/RX CANCELLED

Ex:

TX/RX NO. 5003

RECEIVING DOCUMENTS

7-13

Page 89

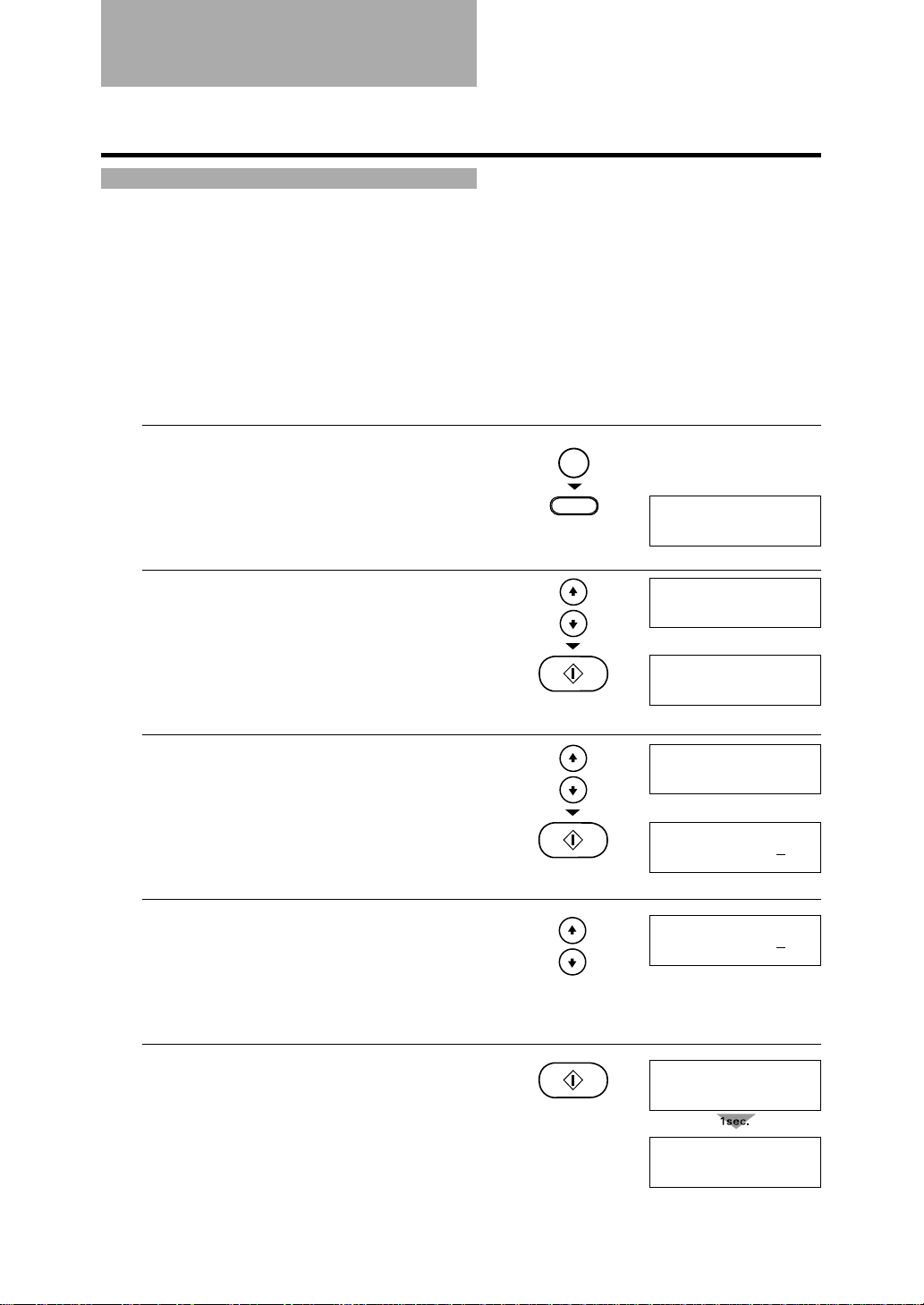

Telstra FaxStream™ Duet (Australia only)

Telstra offers the FaxStream™ Duet capability. If you subscribe to this service, your line is assigned two numbers: one for fax and one for phone. When the fax number is called, the network sends a specific ringing tone which your fax recognises and automatically handles as a fax call. If the phone number is called, a different ringing tone is sent out from the network so that the call is handled as a voice call. This means that there is no switching delay at the other party’s end. Contact Telstra for connection information.

Setting the fax for network switch ____________

• When the fax number is called, you will hear a triple-ring* ringing tone.

• When the telephone number is called, you will hear a ringing tone other than the triple-ring

ringing tone. The ringing tone depends on your switchboard.

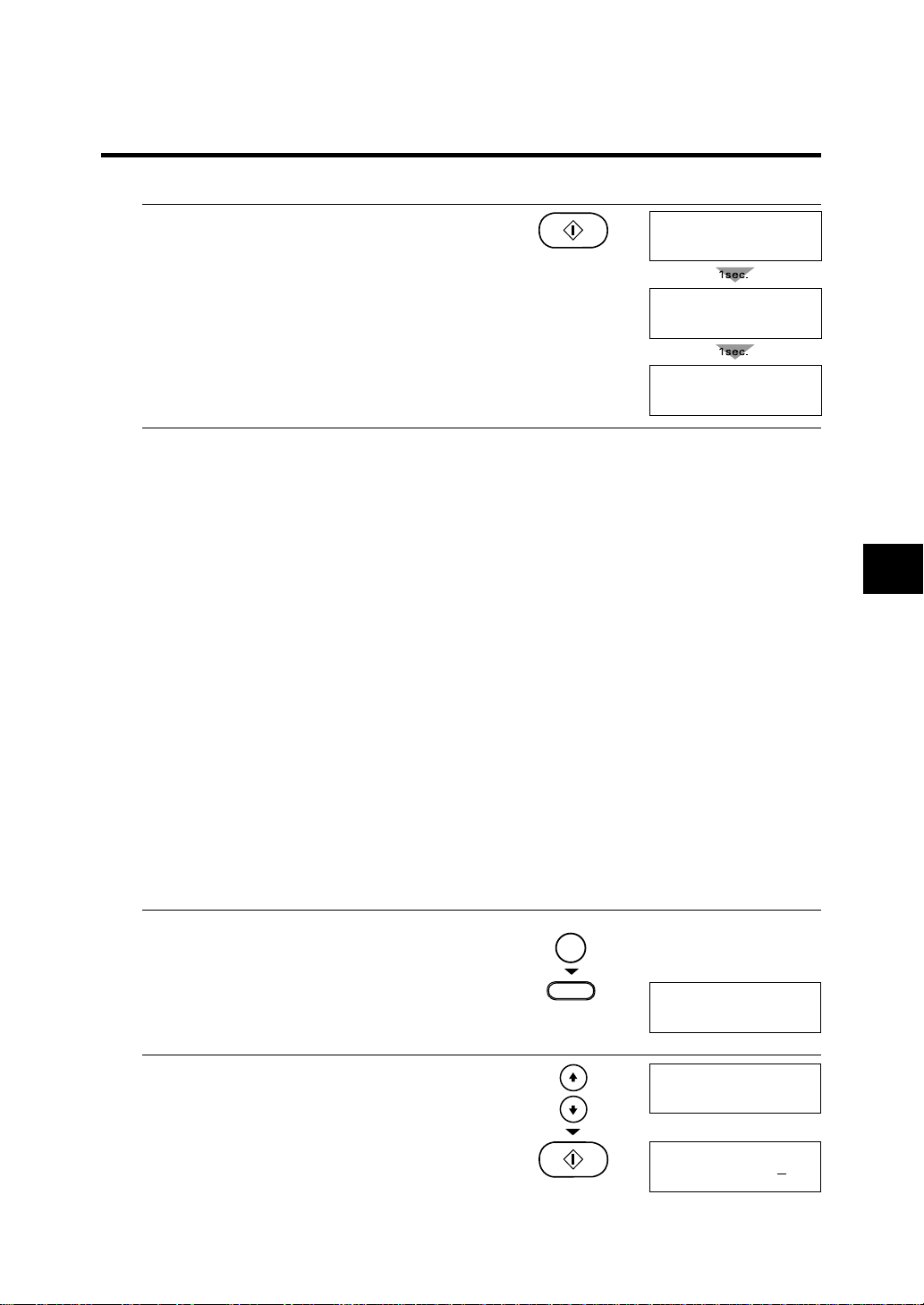

Follow the procedure below to set the fax for network switch.

Press [Function].

▼

Press [Registration].

Press [Start/Copy].

Use [ 1] or [ 2] to select RX SETTINGS.

▼

Press [Start/Copy].

Use [ 1] or [ 2] to select RX MODE.

▼

Press [Start/Copy].

Use [ 1] or [ 2] to select NET SWITCH.

▼

Press [Start/Copy].

Function

Registration

DA TA REGSTRATION

USER SETTINGS

RX SETTINGS

ECM RX

RX MODE

Ex:

FAX ONLY MODE

NET SWITCH

Press [Stop].

Setting ends and the fax returns to standby mode.

*Three short rings (short-short-short) at regular intervals

7-14

INCOMING RING

Ex:

15:00 NET SW.

Page 90

Telstra FaxStream™ Duet (Australia only)

Operation for network switch system _________

The procedures for using the network switch system are almost the same as when using the fax over a normal telephone line. When you receive calls, however, the fax will respond slightly differently as described below.

When you hear the telephone call ring pattern:

Pick up the handset and talk normally. If you hear a slow beep, it means the call is from a fax machine trying to send a document. Press [Start/Copy] to receive the document. If you do not pick up the handset, the fax continues to ring until the other party hangs up. If an answering machine is connected, it takes over the call.

When you hear the fax call ring pattern (triple ring):

After the fax rings, it receives the document automatically.

RECEIVING DOCUMENTS

7-15

Page 91

Telecom FaxAbility (New Zealand only)

Telecom N.Z. offers the FaxAbility capability. If you subscribe to this service, your line is assigned two numbers: one for fax and one for phone. When the fax number is called, the network sends a specific ringing tone which your fax recognises and automatically handles as a fax call. If the phone number is called, a different ringing tone is sent out from the network so that the call is handled as a voice call. This means that there is no switching delay at the other party’s end. Contact Telecom for connection information.

Setting the fax network _______________________

Follow the procedure below to set the fax network.

Press [Function].

▼

Press [Registration].

Press [Start/Copy].

Function

DA TA REGSTRATION

Registration

USER SETTINGS

Use [ 1] or [ 2] to select RX SETTINGS.

▼

Press [Start/Copy].

Use [ 1] or [ 2] to select RX MODE.

▼

Press [Start/Copy].

Use [ 1] or [ 2] to select NET SWITCH.

▼

Press [Start/Copy].

Press [Stop].

Setting ends and the fax returns to standby mode.

RX SETTINGS

ECM RX

RX MODE

Ex:

FAX ONLY MODE

NET SWITCH

INCOMING RING

Ex:

15:00 NET SW.

7-16

Page 92

Telecom FaxAbility (New Zealand only)

Operation for network switch system _________

When you hear the telephone call ring pattern:

When you hear the fax call ring pattern:

After the fax rings, it receives the document automatically.

RECEIVING DOCUMENTS

7-17

Page 93

7-18

Page 94

USING THE BUILT-IN ANSWERING MACHINE (TAM MODE)

(FAX-EB15 only)

Recording the outgoing message............................ 8-2

Types of messages that can be recorded .............................. 8-2

Recording the outgoing message ........................................ 8-2

Setting TAM MODE ................................................... 8-3

Setting the recording time for a telephone message ............... 8-4

Setting TOLL SAVER ......................................................... 8-5

Setting TAM MONITOR ..................................................... 8-6

Recording voice memos............................................ 8-7

Deleting messages......................................................8-8

Playing telephone messages .................................... 8-9

Remote control features .........................................8-10

Registering the password for remote control ....................... 8-10

Using remote control ..................................................... 8-11

Forwarding telephone messages...........................8-13

Setting the forwarding number ......................................... 8-13

Setting the number of redial times .................................... 8-14

Setting PIN ENTRY ........................................................ 8-15

When a forwarded call is received.............................

8-16

USING THE BUILT-IN ANSWERING MACHINE (TAM MODE) (FAX-EB15 only)

Page 95

Recording the outgoing message

Before you use TAM MODE, you must record an outgoing message. Use the microphone on the operation panel to record your outgoing message. Only one outgoing message, no longer than 20 seconds, can be recorded.

You could record an outgoing message similar to the following: “Hello. I can’t answer the phone right now, but please leave your name and a message after the beep.”

Types of messages that can be recorded________

OUTGOING MESSAGE: Answering machine message ALT OUTGOING MSG: Answering message only, used when the recording time is set to 0 or

the memory is full. Caller cannot leave a message.

VOICE MEMO: See p. 8-7. FAXTEL MESSAGE: Message played when the Fax/Tel mode is set. FORWARDING MSG: Message played when any new telephone messages are forwarded to a

forwarding number.

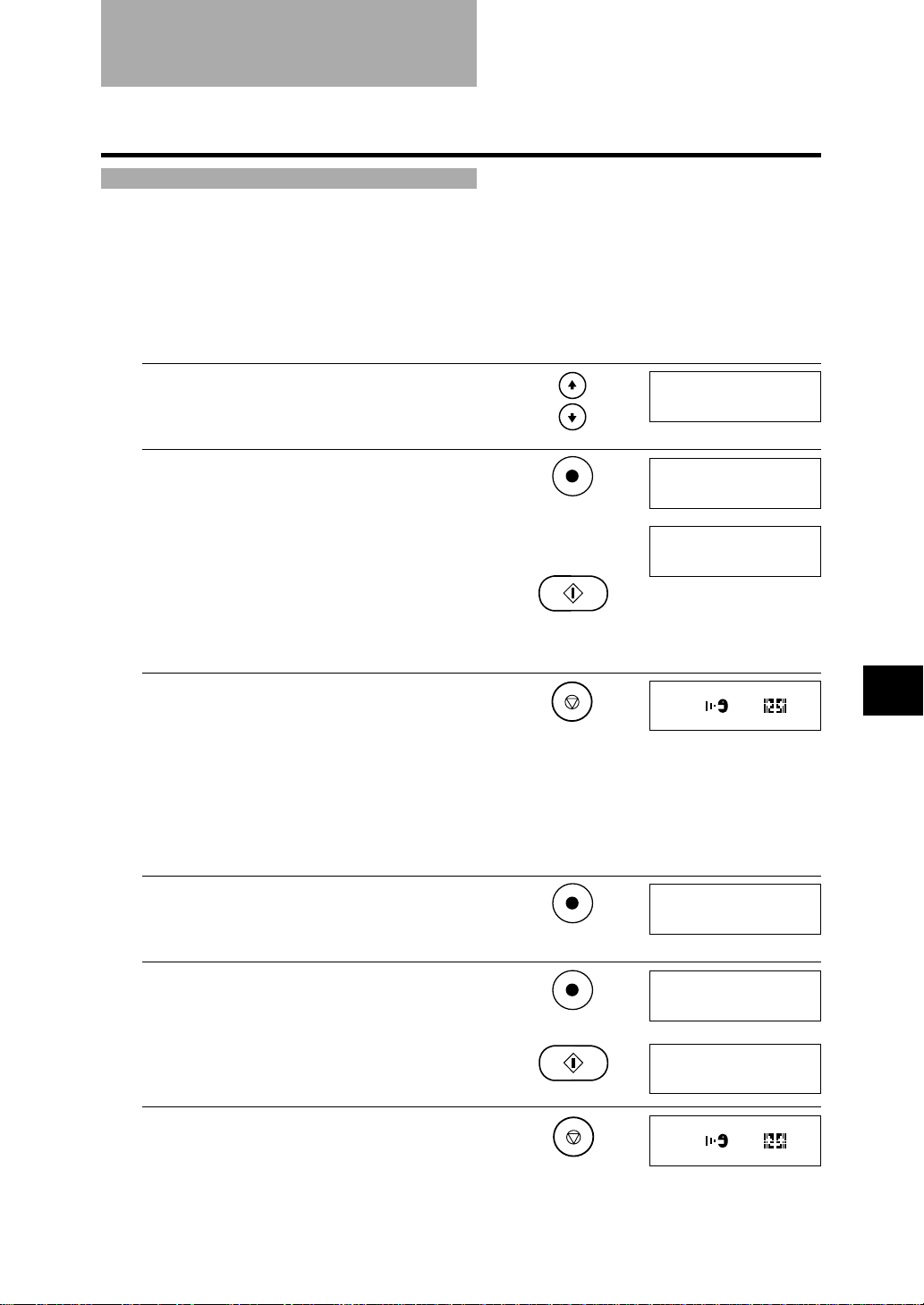

Recording the outgoing message_______________

Follow the procedure below to record an outgoing message. To record another type of message, select the type of message you want to record in step 1, and then

follow the procedure below to record it.

Use [ 1] or [ 2] to select OUTGOING MESSAGE.

OUTGOING MESSAGE

Press [Record] and speak into the microphone to record your outgoing message.

The remaining recording time is displayed on the LCD.

-orPress [Start/Copy], use [ 1] or [ 2] to select

RECORD and press [Start/Copy] again. Then speak into the microphone to record your outgoing message.

Press [Stop] twice when recording is finished.

You can record an alternative outgoing message, fax/ telephone switching message or forwarding message by selecting the appropriate option in step 1 above and then continuing on to steps 2 and 3.

TIME LEFT 19

▼

Ex:

TIME LEFT 10

8-2

• To check the outgoing message, repeat step 1 and then press [Play]. Alternatively, carry out step 1

above, press [Start/Copy], select PLAY and then press [Start/Copy].

• You cannot delete the OUTGOING MESSAGE. To record a new outgoing message, repeat steps 1 to 3 above. The old outgoing message will be automatically deleted when you record your new message.

Page 96

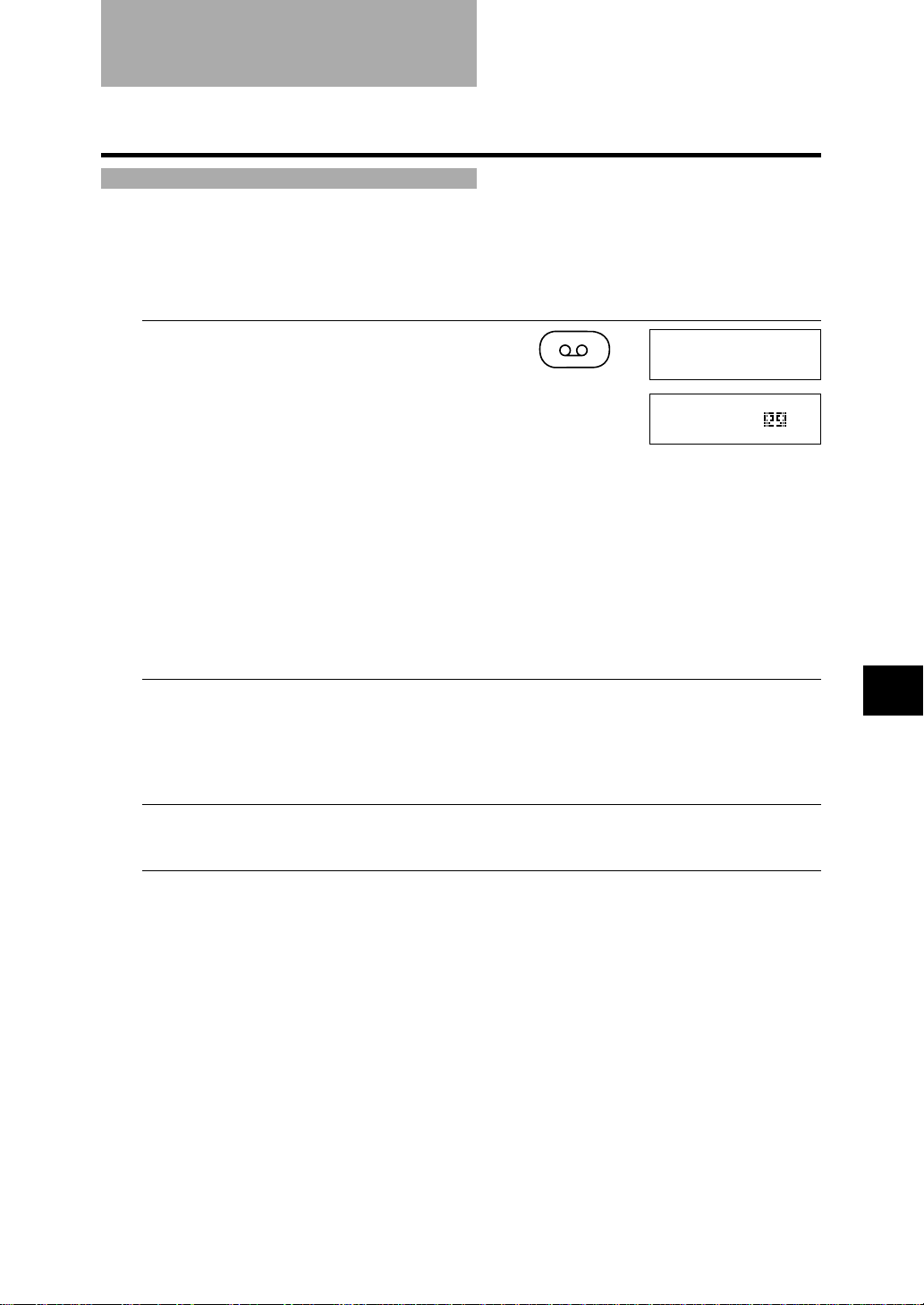

Setting TAM MODE

Setting TAM MODE allows you to receive telephone messages and fax transmissions while the fax is unattended. When you cancel TAM MODE, any new telephone messages will be played automatically.

Follow the procedure below to set TAM MODE.

Press [TAM] to set TAM MODE.

• When you set TAM MODE, the TAM LED lights up and the outgoing message is played. When you cancel TAM MODE, the TAM LED switches off. If you have any new telephone messages, the messages are played automatically.

• To cancel TAM MODE, press [TAM] again.

• NO OGM is displayed on the LCD when no outgoing message has been recorded. You must record

When TAM MODE is set and a call is received, the fax will respond as described below.

an outgoing message before you can set TAM MODE. (see p. 8-2)

• A maximum of 50 messages, including an outgoing message, alternative message and voice memos,

with a total maximum recording time of 10 minutes can be recorded. You can set a maximum recording time of 120 seconds for each telephone message. (see p. 8-4)

• The date and time when the telephone message was recorded, the number of telephone messages and

the number of the message being played (ICM No.) are displayed whenever a message is played.

T AM MODE ON

Ex:

15:00 :00

The fax will ring 2 or 5 times, w hen TOLL SAVER is set to ON, depending on whether there are any telephone messages. (see p. 8-5)

When TOLL SAVER is set to OFF, you can specify the number of times the fax will ring.

The outgoing message is played to the other party.

If the other party sends a fax after they leave a message, or if the call is a fax call, the fax is received automatically.

When the fax is set to MANUAL MODE and MAN/AUTO SWITCH has been set to OFF, TAM MODE will be activated if the fax rings 15 times and the call is not answered. When the call is

disconnected, the fax returns to MANUAL MODE.

USING THE BUILT-IN ANSWERING MACHINE (TAM MODE) (FAX-EB15 only)

8-3

Page 97

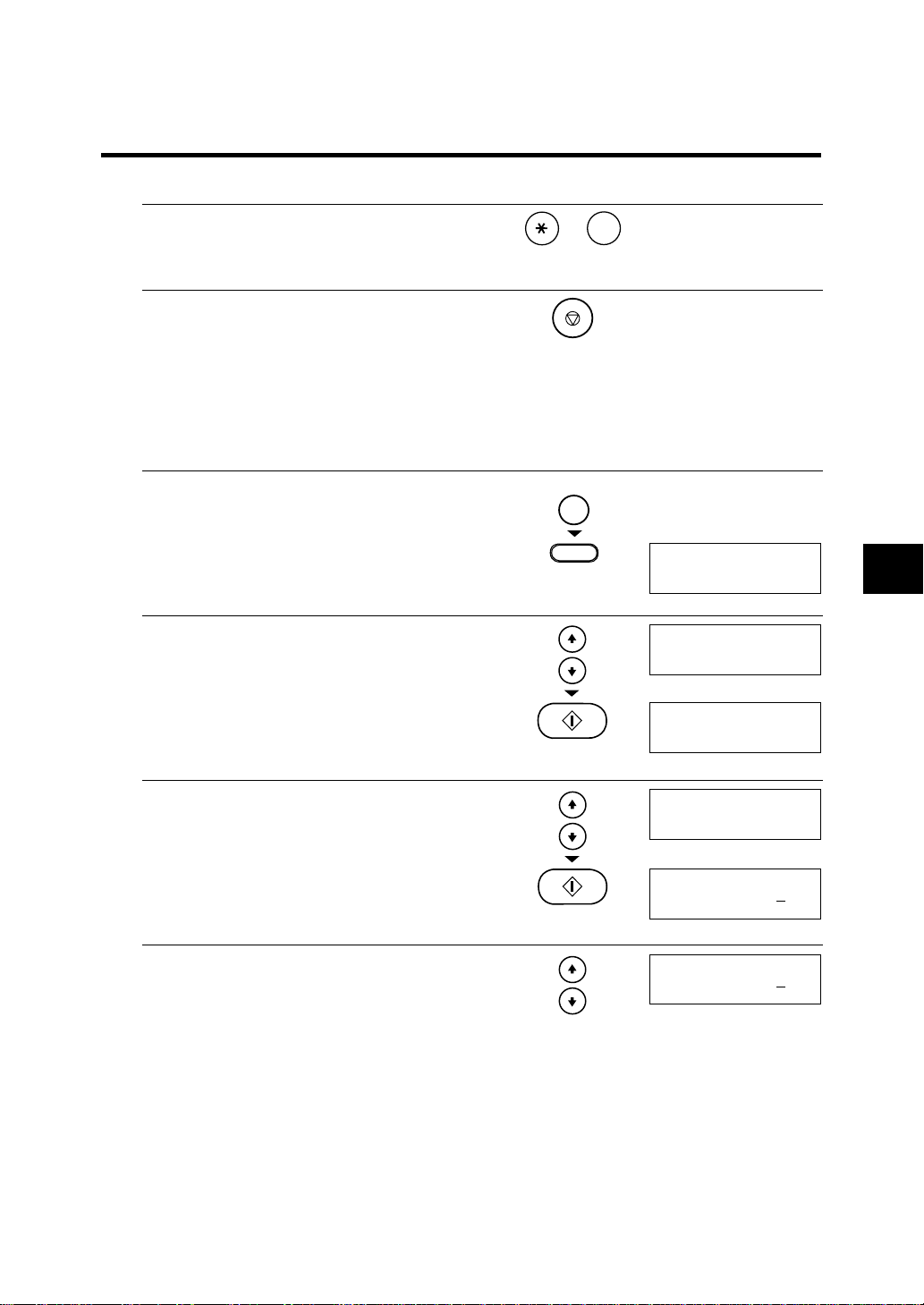

Setting the recording time for a telephone message__________________________________________

You can set the recording time for each telephone message. Follow the procedure below to set the recording time for each telephone message.

Press [Function].

▼

Press [Registration].

Press [Start/Copy].

Use [ 1] or [ 2] to select TAM SETTINGS.

▼

Press [Start/Copy] twice.

Use [ 1] or [ 2] to select the recording time.

The recording time can be set to 0, 30, 60 or 120 seconds.

▼

Press [Start/Copy].

Function

Registration

DA TA REGSTRATION

USER SETTINGS

T AM SETTINGS

MESSAGE LENGTH

Ex:

30 SECONDS

Ex:

60 SECONDS

PASSWORD

8-4

Press [Stop].

Setting ends and the fax returns to standby mode.

When the recording time is set to 0, the alternative outgoing message is played. If an alternative outgoing message has not been recorded, the outgoing message is played. In this case, there will be no

beep after the message is played and the caller will not be able to leave a message.

Page 98

Setting TAM MODE

Setting TOLL SAVER_____________________________

Setting TOLL SAVER allows you to check whether you have any new messages when you call from a remote location.

Follow the procedure below to set TOLL SAVER.

Press [Function].

▼

Press [Registration].

Function

Press [Start/Copy].

Use [ 1] or [ 2] to select TAM SETTINGS.

▼

Press [Start/Copy].

Use [ 1] or [ 2] to select TOLL SAVER.

▼

Press [Start/Copy].

• When TOLL SAVER is set to ON and there are telephone messages, the fax will ring twice before answering the call.

• When TOLL SAVER is set to ON and there are no telephone messages, the fax will ring five times before answering the call.

If you selected ON, proceed to step 8.

If you selected OFF in step 4, press [Start/Copy].

Registration

DA TA REGSTRATION

USER SETTINGS

T AM SETTINGS

MESSAGE LENGTH

TOLL SAVER

Ex:

RING COUNT

USING THE BUILT-IN ANSWERING MACHINE (TAM MODE) (FAX-EB15 only)

Press [Start/Copy] and use the numeric buttons to set the number of times the fax will ring.

The number of times the fax will ring can be set between 1 and 15.

Press [Start/Copy].

Press [Stop].

Setting ends and the fax returns to standby mode.

Ex:

2TIMES

FWD SETTINGS

8-5

Page 99

Setting TAM MONITOR ________________________

TAM MONITOR allows you to screen all incoming calls. Follow the procedure below to set TAM MONITOR.

Press [Function].

▼

Press [Registration].

Function

Press [Start/Copy].

Use [ 1] or [ 2] to select TAM SETTINGS.

▼

Press [Start/Copy].

Use [ 1] or [ 2] to select TAM MONITOR.

▼

Press [Start/Copy].

Use [ 1] or [ 2] to select ON.

▼

Press [Start/Copy].

Registration

DA TA REGSTRATION

USER SETTINGS

T AM SETTINGS

MESSAGE LENGTH

T AM MONITOR

Ex:

OFF

8-6

TEL REGISTRA TION

Press [Stop].

Setting ends and the fax returns to standby mode.

To use this feature, LINE MONITOR VOL (see p. 9-3) must be set to a setting other than 0. If LINE MONITOR VOL is set to 0, you will not be able to hear any incoming messages as they are being

recorded.

Page 100

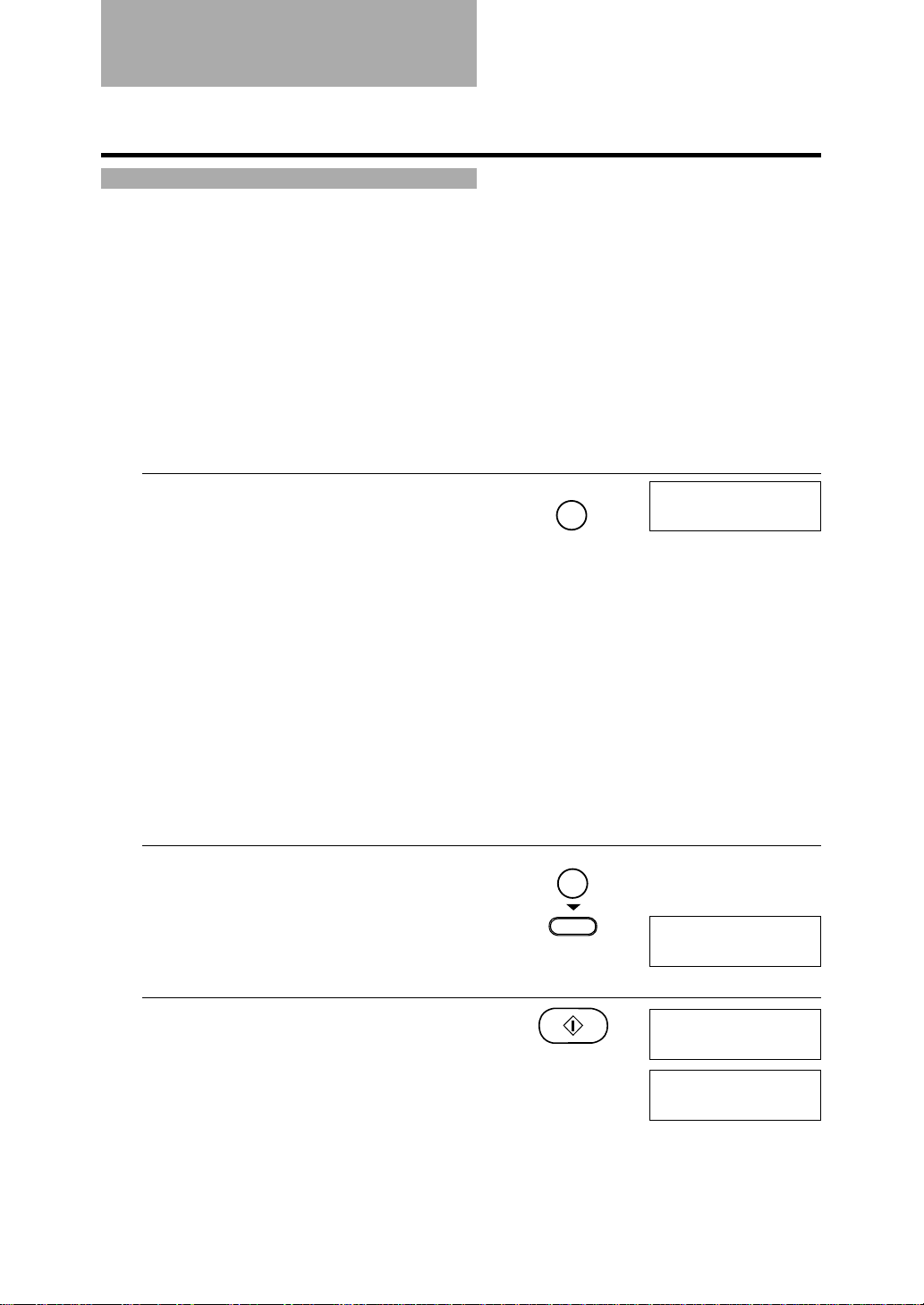

Recording voice memos

Use this feature when you are going out and want to leave a message for another member of the family. Use the microphone on the operation panel to record your voice memo. Only one voice memo, 30, 60, or 120 seconds*, can be recorded. If you record a new voice memo when there is already a voice memo recorded, the old voice memo will be deleted.

Follow the procedure below to record a voice memo.

Use [ 1] or [ 2] to select VOICE MEMO.

VOICE MEMO

Press [Record] and speak into the microphone to record your voice memo.

The remaining recording time is displayed on the LCD.

-or-

Press [Start/Copy], use [ 1] or [ 2] to select RECORD and press [Start/Copy] again. Then speak into the microphone to record your voice memo.

Ex:

TIME LEFT 29

▼

Ex:

TIME LEFT 20

Press [Stop] twice when recording is finished.

To play a voice memo, repeat step 1 above and then press [Play]. Alternatively, carry out step 1 above, press [Start/Copy], select PLAY and then press [Start/Copy].

-or-

Press [Record].

Press [Record] or [Start/Copy]. Then speak into the microphone to record your voice memo.

The remaining recording time is displayed on the LCD.

Press [Stop] when recording is finished.

* The recording time for a voice memo can be set to the same settings as the recording time for a telephone

message. However, if you set 0 as the recording time for each telephone message, voice memo recording time will be set to 30.

Ex:

15:00 :00

RECORD A MESSAGE

Ex:

TIME LEFT 29

▼

Ex:

TIME LEFT 20

Ex:

15:00 :00

USING THE BUILT-IN ANSWERING MACHINE (TAM MODE) (FAX-EB15 only)

8-7
