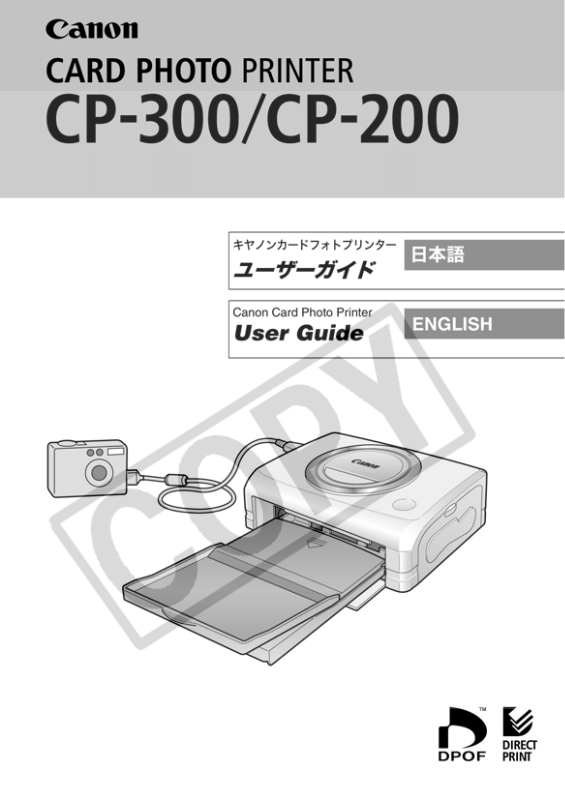

Canon CP 300, CP200 User Manual

English

Contents

How to Use the Manuals............................................................. 2

Symbols Used....................................................................... 2

Package Contents ....................................................................... 3

Quick Start ................................................................................... 4

Introduction .................................................................................8

What Can Be Accomplished with this Printer .......................... 9

Read This First ..........................................................................10

Safety Precautions.............................................................. 10

Proper Usage and Handling ............................................... 14

Components Guide............................................................. 18

Let’s Print................................................................................... 20

Preparing Your Ink Cassette/Paper Sets and Paper

Cassette ......................................................................... 20

Loading the Ink Cassette .................................................... 22

Placing the Paper into the Paper Cassette......................... 23

Loading the Paper Cassette ............................................... 25

Connecting a Power Source and the Camera to the Printer

Printing................................................................................ 28

Battery Usage ............................................................................ 29

Using the Battery Pack (CP-300 Only) ............................... 29

Using the Car Battery Adapter (CP-300/CP-200) ............... 33

Troubleshooting........................................................................ 34

Error Messages .........................................................................36

Specifications............................................................................ 38

Connecting the Printer to a Computer and Printing .............. 40

Safety Precautions.............................................................. 40

Read Carefully Before Using! ............................................. 41

System Requirements ........................................................ 43

Printing Operations Overview ............................................. 45

Viewing the Printer Driver User Guide (Windows/Macintosh) Viewing the ZoomBrowser EX Software User Guide

(Windows)/ImageBrowser Software User Guide

(Macintosh) PDF Manuals .............................................. 47

... 26

...... 46

How to Use the Manuals

Please refer to the following manuals according to your purposes.

Printer User Guide (This Guide)

• Printer, paper and ink cassettes handling instructions

• Camera and printer connection instructions

• Printer and computer connection overview

Printer Driver User Guide

(Bundled on the CP Printer Solution Disk)

• Printer driver installation instructions

• Printer and computer connection instructions and printing instructions

Camera User Guide (Included with the Camera)

• Shooting, replaying and erasing images from the camera

• Camera and printer connection instructions and printing instructions

• Camera and computer connection instructions

ZoomBrowser EX Software User Guide (Windows) ImageBrowser Software User Guide (Macintosh)

• Instructions on how to use ZoomBrowser EX and ImageBrowser

These PDF format manuals are available on the Canon website. Please download them from the following URL:

http://www.canon.co.jp/Imaging/information-e.html

: Included with the Printer

Symbols Used

: This mark denotes issues that may affect the printer’s operation.

: This mark denotes additional topics that complement the basic operating

procedures.

Package Contents

Card Photo Printer Paper Cassette

(Postcard size)

Standard Paper

(Postcard size, 5 sheets)

Battery Pack NB-CP1L*1*

Battery Pack Terminal Cover*1*

Compact Power Adapter

Ink Cassette (Postcard size, for 5 sheets)

AC Cable Cleaner Stick

CA-CP100

Paper Cassette (Card size)*

CP Printer Solution Disk

• User Guide (this booklet)

• Warranty Card*

• Canon Customer Support Leaflet*

*1 Included with the CP-300 only.

Not included in some regions.

The following products are sold separately.

Paper Cassette PCL-CP100 L size* Paper Cassette PCC-CP100 Card size Color Ink/Paper Set KP-36IP Postcard size, 36 standard sheets Color Ink/Paper Set KL-36IP L size, 36 standard sheets* Color Ink/Paper Set KC-36IP Card size, 36 standard sheets Color Ink/Full-sized Label Set KC-18IF Card size, full-size, 18 Label sheets Color Ink/Label Set KC-18IL Card size, Multiple (8-screen), 18 Label sheets Battery Pack NB-CP1L Spare battery pack. Cannot be used with the

Battery/Charge Adapter Kit BCA-CP100 Set including the Battery Pack NB-CP1L and a

Car Battery Adapter CBA-CP100 Powers the printer from a car’s battery.

* Not sold in some regions.

CP-200.

battery charger. Cannot be used with the CP-200.

Quick Start

Let’s start by printing on postcard size paper. This section explains the procedures required to print with the paper and the ink cassette (trial kit) included with your printer. Some steps may vary according to the printer model so be sure to check which printer model you are using (CP-300 or CP-200). If you have trouble understanding certain procedures, please refer to the relevant reference pages for detailed instructions.

* General camera descriptions in this guide refer to digital cameras or digital camcorders

compatible with the card photo printer (CP-300/CP-200). However, in detailed instructions, “camera” refers to “digital cameras”, and “compact power adapter” refers to “power source” throughout this guide.

Things to Prepare

Printer (CP-300 or CP-200) Standard Paper (Postcard size, 5 sheets) Ink Cassette (Postcard size, for 5 sheets) Paper Cassette (Postcard size) Compact Power Adapter CA-CP100 AC Cable Canon camera Memory card containing the images you wish to print

Camera User Guide

USB Cable included with your camera kit

: Included with the Printer

Loading the Ink Cassette in the Printer p. 22

Open the ink cassette

compartment cover.

Load the ink cassette and

close the ink cassette compartment cover.

Placing the Paper into the Paper Cassette p. 23

Paper (Glossy side up)

Top Cover

Middle Cover

(Address/stamp side next to the middle cover)

Open the paper cassette’s

top and middle covers.

Place the middle cover back to its original position,

and leave the top cover open.

Loading the Paper Cassette into the Printer p. 25

Place the paper (postcard size, 5

sheets), glossy side up and the address/stamp side next to the middle cover, in the paper cassette.

Middle Cover

Open the paper cassette

compartment cover.

Push the paper cassette all the way

into the paper cassette compartment, with its top cover open and its middle cover closed.

Continued on the next page.

Quick Start (Continued)

Connecting the Printer to a Power Source p. 26

Insert the AC cable into the

compact power adapter and

mark

facing up

Connect the compact power adapter to

the printer’s DC IN terminal.

• At this point, the CP-200’s power will turn on and the printer’s indicator will light green.

Connecting the Camera to the Printer p. 26

DC IN Terminal

plug the other end into a power outlet.

To Pow e r S o u r c e

Connect the USB cable (included with the

camera) to the camera’s DIGITAL terminal.

Direct Print Connector

• If you are using the CP-200, go to step 7.

DIGITAL Terminal

Connect the USB cable with its mark facing down

Connect the other end of the USB cable to the

printer’s direct print connector.

Turn On the Power (CP-300 Only) p. 27

ON/OFF Button

Indicator

Press the printer’s ON/OFF button until the indicator lights green.

Printing p. 28

Turn the camera’s power on and display the images.

• The (Direct Print) mark appears on the upper left corner of the LCD monitor.

Press the camera’s SET button.

Screen shot of the camera’s LCD monitor

Select [Print] and press the SET button.

• Printing starts.

With certain camera models, the camera will power up and display its images when it is connected to the printer with the USB cable. For detailed instructions, please refer to the Camera User Guide that came with your camera.

Introduction

Thank you for your purchase of the Canon Card Photo Printer CP-300/CP-

200. This User Guide explains the printer’s general flow of operations, from camera print settings to printing and computer connection operations to printing. For information about how to make prints, refer to the Camera User Guide that came with your camera and to the Printer Driver User Guide (bundled on the CP Printer Solution Disk).

Before using your printer for the first time, please read through the safety precautions. p. 10

 Warning Against Copyright Infringement

Please respect all copyrights. Use of images produced by this printer for purposes other than personal entertainment may be prohibited by law.

 Warranty Limitations

This printer’s warranty is only effective in the country of sale. If a problem arises while the printer is in use abroad, please convey it back to the country of sale before proceeding with a warranty claim to a Canon Customer Support Help Desk.

For Canon Customer Support contacts, please see the Canon Limited Warranty supplied with your printer.

Disclaimer

• While every effort has been made to ensure that the information contained in this User Guide is accurate and complete, no liability can be accepted for any errors or omissions. Canon reserves the right to change the specifications for the hardware and software described herein at any time without prior notice.

• No part of this User Guide may be reproduced, transmitted, transcribed, stored in a retrieval system, or translated into any language in any form, by any means, without the prior written permission of Canon.

• Canon makes no warranties for damages resulting from corrupted or lost data due to a mistaken operation or malfunction of the product, the CompactFlash card) or use of non-Canon CF cards.

Trademark Acknowledgements

• Canon is a trademark of Canon, Inc.

• Any other company and product names used herein may be trademarks of their respective companies.

cards (CF

What Can Be Accomplished with this Printer

Connects directly to supporting Canon cameras

Allows easy printing from any Canon camera that supports direct printing with the card photo printer (CP-300/CP-200). Just connect the interface cable and you’re ready to go.

Connects directly to computers

Simply connect the printer to a computer with one commercially available USB cable to perform the following operations.

• Print images shot with the camera

• Print part of an image (trimming)

• Print images with captions and artistic layout (Windows only)

• Make your own custom business cards

Three paper sizes and two types of labels

You can print on standard paper in postcard size, L size or credit-card size. In addition to the standard size paper, you can print full-sized labels or 8-label stickers with the credit-card size paper.

High-quality prints, fast paper feeding

Offers photo-quality prints. Produces up to 18 prints without reloading.

Fast printing

Postcard size images can be printed at the high speed of approximately 85 seconds per sheet.

Coated prints

Applies a protective coating to each print.

Borderless prints

Can produce borderless images that fill the paper completely.

Supports DPOF (Digital Print Order Format)

Supports DPOF settings for print selection, number of copies, and shooting date.

Easy outdoor printing

You can easily print outdoors by attaching the battery pack (CP-300 only). You can also print images using the power of the cigarette lighter socket of a car with the separately sold Car Battery Adapter.

• If does not display on the camera’s LCD monitor when you connect your camera to this printer, your camera’s firmware may be incompatible with this printer. Please check the Canon BeBit website (http://www.canon.co.jp/Imaging/ BeBit-e.html) or your regional Canon website, for information or to download compatible firmware.

Read This First

Safety Precautions

• Before using the devices, please ensure that you have read and understood the safety precautions described below. Always ensure that the devices are operated correctly.

• The safety precautions noted on the following pages are intended to instruct you in the safe and correct operation of the devices to prevent injuries or damage to yourself and other persons.

• “Devices” refers to the “printer, compact power adapter, battery pack (included with the CP- 300 in some regions or sold separately) or charge adapter (sold separately)” throughout this guide.

WARNINGS

 Devices

If the devices emit smoke or a burning odor, or show other signs of significant malfunction, immediately unplug the AC cable from the power outlet. Continued

operation under these conditions poses risk of fire or electric shock. Be sure that smoke or burning odor subsides, and then contact your dealer or the nearest Canon Customer Support help desk.

If the devices are dropped or the devices casing becomes damaged, unplug the AC cable from the power outlet. Continued operation poses risk of fire or electric shock.

Contact your dealer or the nearest canon Customer Support help desk.

Never rest small metallic objects or liquid containers on top of the devices. If liquid splashes onto the devices, wipe the devices dry using a soft absorbent cloth. If liquid spills into the devices or an object falls into the devices, immediately unplug the AC cable from the power outlet. Continued operation poses risk of fire or electric shock. Contact your dealer or the nearest Canon Customer Support help desk.

Do not use flammable solvents such as alcohol, benzene, or paint thinner to clean the devices. Use of such solvents poses a fire risk.

Do not drop or insert metallic or combustible objects into the devices. Entry of foreign

objects into the devices may result in fire, electric shock, or equipment failure. Store the devices out of the reach of children.

Do not disassemble or modify the devices. The devices contain high-voltage components, and there is risk of electric shock. If your devices need internal adjustments or repair, contact your dealer or a Canon Customer Support help desk.

Do not touch metal parts of the devices or the power plug during thunderstorms.

Lightning strikes may produce lethal voltages within the devices. Keep clear of the devices while thunderstorms are in progress.

 Power

Do not exceed the cable and power outlet ratings when operating this product. Do not operate this product outside of the specified voltage rating. Connecting too many lines to the same outlet may result in fire. Check that the voltage of the outlet is compatible with the devices before plugging them in.

If the AC cable becomes damaged (if internal wiring is exposed, etc.), immediately unplug the cable from the power outlet. Continued use poses risk of fire or electric shock.

Do not plug in or unplug the AC cable while your hands are wet, as this may result in electric shock. When unplugging the cable, hold it firmly at the plug area. Do not pull directly

on the cable, as this may damage or expose the cable’s internal wiring, resulting in risk of fire or electric shock.

Be sure that the AC cable is plugged all the way in. A loose connection may result in heat buildup, fire, or electric shock.

Do not damage, modify, or rest heavy objects on the AC cable. Damage to the cable may result in the exposure of live wires, fire, or electric shock.

Keep the AC cable free of dust. The presence of dust or metallic debris on the plug poses risk of fire or electric shock. If the plug area is not clean, unplug the AC cable and then wipe the plug area clean using a dry cloth. Check the plug periodically to make sure it is clean.

 Usage Location

Do not place the devices on an unstable or tilted table or desk, as there is risk that the devices may fall and cause injury.

CAUTIONS

 Devices

Do not block the air vents on the printer. Blocking the vents may cause the inside of the printer to overheat, resulting in damage to internal components and risk of equipment failure or fire. Use the devices in a well-ventilated area.

Do not rest heavy objects on the devices. Objects may fall off the devices and cause injury. Weight placed on the devices may deform the casing, resulting in damage to internal parts and posing risk of fire.

Unplug the devices when you are not using them. If the devices remain plugged in, there is risk that accidental contact with the device’s internal parts may cause electric shock. Leaving the devices plugged in during prolonged periods of non-use poses risk of fire.

Do not remove the paper cassette from the printer while printing is in progress. Paper moves back and forth in the cassette four times during printing. Placing your hand in the way of moving paper may result in injury. Wait for printing to finish completely before removing the cassette. Never place your hand into the paper cassette slot.

Do not reach into internal parts of the devices except as specified in the operating instructions. Reaching into inappropriate parts of the devices may cause your hand to

become caught or injured.

 Power

Do not move the devices while they are plugged in. Doing so may damage the AC cable. Continued use of a damaged AC cable poses risk of fire or electric shock.

Do not excessively bend or twist the AC cable. Doing so may damage the cable. Continued use of a damaged cable poses risk of fire or equipment failure. Leave about 10 cm (4 in.) of clearance around the devices to ensure adequate ventilation.

Do not pull on the AC cable. Doing so may damage the cable. Continued use of a damaged cable poses risk of fire or electric shock. Always hold the cable by the plug area when unplugging it.

 Usage Location

Do not use the devices in locations that are smoky, humid, dusty, or subject to strong vibration. Entry of water or dust into the devices, or internal damage caused by strong

vibration, may pose risk of fire or electric shock. Have the devices checked approximately once a year (contact your dealer), preferably before the onset of your area’s humid season.

Do not leave the devices exposed to high temperatures. Do not leave in direct sunlight, or close to heating equipment, or in a car with windows closed on a hot day. High temperatures may cause deformation of the devices and pose risk of fire.

Do not use the devices near an open flame. Sheets ejected from the printer (onto the top of the paper cassette) may fall into the flame, resulting in fire.

Do not use the devices close to TV sets or AM radios. Devices’ operation may adversely affect TV and radio reception.

Proper Usage and Handling

 Usage Location

Do not use near strong magnets or near devices that produce strong electromagnetic fields. Electromagnetic radiation from devices such as TVs and game machines, and strong

magnetic fields from devices such as speakers and large motors, may cause distortion in printed images.

Use in a well-ventilated, level area.

Leave about 10 cm (4 in.) of clearance around the printer. Be sure to leave clearance

around the paper-handling slot (at the rear) so that paper has sufficient room to jut out from the slot during printing.

 Handling Precautions

Please avoid turning the printer’s power on and off needlessly as the printer initialization consumes ink: There may not be enough ink left for the allotted sheets in the

set.

When the printer is not in use, please remove the battery pack (CP-300 only).

Unplug the printer when you are not using it. But please note that you should plug in and

run the printer at least once every six months to ensure that it remains functional.

Before transporting the printer, remove the paper and ink cassettes and close the paper cassette cover and the ink cassette cover. If dirt or foreign objects enter the printer,

print quality may deteriorate.

Pack the printer into an appropriate case for transport. If a case is not available, wrap it with cloth or other protective material to protect against scratches.

Never use volatile compounds or insecticides on the printer, and do not allow rubber or vinyl material to remain in prolonged contact with the printer. These materials may

cause deformation of the printer’s casing.

 Overheating

If the printer overheats, it will temporarily stop operating. This does not mean that the printer has malfunctioned. The printer will resume normal printing as soon as it cools

down. Temporary stoppages are most likely to occur in the following cases:

• When printing continuously.

• If the room is unusually warm.

• If the air vents are blocked or if ventilation is inadequate.

 To Prevent Damage from Condensation

Condensation may form in the printer if you suddenly move it from a cold location to a warm location. To prevent damage that might be caused by condensation, place the printer

in a sealed vinyl bag prior to moving it, and allow it to reach room temperature before using it. Stop using the printer immediately if you detect condensation. Continued use may damage the equipment. Wait until the moisture evaporates completely before resuming use.

 Cleaning the Printer

Never use benzene, paint thinner, or other volatile solvents to clean the printer. Volatile solvents may cause deformation or peeling of the printer’s casing. To clean the printer, wipe it with a soft dry cloth. If stronger cleaning is required, wipe first with a cloth moistened with a dilute neutral solvent, then wipe again with a soft dry cloth. If you use a chemical cleaning cloth, read the instructions that come with it and observe all indicated precautions.

Keep the air vents clean and free of dust. Clean the vents as necessary. Dust that enters the printer through the vents may land on the ink sheet, resulting in poor print quality and possibly leading to printer breakdown. If the ink sheet becomes dusty, remove the ink cassette and replace it with a new one.

 Proper Handling of Ink Cassettes

Please use only the ink cassettes specified for use by Canon.

Do not open the ink cassette cover while printing is in progress, and do not pull the ink cassette out. These actions may damage the printer.

Do not touch or pull on the ink sheet.

Do not handle the ink cassettes with wet or sweaty hands.

Allow ink cassettes to reach room temperature before installing and using them.

Condensation may form if you suddenly move ink cassettes from a cold location to a warm location. If there is risk of condensation, leave the cassette in its packaging until it reaches room temperature, and wipe away any moisture before loading it.

If you are not planning to use the printer for a while, remove and store the ink cassette.

 Proper Handling of Paper Cassettes

Do not apply excessive force to the paper cassette. Force or impact on the cassette may result in paper jams or equipment damage.

Do not bend or deform the spring located at the rear of the middle cover of the paper cassette.

Spring

Do not place any foreign objects in the print output receptacle (on the top of the paper cassette). This area is for paper only.

If you are not planning to use the printer for a while, remove the paper cassette, close the paper cassette’s top cover and store the paper cassette. Also remove the paper from the paper cassette and store it horizontally.

+ 37 hidden pages
