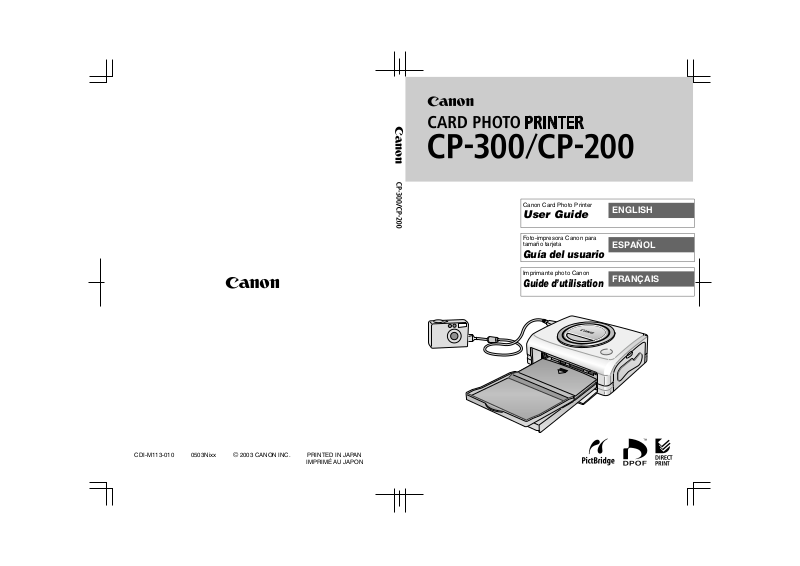

Canon Card Photo Printer

User Guide

Foto-impresora Canon para tamaño tarjeta

ENGLISH

ESPAÑOL

Guía del usuario

Imprimante photo Canon

Guide d’utilisation

FRANÇAIS

English

Contents

How to Use the Manuals............................................................. 2

Symbols Used....................................................................... 2

Package Contents ....................................................................... 3

Quick Start ................................................................................... 4

Introduction ................................................................................. 8

What Can Be Accomplished with this Printer .......................... 9

Read This First .......................................................................... 10

Safety Precautions.............................................................. 10

Proper Usage and Handling ............................................... 14

Components Guide............................................................. 18

Let’s Print................................................................................... 20

Preparing Your Ink Cassette/Paper Sets and Paper

Cassette ......................................................................... 20

Loading the Ink Cassette .................................................... 22

Placing the Paper into the Paper Cassette......................... 23

Loading the Paper Cassette ............................................... 25

Connecting a Power Source and the Camera to the Printer.... 26

Printing................................................................................ 28

Battery Usage ............................................................................ 29

Using the Battery Pack (CP-300 Only) ............................... 29

Using the Car Battery Adapter (CP-300/CP-200) ............... 33

Troubleshooting........................................................................ 34

Error Messages .........................................................................36

Specifications............................................................................ 38

Connecting the Printer to a Computer and Printing .............. 40

Safety Precautions.............................................................. 40

Read Carefully Before Using! ............................................. 41

System Requirements ........................................................ 43

Printing Operations Overview ............................................. 45

Viewing the Printer Driver User Guide (Windows/Macintosh) .......46

Viewing the ZoomBrowser EX Software User Guide

(Windows)/ImageBrowser Software User Guide

(Macintosh) PDF Manuals .............................................. 47

Printing with Non-Canon Digital Cameras .............................. 49

How to Use the Manuals

Please refer to the following manuals according to your purposes.

Printer User Guide (This Guide)

• Printer, paper and ink cassettes handling instructions

• Camera and printer connection instructions

• Printer and computer connection overview

Printer Driver User Guide

(Bundled on the CP Printer Solution Disk)

• Printer driver installation instructions

• Printer and computer connection instructions and printing instructions

Camera User Guide (Included with the Camera)

• Shooting, replaying and erasing images from the camera

• Camera and printer connection instructions and printing instructions

• Camera and computer connection instructions

ZoomBrowser EX Software User Guide (Windows) ImageBrowser Software User Guide (Macintosh)

• Instructions on how to use ZoomBrowser EX and ImageBrowser

These PDF format manuals are available on the Canon website. Please download them from the following URL:

http://web.canon.jp/Imaging/information-e.html

: Included with the Printer

Symbols Used

: This mark denotes issues that may affect the printer’s operation.

: This mark denotes additional topics that complement the basic operating

procedures.

Package Contents

Card Photo Printer Paper Cassette

(Postcard size)

Standard Paper

(Postcard size, 5 sheets)

Battery Pack NB-CP1L*1 *

Battery Pack Terminal Cover*1*

Compact Power Adapter

Ink Cassette (Postcard size, for 5 sheets)

AC Cable Cleaner Stick

CA-CP100

Paper Cassette (Card size)*

CP Printer Solution Disk

• User Guide (this booklet)

• Warranty Card*

• Canon Customer Support Leaflet*

*1 Included with the CP-300 only.

Not included in some regions.

The following products are sold separately.

Paper Cassette PCL-CP100 L size* Paper Cassette PCC-CP100 Card size Color Ink/Paper Set KP-36IP Postcard size, 36 standard sheets Color Ink/Paper Set KL-36IP L size, 36 standard sheets* Color Ink/Paper Set KC-36IP Card size, 36 standard sheets Color Ink/Full-sized Label Set KC-18IF Card size, full-size, 18 Label sheets Color Ink/Label Set KC-18IL Card size, Multiple (8-screen), 18 Label sheets Battery Pack NB-CP1L Spare battery pack. Cannot be used with the

Battery/Charge Adapter Kit BCA-CP100 Set including the Battery Pack NB-CP1L and a

Car Battery Adapter CBA-CP100 Powers the printer from a car’s battery.

* Not sold in some regions.

CP-200.

battery charger. Cannot be used with the CP-200.

Quick Start

Let’s start by printing on postcard size paper. This section explains the procedures required to print with the paper and the ink cassette (trial kit) included with your printer. Some steps may vary according to the printer model so be sure to check which printer model you are using (CP-300 or CP-200). If you have trouble understanding certain procedures, please refer to the relevant reference pages for detailed instructions.

* General camera descriptions in this guide refer to digital cameras or digital camcorders

compatible with the card photo printer (CP-300/CP-200). However, in detailed instructions, “camera” refers to “digital cameras”, and “compact power adapter” refers to “power source” throughout this guide.

Things to Prepare

Printer (CP-300 or CP-200) Standard Paper (Postcard size, 5 sheets) Ink Cassette (Postcard size, for 5 sheets) Paper Cassette (Postcard size) Compact Power Adapter CA-CP100 AC Cable Canon camera Memory card containing the images you wish to print

Camera User Guide

USB Cable included with your camera kit

: Included with the Printer

Loading the Ink Cassette in the Printer p. 22

Open the ink cassette

compartment cover.

Load the ink cassette and

close the ink cassette compartment cover.

Placing the Paper into the Paper Cassette p. 23

Paper (Glossy side up)

Top Cover

Middle Cover

(Address/stamp side next to the middle cover)

Open the paper cassette’s

top and middle covers.

Place the middle cover back to its original position,

and leave the top cover open.

Loading the Paper Cassette into the Printer p. 25

Place the paper (postcard size, 5

sheets), glossy side up and the address/stamp side next to the middle cover, in the paper cassette.

Middle Cover

Open the paper cassette

compartment cover.

Push the paper cassette all the way

into the paper cassette compartment, with its top cover open and its middle cover closed.

Continued on the next page.

Quick Start (Continued)

Connecting the Printer to a Power Source p. 26

Insert the AC cable into the

compact power adapter and

mark

facing up

Connect the compact power adapter to

the printer’s DC IN terminal.

• At this point, the CP-200’s power will turn on and the printer’s indicator will light green.

Connecting the Camera to the Printer p. 26

DC IN Terminal

plug the other end into a power outlet.

To Pow e r S o u r c e

Connect the USB cable (included with the

camera) to the camera’s DIGITAL terminal.

Direct Print Port

• If you are using the CP-200, go to step 7.

DIGITAL Terminal

Connect the USB cable with its mark facing down

Connect the other end of the USB cable to the

printer’s direct print port.

Turn On the Power (CP-300 Only) p. 27

ON/OFF Button

Indicator

Press the printer’s ON/OFF button until the indicator lights green.

Printing p. 28

Turn the camera’s power on and display the images.

• The (Direct Print) mark appears on the upper left corner of the LCD monitor.

Press the camera’s SET button.

Screen shot of the camera’s LCD monitor

Select [Print] and press the SET button.

• Printing starts.

With certain camera models, the camera will power up and display its images when it is connected to the printer with the USB cable. For detailed instructions, please refer to the Camera User Guide that came with your camera.

Introduction

Thank you for your purchase of the Canon Card Photo Printer CP-300/CP-

200. This User Guide explains the printer’s general flow of operations, from camera print settings to printing and computer connection operations to printing. For information about how to make prints, refer to the Camera User Guide that came with your camera and to the Printer Driver User Guide (bundled on the CP Printer Solution Disk).

Before using your printer for the first time, please read through the safety precautions.

 Warning Against Copyright Infringement

Please respect all copyrights. Use of images produced by this printer for purposes other than personal entertainment may be prohibited by law.

 Warranty Limitations

This printer’s warranty is only effective in the country of sale. If a problem arises while the printer is in use abroad, please convey it back to the country of sale before proceeding with a warranty claim to a Canon Customer Support Help Desk.

For Canon Customer Support contacts, please see the Canon Limited Warranty supplied with your printer.

This printer is designed to perform optimally when used with genuine Canon-brand printer accessories (“Canon Brand Accessories”). You may use non-Canon brand accessories with this printer. However, Canon makes no warranties concerning, and is not responsible for damages resulting from, use of non-Canon brand accessories.

p. 10

Disclaimer

• While every effort has been made to ensure that the information contained in this User Guide is accurate and complete, no liability can be accepted for any errors or omissions. Canon reserves the right to change the specifications for the hardware and software described herein at any time without prior notice.

• No part of this User Guide may be reproduced, transmitted, transcribed, stored in a retrieval system, or translated into any language in any form, by any means, without the prior written permission of Canon.

• Canon makes no warranties for damages resulting from corrupted or lost data due to a mistaken operation or malfunction of the product, the CompactFlash card) or use of non-Canon CF cards.

Trademark Acknowledgements

• Canon is a trademark of Canon, Inc.

• Any other company and product names used herein may be trademarks of their respective companies.

cards (CF

What Can Be Accomplished with this Printer

Connects directly to supporting Canon cameras

Allows easy printing from any Canon camera that supports direct printing with the card photo printer (CP-300/CP-200). Just connect the interface cable and you’re ready to go.

Connects directly to computers

Simply connect the printer to a computer with one commercially available USB cable to perform the following operations.

• Print images shot with the camera

• Print part of an image (trimming)

• Print images with captions and artistic layout (Windows only)

• Make your own custom business cards

Three paper sizes and two types of labels

You can print on standard paper in postcard size, L size or credit-card size. In addition to the standard size paper, you can print full-sized labels or 8-label stickers with the credit-card size paper.

High-quality prints, fast paper feeding

Offers photo-quality prints. Produces up to 18 prints without reloading.

Fast printing

Postcard size images can be printed at the high speed of approximately 85 seconds per sheet.

Coated prints

Applies a protective coating to each print.

Borderless prints

Can produce borderless images that fill the paper completely.

Supports DPOF (Digital Print Order Format)

Supports DPOF settings for print selection, number of copies, and shooting date.

Easy outdoor printing

You can easily print outdoors by attaching the battery pack (CP-300 only). You can also print images using the power of the cigarette lighter socket of a car with the separately sold Car Battery Adapter.

• If does not display on the camera’s LCD monitor when you connect your camera to this printer, your camera’s firmware may be incompatible with this printer. Please check the Canon BeBit website (http://web.canon.jp/Imaging/ BeBit-e.html) or your regional Canon website, for information or to download compatible firmware.

Since this printer complies with an industry standard for direct printing, you can print with non-Canon cameras that are also compatible with this standard. For details, refer to page 49.

Read This First

Safety Precautions

• Before using the devices, please ensure that you have read and understood the safety precautions described below. Always ensure that the devices are operated correctly.

• The safety precautions noted on the following pages are intended to instruct you in the safe and correct operation of the devices to prevent injuries or damage to yourself and other persons.

• “Devices” refers to the “printer, compact power adapter, battery pack (included with the CP300 in some regions or sold separately) or charge adapter (sold separately)” throughout this guide.

WARNINGS

 Devices

If the devices emit smoke or a burning odor, or show other signs of significant malfunction, immediately unplug the AC cable from the power outlet. Continued

operation under these conditions poses risk of fire or electric shock. Be sure that smoke or burning odor subsides, and then contact your dealer or the nearest Canon Customer Support help desk.

If the devices are dropped or the devices casing becomes damaged, unplug the AC cable from the power outlet. Continued operation poses risk of fire or electric shock.

Contact your dealer or the nearest canon Customer Support help desk.

Never rest small metallic objects or liquid containers on top of the devices. If liquid splashes onto the devices, wipe the devices dry using a soft absorbent cloth. If liquid spills into the devices or an object falls into the devices, immediately unplug the AC cable from the power outlet. Continued operation poses risk of fire or electric shock. Contact your dealer or the nearest Canon Customer Support help desk.

Do not use flammable solvents such as alcohol, benzene, or paint thinner to clean the devices. Use of such solvents poses a fire risk.

Do not drop or insert metallic or combustible objects into the devices. Entry of foreign

objects into the devices may result in fire, electric shock, or equipment failure. Store the devices out of the reach of children.

Do not disassemble or modify the devices. The devices contain high-voltage components, and there is risk of electric shock. If your devices need internal adjustments or repair, contact your dealer or a Canon Customer Support help desk.

Do not touch metal parts of the devices or the power plug during thunderstorms. Lightning strikes may produce lethal voltages within the devices. Keep clear of the devices while thunderstorms are in progress.

 Power

Do not exceed the cable and power outlet ratings when operating this product. Do not operate this product outside of the specified voltage rating. Connecting too many lines to the same outlet may result in fire. Check that the voltage of the outlet is compatible with the devices before plugging them in.

If the AC cable becomes damaged (if internal wiring is exposed, etc.), immediately unplug the cable from the power outlet. Continued use poses risk of fire or electric shock.

Do not plug in or unplug the AC cable while your hands are wet, as this may result in electric shock. When unplugging the cable, hold it firmly at the plug area. Do not pull directly

on the cable, as this may damage or expose the cable’s internal wiring, resulting in risk of fire or electric shock.

Be sure that the AC cable is plugged all the way in. A loose connection may result in heat buildup, fire, or electric shock.

Do not damage, modify, or rest heavy objects on the AC cable. Damage to the cable may result in the exposure of live wires, fire, or electric shock.

Keep the AC cable free of dust. The presence of dust or metallic debris on the plug poses risk of fire or electric shock. If the plug area is not clean, unplug the AC cable and then wipe the plug area clean using a dry cloth. Check the plug periodically to make sure it is clean.

 Usage Location

Do not place the devices on an unstable or tilted table or desk, as there is risk that the devices may fall and cause injury.

CAUTIONS

 Devices

Do not block the air vents on the printer. Blocking the vents may cause the inside of the printer to overheat, resulting in damage to internal components and risk of equipment failure or fire. Use the devices in a well-ventilated area.

Do not rest heavy objects on the devices. Objects may fall off the devices and cause injury. Weight placed on the devices may deform the casing, resulting in damage to internal parts and posing risk of fire.

Unplug the devices when you are not using them. If the devices remain plugged in, there is risk that accidental contact with the device’s internal parts may cause electric shock. Leaving the devices plugged in during prolonged periods of non-use poses risk of fire.

Do not remove the paper cassette from the printer while printing is in progress. Paper moves back and forth in the cassette four times during printing. Placing your hand in the way of moving paper may result in injury. Wait for printing to finish completely before removing the cassette. Never place your hand into the paper cassette slot.

Do not reach into internal parts of the devices except as specified in the operating instructions. Reaching into inappropriate parts of the devices may cause your hand to

become caught or injured.

 Power

Do not move the devices while they are plugged in. Doing so may damage the AC cable. Continued use of a damaged AC cable poses risk of fire or electric shock.

Do not excessively bend or twist the AC cable. Doing so may damage the cable. Continued use of a damaged cable poses risk of fire or equipment failure. Leave about 10 cm (4 in.) of clearance around the devices to ensure adequate ventilation.

Do not pull on the AC cable. Doing so may damage the cable. Continued use of a damaged cable poses risk of fire or electric shock. Always hold the cable by the plug area when unplugging it.

 Usage Location

Do not use the devices in locations that are smoky, humid, dusty, or subject to strong vibration. Entry of water or dust into the devices, or internal damage caused by strong

vibration, may pose risk of fire or electric shock. Have the devices checked approximately once a year (contact your dealer), preferably before the onset of your area’s humid season.

Do not leave the devices exposed to high temperatures. Do not leave in direct sunlight, or close to heating equipment, or in a car with windows closed on a hot day. High temperatures may cause deformation of the devices and pose risk of fire.

Do not use the devices near an open flame. Sheets ejected from the printer (onto the top of the paper cassette) may fall into the flame, resulting in fire.

Do not use the devices close to TV sets or AM radios. Devices’ operation may adversely affect TV and radio reception.

Proper Usage and Handling

 Usage Location

Do not use near strong magnets or near devices that produce strong electromagnetic fields. Electromagnetic radiation from devices such as TVs and game machines, and strong

magnetic fields from devices such as speakers and large motors, may cause distortion in printed images.

Use in a well-ventilated, level area.

Leave about 10 cm (4 in.) of clearance around the printer. Be sure to leave clearance

around the paper-handling slot (at the rear) so that paper has sufficient room to jut out from the slot during printing.

 Handling Precautions

Please avoid turning the printer’s power on and off needlessly as the printer initialization consumes ink: There may not be enough ink left for the allotted sheets in the

set.

When the printer is not in use, please remove the battery pack (CP-300 only).

Unplug the printer when you are not using it. But please note that you should plug in and

run the printer at least once every six months to ensure that it remains functional.

Before transporting the printer, remove the paper and ink cassettes and close the paper cassette cover and the ink cassette cover. If dirt or foreign objects enter the printer,

print quality may deteriorate.

Pack the printer into an appropriate case for transport. If a case is not available, wrap it with cloth or other protective material to protect against scratches.

Never use volatile compounds or insecticides on the printer, and do not allow rubber or vinyl material to remain in prolonged contact with the printer. These materials may

cause deformation of the printer’s casing.

 Overheating

If the printer overheats, it will temporarily stop operating. This does not mean that the printer has malfunctioned. The printer will resume normal printing as soon as it cools

down. Temporary stoppages are most likely to occur in the following cases:

• When printing continuously.

• If the room is unusually warm.

• If the air vents are blocked or if ventilation is inadequate.

 To Prevent Damage from Condensation

Condensation may form in the printer if you suddenly move it from a cold location to a warm location. To prevent damage that might be caused by condensation, place the printer

in a sealed vinyl bag prior to moving it, and allow it to reach room temperature before using it. Stop using the printer immediately if you detect condensation. Continued use may damage the equipment. Wait until the moisture evaporates completely before resuming use.

 Cleaning the Printer

Never use benzene, paint thinner, or other volatile solvents to clean the printer. Volatile solvents may cause deformation or peeling of the printer’s casing. To clean the printer, wipe it with a soft dry cloth. If stronger cleaning is required, wipe first with a cloth moistened with a dilute neutral solvent, then wipe again with a soft dry cloth. If you use a chemical cleaning cloth, read the instructions that come with it and observe all indicated precautions.

Keep the air vents clean and free of dust. Clean the vents as necessary. Dust that enters the printer through the vents may land on the ink sheet, resulting in poor print quality and possibly leading to printer breakdown. If the ink sheet becomes dusty, remove the ink cassette and replace it with a new one.

 Proper Handling of Ink Cassettes

Please use only the ink cassettes specified for use by Canon.

Do not open the ink cassette cover while printing is in progress, and do not pull the ink cassette out. These actions may damage the printer.

Do not touch or pull on the ink sheet.

Do not handle the ink cassettes with wet or sweaty hands.

Allow ink cassettes to reach room temperature before installing and using them.

Condensation may form if you suddenly move ink cassettes from a cold location to a warm location. If there is risk of condensation, leave the cassette in its packaging until it reaches room temperature, and wipe away any moisture before loading it.

If you are not planning to use the printer for a while, remove and store the ink cassette.

 Proper Handling of Paper Cassettes

Do not apply excessive force to the paper cassette. Force or impact on the cassette may result in paper jams or equipment damage.

Do not bend or deform the spring located at the rear of the middle cover of the paper cassette.

Spring

Do not place any foreign objects in the print output receptacle (on the top of the paper cassette). This area is for paper only.

If you are not planning to use the printer for a while, remove the paper cassette, close the paper cassette’s top cover and store the paper cassette. Also remove the paper from the paper cassette and store it horizontally.

 Proper Handling of Paper

Please use only the paper types specified for use by Canon.

Paper must be printed on the glossy side (the side without any printed markings).

Always load paper into the cassette with the glossy side up. Loading the paper the wrong way may result in poor print quality, and in some cases may cause damage to the printer.

Do not tear or bend the paper’s perforated edges before printing. Tearing the paper’s perforated edges will cause the ink sheet to wind up automatically and waste one print’s worth of ink. If this happens, there will not be enough ink left to print all the paper sheets included in the kit.

Do not use label sheets on which labels are partially peeled off.

Do not touch the print side of the paper with your fingers. Always hold the paper along

the edges (outside the perforated border).

Be sure that hands are dry before touching the paper, and do not scratch on the paper surface with a hard object. Keep the paper surface away from dust, water droplets, etc.

Do not write on the paper before printing. Writing on paper before printing on it may result in malfunction.

Do not touch paper while it is being printed. During printing, the sheet repeatedly moves back and forth along the top of the paper cassette and in and out through the paper-handling slot. Please do not touch the sheet during this process.

Do not allow too many prints to accumulate in the print output receptacle. Do not allow more than 9 sheets to accumulate in the print output receptacle.

You may write on the back of the paper with an oil-based pen, but to avoid smudging please allow ink time to dry before touching it.

Allow the paper to reach room temperature before installing and using it. Condensation

may form if you suddenly move the paper from a cold location to a warm location. If there is risk of condensation, leave the paper in its packaging until it reaches room temperature, and wipe away any moisture before loading it.

Please avoid the following actions as they may result in color change, color fading or color bleeding.

• Sticking any type of adhesive tape onto the print surface.

• Allowing print surfaces to come into contact with vinyl materials.

• Applying alcohol or other volatile solvents to the print surface.

• Leaving print surfaces tightly pressed against any other surfaces or objects for prolonged periods.

 Paper Storage

If you wish to mount prints into an album, select an album with nylon-based sleeves, or with propylene or cellophane sleeves. Other types of sleeves may cause color loss or

color bleeding.

Color change may occur over time in accordance with conditions of storage. Canon assumes no liability for color changes.

To avoid print quality deterioration, do not store your prints in the following types of locations.

• Locations that reach temperatures above 40

• Humid or dusty locations

• Locations exposed to direct sunlight.

Remove unused paper from the paper cassette, return it to its original package, and store the package horizontally.

C (104oF)

 Others

When opening a color ink/paper set (full-sized label set, label set), check the contents. If something seems to be missing or appears to be damaged, contact the dealer for assistance.

The battery pack can be charged while installed on the printer (CP-300 only), using the printer.

• Charge the battery pack using the compact power adapter supplied with the printer.

• The battery pack can also be charged using the separately sold the Battery/Charge Adapter Kit.

When using the battery pack (Included with the CP-300 in some regions or sold separately), if the battery status is low, the finished print may not be ejected into the print output receptacle completely. If this happens, please pull out the paper.

Components Guide

 Card Photo Printer CP-300

Indicator

Indicates the printer’s status. Orange: Charging the battery pack Green: Ready to print Blinking green: Printing in progress Blinking orange: Battery depleted Red/Blinking red: Error

Paper Cassette Slot

The paper cassette loads into this compartment.

ON/OFF Button

Turns the printer’s power ON and OFF.

Ink Cassette Slot

The ink cassette loads into this compartment.

Ink Cassette Compartment Cover

Battery Cover Lever

Battery Cover

Paper Cassette Compartment Cover

DC IN Terminal

Connects to the Compact Power Adapter.

Paper-handling Slot

Paper extends out from this slot while printing is in progress.

USB Port

Connects commercially available USB cables to a computer.

Direct Print Port

Connects the USB cable (included with the camera) to the camera.

 Card Photo Printer CP-200

Indicator

Indicates the printer’s status. Green: Ready to print Blinking green: Printing in progress Red/Blinking red: Error

Paper Cassette Slot

The paper cassette loads into this compartment.

Paper Cassette Compartment Cover

Ink Cassette Slot

The ink cassette loads into this compartment.

Ink Cassette Compartment Cover

Paper-handling Slot

Paper extends out from this slot while printing is in progress.

DC IN Terminal

Connects to the Compact Power Adapter.

USB Port

Connects commercially available USB cables to a computer.

Direct Print Port

Connects the USB cable (included with the camera) to the camera.

Let’s Print

Preparing Your Ink Cassette/Paper Sets and Paper Cassette

Since there are several kinds of sets (including the separately sold sets), please make sure you are using the right ink cassette, paper and paper cassette. If the set is not correct, your will not be able to print. Please check the sets and the names of their components in the table below.

Look here for the paper cassette name Look here for the ink cassette name

 Checking Your Ink/Paper Sets

 Printing on Postcard Size Paper (100 × 148 mm (4 × 6 in.))

Number

Paper

• Included in package

Sheets

Paper Cassette

Name

The design of the seal on your ink cassette may

Ink Cassette Name

slightly differ from the examples below.

 Printing on L Size Paper (89 × 119 mm (3.5 × 4.7 in.))

Number

Paper

• The paper cassette PCL-CP100 (sold separately) is required to print on L size paper.

Sheets

Paper Cassette

Name

The design of the seal on your ink cassette may

Ink Cassette Name

slightly differ from the example below.

 Printing on Credit Card Size Paper (54 × 86 mm (2.1 × 3.4 in.))

Ink Cassette Name

slightly differ from the examples below.

Paper

Number

Sheets

Paper Cassette

Name

The design of the seal on your ink cassette may

Standard Paper

Full-sized Label

8-sticker Label

• The credit card size paper cassette is included with the CP-300.

• The paper cassette PCC-CP100 (sold separately) is required when printing on credit card size paper with the CP-200.

 Separately Sold Ink and Paper Products

You can use the following color ink/paper sets (sold separately) with the Canon Card Photo Printer CP-300/CP-200.

Paper Size Contents Product Name

Postcard size

L size

Credit card size Standard paper (36 sheets)

Standard paper (36 sheets) Dedicated ink cassette

Dedicated ink cassette

Full-sized label (18 sheets) Dedicated ink cassette

8-sticker label (18 sheets) Dedicated ink cassette

• One ink cassette can print to all of the paper included in the ink/paper set.

Color Ink/Paper Set KP-36IP

Color Ink/Paper Set KL-36IP

Color Ink/Paper Set KC-36IP

Color Ink/Full-Sized Label Set KC-18IF

Color Ink/Label Set KC-18IL

Loading the Ink Cassette

Open the ink cassette

Ink Sheet

Round Part

compartment cover.

Remove any slack from the ink sheet.

• Push in on the round part in the middle of the cassette, and turn it in the indicated direction to take up the slack until the ink sheet straightens out (It will not be possible to print to all of the paper if you overwind the ink sheet).

Clip

Window

• Do not reuse empty ink cassettes. Attempting to reuse an empty ink cassette may result in malfunction or damage to the printer.

• Please also refer to the Proper Handling of Ink Cassettes section of Proper Usage and Handling. p. 15

Hold the cassette so that the embossed arrow is at the top, and insert it all the way into the compartment (in the direction of the arrow).

• Be careful to avoid touching or pulling on the ink sheet when inserting the cassette.

• Push the cassette all the way in, so that it clicks into place.

• When you are ready to remove the ink cassette, lift the clip and pull the cassette out.

Close the ink cassette compartment cover.

• You can check the name of the ink cassette in the printer through the window on the top of the printer.

Placing the Paper into the Paper Cassette

Open the paper cassette’s top

Top Cover

Middle Cover

Paper (Glossy side up)

cover and middle cover.

• Open the top cover, then push the middle cover in the direction of the arrow and lift it up.

Fan the paper stack properly and place the paper into the paper cassette, with the printable side (glossy side) facing up.

• Insert the postcard size paper with the glossy side up and the address/stamp side next to the middle cover as shown in the figure.

• Insert the credit-card size paper as shown in the figure below.

(Address/stamp side next to the middle cover)

Credit-Card Size (Standard Paper/Fullsized Label)

Place the middle cover back to its original position.

• After pulling the middle cover down, slide it in the direction of the arrows until it clicks back into place.

• Do not close the top cover.

Credit-Card Size (8-label Sticker)

• Please use specified paper types only.

• Do not insert more than 18 sheets in the paper cassette.

• Never print on a sheet of paper more than once, even if the first printing has left the paper completely blank. The coating applied to the paper as it passes through the printer makes it unsuitable for further use. Reused paper may stick to the ink sheet, resulting in damage to the printer.

• Please also refer to the Proper Handling of Paper Cassettes and the Proper Handling of Paper sections of Proper Usage and Handling. p. 15, p. 16

Loading the Paper Cassette

Open the paper cassette

Middle Cover closed

Top Cover open

• Do not remove the paper cassette while feeding, printing, or ejection is in progress.

compartment cover.

Push the paper cassette all the way into the paper cassette slot.

• Be sure the paper is set correctly before pushing the cassette in.

• Insert the paper cassette evenly so that it slides over the bottom of the slot entrance.

• The printer outputs the finished prints into the receptacle onto the top of the printer cassette (top of the middle cover or inside of the top cover). Be sure to close the middle cover and open the top cover so that output can proceed normally.

Print Receptacle

Connecting a Power Source and the Camera to the Printer

Connect the camera to the printer using the cable (included with the camera) and turn the printer’s power on. For more detailed camera connection instructions, refer to your Camera User Guide.

Canon camera compatible with CP-300/CP-200

To DIGITAL Terminal

To DC IN Terminal

To Power Outlet

10 cm (4 in.) or more of open space

USB cable included with the camera

Camera’s Compact Power Adapter (sold separately or included with the camera) * Please use the camera’s compact

power adapter or a fully charged battery pack (or charged batteries).

Compact Power Adapter

The numbered steps in the following instructions refer to the numbers in the above illustration.

Place the printer on a flat area.

1 2

• Be sure to leave about 10 cm (4 in.) of clearance around the paper-handling slot (at the rear) so that paper has sufficient room to jut out from the slot during printing.

Connect the supplied AC cable to the supplied Compact Power Adapter CA-CP100.

To Power Outlet

Insert the plug in a power outlet.

Connect the Compact Power Adapter cable to the printer.

4 5 6 7

 Turning the Printer’s Power Off

CP-300

Press the ON/OFF button until the indicator goes off.

CP-200

Unplug the cable of the compact power adapter from the printer. (The indicator will go off)

• Insert the cable with its mark facing up.

• With the CP-200, the power turns on at this point and the indicator lights green.

Connect the USB cable to the camera.

• Use the USB cable that came with your camera.

Connect the USB cable to the printer.

• Insert the cable in the left port, with the mark on the cable facing down.

Press the ON/OFF button until the indicator goes on. (CP300 only)

• The indicator lights green once the printer powers up.

• We recommend that you connect the camera’s compact power adapter (sold separately or included with the camera) when using the camera with your printer. If you wish to run the camera on battery power, be sure that batteries are fresh (fully charged).

• When connecting the cable, be sure that the connectors on the cable match up correctly with the connectors on the camera and printer.

• Use an easily accessible power outlet for the printer’s AC cable, so that you can unplug the printer cable quickly in the event of a problem.

• Please also refer to the Usage Location section of Proper Usage and Handling for information about printer usage location. p. 14

• Some camera models do not come with a compact power adapter. For details, please see the System Map that came with your camera.

Printing

This section explains the flow of printing operations. For more details, refer to your Camera User Guide.

Turn the camera’s power on and

Display the images to be printed and press the SET button.

display the images.

• Check that the (Direct Print) mark is displayed in the upper left corner of the LCD monitor.

• Some camera models automatically power up when the cable is connected to the printer. The (Direct Print) mark then displays on the LCD monitor.

Select [Print] and press the SET

button.

• Printing starts. The camera returns to the replay screen once printing is successfully completed.

If does not display in step 1, check the following:

• Is the cable correctly connected? p. 26

• Is the printer’s power on? p. 26

• Is your camera’s firmware compatible with this printer? p. 34

If printing does not start, check the following:

• Does the camera’s LCD monitor display a message? p. 36

Battery Usage

Using the Battery Pack (CP-300 Only)

With the CP-300, you can use the rechargeable battery pack (Battery Pack NBCP1L) to print. The battery pack can either be charged in the printer or with the separately sold battery charger (included with the Battery/Charge Adapter Kit BCA-CP100).

 Charging the Battery Pack in the Printer

Attach the battery pack NB-CP1L to the printer to charge it.

Remove the battery pack’s

Terminal Cover

terminal cover.

• When the battery pack is not in use, always store it with its terminal cover on.

Press the battery cover lever down and remove the battery cover.

Compact Power Adapter

To Power Outlet

AC Cable

Install the battery pack.

• Slide the battery pack into place, in the direction of the arrow, and push it in until it clicks into place.

• To remove the battery pack, push the battery cover lever down and pull the battery pack out. Replace the battery cover afterwards.

Attach the AC cable to the compact power adapter CACP100 and plug it into a power outlet.

+ 124 hidden pages
