Page 1

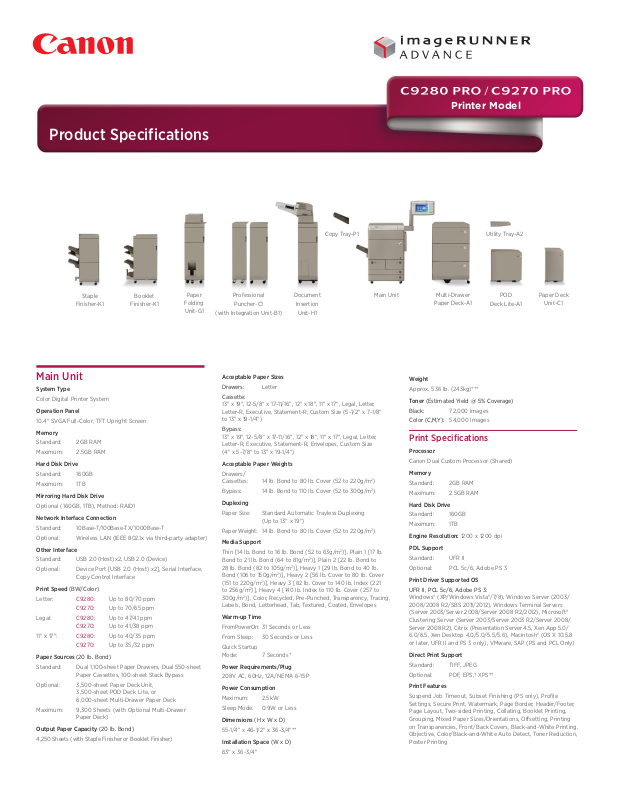

Product Specifications

Printer Model

Staple

Finisher-K1

Booklet

Finisher-K1

Paper

Folding Unit-G1

Main Unit

System Type

Color Digital Printer System

Operation Panel

10.4" SVGA Full-Color, TFT Upright Screen

Memory

Standard: 2GB RAM

Maximum: 2.5GB RAM

Hard Disk Drive

Standard: 160GB

Maximum: 1TB

Mirroring Hard Disk Drive

Optional (160GB, 1TB), Method: RAID1

Network Interface Connection

Standard: 10Base-T/100Base-TX/1000Base-T

Optional: Wireless LAN (IEEE 802.1x via third-party adapter)

Other Interface

Standard: USB 2.0 (Host) x2, USB 2.0 (Device)

Optional: Device Port [USB 2.0 (Host) x2], Serial Interface,

Print Speed (BW/Color)

Letter: C9280: Up to 80/70 ppm

Legal: C9280: Up to 47/41 ppm

11" x 17": C9280: Up to 40/35 ppm

Paper Sources (20 lb. Bond)

Standard: Dual 1,100-sheet Paper Drawers, Dual 550-sheet

Optional: 3,500-sheet Paper Deck Unit,

Maximum: 9,300 Sheets (with Optional Multi-Drawer

Output Paper Capacity (20 lb. Bond)

4,250 Sheets (with Staple Finisher or Booklet Finisher)

Copy Control Interface

C9270: Up to 70/65 ppm

C9270: Up to 41/38 ppm

C9270: Up to 35/32 ppm

Paper Cassettes, 100-sheet Stack Bypass

3,500-sheet POD Deck Lite, or 6,000-sheet Multi-Drawer Paper Deck

Paper Deck)

Copy Tray-P1

Professional

Puncher-C1

(with Integration Unit-B1)

Acceptable Paper Sizes

Drawers: Letter

Cassette:

13" x 19", 12-5/8" x 17-11/16", 12" x 18", 11" x 17", Legal, Letter, Letter-R, Executive, Statement-R, Custom Size (5-1/2" x 7-1/8" to 13" x 19-1/4")

Bypass:

13" x 19", 12-5/8" x 17-11/16", 12" x 18", 11" x 17", Legal, Letter, Letter-R, Executive, Statement-R, Envelopes, Custom Size (4" x 5-7/8" to 13" x 19-1/4")

Acceptable Paper Weights

Drawers/ Cassettes: 14 lb. Bond to 80 lb. Cover (52 to 220g/m2)

Bypass: 14 lb. Bond to 110 lb. Cover (52 to 300g/m2)

Duplexing

Paper Size: Standard Automatic Trayless Duplexing

Paper Weight: 14 lb. Bond to 80 lb. Cover (52 to 220g/m2)

Media Support

Thin [14 lb. Bond to 16 lb. Bond (52 to 63g/m2)], Plain 1 [17 lb. Bond to 21 lb. Bond (64 to 81g/m2)], Plain 2 [22 lb. Bond to 28 lb. Bond (82 to 105g/m2)], Heavy 1 [29 lb. Bond to 40 lb. Bond (106 to 150g/m2)], Heavy 2 [56 lb. Cover to 80 lb. Cover (151 to 220g/m2)], Heavy 3 [82 lb. Cover to 140 lb. Index (221 to 256g/m2)], Heavy 4 [140 lb. Index to 110 lb. Cover (257 to 300g/m2)], Color, Recycled, Pre-Punched, Transparency, Tracing, Labels, Bond, Letterhead, Tab, Textured, Coated, Envelopes

Warm-up Time

From Power On: 31 Seconds or Less

From Sleep: 30 Seconds or Less

Quick Startup Mode:

Power Requirements/Plug

208V AC, 60Hz, 12A/NEMA 6-15P

Power Consumption

Maximum: 2.5kW

Sleep Mode: 0.9W or Less

Dimensions (H x W x D)

55-1/4" x 46-1/2" x 36-3/4"**

Installation Space (W x D)

63" x 36-3/4"

(Up to 13" x 19")

7 Seconds*

Document

Insertion

Unit-H1

Main Unit

Utility Tray-A2

Multi-Drawer

Paper Deck-A1

Weight

Approx. 536 lb. (243kg)***

Toner (Estimated Yield @ 5% Coverage)

Black: 72,000 Images

Color (C,M,Y): 54,000 Images

POD

Deck Lite-A1

Paper Deck

Unit-C1

Print Specifications

Processor

Canon Dual Custom Processor (Shared)

Memory

Standard: 2GB RAM

Maximum: 2.5GB RAM

Hard Disk Drive

Standard: 160GB

Maximum: 1TB

Engine Resolution: 1200 x 1200 dpi

PDL Support

Standard: UFR II

Optional: PCL 5c/6, Adobe PS 3

Print Driver Supported OS

UFR II, PCL 5c/6, Adobe PS 3:

Windows® (XP/Windows Vista®/7/8), Windows Server (2003/ 2008/2008 R2/SBS 2011/2012), Windows Terminal Servers (Server 2003/Server 2008/Server 2008 R2/2012), Microsoft® Clustering Server (Server 2003/Server 2003 R2/Server 2008/ Server 2008 R2), Citrix (Presentation Server 4.5, Xen App 5.0/

6.0/6.5, Xen Desktop 4.0/5.0/5.5/5.6), Macintosh® (OS X 10.5.8 or later, UFR II and PS 3 only), VMware, SAP (PS and PCL Only)

Direct Print Support

Standard: TIFF, JPEG

Optional: PDF, EPS,† XPS††

Print Features

Suspend Job Timeout, Subset Finishing (PS only), Profile Settings, Secure Print, Watermark, Page Border, Header/Footer, Page Layout, Two-sided Printing, Collating, Booklet Printing, Grouping, Mixed Paper Sizes/Orientations, Offsetting, Printing on Transparencies, Front/Back Covers, Black-and-White Printing, Objective, Color/Black-and-White Auto Detect, Toner Reduction, Poster Printing

Page 2

Main Unit (continued)

Fax Specifications

Maximum Number of Connection Lines: 4

Modem Speed

Super G3: 33.6 Kbps

G3: 14.4 Kbps

Sending/Recording Size: Statement-R to 11" x 17"

Store Specifications

Mail Box (Number supported)

100 User Inboxes, 1 Memory RX Inbox, 50 Confidential Fax Inboxes

6,000 Maximum Pages Stored

Advanced Box

Available Disk Space:

Communication Protocol: SMB or WebDAV

Supported Client PC: Windows (Windows 2000/XP/7/8/Windows Vista)

Approx. 15GB (Standard HDD) Approx. 629GB (1TB HDD)

Security Specifications

Standard

Department ID Management, Single Sign-On H, Access Management System (Device and Function Level Log-in), Secure Print, Trusted Platform Module, User Access Control of Advanced Box, Mail Box Password Protection, IPv6, Restricting Features (Restricting the Send Function, Restricting New Addresses on Address Book), SSL Encrypted Communication, SNMPv1/v3, MAC/IP Address Filtering, SMTP Authentication, POP Authentication before SMTP, HDD Erase (Up to 3x), HDD Initialize (Up to 9x), HDD Lock, IPsec

Optional

Removable HDD, HDD Encryption, HDD Mirroring, Encrypted Secure Print, Secure Watermark, IEEE 2600.1 Common Criteria Certification



Environmental Information

ENERGY STAR® Qualified

EPEAT® Gold

EU RoHS Compliant

Ecomark

Blue Angel

WEEE Directive

†††

Optional Accessories

Paper Supply Options

Paper Deck Unit-C1

Paper Capacity: 3,500 Sheets [20 lb. Bond (80g/m2)]

Number of Drawers: 1

Acceptable Paper Weight: 14 lb. Bond to 80 lb. Cover (52 to 220g/m2)

Acceptable Paper Size: Letter

Acceptable Paper Type: Thin, Plain, Heavy, Color, Recycled, Pre-Punched

Power Source/ Max. Power Consumption:

Dimensions (H x W x D):

Weight: Approx. 81.6 lb. (37kg)

From Main Unit/Approx. 44W

22-1/2" x 12-3/4" x 23" (570mm x 323mm x 583mm)

POD Deck Lite-A1

Paper Capacity: 3,500 Sheets [20 lb. Bond (80g/m2)]

Number of Drawers: 1

Acceptable Paper Weight: 14 lb. Bond to 110 lb. Cover (52 to 300g/m2)

Acceptable Paper Size:

Acceptable Paper Type:

Power Source/ Max. Power Consumption:

Dimensions (H x W x D):

Weight: Approx. 110 lb. (50kg)

Multi-Drawer Paper Deck-A1

Paper Capacity: 6,000 Sheets [20 lb. Bond (80g/m2)]

Number of Drawers: 3 (2,000 Sheets each)

Acceptable Paper Weight: 14 lb. Bond to 110 lb. Cover (52 to 300g/m2)

Acceptable Paper Size:

Acceptable Paper Type:

Power Source/ Max. Power Consumption:

Dimensions (H x W x D):

Weight: Approx. 331 lb. (150kg)

13" x 19", 12-5/8" x 17-11/16", 12" x 18", 11" x 17", Legal, Letter, Letter-R

Thin, Plain, Heavy, Color, Recycled, Pre-Punched, Transparency, Labels, Bond, Letterhead, Textured, Coated

120-127V AC, 60Hz, 2.4A/Approx. 263W

22-1/2" x 23-5/8" x 24-1/2" (570mm x 601mm x 621mm)

13" x 19", 12-5/8" x 17-11/16", 12" x 18", 11" x 17", Legal, Letter, Letter-R, Executive, Custom Size (5-1/2" x 7-1/8" to 13" x 19-1/4")

Thin, Plain, Heavy, Color, Recycled, Pre-Punched, Transparency, Labels, Bond, Letterhead, Tab, Textured, Coated

120-127V AC, 60Hz, 4A/ Approx. 753W

41" x 37-3/8" x 31-3/8" (1040mm x 950mm x 797mm)

Output Options

Copy Tray-P1

Total Output Capacity: Up to 250 Sheets (20 lb. Bond)

Acceptable Paper Weight: 14 lb. Bond to 110 lb. Cover (52 to 300g/m2)

Acceptable Paper Size:

Dimensions (H x W x D):

Weight: Approx. 2.9 lb. (1.3kg)

Booklet Finisher-K1

Number of Tray s:

Total Output Capacity: 4,250 Sheets (Letter)

Tray A: 1,500 Sheets (Letter, Executive, Statement-R),

Tray B: 250 Sheets (Letter, Statement-R),

Tray C: 2,500 Sheets (Letter),

Acceptable Paper Weight: 14 lb. Bond to 110 lb. Cover (52 to 300g/m2)

Acceptable Paper Type:

Acceptable Paper Size:

13" x 19", 12-5/8" x 17-11/16", 12" x 18", 11" x 17", Legal, Letter, Letter-R, Executive, Statement-R, Envelopes, Custom Size (4" x 5-7/8" to 13" x 19-1/4")

6-7/8" x 16-1/2" x 15" (175mm x 420mm x 382mm)

750 Sheets (13" x 19", 12-5/8" x 17-11/16", 12" x 18", 11" x 17", Legal, Letter-R)

125 Sheets (11" x 17", Legal, Letter-R, Executive), 30 Sheets (13" x 19", 12-5/8" x 17-11/16", 12" x 18")

1,500 Sheets (Executive, Statement-R), 750 Sheets (13" x 19", 12-5/8" x 17-11/16", 12" x 18", 11" x 17", Legal, Letter-R)

Thin, Plain, Heavy, Color, Recycled, Pre-punched, Transparency, Tracing, Labels, Bond, Letterhead, Tab, Textured, Coated, Envelopes

13" x 19", 12-5/8" x 17-11/16", 12" x 18", 11" x 17", Legal, Letter, Letter-R, Executive, Statement-R, Envelopes, Custom Size (4" x 5-7/8" to 13" x 19-1/4")

Staple Positions:

Maximum Stapling Capacity:

Paper Capacity of Staple Mode:

Maximum Saddle-Stitch Capacity:

Paper Capacity of SaddleStitch Mode:

Type of Staple:Staple-N1 (5,000 x 3),

Power Source/ Max. Power Consumption:

Dimensions (H x W x D):

Weight: Approx. 243 lb. (110kg)

Staple Finisher-K1

Number of Tray s:

Total Output Capacity: 4,250 Sheets (Letter)

Tray A: 1,500 Sheets (Letter, Executive, Statement-R),

Tray B: 250 Sheets (Letter, Statement-R),

Tray C: 2,500 Sheets (Letter),

Acceptable Paper Weight: 14 lb. Bond to 110 lb. Cover (52 to 300g/m2)

Acceptable Paper Type:

Acceptable Paper Size:

Staple Positions:

Maximum Stapling Capacity:

Paper Capacity of Staple Mode:

Type of Staple:Staple-N1 (5,000 x 3)

Power Source/ Max. Power Consumption:

Dimensions (H x W x D):

Weight: Approx. 141 lb. (64kg)

Corner/Double Stapling:

11" x 17", Legal, Letter, Letter-R, Executive

Saddle-Stitch:

13" x 19", 12-5/8" x 17-11/16", 12" x 18", 11" x 17", Legal, Letter-R, Custom Size (8-1/4" x 11" to 13" x 19-1/4") (210.0 mm x 279.3 mm to

330.2 mm x 487.7 mm)

Letter and Executive:

100 Sheets [20 lb. Bond (8 0g/m2)] or up to 1/2 " (11mm) fo r heavier p aper

11" x 17", Legal, and Letter-R:

50 Sheets [20 lb. B ond (80g/m2)] or up to 1/4" (5. 5mm) for heavier pap er

Tray A and Tray C:

1,500 Sheet s/10 0 Sets (Letter, Executive), 750 She ets/50 S ets (11" x 17", Legal, Letter-R)

20 Sheets [21 lb. Bond (81g/m2), including 1 Cover Sheet up to 110 lb. Cover (300g/m2)]

1 to 5 Sheets/25 Sets, 6 to 10 Sheets/15 Sets, 11 to 16 Sheets/10 Sets, 17 to 20 Sheets/5 Sets

Staple-P1 (5,000 x 2)

100-240V AC, 50/60Hz, 2.8A Approx. 380W (including the Puncher Unit-BF1 and Inner Booklet Trimmer-A1) Approx. 349W (excluding the Puncher Unit-BF1 and Inner Booklet Trimmer-A1)

41" x 30-1/4" (35-1/4"▲▲) x 30-1/8" (1040mm x 767mm (896mm▲▲) x 765mm)

750 Sheets (13" x 19", 12-5/8" x 17-11/16", 12" x 18", 11" x 17", Legal, Letter-R)

125 Sheets (11" x 17", Legal, Letter-R, Executive), 30 Sheets (13" x 19", 12-5/8" x 17-11/16", 12" x 18")

1,500 Sheets (Executive, Statement-R), 750 Sheets (13" x 19", 12-5/8" x 17-11/16", 12" x 18", 11" x 17", Legal, Letter-R)

Thin, Plain, Heavy, Color, Recycled, Pre-punched, Transparency, Tracing, Labels, Tab, Bond, Letterhead, Coated, Textured, Envelopes

13" x 19", 12-5/8" x 17-11/16", 12" x 18", 11" x 17", Legal, Letter, Letter-R, Executive, Statement-R, Custom Size (4" x 5-7/8" to 13" x 19-1/4")

Corner/Double Stapling:

(11" x 17", Legal, Letter, Letter-R, Executive, Envelopes)

Letter and Executive:

100 Sheets [20 lb. Bond (8 0g/m2)] or up to 1/2 " (11mm) fo r heavier p aper

11" x 17", Legal, and Letter-R:

50 Sheets [20 lb. B ond (80g/m2)] or up to 1/4" (5. 5mm) for heavier pap er

Tray A and Tray C:

1,500 Sheet s/10 0 Sets (Letter, Executive), 750 She ets/50 S ets (11" x 17", Legal, Letter-R)

100-240V AC, 50/60Hz, 2.8A Approx. 286W (including the Puncher Unit-BF1) Approx. 282W (excluding the Puncher Unit-BF1)

41" x 25-3/4" (30-3/4"▲▲) x 30-1/8" [1040mm x 654mm (782mm▲▲) x 765mm]

Page 3

Optional Accessories (continued)

Output Options (continued)

Puncher Unit-BF1

Acceptable Punch Paper Weight:

Acceptable Punch Paper Type:

Acceptable Punch Paper Size:

Punch Type: 2 Holes (Legal, Letter-R)

Distance Between Punch Holes:

Punch Waste Tray Capacity: Approx. 5,000 Sheets [20 lb. Bond (80g/m2)]

Power Source: From the Finisher

Dimensions (H x W x D):

Weight: Approx. 8.2 lb. (3.7kg)

Inner Booklet Trimmer-A1

Trimming Method: Face Trim

Trim Thickness: 40 Sheets (2-20mm)

Waste Tray Capacity:

Acceptable Paper Weight: 16 lb. Bond to 110 lb. Index (60 to 300g/m2)

Acceptable Paper Type:

Acceptable Paper Size:

Power Source: From the Finisher

Dimensions (H x W x D):

Weight: Approx. 70.5 lb. (32kg)

Document Insertion Unit-H1

Acceptable Media:

Number of Tray s:

Tray Capacity: Upper/Lower Tray: 200 Sheets

Acceptable Paper Weight: 14 lb. Bond to 110 lb. Cover (52 to 300g/m2)

Acceptable Paper Type:

Acceptable Paper Sizes:

Power Source/ Max. Power Consumption:

Dimensions (H x W x D):

Weight: Approx. 134 lb. (61 kg)

▼

14 lb. Bond to 140 lb. Index (52 to 256g/m2)

Thin, Plain, Heavy, Color, Recycled, Tab, Bond, Letterhead, Coated, Textured

11" x 17", Legal, Letter, Letter-R, Executive

3 Holes (11" x 17", Letter, Executive)

2 Holes: 2-3/4" (70mm) 3 Holes: 4-1/4" (108mm)

Inside the Finisher [15-1/2" x 3-3/4" x 28-1/8" (392mm x 95mm x 715mm)]

▼▼

Approx. 1,500 Sheets of trimmed strip [width 3/4" (20mm), Letter, 20 lb. Bond (80g/m2)]

Thin, Plain, Heavy, Color, Recycled, Coated, Letterhead, Textured, Bond

13" x 19", 12-5/8" x 17-11/16", 12" x 18", 11" x 17", Legal, Letter-R, Custom Size (8-1/4" x 11" to 13" x 19-1/4")

Inside the Finisher [15-7/8" x 9-7/8" x 24-5/8" (403mm x 251mm x 625mm)]

▼▼▼

Covers and Inserts

[20 lb. Bond (80g/m2)] x 2

Thin, Plain, Heavy, Color, Recycled, Pre-Punched, Tracing, Tab, Bond, Letterhead, Coated, Textured

13" x 19", 12-5/8" x 17-11/16", 12" x 18", 11" x 17", Legal, Letter, Letter-R, Executive, Custom Size (7-1/8" x 7-1/8" to 13" x 19-1/4")

100-240V AC, 50/60Hz, 2.8 Approx. 103W

55-3/8" x 29-3/8" x 31-1/4" (1407mm x 746mm x 793mm)

Professional Puncher-C1/Professional Puncher Integration Unit-B1

Acceptable Punch Paper Weight:

Acceptable Punch Paper Type:

Acceptable Punch Paper Size:

Punch Pattern Die Sets (optional):

Punch Waste Tray Capacity: Approx. 25,000 Sheets

Power Source/ Max. Power Consumption:

Dimensions (H x W x D):

Weight: Professional Puncher-C1:

Paper Folding Unit-G1

Folding Method: Roller Pressure Folding

Folding Type: Z-Fold, C-Fold, Accordion Z-Fold, Double-Parallel

Acceptable Paper Weight:

Acceptable Paper Type: Thin, Plain, Color, Recycled, Bond

Acceptable Paper Sizes:

Power Source/ Max. Power Consumption:

Dimensions (H x W x D):

▼▼▼

LTR (3-hole, 5-hole, Velo Bind 11-hole, Plastic Comb 19-hole, Twin Loop 21/32-hole, Color Coil 44-hole):

20 lb. Bond to 80 lb. Cover (75 to 216g/m2)

LTR (ProClick 32-hole):

20 lb. Bond to 65 lb. Cover (75 to 176g/m2)

Thin, Plain, Heavy, Color, Recycled, Tab, Coated

Letter

Plastic Comb (19-hole), Twin Loop (21/32-hole), Color Coil (44-hole), Velo Bind (11-hole), Loose Leaf (3/5-hole), ProClick (32-hole)

Professional Puncher-C1:

From the Professional Puncher Integration Unit-B1/Approx. 300W

Professional Puncher Integration Unit-B1:

120-127V AC/5.5A-60Hz/Approx. 135W

Professional Puncher-C1:

41" x 12" x 31-1/4" (1040mm x 305mm x 792mm)

Professional Puncher Integration Unit-B1:

41" x 9-7/8" x 31-1/4" (1040mm x 250mm x 792mm)

Approx. 176 lb. (80kg)

Professional Puncher Integration Unit-B1:

Approx. 88.2lb (40kg)

▼▼▼

Fold, Half-Fold

Z-Fold, C-Fold, Accordion Z-Fold, Half-Fold:

14 lb. Bond to 28 lb. Bond (52 to 105 g/m2)

Double-Parallel Fold:

14 lb. Bond to 24 lb. Bond (52 to 90g/m2)

Z-Fold:

Letter-R, Legal, 11" x 17"

C-Fold, Accordion Z-Fold, Half-Fold:

Letter-R

Double-Parallel Fold:

Letter-R, Legal

From the Finisher/ Approx. 132W

46-7/8" x 13-1/4" x 31-1/4" (1190mm x 336mm x 793mm)

Weight: Approx. 157 lb. (71kg)

Additional Print Controller Options

imagePASS-A2 Controller

●●●

Type: Embedded

Processor: Intel® Pentium® Processor E5300 2.6GHz

System: Fiery® System 10e

PDL Support: Adobe PS 3, PCL 5c/6

Print Resolution:

1200 x 1200 dpi 2400 dpi Equivalent x 600 dpi

Memory: 2GB

HDD: 160GB

Interface (to LAN): 10Base-T/100Base-TX/1000Base-T

Dimensions (H x W x D):

Utility Software:

Standard Features:

Options: • SeeQuence Suite

ColorPASS-GX400 Controller

11-3/5" x 14-2/5" x 3-2/3" (295mm x 366mm x 93mm)

• imagePASS-A2 Driver

• Command WorkStation® 5

• Remote Scan 5.3

• Web Tools

• Hot Folder

• Secure Erase

• Paper Catalog

• Virtual Printers

• SeeQuence Impose

• SeeQuence Compose

• Image Enhance Visual Editor

• X-Rite Eye-One

●●●

Type: External

Processor: Intel® Core™ i5-660 Processor 3.33GHz

System: Fiery® System 10

PDL Support: Adobe PS 3

Print Resolution:

1200 x 1200 dpi 2400 dpi Equivalent x 600 dpi

Memory: 2GB

HDD: 500GB

Interface (to LAN): 10Base-T/100Base-TX/1000Base-T

Dimensions (H x W x D):

Utility Software:

Standard Features:

Options: • SeeQuence Suite

19-15" x 8-1/2" x 19" (485mm x 215mm x 483mm)

• ColorPASS GX-400 Driver

• Command WorkStation® 5

• Remote Scan 5.3

• Web Tools

• Hot Folder

• Secure Erase

• Paper Catalog

• Virtual Printers

• Fiery Graphics Arts Package

• Image Enhance Visual Editor

• VDP Enhancement

• SeeQuence Impose

• SeeQuence Compose

• Removable Hard Disk Drive

• Integration Interface and Stand (19" display,

keyboard, mouse, and furniture stand)

• X-Rite Eye-One

Page 4

Optional Accessories (continued)

Other Optional Accessories

•UtilityTray-A2

•USBKeyboard(Cherry)

•UniversalKeyboardStand-A1

•CopyCardReader-F1

•BrailleLabelKit-F1

•ConvenienceStapler-B1

•PCLPrinterKit-AS1

•PCLInternationalFontSet-A1

•PSPrinterKit-AS1

•DirectPrintKit(forPDF/XPS)-H1

•EncryptedSecurePrintSoftware-D1

•BarcodePrintingKit-D1

•WebAccessSoftware-H1

•SuperG3FaxBoard-AD2

•SuperG32ndLine FaxBoard-AD1

•SuperG33rd/4thLineFaxBoard-AE1

•SecureWatermark-B1

•SilexWirelessBridgeSX-2500CG

•USBDevicePort-A2

•MultimediaReader/Writer-A2

•AdditionalMemoryTypeD(512MB)

•HDDDataEncryptionand MirroringKit-C7

•HDDDataEraseScheduler

•RemovableHDDKit-AH1

•2.5-inch/160GBHDD-G1

•2.5-inch/1TBHDD-L1

•RemoteOperator'sSoftwareKit-B1

●

●●

●●●

●●

■

■■

◆

◆◆

* If "Quick Startup Settings for Main Power" is set to ON, it takes 7 seconds

until the key operation on the touch-panel display is available after turning on the main power.

** To the right edge of the Upright Control Panel in the right-most position.

*** Including the toner bottle and the Upright Control Panel.

† EPS can be printed directly only from Remote User Interface.

†† XPS cannot be printed directly from the Web Access software.

††† Option available to receive documents at the device. Sending available only by

PC Fax Driver.

 Will be available approximately Q3 2013.

▲▲ When the Auxiliary Tray is extended.

▼ Installs internally with Staple Finisher-K1 or Booklet Finisher-K1.

▼▼ Installs internally with Booklet Finisher-K1.

▼▼▼

Requires Staple Finisher-K1 or Booklet Finisher-K1.

● Requires the Copy Card Reader Attachment Kit-A2.

●● Requires PCL Printer Kit-AS1.

●●●

Requires Additional Memory Type D (512MB).

■ Requires Direct Print Kit-H1 for printing PDF files.

■■ Requires Super G3 Fax Board-AD2.

◆ Requires Super G3 2nd Line Fax Board-AD1.

◆◆◆

Requires USB Device Port-A2.

NOTE: Some accessories require additional equipment or may be prerequisites

for other options. Some accessories cannot be installed simultaneously. Check with your Canon Authorized Dealer for details.

As an ENERGY STAR® Partner, Canon U.S.A., Inc. has determined that these products meet the ENERGY STAR guidelines for energy efficiency.

ENERGY STAR and the ENERGY STAR mark are registered U.S. marks. CANON, IMAGERUNNER, MEAP, and the GENUINE logo are registered

trademarks of Canon Inc. in the United States and may also be registered trademarks or trademarks in other countries. IMAGEWARE is a registered trademark of Canon U.S.A., Inc. in the United States and is a trademark of Canon Inc. in certain other countries. All other referenced product names and marks are trademarks of their respective owners and are hereby acknowledged. Specifications and availability are subject to change without notice. All printer output images are simulated. ©2013 Canon U.S.A., Inc. All rights reserved.

0713-C9200PRSPSHT-PDF-TM

1-800-OK-CANON

www.usa.canon.com

Canon U.S.A., Inc. One Canon Park Melville, NY 11747
