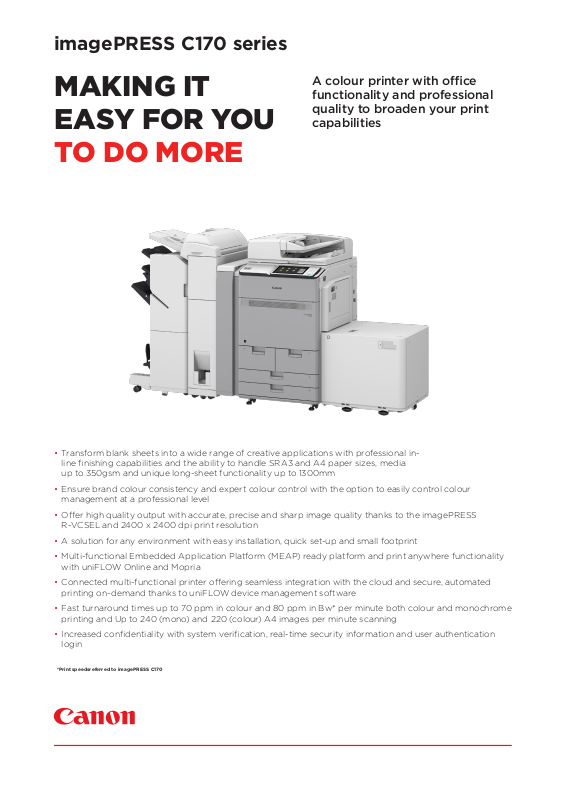

Page 1
imagePRESS C170 series
MAKING IT
EASY FOR YOU
TO DO MORE
A colour printer with oce
functionality and professional
quality to broaden your print
capabilities
• Transform blank sheets into a wide range of creative applications with professional in-
line finishing capabilities and the ability to handle SRA3 and A4 paper sizes, media
up to 350gsm and unique long-sheet functionality up to 1300mm
• Ensure brand colour consistency and expert colour control with the option to easily control colour
management at a professional level
• Oer high quality output with accurate, precise and sharp image quality thanks to the imagePRESS
R-VCSEL and 2400 x 2400 dpi print resolution
• A solution for any environment with easy installation, quick set-up and small footprint
• Multi-functional Embedded Application Platform (MEAP) ready platform and print anywhere functionality
with uniFLOW Online and Mopria
• Connected multi-functional printer oering seamless integration with the cloud and secure, automated
printing on-demand thanks to uniFLOW device management software
• Fast turnaround times up to 70 ppm in colour and 80 ppm in Bw* per minute both colour and monochrome
printing and Up to 240 (mono) and 220 (colour) A4 images per minute scanning
• Increased confidentiality with system verification, real-time security information and user authentication
login
*Print speedsreferred to imagePRESS C170
Page 2
TECHNICAL
SPECIFICATIONS
imagePRESS C170 series
MAIN UNIT
Machine type A3 Colour Laser Multifunctional
Core functions Print, Copy, Scan, Send, Store and Optional Fax
Processor Canon Dual Custom Processor (Shared)
Control panel Standard: 25.6 cm (10.1 inch) TFT LCD WSVGA Colour
Memory Main CPU: 2 GB, Image Processing: 2 GB
Hard Disk Drive Standard: 250 GB, Maximum: 1 TB
Mirroring Hard Disk Drive Optional: 250 GB, 1 TB
Paper supply capacity
(A4, 80gsm)
Paper output capacity (A4,
80gsm)
Supported media weights Paper Decks (1/2): 52-220 gsm
Warm-up time Quick Start Mode - On
Dimensions (W x D x H) 689 (933*) x 941 x 1,220 mm
Weight Approx. 264 kg (including Reader/DADF,
PRINT SPECIFICATIONS C170 C165
Print speed (CL/BW) 70 ppm CL an d 80 ppm
Target (Max) print/copy
volume per month
Monthly duty cycle 330,000 pages
Front-back registration Cross track: 2.0 mm or less, In track: 1.2mm or less
Printing method Colour Laser Beam Printing (Electronic Photography)
Print resolution (dpi) 2,400 x 2,400
Page description languages Standard: UFR II, PCL 6, PCL5,
Direct print Direct printing available from USB memory, Advanced
Printing from mobile
and cloud
Fonts PCL fonts: 93 Roman, 10 Bitmap fonts, 2 OCR fonts, Andalé
Operating System UFRII: Windows® 7 / 8.1 / 10 / Server 2008 / Server 2008
COPY SPECIFICATIONS C170 C165
Copy speed (CL/BW) 70 ppm CL and 80 ppm
First-Copy-Out Time (A4)
(BW/CL)
Copy resolution (dpi) Scan: 600 x 600
Multiple Copies Up to 9,999 copies
Copy density Automatic or Manual (9 Levels)
Magnification 25% - 400% (1% Increments)
Preset reductions 25%, 50%, 70%
Preset enlargements 141%, 200%, 400%
SCAN SPECIFICATIONS
Type Colour Platen and Single-pass Duplexing Automatic
Document Feeder paper
capacity (80 gsm)
Acceptable originals
and weights
Touch panel Optional UPRIGHT CONTROL PANEL-H1:
26.4 cm (10.4 inch) TFT LCD SVGA Colour Upright
Touch Panel
Standard: 3,550 sheets
2 x 1100 sheet paper deck,
2 x 550 paper cassette and 250 sheet multi purpose tray
Maximum: 7,050 sheets (with POD DECK LITE-C1 or PAPER
DECK UNIT-E1)
250 sheets (with Copy Tray-R2)
Maximum: 5,000 sheets (with STAPLE FINISHER-W1 PRO
or BOOKLET FINISHER-W1 PRO)
Paper Cassettes (3/4): 52-256 gsm
Multi-purpose tray: 52-350 gsm
Optional PAPER DECK UNIT-E1: 52-256 gsm
Optional POD DECK LITE-C1: 52-350 gsm
Duplex: 52-220 gsm
4 sec or less (Time until key operations can be performed
on the touch panel display)
30 sec or less (Time until it becomes possible to start copying)
Quick Start Mode - Off
30 sec or less (Time until it becomes possible to start
copying)
From Sleep Mode: 30 seconds or less
*With optional COPY TRAY-R2 *No tray extended
Flat control panel and optional COPY TRAY-R2, excluding toner)
BW (A4, A5 , A5R, A6R)
35 ppm CL and 40 ppm
BW (A3), 33 ppm CL and
38 ppm BW (SRA3)
Up to 100,000 pages
Optional: PS
Space, Remote UI and Web Access*
Supported file types: TIFF, JPEG, PDF, EPS and XPS
*Only PDF print from websites is supported
Mopria, Canon Business Print and uniFLOW Online
Mono WT
J/K/S/T* (Japanese, Korean, Simplified and Traditional
Chinese), Barcode fonts**
* Requires optional PCL INTERNATIONAL FONT SET-A1
**Require optional BARCODE PRINTING KIT-D1
PS fonts: 136 styles
R2 / Server 2012 / Server 2012 R2 / Server 2016 / Server
2019, Mac OS X (10.9 or later)
PCL: Windows® 7 / 8.1 / 10 / Server 2008 / Server 2008 R2
/ Server 2012 / Server 2012 R2 / Server 2016 / Server 2019
PS (Driver): Windows® 7 / 8.1 / 10 / Server 2008 / Server
2008 R2 / Server 2012 / Server 2012 R2 / Server 2016 /
Server 2019, Mac OS X (10.9 or later)
PS (PPD): Windows® 7 / 8.1 / 10, Mac OS X (10.3.9 or later)
BW (A4, A5, A5R, A6R),
35 ppm CL a nd 40 ppm
BW (A3), 33 p pm CL and
38 ppm BW (SRA3)
Approx. 4.8/5.9 seconds (20-30 0C Environment)
Print: Up to 2,400 x 2,400
Document Feeder* [2-sided to 2-sided (Automatic)]
*Detect Feeder Multi Sheet Feed is supported.
300 Sheets
Sheet, Book, 3-Dimensional objects
Document Feeder media weight:
1-sided scanning: 38-220 gsm (BW), 64-220 gsm (CL)
2-sided scanning: 50-220 gsm (BW), 64-220 gsm (CL)
65 ppm CL/BW
(A4, A5 , A5R, A6R)
32 ppm CL /BW (A3),
31 ppm C L/BW (SR A3)
65 ppm CL/BW
(A4, A5 , A5R, A6R)
32 ppm CL /BW (A3),
31 ppm C L/BW (SR A3)
Supported media sizes Platen max. scanning size: 297.0 x 431.8 mm
Scan speed
(ipm: BW/CL; A4)
Scan resolution (dpi) 600 x 600, 600 x 300, 300 x 600, 300 x 300
Pull Scan specifications Colour Network ScanGear2 for both TWAIN and WIA
Scan method Send functionality available on all models
SEND SPECIFICATIONS
Destination E-mail/Internet FAX (SMTP), SMB v3.0, FTP, WebDAV, Mail
Address book LDAP (2,000), Local (1,600), Speed dial (200)
Send resolution (dpi) 600 x 600, 400 x 400, 300 x 300, 200 x 400, 200 x 200,
Communication protocol File: FTP (TCP/IP), SMB v3.0, WebDAV E-mail/I-Fax:
File format Standard: TIFF, JPEG, PDF (Limited Colour, Compact,
FAX SPECIFICATIONS
Maximum number of
connection lines
Modem speed Super G3: 33.6 kbps
Compression method MH, MR, MMR, JBIG
Resolution (dpi) 400 x 400, 200 x 400, 200 x 200, 200 x 100
FAX memory Up to 30,000 pages
STORE SPECIFICATIONS
Mail Box (Number supported) 100 User Inboxes, 1 Memory RX Inbox, 50 Confidential Fax
Advanced Space Communication Protocol: SMB or WebDAV
Advanced Space available
disc space
Advanced Space features Authentication for Advanced Space Log-in, Sort Function,
Memory media Standard: USB Memory
SECURITY SPECIFICATIONS
Authentication Standard: Universal Login Manager (Device and
Data Standard: Trusted Platform Module (TPM), Hard Disk
Network Standard: IP/Mac Address Filtering, IPsec, TLS Encrypted
Document Standard: Secure Print, Adobe LiveCycle® Rights
ENVIRONMENTAL
SPECIFICATIONS
Operating environment Temperature: 20-27 0C
Power source 220-240 V (±10 %), 50/60 Hz (±2 Hz), 10 Amp
Plug (Main Unit) CEE 7/7 (230V)
Power consumption Maximum: Approx. 2,000 W
Standards Blue Angel
Document Feeder media size: A3, A4, A4R, A5, A5R, B4,
B5, B5R, B6R, Custom size (128.0 x 139.7 mm to 304.8 x
431.8 mm*)
(*Long Sheet: up to 660 mm)
Single-sided Scanning: 120/120 (300dpi), 120/70 (600 dpi)
Double-sided Scanning: 240/220 (300dpi), 150/90 (600 dpi)
Supported OS: Windows® 7 / 8.1 / 10 / Server 2008 / Server
2008 R2 / Server 2012 / Server 2012 R2 / Server 2016
Scan to USB Memory Key: Available on all models
Scan to Mobile Devices and cloud-based services: A range
of solutions is available to provide scanning to mobile
devices or cloud-based services depending on your
requirements. Please contact your sales representatives
for further information.
TWAIN/WIA Pull scanning available on all models
Box, Super G3 FAX (Optional), IP Fax (Optional)
200 x 100, 150 x 150, 100 x 100
SMTP, POP3
Searchable, Apply policy, Optimize for Web, PDF A/1-b,
Encrypted), XPS (Compact, Searchable), Office Open XML
(PowerPoint, Word), PDF/XPS (Device Signature) Optional:
PDF (Trace & Smooth), PDF/XPS (User Signature)
1
G3: 14.4 kbps
Inboxes 30,000 Maximum Pages Stored
Supported Client PC: Windows® (Windows® 7 / 8 / 8.1 / 10)
Concurrent Connections (Max.):
<SMB> 64, <WebDAV> 3 (Active Sessions)
Approx. 16 GB (Standard HDD)
Approx. 480 GB (with optional 1 TB HDD)
Printing a PDF File with a Password, imageWARE Secure
Audit Manager Support
Function Level Log-in), uniFLOW Online Express*, User
Authentication, Department ID Authentication, Access
Management System
Optional: My Print Anywhere secure print (Requires
uniFLOW)
* No charge for this solution; however activation is required.
Please contact your sales representatives for further information.
Password Lock, Hard Disk Drive Erase, Mail Box Password
Protection, Hard Disk Drive Encryption (FIPS140-2
Validated), Common Criteria Certification (DIN ISO 15408)
Optional: Hard Disk Drive Mirroring, Data Loss Prevention
(Requires uniFLOW)
Communication, SNMP V3.0, IEEE 802.1X, IPv6, SMTP
Authentication, POP Authentication before SMTP, S/MIME
Management ES2.5 Integration, Encrypted PDF, Encrypted
Secure Print, Device Signature, Secure Watermarks, User
Signature, Document Scan Lock
Humidity: 15-60 % RH
(Relative Humidity without condensation)
Printing: Approx. 1,472 W*
Standby: Approx. 136.6 W*1
Sleep mode: Approx. 0.9 W*2
Plugin Off: Approx. 0.2 W*
*1 Reference value: measured by only one unit
*2 0.9W sleep mode is not always available in all circumstances
due to certain settings.
*3 Reference value, Quick start mode OFF
1
3
Page 3
TECHNICAL
SPECIFICATIONS
imagePRESS C170 series
CONSUMABLES
Toner cartridges T-07 TONER BK/C/M/Y
SOFTWARE AND PRINTER
MANAGEMENT
Tracking and reporting Universal Login Manager (ULM):
Remote management tools iW Management Console:
Scanning software Network ScanGear:
Optimisation tools Canon Driver Configuration Tool:
Platform MEAP (Multifunctional Embedded Application Platform):
Document publishing iW Desktop:
FIERY PRINT CONTROLLER
SPECIFICATIONS
Optional/Standard Optional
Name <Embedded type> imagePRESS Server M10
Print resolution (dpi) 1200 x 1200, 600 x 600
Page Description Language(s) Adobe PS3, PCL6
Memory <Embedded> 4 GB (1 x 4 GB)
Hard Disk Drive 500 GB SATA
Processor speed <Embedded> Intel Pentium G4400 (3.3 GHz)
System <Embedded> Fiery FS400
Fonts PS: 138 Fonts
Supported Operating Systems Windows® 7 (64 bit) / 8.1 (64 bit) / 10
Network protocols TCP/IP (FTP, SMTP, POP, HTTP, SNMP, LDAP, SLP, SMB,
Direct print PDF1.7, EPS, TIFF6, JDF1.4/JMF(OP)
VDP <Embedded> FreeForm v1/v2.1
Fiery print controller standard
features
Fiery print controller options <Embedded> Fiery Impose / Fiery Compose / Fiery
Hardware platform <Embedded> E400
Base OS Debian of Linux <Embedded>
Power source AC100-240V, 50HZ/60HZ, 3.0A (100V) - 1.5A (240V)
Maximum Power consumption <Embedded> 47 W
Dimensions (W x D x H) <Embedded> 285 x 93 x 295 mm
Weight <Embedded> Fiery unit only (with plate): 5.0 kg
Manage your costs easily by using the embedded reporting
capability to identify and control costs on a user-based level
by device.
uniFLOW Online Express:
Combining with ULM you can gain further control, highlight
expenditures per users/department and pinpoint where costs
can be scaled down from a central cloud based location.
Server-based software for centralised management of
a fleet of devices (includes monitoring or consumables,
status monitoring and alerts, distribution of address books,
configuration settings, firmware and MEAP applications,
meter capture and reporting, driver and resource
management)
eMaintenance:
Compatible with eMaintenance services via embedded
RDS (Enables meter capture, automatic consumables
management, remote diagnostics and reporting for
service providers to offer efficient, fast and proactive
maintenance)
Content Delivery System:
Allows the Remote distribution of firmware, iR options
and MEAP applications; Remote User Interface (RUI)
Web based interface to each device that helps to provide
remote device management and control
TWAIN-compliant scanner driver that enables computers on
a network to use the pull scan functionality of the device
A utility for changing the factory default settings of Canon
print drivers
A powerful JAVA Embedded Platform for Canon devices
which provides tight coupling between a range of software
solutions and the device.
MEAP Web:
Web service alternative to MEAP that allows MFP
applications to be developed and deployed via web services
Powerful print publishing software which easily combines
documents from different sources and file formats, applies
finishing with preview and templates to create professional
looking documents. Includes PDF creation, annotation and
compression capabilities for simple digital workflows such
as proofing and authorisation.
<Server type> imagePRESS Server L30
<Server> 8 GB (2 x 4 GB)
<Server> Intel Core i3-6100 (3.7 GHz)
<Server> Fiery FS400 Pro
PCL: 113 Fonts
(64 bit) / Server 2012 (64 bit only) / Server 2012 R2
(64 bit only) / Server 2016 R2 (64 bit only) / Server 2019
(64 bit only),
MAC OS (10.11, 10.12, 10.13, 10.14)
LPD, IPP, WS-Discovery, Bonjour, Direct Mobile Printing,
Port9100, SNTP, 802.1X, DHCP, DNS, NTP)
<Server> FreeForm v1/v2.1, PPML, PDF/VT-1, PDF/VT-2,
Creo VPS
<Embedded> Fiery Command WorkStation6 / Paper
Catalog / Fiery Spot-On / Fiery Remote Scan / Fiery Hot
Folders & Virtual Printers
<Server> Fiery Command WorkStation6 / Paper Catalog /
Fiery Spot-On / Fiery Remote Scan / Fiery Hot Folders &
Virtual Printers / Fiery JDF
Impose and Compose / Productivity Package Web Activate
(Include Fiery JDF)
<Server> Fiery Impose / Fiery Compose / Fiery Impose
and Compose / Removable HDD Kit
<Server> NX One
Windows® 10 IoT Enterprise 2016 LTSB <Server>
<Server> 70 W
<Server> 203 x 248 x 384 mm
<Server> Fiery unit only (with plate): 5.9 kg
PAPER SUPPLY OPTIONS
Paper Deck Unit-E1 Paper Capacity: 3,500 sheets (80 gsm)
POD Deck Lite-C1 Paper Capacity: 3,500 sheets (80 gsm)
OUTPUT OPTIONS
Copy Tray-R2 Provides a simple tray for basic output needs.
Staple Finisher-AC1 (External) Lower Tray (A) Capacity:
Booklet Finisher-AC1
(External)
Finisher Jogger Kit-A1 Attached to the Lower Tray (A) of either the STAPLE
Staple Finisher-W1 PRO
(External)
Paper Type: Thin, Plain, Recycled, Thick, Colour,
Pre-punched, Letterhead, Bond
Paper Size: A4, B5, LTR*
Paper Weight: 52-256 gsm
Power Source: From the main unit
Dimensions (W x D x H): 340 x 630 x 572 mm (attached to
the main unit) Weight: Approx. 34 kg
*Media size change requires service technicians
Paper Type: Thin, Plain, Recycled, Thick, Colour,
Pre-punched, Letterhead, Bond, Tab, Transparency, Label,
Coated, Textured, Tracing, Envelope*
Paper Size: A3, B4, A4, A4R, B5, B5R, A5R, SRA3, 11”x17”,
LGL_R, LTR, LTR_R, EXE, STMT_R, 12”x18”, 13”x19”, 8K, 16K,
16K_R, Envelope [No.10(COM10), Monarch, DL, ISO-C5],
Custom size (139.7 x 148.0 mm to 330.2 x 487.7 mm)
Paper Weight: 52-350 gsm
Power Source: 220-240V, 50/60Hz, 1.2A
Dimensions (W x D x H): 633 x 686 x 574 mm (attached to
the main unit) Weight: Approx. 68 kg
*Requires ENVELOPE FEEDER ATTACHMENT-G1
Capacity: 250/100 sheets (1-sided/2-sided, 80 gsm)
A4/A5R/B5 3,000 sheets (80 gsm), SRA3/A3/A4R/B4/
B5R/13”x19” 1,500 sheets (80 gsm), A6R 250 sheets*1
(80-105 gsm), Envelope 30/100 sheets (Monarch/Others),
Long sheet*2 (Over 487.7 mm up to 762 mm length) 100
sheets (79 gsm),
Long sheet*2 (Over 762 mm length) 1 sheet (holding by hand),
All size of thin paper (52-63 gsm) 1,500 sheets,
Capacity for coated paper is half of that for plain paper
*1 A6R 50 sheets (106 gsm and above)
* 2 Optional LONG SHEET TRAY-B1 is required
Upper Tray (B) Capacity:
A4/A5R/B5 250 sheets (80 gsm), SRA3/A3/A4R/B4/B5R/13”x19” 125
sheets (80 gsm)
Mid Tray (C) Capacity:
A4/A5R/B5 250 sheets (80 gsm), SRA3/A3/A4R/B4/B5R/13”x19” 125
sheets (80 gsm)
Paper Weight for Tray A:
<Non Sort> 52-350 gsm, <Bunch Shift and Staple>
52-256 gsm*, <Eco Staple> 52-105 gsm
* Excluding duplex printed thin paper (52-63 gsm) and
any special media (Tracing, Transparency, Label)
Paper Weight for Tray B/C:
<Non Sort and Bunch Shift> 52-256 gsm*
* Excluding duplex printed thin paper (52-63 gsm)
Staple Position: Corner, Double
Staple Capacity: <Non coated media, 52-90 gsm> A4 65 sheets, A3/A4R
40 sheets, <Coated media> 2 sheets
Power Source: From the main unit
Dimensions (W x D x H): 527 (Max 656*) x 623 x 1,099 (Max 1,195*) mm
*when the auxiliary tray is extended.
Weight: Approx. 36 kg
Tray Capacity / Paper Weight / Staple Position / Staple
Capacity: same as STAPLE FINISHER-AC1 but if there
are any sheets on the saddle tray, the capacity of Tray A
becomes limited to 1,500 sheets
Booklet Stitch Paper Size: A3, A4R, B4, Custom size (195 x
270 mm to 304.8 x 457.2 mm)
Booklet Stitch Paper Weight: Body sheet 52-220 gsm,
Cover sheet 52-256 gsm
Booklet Stitch Staple Capacity (including 1 cover sheet):
<Non coated media> 20 sheets (52-81.4 gsm), 10 sheets
(82-105 gsm), 5 sheets (106-150 gsm), 4 sheets (151-209
gsm), 3 sheets (210-220 gsm), <Coated media> 5 sheets (85150 gsm), 4 sheets (151-209 gsm), 3 sheets (210-220 gsm)
Non Staple Folded Bunch Capacity: <Non coated media>
3 sheets (52-105 gsm), 1 sheet (106-256 gsm), <Coated
media> 1 sheet
Power Source: From the main unit
Dimensions (W x D x H): 527 (Max 656*) x 623 x 1,099
(Max 1,195*) mm
*when the auxiliary tray is extended.
Weight: Approx. 60 kg
FINISHER-AC1 or BOOKLET FINISHER-AC1
Paper Size: <Non Sort> A3, A4, A4R, B4, B5, B5R, <Bunch
Shift> A3, A4, A4R, B4, B5
Paper Weight: <Non Sort> 52-300 gsm, <Bunch Shift>
52-256 gsm
Upper Tray (A) Capacity:
SRA3/A3/A4/A4R/A5/A5R/A6R/B4/B5/B5R/13”x19”/
Custom size (100 x 148.0 mm to 330.2 x 487.7 mm) 1,000
sheets*1 (80 gsm),
Envelope [No.10(COM10), Monarch, DL, ISO-C5, Custom
size (100 x 148.0 mm to 330.2 x
487.7 mm] 150 sheets, Z-fold 30 sheets (A3/B4),
Half-fold 50 sheets (A4R),
Long sheet*2 (210 x 487.8 mm to 330.2 x
762 mm) 100 sheets (52-79 gsm) / 50 sheets (80-150 gsm)
/ 25 sheets (151-300 gsm) / 20 sheets (301-350 gsm),
Long sheet*2 (Over 762 mm up to 1,300 mm length)
holding by hand,
*1 301-350 gsm: 200 sheets regardless of size
*2 Optional LONG SHEET TRAY-B1 is required
Lower Tray (B) Capacity:
A4/B5 4,000 sheets*3 (80 gsm), A4R/B5R 2,000 sheets*4
(80 gsm), A3/B4 1,500 sheets*4*5
(80 gsm), SRA3/13”x19” 1,000 sheets (80 gsm), Any size
200 sheets (301-350 gsm), Z-fold 30 sheets (A3/B4)
*3 A4/B5 2,000 sheets (52-63 gsm)
*4 A3/A4R/B4/B5R 1,000 sheets (52-63 gsm)
*5 A3/B4 coated paper: 1,000 sheets
Paper Weight: 52-350 gsm
Staple Position: Corner, Double
Staple Capacity: <Non coated media>
A4/B5 100 sheets, A3/A4R/B4/B5R 50 sheets,
<Coated media> A4/B5 40 sheets, A3/A4R/B4/B5R 30 sheets
Power Source: 220-240V, 50-60Hz, 8A
Dimensions (W x D x H): 800 x 792 x 1,239 mm (with LONG
SHEET TRAY-B1: 1,136 x 792 x 1,239 mm)
Weight: Approx. 130 kg
Page 4
TECHNICAL
SPECIFICATIONS
imagePRESS C170 series
Booklet Finisher-W1 PRO
(External)
2/4 Hole Puncher Unit-A1 Attached inside of either the STAPLE FINISHER-AC1 or
4 Hole Puncher Unit-A1 Attached inside of either the STAPLE FINISHER-AC1 or
Puncher Unit-BT1
(2/F4H)
Puncher Unit-BU1 (S4H) Attached inside of either the STAPLE FINISHER-W1 PRO or
Multi Function Professional
Puncher-B1
Booklet Trimmer-F1 Requires BOOKLET FINISHER-W1 PRO
Document Insertion / Folding
Unit-K1
Tray Capaci ty / Pape r Weight / Sta ple Posi tion / Stap le
Capac ity: sa me as STAPLE F INIS HER-W 1 PRO but if
there are a ny sheets on the sa ddle tray o r the optio nal
BOOK LET TRI MMER -F1 is at tached, the ca pacity of Tray
B become s limited
Bookl et Stitch Pa per Size: A 3, A4R , B4, SR A3, 13”x19 ”,
Custom si ze (210 x 279 .4 mm to 33 0.2 x 487.7 mm)
Bookl et Stitch Pa per Weigh t: Body sh eet 52-220 gsm,
Cover she et 64-300 gsm
Bookl et Stitch Sta ple Capacity ( includ ing 1 cover sh eet):
<Non co ated med ia> 25 she ets (52- 80 gsm), 15 s heets
(80.1-1 05 gsm), 5 sheets ( 105.1 -209 gsm), 4 sheets (2 09.1220 gsm), <C oated me dia> 10 sh eets (100 -128 gsm),
5 sheet s (128 .1-209 gsm), 4 sheet s (209.1-220 gsm)
Non Sta ple Fold ed Bunc h Capac ity: up to 5 s heets
(52-209 gsm)
Power Sou rce: 220 -240V, 50-60Hz , 8A
Dimen sions ( W x D x H): 800 x 7 92 x 1, 239 mm (with
LONG SH EET TR AY-B1: 1,136 x 7 92 x 1, 239 mm)
Weight: Approx. 180 kg
BOOKLET FINISHER-AC1
2 or 4 Holes (FRN)
Paper Weight: 52-300 gsm
Paper Size: 2 holes A3, A4, A4R, B4, B5, B5R; 4 holes A3, A4
Power Source: From the finisher
BOOKLET FINISHER-AC1
4 Holes (SWE)
Paper Weight: 52-300 gsm
Paper Size: A3, A4, A4R, B4, B5, B5R
Power Source: From the finisher
Attached inside of either the STAPLE FINISHER-W1 PRO or
BOOKLET FINISHER- W1 PRO
2 or 4 Holes (FRN)
Paper Weight: 52-300 gsm
Paper Size: 2 holes A3, A4, A4R, A5L, B4, B5, B5R, Custom
size (182 x 182 mm to 297 x 432.0 mm excluding 203 x 257
mm to 297 x 270 mm); 4 holes A3, A4, B4, B5, Custom size
(257 x 182 mm to 297 x 432 mm)
Power Source: From the finisher
BOOKLET FINISHER- W1 PRO
4 Holes (SWE)
Paper Weight: 52-300 gsm
Paper Size: A3, A4, A5L, B4, B5, Custom size (257 x 182
mm to 297 x 432 mm)
Power Source: From the finisher
Requires either the STAPLE FINISHER-W1 PRO or
BOOKLET FINISHER-W1 PRO
Paper Weight:
<Through> 52-350 gsm (Plain paper), 106-350 gsm
(Coated paper)
<Punch> 75-300 gsm (Plain paper), 118-300 gsm (Coated
paper)
Paper Size:
<Through> 100 x 148 mm to 330.2 x 1,300 mm
<Punch> SRA3, A3, SRA4, SRA4R, A4, A4R
Punch Tools:
Plastic Comb 21-Hole, Twin Loop 23-Hole (Round/Square),
Twin Loop 34-Hole (Round/Square), Color Coil 47-Hole,
Velo Bind 12-Hole, Loose Leaf 4-Hole Punch, Loose Leaf
2-Hole Punch, Loose Leaf 4-Hole (Swedish), Crease
Power Source: 230V, 50Hz, 2.0A
Dimensions (W x D x H): 445 x 795 x 1,040 mm
Weight: Approx. 102 kg
Trim Width: 2-28 mm
Trim Thickness: Up to 50 sheets (include cover)
Paper Weight: 52-300 gsm
Paper Size: SRA3, A3, A4R, B4, 13”x19”, Custom size
(210.0 x 279.4 mm to 330.2 x 487.7 mm)
Chip Tray Capacity: Approx. 5,000 sheets (Trim width
20mm, A4, 80 gsm)
Power Source: From the finisher
Dimensions (W x D x H): 2,095 (including joint, conveyor
and output tray) x 790 x 1,040 mm
Weight: Approx. 178 kg (including conveyor and output tray)
Requires either the STAPLE FINISHER-AC1 or BOOKLET
FINISHER-AC1
Number of Trays: 1
Tray Capacity: 100 Sheets (80 gsm)
Supported Folding Type: Z-Fold, C-Fold
Paper Type: <Z-Fold/C-Fold> Thin, Plain, Recycled, Colour,
<Insertion Unit> Thin, Plain, Recycled, Colour, Thick,
Letterhead, Bond, Coated, Tab, Textured
Paper Size: <Z-Fold> A3, A4R, B4, <C-Fold> A4R,
<Insertion Unit> SRA3, A3, A4, A4R, B4, B5, B5R, 13”x19”
Paper Weight: <Z-Fold/C-Fold> 60-105 gsm, <Insertion
Unit> 60-256 gsm
Power Source: 100-240V, 50/60Hz, 1.0A
Dimensions (W x D x H): 247* x 679 x 1,242 mm (*width
excluding document tray)
Weight: Approx. 76 kg
Software & Solutions
Document Insertion Unit-N1 Requires either the STAPLE FINISHER-W1 PRO or
Paper Folding Unit-J1 Requires either the STAPLE FINISHER-W1 PRO or
HARDWARE ACCESSORIES
Card Readers MiCARDPLUS FOR ULM - A proximity card reader for
SECURITY OPTIONS
Document Security Function of DOCUMENT SCAN LOCK KIT is implemented as
Data Security HDD MIRRORING KIT-J1 - Enables replication of data in
SYSTEM AND CONTROLLER
OPTIONS
Print Accessories PCL INTERNATIONAL FONT SET-A1 - Adds PCL support
Send Options Function of UNIVERSAL SEND DIGITAL USER SIGNATURE
Barcode Printing BARCODE PRINTING KIT-D1 - Provides the ability to print
SYSTEM ACCESSORIES
BOOKLET FINISHER-W1 PRO
Number of Trays: 2
Tray Capacity: Upper Tray 200 Sheets (80 gsm), Lower
Tray 200 Sheets (80 gsm)
Paper Type for Insertion: Thin, Plain, Recycled, Colour,
Thick, Pre-punched, Letterhead, Bond, Coated, Tab,
Tracing, Textured
Paper Size for Insertion: SRA3, A3, A4, A4R, B4, B5, B5R,
13”x19”, Custom size (182.0 x 182.0 mm to 330.2 x 487.7 mm)
Paper Weight for Insertion: 52-300 gsm
Power Source: 100-240V, 50/60Hz, 1.0A
Dimensions (W x D x H): 336* x 793 x 1,407 mm
(*width excluding document tray)
Weight: Approx. 61 kg
BOOKLET FINISHER-W1 PRO
Supported Folding Type: Z-Fold, Accordion Z-Fold, C-Fold,
Half-Fold, Double Parallel Fold
Paper Type: Thin, Plain, Recycled, Colour, Bond
Paper Sizes:
<Z-Fold> A3, A4R, B4,
<Accordion Z-Fold, C-Fold, Half-Fold, Double Parallel
Fold> A4R
Paper Weight:
<Z-Fold, Accordion Z-Fold, C-Fold, Half-Fold> 52-105 gsm
<Double Parallel Fold> 52-90 gsm
Power Source: From the finisher
Dimensions (W x D x H): 336 x 793 x 1,190 mm
Weight: Approx. 71 kg
card based user authentication, supporting multiple
card technologies (HID, HiTag, Casi Rusco, Indala and
MiFare etc.). Integrates with Universal Login Manager and
uniFLOW
COPY CARD READER-F1 - Magnetic physical card access
system. (Integrates with Department ID, not for use with
uniFLOW)
COPY CA RD REA DER ATTACHME NT-A4 - Attach ment kit
for COPY C ARD READER-F1.
standard - Increases document security by embedding hidden
track and lock code within copied or printed documents to
restrict unauthorised copying, sending, and faxing
case of disk hardware failure so that data can be recovered.
2.5INCH/250GB HDD-N1 - Additional HDD required for the
hard disk mirroring function.
2.5INCH/1TB HDD-P1 - A replacement HDD to increase the
storage space on the device.
Note: The mirroring function requires a second 1TB HDD.
for Andalé Mono WT J/K/S/T (Japanese/Korean/Simplified
Chinese/Traditional Chinese).
KIT is implemented as standard - Ensures the authenticity
of a PDF/XPS by identifying the user that sent the
document through a visible and/or invisible digital
signature.
Functio n of UNIVERSAL S END TRACE & SMO OTH PDF
KIT is imp lemen ted as sta ndard - En ables t he device to
create an d send Trace an d Smooth PDF.
1D and 2D barcodes on output using jet caps technology.
COPY CONTROL INTERFACE KIT-A1 - Allows connection
(CCVI I/F) between 3rd party copy control terminal and
Canon’s iR-ADV range for cost recovery use.
SERIAL INTERFACE KIT-K3 - Serial interface for Cost
Recovery Solutions.
CONNECTION KIT-A1 for BLUETOOTH LE - Bluetooth chip
is an option for enabling the communication between the
main unit and other devices using Bluetooth
NFC CONTROL PANEL-A1 - NFC Control Panel is an
optional kit enabling the communication between the main
unit and other devices using NFC. This is used with the
optional UPRIGHT CONTROL PANEL-H1.
NFC CONTROL PANEL-C1 - NFC Control Panel is an
optional kit enabling the communication between the main
unit and other devices using NFC. This is used with the
standard flat control panel.
Certifications and compatibility
Canon Inc.
canon.com
Canon Europe
canon-europe.com
English edition
© Canon Europa N.V.,2020
Loading...
