Parts Catalog BJC-800/820
FIGURE 1 PRINTER SET
FIGURE 2 COVERS (1)
NUM. PART # DESCRIPTION NUM. PART # DESCRIPTION
1- 1 NPN PRINTER
2 VS9-5010-050 CAP, CONNECTOR, 50 PIN
(FOR BJC-820) (2)
3 VS9-5010-036 CAP, CONNECTOR, 36 PIN
4 RH2-5074-000 CORD, POWER 120V
RH2-5116-000 CORD, POWER (22OV-240V)
WT3-5014-000 CORD, POWER (22OV-240V UK)
2- 1 QB1-0210-000 SUPPORT, PAPER
2 QB1-0192-000 GUIDE, PRINTED PAPER
3 QG5-0026-000 COVER, FRONT (FOR BJC-820)
QG5-0039-000 COVER, FRONT (FOR BJC-800)
4 NPN PRINTER COVER UNIT
1 of 9
Page 3
Parts Catalog BJC-800/820
FIGURE 3 COVERS (2) FIGURE 4 PRINTER COVER UNIT
NUM. PART # DESCRIPTION NUM. PART # DESCRIPTION
3- 1 QB1-0196-000 COVER, UPPER
2 QB1-0209-000 PLATE, UPPER COVER
3 XZ9-0340-000 COUPLER
4 QB1-0195-000 COVER, INK CARTRIDGE
5 QS5-8008-000 LABEL, INK CARTRIDGE, LEFT
6 QS5-8009-000 LABEL, INK CARTRIDGE, RIGHT
7 QB1-0199-000 COVER, REAR
8 NPN INK CARTRIDGE UNIT, YELLOW
9 NPN INK CARTRIDGE UNIT, MAGENTA
10 NPN INK CARTRIDGE UNIT, CYAN
11 NPN INK CARTRIDGE UNIT, BLACK
4- 1 QG5-0041-000 SPUR UNIT (9)
2 QB1-0194-000 COVER, INNER
3 QF5-0003-000 SPUR
4 QB1-0186-000 CLEANER
5 QB1-0187-000 HOLDER, CLEANER
6 QB1-0184-000 HOLDER, SPUR
7 QB1-0205-000 SPRING, SPUR
8 QB1-0185-000 BASE, HOLDER
2 of 9
Page 4
Parts Catalog BJC-800/820
FIGURE 5 LOGIC CARD FIGURE 6 POWER SUPPLY UNIT & CONTROL PANEL
NUM. PART # DESCRIPTION NUM. PART # DESCRIPTION
5- 1 QB1-0217-000 COVER, CARD
2 QG2-2347-000 CARD, LOGIC
6-1 QH3-3079-000 POWER SUPPLY UNIT (120V)
QH3-3080-000 POWER SUPPLY UNIT
(22OV-240V / 22OV-240V UK)
2 QY7-0392-000 FUSE, 125V 3.15A (120V)
3 QY7-0393-000 FUSE, 250V 2A
(22OV-240V / 22OV-240V UK)
4 QH2-2072-000 PANEL, CONTROL
5 QB1-0207-000 BASE, CONTROL PANEL
6 QB1-0208-000 PLATE, GROUND
N/A QY7-0397-000 COVER, OPEN DETECTION LEVER
3 of 9
Page 5
Parts Catalog BJC-800/820
FIGURE 7 PRINTER UNIT FIGURE 8 LOWER COVER
NUM. PART # DESCRIPTION NUM. PART # DESCRIPTION
7- 1 QB1-0082-000 COVER, HEAD
2 QB1-0068-000 STABILIZER, HEAD (A) (4)
3 QB1-0087-000 STABILIZER, HEAD (B)
4 QY6-0026-000 BUBBLE JET HEAD UNIT
5 NPN PRINTER UNIT
6 QG2-2352-000 CABLE, CONNECTOR CARD LEFT
8- 1 QB1-0203-000 GUIDE, RIBBON CABLE
2 QG2-2354-000 RIBBON CABLE UNIT
3 QG2-2351-000 MOTOR CABLE UNIT
4 QB1-0202-000 HOLDER, LOGIC CARD
5 QB1-0218-000 PLATE, GROUND (2)
6 QB1 -0212-000 ARM, POWER SWITCH
7 QG5-0037-000 SWITCH, POWER
8 QB1 -0213-000 SPRING, PLATE
9 QG5-0036-000 LOWER COVER UNIT
10 WT2-5006-000 CLAMP, CABLE (7)
11 WT2-0419-000 SPACER, LOGIC CARD (2)
12 QB1-0200-000 FOOT, RUBBER REAR (2)
13 XH9-0073-000 FOOT, RUBBER FRONT (2)
14 QB1-0197-000 COVER, LOWER
4 of 9
Page 6
Parts Catalog BJC-800/820
FIGURE 9 PURGE UNIT (1) FIGURE 10 PURGE UNIT (2)
NUM. PART # DESCRIPTION NUM. PART # DESCRIPTION
9-1 QG5-0030-000 PURGE UNIT 10- 1 QB1-0125-000 SPRING, CAP HOLDER
2 QB1-0128-000 SPRING, HOOK
3 QB1-0099-000 GEAR, WORM
4 QH4-4027-000 MOTOR, PURGE
5 QG2-2353-000 PURGE SENSOR UNIT
6 QB1-0228-000 SPRING, HEAD SPONGE
7 QB1-0127-000 SPRING, HEAD WIPER
8 QF5-0009-000 PLATE, INK ABSORBER
9 QB1-0131-000 JOINT, DRAIN (B)
5 of 9
Page 7
Parts Catalog BJC-800/820

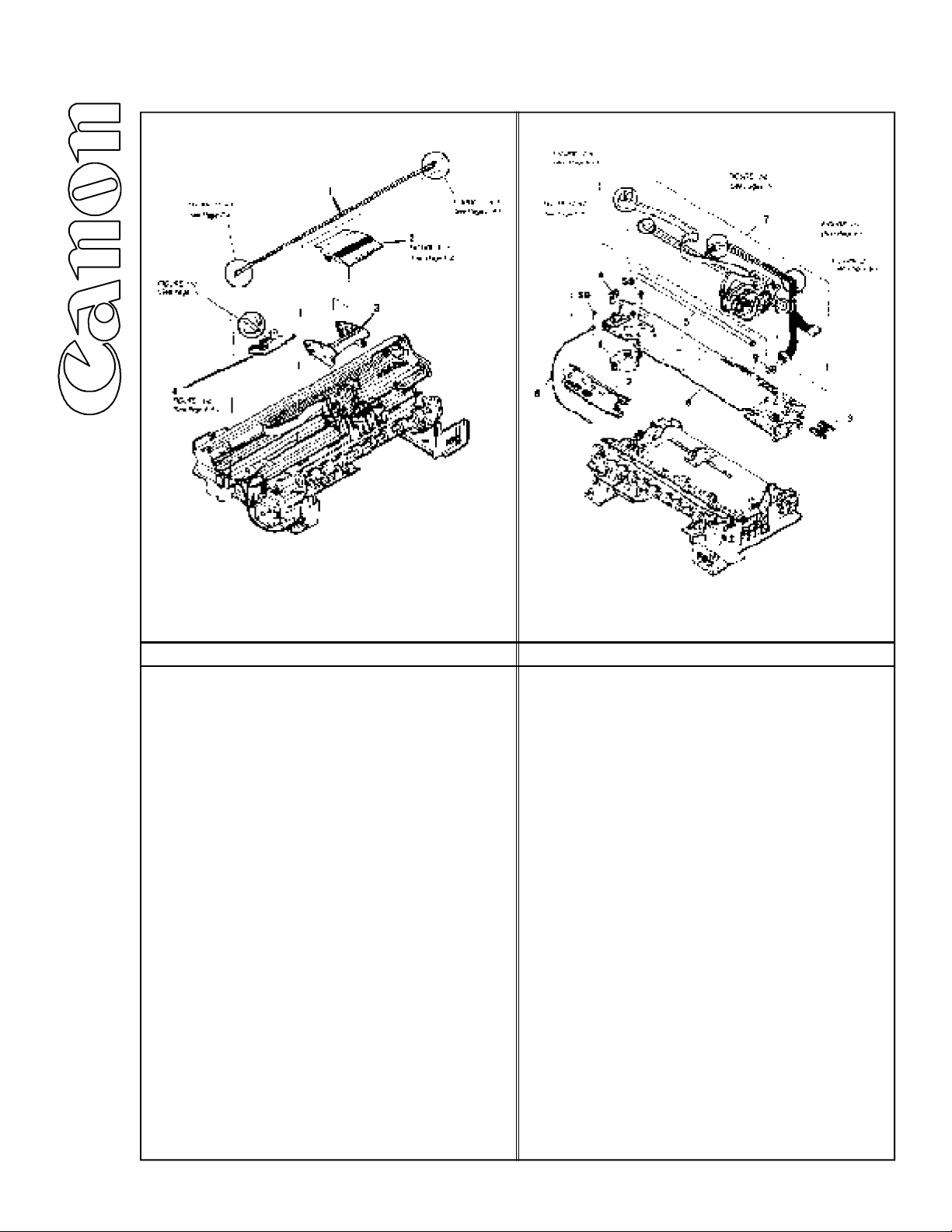

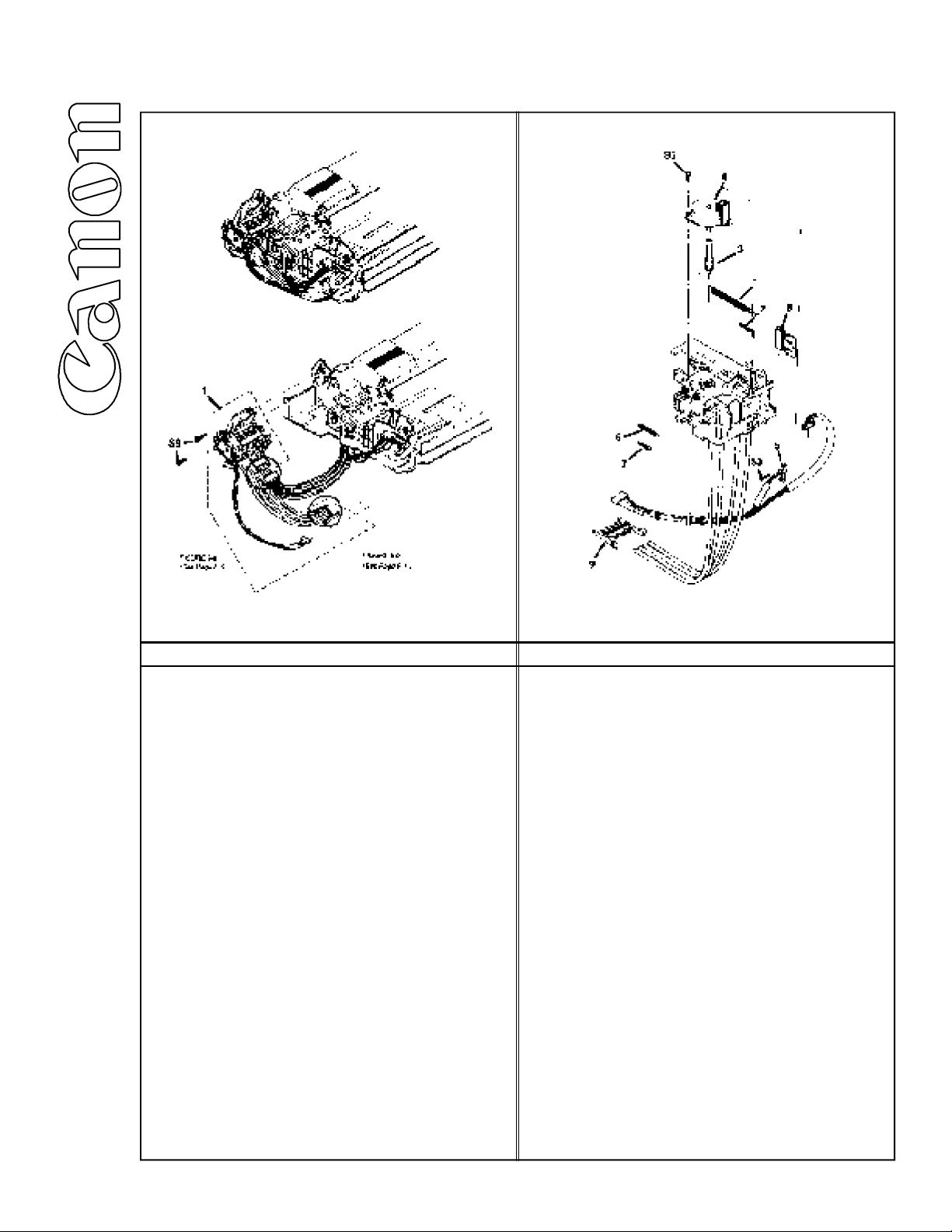

FIGURE 11 PRINT TIMING SLIT & CARRIAGE CARD FIGURE 12 CARRIAGE UNIT
NUM. PART # DESCRIPTION NUM. PART # DESCRIPTION
11 - 1 QB1-0064-000 SLIT, PRINT TIMING
2 QB1-0088-000 COVER, CARRIAGE CARD HOLDER
3 QB1-0083-000 HOLDER, CARRIAGE CARD
4 QG2-2350-000 CARD, CARRIAGE
12 - 1 QH4-4025-000 MOTOR, CARRIAGE DRIVE
2 QB1-0057-000 GUIDE, INK TUBE
3 QB1-0067-000 HOLDER, JOINT
4 QB1-0065-000 TOPPER
5 QB1-0058-000 SHAFT, CARRIAGE
6 QG2-2430-000 CABLE, GROUND
7 NPN CARRIAGE UNIT
8 NPN CARRIAGE FRAME UNIT
6 of 9
Page 8
Parts Catalog BJC-800/820
FIGURE 13 CARRIAGE UNIT (1) FIGURE 14 CARRIAGE UNIT (2)

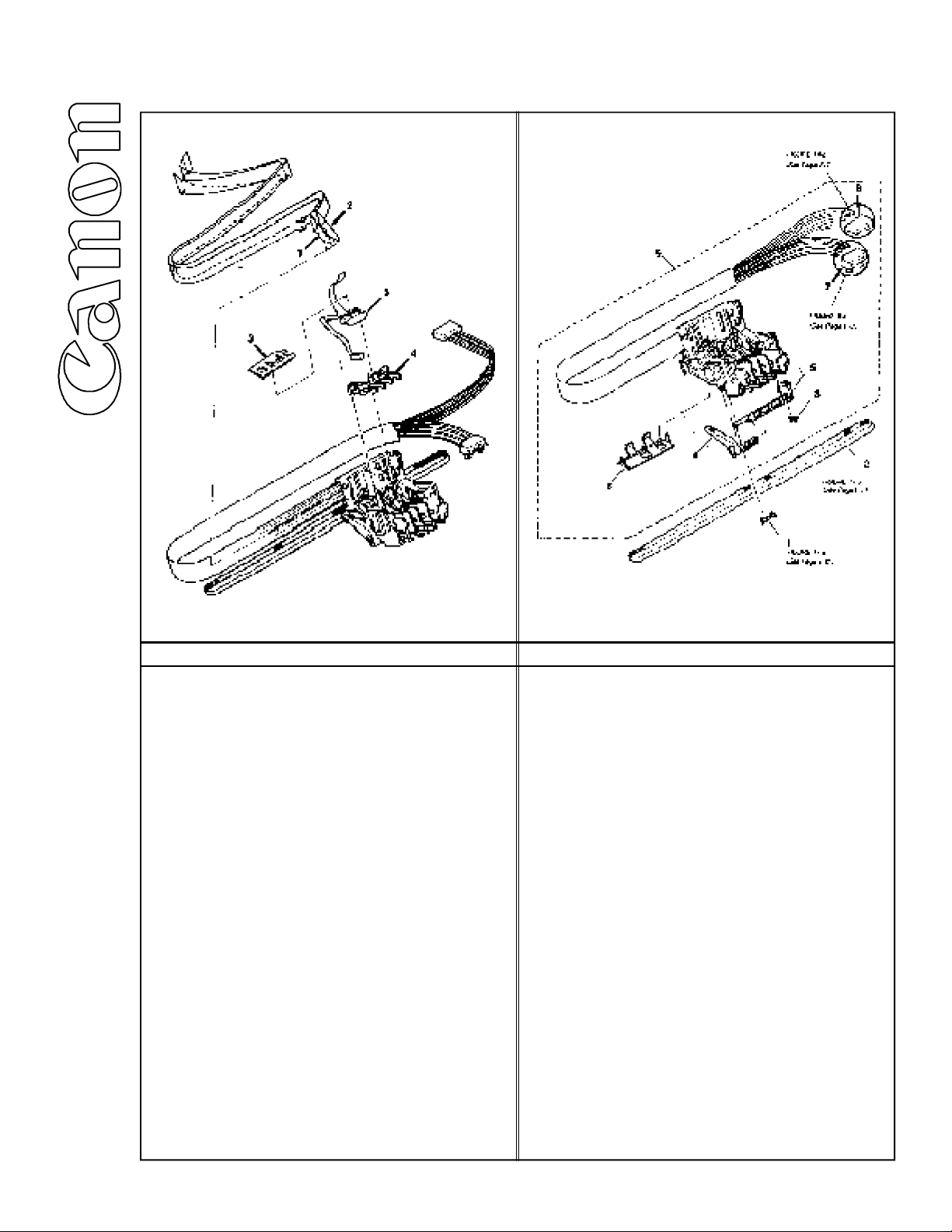

NUM. PART # DESCRIPTION NUM. PART # DESCRIPTION
13 - 1 QH2-2075-000 CABLE, CARRIAGE, 19PIN
2 QH2-2076-000 CABLE, CARRIAGE, 20PIN
3 QB1-0089-000 COVER, SENSOR
4 QB1-0085-000 HOLDER, ENCODER
5 QG2-2356-000 ENCODER UNIT
14 - 1 QB1-0084-000 CLAMP, BELT
2 QB1-0053-000 BELT, CARRIAGE
3 QB1-0051-000 STOPPER, HEAD GAP
ADJUSTMENT SHAFT
4 QB1-0086-000 LEVER, POSITION
5 QB1-0052-000 SHAFT, HEAD GAP ADJUSTMENT
6 QF5-0005-000 GUIDE, CARRIAGE SHAFT
7 QB1-0073-000 JOINT, PUMP
8 QB1-0075-000 JOINT, SUPPLY (B)
9 QY5-0095-000 CARRIAGE INK SUPPLY UNIT
7 of 9
Page 9
Parts Catalog BJC-800/820

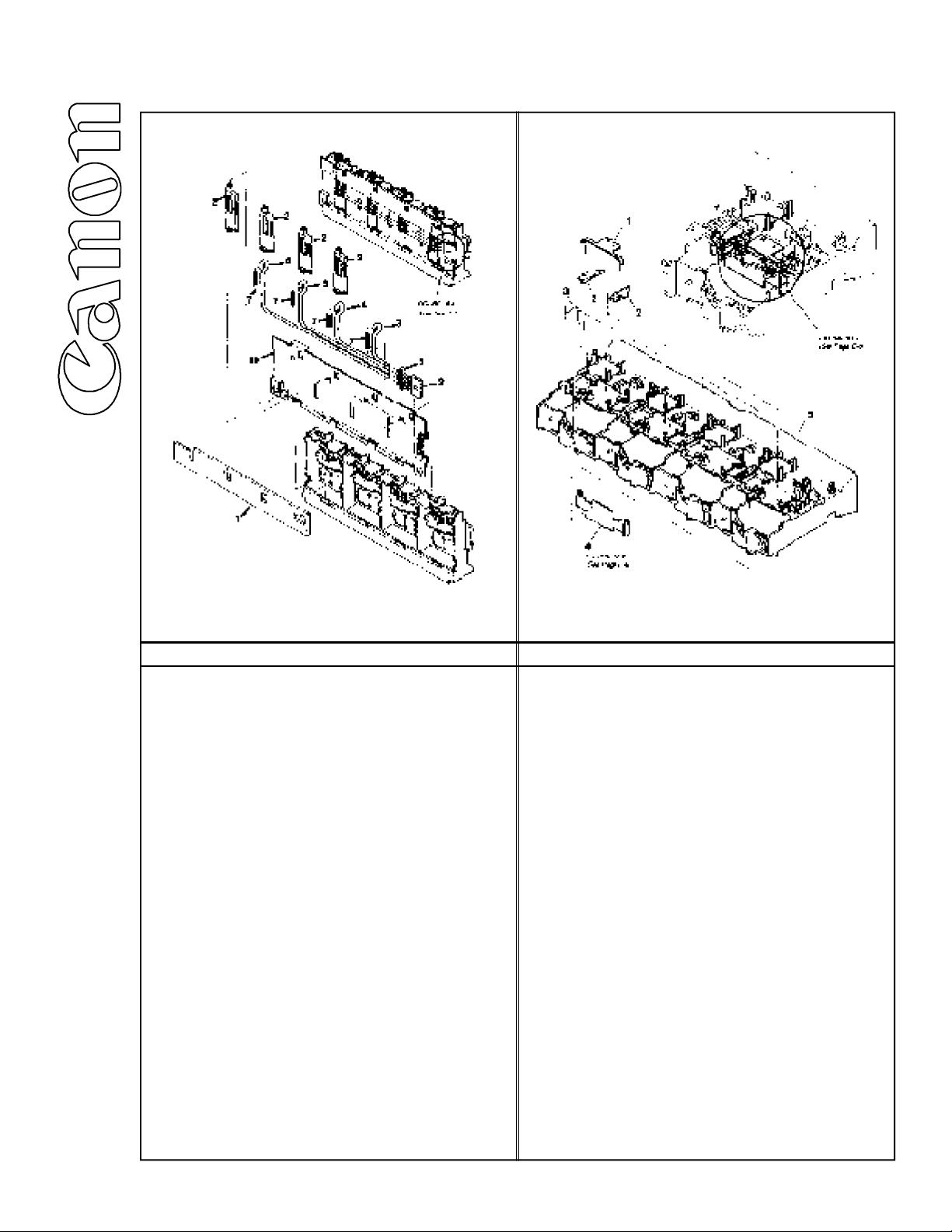

FIGURE 15 CARRIAGE FRAME UNIT FIGURE 16 INK COMPARTMENT UNIT
NUM. PART # DESCRIPTION NUM. PART # DESCRIPTION
15-1 QB1-0066-000 GUIDE, CARRIAGE
2 QB1-0090-000 LEVER, CARRIAGE LOCK
3 QB1-0056-000 HOOK, PRINT TIMING SLIT
4 QB1-0060-000 PLATE, FRAME RIGHT
5 QB1-0063-000 SPRING, LEAF
6 QB1-0062-000 SPRING, COIL
7 QB1-0054-000 BRACKET, IDLER ROLLER
8 QF1-5007-000 ROLLER, IDLER
9 QB1-0055-000 PIN, ROLLER
10 QB1-0061-000 PLATE, FRAME LEFT
11 QS5-8011-000 LABEL, CARRIAGE INSTRUCTION
12 QB1-0059-000 FRAME, CARRIAGE
16 - 1 QG5-0014-000 INK COMPARTMENT UNIT
8 of 9
Page 10
Parts Catalog BJC-800/820
FIGURE 17 INK SENSORS FIGURE 18 INK SUPPLY TUBES

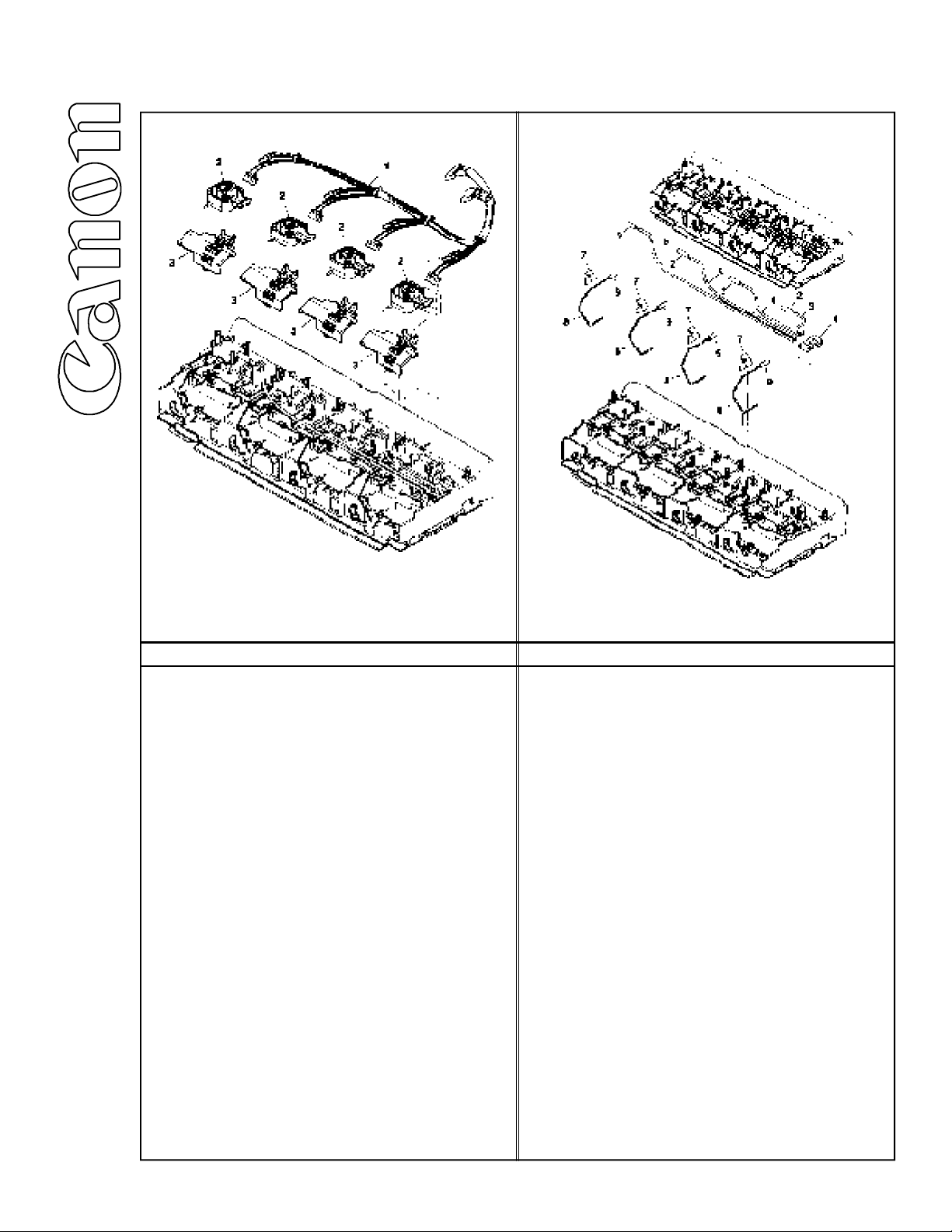

NUM. PART # DESCRIPTION NUM. PART # DESCRIPTION
17 - 1 QH8-8402-000 SENSOR CABLE UNIT
2 QH8-8393-000 SENSOR, INK (4)
3 QG5-0016-000 CARTRIDGE SENSOR UNIT (4)
18-1 QB1-0166-000 JOINT, SUPPLY (A)
2 QB1-0150-000 JOINT, RUBBER 16MM (4)
3 QB1-0142-000 TUBE, INK SUPPLY 43MM
4 QB1-0143-000 TUBE, INK SUPPLY 114MM
5 QB1-0144-000 TUBE, INK SUPPLY 189MM
6 QB1-0145-000 TUBE, INK SUPPLY 269MM
7 QB1-0153-000 COVER, INK SUPPLY PIPE (4)
8 QB1-0141-000 PIPE, INK SUPPLY (4)
9 QB1-0163-000 JOINT,RUBBER IOMM (4)
9 of 9
Page 11
Parts Catalog BJC-800/820
FIGURE 19 INK DRAIN TUBES FIGURE 20 NEEDLE PROTECTORS
NUM. PART # DESCRIPTION NUM. PART # DESCRIPTION

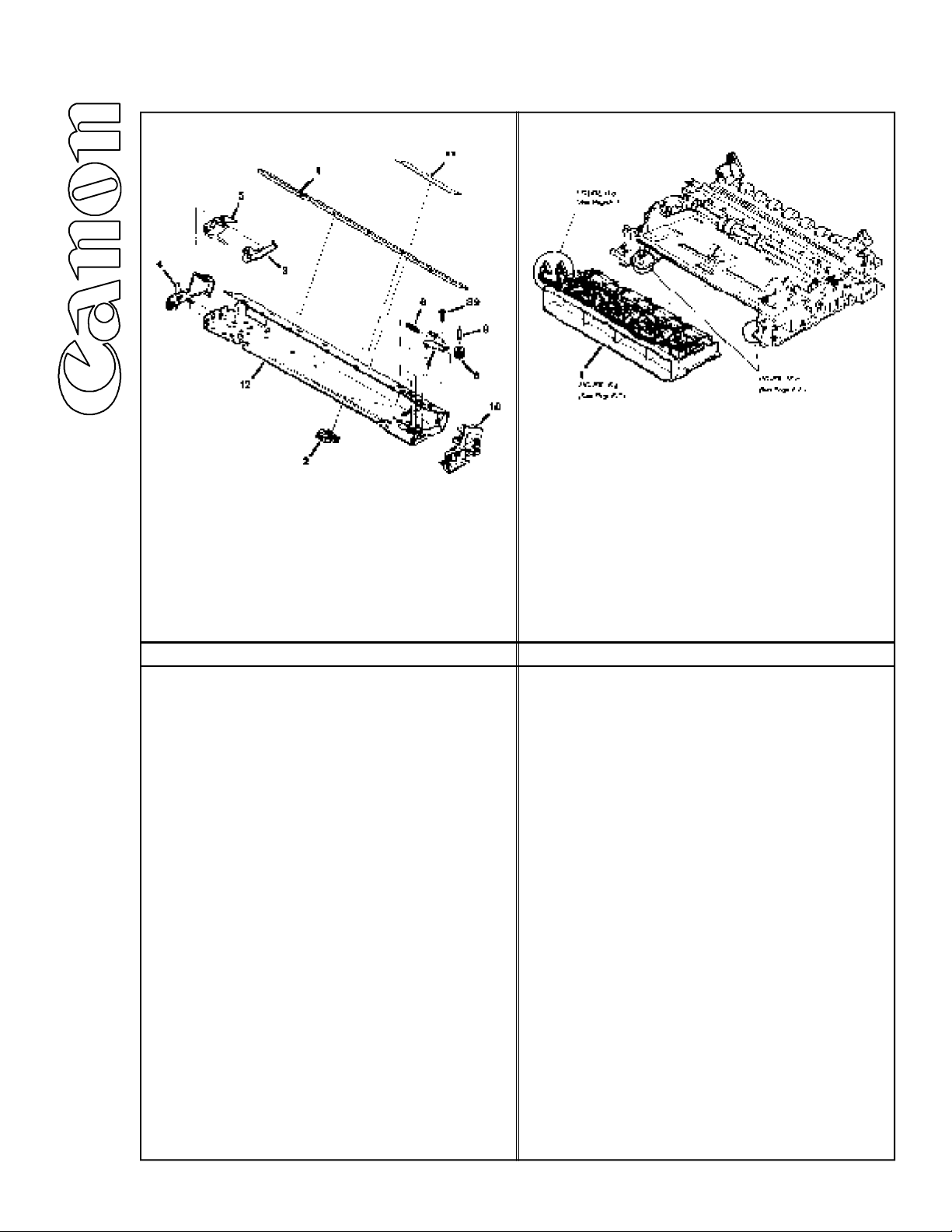

19- 1 QB1-0170-000 ABSORBER, INK
2 QB1-0169-000 HOLDER, DRAIN TUBE (4)
3 QB1-0146-000 TUBE, DRAIN 84MM
4 QB1-0147-000 TUBE, DRAIN 172MM
5 QB1-0148-000 TUBE, DRAIN 256MM
6 QB1-0149-000 TUBE, DRAIN 339MM
7 QB1-0151-000 SPRING, DRAIN TUBE (4)
8 QB1-0168-000 JOINT, DRAIN TUBE
9 QB1-0167-000 JOINT, DRAIN (A)
10 QB1-0152-000 BASE, INK COMPARTMENT
20-1 QB1-0165-000 SPRING, LEAF (4)
2 QB1-0158-000 PLAT, LOCK (8)
3 QB1-0162-000 SPRING (4)
4 QB1-0154-000 PROTECTOR, NEEDLE (4)
5 QB1-0159-000 INK, COMPARTMENT
10 of 9
Page 12
Parts Catalog BJC-800/820
FIGURE 21 PAPER LIFTING PLATE FIGURE 22 PINCH ROLLER BASE UNIT
NUM. PART # DESCRIPTION NUM. PART # DESCRIPTION

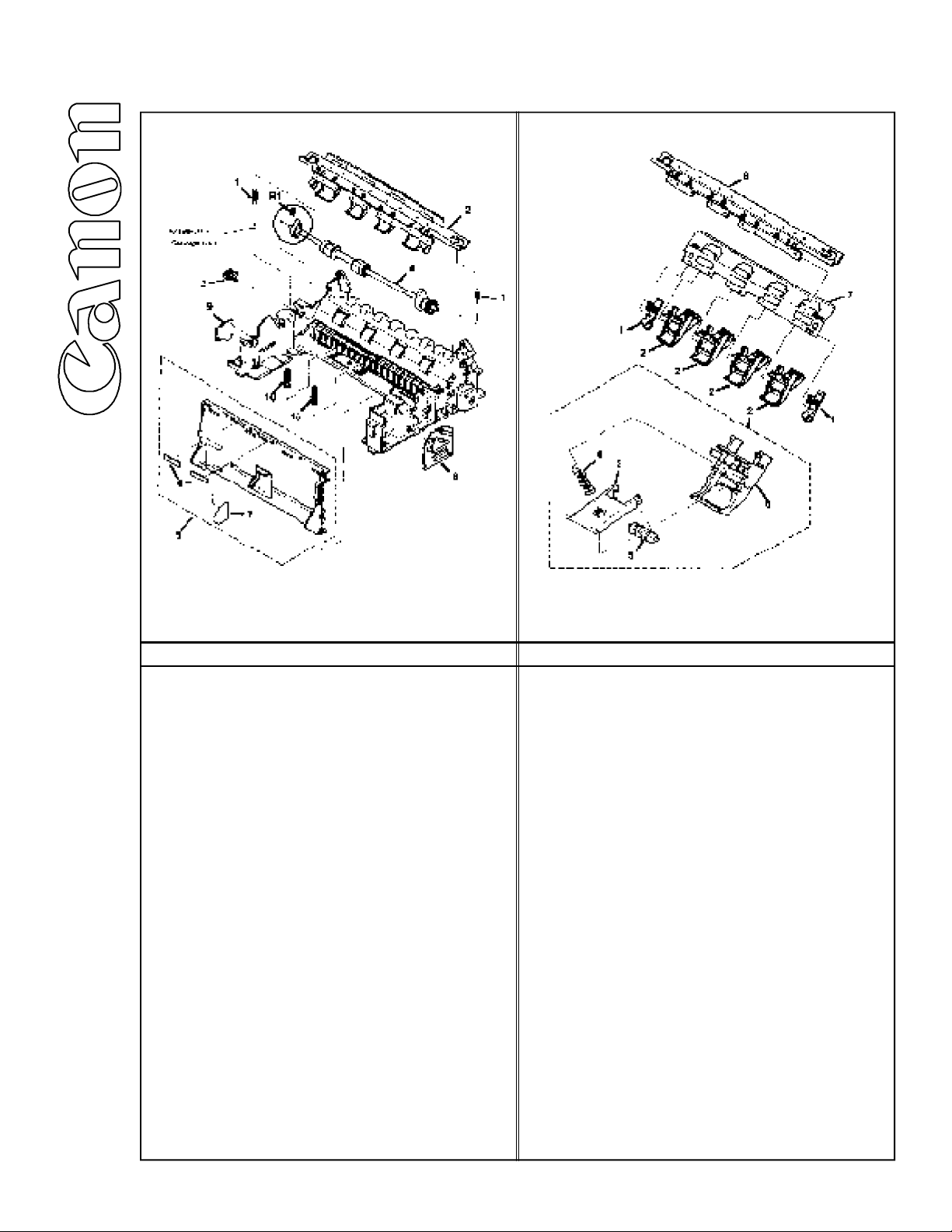

21 - 1 QB1-0040-000 SPRING (2)
2 QG5-0012-000 PINCH ROLLER BASE UNIT
3 QB1-0042-000 HOLDER, SHAFT
4 QG5-0010-000 PICK-UP ROLLER UNIT
5 QG5-0009-000 PLATE, PAPER LIFTING
6 QB1-0037-000 SHEET, SEPARATION (2)
7 QS5-8010-000 LABEL, PAPER SET
8 QG2-2348-000 CARD, CONNECTOR, RIGHT
9 QG2-2349-000 CARD, CONNECTOR, LEFT
10 QB1-0038-000 SPRING, COIL (2)
22 - 1 QB1-0032-000 ARM, BASE (2)
2 QG5-0013-000 PINCH ROLLER UNIT (4)
3 QB1-0010-000 ARM, PINCH ROLLER
4 QB1-0039-000 SPRING, COIL
5 QB1-0009-000 ROLLER, PINCH
6 QB1-0011-000 HOLDER, ARM
7 QB1-0013-000 PLATE, PRESSURE
8 QB1-0012-000 BASE, PINCH ROLLER
11 of 9
Page 13
Parts Catalog BJC-800/820
FIGURE 23 PICK UP ROLLER UNIT FIGURE 24 PAPER FEED ROLLER & EJECT ROLLER
NUM. PART # DESCRIPTION NUM. PART # DESCRIPTION
23 - 1 QB1-0023-000 GEAR, PICK UP
2 QB1-0021-000 SPRING, CLUTCH
3 QB1-0022-000 RING, CONTROL
4 QB1-0020-000 CAM, CLUTCH
5 QB1-0018-000 ROLLER, CARD SLIP (2)
6 QB1-0017-000 ROLLER, PICK UP
7 QB1-0024-000 CAM
8 QB1-0019-000 SHAFT, PICK UP ROLLER

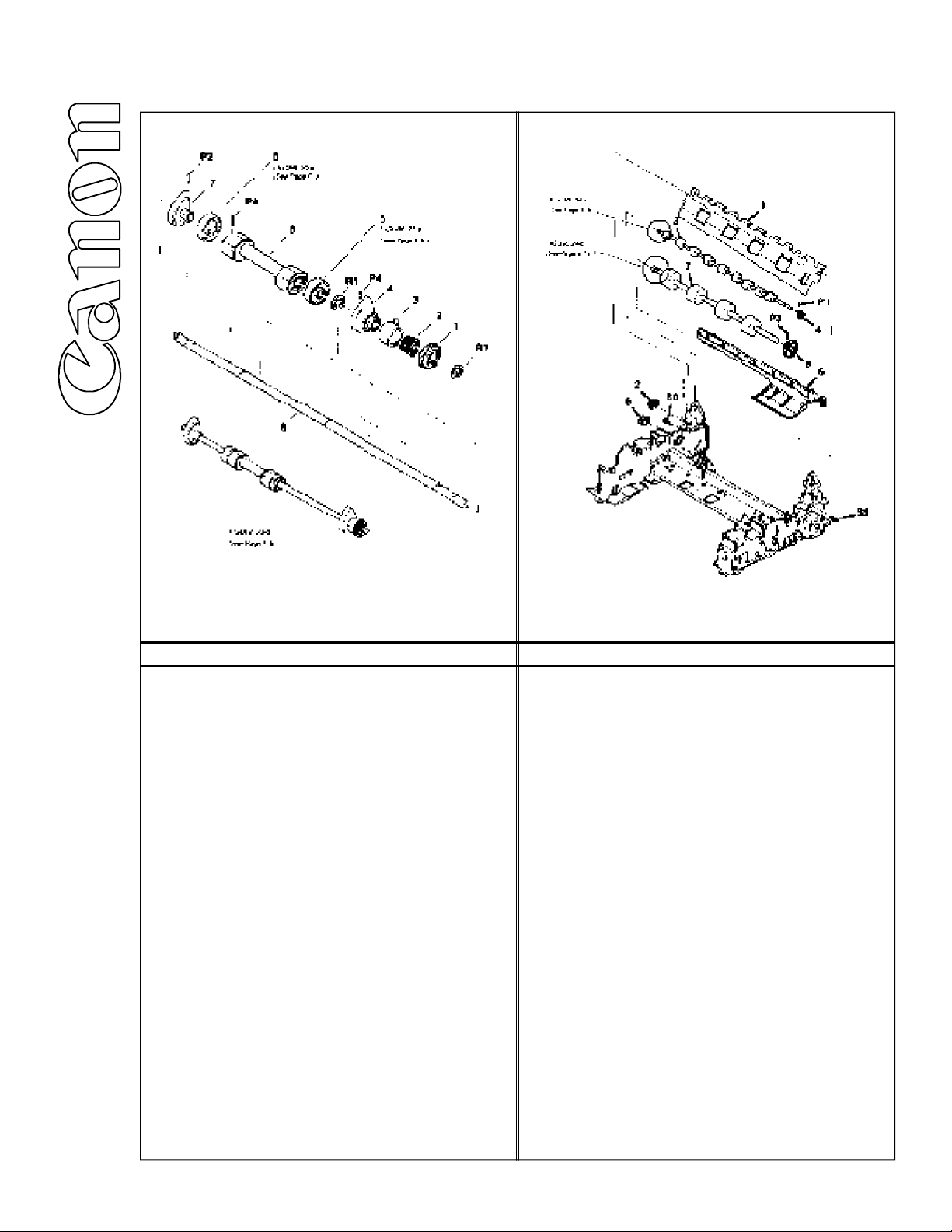

24 - 1 QB1-0033-000 PLATEN
2 QB1-0036-000 HOLDER, SHAFT
3 QB1-0014-000 ROLLER, EJECT
4 QB1-0015-000 GEAR, EJECT ROLLER
5 QB1-0214-000 HOLDER, CARD COVER
6 QB1-0035-000 HOLDER, SHAFT
7 QB1-0004-000 ROLLER, PAPER FEED
8 QB1-0005-000 GEAR, PAPER FEED ROLLER
12 of 9
Page 14
Parts Catalog BJC-800/820
FIGURE 25 SEPARATION SHEET UNIT FIGURE 26 PRINTER FRAME

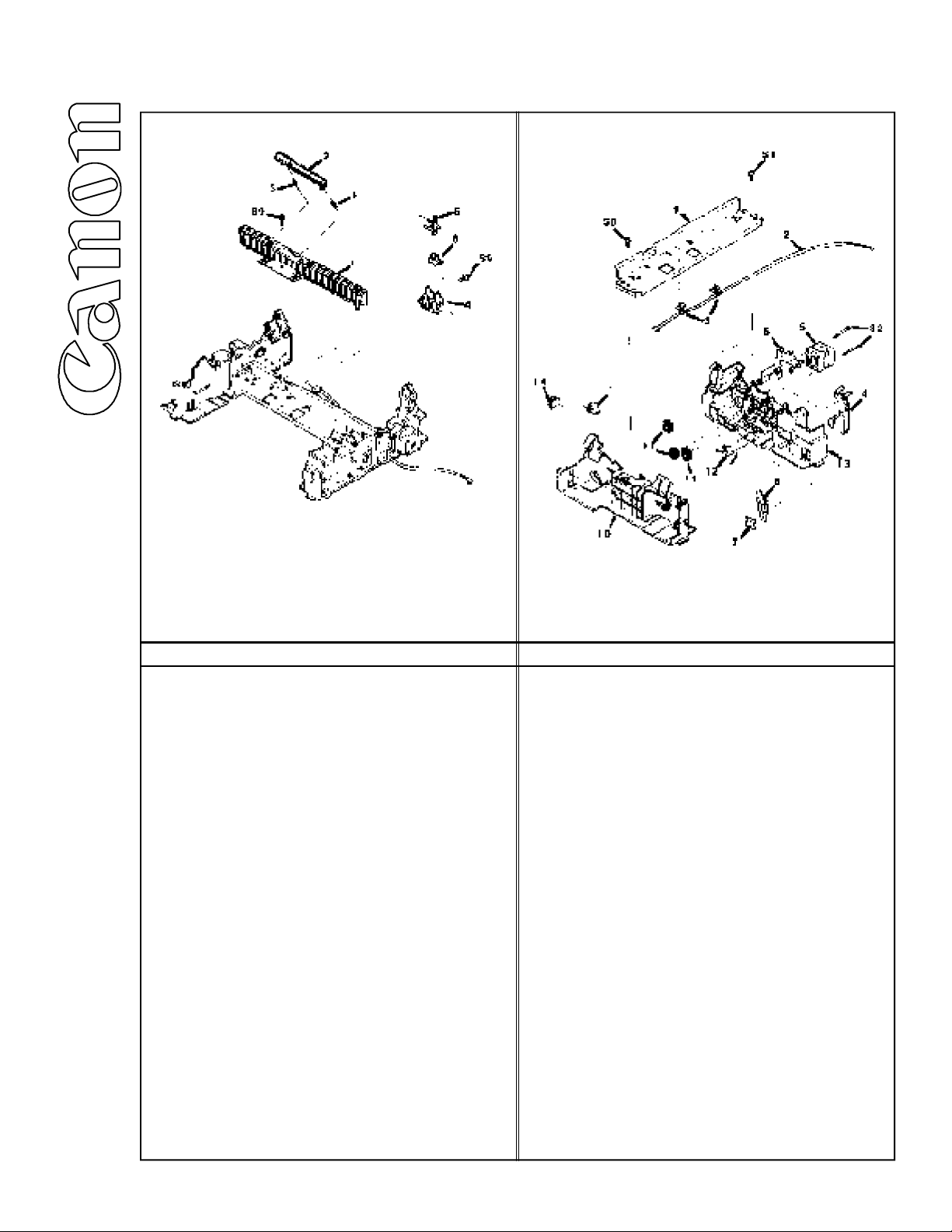

NUM. PART # DESCRIPTION NUM. PART # DESCRIPTION
25 - 1 QB1 -0026-000 BASE, SEPARATION SHEET
2 QF5-0006-000 SEPAPATION SHEET UNIT
3 QB1-0041-000 SPRING, COIL (2)
4 QB1-0008-000 HOLDER, PAPER SENSOR
5 QB1-0007-000 ARM, PAPER SENSOR
6 WG8-5036-000 PHOTO COUPLER
26 - 1 QB1-0112-000 STOPPER, CAP
2 QG2-2355-000 CABLE, PAPER SENSOR
3 WT2-0433-000 CLAMP, CABLE (2)
4 QB1-0045-000 PLATE, GROUND
5 QH4-4026-000 MOTOR, PAPER FEED
6 QB1-0044-000 PLATE, GROUND
7 QB1-0031-000 PLATE, PRESS
8 QB1-0030-000 SPRING, PRATE
9 QB1-0003-000 FRAME, CENTER
10 QB1-0002-000 FRAME, LEFT
11 QB1-0016-000 GEAR, TRANSMISSION (3)
12 QB1-0046-000 PLATE, GROUND
13 QB1-0001-000 FRAME, RIGHT
14 VT2-0010-007 CLAMP, CABLE
