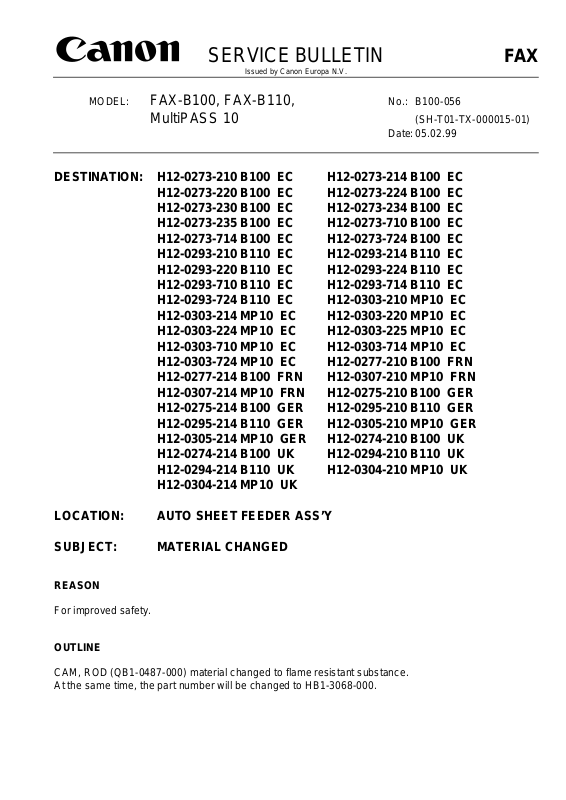

SERVICE BULLETIN
Issued by Canon Europa N.V.
FAX
MODEL:
FAX-B100, FAX-B110,
MultiPASS 10
No.: B100-056
(SH-T01-TX-000015-01)
Date:05.02.99
DESTINATION: H12-0273-210 B100 EC H12-0273-214 B100 EC
H12-0273-220 B100 EC H12-0273-224 B100 EC
H12-0273-230 B100 EC H12-0273-234 B100 EC
H12-0273-235 B100 EC H12-0273-710 B100 EC
H12-0273-714 B100 EC H12-0273-724 B100 EC
H12-0293-210 B110 EC H12-0293-214 B110 EC
H12-0293-220 B110 EC H12-0293-224 B110 EC
H12-0293-710 B110 EC H12-0293-714 B110 EC
H12-0293-724 B110 EC H12-0303-210 MP10 EC
H12-0303-214 MP10 EC H12-0303-220 MP10 EC
H12-0303-224 MP10 EC H12-0303-225 MP10 EC
H12-0303-710 MP10 EC H12-0303-714 MP10 EC
H12-0303-724 MP10 EC H12-0277-210 B100 FRN
H12-0277-214 B100 FRN H12-0307-210 MP10 FRN
H12-0307-214 MP10 FRN H12-0275-210 B100 GER
H12-0275-214 B100 GER H12-0295-210 B110 GER
H12-0295-214 B110 GER H12-0305-210 MP10 GER
H12-0305-214 MP10 GER H12-0274-210 B100 UK
H12-0274-214 B100 UK H12-0294-210 B110 UK
H12-0294-214 B110 UK H12-0304-210 MP10 UK
H12-0304-214 MP10 UK
LOCATION: AUTO SHEET FEEDER ASS’Y
SUBJECT: MATERIAL CHANGED
REASON
For improved safety.
OUTLINE
CAM, ROD (QB1-0487-000) material changed to flame resistant substance.
At the same time, the part number will be changed to HB1-3068-000.
Page 2
FAX - 2 - B100-056
PARTS
PARTS NAME PARTS NO. Q’TY IC LOCATION NO.
OLD CAM, ROD QB1-0487-000 1 NY --NEW CAM, ROD HB1-3068-000 1
OLD AUTO SHEET FEEDER ASS’Y HG5-0427-080 1 NY --NEW AUTO SHEET FEEDER ASS’Y HG5-0427-090 1
