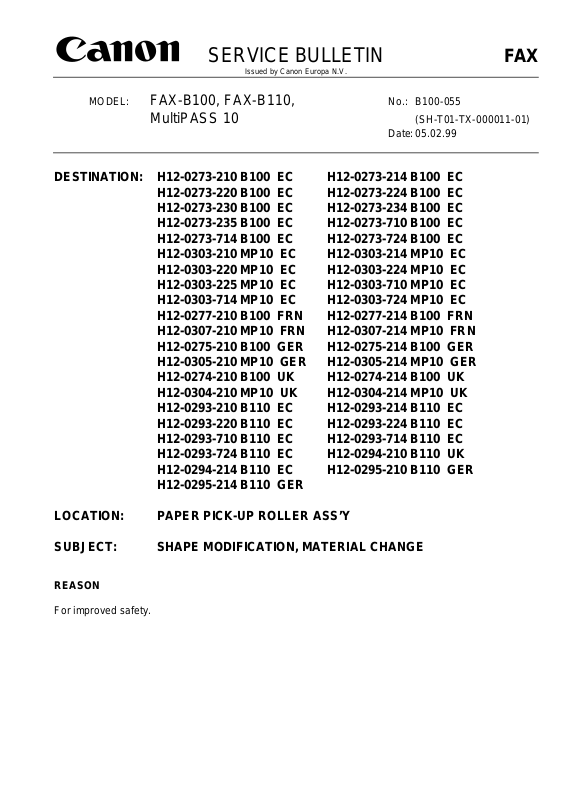

Page 1
SERVICE BULLETIN
Issued by Canon Europa N.V.
FAX
MODEL:
DESTINATION: H12-0273-210 B100 EC H12-0273-214 B100 EC
FAX-B100, FAX-B110,
MultiPASS 10
H12-0273-220 B100 EC H12-0273-224 B100 EC
H12-0273-230 B100 EC H12-0273-234 B100 EC
H12-0273-235 B100 EC H12-0273-710 B100 EC
H12-0273-714 B100 EC H12-0273-724 B100 EC
H12-0303-210 MP10 EC H12-0303-214 MP10 EC
H12-0303-220 MP10 EC H12-0303-224 MP10 EC
H12-0303-225 MP10 EC H12-0303-710 MP10 EC
H12-0303-714 MP10 EC H12-0303-724 MP10 EC
H12-0277-210 B100 FRN H12-0277-214 B100 FRN
H12-0307-210 MP10 FRN H12-0307-214 MP10 FRN
H12-0275-210 B100 GER H12-0275-214 B100 GER
H12-0305-210 MP10 GER H12-0305-214 MP10 GER
H12-0274-210 B100 UK H12-0274-214 B100 UK
H12-0304-210 MP10 UK H12-0304-214 MP10 UK
H12-0293-210 B110 EC H12-0293-214 B110 EC
H12-0293-220 B110 EC H12-0293-224 B110 EC
H12-0293-710 B110 EC H12-0293-714 B110 EC
H12-0293-724 B110 EC H12-0294-210 B110 UK
H12-0294-214 B110 EC H12-0295-210 B110 GER
H12-0295-214 B110 GER
No.: B100-055
(SH-T01-TX-000011-01)
Date:05.02.99
LOCATION: PAPER PICK-UP ROLLER ASS’Y
SUBJECT: SHAPE MODIFICATION, MATERIAL CHANGE
REASON
For improved safety.
Page 2
FAX - 2 - B100-055
OUTLINE
A fire preventive rib has been added to the FRAME, CUT SHEET FEEDER (HB1-1246).
The material of the PAPER PICK-UP ROLLER ASS’Y (HG5-0432) component part (separation roller
axle) has been changed to flame resistant material.
PARTS
PARTS NAME PARTS NO. Q’TY IC LOCATION NO.
OLD FRAME, CUT SHEET FEEDER HB1-1246-080 1 NY --NEW FRAME, CUT SHEET FEEDER HB1-1246-090 1
OLD AUTO SHEET FEEDER ASS’Y HG5-0427-060 1 NY --NEW AUTO SHEET FEEDER ASS’Y HG5-0427-080 1
OLD PAPER PICK-UP ROLLER ASS’Y HG5-0432-000 1 NY --NEW PAPER PICK-UP ROLLER ASS’Y HG5-0432-020 1
