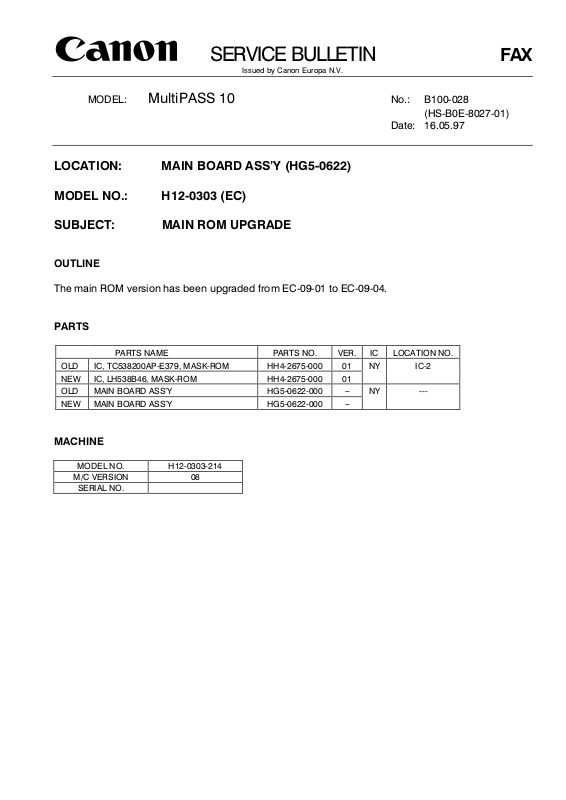

SERVICE BULLETIN FAX
Issued by Canon Europa N.V.
MODEL: MultiPASS 10 No.: B100-028
LOCATION: MAIN BOARD ASSY (HG5-0622)
MODEL NO.: H12-0303 (EC)
SUBJECT: MAIN ROM UPGRADE
OUTLINE
The main ROM version has been upgraded from EC-09-01 to EC-09-04.
PARTS
(HS-B0E-8027-01)
Date: 16.05.97
PARTS NAME PARTS NO. VER. IC LOCATION NO.
OLD IC, TC538200AP-E379, MASK-ROM HH4-2675-000 01 NY IC-2
NEW IC, LH538B46, MASK-ROM HH4-2675-000 01
OLD MAIN BOARD ASSY HG5-0622-000 -- NY ---
NEW MAIN BOARD ASSY HG5-0622-000 --
MACHINE
MODEL NO. H12-0303-214
M/C VERSION 08
SERIAL NO.
Page 2
FAX - 2 - B100-028
1. Main Program Version No.
ORIGINAL MODIFIED
Version No. EC-09-01 EC-09-04
Version No. on ROM IC-2
2675-01
Sum Check (HEX.) ED00 0700
ROM Type MASK MASK
IC-2
2675-01
2. Details
1. In country settings where OGM cannot be set to OFF, the OGM language selection option will
be made available.
2. Local requests
a. HOME FAX (Finland, New Zealand) function made available.
(Special SW8 bit2= 0 → 1)
b. The DTMF pattern in the FINLAND and NEW ZEALAND settings has been changed.
(Special SW15 bit5, 6= 0 → 1)
c. The Italian and Spanish language displays have been partially corrected and changed.
d. The maximum input value for T1 in T30 has been changed to 150,000ms.
e. If a document that generated a direct transmission error is retransmitted without being taken
out and reset, the document is not scanned, but fed through. This problem has been
corrected.
f. In the BELGIUM and SWEDEN settings, OGM on/off can be set in the user settings.
