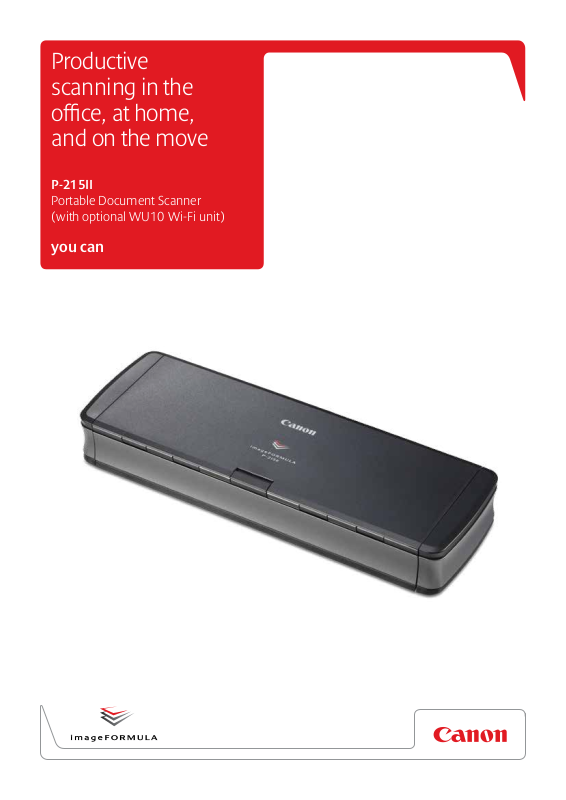

Canon 9705B003 Datasheet

Productive
scanning in the
ofce, at home,
and on the move

P-215II

Portable Document Scanner
(with optional WU10 Wi-Fi unit)

you can

Your essential partner for
high-performance scanning, anywhere

The most productive USB-powered
scanner in its class, the P-215II is
true plug-and-scan for both Mac
and Windows users.

B&W

SPEED

15ppm/30ipm 10ppm/20ipm 500 scans/day 20 sheets

COLOUR

SPEED

DAILY DUTY

CYCLE

AUTOMATIC

DOCUMENT FEEDER

Fast, USB-powered scanning

The sophisticated imageFORMULA P-215II
offers the fastest USB-powered scanning
in its class with duplex speeds of up to
30 images per minute, and can be achieved
using just a single USB cable connection.
Its 20-sheet Automatic Document Feeder
enables fast batch scanning, ideal for
executives who need to process signed
contracts and close deals.

Plug-and-scan convenience
with CaptureOnTouch Lite

The P-215II is extremely simple to use –
just connect with a USB cable and start
scanning! CaptureOnTouch Lite software
is built into the P-215II so there is no need
to download additional drivers or software,
it’s simply plug-and-scan.

Space saving and lightweight

The P-215II is extremely stylish with a sleek
black and silver design. Its small footprint
makes it easy to place on busy desktops,
in drawers or use in the home. Weighing
approximately 1kg it is the perfect accessory
for mobile executives to t into a briefcase
or laptop bag.

High quality imaging

High quality imaging is made possible
through Canon’s proven image processing
technology that allows for high resolution
scanning up to 600dpi. Image clarity can be
further enhanced by colour dropout, moire
reduction and advanced text enhancement II –
perfect to ensure superb scan quality and
ideal for creating searchable PDFs.

Versatile media handling

The P-215II can scan a variety of media
ranging from traditional A4 to irregular sized
documents and photos. It also features a
front facing switch back card slot ideal for
scanning plastic ID and embossed cards.

Easily create new solutions

Software Development Kits for
CaptureOnTouch and CaptureOnTouch
Lite make it possible to build applications
that integrate directly with the P-215II

to create new workow solutions.

Scan wirelessly to smart devices with the optional Wi-Fi unit WU10 – it’s the perfect
companion for the P-215II for scanning directly to mobile, tablet and PC devices.

Optional Wi-Fi unit WU10

The Wi-Fi unit WU10 enables wireless scanning to mobile devices
without the need to connect via cable to a network point. Businesses
can also set-up wireless scanning to desktop PCs with the Wireless
Connection Setup Tool and Network Monitor software. The WU10
comes with a rechargeable Lithium-ion battery and when fully

Share to cloud-based applications/workows

imageFORMULA
P-215II and
WU10

Scan directly to PC/Mobile devices

Software

charged you can scan up to 400 images. Simply connect via USB
to your Canon mobile scanning device and enjoy fast mobile
scanning anytime, anywhere.

CaptureOnTouch Mobile App

Scan direct to your iPhone®, iPad® and Android device with the
free CaptureOnTouch Mobile App. It comes with advanced image
processing tools such as automatic size detection, deskew and skip
blank page – giving consistently superior image quality results.

Download the free CaptureOnTouch Mobile App from Google
Play (Android user) or the Apple App Store (iOS user).

The P-215II includes ISIS & TWAIN drivers for Windows, and TWAIN drivers for the Mac. These allow easy interaction with
your standard imaging application. It also has a full-suite of software applications to help users work more effectively.

Intuitive capture software that makes it quick and simple to
achieve premium quality results. CaptureOnTouch incorporates
an icon-based user interface with scanning to multiple le
formats including PDF, PDF-A, TIFF, JPEG, BMP, PPTX and PNG.
CaptureOnTouch can also send captured information directly
to data management systems and cloud-based applications
(compatible with both Windows and Mac).

Offers unique portability and convenience on the move.
The software is built into the P-215II allowing for fast and
effortless connectivity without the need to install any
drivers or application software (compatible with both
Windows and Mac).

Scan business cards to convert and organise important
information into a searchable database (compatible with
both Windows and Mac).

Simple but powerful ling software for Mac users that enables
you to store, organise and edit your digital documents
(compatible with Mac only).

CaptureOnTouch’s
intuitive icon-based
user interface

This le management application is renowned for being intuitive

and user-friendly, making it easy to store, organise and retrieve
your digital documents (compatible with Windows only).

Specications for P-215II Personal Document Scanner

Type Desktop Type Sheet Fed Scanner
Document Reading Sensor CMOS CIS 1 Line Sensor
Optical Resolution 600dpi
Light Source RGB LED
Reading Side Front / Back / Duplex
Interface High Speed USB 2.0 (USB 3.0 bus power also supported)
Dimensions Tray Closed: 285 (W) x 95 (D) x 40 (H)mm

Weight Approx. 1.0kg
Power Requirements USB 2.0 bus power: 0.5A (1.0A in combination

Power Consumption Scanning: 7.0W (2 x USB 3.0), 4.5W (1 x USB 3.0),

Operating Environment 10 – 32.5
Environmental Compliance RoHS and ENERGY STAR

READING SPEED

(A4, Portrait) With USB 3.0 / AC Adaptor USB 2.0

B&W / Greyscale 200dpi / 300dpi 15ppm / 30ipm 12ppm / 14ipm
Colour 200dpi 10ppm / 20ipm 10ppm / 10ipm
300dpi 6ppm / 12ipm 6ppm / 6ipm

DOCUMENT
SPECIFICATIONS
Width 50.8 – 216mm

Length 70 – 356mm
Thickness 52 – 128g/m² (0.06 – 0.15mm)
Long Document Up to 1,000mm
Card Scanning 54 x 86 x 0.76mm (Embossed card scanning is supported)
Paper Separation Separation Pad Method
Feeder Capacity 20 sheets (64g/m²)

OUTPUT
Resolution 150 x 150dpi, 200 x 200dpi, 300 x 300dpi, 400 x 400dpi,
600 x 600dpi
Mode Black & White, Error Diffusion, Advanced Text Enhancement II,

Tray Opened: 285 (W) x 257 (D) x 202 (H)mm

with power supply USB cable)
USB 3.0 bus power: 0.9A
Optional AC Adaptor DC6V. 0.8A

Sleep Mode: 1.5W, Power Turned Off: 0.1W

o

C (50 – 90.5oF), Humidity: 25 – 80% RH

1

P-215II

8-Bit Greyscale: (256-Level), 24-Bit Colour, Auto Colour Detection

SPECIAL FEATURES Automatic Page Size Detection, Deskew, 3-Dimensional Colour

BUNDLED SOFTWARE
For Windows OS ISIS / TWAIN Driver (Windows XP Pro / XP Home / VISTA / 7 / 8)

Presto! BizCard Reader
Software plug-in to: Evernote, Google Drive™, SharePoint
SugarSync, Dropbox and OneDrive

For Mac OS TWAIN Driver (Mac OS 10.5-10.9 / Supports OS X Lion)
CaptureOnTouch
CaptureOnTouch Lite
Presto! PageManager
Presto! BizCard Reader

Options Silex DS-4000U2 Scan-and-Print Server
(convert USB to network interface), AC Adaptor, Carry Case,
Optional Wi-Fi Unit WU10

Consumables Separation Pad, Feed Roller
Suggested Daily Duty Cycle 500 scans/day

1

The scanning speed (via USB) depends on the specication of PC / Mac and the setting of functions

2

Software Developer Kits are available through the Canon Business Solutions Developer

Programme – www.canon.europe.com/bsdp

Some images are simulated for clarity of reproduction. All data is based on Canon’s standard testing

methods. This leaflet and the specifications of the product have been developed prior to the date of
product launch. Final specifications are subject to change without notice.
and / or product names are trademarks and / or registered trademarks of their respective
manufacturers in their markets and / or countries.

Correction, Colour Dropout (RGB), Auto Colour Detection,
Shading Correction, Text Enhancement, MultiStream, Preset
Gamma Curve, Scan Panel, Prescan, Image Rotation, Skip Blank
Page, Select Scanning Document Side, Scan Area Setting,
Text Orientation, Continuous Scanning, Edge Enhancement,
Moire Reduction, Prevent Bleed Through / Remove Background,
Contrast Adjustment, Colour Drift, Background Smoothing,
Shadow Cropping (on / off switchable), Trimming, Corrections
suitable for Photo Mode, Auto Resolution Setting

2

CaptureOnTouch
CaptureOnTouch Lite
Nuance PaperPort

Software plug-in to: Evernote, Google Drive, SharePoint
SugarSync and Dropbox

2

®

,

2

2

®

,

TM

and ®; All company

Specications for Optional Wi-Fi Unit WU10

Type Optional Wi-Fi and power supply unit
Dimensions: (W x D x H) 125 x 71 x 31.7mm
Weight Main unit 125g / Battery 44.5g
Interface USB host for scanner connection

POWER SUPPLY AC Adaptor or Lithium Ion battery
Scans per Charge:
(A4, 200dpi, Colour) 400 images (at full charge)
Power consumption Maximum power: 12W / Power off mode: 0W

WI-FI SPECIFICATIONS
Operation Mode Access point mode / Station mode
Data Rate: (Theoretical Values) IE EE802.11b: Max 11Mbps
IEEE802.11g: 54Mbps
IEEE802.11n: 300Mbps
Frequency 2.4GHz
Wi-Fi Security WPA-PSK (TKIP / AES) WPA2-PSK (TKIP / AES) WEP (64 / 128bit)
WPS (Wi-Fi Protected set-up) Supported

BUNDLED SOFTWARE
For Mac and Windows Canon Wireless Connection Setup Tool, Network Monitor
Mobile OS Support Mobile apps available for Android and Apple iOS
