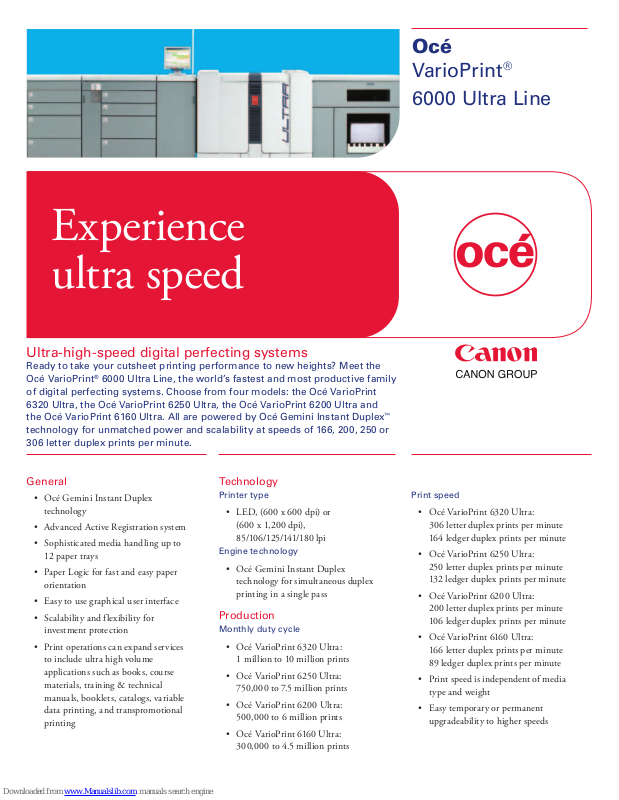

Page 1
General
• Océ Gemini Instant Duplex
technology
• Advanced Active Registration system
• Sophisticated media handling up to
12 paper trays
• Paper Logic for fast and easy paper
orientation
• Easy to use graphical user interface
• Scalability and flexibility for
investment protection
• Print operations can expand services
to include ultra high volume
applications such as books, course
materials, training & technical
manuals, booklets, catalogs, variable
data printing, and transpromotional
printing
Technology
Printer type
• LED, (600 x 600 dpi) or
(600 x 1,200 dpi),
85/106/125/141/180 lpi
Engine technology
• Océ Gemini Instant Duplex
technology for simultaneous duplex
printing in a single pass
Production
Monthly duty cycle
• Océ VarioPrint 6320 Ultra:
1 million to 10 million prints
• Océ VarioPrint 6250 Ultra:
750,000 to 7.5 million prints
• Océ VarioPrint 6200 Ultra:
500,000 to 6 million prints
• Océ VarioPrint 6160 Ultra:
300,000 to 4.5 million prints
Print speed
• Océ VarioPrint 6320 Ultra:
306 letter duplex prints per minute
164 ledger duplex prints per minute
• Océ VarioPrint 6250 Ultra:
250 letter duplex prints per minute
132 ledger duplex prints per minute
• Océ VarioPrint 6200 Ultra:
200 letter duplex prints per minute
106 ledger duplex prints per minute
• Océ VarioPrint 6160 Ultra:
166 letter duplex prints per minute
89 ledger duplex prints per minute
• Print speed is independent of media
type and weight
• Easy temporary or permanent
upgradeability to higher speeds
Ultra-high-speed digital perfecting systems
Ready to take your cutsheet printing performance to new heights? Meet the
Océ VarioPrint® 6000 Ultra Line, the world’s fastest and most productive family
of digital perfecting systems. Choose from four models: the Océ VarioPrint
6320 Ultra, the Océ VarioPrint 6250 Ultra, the Océ VarioPrint 6200 Ultra and
the Océ VarioPrint 6160 Ultra. All are powered by Océ Gemini Instant Duplex™
technology for unmatched power and scalability at speeds of 166, 200, 250 or
306 letter duplex prints per minute.
Experience
ultra speed
Océ
VarioPrint
®
6000 Ultra Line
Page 2
User interface
• Intuitive 15" color touch screen
graphic user interface
• Displays critical job and system
information
• Advanced job scheduler, allows for
maximum productivity and queue
management
Paper input module
• Maximum configuration: 3 paper
input modules: 12 trays with a total
capacity of 13,800 sheets
• Standard 4 trays, 4,600 sheets
•Paper tray capacity
(80 g/m2 plain paper)
- 2 x 600 sheets
- 2 x 1,700 sheets
Post process insertion:
• All trays, all sizes available for post
process insertion
• All sizes between
8"x8" (203 mm x 488 mm) and
12.6"x19.2" (320 mm x 488 mm)
(from all trays)
Paper weight
• From 60 - 300 g/m
2
Options
• Second and third Paper Input
Module
• Roll-feed, approximately 60,000
(80 g/m2/20lb bond plain paper)
sheets
• Statement size support
7"x10" (178 mm x 254 mm)
(opt ional)
Set finisher (optional)
• Capacity 4,000 (plain paper sheets
letter - 80 g/m2)
Sizes
The following paper sizes can be stacked
(and stapled) - all (custom) sizes between:
- long edge: 10.8" - 12" (275 mm - 306 mm)
- short edge: 8.2" - 8.7" (208 mm - 220 mm)
• Number of staples in a set: 1 or 2
position staple
• Stapling positions: portrait,
landscape, book
• Stapling capacity: 100 sheets plain
paper (80 g/m
2
)
- Shorter 50 sheet staple (optional)
High capacity stacker
• Capacity 6,000 (2 stacks x 3,000
sheets - 80 g/m2)
• All sizes between
8"x8" (203 mm x 203 mm) and
12.6"x19.2" (320 mm x 488 mm)
• OEM output to third-party
finishing
• Maximum total stacking capacity
18,000 sheets (with optional
stackers attached)
Integrated multi-format stapler
(not shown)
• Legal/ledger corner or dual stapling
• Mixed format stapling (50 sheets)
• Stapled output capacity: 2,000 sheets
Page 3
Sizes and Weights:
Weight (Lbs.) Length (inches) Width (inches) Height (inches)
Print Engine (PE) 1,496 51.2 42.1 47.4
Paper Input Modu le (PIM) 396 28.3 36.3 45.3
Input Interface Module 224 23 28.3 44.9
High Capacity Stacker including finisher 638 45.4 28.2 75.9
(HCS/FIN)
High Capacity Stacker (HCS) 352 45.4 28.2 46
Scalable configurations
In today’s environment, every printshop
has unique requirements. That’s why the
Océ VarioPrint 6320, 6250, 6200 and 6160
Ultra systems are available in a variety of
configurations to meet your unique needs.
Choose the combination of modules
that best fits your needs. Available
modules include:
• Paper input module(s)
• Océ High Capacity Stacker(s)
•Set finisher
• Integrated Multi-format Stapler (not
shown)
The integrated DFD interface allows these
configurations to be further extended with
various third-party finishing devices.
Finishing
Many online finishing options are
available, including:
• Booklet making
•Perfect binding
• Document binding
•Punching
Connectivity
Supported PDLs
• PostScript 3
•PDF
•PCL 6
•IPDS (optional)
•PCL5e/PJL (optional)
Workfl ow support
• Automatic language sensing for
PostScript, PDF and PCL 6
• Push button switching from IPDS
or PCL5e /PJL to PostScript 3/PDF
PCL 6
• Streaming for all PDLs
• Xerox® DigiPath® software and
FreeFlow job ticket support with
Océ DPlink™ software (optional)
• Kodak® SmartBoard® connectivity
support with Océ KDKlink™
(opt ional)
Océ Workfl ow modules (optional)
• Océ PRISMAaccess™
•Océ PRISMAprepare™
•Océ PRISMAarchive™
•Océ PRISMAproduction®
•Océ PRISMAsatellite®
• Océ PRISMAspool™
•Océ PRISMAweb™
• Océ Net Services
• Océ Document Designer Advanced
•Océ DPconvert®
• Océ VPconvert™ (Windows & Linux)
Network hardware
• 10/100 Mb, 1Gb Ethernet network
protocols
•TCP/IP
• Novell (IPX/SPX)
•SMB
Higher-level protocols
• LPR/LPD for print job submission
•Socket printing
•SNMP
- Host resources
- MIBII
- Printer MIB
- Job Monitoring MIB
Physical data
Sound
• Stand-by 58 dB
• Running 78 dB
Power consumption
•Stand-by mode
- 1 kW
• Running mode
- Océ VarioPrint 6160 Ultra 4.0 kw
- Océ VarioPrint 6200 Ultra 4.3 kw
- Océ VarioPrint 6250 Ultra 4.4 kw
- Océ VarioPrint 6320 Ultra 4.9 kw
PIM1
39 in 19 in 56.8 in 45.4 in
157.6 in
42.1 in
28.2 in
IIM PE HCS/FIN
Page 4
Beyond the Ordinary
Additional information about these programs can be found at www.usa.canon.com/kyosei. To keep apprised
of the latest news from Canon U.S.A., sign up for the Company’s RSS news feed by visiting www.usa.canon.
com/rss. †Based on weekly patent count s issued by United States Patent and Trademark Oce.
All re ference d product names, a nd other marks, a re trademark s of their respective owner s.
All rights, including rights created by patent grant or registration of a utility model or design are reserved.
Delivery subject to availability, subject to change for technical reasons. All hardware and software names are
cations subject to change without notice.
Copyright 2011, Océ North America, Inc.
About Océ
Océ is one of the leading providers of document management and printing
for professionals. e Océ oering includes oce printing and copying
systems, high speed digital production printers and wide format printing
systems for both technical documentation and color display graphics.
Océ is also a foremost supplier of document management outsourcing.
Many of the Fortune Global 500 companies and leading commercial
printers are Océ customers. e company w
as founded in 1877. With
headquarters in Venlo, e Netherlands, Océ is active in over 100 countries
and employs more than 20,000 people worldwide. Total revenues in scal
2010 amounted to approximately €2.7 billion. Océ is listed on Euronext in
Amsterdam. For more information visit www.oce.com.
Océ North America is headquartered in Trumbull, CT, with additional
business units in Chicago, IL and Boca Raton, FL. North America
represents over 37% of Océ’s worldwide revenues, and employment
is over 9,000. For more in
formation about Océ North America, visit
www.oceusa.com. Outside the U.S., consult http://global.oce.com.
