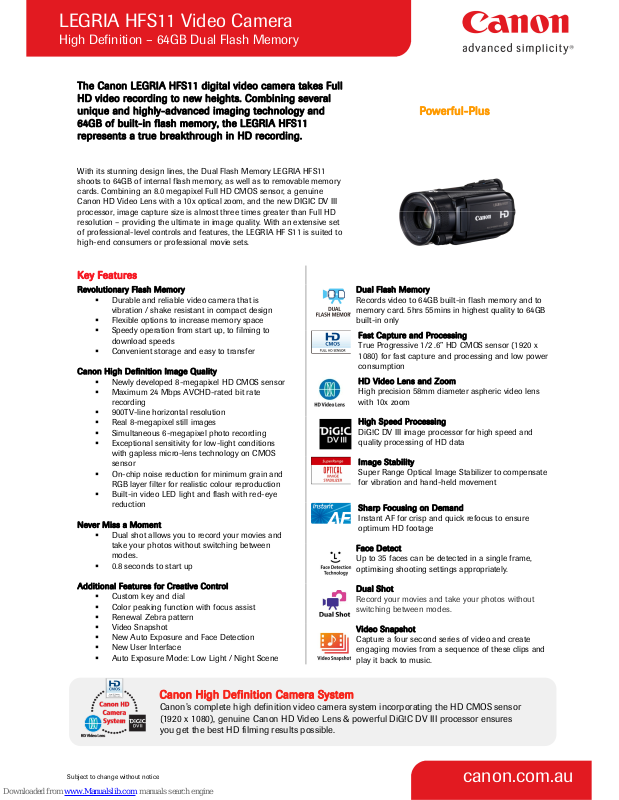

Page 1
LEGRIA HFS11 Video Camera
High Definition – 64GB Dual Flash Memory
canon.com.au
Subject to change without notice
The Canon LEGRIA HFS11 digital video camera takes Full
HD video recording to new heights. Combining several
unique and highly-advanced imaging technology and
64GB of built-in flash memory, the LEGRIA HFS11
represents a true breakthrough in HD recording.
Powerful-Plus
With its stunning design lines, the Dual Flash Memory LEGRIA HFS11
shoots to 64GB of internal flash memory, as well as to removable memory
cards. Combining an 8.0 megapixel Full HD CMOS sensor, a genuine
Canon HD Video Lens with a 10x optical zoom, and the new DIGIC DV III
processor, image capture size is almost three times greater than Full HD
resolution – providing the ultimate in image quality. With an extensive set
of professional-level controls and features, the LEGRIA HF S11 is suited to
high-end consumers or professional movie sets.
Key Features
Dual Flash Memory
Records video to 64GB built-in flash memory and to
memory card. 5hrs 55mins in highest quality to 64GB
built-in only
Fast Capture and Processing
True Progressive 1/2 .6” HD CMOS sensor (1920 x
1080) for fast capture and processing and low power
consumption
HD Video Lens and Zoom
High precision 58mm diameter aspheric video lens
with 10x zoom
High Speed Processing
DiG!C DV III image processor for high speed and
quality processing of HD data
Image Stability
Super Range Optical Image Stabilizer to compensate
for vibration and hand-held movement
Sharp Focusing on Demand
Instant AF for crisp and quick refocus to ensure
optimum HD footage
Face Detect
Up to 35 faces can be detected in a single frame,
optimising shooting settings appropriately.
Dual Shot
Record your movies and take your photos without
switching between modes.
Revolutionary Flash Memory
Durable and reliable video camera that is
vibration / shake resistant in compact design
Flexible options to increase memory space
Speedy operation from start up, to filming to
download speeds
Convenient storage and easy to transfer
Canon High Definition Image Quality
Newly developed 8-megapixel HD CMOS sensor
Maximum 24 Mbps AVCHD-rated bit rate
recording
900TV-line horizontal resolution
Real 8-megapixel still images
Simultaneous 6-megapixel photo recording
Exceptional sensitivity for low-light conditions
with gapless micro-lens technology on CMOS
sensor
On-chip noise reduction for minimum grain and
RGB layer filter for realistic colour reproduction
Built-in video LED light and flash with red-eye
reduction
Never Miss a Moment
Dual shot allows you to record your movies and
take your photos without switching between
modes.
0.8 seconds to start up
Additional Features for Creative Control
Custom key and dial
Color peaking function with focus assist
Renewal Zebra pattern
Video Snapshot
New Auto Exposure and Face Detection
New User Interface
Auto Exposure Mode: Low Light / Night Scene
Video Snapshot
Capture a four second series of video and create
engaging movies from a sequence of these clips and
play
it back to music.
Canon High Definition Camera System
Canon’s complete high definition video camera system incorporating the HD CMOS sensor
(1920 x 1080), genuine Canon HD Video Lens & powerful DiG!C DV III processor ensures
you get the best HD filming results possible.
Page 2
LEGRIA HFS11 Video Camera
High Definition – 64GB Dual Flash Memory
canon.com.au
Subject to change without notice
Legria HFS11 Technical Specifications
Video System
Format Type Flash - SD / SDHC + 64GB Built In
Sensor 1/2.6" CMOS (8.59 MP)
Image Processor DiG!C DV III
Video Data AVCHD 1080/50i. 1080/25P (Maximum AVCHD 24Mbps)
Recording Modes 64GB Built In Only – MXP 24Mbps / FXP 17Mpbs / XP 12Mbps / SP 7Mbps /
LP 5Mbps
Image Pixels
Total Pixels 8,590,000
Still Image Yes
Real Widescreen 16:9 Yes
Lens
Optical / Digital 10x / 40X / 200x HD Video Lens
Focal Length 6.4 –64mm
Maximum Aperture f1.8 to f3.0
Minimum Focusing Distance
(mm)
10 (wide angle)
Shutter Speed 1/2-1/2,000 sec.
Image Stabilizer Super Range OIS, Dynamic mode (movie mode only)
Lens Cover Built-in Automatic
Focusing
AF System Hi-Speed Instant Auto Focus / TTL
Focusing Range Auto / Manual / Forced Infinity
Control/Balance
Light Metering Method Evaluative / Centre-weighted average / Spot metering
Exposure Compensation ±11 steps via joystick
White Balance Mode Auto, Daylight, Shade, Cloudy, Tungsten, Fluor, Fluoro H, Set
Illumination
Min Illumination 0.3 Lux (Low Light Mode)
Low Light Mode Yes (1/2 sec)
Flash Yes - with red eye reduction
Video Light LED Video Light
LCD
View Screen / Pixels Widescreen 2.7" / 211,000 Wide View Angle & Wide colour range
Viewfinder (Colour) -
Filming Models & Controls
AE Program Modes Auto / P / Av / TV / SCN / CINE progressive 25P
Scene Modes Portrait / Sports / Night / Low light/ Snow / Beach / Sunset / Spotlight /
Fireworks
Effects Art / Black & White / Sepia
Fades Auto Fade / Wipe
Audio
Audio Data Dolby Digital 2-ch (AC-3 2ch)
Audio Level Metering Manual audio level VR metering & control with adjustment via LCD
Wind Screen Auto / Off
Still Image Recording
Capture Sizes 8.02MP (4:3) and 6.01MP (16:9)
Memory Card Type SDHC / SD
Still Image Resolution 3264 x 2456
Still Shooting Functions Auto Exposure Bracketing / High Speed Continuous Shooting / 9-point AiAF
Power
Battery (standard) Avg. 1hr 45min
Charging Time 155 min
Quick Start/Power Save Yes, linked with LCD
Included Accessories
Battery Pack BP807
Power Adapter CA-570
Stereo Video Cable
STV250N
Component CTC100
USB 2.0 Hi Speed Cable
IFC-400PCU
AC Cable
Solution Disk DVSD V33.0in
Win/Mac
Edit Software Pixela
ImageMixer 3.SE
Remote WL-D88
Optional Accessories
Battery Chargers
- CG800
Battery Packs
- BP819
- BP827
Cables
- Mini HDMI (HTC100 Mini
terminal Type C)
Adaptor Lens
- Wide Angle WD-H58
- Teleconverter TL-H58
- Filter Set 58REG
Accessory Shoe
- Directional Microphone
DM100
- Video Light VL-5
- Video Flash Light VFL-2
Cases
- SC1000
- SC2000
DVD Burner DW100
Remote Control Adapter RV-1
Zoom Remote Controller ZR-
1000/ ZR-2000
Memory Cards – SD / SDHC
Class 4+ recommended for
1920 x 1080 recording
Built-in Charger
Yes
Interface
Terminals USB 2.0 Hi Speed / mini HDMI / Component output / AV output / Microphone /
Headphone/ Mini advanced shoe (RA-V1 supported)
Operating Platforms PC: Windows XP SP2/SP3 / Vista (including SP1), Mac: OS X 10.4 to 10.5
General
Self Timer 10 sec / Remote 2 sec
Search Calendar / Timeline / Date
Dimensions W x H x D 70 x 69 x 136mm
Weight incl. battery (g) Approx. 500g
