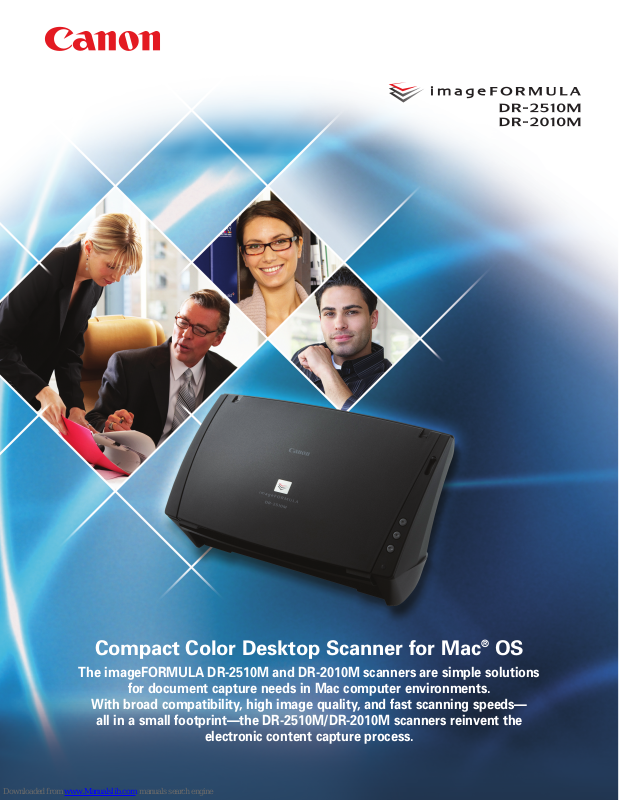

Compact Color Desktop Scanner for Mac®OS
The imageFORMULA DR-2510M and DR-2010M scanners are simple solutions
for document capture needs in Mac computer environments.
With broad compatibility, high image quality, and fast scanning speeds—
all in a small footprint—the DR-2510M/DR-2010M scanners reinvent the
electronic content capture process.
Page 2
Simple to Use
Features of the DR-2510M/2010M scanners—including Scan-To-Job buttons that
route images directly to designated locations such as the iPhoto™ application,
shared network folders, e-mail, and printers—enable easy integration into workflows and reduce the learning curve needed to implement document management systems. Productivity is maximized with such straightforward operation.
Compatible and Comprehensive
For seamless integration, the DR-2510M/2010M scanners are bundled with
a TWAIN driver, the industry standard for linking applications and scanners.
Also bundled is Canon CaptureOnTouch, for simple one-touch scanning. This
sophisticated software complements the scanning hardware for a complete
end-to-end solution.
High Image Quality
Capturing original documents with precision is important. With advanced imaging features derived from decades of Canon experience, including Advanced
Text Enhancement, Color Dropout, and Auto Color Detection, documents are
accurately scanned to maintain their fundamental creative values. With such
clear definition and detail, images are easily indexed for archiving and retrieval.
Fast Scanning Speeds for All Document Types
Small in size but rich in power, the DR-2510M/2010M scanners are capable
of expediting document capture from the point of origination to the final feed.
At 25 ppm* (DR-2510M) or 20 ppm* (DR-2010M) in black and white, grayscale,
and color, these scanners streamline business processes in any environment.
Compact and Convenient
With a sleek look in a small package that Mac users prefer, the DR-2510M
and DR-2010M scanners are a creative way to maximize available office space.
These scanners are also lightweight and connect via USB for easy installation.
Reliable and Adaptable Feeding
Disruptions in any business process are tedious. The DR-2510M/2010M scanners employ forward-thinking features like Ultrasonic Double-Feed Detection
(DR-2510M) and Text Orientation Recognition, which reduce presorting and
preparation time as well as unnecessary downtime and maintenance. Folio
Mode and Long Document Mode are useful for scanning odd-sized documents,
and the slant paper path reliably handles thick documents, driver licenses, and
embossed plastic cards.
Specifications
ype: Compact Desktop Scanner
T
Document Feeding: Automatic or Manual
Document Size
idth: 2" – 8.5"
W
ength: 2.1" – 14"
L
ong Doc. Mode: Up to 39.4"
L
Document Weight
utomatic Feeding: 14 – 32 lb. Bond
A
anual Feeding: 11 – 40 lb. Bond
M
eeder Capacity: 50 Sheets
F
Grayscale: 8-Bit
Color: 24-Bit
Scanning Element: One-Line CMOS CIS
ight Source: RGB LED
L
canning Modes: Simplex, Duplex, Color, Grayscale, Black and White,
S
ropout Color: Red, Green, Blue
D
ptical Resolution: 600 dpi
O
Output Resolution: 100/150/200/240/300/400/600 dpi
Scanning Speeds* DR-2510M DR-2010M
lack and White: 25 ppm 50 ipm 20 ppm 40 ipm
B
rayscale: 25 ppm 50 ipm 20 ppm 40 ipm
G
Color: 25 ppm 50 ipm 20 ppm 40 ipm
Interface: Hi-Speed USB 2.0
Scanner Driver for Mac:** TWAIN
Dimensions (H x W x D): 6.3" x 11.7" x 6.3"
Weight: 5.3 lb.
Power Consumption: 26W or Less (Energy Saving Mode: 10W or Less)
Suggested Daily Volume: 1,500 Scans***
Bundled Software for Mac: Canon CaptureOnTouch, Newsoft Presto!Bizcard,
Item Number: DR-2510M: 3949B002
Other Features: Auto Page Size Detection, Batch Separation,
* Examples based on typical settings, rated in pages/images per minute with letter-sized
documents at 200 dpi, portrait-feeding direction. Actual processing speeds may vary based
on PC performance and application.
** Mac OS X 10.3.9-10.5.6
*** Calculation based on scanning speed and assumed daily time of use.
Error Diffusion, Advanced Text Enhancement
implex Duplex Simplex Duplex
S
Newsoft PageManager
DR-2010M: 3950B002
Color Dropout/Enhancement, Deskew, Moiré Reduction,
Prescan, Prevent Bleed-through/Remove Background,
Skip Blank Page, Text Orientation Recognition
Environment in Mind
The DR-2510M/2010M scanners have been designed with Canon’s initiative
to take an environmentally and people-conscious approach to product design
and life cycle. These scanners meet ENERGY STAR
efficiency and comply with the RoHS and WEEE directives for reduction of
hazardous substances and waste products.
