Canon 3920B009, i-sensys MF5880dn Specifications

Download

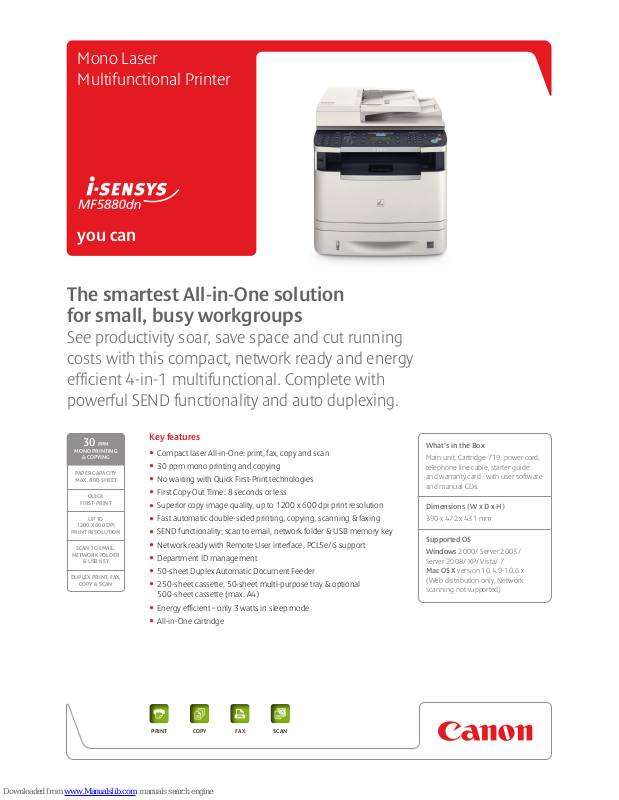

Page 1

Key features

SCANFAXCOPYPRINT

30 PPM

MONO PRINTING

& COPYING

PAPER CAPACITY MAX. 800-SHEET

QUICK

FIRST-PRINT

UP TO

1200 X 600 DPI

PRINT RESOLUTION

SCAN TO EMAIL,

NETWORK FOLDER

& USB KEY

DUPLEX PRINT, FAX,

COPY & SCAN

Mono Laser Multifunctional Printer

The smartest All-in-One solution for small, busy workgroups

See productivity soar, save space and cut running costs with this compact, network ready and energy efficient 4-in-1 multifunctional. Complete with powerful SEND functionality and auto duplexing.

Compact laser All-in-One: print, fax, copy and scan

•

30 ppm mono printing and copying

•

No waiting with Quick First-Print technologies

•

First Copy Out Time: 8 seconds or less

•

Superior copy image quality, up to 1200 x 600 dpi print resolution

•

Fast automatic double-sided printing, copying, scanning & faxing

•

SEND functionality; scan to email, network folder & USB memory key

•

Network ready with Remote User interface, PCL5e/6 support

•

Department ID management

•

50-sheet Duplex Automatic Document Feeder

•

250-sheet cassette, 50-sheet multi-purpose tray & optional

•

500-sheet cassette (max. A4) Energy efficient – only 3 watts in sleep mode

•

All-in-One cartridge

•

What’s in the Box

Main unit, Cartridge 719, power cord, telephone line cable, starter guide and warranty card - with user software and manual CDs.

Dimensions (W x D x H)

390 x 472 x 431 mm

Supported OS Windows 2000/ Server 2003/

Server 2008/ XP/ Vista/ 7 Mac OS X version 10.4.9-10.6.x (Web distribution only, Network scanning not supported)

you can

Page 2

Specifications

Flatbed & 50-sheet DADF

50-sheet multi-purpose tray

Optional telephone handset

250-sheet cassette

Optional 500-sheet cassette

Cartridge 719 All-in-One

Optional Cartridge 719 H All-in-One

English-UK Edition © Canon Europe 2010

Canon (UK) Ltd

Woodhatch, Reigate Surrey RH2 8BF Telephone No: 01737 220000 Facsimile No: 01737 220022 www.canon.co.uk

Canon Ireland Arena

Road, Sandyford Industrial Estate Dublin 18, Ireland Telephone No: 01 2052400 Facsimile No: 01 2958141 www.canon.ie

Canon Inc.

www.canon.com

Canon Europe

www.canon-europe.com

Media sizes Cassette and optional cassette: A4, A5, B5, Legal, Letter, Executive

Multi-purpose tray: A4, A5, B5, Legal, Letter, Executive, Envelope (COM10, Monarch,

DL, ISO-C5, ISO-B5), Custom sizes: Width 76 to 216 mm; Length 127 to 356 mm

DADF: One-sided scanning: A4, A5, Legal, Letter, Custom sizes (W x L):

Max 215.9 mm x 355.6 mm Min. 128 mm x 139.7 mm Two-sided scanning: A4, A5, Legal, Letter Media weights Cassette and optional cassette: 60 to 120 g/m² Multi-purpose tray: 60 to 190 g/m² DADF: One-sided scanning: 50 to 105 g/m², Two-sided scanning: 64 to 105 g/m²

INTERFACE & SOFTWARE

Interface type USB 2.0 Hi-Speed,10BASE-T/100BASE-TX Operating System compatibility Windows 2000/ Server 2003/ Server 2008/ XP/ Vista/ 7 Mac OS X Version 10.4.9-10.6.x ² ³ Software and printer management Presto! Page Manager, MF Toolbox, NetSpot Device Installer,

Remote User Interface (RUI), Department ID Management

GENERAL FEATURES

Duty cycle Max. 15,000 pages per month Warm-up Time Approx. 16 seconds or less from power on Memory 128 MB (shared) Control panel 20 characters x 2 lines backlit LCD Dimensions with trays (W x D x H) 390 mm x 472 mm x 431 mm Installation space (W x D x H) 672 mm x 1279 mm x 931 mm (with the optional paper cassette

and optional handset attached) Weight Approx 19.4 Kg Operating environment Temperature: 10 to 30ºC (50 to 86ºF) Humidity: 20 to 80% RH (no condensation) Power Source 220-240 V (±10%), 50/60 Hz (±2 Hz) Power Consumption Maximum: Approx.1200 W Standby: Approx.20 W Sleep mode: Approx. 3 W Typical Electricity Consumption (TEC): 1.321 kWh/week Noise Levels Sound Pressure

Active: 55 dB(A) or less Standby: 43 dB(A) or less

CONSUMABLES

Cartridges Standard: Cartridge 719 (2,100 pages 5) High yield: Cartridge 719 H (6,400 pages 5)

ACCESSORIES/ OPTIONS

Items PAPER FEEDER PF-44 (500-sheet cassette) TEL 6 KIT LONG CORD (Telephone handset)

All specifications subject to change without notice

Based on ITU-T Standard Chart No. 1

Web distribution only

Network scanning not supported

Declared noise emission in accordance with ISO 9296

Based on ISO/IEC 19752

Machine type Mono Laser All-in-One Available functions Print, Copy, Scan and Fax

PRINTER

Print speed Up to 30 ppm (A4) Printing method Monochrome laser beam printing Print quality Up to 1200 x 600 dpi with Automatic Image Refinement Print resolution 600 x 600 dpi Double sided printing Automatic Printer languages UFRII-LT, PCL5e, PCL6 Fonts 45 scalable, 10 bitmap (PCL) Print margins 5 mm-top, bottom, left and right Toner saver mode Yes

COPIER

Copy speed Up to 30 cpm (A4) First Copy Output Time (FCOT) Approx. 8 seconds or less Copy resolution Up to 600 x 600 dpi Copy modes Text, Text/Photo, Text/Photo+, Photo Double sided copying 2-sided to 2-sided (Automatic) Multiple copy Up to 99 copies Reduction / Enlargement 50-200% in 1% increments Toner saver mode Yes Other features Collate, 2 on 1, ID Card Copy

SEND FUNCTIONS

Scan to file server SMB Scan to E-mail and i-Fax SMTP, POP3 Scan to USB memory key Yes File formats TIFF (B&W), JPEG, PDF, PDF (Compact)

SCANNER

Type Colour Scan resolution Optical: Up to 600 x 600 dpi Enhanced: Up to 9600 x 9600 dpi Colour scanning depth 24 bit/24 bit (input/output) Greyscales 256 levels Compatibility TWAIN, WIA Max. scan width 216 mm

FAX

Modem speed Super G3 33.6kbps (Up to 3 seconds/page¹) Receive mode Fax only, Fax/Tel Auto Switch, Answer Mode, Manual Fax resolution Standard: 200 x 100 dpi Fine: 200 x 200 dpi Photo: 200 x 200 dpi Super fine: 200 x 400 dpi Ultra fine: 400 x 400 dpi FAX memory Up to 512 pages¹ Speed dials Max. 199 (including 19 one-touch dials) Group dials/destinations Max. 198 dials/ Max.198 destinations Sequential broadcast Max. 200 locations Memory backup 15 mins Double sided faxing Yes (Transmit and Receive) Other features Fax Forwarding, Dual Access, Remote Reception, PC Fax (TX only)

MEDIA HANDLING

Scanner type Flatbed and Duplex Automatic Document Feeder (DADF) Paper input (Standard) 250-sheet cassette 50-sheet multi-purpose tray 50-sheet DADF

Paper input (Option) 500-sheet cassette Paper output 150-sheet Media types Plain paper, Recycled paper, Heavy paper, Transparency, Label,

Envelope

Page 3

Sales Start Date: March 2010

MERCURY CODES

PRODUCT Name Mercury Code EAN Code

MF5880dn 3920B018AA 8714574546643

OP TI ON S Accessories Mercury Code EAN Code

PAPER FEEDER PF-44 3439B001AA 4960999630540 Telephone 6 Kit EU (CW) 0752A054AA 4960999453910 Telephone 6 Kit UK (CW) 0752A053AA 4960999453897 Telephone 6 Kit SA (CW) 0752A055AA 4960999453927

CONSUMABLES Toner Mercury Code EAN Code

Cartridge 719 (2,100 pages*) 3479B002AA 4960999650289 Cartridge 719 H (6,400 pages*) 3480B002AA 4960999650319

EASY SERVICE PLAN Details Mercury Code EAN Code

3yr on-site next day service M3 093ZZ330 8714574979793 Installation Service N2 093ZZ326 8714574979755

* Based on ISO/IEC 19752

SCANFAXCOPYPRINT

Mono Laser Multifunctional Printer

The whole range consists of:

Mono: MF6680dn, MF5880dn,

MF5840dn, MF4690PL, MF4660PL, MF4380dn, MF4370dn, MF4350d, MF4340d, MF4330d, MF4320d, MF4010

Box Dimensions (W x D x H)

565 x 505 x 545 mm

Box weight

Approx. 23 kg

Packet style Quantity

Pallet 12
