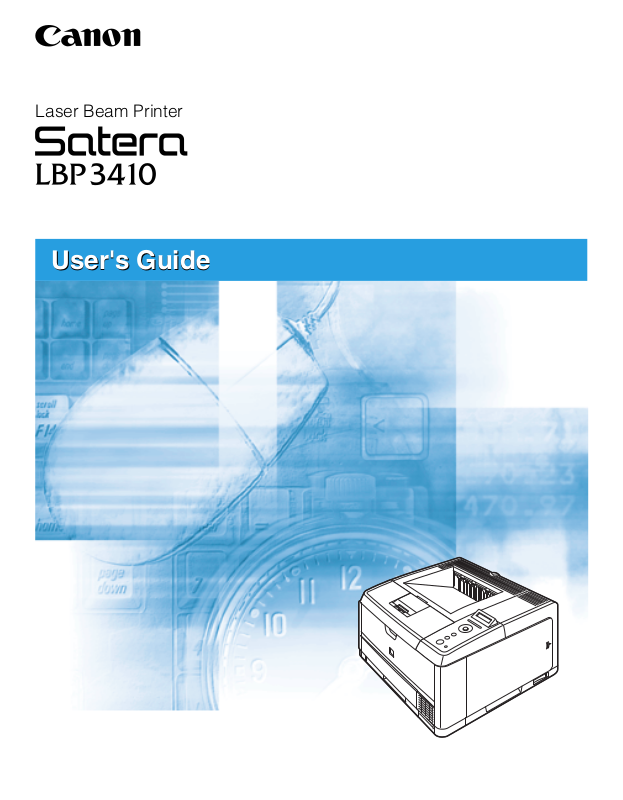

Canon 3410 User Manual

Laser Beam Printer

User's Guide

Turning the Printer ON/OFF . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2

Tu r ning the Printer ON . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2

Tu r ning the Printer OFF. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

Online and Ofﬂine . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

Placing the Printer Online . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

Placing the Printer Ofﬂine . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

Paper Requirements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

Usable Paper. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

Paper Size . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

Paper Type . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

Abbreviations of Paper Sizes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

Printable Area . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

Unusable Paper. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

Paper Capacity of Paper Source . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

Paper Capacity of the Output Trays. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

Loading Paper in the Paper Cassette . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16

When Loading Standard Size Paper. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16

When Loading Custom Size Paper . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21

Loading Paper in the Multi-purpose Tray . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29

Loading Paper (Other than Postcards and Envelopes) . . . . . . . . . . . . . . . . . 29

Loading Postcards and Envelopes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35

Paper Jams . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41

Paper Jam Area. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44

Procedure for Clearing Paper Jams . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 45

Replacing the Toner Cartridge . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 60

ンン

When <

Replacing the Toner Cartridge. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 61

Canceling a Job . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 70

Conﬁrming the Printer Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 71

Service Call Display . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 73

Message List . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 75

トトトトナナナナーーーーヨヨヨヨウウウウイイイイ／／／／カカカカククククニニニニンン

> Appears . . . . . . . . . . . . . . . . . . . . . 60

Turning the Printer ON/OFF

The printer can be turned ON/OFF using the power switch on the right side of the printer body. Be sure to observe the following instructions in order to prevent unexpected problems.

Turning the Printer ON

To use this printer, press " " of the power switch to turn the printer ON. After running a self-diagnostic test on the printer unit and optional accessories, the printer will be ready to print.

IMPORTANT

Do not turn the power ON immediately after turning it OFF. If you want to turn the printer

•

ON again after turning it OFF, wait at least 10 seconds after turning the printer OFF before turning it ON again.

•

Be sure to set the paper cassette in the printer before you turn the power ON for the ﬁrst time after you install the printer.

•

Although a sheet of blank paper is output when you turn the power ON for the ﬁrst time after you install the printer, this is not an error.

Press " " of the power switch on the printer.

The indicators and display on the control panel come on, and the printer initiates a self-diagnostic test on the printer unit and optional accessories.

If no abnormality is found during the self-diagnostic test, the

indicator and Paper Source indicator for the currently selected paper source

刷可

come on, <

00 インサツカノウ

>, <00 LIPS>, or <00 ESC/P> appears in the

オンライン

indicator,

display, and the printer is ready to print.

印刷可 Indicator

Paper Source Indicators

オンライン Indicator

The following information is displayed in the display.

印

Printable and not processing print data

00ｲﾝｻﾂｶﾉｳ

Turning the Printer OFF

Tu rn the printer OFF using the following procedure.

IMPORTANT

•

If the printer is used on a network, make sure that it is not printing data from another computer before turning the power OFF.

•

If you turn the printer OFF when the the printer memory will be erased. If there is any necessary print data remaining in the printer, wait until it is output, or press [

シュツ

> to output the data before turning the printer OFF.

•

Do not turn the power OFF when the printer is in any of the following status:

-While the printer is in the middle of printing

-While the printer is running a self-diagnostic test immediately after turning the power ON

-While a message informing you that the NVRAM is being initialized or being written is displayed

-While <

02 キドウチュウ

> is displayed



ジョブ

indicator is on, all the print data remaining in

リセット

] in the offline state and then select <

Size of paper in the currently

selected paper source

ハイ

ブブ

ジジジジョョョョブブ

Make sure that the

Off

Press " " of the power switch on the printer.

indicator is off.

Online and Ofﬂine

When the printer can receive data from the computer and print the data, the printer is in the state of "Online", and when the printer is disconnected with the computer and cannot receive data, the printer is in the state of "Ofﬂine".

To perform the settings for each menu using the control panel, switch the printer status as follows:

セットアップ

給紙選択

リセット

ジョブ

ユーティリティ

Menu O* O

Menu O O

Menu O X

O: The status that you can enter the menu

X: The status that you cannot enter the menu

When the printer is online

When the printer is ofﬂine

*You cannot specify the settings in the

ユーザメンテナンス

options when the printer is in the online status.

Placing the Printer Online

When printing from the computer, the printer has to be online. Before printing, make sure that the printer is online. If not, place the printer online using the following procedure. The printer comes online automatically after you turn it ON.

オンライン

ンン

Press [

The

IMPORTANT

When an error is occurring in the printer (when the number in the message blinks), the printer does not come online. Eliminate the cause of the error before you place the printer online.

オオオオンンンンラララライイイインン

オンライン

indicator comes on, and the printer is ready to print.

メッセージ

indicator is on, or the

NOTE

If the printer has entered the sleep mode 1, the when the printer is online, and only the If the printer has entered the sleep mode 2, only the printer receives data while it is in the sleep mode, the mode is released, the

イン

indicator comes on, and the printer is ready to print.

印刷可

オンライン

indicator and

indicator is off even

主電源

indicator is on. If the

Placing the Printer Ofﬂine

To conﬁgure the printer so that it does not receive data from the computer or specify the settings for all the options in the ofﬂine using the following procedure.

オンライン

Press [

The panel.

IMPORTANT

This printer comes online automatically if left in the ofﬂine state for ﬁve minutes or longer. However, when an error is occurring in the printer (when the indicator is on, or the number in the message blinks), or while you are performing any setting, such as selecting the menu functions or a paper source, or when specifying the paper size, the printer does not come online automatically.

オオオオンンンンラララライイイインン

オンライン

ンン

indicator goes off, allowing you to specify the settings on the control

セットアップ

menu, place the printer

主電源

indicator are on.

メッセージ

オンラ

Paper Requirements

Usable Paper

To ensure optimum performance, use only paper that falls within the speciﬁcations in the following lists. Using inappropriate paper may result in deterioration in print quality or paper jams.

IMPORTANT

When continuously printing the paper of 200 mm wide or less, the safety function that prevents damages caused by heat may slow the print speed down in stages. (The print speed may be as slow as approximately 2 ppm.)

Paper Size

The following shows the paper sizes that can be used with this printer. The symbol

indicates the paper that can be used for 1-sided printing and automatic 2-sided printing, the symbol O indicates the paper that can be used for only 1-sided printing, and the symbol X indicates the paper that cannot be used.

Paper Size

B5 O O O

A5 O O O

Legal

Letter

Executive O O O

Custom paper size O*

Postcard

100.0 mm x 148.0 mm

Reply postcard

148.0 mm x 200.0 mm

4 on 1 postcard

200.0 mm x 296.0 mm

Paper Source

Multi-purpose Tray Cassette 1

OXX

Cassette 2

(Optional)

Paper Source

Paper Size

Multi-purpose Tray Cassette 1

Cassette 2

(Optional)

Envelope

YOUGATA No. 4

105.0 mm x 235.0 mm

YOUGATA No. 2

114.0 mm x 162.0 mm

You can load paper of the following custom paper sizes.

- When loading paper in portrait orientation: Width 76.2 to 215.9 mm; Length 127.0 to 355.6 mm

- When loading paper in landscape orientation (only when LIPS LX Printer Driver is used): Width 127.0 to 215.9 mm; Length 127.0 to 215.9 mm

You can load paper of the following custom paper sizes.

- When loading paper in portrait orientation: Width 148.0 to 215.9 mm; Length 210.0 to 355.6 mm

- When loading paper in landscape orientation (only when LIPS LX Printer Driver is used): Width 210.0 to 215.9 mm; Length 210.0 to 215.9 mm

OXX

Paper Type

The following shows the paper types that can be used with this printer. The symbol

Paper Source

Paper Type

Plain paper (64 - 80 g/

)

Heavy paper (90 - 120 g/

)

Heavy paper (121 - 163

)

g/m

Heavy paper (199 g/m

Multi-purpose Tray Cassette 1

OXX

)O X X

Tr ansparency O X X

Label O X X

Postcard O X X

Envelope O X X

Cassette 2

(Optional)

■

Plain Paper

This printer can print plain paper that is 76.2 to 215.9 mm wide, 127.0 to 355.6 mm long, and that weighs between 64 and 80 g/m Legal, Letter, Executive, Postcard, Reply postcard, and 4 on 1 postcard.

Plain paper can be loaded in the paper cassettes and multi-purpose tray. Additionally, paper at sizes of A4, Letter, and Legal is available for automatic 2-sided printing.

, including the standard paper sizes: A4, B5, A5,

■ Heavy Paper

This printer can print heavy paper that is 76.2 to 215.9 mm wide, 127.0 to 355.6 mm long, and that weighs between 90 and 199 g/m A5, Legal, Letter, Executive, Postcard, Reply postcard, and 4 on 1 postcard. Heavy paper that weighs between 90 and 120 g/m multi-purpose tray. Heavy paper that weighs between 121 and 199 g/m the multi-purpose tray. Additionally, paper that weighs between 90 and 120 g/m Legal, and Letter sizes is available for automatic 2-sided printing.

, including the standard paper sizes: A4, B5,

can be loaded in the paper cassettes and

can be loaded in

of A4,

■ Transparency

This printer can print A4 and Letter size transparencies. Transparencies can be loaded in the multi-purpose tray.

IMPORTANT

•

Use "A4 size transparencies for LBP recommended by Canon". "A4 size transparencies for LBP recommended by Canon" weighs 8.7 g per sheet.

•

Thoroughly fan the transparencies before loading them as they may stick to each other.

■ Label

This printer can print A4 and Letter size labels. Labels can be loaded in the multi-purpose tray.

IMPORTANT

•

Use "A4 size labels recommended by Canon". "A4 size labels recommended by Canon" weighs 7.8 g per sheet.

•

Do not use the labels in the following conditions. Using inappropriate labels may result in paper jams that are difﬁcult to clear or may result in damage to the printer.

-Peeled labels or partly used labels

- Coated labels that are easily peeled off from the backing sheet

- Labels with uneven adhesive

■ Postcard/Reply postcard/4 on 1 postcard

This printer can print postcards, reply postcards, 4 on 1 postcards, and 4 on 1 postcards recommended by Canon. Load postcards, reply postcards, and 4 on 1 postcards in the multi-purpose tray with the printing side facing up.

IMPORTANT

•

Printing inappropriate size postcards (other than Postcard, Reply postcard, 4 on 1 postcard, and 4 on 1 postcard recommended by Canon) may result in deterioration in print quality or paper jams.

•

You cannot print reply postcards with folds.

•

If the postcards are curled, ﬂatten the curls by warping them in the opposite direction before loading them.

•

Postcards and reply postcards for ink jet printers cannot be printed.

•

Be sure to load them in portrait orientation with the printing side facing up. (: Feeding direction)

•

Printing speed drops when printing postcards, replay postcards, or 4 on 1 postcards.

■ Envelope

The envelopes that can be used with this printer are YOUGATA No. 4 and YOUGATA No. 2 with the following structures only. Load the envelopes with the address side (non-glued side) facing up in the multi-purpose tray.

YOUGATA No. 4

(105 mm x 235 mm)

*You cannot use envelopes that have a flap on the short edge.

YOUGATA No. 2

(114 mm x 162 mm)

IMPORTANT

•

Do not use the following types of envelopes. Using inappropriate envelopes may result in paper jams that are difﬁcult to clear or may result in damage to the printer.

-Envelopes with fasteners or snaps

-Envelopes with address windows

-Envelopes with adhesive on the surface

-Wrinkled or creased envelopes

-Poorly manufactured envelopes in which the glued parts are uneven

- Irregularly-shaped envelopes

•

Before loading the envelopes, ﬂatten the stack of envelopes to release any remaining air, and press the fold lines along the edges tight.

•

Do not print on the reverse side (glued side) of envelopes.

•

When loading the envelopes, load them so that the ﬂap is toward the left of the printer when viewed from the front. (: Feeding direction)

•

Printing speed drops when printing envelops.

NOTE

When printing envelopes, they may be creased.

Abbreviations of Paper Sizes

The following shows the abbreviations of paper sizes that are marked on the paper cassette:

Paper Size Paper Guides

Legal LGL

Letter LTR

Executive EXEC

Printable Area

The following shows the printable area of this printer. However, if you have selected the [Print with Upper Left of Sheet as Starting Point] check box or [Expand Print Region and Print] check box in the [Finishing Details] dialog box in the LIPS printer driver, you can extend the printable area to near the edges of the paper. For more details, see Help of the printer driver.

■ Plain Paper/Heavy Paper/Transparency/Label

You cannot print on any area within 5 mm of the edges of paper.

5 mm5 mm

5 mm

■ Postcard/Reply Postcard/4 on 1 Postcard

You cannot print on any area within 5 mm of the edges of a postcard.

100 mm

123-4567

東京都千代田区 ○○○

5 mm5 mm

5 mm

148 mm

5 mm

123-4567

東京都千代田区 ○○○

200 mm

5 mm

148 mm

5 mm

5 mm5 mm

IMPORTANT

You may not obtain the optimum print quality when printing postcard data with no margin. It is recommended that you specify the size of the data a little smaller than the printable area for the postcard size.

■ Envelope

You cannot print on any area within 10 mm (7.6 mm for the right edge of an envelope at a size of YOUGATA No. 4 or YOUGATA No. 2 when LIPS LX Printer Driver is used) of the edges of an envelope.

You may have to change the printable area before printing, depending on the application you use.

(Sample: Envelope YOUGATA No. 4)

105 mm

10 mm

235 mm

10 mm

10 mm*10 mm

* 7.6 mm for the right edge of an envelope at a size of YOUGATA No. 4 or YOUGATA No. 2 when LIPS LX Printer

Driver is used

IMPORTANT

You may not obtain the optimum print quality when printing envelope data with no margin. It is recommended that you specify the size of the data a little smaller than the printable area for the envelope size.

Unusable Paper

To avoid problems such as paper jams and other malfunctions, the following types of paper should never be used:

IMPORTANT

•

Paper that jams easily

-Paper that is too thick or too thin

- Irregularly-shaped paper

-Wet or moist paper

-Torn or damaged paper

- Rough, extremely smooth, or glossy paper

-Paper with binding holes or perforations

- Curled or creased paper

- Specially coated paper (coated paper for ink jet printers, etc.)

- Labels with backing sheet that is easily peeled off

-Paper that has already been printed by a copy machine or another laser printer (The reverse side of the paper is also unusable. Using the multi-purpose tray, however, you can perform 2-sided printing manually on the other side of previously printed paper. You cannot print on the printed side again.)

-Paper with jagged edges

-Wrinkled paper

-Paper with the corners folded

•

Paper that changes its quality at a high temperature

-Paper that contains ink that melts, burns, evaporates or emits harmful gases at a temperature lower than the heating temperature (approx. 270 °C) of the ﬁxing unit

- Heat-sensitive paper

-Treated color paper

- Specially coated paper (coated paper for ink jet printers, etc.)

-Paper with adhesive on the surface

•

Paper that causes printer malfunctions or damages the printer

- Carbon paper

-Paper with staples, clips, ribbons or tapes

•

Paper that is difﬁcult for the toner to ﬁx onto

-Paper with rough surfaces

- Specially coated paper (coated paper for ink jet printers, etc.)

-Paper containing thick ﬁbers

Paper Capacity of Paper Source

Paper Type

Plain paper (64 g/m

Heavy paper (90 g/m

Heavy paper (128 g/m

Heavy paper (199 g/m

Tr ansparency 50 sheets or less X X

Label Approx. 40 sheets X X

Envelope 10 sheets or less X X

Postcard Approx. 50 sheets X X

Multi-purpose Tray Cassette 1

) Approx. 100 sheets Approx. 250 sheets Approx. 500 sheets

) Approx. 80 sheets Approx. 200 sheets Approx. 400 sheets

) Approx. 50 sheets X X

) 30 sheets or less X X

Paper Source

Cassette 2

(Optional)

Paper Capacity of the Output Trays

Paper Type

Output Trays*

Output Tray Sub-output Tray

Plain paper (64 g/m

Heavy paper (90 g/m

) Approx. 250 sheets Approx. 50 sheets

) Approx. 100 sheets Approx. 50 sheets

Heavy paper (128 g/m2) Approx. 40 sheets Approx. 30 sheets

Heavy paper (199 g/m

) Approx. 30 sheets Approx. 30 sheets

Tr ansparency Approx. 10 sheets Approx. 10 sheets

Label Approx. 60 sheets Approx. 40 sheets

Envelope X Approx. 10 sheets

Postcard/Reply postcard/4 on 1 postcard

4 on 1 postcard recommended by Canon

* Actual paper capacity varies depending on the installation environment, paper type and paper size.

Approx. 40 sheets Approx. 30 sheets

X Approx. 40 sheets

Loading Paper in the Paper Cassette

Load paper in the paper cassette. The paper loading methods are different between standard size paper and custom size paper. Therefore, load paper properly using the following procedures.

• Standard Size Paper (See p. 16)

• Custom Size Paper (See p. 21)

IMPORTANT

For more details on the usable paper, see "Usable Paper," on p. 7.

When Loading Standard Size Paper

Load standard size paper in the paper cassette using the following procedure. Be sure to load standard size paper in portrait orientation when loading it in the paper cassette.

Cassette 1 Cassette 2

IMPORTANT

Do not load paper other than plain paper (64 - 80 g/m2) and heavy paper (90 - 120 g/m2). This may result in paper jams or damage to the printer.

Pull out the paper cassette.

Cassette 1 Cassette 2

CAUTION

Be sure to take the paper cassette out of the printer before loading paper. If paper is loaded while the paper cassette is partially pulled out, the paper cassette may drop or the printer may become damaged resulting in personal injury.

When changing the size of the paper to be loaded, adjust the length of the paper cassette and change the positions of the paper guides.

● While holding the lock release lever of the side paper guides, slide the guides to the size mark for the paper to be loaded.

The side paper guides move together. Align the position of (A) with the size mark for the paper to be loaded.

Cassette 1 Cassette 2

(A)

NOTE

When using B5 size paper (182 mm x 257 mm), set the paper guide to "JIS B5".

(A)

● While holding the lock release lever of the rear paper guide, slide the guide to the size mark for the paper to be loaded.

Align the position of (A) with the size mark for the paper to be loaded.

Cassette 1 Cassette 2

(A)

IMPORTANT

Do not use the "8.5 x 13" position.

Load the paper stack so that the rear edge is aligned with the paper guide.

Cassette 1 Cassette 2

(A)

CAUTION

When loading paper, take care not to cut your hands with the edges of the paper.

IMPORTANT

•

Be sure to check if the paper guide is at the position of the size of the loaded paper. If the paper guide is set at a wrong position, this may result in misfeeds.

•

If you use paper that has been poorly cut, multiple sheets of paper may be fed at once. In this case, fan the paper thoroughly, and then align the edges of the stack on a hard, ﬂat surface.

•

To print letterhead paper or paper printed with a logo, load the paper so that the printing side is facing down, as shown in the following ﬁgures. (: Feeding direction)

Cassette 1 Cassette 2

(A)

(B)

(A)

(B)

Hold down the paper as shown in the ﬁgure, make sure that the paper stack does not exceed the load limit marks (A), and then set it under the hooks (B) on the paper guides.

Make sure that there is sufﬁcient space between the hooks of the paper guides and the paper stack. If there is no sufﬁcient space, slightly reduce the amount of paper.

Cassette 1

Cassette 2

(B)

IMPORTANT

The following shows the paper capacity of the paper cassette. Be sure that the paper stack does not exceed the load limit marks. If the paper stack exceeds the load limit marks, this may result in misfeeds.

Paper Type

Plain paper (Ex. 64 g/m

Heavy paper (Ex. 90 g/m

Set the paper cassette in the printer.

) Approx. 250 sheets Approx. 500 sheets

) Approx. 200 sheets Approx. 400 sheets

Cassette 1 Cassette 2

Push the paper cassette into the printer ﬁrmly until the front side of the paper cassette is ﬂush with the front surface of the printer.

Cassette 1 Cassette 2

CAUTION

When setting the paper cassette in the printer, be careful not to catch your ﬁngers.

When Loading Custom Size Paper

Load custom size paper in the paper cassette using the following procedure.

IMPORTANT

•

You can load paper of the following custom paper sizes.

-When loading paper in portrait orientation: Width 148.0 to 215.9 mm; Length 210.0 to

355.6 mm

-When loading paper in landscape orientation (only when LIPS LX Printer Driver is used): Width 210.0 to 215.9 mm; Length 210.0 to 215.9 mm

•

For more details on the usable paper, see "Usable Paper," on p. 7.

•

Do not load paper other than plain paper (64 - 80 g/m2) and heavy paper (90 - 120 g/m2). This may result in paper jams or damage to the printer.

•

When custom size paper is loaded, specify the setting for <

> as follows.

ズ

-When the paper is loaded in landscape orientation (only when LIPS LX Printer Driver is used): <

ユーザセッテイサイズ

カセット N（N=1、2）用紙サイ

-When the paper is loaded in portrait orientation: < When you change the orientation of the loaded custom size paper frequently, it is

•

convenient if you set <

（N=1、2）用紙サイズ

セット N（N=1、2）用紙サイズ

you specify <

フリー

カセット N（N=1、2）用紙サイズ

> is set to <

> each time you change the paper orientation. However, if

>, make sure that the size of the loaded paper matches the paper

>, you do not need to change the setting for <

フリー

ユーザセッテイサイズ R

> to <

フリー

>. When <

カセット N

size speciﬁed in the printer driver before printing. If they do not match, the printer may stop printing, displaying the message <

41 ヨウシサイズカクニン

>, or a paper jam may occur. Be sure to check if the paper size speciﬁed in the printer driver matches the size of the paper loaded in the paper cassette before using the printer. However, if < is set to <

>, the printer prints without checking the paper size even when the paper

ツカウ

特殊モードJ

size speciﬁed in the printer driver and the size of the paper loaded in the paper cassette do not match.

•

When custom size paper is printed from LIPS LX Printer Driver, you can load the paper either in portrait or landscape orientation. However, when you are printing custom size paper of its long edges 215.9 mm or less with <

>, load the paper in landscape orientation. When you are not printing from LIPS LX

フリー

カセット N（N=1、2）用紙サイズ

> set to <

Printer Driver, load the paper in portrait orientation.

NOTE

Load custom size paper in Cassette 2 (Only when the optional paper feeder is installed) in the same manner as you load custom size paper in Cassette 1.

Pull out the paper cassette.

カ

Cassette 1 Cassette 2

CAUTION

Load the paper so that the edge of the paper is aligned with

the front side of the paper cassette.

Cassette 1 Cassette 2

CAUTION

When loading paper, take care not to cut your hands with the edges of the paper.

IMPORTANT

•

If you use paper that has been poorly cut, multiple sheets of paper may be fed at once. In this case, fan the paper thoroughly, and then align the edges of the stack on a hard, ﬂat surface.

•

紙サイズ

not printing from LIPS LX Printer Driver, load the paper in portrait orientation.

> set to <

カセット N（N=1、2）用

>, load the paper in landscape orientation. When you are

フリー

+ 54 hidden pages

Canon 3410 User Manual

Contents

Turning the Printer ON/OFF

Turning the Printer ON

Turning the Printer OFF

Placing the Printer Online

Paper Requirements

Usable Paper

Printable Area

Unusable Paper

Paper Capacity of Paper Source

Paper Capacity of the Output Trays

Loading Paper in the Paper Cassette

When Loading Standard Size Paper

When Loading Custom Size Paper
