Cannon 10588G, 10585G, 4866200152-01, 10583G, 10582G User Manual

HENLEY

Use and Installation Instructions

The cooker must be installed in accordance with the regulations in force and only used in a well ventilated space.

Read these instructions prior to using the cooker and retain them for future reference.

Part no.4866200152-01

CONTENTS

PAG E

Introduction 3

For Your Safety 4

Timer Operation 6

Hotplate 12

Grill 14

Ovens 15

Oven Cooking Chart 16

The “Slow Cook” Setting 18

Care and Cleaning 19

Something Wrong with your cooker? 22

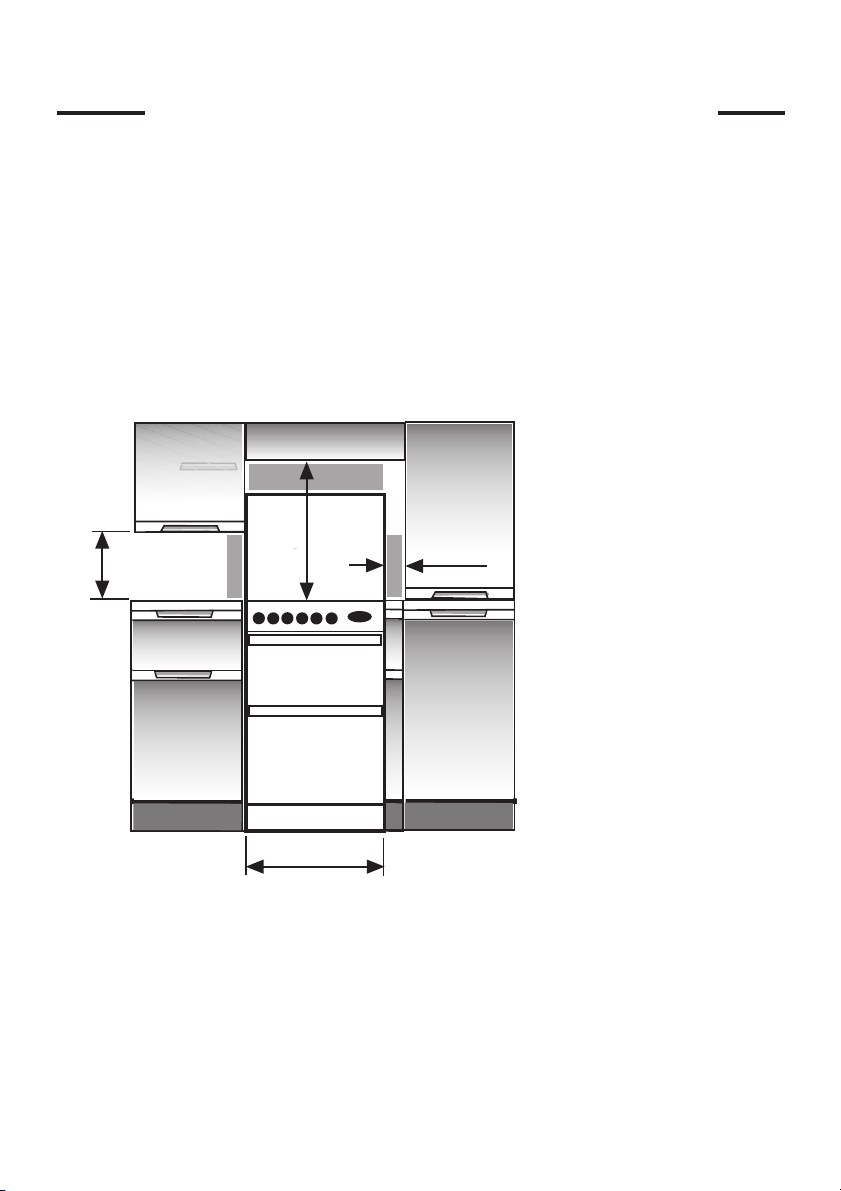

Installation Instructions 24

Service Information Back Cover

INTRODUCTION

To help you make the best use of your cooker, PLEASE READ THIS BOOKLET CAREFULLY. Your new cooker is guaranteed and will give lasting service. The guarantee is only applicable if the cooker has been installed in accordance with the Installation Instructions. The cooker is designed specifically for domestic use and responsibility will not be accepted for use in any other installation. When first using the cooker ensure that the room is well ventilated (e.g. open a window or use an extractor fan) and that persons who may be sensitive to the odour avoid any fumes.It is suggested that any pets be removed from the room until the smell has ceased. This odour is due to any temporary finish and also any moisture absorbed by the insulation.

Our policy is one of continual improvement in design and development, therefore strict accuracy of illustrations and descriptions cannot be guaranteed.

This appliance conforms to the following EEC Directives:

Gas Appliances 90/396/EEC

Low Voltage Equipment 73/23/EEC 93/68/EEC

Electromagnetic Compatibility 89/336/EEC 92/31/EEC 93/68/EEC

FOR YOUR SAFETY

Please read the precautions below before using your cooker.

ALWAYS .. .

ALWAYS make sure you understand the controls before using the cooker.

ALWAYS check that all controls on the cooker are turned off after use.

ALWAYS stand back when opening an oven door to allow heat to disperse.

ALWAYS use dry,good quality oven gloves when removing items from the ovens.

ALWAYS take care when removing items from the top oven/grill when the main

oven is on, as the contents may be hot.

ALWAYS keep the oven and grill doors closed when the cooker is not in use.

ALWAYS place pans centrally over the hotplate burners and position them so

that the handles cannot accidentally be caught or knocked or become heated by other burners.

ALWAYS keep the cooker clean, as a build up of grease or fat from cooking can

cause a fire.

ALWAYS allow the cooker to cool before cleaning.

ALWAYS follow the basic principles of food handling and hygiene to prevent the

possibility of bacterial growth.

ALWAYS keep ventilation slots clear of obstructions.

ALWAYS turn off the electricity supply before cleaning or replacing the oven

lamp.

ALWAYS refer servicing to CORGI registered appliance service engineers.

FOR YOUR SAFETY

NEVER . . .

NEVER leave children unsupervised where the cooker is installed as all surfaces

will get hot during and after use.

NEVER allow anyone to sit or stand on any part of the cooker.

NEVER store items that children may attempt to reach above the cooker.

NEVER heat up unopened food containers as pressure can build up causing

the container to burst.

NEVER

NEVER fill a deep fat frying pan more than 1/3 full of oil, and never use a lid.

NEVER place flammable or plastic items on or near the hotplate.

NEVER use proprietary spillage collectors on the hotplate.

NEVER use the cooker as a room heater.

NEVER dry clothes or place other times over or near to the hotplate or oven/

NEVER wear garments with long flowing sleeves whilst cooking.

NOTE: The use of a gas cooking appliance results in the production of heat and moisture in the room in which it is installed.Always ensure that the kitchen is well ventilated; keep natural ventilation holes open or install a mechanical ventilation device (mechanical extractor hood).

In particular when using more than one hotplate burner,open a window if a mechanical ventilation device is not operating.

store chemicals, food stuffs, pressurised containers in or on the cooker, or in cabinets immediately above or next to the cooker.

DO NOT LEAVE UNATTENDED WHILE COOKING.

grill doors.

TIMER OPERATION

The timer offers you the following features:

1. Time of Day

2. Automatic Cooking

3. Minute Minder

AUTOMATIC COOKING

The main oven can be controlled automatically.

GUIDANCE ON AUTOMATIC COOKING

1. Select foods which will take the same time to cook.

2. Set the oven timer so that the food has just finished or is just about to finish cooking on your return to the oven.This will ensure the food has not cooled down and does not require reheating before serving.

3. Food should be as cold as possible when it goes into the oven,ideally straight from the refrigerator. Frozen meat and poultry should be thawed thoroughly before it is put in the oven.

4. Warm food should never be placed in the oven if there is to be a delay period.Stews prepared by frying the meat and vegetables should be cooked as soon as possible.

5. Dishes containing left-over cooked poultry or meat, for example Shepherds Pie,should not be cooked automatically if there is to be a delay period.

6. Stews and joints should be cooked by the long slow method,so that the delay period is kept to a minimum.

7. On warm days, to prevent harmful bacterial growth in certain foods (ie poultry, joints,etc) the delayed start should be kept to a minimum.

8. Wine or beer may ferment and cream may curdle during the delay period,so it is best to add these ingredients just before serving.

9. Foods which discolour should be protected by coating in fat or tossing in water to which lemon juice has been added,prior to placing food in the oven.

10. Dishes containing liquid should not be filled too full to prevent boiling over.

11. Food should be well sealed (but not airtight) in a container to prevent the loss of liquid during cooking. Aluminium foil gives a good seal.

12. Ensure food is cooked thoroughly before serving.

TIMER OPERATION

CLOCKFACE

The timer incorporates a 24 hour clock.

Ensure the correct time of day is always set,before using you cooker. PLEASE NOTE THAT THE DISPLAY WILL DIM BETWEEN 22.00 HOURS AND 06.00 HOURS However, should you operate the timer during these hours the display will return to normal brightness for a few seconds and then dim again.

SYMBOLS

will light up when you select a Minute Minder Period and will remain lit for the period set. At the end of the Minute Minder Period, the timer will emit an audible tone for 2 minutes,the symbol will start to flash and will continue to flash until the Minute Minder function is cancelled.

This “Cookpot” symbol will light up either:–

– When you press the Cook Period Button and set a length of time for an Auto

Cooking Programme.(It will go out again a few seconds after you release the

timer buttons). – During the actual Cook Period.

“AUTO” will light up:– – When the timer is first turned on it will flash. (It will go out when a time of day

is set. – When an Auto Cooking Programme has been set. The “Auto”symbol will flash at the end of an Auto Cooking programme to indicate that the programme has finished.

(When the “Auto” symbol is flashing, to return the oven to Manual operation, turn the oven controls off,ensure that the correct time of day is set,and press the “Manual” button twice – The “Auto”symbol will go out).

Note: If at any time the display shows a ‘KEY’ symbol,it is likely that the timer has been set incorrectly. OVEN COOKING IS NOTPOSSIBLE. The ‘KEY’ symbol can be deleted and the cooker returned to manual operation by:

- Simultaneously pressing the Minute Minder and the Cook Period buttons for a period of approximately 8 seconds.

- Releasing the buttons and pressing the ‘+’button.

TO PREVENT GLARE.

TIMER FUNCTION BUTTONS

Minute Minder Button

Here you can set a time period of up to 23 hours 59 minutes,that will count down. When it reaches zero,the timer will emit an audible tone.

For Example: If you set 20 minutes, the audible tone will occur 20 minutes later.

AUTO COOKING PROGRAMME

Cook Period Button

End Time Button

Manual Button

“+” and “–” Buttons

Cook Period is the actual length of time for which,the timer will switch the oven(s) on as part of an “Auto Cooking” programme. (e.g.If you set 2 hours,the food will be cooked for 2 hours).

The time of day at which you want an “Auto Cooking”programme to end For Example: If you set a “Cook Period”for 2 hours, and “End Time” of 11:00.The timer

will switch the oven(s) on at 9:00 and turn the oven(s) off at 11:00.You will hear a audible tone at 11:00, to indicate that the Auto Cooking Programme has finished.

Notes:

- When setting an Auto Cooking programme you will need to set the oven controls(s) to the required temperature(s) when you set the timer.

- If an Auto Cooking programme has been set the oven(s) will only operate during the pre-programmed time.

Needs to be pressed to cancel an Auto Cooking programme and return the ovens(s) to Manual operation.

Used to adjust the various timer function settings.

TIMER OPERATION

SETTING THE TIME OF DAY

Step 1 Make sure all oven controls are turned Off.

Step 2 Check the electricity supply to the cooker is turned on.

Step 3 When switched on the display will show 0.00 and Auto symbol will be

flashing intermittently.

Step 4 Press & hold in both the “Minute Minder”& “Cook Period”button together.

Step 5 With the “Minute Minder”& “Cook Period”buttons still held in,press either

the “+” or “–” buttons to set the correct time of day.

Step 6 Release all the buttons simultaneously.

THE TIME OF DAY IS NOW SET.

To change the time of day repeat Steps 4,5 & 6 above.

Note: You cannot adjust the time of day if the timer has been set for an Auto

Cooking Programme.

SETTING THE MINUTE MINDER

Step 1 Ensure the time of day is set correctly.

Step 2 Press and hold the Minute Minder Button, a symbol will light up.

Step 3 With the “Minute Minder”button held in,set the required Minute Minder

time using the “+” and “–” buttons.

Release all buttons and the timer display will revert back to the time of day.Bell symbol will remain lit to signify that a Minute Minder period has been set.

At the end of the set time a bleeping sound will be heard,and the symbol will flash for approximately 2 minutes. After approximately 2 minutes the bleeping sound will stop and the symbol will go out automatically.

Step 4 To cancel the bleeping sound within the two minutes press the Minute

Minder button.

Note 1 When the Minute Minder has been set, the time remaining can be checked at any

time by simply pressing the Minute Minder button.

Note 2 If necessary the Minute Minder can be cancelled before the tone sounds by pressing

and holding the Minute Minder button and then at the same time pressing the “–” button until 0.00 appears in the display window.

TIMER OPERATION

AUTO COOKING PROGRAMMES

There are two Auto Cooking programmes that can be selected using your timer:– (a) To set the timer to switch the oven(s) On and Off Automatically

(b) To set timer to switch on immediately and OFF automatically after a set cook period.

a) TO SET THE TIMER TO SWITCH THE OVEN(S) ON AND OFF AUTOMATICALLY

This allows you to cook at a specified time for a chosen period before the oven switches off Automatically.

Step 1 Check that the correct time of day is set, if not follow instructions for setting the time of day. Step 2 Place food onto the correct shelf position in the oven and close the oven door(s).

Step 3 Press and hold in the Cook Period button.

The display will read 0.00 with the cookpot ( ) symbol lit.

Step 4 With the Cook Period button still held in,set the required Cook Period

Release the buttons and the timer display will revert to the time of day with the Auto symbol and Cookpot ( ) symbol lit.

Step 5 Press and hold in the “End Time”button.

Step 6 With the End Time button still held in,use the “+” and “–”buttons to set

Release all the buttons and the timer will revert back to the time of day.

The “Auto”symbol will remain lit to signify that an Auto Cooking Programme has been set.The ( ) symbol will go out.

Step 7 Turn the oven control(s) to the required temperature, and if

Note: If your appliance has two ovens: When the timer has been set for one oven it is possible to use the other oven only during the same Automatic programme.

At the end of the Automatic Cook Period the Auto Symbol will flash and an intermittent bleeping sound will be heard. The bleeping sound will continue for approximately 2 minutes unless cancelled. The “Auto”symbol will continue to flash until the timer is returned to Manual operation (see below).

Step 8 Press the Manual button to cancel the bleeping sound.

Step 9 Turn the oven control(s) to the OFF position.

Step 10 Press the manual button again to return the oven(s) to Manual Operation.

using the “+” and “–” buttons.

The display will read the earliest possible end time for the Cook Period that you have set above. The Auto symbol and Cookpot ( ) symbol lit.

the “End Time” (i.e.The time you require the oven to switch off ).

necessary select the appropriate oven function.

(If 2 minutes has not elapsed).

(The Auto symbol will go out)

TIMER OPERATION

Note 1 When cooking automatically the Cook Period can be checked at any time by simply

pressing the Cook Period button.

Note 2 When cooking automatically the End Time can be checked at any time by simply

pressing the End Time button.

b) TO SET TIMER TO SWITCH ON IMMEDIATELY AND OFF AUTOMATICALLY AFTER A SET COOK

PERIOD

Step 1 Check that the correct time of day is set, if not follow instructions for setting the time of day. Step 2 Place food onto the correct shelf position in the oven and close the oven door(s). Step 3 Turn the oven control(s) to the required temperature, and if necessary select the appropriate oven

NOTE:The Cookpot symbol disappears

function.

Step 4 Press & hold in the “Cook Period” button, the display will read 0.00 and the

cookpot ( ) symbol will light up.

With the Cook Period button still held set the required Cook Period using the “+” and “–” buttons.Example:1hr 30 minutes (as shown).

Note: Cook Period is the length of time the food requires to cook.

Step 5 Release all buttons.

The timer display will revert to the time of day with the Auto symbol lit & Cookpot symbol remaining lit.

At the end of the Cook Period the “Auto”symbol will flash and an intermittent

bleeping sound will be heard. The bleeping sound will continue for approximately 2 minutes unless cancelled. The “Auto”symbol will continue to flash until the timer is returned to Manual operation (see below).

Step 6 Press the manual button to cancel the bleeping.

(If 2 minutes has not elapsed)

Step 7 Turn the oven control(s) to the OFFposition.

Step 8 Press the “Manual” button again to return the cooker to Manual operation.

(The Auto symbol will go out).
