Candy LB CTT 68 T CI User Manual
EN

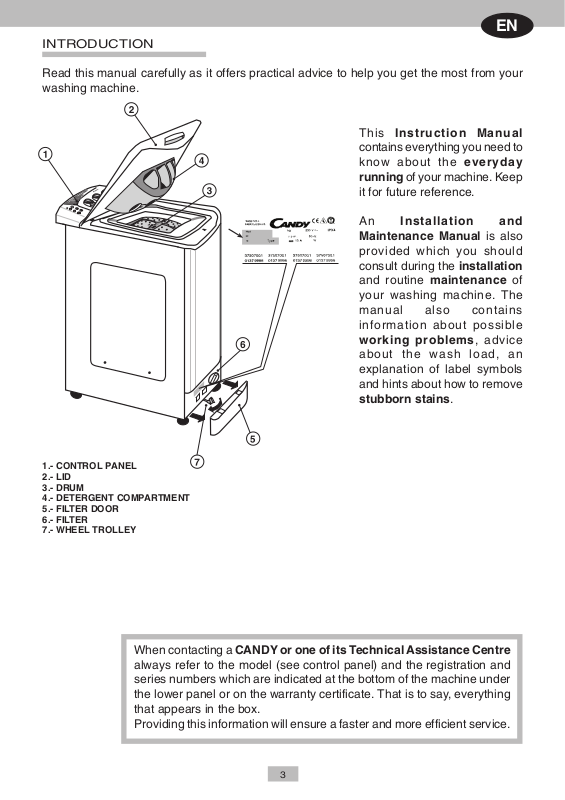

INTRODUCTION
Read this manual carefully as it offers practical advice to help you get the most from your
washing machine.
This Instruction Manual
contains everything you need to
know about the everyday
running of your machine. Keep
it for future reference.
An Installation and
Maintenance Manual is also
provided which you should
consult during the installation
and routine maintenance of
your washing machine. The
manual also contains
information about possible
working problems, advice
about the wash load, an
explanation of label symbols
and hints about how to remove
stubborn stains.
1.- CONTROL PANEL
2.- LID
3.- DRUM
4.- DETERGENT COMPARTMENT
5.- FILTER DOOR
6.- FILTER
7.- WHEEL TROLLEY
When contacting a CANDY or one of its Technical Assistance Centre
always refer to the model (see control panel) and the registration and
series numbers which are indicated at the bottom of the machine under
the lower panel or on the warranty certificate. That is to say, everything
that appears in the box.
Providing this information will ensure a faster and more efficient service.
3
INDEX
page
GUARANTEE ................................................................................
TECHNICAL DATA ..........................................................................
OPENING THE LID – LOADING ...................................................
DETERGENT DISPENSER ...........................................................
VARIABLE CAPACITY (Mod. CTT 88 T) .......................................
PROGRAMME SELECTION ..........................................................
CONTROL DESCRIPTION
Mod. CTT 68 T ............................................................................
Mod. CTT 88 T ............................................................................
TABLE OF PROGRAMMES
Mod. CTT 68 T ............................................................................
Mod. CTT 88 T ............................................................................
5
6
7
8
9
9
10
13
16
18
Place the adhesive label, in the
corresponding language, in the
support that slots into the back of the
panel display.
4
GUARANTEE
1.
The appliance comes with a guarantee certificate.
B
A
2.
Complete part B and keep it in a safe place. It should
be presented to the Technical Assistance Centre in
the event of a repair being necessary along with the
legal receipt issued by the dealer on purchase.
3.
Do not forget to send part A of the Guarantee
Certificate to be validated within 15 days of purchase.
5
TECHNICAL DATA
CTT 68 T
CTT 88 T
Load capacity .......................................................................
kg.
Voltage ...................................................................................
Wash motor power rating ......................................................
Spin motor power rating ........................................................
Electropump power rating .....................................................
Heating element power rating ...............................................
Max. power input ...................................................................
Fuse .......................................................................................
Water pressure..................................................................
Spin speed .............................................................
r.p.m./min
Water consumption (60º C programme)................................
Energy consumption (60º C programme)/5 kg ..................
W.
W.
W.
W.
W.
A.
MPa
lit.
kWh
Energy efficiency rating ..............................................................
V.
5
230
360
560
30
1.950
2.300
10
0,05 min.
0,8 max.
600
65
1,21
C
5
230
175
300
30
1.950
2.200
10
0,05 min.
0,8 max.
800
54
0,85
A
6
OPENING THE DRUM
FRONT OF THE
WASHING
MACHINE
1.
Lift the lid (A) and open completely. Next open the drum
door following these instructions:
A
2.
Press catch (B) and kept it pressed down.
Press the first shutter (C) to unlock the two shutters (C)
and (D).
MACHINE LID
WASHING
C
3.
Open the second shutter (D). Open the first shutter (C).
B
D
Place the washing in the drum.
4.
FRONT OF THE
WASHING
MACHINE
Close the first shutter (C).
Close the second shutter (D) so that the catch on the
first shutter fits correctly into the slot. Release.
5.
Ensure that both shutters are perfectly aligned and properly
C
closed.
D
FRONT OF THE
WASHING
MACHINE
IMPORTANT: IT IS IMPORTANT TO MAKE SURE THAT
THE DRUM IS CAREFULLY CLOSED BEFORE
OPERATING THE MACHINE, OTHERWISE THE
MACHINE OR LAUNDRY COULD GET DAMAGED.
C
D
FRONT OF THE
WASHING
MACHINE
C
D
2 min.
IMPORTANT: A SPECIAL
SAFETY DEVICE PREVENTS
THE LID FROM BEING
OPENED IMMEDIATELY
AFTER THE WASH HAS
FINISHED. ONCE THE SPIN
CYCLE HAS FINISHED, WAIT
FOR 2 MINUTES BEFORE
TRYING TO OPEN THE LID.
7
DETERGENT DISPENSER
The detergent dispenser is divided into 4 compartments:
• Compartment I, is for prewash powder detergent. The recommended quantity is
60 gm of detergent (for 5 kg of laundry).
• Compartment II, is for wash powder detergent. The recommended quantity is 120
gm of detergent (for 5 kg of laundry).
• The compartment is for bleach. The recommended quantity is 7 cl.
• The compartment is for fabric conditioners, scenting agents and special
additives. The recommended quantity is 5 cl.
The detergent compartment has two guidance lines:
• RECOMMENDED (lower line). This indicates the recommended level for the prewash
and wash compartments.
• MAX. This indicates the maximum level which should never be exceeded.
MAXIMUM
(wash)
MAXIMUM
(prewash)
RECOMMENDED
MAXIMUM
(bleach and scenting agent)
8
