Candy LB CTE 84 TV User Manual

EN

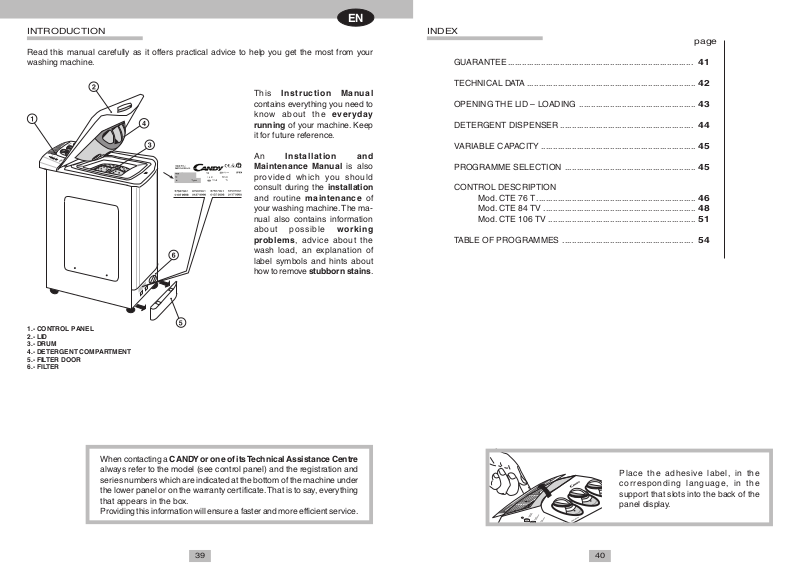

INTRODUCTION

Read this manual carefully as it offers practical advice to help you get the most from your
washing machine.

INDEX

GUARANTEE..............................................................................

page

41

1.- CONTROL PANEL

2.- LID

3.- DRUM

4.- DETERGENT COMPARTMENT

5.- FILTER DOOR

6.- FILTER

This Instruction Manual
contains everything you need to
know about the everyday
running of your machine. Keep
it for future reference.

An Installation and
Maintenance Manual is also
provided which you should
consult during the installation
and routine maintenance of
your washing machine. The ma­nual also contains information
about possible working
problems, advice about the
wash load, an explanation of
label symbols and hints about
how to remove stubborn stains.

TECHNICAL DATA .......................................................................

OPENING THE LID – LOADING .................................................

DETERGENT DISPENSER ........................................................

VARIABLE CAPACITY .................................................................

PROGRAMME SELECTION .......................................................

CONTROL DESCRIPTION

Mod. CTE 76 T ...................................................................

Mod. CTE 84 TV ................................................................

Mod. CTE 106 TV ..............................................................

TABLE OF PROGRAMMES .......................................................

42

43

44

45

45

46
48
51

54

When contacting a CANDY or one of its Technical Assistance Centre
always refer to the model (see control panel) and the registration and
series numbers which are indicated at the bottom of the machine under
the lower panel or on the warranty certificate. That is to say, everything
that appears in the box.
Providing this information will ensure a faster and more efficient service.

39 40

Place the adhesive label, in the
corresponding language, in the
support that slots into the back of the
panel display.

GUARANTEE

TECHNICAL DATA

CTE 76 T

CTE 84 TV

CTE 106 TV

1.

The appliance comes with a guarantee certificate.

2.

Complete part B and keep it in a safe place. It should
be presented to the Technical Assistance Centre in
the event of a repair being necessary along with the
legal receipt issued by the dealer on purchase.

Load capacity ........................................................... kg.

Voltage ....................................................................... V.

Wash motor power rating .......................................... W.

Spin motor power rating ............................................ W.

Electropump power rating ......................................... W.

Heating element power rating ................................... W.

Max. power input ....................................................... W.

Fuse ........................................................................... A.

Water pressure....................................................... MPa

Spin speed ................................................... r.p.m./min

Water consumption (60º C programme).................... lit.

Energy consumption (60º C programme) / 4,5 kg .. kWh

Energy efficiency rating .................................................

4,5

230

175

300

30

1.950

2.200

10

0,05 min.

0,8 max.

750

54

1,03

B

4,5

230

175

300

30

1.950

2.200

10

0,05 min.

0,8 max.

800

54

0,85

A

4,5

230

175

340

30

1.950

2.200

10

0,05 min.

0,8 max.

1000

54

0,85

A

3.

Do not forget to send part A of the Guarantee
Certificate to be validated within 15 days of purchase.

41 42

OPENING THE DRUM

DETERGENT DISPENSER

MACHINE LID

WASHING

1.

The detergent dispenser is divided into 4 compartments:

Lift the lid (A) and open completely. Next open the drum

FRONT OF THE

WASHING

MACHINE

A

door following these instructions:

2.

Press catch (B) and kept it pressed down.
Press the first shutter (C) to unlock the two shutters (C)
and (D).

• Compartment I, is for prewash powder detergent. The recommended quantity is 60
gm of detergent (for 4,5 kg of laundry).

• Compartment II, is for wash powder detergent. The recommended quantity is 120
gm of detergent (for 4,5 kg of laundry).

• The compartment is for bleach. The recommended quantity is 7 cl.

• The compartment is for fabric conditioners, scenting agents and special

C

3.

additives. The recommended quantity is 5 cl.

Open the second shutter (D). Open the first shutter (C).

B

D

Place the washing in the drum.

The detergent compartment has two guidance lines:

4.

FRONT OF THE

WASHING

MACHINE

Close the first shutter (C).
Close the second shutter (D) so that the catch on the first

• RECOMMENDED (lower line). This indicates the recommended level for the prewash
and wash compartments.

shutter fits correctly into the slot. Release.

• MAX. This indicates the maximum level which should never be exceeded.

5.

C

Ensure that both shutters are perfectly aligned and properly
closed.

D

FRONT OF THE

WASHING

MACHINE

IMPORTANT: IT IS IMPORTANT TO MAKE SURE THAT
THE DRUM IS CAREFULLY CLOSED BEFORE
OPERATING THE MACHINE, OTHERWISE THE MACHINE
OR LAUNDRY COULD GET DAMAGED.

C

D

2 min.

IMPORTANT: A SPECIAL
SAFETY DEVICE PREVENTS

FRONT OF THE

WASHING

MACHINE

THE LID FROM BEING
OPENED IMMEDIATELY
AFTER THE WASH HAS
FINISHED. ONCE THE SPIN
CYCLE HAS FINISHED, WAIT
FOR 2 MINUTES BEFORE

C

D

TRYING TO OPEN THE LID.

MAXIMUM

(wash)

MAXIMUM
(prewash)

RECOMMENDED

MAXIMUM

(bleach and scenting agent)

43 44
