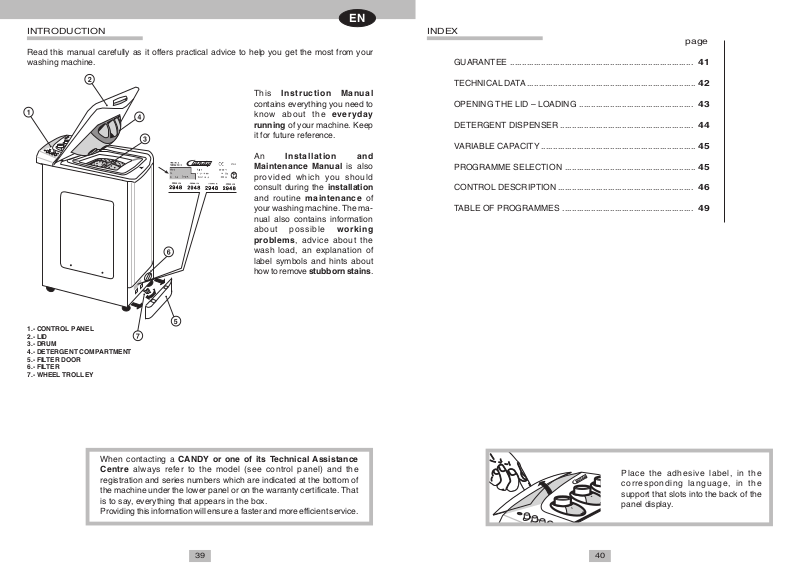

INTRODUCTION
Read this manual carefully as it offers practical advice to help you get the most from your
washing machine.
INDEX
GUARANTEE .............................................................................
page
41
1.- CONTROL PANEL
2.- LID
3.- DRUM
4.- DETERGENT COMPARTMENT
5.- FILTER DOOR
6.- FILTER
7.- WHEEL TROLLEY
This Instruction Manual
contains everything you need to
know about the everyday
running of your machine. Keep
it for future reference.
An Installation and
Maintenance Manual is also
provided which you should
consult during the installation
and routine maintenance of
your washing machine. The manual also contains information
about possible working
problems, advice about the
wash load, an explanation of
label symbols and hints about
how to remove stubborn stains.
TECHNICAL DATA .......................................................................
OPENING THE LID – LOADING ................................................
DETERGENT DISPENSER ........................................................
VARIABLE CAPACITY .................................................................
PROGRAMME SELECTION .......................................................
CONTROL DESCRIPTION .........................................................
TABLE OF PROGRAMMES .......................................................
42
43
44
45
45
46
49
When contacting a CANDY or one of its Technical Assistance
Centre always refer to the model (see control panel) and the
registration and series numbers which are indicated at the bottom of
the machine under the lower panel or on the warranty certificate. That
is to say, everything that appears in the box.
Providing this information will ensure a faster and more efficient service.
39 40
Place the adhesive label, in the
corresponding language, in the
support that slots into the back of the
panel display.
Page 2
GUARANTEE
TECHNICAL DATA
CTT 103 TV S
B
A
1.
The appliance comes with a guarantee certificate.
2.
Complete part B and keep it in a safe place. It should
be presented to the Technical Assistance Centre in
the event of a repair being necessary along with the
legal receipt issued by the dealer on purchase.
Load capacity .............................................................................
Voltage .........................................................................................
Wash motor power rating ............................................................
Spin motor power rating ..............................................................
Electropump power rating ...........................................................
Heating element power rating .....................................................
Max. power input ........................................................................
Fuse .............................................................................................
Water pressure .......................................................................
Spin speed ...................................................................
Water consumption (60º C programme) .....................................
Energy consumption (60º C programme) ...............................
Energy efficiency rating ...................................................................
r.p.m./min
kg.
W.
W.
W.
W.
W.
A.
MPa
lit.
kWh
V.
4,5
230
175
400
30
1.850
2.200
10
0,05 min.
0,8 max.
1000
59
0,85
A
3.
Do not forget to send part A of the Guarantee
Certificate to be validated within 15 days of purchase.
41 42
Page 3

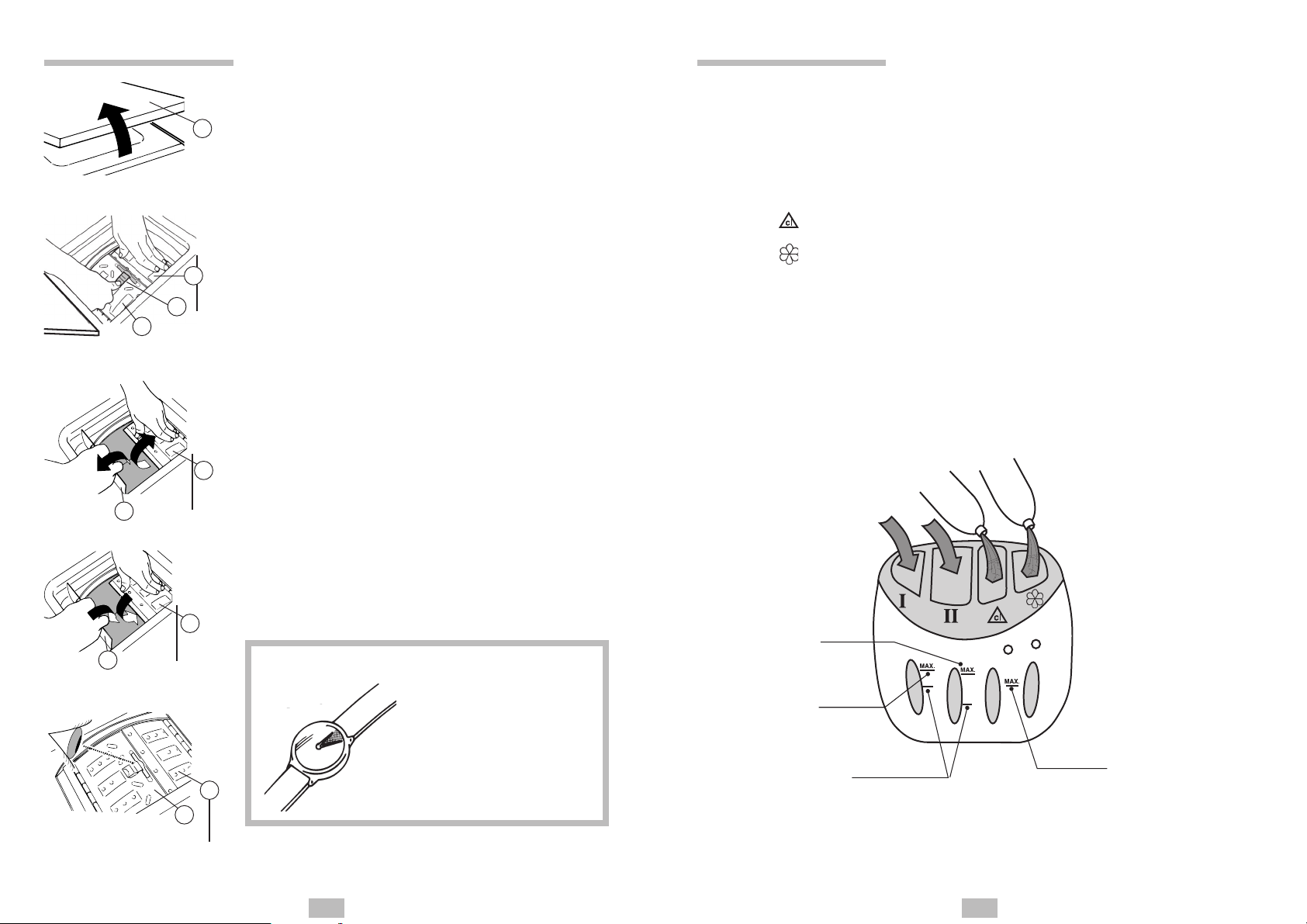

OPENING THE DRUM
DETERGENT DISPENSER
MACHINE LID
WASHING
1.
The detergent dispenser is divided into 4 compartments:
Lift the lid (A) and open completely. Next open the drum
FRONT OF THE
WASHING
MACHINE
A
door following these instructions:
2.
Press catch (B) and kept it pressed down.
Press the first shutter (C) to unlock the two shutters (C)
and (D).
• Compartment I, is for prewash powder detergent. The recommended quantity is 60
gm of detergent (for 4,5 kg of laundry).
• Compartment II, is for wash powder detergent. The recommended quantity is 120
gm of detergent (for 4,5 kg of laundry).
• The compartment is for bleach. The recommended quantity is 70 c.c.
• The compartment is for fabric conditioners, scenting agents and special
C
3.
additives. The recommended quantity is 50 c.c.
Open the second shutter (D). Open the first shutter (C).
B
D
Place the washing in the drum.
The detergent compartment has two guidance lines:
4.
FRONT OF THE
WASHING
MACHINE
Close the first shutter (C).
Close the second shutter (D) so that the catch on the first
• RECOMMENDED (lower line). This indicates the recommended level for the prewash
and wash compartments.
shutter fits correctly into the slot. Release.
• MAX. This indicates the maximum level which should never be exceeded.
5.
C
Ensure that both shutters are perfectly aligned and properly
closed.
D
FRONT OF THE
WASHING
MACHINE
IMPORTANT: IT IS IMPORTANT TO MAKE SURE THAT
THE DRUM IS CAREFULLY CLOSED BEFORE
OPERATING THE MACHINE, OTHERWISE THE MACHINE
OR LAUNDRY COULD GET DAMAGED.
C
D
2 min.
IMPORTANT: A SPECIAL
SAFETY DEVICE PREVENTS
FRONT OF THE
WASHING
MACHINE
THE LID FROM BEING
OPENED IMMEDIATELY
AFTER THE WASH HAS
FINISHED. ONCE THE SPIN
CYCLE HAS FINISHED, WAIT
FOR 2 MINUTES BEFORE
C
D
TRYING TO OPEN THE LID.
MAXIMUM
(wash)
MAXIMUM
(prewash)
RECOMMENDED
MAXIMUM
(bleach and scenting agent)
43 44
Page 4
A
B
G
E
F
H
C
D
VARIABLE CAPACITY
This washing machine automatically adapts the water level to the type and quantity of clothes
to be washed. So it is possible to obtain a «customised» wash, even in terms of energy. This
system reduces water and energy consumption and provides an appreciable reduction in
wash time.
PROGRAMME SELECTION
WHEN SELECTING A PROGRAMME, ENSURE THAT THE START/STOP BUTTON IS NOT
ACTIVATED.
To select a programme:
• Programmes are selected by means of the corresponding control knob (A). See the
table of programmes.

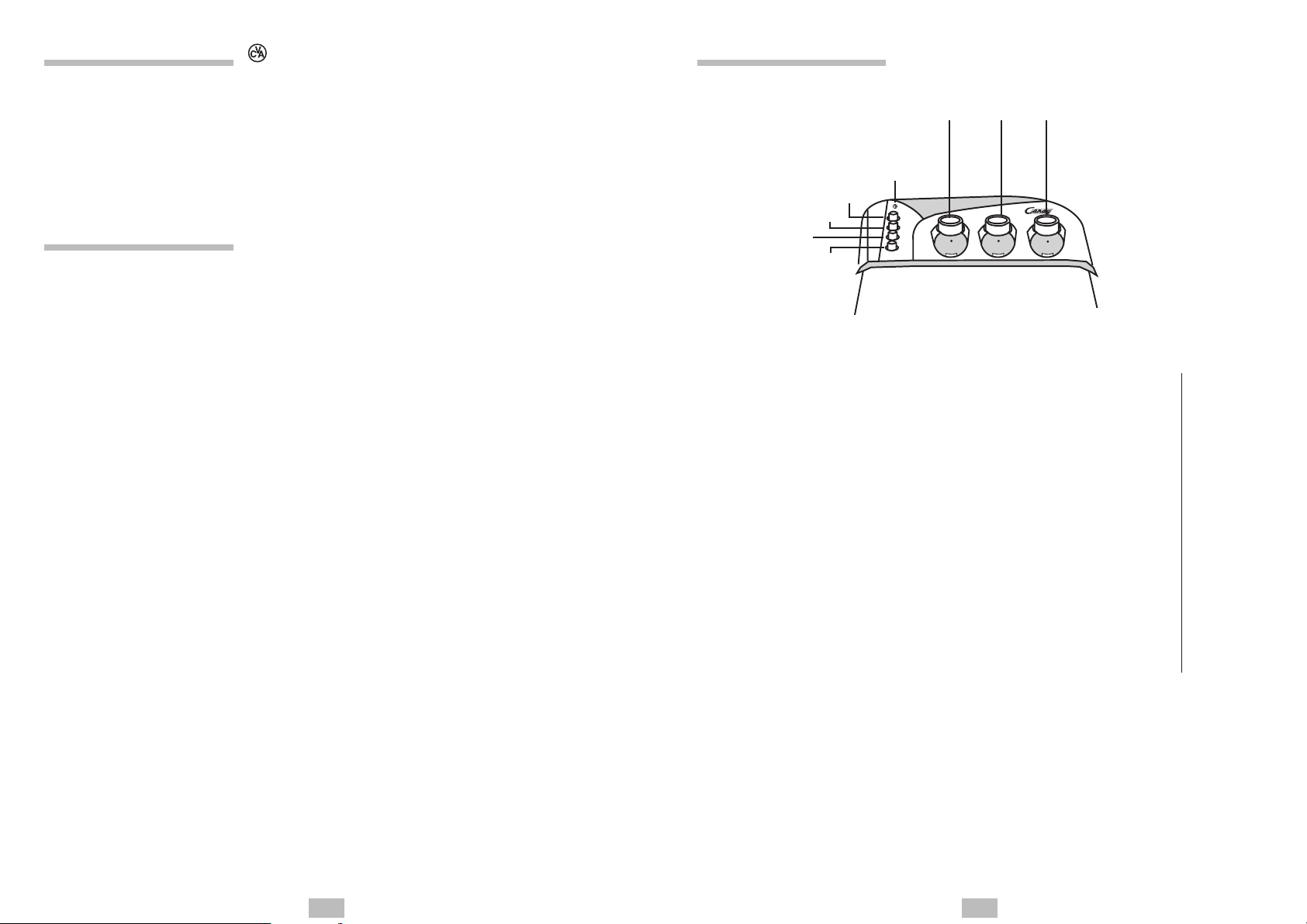

CONTROL DESCRIPTION
Programme selector knob ...........................................................
A
• Select the wash temperature by means of the corresponding control knob.
• Select the spin speed by means of the corresponding control knob.
• Select the different options available by pressing the corresponding buttons.
Temperature selector knob .........................................................
Spin speed selector knob ...........................................................
Flot button (Anticreasing) ............................................................
Super-rinse button ......................................................................
Super-rapid button ......................................................................
ON/OFF pilot light .......................................................................
ON/OFF button ...........................................................................
B
C
D
E
F
G
H
45 46
Page 5

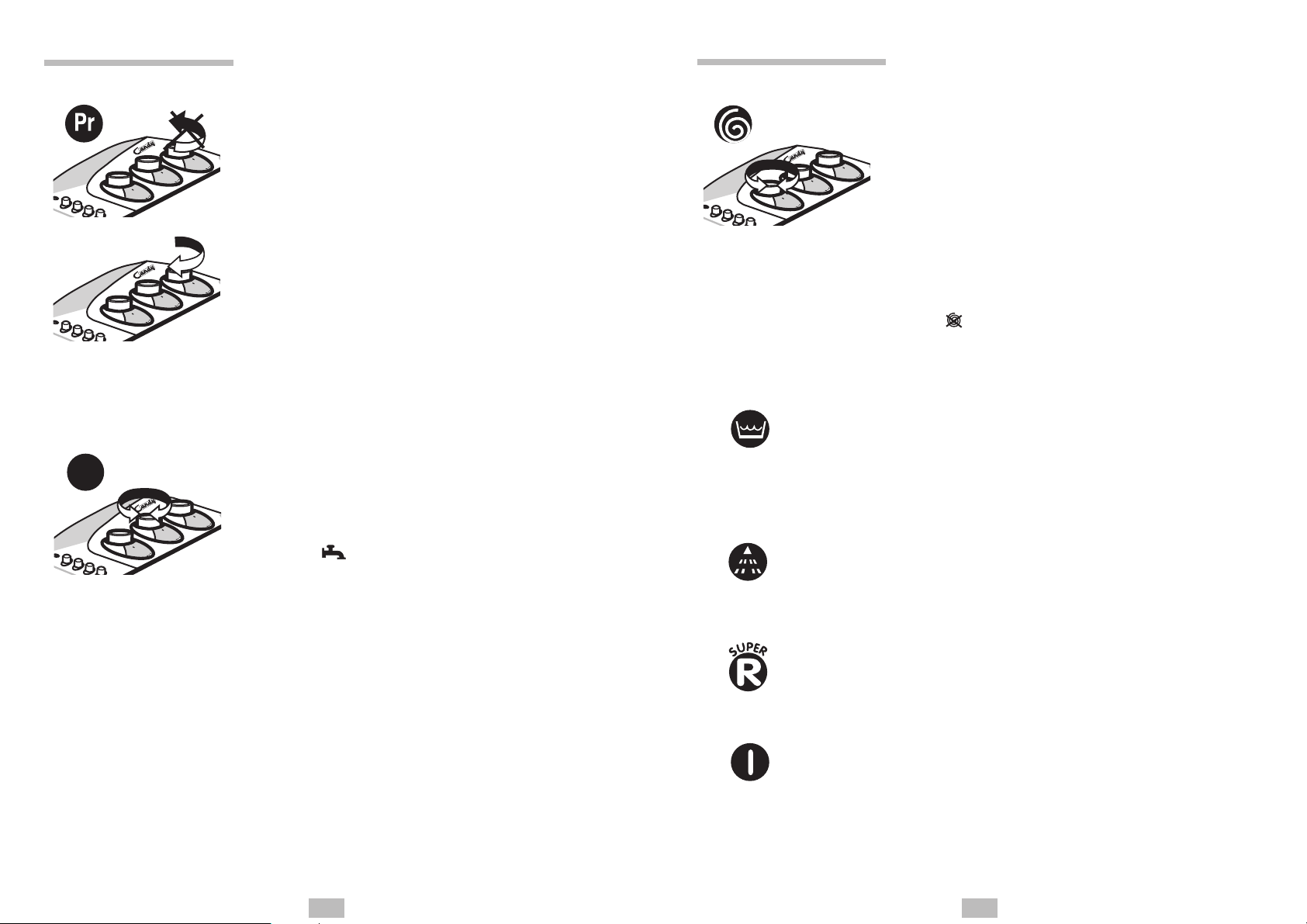

USE OF THE SELECTION CONTROLS
A
. PROGRAMME SELECTOR KNOB
With this knob you can select the wash programme as you
wish. Press the central knob and then pull out and turn until
the programme (number or symbol) coincides with the marker
point. Having made the selection, press the knob in again.
ALWAYS ROTATE the control in a clockwise direction, never
in an anticlockwise direction. Do not press the “on” button
(H) before selecting the programme
If you wish to modify the position of the control or select
another programme once a cycle has commenced, press
the Start/Stop key. Press again to recommence once the
modification has been completed.
B
. TEMPERATURE SELECTOR KNOB
With this knob you can select the washing temperature as
T
C
you wish. Press the central knob and then pull out and turn
until the temperature selected coincides with the marker point.
Having made the selection, press the knob in again.
USE OF THE SELECTION CONTROLS
C
. SPIN SPEED SELECTOR KNOB
This control allows you to select the speed of the final spin.
To select a speed, press the centre of the control knob to
release and turn it until the desired speed coincides with the
selector mark. When you have selected a speed, press the
control knob once again.
This knob selects the final spin speed. To select a speed,
press down and turn until the desired speed coincides with
.
D
. FLOT BUTTON (Anticreasing)
The Flot button only works in programmes (5-6-7-8-9-10) for mixed, synthetic
and very delicate fabrics.
When the button is pressed, the machine stops in the last rinse of these
programmes, leaving the wash soaking with a high water level.
To complete these programmes, spin the wash by pressing the button again to
release it.
the selector mark.
The final spin cycle reaches the maximum speed selected in
non-delicate programmes. The middle and final spin cycles
for mixed, synthetics and delicate programmes is carried out
at 400 r.p.m.
If you do not want a spin cycle, coincide the spin exclusion
symbol with the selector mark.
THE KNOB CAN BE TURNED IN BOTH DIRECTIONS.
If you wish to carry out a cold wash, turn the knob until the
cold symbol coincides with the selector mark.
THE KNOB CAN BE TURNED IN BOTH DIRECTIONS.
Do not exceed the maximum temperature recommended for
each cycle in the table of programmes.
47
E
. SUPER-RINSE BUTTON
F
. SUPER RAPID BUTTON
G
. ON/OFF PILOT LIGHT
H
. ON/OFF BUTTON
Pressing this button removes the last vestiges of soap powder from the
fabrics, as the rinses are done with more water.
When this button is pressed the time for the wash programmes of this washing
machine is reduced to a maximum of 50 minutes, according to the wash
programme and temperature selected. The Super Rapid Button can be used
for washes of from 1 to 4.5 kg.
48
Page 6

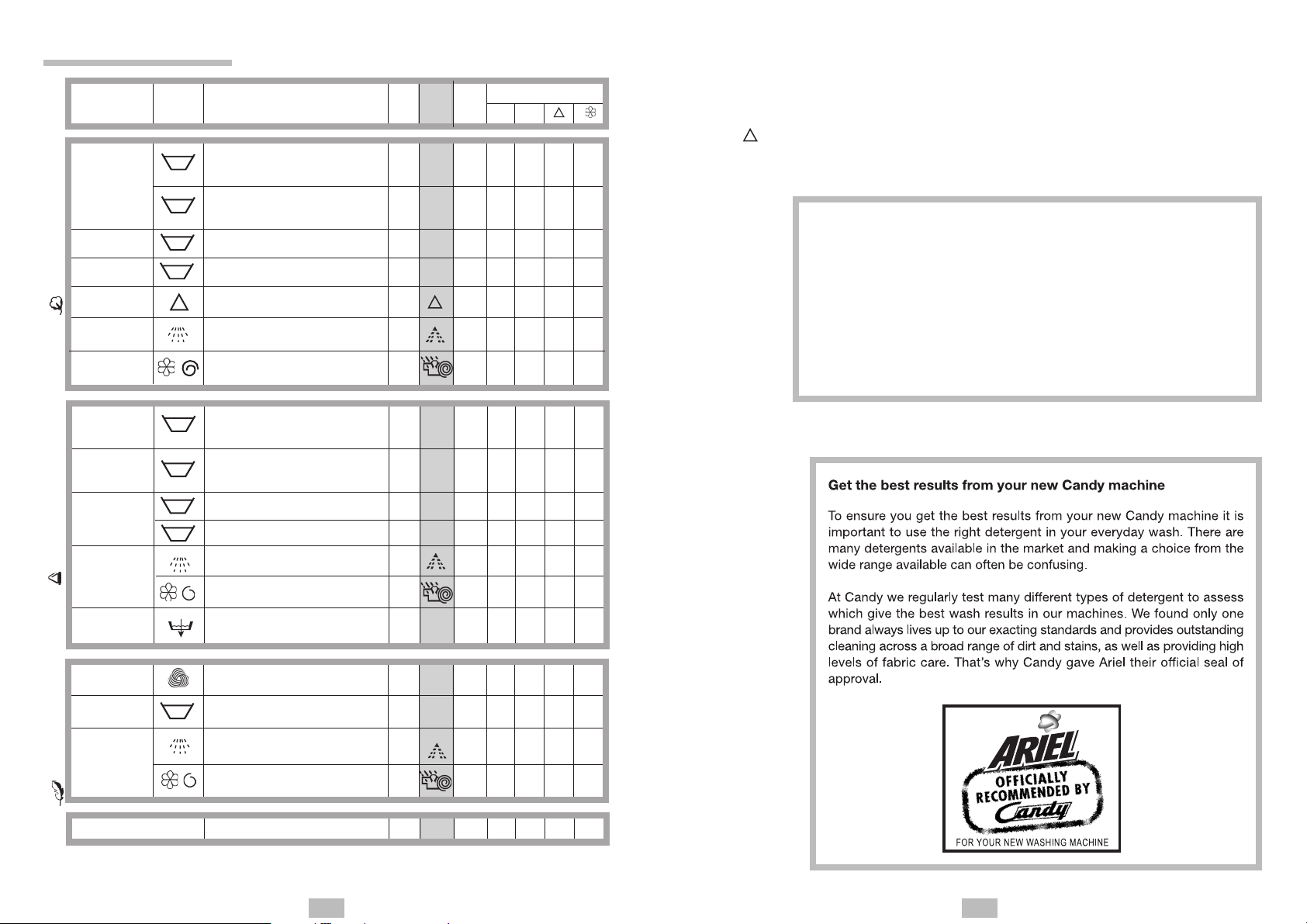

TABLE OF PROGRAMMES
TYPE OF
FABRIC
Cotton, linen
Cotton, mixed and
non-delicates
Cotton, mixed
RESISTANTS
Cotton
Cotton, linen
Mixed non-
delicates
Synthetics (Rayon,
Acrylics)
Delicate
synthetics
MIXED SYNTHETICS
Mixed,
synthetics,
delicates
Clothes which do
need to be spun
LABEL
SYMBOL
o
95
o
60
o
50
o
40
o
60
o
50
o
40
o
30
PROGRAMME
Sheets, solid-block coloured and white
Sheets, solid-block coloured and white
Non-delicate shirts, blouses, coloured skirts
VERY DIRTY
tablecloths, napkins, underwear
NORMAL DIRTY
tablecloths, napkins, underwear
Cotton resistant
Lightly soiled - Delicates colours
Organic stains
Energetic rinse
Conditioner, fragrance, softener
Energetic rinse
VERY DIRTY
Shirts, sheets, baby clothes, whites
NORMAL DIRTY
Colour fast
LIGHTLY SOILED
Delicate rinse
Conditioner, fragrance, softener
Delicate spin
Water discharge
MAX.
LOAD
IN KG
4,5
4,5
3,5
3,5
—
4,5
4,5
2
2
2
2
2
—
SEL.
PROG.
1
*
2
3
4
5
*
6
7
8
Z
SEL.
T
Cº
…90º
…60º
…50º
…40º
—
—
—
…60º
…50º
…40º
…30º
—
—
—
DETERGENT
I
II
•
•
•
•
•
•
•
•
NOTE:
1. If the wash load is very dirty it is best to reduce the load weight to 3 kg.
2. Programmes 1, 2 have an automatic bleaching option. Simply place the bleaching agent in
the compartment.
•
•
•
•
3. Scenting agents are added automatically in all programmes.
RAPID 32 MINUTE PROGRAMME
•
The rapid 32 minute programme enables a complete washing cycle
for a maximum 2 kg wash at a temperature of 50°C to be carried out in
30 minutes. The temperature of the wash can be reduced via the
•
temperature selector knob.
The soap powder must be loaded into the pre-wash dispenser
•
•
(compartment I).
The maximum amount of soap powder which can be used for this
•
programme is indicated by the 32 minute mark in the dispenser.
The rapid 32 minute programme can also be used as a pre-wash
•
cycle in the case of a heavily soiled wash, following with the main
programme as desired.
•
•
•
•
•
•
Woollens
Synthetics
(Rayon, Acrylics)
Mixed,
synthetics,
EXTREM. DELIC. FABRICS
woollen
delicates
RAPID PROGRAMME
o
30
Curtains, skirts, blouses, shirts
Conditioner, fragrance, softener
WOOL
“machine washable”
Delicate rinse
Delicate spin
Rapid 32 minute super cycle
1
1,5
1,5
—
Programme * (60º C), according to IEC 456 Regulations
49 50
9
…40º
*
10
…30º
—
—
32´2 …50º
•
•
•
•
•
•
•
Loading...
