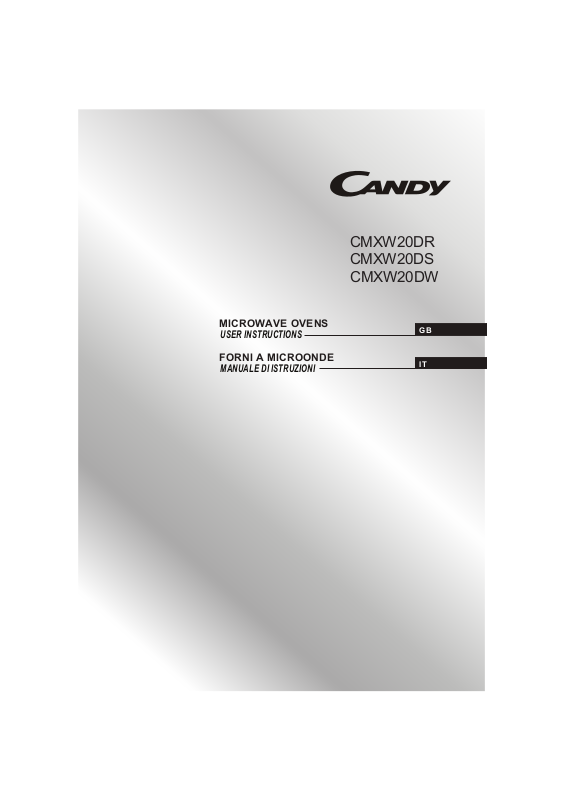

CANDY CMXW20DR User Manual

CMXW20DR CMXW20DS

CMXW20DW

MICROWAVE OVENS

USER INSTRUCTIONS

FORNI A MICROONDE

MANUALE DI ISTRUZIONI

Microwave Oven

INSTRUCTION MANUAL

MODEL:

CMXW20DR CMXW20DS

CMXW20DW

Read these instructions carefully before using your microwave oven, and keep it carefully.

If you follow the instructions, your oven will provide you with many years of good service.

SAVE THESE INSTRUCTIONS CAREFULLY

By placing the CE

we declare ,on

our own responsibility,

( )

marking on

this product ,

compliance

to all of European

requirements stated

safety ,health and

in the legislation for

environmental

this product

MICROWAE

DEFROST BY WEIGHT DEFROST BY TIME

CLOCK/PRE-SET

STOP/CLEAR/

START/EXPRESS

AUTO MENU/TIME/WEIGHT

/CHILD LOCK

ECO FUNCTION

PRECAUTIONS TO AVOID POSSIBLE EXPOSURE TO EXCESSIVE MICROWAVE ENERGY

(a) Do not attempt to operate this oven with the door open since this canresult in harmful exposure to microwave energy. It is important not to break or tamper with the safety interlocks.

(b) Do not place any object between the oven front face and the door or allow soil or cleaner residue to accumulate on sealing surfaces.

(c) WARNING: If the door or door seals are damaged, the oven must not be operated until it has been repaired by a competent person.

ADDENDUM

If the apparatus is not maintained in a good state of cleanliness, its surface could be degraded and affect the lifespan of the apparatus and lead to a dangerous situation.

Specifications

Model:

Rated Voltage:

Rated Input Power(Microwave):

Rated Output Power(Microwave):

Oven Capacity: Turntable Diameter:

External Dimensions(LxWxH): Net Weight:

CMXW20DR

230V~50Hz

1050W

700 W

0 L

255

4 x 3

40 57.5x 259 mm

10.0 kg

/CMXW20DS

/CMXW20DW

IMPORTANT SAFETY INSTRUCTIONS WARNING

To reduce the risk of fire, electric shock, injury to personsor exposure to excessive microwave oven energy whenusing your appliance, follow basic precautions, including he following:

1. Warning: Liquids and other foods must not be heated

in sealed containers since they are liable to explode.

2. Warning: It is hazardous for anyone other than a competent person to carry out any service or repair operation that involves the removal of a cover which gives protection against exposure to microwave energy.

3. This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been givensupervision or instruction concerning useof the appliance in a safe way andunderstand the hazards involved.Children shall not play with the appliance.Cleaning and user maintenance shallnot be made by children unless they are older than 8 and supervised.

4. Keep the appliance and its cord out of reach of children less than 8 years.

5. Only use utensils suitable for use in microwave ovens.

6. The oven should be cleaned regularly and any food deposits should be removed.

7. Read and follow the specific:"PRECAU- TIONS TO AVOID POSSIBLE EXPOSURE TO EXCESSIVE MICROWAVE ENERGY".

8. When heating food in plastic or paper containers, keep an eye on the oven due to the possibility of ignition.

9. If smoke is emitted, switch off or unplug the appliance and keep the door closed in order to stifle any flames.

10. Do not overcook food.

11. Do not use the oven cavity for storage purposes. Do not store items, such as bread, cookies, etc. inside the oven.

12. Remove wire twist-ties and metal handles from paper or plastic containers/bags before placing them in the oven.

13. Install or locate this oven only in accordance with the installation instructions provided.

14. Eggs in the shell and whole hard-boiled eggs should not be heated in microwave ovens since they may explode, even after microwave heating has ended.

15.This appliance is intended to be used in household and similar applications such as:

-staff kitchen areas in shops, offices and other working environments;

-by clients in hotels, motels and other residential type environments;

-farm houses;

-bed and breakfast type environments.

16. If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.

17. Do not store or use this appliance outdoors.

18. Do not use this oven near water, in a wet basement or near a swimming pool.

19. The temperature of accessible surfaces may be high when the appliance is operating. The surfaces are liable to get hot during use.Keep cord away from heated surface, and do not cover any vents on the oven.

20. Do not let cord hang over edge of table or counter.

21. Failure to maintain the oven in a clean condition could lead to deterioration of the surface that could adversely affect the life of the appliance and possibly result in a hazardous situation.

22.The contents of feeding bottles and baby food jars shall be stirred or shaken and the temperature checked before consumption, in order to avoid burns.

23. Microwave heating of beverages can result in delayed eruptive boiling, therefore care must be taken when handling the container.

24.The appliance is not intended for use by persons (including children) with reduced physical , sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.

25.Children should be supervised to ensure that they do not play with the appliance.

26.The appliances are not intended to be operated by means of an external timer or separate remote-control system.

27.Accessible parts may become hot during use. Young children should be kept away.

28.Steam cleaner is not to be used.

29.During use the appliance becomes hot. Care should be taken to avoid touching heating elements inside the oven.

30.Only use the temperature probe recommended for this oven.(for ovens provided with a facility to use a temperature-sensing probe.)

31. WARNING: The appliance and its accessible parts become hot during use.Care should be taken to avoid touching heating elements. Children less than 8 years of age shall be kept away unless continuously supervised.

32.The microwave oven must be operated with the decorative door open.(for ovens with a decorative door.)

33.The rear surface of appliance shall be placed against a wall.

34.The microwave oven shall not be placed in a cabinet unless it has been tested in a cabinet.

READ CAREFULLY AND KEEP FOR FUTURE REFERENCE

To Reduce the Risk of Injury to Persons Grounding Installation

DANGER

Electric Shock Hazard Touching some of the internal componentscan cause serious personal injury or death.Do not disassemble this appliance.

WARNING

Electric Shock HazardImproper use of the grounding can result inelectric shock. Do not plug into an outlet untilappliance is properly installed and grounded.

This appliance must be grounded. In theevent of an electrical short circuit, grounding reduces the risk of electricshock by providing an escape wire forthe electric current. This appliance isequipped with a cord having a groundingwire with a grounding plug. The plug mustbe plugged into an outlet that is properly installed and grounded.

Consult a qualified electrician orserviceman if the grounding instructio nsare not completely understood or if doubtexists as to whether the appliance isproperly grounded. If it is necessary touse an extension cord , use only a 3-wire

1. A short power-supply cord is provided to reduce the risks resulting from becoming entangled in or tripping over a longer cord.2. If a long cord set or extension cord isused:

1)The marked electrical rating of the cordset or extension cord should be at least asgreat as the electrical rating of the appliance.

2)The extension cord must be a grounding-type 3-wire cord.

3)The long cord should be arranged so thatit will not drape over the counter top ortabletop where it can be pulled on bychildren or tripped over unintentionally.

CLEANING

Be sure to unplug the appliance from thepower supply.

1. Clean the cavity of the oven after using with a slightly damp cloth.

2. Clean the accessories in the usual way in soapy water.

3. The door frame and seal and neighbouring parts must be cleaned carefully with a damp cloth when they are dirty.

4. Do not use harsh abrasive cleaners or sharp metal scrapers to clean the oven door glass since they can scratch the surface, which may result in shattering of the glass.

5. Cleaning Tip---For easier cleaning of the cavity walls that the food cooked can touch: Place half a lemon in a bowl, add 300ml (1/2 pint) water and heat on 100% microwave power for 10 minutes. Wipe the oven clean using a soft, dry cloth.

UTENSILS

CAUTION

Personal Injury Hazard

It is hazardous for anyone other than a compentent personto carry out any service or repairo peration that involves the removalof a cover which gives protection against exposure to microwave

energy.

See the instructions on "Materials you can use in microwave oven or to be avoided in microwave oven." There may be certain non-metallic utensils that are not safe to use for microwaving. If in doubt, you can test the utensil in question following the procedure below.

Utensil Test:

1. Fill a microwave-safe container with 1 cup of cold water (250ml) along with the utensil in question.

2. Cook on maximum power for 1 minute.

3. Carefully feel the utensil. If the empty utensil is warm, do not use it for microwave cooking.

4. Do not exceed 1 minute cooking time.

Materials you can use in microwave oven

Utensils Remarks

Aluminum foil Shielding only. Small smooth pieces can be used to cover thin parts of

meat or poultry to prevent overcooking. Arcing can occur if foil is too close to oven walls. The foil should be at least 1 inch (2.5cm) away from oven walls.

Browning dish

Dinnerware

Glass jars

Glassware

Oven cooking bags

Paper plates and cups

Paper towels

Parchment paper

Plastic

Plastic wrap

Thermometers Microwave-safe only (meat and candy thermometers). Wax paper Use as a cover to prevent splattering and retain moisture.

Follow manufacturer’s instructions. The bottom of browning dish must be at least 3/16 inch (5mm) above the turntable. Incorrect usage may cause the turntable to break.

Microwave-safe only. Follow manufacturer's instructions. Do not use cracked or chipped dishes.

Always remove lid. Use only to heat food until just warm. Most glass jars are not heat resistant and may break.

Heat-resistant oven glassware only. Make sure there is no metallic trim. Do not use cracked or chipped dishes.

Follow manufacturer’s instructions. Do not close with metal tie. Make slits to allow steam to escape.

Use for short–term cooking/warming only. Do not leave oven unattended while cooking.

Use to cover food for reheating and absorbing fat. Use with supervision for a short-term cooking only.

Use as a cover to prevent splattering or a wrap for steaming.

Microwave-safe only. Follow the manufacturer’s instructions. Should be labeled "Microwave Safe". Some plastic containers soften, as the food inside gets hot. "Boiling bags" and tightly closed plastic bags should be slit, pierced or vented as directed by package.

Microwave-safe only. Use to cover food during cooking to retain moisture. Do not allow plastic wrap to touch food.

Materials to be avoided in microwave oven

Utensils Remarks

Aluminum tray Food carton with metal handle Metal or metaltrimmed utensils

Metal twist ties Paper bags Plastic foam

Wood

May cause arcing. Transfer food into microwave-safe dish. May cause arcing. Transfer food into microwave-safe dish.

Metal shields the food from microwave energy. Metal trim may cause arcing. May cause arcing and could cause a fire in the oven. May cause a fire in the oven.

Plastic foam may melt or contaminate the liquid inside when exposed to high temperature.

Wood will dry out when used in the microwave oven and may split or crack.

SETTING UP YOUR OVEN

Names of Oven Parts and Accessories

Remove the oven and all materials from the carton and oven cavity. Your oven comes with the following accessories: Glass tray 1 Turntable ring assembly 1 Instruction Manual 1

Turntable Installation

Hub (underside)

Glass tray

Turntable shaft

Turntable ring assembly

a. Never place the tray should never be restricted. b. Both always be used during cooking. c. All food and containers of food are always placed on the d. If breaks, contact your nearest authorized service center.

glass tray

A) Control panel B) Turntable shaft C) Turntable ring assembly D) Glass tray E) Observation window F) Door assembly G) Safety interlock system

glass tray

and

for cooking.

turntable ring assembly

upside down. The glass

turntable ring assembly

must

cracks or

Countertop Installation

Remove all packing material and accessories. Examine the oven for any damage such as dents or broken door. Do not install if oven is damaged.

Installation

1.Select a level surface that provideenough open space for the intakeand/or outlet vents.

30cm

0cm

20cm

min85cm

(1) The minimum installation height is 85cm. (2) The rear surface of appliance shall be placed against a wall. Leave a minimum clearance of 30cm above the oven, a minimum clearance of 20cm is required between the oven and any adjacent walls. (3) Do not remove the legs from the bottom of the oven.

20cm

Cabinet: Remove any protective film found on the microwave oven cabinet surface.

Do not remove the light brown Mica cover that is attached to the oven cavity to protect the magnetron.

(4) Blocking the intake and/ or outlet openings can damage the oven. (5) Place the oven as far away from radios and TV as possible. Operation of microwave oven may cause interference to your radio or TV reception.

2. Plug your oven into a standard household outlet. Be sure the voltage and the frequency is the same as the voltage and the frequency on the rating label.

WARNING: Do not install oven over arange cooktop or other heat-producing appliance. If installed near or over a heatsource, the oven could be damaged andthe warranty would be void.

The accessible surfacemay be hot duringoperation.

OPERATION INSTRUCTION

This microwave oven uses modern electronic control to adjust cooking parameters to meet your needs better for cooking.

1.Clock Setting

When the microwave oven is electrified,the oven will display "0:00", buzzer will ring once.

1) Press " , the hour figures will flah.

2) Turn " " to adjust the hour figures, the input time should be within 0--23.

3) Press " ", the minute figures will flash.

4) Turn " " to adjust the minute figures, the input time should be within 0--59.

5) Press " " to finish clock setting. ":" will flash. Note: 1) If the clock is not set, it would not function when powered.

2) During the process of clock setting, if you press " " or no operation in one minute, the oven will exit the setting.

2. Microwave Cooking

Press "

you want.

Press "

Example: If you want to use 80% power to cook for 20 minutes, you can operate the oven as the following steps.

1) Press " " " indicator will be lighted.

2) Turn "

Press " " to confirm power.

"once, "P100" displays. Then turn " "to select the function

" " to adjust the cooking time.

Press " " to confirm the [power.

" to start cooking.

" once, the LED will display "P100",

" to choose 80% power, the

LED will display "P80".

Turn

3) Turn " " to adjust the cooking time until the oven display"20:00" (The maximum cooking time is 95 minutes.)

4) Press " " to start cooking, ":" will light and the " " indicator will flash (Buzzer will sound five times after finishing). NOTE: the step quantities for the adjustment time of the coding switch are as follow: 0---1 min : 5 seconds 1---5 min : 10 seconds 5---10 min : 30 seconds

Microwave Power Chart

Microwave Power

80% 50% 30% 10%100%

10---30 min : 1 minute 30---95 min : 5 minutes

3. Speedy Cooking

1).When the oven is in the waiting states, press "

with full microwave power for 30 seconds. The cooking time will add 30 seconds by every press on " " key,and the maximum setting time is 95 minutes. Note: Time can be increased by press " " button except weight defrost and

auto menu program.

2).In waiting state, turn " " left to choose cooking time directly then press "

" key to cook with 100% microwave power.

This program can be set as the first one of multi-stage.

4. Defrost By Time

1) Press " " key once, the LED will display "dEF1".

2) Turn " " to select the cooking time. At the same time, " " and " " will be lighted. The time setting is from 00:05 to 95:00.

The default power level is P30. It is not adjustable.

3) Press " " key to start defrosting. " " and " " indicators will flash .

" key to start cooking

5. Defrost by

1) Press " " pad twice,the LED will display "dEF2".

2) Turn " " to select the weight of food.At the same time, "g" will light. The weight should be 100-2000g.

3) Press " " key to start defrosting. " " and " " indicators will flash and "g" indicator will go out.

Weight

6. Auto Menu

1). In waiting states,

"A-01","A-02"...."A-10" will display in order.

2) Press "

2). Turn " " to select the menu from b-1 to b-4.

3) Press " " to start cooking. When cooking finish, buzzer will sound five times. If the clock has been set before, the current time will be displayed, otherwise, 0:00 will be displayed.

turn " " right to choose the menu you need.

" to confirm the selected main menu.

For example: to cook the pasta.

1) Turn " " right until "A-07" displays and pasta menu is selected. " " and " " indicator will light.

2) Press "

3). Stop turning " " when "b-4" displays.

3) Press " " to start cooking.

When cooking finish, buzzer will sound five times. Then turn back to waiting states.

Multi-Stage Cooking

Two stages of cooking can be maximumly set. If one stages is defrosting, it will be put in the first stage automatically. The buzzer will ring once after each stage and the next stage will begin. Note: Auto menu cannot be set as one of the multi-stage.

Example: if you want to defrost the food of 500g + 80% microwave power for 5 minutes. The steps are as following:

1) Press " "twice, "dEF2" displays;

2) Turn " " to adjust the weight of the food. Stop turning when "500" displays;

" to confirm the selected main menu.

3) Press"

Press " " to confirm the power;

4) Turn " " to adjust the cooking time of 5 minutes;

5) Press " " to start cooking. Note: When the first stage finish, buzzer sounds once then the second stage

begins. back to the waiting

" once, turn " "o choose 80% microwave power;

When all of them finish, buzzer sounds five times and the unit turn

states.

8. Pre-set Function

1) Set the clock first. (Consult the instruction of clock setting.)

2) Input the cooking program. Two stages can be set at most. Defrosting should not be set here.

3) Press " ". The current clock is displayed. The hour figure flash;

4) Turn " " to adjust the hour figures, the input time should be within 0--23.

5) Press " minute figures will flash.

6) Turn " " to adjust the minute figures, the input time should be within 0--59.

7) Press " " to finish setting. ":" will light, buzzer will ring twice when the time arrives, then cooking will start automatically.

Note: 1) Clock must be set first. Otherwise,pre-set function will not work.

2) If the pre-set program has been set without the cooking program, the whole setting will be used as an alarm clock. That means when pre-set time arrives, buzzer will sound five times only.

9. ECO Function

In waiting state, Press " " once or if no operation in 1 minute, the screen

will be off. At this time, press any button to turn the screen on.

Note: 1). The oven cannot enter ECO mode if the door is open.

2). Press any button or open the door to turn the screen on under ECO mode.

3). If enter ECO mode under child lock state, recover to still child lock state.

10.

Silent Mode

In waiting states, press “ ”, and then press “ ” simotanoesly in 3 seconds to enter silent mode. All the buttons and buzzers will stop ringing under silent mode.

To active the sound: in waiting state, press “ ”, and then press “ simotanoesly in 3 seconds to exit the silent mode.

", the

”

11. Inquiring Function

(1) In cooking state, press " will be displayed for 3 seconds. (2) In pre-set state, press " " to inquire the time for delay start cooking. The pre-set time will flash for 3 seconds, then the oven will turn back to the clock display. (3) During cooking state, press " " to check the current time. It will be displayed

for 3 seconds.

", the current microwave power

12. Lock-out Function for Children

Lock: In waiting state, press " " for 3 seconds, there will be a long "beep" denoting entering into the children-lock state and LED will display " " and "

Lock quitting: In locked state, press " " for 3 seconds, there will be a long "beep" denoting that the lock is released, and LED will turn back to the clock stae, " " will go out.

13. Protection of Fan

When the microwave or combination cooking works over 5 minutes, it stops working at the last 15 seconds, only fan runs.

16. Protection Function of Magnetron Control Pipe

When the unit runs for 30 minutes with high power level, it will adjust to 80% microwave power to protect the magnetron control pipe. This function works under multi-stage and other states.

14. Specification

(1) The buzzer will sound once when turning the knob at the beginning; (2) " " must be pressed to continue cooking if the door is opened during cooking; (3) Once the cooking programme has been set , " " is not pressed

in 1 minute. The current time will be displayed. The setting will be cancelled.

(4) The buzzer sounds once by efficient press, inefficient press will be no responce.

" will light.

Auto menu Chart

A-01

BAKERY

A-02

POTATOES

A-03

MEAT

A-04

FISH

A-05

VEGETABLES

A-06

HOT BEVERAGE

A-07

PASTA-RICE

Display

b-1 Pizza reheat

b-2 Bread reheat b-3 Savoury pie

b-4 Dough

b-1 Steam b-2 Potato croquettes

b-3 Potato bake b-4 French fries b-1 Chicken b-2 Turkey

b-3 Pork b-4 Red meat

b-1 Mussels

b-2 Salmon（Fish）

b-3 Tuna Filet

b-4 Sea bass

b-1 Broccoli b-2 Spinach

b-3 Carrots b-4 Fennel

b-1 Milk(1 cup/240ml) b-2 Coffee(1 cup/120ml)

b-3 Tea b-4 Hot chocolate

b-1 Pasta parcels b-2 Rice

b-3 Soup

(reheat vegetable soup)

b-4 Pasta

Weight(g)

200

400

500

400

250

200

800

450

800

200

350

400

200-400

1 cup

200

450

1 cup

250

50(add water 500ml)

Power

P100

P80+P0+P80

P30

P100

P80+P0

P100

P80 P80

P80

P100

P100 P100

P80+P0

P100

P70

P80

P100+P50

P100

P80

Auto menu Chart

A-08

PATISSERIE

A-09

HEALTHY

A-10

BABY

Display

b-1 Biscuits b-2 Cake b-3 Jam b-4 Muffins

b-1 Dried food

b-2 Homemade yogurt b-3 Wholemeal pasta

b-4 Legumes

b-1 Pureed Baby Food

b-2 Broth b-3 Sterilization

b-4 Baby milk

Weight(g)

150(add water 500l)

200

1 cup

400

100

1 liter

500

150

200

1 bottel

100 ml

Power

P80+P0+P80

P80

P100+P0

P100

P80+P0

P30

P100

P80+P0

P100+P0

P100

P30

Trouble shooting

It is forbidden to run the unit without any food inside. It is very dangerous.

CUSTOMER ASSISTANCE SERVICE If you cannot identify the cause of the operating anomaly: switch off the appliance (do not subject it to rought treatment) and contact the Assistance Service. PRODUCT SERIAL NUMBER. Where can I find it? It is important that you to inform the Assistance Service of your product code and its serial number (a 16 character code which begins with the number 3); this can be found on the guarantee certificate or on the data plate located on the appliance. It will help to avoid wasted journerys to technicians, thereby (and most significantly) saving the corresponding callout charges.

+ 47 hidden pages
