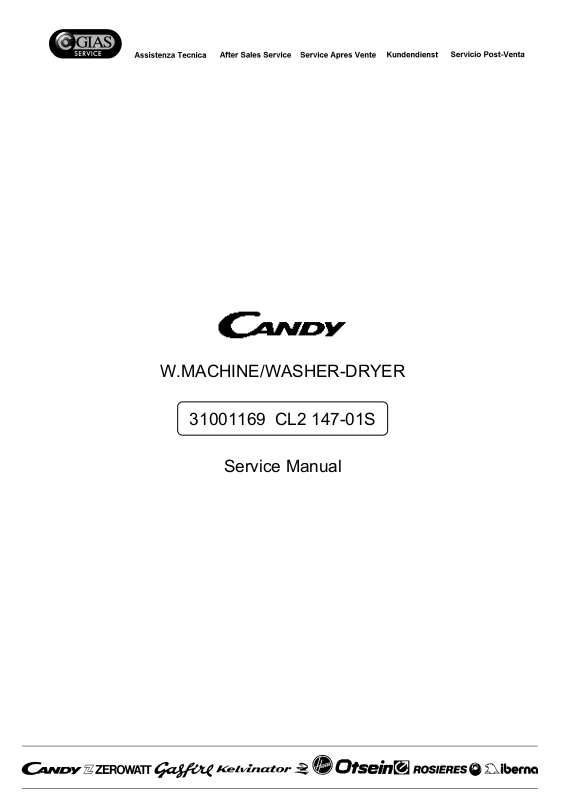

Candy CL2 147 User Manual

W.MACHINE/WASHER-DRYER

31001169 CL2 147-01S

Service Manual

31001169 CL2 147-01S 0547 (18/11/2005)

Ricambio
Part No.
Piece

Ref. Descrizione - Description - Beschreibung - Descripcion

2 Programs disc 41015760

14h Therm/potent. knob spring 41013044

19a Button 0/1 41013656

31 Control panel 40003805

32 Dispenser drawer front 41013998

40 Insert 41013917

47 Table top front frame 91602091

48 R/H side frame 03940707

48a L/H side frame 03940708

49 Top rear frame 91601680

51 Work top 03410177

55 Insulating side 91624924

E-Teil
Pieza

Inizio
Beginning
Debut
Begin
Inicio

Fine
Ending
Fin
End
Fin

59a Latch guide fix.screw 91402201

60 Hinge 91700102

62 Door surround 41013807

63 Door glass 91600903

65a Door catch with spring service pack 49005361

67 Glass door with frame 41014003

67d Counter ring 41013808

76 Cabinet assy 04230909

77 Rear panel 97911044

78 Socle 41006148

79 Rear foot 92606474

80 Front foot 92692300

94c Filter knob with gasket 06015493

96 Gasket 92606391

97c Stopper x drain/recycle pump 97918437

97d Filt hous w/filter cartridge 91941772

101 Dispenser drawer 41013614

109b Dispenser bottom section 41013608

110 Dispenser top section 41013609
