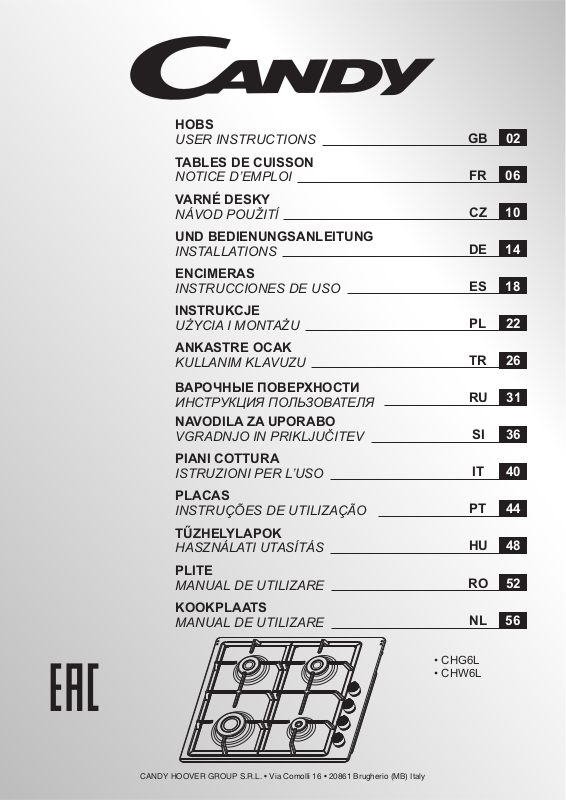

Candy CHG6LX Instruction manual

HOBS

USER INSTRUCTIONS

VARNÉ DESKY

NÁVOD POUŽITĺ

TABLES DE CUISSON

NOTICE D’EMPLOI

UND BEDIENUNGSANLEITUNG

INSTALLATIONS

ENCIMERAS

INSTRUCCIONES DE USO

INSTRUKCJE

UŻYCIA I MONTAŻU

ANKASTRE OCAK

KULLANIM KLAVUZU

NAVODILA ZA UPORABO

VGRADNJO IN PRIKLJU ITEVČ

ВАРОЧНЫЕ ПОВЕРХНОСТИ

ИНСТРУКЦИЯ ПОЛЬЗОВАТЕЛЯ

PIANI COTTURA

ISTRUZIONI PER L’USO

PLACAS

INSTRUÇ ES DE UTILIZAÇ OÕÃ

TŰZHELYLAPOK

HASZNÁLATI UTASÍTÁS

PLITE

MANUAL DE UTILIZARE

KOOKPLAATS

MANUAL DE UTILIZARE

• CHG6L

• CHW6L

CANDY HOOVER GROUP S.R.L. • Via Comolli 16 • 20861 Brugherio (MB) Italy

SAFETY INSTURUCTIONS

We recommend you keep the instructions for installation anduse for laterreference, andbefore installing the hob, note its serial number in case you need toget help fromthe after salesservice. WARNING:the applianceand itsaccessible parts become hot during use. Care should be taken to avoid touching heating elements. Children under 8 years of age must be kept away from the appliance unless they are continuously supervised. WARNING: use only hob guards designed by the Manufacturer of the cooking appliance or indicated by the Manufacturer of the appliance in the instructions for use as suitable or hob guards incorporated in the appliance. The use of inappropriate guards cancause accidents. WARNING: unattended cooking on a hob with fat or oil can be dangerous and may result in fire. NEVER try to extinguish a fire with water, but switch off the appliance and then cover flame e.g. with a lidor a fireblanket. WARNING: danger of fire: do not store items on the cooking surfaces. WARNING: if the surface is cracked, do not touch the glass and switch off the appliance to avoid the possibility of electricshock. This appliance can be used by children agedfrom 8 years and above and people with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children should be supervised to ensure that they do not play with the appliance. Cleaning and user maintenance shall not be made by childrenwithout supervision. CAUTION: the cooking process must be supervised. A short term cooking process has to be supervised continuously. It is strongly recommended to keepchildren away from the cookingzones while theyare in operation or when they are switched off, so long as the residual heat indicator is on, in order to prevent the risks ofserious burns. This appliance is not intended to be operated by means of an external timer or separate remote control system. If present do not to stare into halogen lamp hob elements. Connect a plug to the supply cable that is able to bear the voltage,current and loadindicated on the tag and havingthe earthcontact. The socketmust be suitable for the load indicated on the tag and must be having the earth contact connected and in operation. The earth conductor is yellow-green in color. This operation should be carried out by a

suitably qualified professional. In case of incompatibility between the socket and the appliance plug, ask a qualified electrician to substitute the socket with another suitable type. The plug and the socket must be conformed to the current norms of the installation country. Connection to the power source can also be made by placing an omnipolar breaker between the applianceand thepower source that can bear the maximum connected load and that is in line with current legislation. The yellow-green earth cable should not be interrupted by the breaker. The socket or omnipolar breaker used for the connection should be easilyaccessible when theappliance is installed. The disconnection may be achieved by having the plug accessibleor byincorporating aswitch in the fixed wiring in accordance with the wiring rules. If thesupply cordis damaged,it mustbe replaced by Manufacturer, its service agent or similarly qualified people in order to avoid a hazard. The earth conductor (yellow-green) must be longer than 10 mm on the terminal block side. The internal conductors section should be appropriate to the power absorbed by the hob (indicated on the tag). The type of power cable must be HO5V2V2-F. Do not put metallic objects such as knives, forks, spoons or lidson the hob.They could heatup. Aluminum foil and plastic pans must not be placed on heatingzones. After every use, some cleaning of the hob is necessary to prevent the build-up of dirt and grease. If left, this is recooked when the hob is used and burns giving off smoke and unpleasant smells, not to mention the risks of fire propagation. Never use a steam or high pressure spray to clean the appliance. Do not touch the heat zones during operation or for a whileafter use. Never cook food directly on the glass ceramic hob. Always use the appropriate cookware.Always place the pan in the center of the unit that you are cooking on. Do not placeanything on controlpanel. Do not usethe hob asa working surface. Do not usethe surface asa cutting board. Do not store heavy items above the hob. If they drop onto thehob, they maycause damage. Do not usethe hob forstorage of anyitems. Do not slidecookware across thehob.

02 GB

1. INSTRUCTIONS FOR THE INSTALLER

INSTALLINGA DOMESTIC APPLIANCE CAN BE A COMPLICATED OPERATION WHICH IF NOT CARRIED OUT CORRECTLY, CAN SERIOUSLY AFFECT CONSUMER SAFETY. IT IS FOR THIS REASON THAT THE TASK SHOULD BE UNDERTAKEN BY A PROFESSIONALLY QUALIFIED PERSON WHOWILL CARRY IT OUT IN ACCORDANCE WITH THE TECHNICAL REGULATIONSIN FORCE. IN THE EVENTTHAT THIS ADVICE IS IGNOREDAND THEINSTALLATION IS CARRIED OUTBY AN UNQUALIFIEDPERSON, THEMANUFACTURERDECLINES ALL RESPONSIBILITY FORANY TECHNICAL FAILURE OF THEPRODUCT WHETHEROR NOT ITRESULTSIN DAMAGE TOGOODS OR INJURY TO INDIVIDUALS.

1.1 BUILDING IN

The hob may be installed in any worktop which is heat resistant to a temperature of 100°C, and has a thickness of 25-45 mm. The dimensions of the insert to be cut out of the worktop are in shown in

Figure 2.

When there is an accessible space between the built-in hob and the cavity below, a dividing wall made of insulating material should be inserted (wood or asimilarmaterial)(Figure3). If the Hob isfittednexttoacabineton either side,the distancebetween the Hob and the cabinet must be at least 15 cm ; while(see Figure 4) the distance betweenthe hoband the rearwall mustbe at least .70 mm The distance betweenthe hoband any other unit or appliance above it (e.g.An extractor hood) mustbe noless than 70 cm .(Figure 4)

Metal objects in the drawer may reach high temperatures due to air recirculation. It is therefore recommended to use an intermediate wood panel. Important - The diagram in figure 1 shows how the sealantshould be applied.

The Hob unit is fitted by attaching the Fixing Clamps supplied, using the holes atthe baseof the unit. If ahob of 60 cm isfitted above an oven whichis not equipped with fan cooling system it is recommended thatopenings arecreated withinthe built in furnitureto ensurecorrect air circulation. The size of these openings must be at least 300 cm2 and placed as shown in Figure5.

1.2. SUITABLE LOCATION

This appliancemust be installed in accordance with theregulations in force and only used in a well ventilated space. Read the instructions before installing orusing this appliance. A gas-powered cooking appliance produces heat and humidity in the area in which it is installed. For this reason you should ensure good ventilation either by keeping all natural air passages open or by installing an extractor hood with an exhaust flue. Intensive and prolonged use of the appliance may require extra ventilation, such as the opening of a window or an increase in speed of the electric fan, if you have one. If a hood can not be installed, an electric fan should be fitted to an outside wall orwindow to ensure that thereis adequate ventilation. The electric fanshould beable to carry out a complete change ofair in the kitchen 3-5 times every hour. The installer should follow the relevant national standards.

2. ELECTRICAL CONNECTION (FOR U.K. ONLY)

Warning - this appliance must be earthed

This appliance is designed for domestic use only. Connection to the main supply must bemade by a competantelectrician, ensuring that allcurrent regulations concerningsuch installations areobserved.

The appliance must onlybe connectedto asuitably ratedspur point,a 3 pin13 amp plug/socket is not suitable.Adouble pole switch must be provided and the circuit must have appropriate fuse protection. Further details of the power requirement of the individual product will be found in the users’ instruction and on the appliance rating plate. In the case of built-in product you are advised, should you wish to use a longer cablethan theone supplied, that a suitably ratedheat resistant type must beused.

The wiring mustbe connected to the mainssupply as follows:

CONNECT TO SPUR TERMINAL

Green & Yellow Wire Earth Connection Blue Wire Neutral Connection Brown Wire Live Connection Note: We do not advocate the use of earth leakage devices with electric cooking appliances installed to spur points because of the «nuisance tripping» whichmay occur. You areagain reminded that the appliance must be correctly earthed, the manufacturer declines any responsibility for any event occurring as a result of incorrect electrical installation.

2.1. ELECTRICAL CONNECTION

Check the data on the rating plate, located on the outside of the unit, to ensure that the supply and input voltage are suitable. Before connection, check the earthing system. By Law,this appliancemust beearthed. If this regulation is not complied with, the Manufacturerwill notbe responsiblefor anydamage causedto persons or property. If a plug is not already attached, fit a plug appropriate to the load indicated on the rating plate. The earth wire is coloured yellow/green. The plug should always be accessible. Where the Hob is connected direct to the electricity supply, a circuit breaker must be fitted. If the power supply cord is damaged this is to be replaced by a qualified engineer so as to prevent any potential risk. The earth wire ( green and yellow coloured ) must be at least 10 mm longer than the live and neutral wires. The section of the cable used must be of the correct size in relation to the absorbed power of the hob. Please check rating plate for the power details and ensure that the power supply cord is of the type 3x0.75 mm²H05 V2V2-F.

LIVE

Mains Supply

If an appliance is not fitted with a supply cord and a plug, or with other means for disconnection from the supply mains having a contact separation in all poles that provide full disconnection under overvoltage category III conditions, the instructions shall state that means for disconnection must beincorporated in the fixedwiring in accordance with the wiringrules.

EARTH NEUTRAL

Brown Wire

Green/Yellow Wire Blue Wire

2.2. GAS CONNECTION

These instructions are for qualified personnel, installation of equipment must be in line with the relevant national standard. (For

U.K. only: by law the gas installation\commissioning must be carried out bya "Gas Safe" installer)

All work mustbe carried out with theelectricity supply disconnected. The rating plate on the hob shows the type of gas with which it is designed to be used. Connection to the mains gas supply or gas cylinder shouldbe carried out after having checked that it is regulated for the type of gas with which it will be supplied. If it is not correctly regulated see the instructions in the following paragraphs to change gas setting. For liquid gas (cylinder gas) use pressure regulators which comply with the relevantnational standards. Use only pipes,washers and sealing washers which comply with the relevant national standards.

For some modelsa coniclink is furnished to outfit for the installation in the countries where this type of link is obligatory; in picture 8 it is pointed out how to recognize the different types of links (CY = cylindrical, CO = conic). In every case the cylindrical part of the link has to beconnected to the hob. When connecting the hob to the gas supply via use offlexible hoses please ensure that the maximum distance covered by the hose does not exceed 2metres. The flexible tube shall be fitted in such a way that it cannot come into contact with a moveable part of the housing unit(e.g. a drawer) and does not pass through any space where it may become crushed/ kinked or damaged inany way.

To prevent any potential damage to the hob please carry out the installation followingthis sequence (picture6):

1)As illustrated, assembleparts in sequence:

A: 1/2 MaleAdaptor Cylindirical B: 1/2 Seal C: 1/2 FemaleGasAdaptor Conical-Cylindiricalor

Cylindirical-Cylindirical

03 GB

Power Cable
