Congratulations! Thank you for choosing a Candy

appliance; quality dishwashers which guarantee high performance and reliability. Candy manufacture a vast range of domestic appliances: washing machines, washer/dryers, cookers, microwave ovens, ovens and hobs, refrigerators and freezers. Ask your dealer for the catalogue with the complete range of Candy products. Please read this booklet carefully as it provides important information regarding the safe installation, use, and maintenance of the machine, together with some useful advice on how to achieve the best results from your dishwasher. For future reference please keep this instruction booklet in a safe place.

CUSTOMER SERVICE AND GUARANTEE

Your new appliance is fully guaranteed by the manufacturer for 12 months against electrical/mechanical breakdown excluding:

A. Any faults which occur due to bad

installation or misuse of the machine.

B. Any faults which occur due to repair

of, or interference with, the machine by any person not authorised by the manufacturer to carry out service.

C. Any faults which occur due to

any parts which are fitted to the machine which are not the original manufacturers parts.

D. Any faults arising from non-domestic

use or unusual or abnormal use of the machine.

E. Any faults arising from operation at

incorrect voltage.

F. Any faults arising from incorrect

operation of the machine. The guarantee applies to Gt Britain and Northern Ireland only, and is an addition to your statutory rights.

AFTER SALES SERVICE

For service and repairs call your local engineer on our national telephone number:

GIAS Service Tel: 08705 400 600 Support Service (Eire 018301 666)

CONTENTS

Safety advice Setting up, installation Water softener unit Loading the salt Adjusting the upper basket Loading the dishes Information for test laboratories Loading the detergent Types of detergent Loading the rinse aid Cleaning the filters Some practical hints Routine cleaning and maintenance Description of the control panel Technical data Programme selection and special functions Programme guide The Waterblock system Identifying minor faults

pag. 4 pag. 5 pag. 10 pag. 11 pag. 12 pag. 13 pag. 15 pag. 16 pag. 17 pag. 18 pag. 19 pag. 20 pag. 21 pag. 22 pag. 22 pag. 23 pag. 26 pag. 28 pag. 29

Please read the instructions in this booklet carefully because they contain important information on how to install, use and maintain your dishwasher safely as well as containing useful tips on how to make the most of it.

Keep this booklet safe for future reference.

Fig. A

SAFETY INSTRUCTIONS

There are certain basic safety rules which are valid for any domestic appliance.

Installation

■ Make sure that the plug fitted to the machine is compatible with the power supply socket. If it is not, get a suitably qualified person to fit the correct type, and to make sure that the cables to the mains socket are able to cope with the power rating of the appliance.

■ Ensure that the dishwasher does not crush power cables.

■ In general it is not advisable to use adaptors, multiple plugs and/or extension cables.

■ Should it be necessary to replace the supply cord, call the After Sales Service Centre.

Safety

■ Never touch the appliance when your hands or feet are wet or damp.

■ Do not use when your feet are bare.

■ Do not remove the plug from the mains

supply socket by pulling the mains cable or the machine itself.

■ Do not leave the appliance exposed to the elements (rain, sun etc).

■ This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.

Children should be supervised to ensure that they do not play with the appliance.

■ Water left in the machine or on the dishes at the end of the wash programme should not be swallowed.

■ The door should not be left in the open position since this could present a potential hazard ( es. tripping ).

■ Leaning or sitting on the open door of the dishwasher could cause it to tip over.

WARNING ! Knives and other utensils with sharp points must be loaded in the basket with their points down or placed in a horizontal position.

Daily use

■ This appliance is be designed for domestic use only.

■ The dishwasher is designed for normal kitchen utensils. Objects that have been contamined by petrol, paint, traces of steel or iron, corrosive chemicals, acids or alkalis must not be washed in the dishwasher.

■ If there is a water softening device installed in the home there is no need to add salt to the water softener fitted in the dishwasher.

■ Cutlery is washed best if it is placed in the basket with the handles downwards.

■ If the appliance breaks down or stops working properly, switch it of f, turn of f the water supply and do not tamper with it. Repair work should only be carried out by an approved service agent and only genuine spare parts should be fitted. Any failure to follow the above advice may have serious consequences for the safety of the appliance.

Disposal

■ The dishwasher has been made from materials which can be recycled so that it can be disposed of in an environmentally friendly way.

■ If you wish to dispose of an old dishwasher be careful to remove the door to eliminate the risk of children becoming trapped inside it.

INSTALLATION

(Technical notes)

■ After unpacking, adjust the height of the dishwasher. For the dishwasher to work correctly it must be level. Adjust the feet so that the machine does not tilt by more than 2 degrees.

■ If it you need to move the machine after removing the packaging, do not try to lift it by the bottom of the door. Follow the instructions in the figure below. Open the door slightly and lift the machine by holding on the top.

IMPORTANT When the appliance is located on a carpet floor, attention must be paid to ensure that there is no obstruction to the bottom vents.

Make sure that the plug on the appliance remains accessible after installation.

Electrical connection

This appliance complies with international safety standards, and is fitted with a 3 pin plug with earth connection to ensure complete earthing of the product.

Before connecting the appliance to the mains supply it is important to ensure:

1. that the supply socket is properly earthed;

2. that your electricity supply is capable of meeting the consumption requirements listed on the rating plate of your appliance.

WARNING! Ensure that your product is properly earthed.

In the absence of adequate earthing you will notice that when touching the metal parts of your appliance an electrical dispersion can be felt, due to the presence of a radio interference suppressor.

Manufacturer declines all responsibility for any damage due to non-earthing of the machine.

Appliance complies with European Directives 73/23/EEC and 89/336/EEC, replaced by 2006/95/EC and 2004/108/EC, and subsequent amendments.

Electrical connection (for U.K. only)

Plug your dishwasher into the power socket.

If the plug we supply does not fit :

■ CUT IT OFF AND DESTROY IT!

You can't use it on other appliances, and the exposed wires could be dangerous if anyone plugged it in.

■ Fit a suitable plug, as follows:

WARNING!

THIS APPLIANCE MUST BE EARTHED.

Fuses and plugs

This appliance should be used only on a socket with a minimum rating of 13 Amp.

Our ready-fitted plug is already equipped with a 13 amp fuse which is BS 1362 ASTA approved.

Any replacement should be exactly the same.

If the fuse cover is lost, do not use the plug until it is replaced.

A correct replacement fuse cover (obtainable from your dealer or Electricity board) must be the same colour as shown or named on the insert on the base of the plug.

Green and

yellow wire

Marked with the letter E, OR marked with the Earth

symbol, OR coloured green,

OR coloured green and yellow.

Blue wire

Brown wire

Marked N, OR coloured black.

Marked L, OR coloured red.

Connect to the terminal in the plug

Water connection

IMPORTANT The appliance must be connected to the water mains using new hose-sets. The old hose-sets should not be reused.

■ The inlet and drain hoses can be directed to left or right.

IMPORTANT The dishwasher can be connected to either cold or hot water, as long as it is no hotter than 60 °C.

■ Water pressure must be between 0,08 MPa and 0,8 MPa. If the pressure is below the minimum consult our service department for advice.

■ The inlet hose must be connected to a tap so that the water supply can be cut off when the machine is not in use

(fig. 1 B).

■ The dishwasher is fitted with 3/4" threaded connector (fig. 2).

■ Connect inlet hose “A” to water tap “B” with a 3/4" attachment making sure that it has been properly tightened.

■ If it is necessary, the inlet pipe can be lengthened up to 2,5 m. The extension pipe is available from the After Sales Service Centre.

■ If limescale deposits or sand are present in the water, it is advisable to obtain the appropriate filter, art. 9226085, from the After Sales Service Centre (fig. 3). The filter “D” must be inserted between the tap “B” and the inlet hose “A”, remembering to fit the washer “C”.

■ If the dishwasher is connected to new pipes or to pipes which have not been in use for a long time run water through for a few minutes before connecting the inlet hose. In this way no deposits of sand or rust will clog up the water inflow filter.

8 9

Connecting the outlet hose

■ The outlet hose should disharge into a standpipe, making sure that there are no kinks (fig. 4).

■ The standpipe must be at least 40 cm above floor level and it must have an internal diameter of at least 4 cm.

■ It is advisable to fit an anti-odour air trap (fig. 4X).

■ If necessary the outlet hose can be extended up to 2,5 m, provided that it is kept at a maximum height of 85 cm above floor level. The extension pipe is available from the After Sales Service Centre.

■ The hose can be hooked over the side of the sink, but it must not be immersed in water, in order to prevent water from being syphoned back to the machine when this is in operation (fig. 4Y).

■ When installing the appliance under a worktop the hose pipe clamp must be attached to the wall in the highest possible position under the worktop (fig. 4Z).

■ Check that there are no kinks in the inlet and outlet hoses.

598

556/573

INSTALLATION IN FITTED KITCHENS

Fitting between existing cabinets

■ The height of the dishwasher, 85 cm, has been designed in order to allow the machine to be fitted between existing cabinets of the same height in modern fitted kitchens. The feet can be adjusted so that correct height is reached.

■ The laminated top of the machine does not require any particular care since it is heatproof, scratchproof and stainproof

(fig. 5).

Opening the door

Put your hand into the recess and pull. If the machine comes open while it is working, an electrical safety device automatically switches everything off.

IMPORTANT For the machine to work properly, the door should not be opened while it is in operation.

Closing the door

Place the baskets in the machine. Make sure that both the spray arms are free to rotate and are not obstructed by cutlery, crockery or pans. Close the door, pressing on it to make sure it is firmly shut.

Underneath existing work top

(when fitting beneath a work top)

■ In most modern fitted kitchens there is only one single work top under which cabinets and electrical appliances are fitted. In this case remove the work top of the dishwasher by unscrewing the screws under the rear edge of the top

(fig. 6a).

IMPORTANT After removing the work top, the screws MUST BE screwed again under the rear edge of the top (fig. 6b).

■ The height will then be reduced to 82 cm, as scheduled by the International Regulations (ISO) and the dishwasher will fit perfectly under the kitchen working top (fig. 7).

LOADING THE SALT

■ On the bottom of the machine there is a container for the salt for regenerating the softener.

■ It is important to use only a salt that is specifically designed for dishwasher. Other types of salt contain small quantities of insoluble particles which over a long period of time may affect and deteriorate the softener performance.

■ To add salt, unscrew the cap of the container on the bottom and then refill the container.

■ During this operation a little water will overflow; but keep adding salt until the container is full. When the container is full, clean the thread of salt residue and retighten the tap.

■ After loading the salt, it is recommended running a complete washing cycle, or COLD RINSE programme. The salt dispenser has a capacity of between 1.5 and 1.8 kg and, for efficient use of the appliance, it should be refilled from time to time according to the regulation of the water softener unit.

IMPORTANT

(Only for first start up) When the appliance is used for the first time, after completely filling the salt container, it is necessary to add water until the container overflows.

Salt loading indicator

This model is provided with an indicator light on the control panel which will light up when it is necessary to reload the salt container.

IMPORTANT The appearance of white stains on dishes is generally an important sign that the salt container needs filling.

* The water softener unit is set in the

factory at level 3, as this is suitable for the majority of users.

According to the degree of hardness of your water, regulate the softener unit in the following way:

IMPORTANT The dishwasher must be ALWAYS off before start this procedure.

1. When the dishwasher is off, OPEN

the door.

2. Hold down the FIRST and the "THIRD" button (from the left) while

simultaneously pushing the "ON/OFF" button.

3. Release the buttons when some "PROGRAMME SELECTION" indicator

lights will come on and an acoustic signal will sound.

4. Press the "PROGRAMME SELECTION" button to select the required water softener level (each time the button is pressed a light will go on). For level 5, the 4 "PROGRAMME SELECTION" indicator lights will flash.

5. Turn off the dishwasher pressing the "ON/OFF" button to confirm the new

setting.

WARNING! If any problem occurs, turn the dishwasher off by pressing the "ON/OFF" button and start the procedure again from the beginning (STEP 1).

WATER SOFTENER UNIT

Depending on the source of the supply, water contains varying amounts of limestone and minerals which are deposited on the dishes leaving whitish stains and marks. The higher the level of these minerals present in the water, the harder the water is. The dishwasher is fitted with a water softener unit which, through the use of special regenerating salt, supplies softened water for washing the dishes. The degree of hardness of your water can be obtained from your water supply company.

Regulating the water softener

The softener unit can treat water with a hardness of up to 90°fH (French grading) or 50°dH (German grading) through 6 different settings.

The table below lists different degrees of water hardness with the corresponding setting for the softener unit.

Level

ºfH

(French

grading)

ºdH

(German

grading)

NO YES YES

YES YES

YES

Indicator light

Indicator lights

1,2

Indicator lights

1,2,3

Indicator lights

1,2,3,4

Indicator lights

1,2,3,4

flashing

Water

hardness

Water

softener

setting

Use of

regenerating

salt

0 1

4 5

0-5

6-15

16-30 31-45

46-60 61-90

0-3

4-9 10-16 17-25

26-33 34-50

“ON/OFF” button

“PROGRAMME SELECTION”

indicator lights

4 3 2 1

“PROGRAMME SELECTION” button

ADJUSTMENT OF THE UPPER BASKET

If 27 cm to 31 cm plates are normally used, load them onto the lower basket after the upper basket has been placed in its upper position and proceed as detailed below:

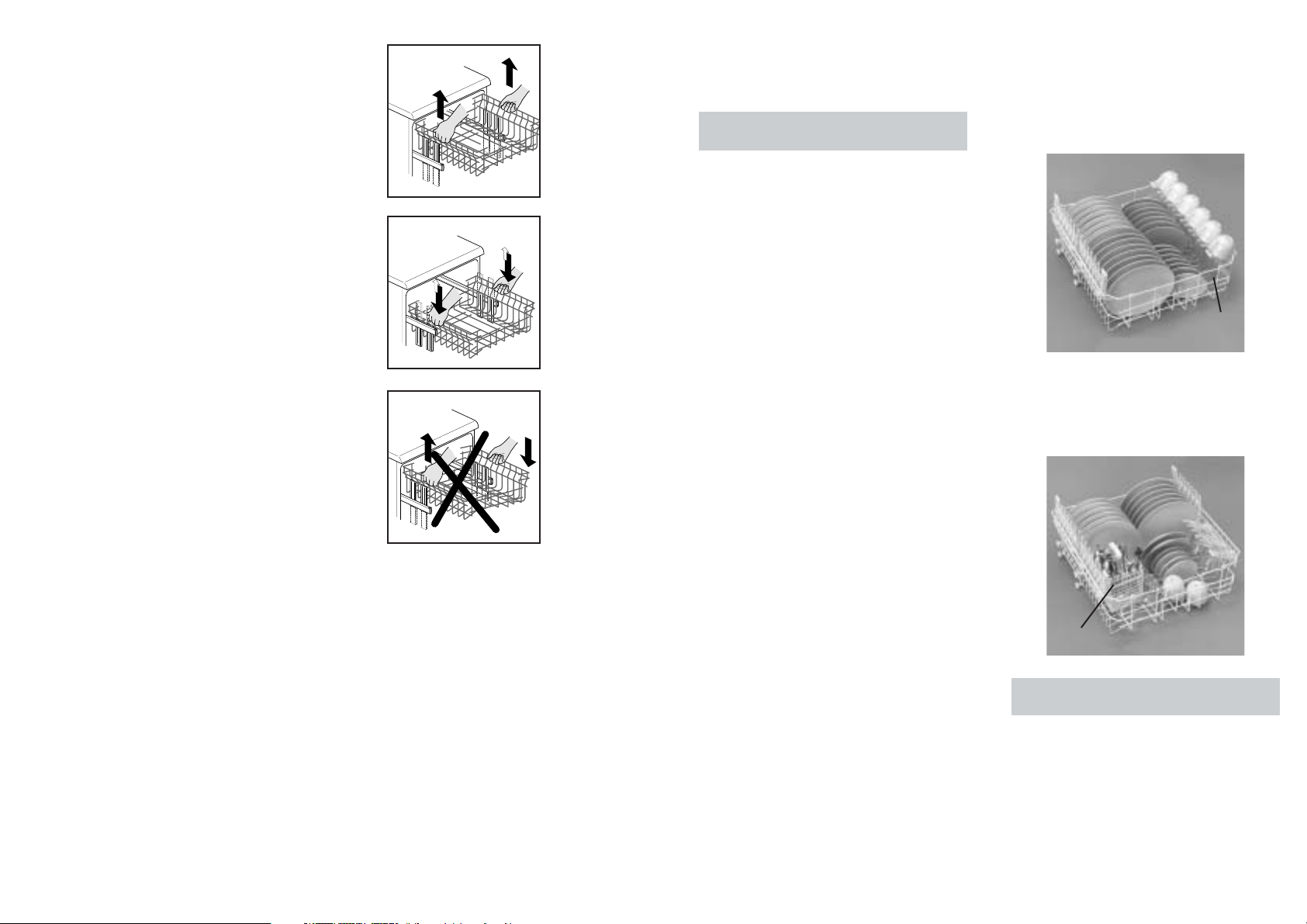

1. Pull out the upper basket;

2. Then grasp the basket from both sides

and lift it upwards (fig. 1).

Dishes that are bigger than 20 cm in diameter can no longer be loaded onto the upper basket and the mobile supports cannot be used when the basket is in the upper position.

ADJUST BASKET TO THE LOWER POSITION:

1. Grasp the basket from both sides and lift slightly upwards (fig. 2a);

2. Then slowly release into the correct position (fig. 2b).

N. B. : NEVER LIFT OR LOWER THE BASKET BY ONE SIDE ONLY (fig.3).

Attention : it is advisable to adjust the basket before loading the dishes.

LOADING DISHES

Using the upper basket

■ The upper basket is provided with mobile racks hooked to the sides of the basket which can be regulated in two positions: upright and lowered. In the lowered position the racks may be used for tea and coffee cups, kitchen knives and ladles. Glasses with stems may be safely hung on the ends of the racks. Glasses, cups, saucers and dessert plates may be loaded under the racks.

■Soup plates and ordinary plates may be

loaded with the rack in the upright position. Plates should be loaded vertically with the underside of the plate towards the back of the dishwasher with a space between each plate to allow water to pass freely.

■ It is advisable to load plates of the same size together in order to utilize maximum basket capacity.

■ Plates may be loaded in a single row (fig. 1) or on both rows (fig. 2).

■ It is advisable to load large plates (approx. 27 or more cm) slightly tilted towards the rear to facilitate introduction of the basket into the machine.

■ Salad bowls and plastic bowls may also be loaded on the upper basket. It is advisable to block these in place so that the jets of water do not make them overturn.

■ The upper basket has been designed to offer maximum flexibility in use and can be loaded with up to 24 plates on two rows, up to 30 glasses on five rows or a mixed load.

A standard daily load is represented in

figs. 1 and 2. Upper basket (fig. 1)

A = soup plates B = dinner plates C =dessert plates

Upper basket (fig. 2) A = soup plates B = dinner plates C =dessert plates D = saucers E = cups

Using the lower basket

■ Saucepans, oven dishes, tureens, salad bowls, lids, serving dishes, dinner plates, soup plates and ladles can be loaded on the lower basket.

■ Place the cutlery in the plastic cutlery holder with the handles pointing upwards.

■ Place the cutlery holder on the lower basket (fig. 6), making sure that the cutlery does not get in the way of the rotating arms.

D = saucers E = cups F = glasses

F = glasses

with stems

G = glass H = cutlery basket

■ The lower basket is fitted with a special adjustable central rack (fig. 3 and 4). This permits stable and optimum loading, even when the size and/or shape of the dishes is non-standard.

- POSITION “A”: for a standard load, or one that excludes pans, salad bowls and the like.

- POSITION “B”: for dishes which, although standard size, have a particular shape (very deep bowls, square dishes or ones without borders etc.).

- POSITION “C”: for larger than average flat plates and/or ones with nonstandard shapes (square, hexagonal, oval, pizza dishes etc.).

■ The small plates, as those used for desserts for example, must be placed in the lower basket as shown in the figure 5, with the support flap placed outwards ("B"). For normal or large plates the flap must be in the position ("A").

WARNING! If the small plates are placed in the basket with the support flap in the incorrect position, the plates will interfere with the lower spraying arm preventing it to rotate.

A standard daily load is represented in

fig. 6. Lower basket (fig. 6)

A = medium-sized

saucepan

B = large saucepan C = frying pan D = tureens,

serving dishes

Please load the dishwasher sensibly to ensure the best wash results.

IMPORTANT The lower basket has a safety-stop device, for its safe extraction, also especially useful with a full load. For loading salt, cleaning filter and for ordinary maintenance, the complete extraction of the basket is necessary.

Cutlery basket

The top of cutlery basket can be removed, for enable various loading options.

E = cutlery F = oven dishes G = medium bowl H = small bowl

Lower basket (fig. 2) M = 15 soup plates N = 15 dinner plates O = 7 + 7 dessert plates

Upper basket (fig. 1) A = 5 + 5 + 5 glasses B = 12 + 3 saucers C = 5 + 5 + 5 cups D = small bowl E = medium bowl F = large bowl G = dessert plate H = 1 + 1 serving spoons I =

ladle

L = cutlery

Cutlery basket (fig. 3)

Insert the cutlery as indicated in figure.

3 = teaspoons 4 = serving fork

1 =

15 dessert spoons

2 =

15 forks

3 =

12 teaspoons

1 = spoons 2 = knives

2 2 2 2

2 2

2 2 2 2 2 2

222

33 3 1 1

1 1 1

1 1

1 1 1

1 1

11 11 11 11 11 11 12 12 12 32 32 32 32 32 32 32 32 32 32 32 32

P = serving dish Q = cutlery

ATTENTION! Before loading the lower basket, please remove the adjustable central rack.

INFORMATION FOR THE TEST LABORATORIES

General programme comparison (Ref. EN 50242 Standards)

(see programmes selection)

1. Upper basket position: low

2. Normal load

3. Shine setting: 6

15 international place load (Ref. EN 50242 Standards)

Correct loading is indicated, in fig. 1 for the upper basket, in fig. 2 for the lower basket and in fig. 3 for the cutlery basket.

4. Amount of detergent:

- 9,5 g for pre-wash;

- 28 g for wash.

LOADING THE DETERGENT

The detergent

IMPORTANT It is essential to use a detergent that is specifically designed for dishwashers either in powder, liquid or tablet form.

“FINISH” gives very good results and can be easily obtained.

Unsuitable detergents (like those for washing up by hand) do not contain the proper ingredients for use in a dishwasher, and stop the dishwasher from working correctly.

Filling the detergent container

The detergent container is inside the door (fig. A “2”). If the lid of the container is closed, press the button (A) to open. At the end of every wash cycle the lid is always open and ready for the next time the dishwasher is used.

WARNING! When loading the lower basket, please ensure that the plates or others do not obstruct the detergent dispenser.

The amount of detergent to be used varies according to how dirty the dishes are and on the type of dishes to be washed. We advise using 20÷30 g of detergent in the wash section of detergent compartment (B).

After pouring the detergent into the container, close the lid, firstly pushing (1) and then pressing on it (2) until you hear the click.

Since not all detergents are the same the instructions on the boxes of detergent can vary. We should just like to remind users that too little detergent does not clean the dishes properly whilst too much detergent will not produce better results and is also a waste.

IMPORTANT Do not use an excessive amount of detergent and help limit damage to the environment at the same time.

TYPES OF DETERGENT

Detergent tablets

Detergent tablets of different manufacturers dissolve at different speeds, for this reason, during short programmes, some detergent tablets may be not fully effective, because they are not completely dissolved. If these products are used, is recommended to choose longer programmes to guarantee the complete use of the detergent.

IMPORTANT To get satisfactory washing results, the tablets MUST be placed in the wash section of the detergent container and NOT directly in the tub.

Concentrated detergents

The concentrated detergents, with reduced alkalinity and with natural enzymes, in conjunction with 50°C wash programmes, have a smaller impact on the environment and they protect the dishes and the dishwasher. The 50°C wash programmes purposely exploit the dirt-dissolving properties of the enzymes, allowing therefore, with the use of the concentrated detergents, to achieve the same results of the 65°C programmes but at a lower temperature.

Combined detergents

The detergents that also contain the rinse aid must be placed in the wash section of the detergent container. The rinse aid container must be empty (if it is not empty, set the rinse aid regulator to lowest position before using combined detergents).

"ALL in 1" combined detergents

If you are planning to use “ALL in 1” (“3 in 1 “/ “4 in 1”/ “5 in 1”, etc.) combined detergents i.e. those with built in salt and/or rinse agent, we would advise the following:

■ read carefully and follow the manufacturer ’s instructions given on the packaging;

■ the effectiveness of detergents containing the built in water softener/salt depends on the hardness of your water supply. Check that the hardness of your water supply is within the effective range given on the detergent packaging.

If when using this type of product, you don't get satisfactory washing results, please contact the detergent manufacturer.

In certain circumstances use of combined detergents can cause:

■ limescale deposits on dishes or in the dishwasher;

■ a reduction in washing and drying performance.

IMPORTANT Any problems which arise as a direct result of the use of these products are not covered by our warranty.

Please note that using the "ALL in 1" combined detergents, the rinse aid and salt indicator lights (only used on selected models) are superfluous, so you must ignore the lights.

If washing and/or drying problems occur, we recommend you return to use traditional separate products (salt, detergent and rinse agent). This will ensure that the water softener in the dishwasher operates correctly.

In this case, we recommends that you:

■ refill both the salt and rinse aid container;

■ run one normal washing cycle without a

load.

Please note that on return to the use of conventional salt, a number of cycles will be required before the system becomes fully efficient again.

1918

CLEANING THE FILTERS

The filter system (fig.A “4”) consists of:

a central container that traps the larger particles;

a flat gauze that continuously filters the wash water;

a micro filter, located beneath the gauze, that traps the tiniest particles ensuring a perfect rinse.

■ To achieve excellent results every time, the filters should be checked and cleaned after each wash.

■ To remove the filter unit, simply turn the handle anticlockwise (fig. 1).

■ For ease of cleaning, the central container is removable (fig. 2).

■ Remove the gauze filter (fig.3) and wash the whole unit under a jet of water. If necessary a small brush can be used.

■ With the Self-cleaning Micro filter, maintenance is reduced and the filter unit need only be checked every two weeks. Nevertheless, after each wash it is advisable to check that the central container and the gauze filter are not clogged.

WARNING! After cleaning the filters, make sure that they are correctly reassembled and that the gauze filter is properly positioned at the bottom of the dishwasher.

Make sure that the filter is screwed back, clockwise, into the gauze, as poor seating of the filter unit could have an adverse effect on the efficiency of the appliance.

IMPORTANT Never use the dishwasher without the filters.

LOADING THE RINSE AID

The rinse aid

The rinse aid, which is automatically released during the last rinsing cycle, helps the dishes to dry quickly and prevents spots and stains forming.

Filling the rinse aid container

The rinse aid container can be found to the left of the detergent container (fig. A "3"). To open the lid, push the reference mark and, in the same time, pull the tab of opening. It is always advisable to use rinse aid that is specifically designed for dishwasher. Check the rinse aid level through the indicator eye (C) which is located on the dispenser.

Regulating the rinse aid from 1 to 6

The regulator (D) is placed under the lid and can be turned using a coin. The recommended position is 4. The limestone content of the water considerably affects the formation of limescale and the drying performance. It is therefore important to regulate the quantity of rinse aid to achieve good washing results. If, after the wash, streaks occur on the dishes, decrease the amount by one position. If whitish spots occur, increase the amount by one position.

FULL EMPTY

dark light

2120

PRATICAL HINTS

How to get really good wash results

■ Before placing the dishes in the dishwasher, remove any remaining food (bones, shells, pieces of meat or vegetables, coffee grounds, skin of fruit, cigarette ash, tooth picks etc. to avoid blocking the filters, water outlet and washing arm nozzles.

■ Try not to rinse the dishes before loading them into the dishwasher.

■ If saucepans and oven dishes are encrusted with the remains of burnt or roast food, it is advisable to leave them to soak before washing.

■ Place the dishes face downwards.

■ Try to place the dishes in such a way

that they are not touching one another. If they are loaded properly you will get better results.

■ After loading the dishes check that the washing arms can rotate freely.

■ Pans and other dishes that have particularly stubborn food particles or remnants of burnt food should be left to soak in water with dishwasher detergent.

■ To wash silver properly:

a) rinse the silver immediately after

use, especially if it has been used for mayonnaise, eggs, fish etc.;

b) do not sprinkle detergent onto it; c) keep it separate from other metals.

How to make savings

■ If you want the dishwasher to give a complete wash, place the dishes in the dishwasher at the end of each meal and if necessary turn on the COLD RINSE cycle to soften the food remains and remove bigger particles of food from the new load of dishes. When the dishwasher is full start the complete wash cycle programme.

■ If the dishes are not very dirty or if the baskets are not very full select an ECONOMY programme, following the instructions in the program list.

What not to wash

■ It should be remembered that not all dishes are suitable for washing in a dishwasher.We advise against using the dishwasher to wash items in thermoplastic, cutlery with wooden or plastic handles, saucepans with wooden handles, items in aluminium, crystal, leaded glass unless otherwise stated.

■ Certain decorations may fade. It is therefore a good idea before loading the whole batch to wash just one of the items first so as to be sure that others like it will not fade.

■ It is a good idea not to put silver cutlery with non-stainless steel handles into the dishwasher as there could be a chemical reaction between them.

IMPORTANT When buying new crockery or cutlery always make sure that they are suitable for washing in a dishwasher.

Useful hints

■ In order to avoid any dripping from the top rack, remove the lower rack first.

■ If the dishes are to be left in the machine for some time, leave the door ajar, to let some air circulate and to improve the drying performance.

WHEN CYCLE IS FINISHED

After every wash it is essential to turn off water supply and to switch off the machine by pressing the On/Off button to the off position.

If the machine is not going to be used for some time, it is advisable to follow these rules:

1. do an empty wash with detergent in order to clean the machine of any deposits;

2. pull out the electric plug;

3. turn off the water tap;

4. fill the rinse aid container;

5. Ieave the door ajar;

6. keep the inside of the machine clean;

7. If the machine is left in places where the

temperature is below 0°C any water left inside the pipes may freeze. Wait until the temperature rises above zero and then wait for about 24 hours before starting up the dishwasher.

CLEANING AND MAINTENANCE

■ To clean the dishwasher outside, do not use solvents (degreasing action) neither abrasives, but only a cloth soaked with water.

■ The dishwasher does not require special maintenance, because the tank is self-cleaning.

■ Regularly wipe the door gasket with a damp cloth to remove any food remains or rinse aid.

■ It is advisable to remove limestone deposits or dirt periodically, by doing an empty wash; pour a glass of vinegar on the bottom of the tank and select the light wash.

■ If, in spite of the routine cleaning of the filters, you notice that the dishes or pans are not properly washed or rinsed, check that all the spray heads on the rotor arms (fig. A “5”) are clear.

If they are blocked, clean them in the following way:

1. to remove the upper rotor arm, turn it until it lines up with the stop marked by the arrow (fig. 1). Push it upwards (fig. 1b) and, keeping it pushed in, unscrew it in a clockwise direction

(to reassemble it repeat the same operation, but turn it anticlockwise).

The lower rotor arm can be removed simply by pulling it upwards (fig. 2);

2. wash the rotor arms under a jet of water to clear any blockage in the spray heads;

3. when you have finished, refit the rotor arms in the same position, remembering to re-align the arrow and screw into position.

■ Both the door lining and the tank lining are in stainless steel; however, should spots caused by oxidation occur, this is probably due to a high level of iron salts presents in the water.

■ The spots can be removed with a mild abrasive agent; never use chlorine based materials, steel wool, etc.

2322

EN 50242 place load Capacity with pans and dishes Water supply pressure Fuse Power input Supply voltage

15 9 persons Min. 0,08 - Max 0,8 MPa (see rating plate) (see rating plate) (see rating plate)

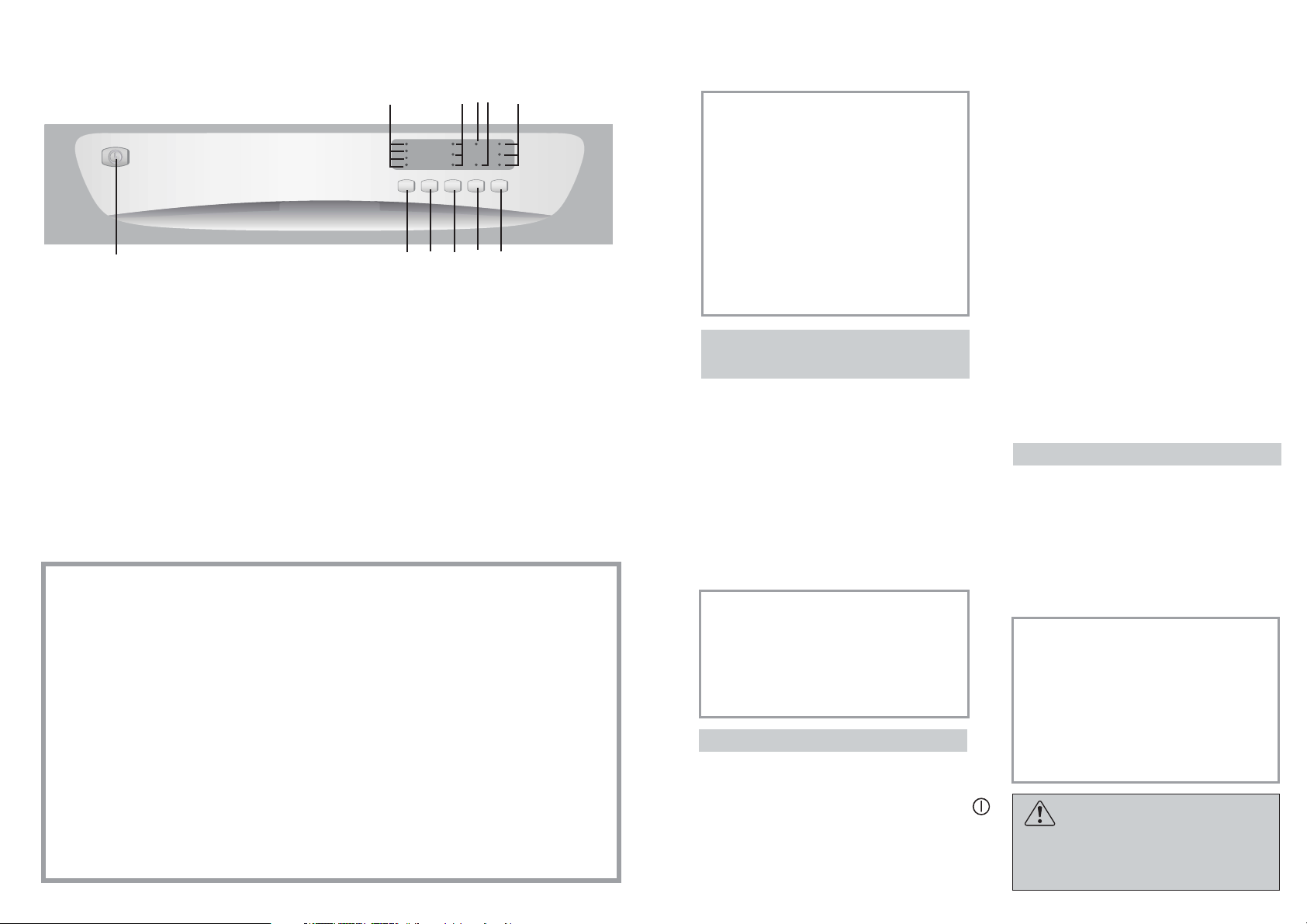

DESCRIPTION OF THE CONTROL PANEL

TECHNICAL DATA:

DIMENSIONS:

Height Depth Width Depth with door open

cm cm cm cm

with working top

85 60 60

120

without working top

82 57,3 59,8

117

A "ON/OFF" button B "PROGRAMME SELECTION" button C "START"/"RESET" button

(start/cancelling programme)

D "DEGREE OF SOILING" button

("VARIO POWER")

E "ALL in 1" option button F "DELAY START" button

G "PROGRAMME SELECTION" lights H "DEGREE OF SOILING" indicator lights

("VARIO POWER")

I "SALT EMPTY" light L "OPTION SELECTION" light M "PROGRAMME STATUS" lights/

"DELAY START" time lights

AB CD E F

PROGRAMME SELECTION AND SPECIAL FUNCTIONS

(Use in conjunction with programme guide)

IMPORTANT The dishwasher has two very practical functions:

- the "recommended" programme (which is set in the factory and is ideal for full-load daily use) for quick and accurate selection;

- the memory function which saves the last programme used, so that if you regularly use the same washing cycle, you do not have to re-set the programme every time, thereby saving time and effort.

"DEGREE OF SOILING" button

(VARIO POWER)

This button offers a choice of three levels of wash intensity, according to how dirty the dishes are. The default setting for this function is the intermediate one (central indicator light on). To set the intensity of wash, press the button to increase (top indicator light) or reduce (lower indicator light) this will modify the wash time and the wash temperature. The combination of 3 different wash intensity with the four main wash programmes (indicated on the control panel) enable to have up to 12 different wash cycles.

IMPORTANTE When the dishwasher is switched on, the "DEGREE OF SOILING" last used will be indicated. If a programme has been cancelled while in process, the "DEGREE OF SOILING" setting will return to intermediate (central indicator light on).

Programme settings

■ Open the door and place the dirty dishes inside the appliance.

■ Press the "ON/OFF" button . The indicator light for the "recommended" programme or the indicator light for the last programme used will flash.

■ To set another programme, press the "PROGRAMME SELECTION" button.

■ If you wish to choose the "DEGREE OF SOILING", press the corresponding

button.

■ If you wish to select an option, press the option button (the corresponding indicator light will light up).

The option button can be selected or deselected WITHIN one minute of the programme commencing.

■ Press the "START" button (the selected programme indicator light will stop flashing and remain on.

■ When the door is shut, after an audible signal has sounded, the programme will start automatically.

WITHIN one minute of the programme commencing, another programme can be selected, simply by pressing the "PROGRAMME SELECTION" button (it is also possible to change the "DEGREE OF SOILING" setting, by pressing the corresponding button).

Programme interruption

Opening the door when a programme is running is not recommended especially during the main wash and final hot rinse phases. However, if the door is opened while a programme is running (for example, to add dishes) the machine stops automatically. Close the door, without pressing any buttons. The cycle will start from where it left off.

IMPORTANT A running program can be interrupted without opening the door by pressing the "ON/OFF" button. In this case, simply press the "ON/OFF" button again to restart the cycle from where it left off.

WARNING! If you open the door during the drying cycle, an audible audio signal advises you that the drying cycle has not yet finished.

Changing a running programme

Proceed as follows to change or cancel a running program:

■ Hold the "RESET" button down for at least 5 seconds. The programme indicator lights will flash and an acoustic signal will sound.

■ The running programme will be cancelled and the indicator light for the “recommended” programme will start to flash.

■ At this point a new programme can be set.

WARNING! Before starting a new programme, you should check that there is still detergent in the dispenser. If necessary, top up the dispenser.

If there is any break in the power supply while the dishwasher is operating, a special memory stores the selected programme and, when the power is restored, it continues where it left off.

Programme operations

When a programme is running the relevant indicator light will remain on and the 3 “PROGRAMME STATUS” indicator lights ("WASH" , "DRY" , and "END" ) will light singularly and in sequence to indicate the current phase.

Programme end

A5 second alarm will sound (if not muted) 3 times at 30 second intervals to signal that the programme has ended. The programme end indicator light will turn on, while all the others indicator lights will turn off. Dishes can now be removed and the dishwasher turned off by pressing the "ON/OFF" button or dishes can be loaded for new cycle

Option button

"ALL in 1" button

This option optimises the use of "ALL in 1" ("3 in 1"/"4 in 1"/"5 in 1", ecc.) combined detergents. By pressing this button, the selected washing programme is modified to get best performance from combined detergents (furthermore, the salt aid shortage light is de-activated).

WARNING! Once selected, this option keeps being on (light on) also for next washing cycles and it can be de-activate (light off) only by pressing the button once again.

IMPORTANT When this option is selected, the "RAPID" cycle is 10 minutes longer.

"DELAY START" button

The dishwasher start time can be set with this button, delaying the start by 3, 6 or 9 hours.

Proceed as follows to set a delayed start:

■ Press the "DELAY START" button (each time the button is pressed the start will be delayed by 3, 6 or 9 hours respectively and the corresponding time indicator light will illuminate).

■ To start the countdown, press the "START" button (the selected programme indicator light will come on, while the set time indicator light will start to flash).

If a 9 hour delay is set, countdown will be displayed by the 6h indicator light after 3 hours and the 3h indicator light after 6 hours.

At the end of the last 3 hours (at the end of countdown) the 3h indicator light will stop flashing and remain on to indicate the washing phase and the programme will start automatically.

If countdown has not ended, whereby the programme has not yet started, it is possible to change or cancel the delayed start and select another programme or to select/deselect the option button, proceeding as follows:

■ Hold the "RESET" button down for at least 5 seconds. The programme indicator lights will flash and an acoustic signal will sound.

■ The selected programme will be cancelled and the indicator light for the "recommended" programme will start to flash.

■ Press the "DELAY START" button to set another delayed start time (the corresponding indicator light will turn on).

■ A new programme can be set after a delayed time has been changed or cancelled or an option button has selected or deselected.

Alarm mute for the PROGRAMME END

The alarm for the programme end may be muted as follows:

■ With the dishwasher off, hold down the "ALL in 1" button for few seconds while simultaneously pushing the "ON/OFF" button, releasing them only after the alarm sound.

■ Press the "ALL in 1" button again: the relevant indicator light (turned on to indicate that the alarm is activated) will flash (to indicate that the alarm is off).

■ Wait for the alarm to sound to indicate that the settings were saved.

■ To turn the alarm on again, follow the same procedure.

Fault signals

If malfunctions or faults occur when a programme is running the indicator light that corresponds to the selected cycle will flash rapidly and the alarm sounds. In this event, turn the dishwasher off by pressing the "ON/OFF" button.

After checking to make sure the water inlet hose tap is open, that the drain hose is not bent and that the siphon or filters are not clogged, set the selected programme again.

If the anomaly persists, contact Customer Service Department.

WARNING! To ensure the correct operation of the anti-overflow safety device, we recommend that the dishwasher is not moved or tilted during operation. If however it is necessary to tilt or move the dishwasher, please ensure that the washing cycle is complete and that there is no remaining water inside the dishwasher.

2726

Wash with prewash

For wash programmes with prewash, it is advisable to add a second dose of detergent (max. 10 g) directly in the machine.

140

•••

•

75°C

•

•••

•

•••

•

130

75°C

65°C

Once a day - for heavily soiled pans and any other items that have been left all day for washing.

Hygienic 75°C

POWER

•••

•

•••

•

•••

•

•••

•

•••

•

•••

•

•••

•

•••

•

Suitable for heavily soiled items that are to be washed straight after a meal (Max 8 place load).

- WASHING CLASS A- Quick wash for dishes which are to be washed

immediately after the meal. Wash load of 4/6 persons.

Suitable for delicate crockery and glassware. Also for less soiled items excluding pans.

Short cold pre-wash for items that are stored in the dishwasher until you are ready to wash a full load.

(“RECOMMENDED” PROGRAMME)

Once a day - for normal soiled pans and any other items that have been left all day for washing.

Energy Saving Programme suitable for normal soiled items. Using detergents with enzyme.

Programme standardised to EN 50242.

PROGR.

POWER

INTENSIVE 75°C

Strong & Fast 65°C

Universal plus 70°C

UNIVERSAL 65°C

Daily 55°C

ECO plus 55°C

ECO 45°C

Delicate 45°C

A Class 1h 70°C

RAPID 32' 50°C

Pre-wash

POWER

PROGR.

POWER

PROGR.

POWER

PROGR.

POWER

An antibacterial cycle, intended for washing and sterilising dishes (even heavily stained ones) babies’ bottles etc.

Intended for rapid washing of very dirty dishes.

Intended for everyday dishwashing. Two final rinses ensure a high level of hygiene and cleanliness.

Fast cycle, for “normally” dirty dishes - intended for frequent washes and normal loads.

A medium temperature programme, intended for washing pans and dishes that are “normally” dirty, using detergents which contain enzymes.

125

110

190

175

55°C

45°C

70°C

50°C

70°C

65°C

55°C

YES

Programme Description

PROGRAMME GUIDE

Check list

Avarage duration

in minutes

Special function

buttons

available

Detergent for soaking

(Prewash)

Detergent for washing

Clean filter

Check rinse aid

dispenser

Check salt container

Hot pre-wash

Cold pre-wash

Main wash

First cold rinse

Second cold rinse

Hot rinse with rinse aid

With cold water (15°C)

-Tolerance ± 10%-

"DELAYSTART" button

"ALL in 1" button

Programme contents

+ 31 hidden pages
