This device complies with Part 15 of the FCC Rules.
Operation is subject to the following two conditions:
(1) this device may not cause harmful interference, and
(2) this device must accept any interference received,
including interference that may cause undesired operation.
One or more of the following statements may be applicable
:
FCC WARNING
CAUTION : Any changes or modifications in construction of this device which are not expressly
approved by the party responsible for compliance could void the user’s authority to operate the
equipment
Please read the following instructions carefully to ensure correct use and to prevent unexpected
accident and damage caused by incorrect use.
Do not disassemble or modify the IP videophone or power adapter
by anyone other than the authorized personnel.
The warranty will not cover any defect that occurs due to such mishandling.
Install the unit on a stable and flat surface to ensure safe operation.
Do not install the unit in such a location where the unit can be affected by dust or gas.
Do not install the unit in a place subject to direct sunlight, or near heat sources such as
radiators.
Do not install the unit near humid location to avoid any defect, heat and electric shock.
Do not touch the electric adapter when it is thundering and lightning to avoid electric shock.
Keep the unit safe from sudden shock to prevent defect. And do not apply excessive force
especially to the LCD screen and the camera.
Clean the camera and the LCD screen with soft and clean clothes. Do not use coarse material
to avoid damage.
Make sure to turn off the power switch before disconnecting the mains lead.
Disconnecting the mains with the power switch on will cause defect of the unit.
Do not apply sudden change of temperature. Installing in a place with severe temperature
change may cause defect of the unit.
CIP-4500 User Manual 6
Make sure to use the exclusive power adapter.
Disconnect the power cable when the unit is not in use for a long time.
1. Installing IP Videophone
Components
The following parts are included in the product package. Be sure that you received all the
parts.
• Main body of IP Videophone
• Handset
CIP-4500 User Manual 7
• Power adaptor
• Power cable
• User manual
• Network cable
• Telephone cable
Name of parts and functions
12 3
1 Handset : Handset of IP Videophone
2 Speaker : rings bell or sounds off the voice of
4
the other party in the speakerphone mode.
3 Camera : captures your image to send to the
other party.
4 LCD screen : displays images of yours and the
other party during the call.
5Microphone : receives voice in the
speakerphone mode.
5
Keypad : the buttons operate the functions of
the IP Videophone
CIP-4500 User Manual 8
123
:@/
456
GHIJKLMNO
789
PQRSTUVWXYZ
*SM S
FLASH/1aA
ABCDEF
0# .
-. _
DISPLAY/TAB
PRIVACY
TEL
WX
Numeric keys
Enters phone number in the dialing mode or the letters in the User
Configuration menu.
* Enters ‘*’.
SMS Sends a short message during a call.
#
Enters ‘.’ or ‘#’.
Rejects the incoming call.
FLASH
1aA
DISPLAY
Forwards the call to others during the Internet mode.
Selects the type of letters in the input mode.
(Numeric/Lowercase/Capital)
Changes the display mode during a call.
Shifts between the URL links and the URL input windows displayed on
the browser.
TAB
Moves to the submenus when retrieving the mail.
Moves to the submenus when the auto answer list is displayed.
POWER
REDIAL
MUTE
EXIT
S
ENT
T
REGISTER
SPEAKER
PRIVACY
Stops transmitting the video data during a call.
TEL Changes the call mode to public phone mode.
REDIAL
MUTE
EXIT
Makes a call to the last dialed number.
Cuts off the voice transmission and sends the melody.
Moves to the previous menu from the User Configuration menu or the
Setup menu during a call.
SPEAKER Activates or deactivates the speakerphone mode.
POWER Indicates if the IP Videophone is switched on.
REGISTER
CIP-4500 User Manual 9
Green LED is on when the IP Videophone registered to the Internet
phone service.
Greed LED blinks fast in auto answer mode.
Green LED blinks slowly when the IP Video phone is registered to the
Internet phone service and is in auto answer mode.
Makes a call to the dialed number.
ENT
Arrow Key
( STXW )
Moves to the User Configuration menu.
Saves the setting in User Configuration menu.
Moves between the User Configuration menus.
Moves between the items in the edit mode of PhoneBook or CallLog in
User Configuration menu.
ON/OFF : Turns on/off the power
POWER : Connects the power adapter
LINE : Connects to the telephone line
VIDEO IN : Receives external video data
AUDIO IN : Receives external audio data
VIDEO OUT : Sends out video data
AUDIO OUT : Sends out audio data
PC : Connects to the computer with LAN
cable
WAN : Connects to Internet
NOTE. A/V cable for audio/video input/output is not included in the package.
NOTE. When connecting TV to VIDEO OUT, the LCD screen of IP Videophone may not be fully
displayed depending on the model of TV.
CIP-4500 User Manual 10
Installing IP Videophone
Please check the components before installing the IP Videophone. For the best result, please follow
the installation procedures.
1) Plug in the handset line to the body.
3) Connect the power adapter to the body of
IP Videophone.
5) Connect the phone line.
2) Connect the power cable to the power
adapter.
4) Connect the ADSL modem cable, cable
modem or LAN cable to the IP
Videophone.
6) Turn on the power. The network
configuration wizard is displayed. Set up
the appropriate network configuration.
Network Configuration – Using Wizard
① What is Wizard?
You must set up IP to use video call through the IP Videophone. The unit provides the
wizard menu so that you can easily set up Internet. The menu provides you with the stepby-step guide to set up the IP part of the Personal Information Management System (PIMS)
menu. It is executed when you first turn on the IP Videophone or when the system is
rebooted with Wizard of UserSet being set to ‘ON’.
CIP-4500 User Manual 11
② Starting Wizard
Select ‘Yes’ for Wizard and turn on the IP Videophone to start the Wizard menu. The Wizard
menu provides the following configuration functions.
IP Setup
Dynamic IP
ADSL IP
Static IP
Secondary DNS Address
NTP Server Address
Internet Phone
Internet phone setup
- Server address
- Authentication information
- User information
NAT Setup
Own NAT
Inside the NAT/Firewall
CIP-4500 User Manual 12
A. Internet Connection setting
• In the Wizard Menu main window, the current values are
displayed, and the cursor is on the Next button.
• In Internet Connection setting, use ST to move
between the connection method, and use XW or ‘ENT’ to
select an item.
• In order to proceed, click Next, or to finish the function, click Finish.
NOTE. When connecting the IP Videophone to LAN or the cable network, select ‘LAN(Static IP)’ if the address of
the IP Videophone is already fixed, or select ‘LAN(Dynamic IP)’ if the IP address is dynamically allocated. If you
have subscribed to the ADSL network, select ‘ADSL (PPP/PPPoE)’.
NOTE. Click Next will display the LAN(Static IP) setting window if you select ‘LAN(Static IP)’, the Secondary
DNS setting window if you select ‘LAN(Dynamic IP)’, or A DSL setting if y ou select ‘ADSL(PPP/PPPoE)’.
B. LAN(Static IP) setting
• This menu window is displayed if you selected
‘LAN(Static IP)’ in Internet Connection setting. The
window displays the current values. You can change
the value as described in ‘LAN(Static IP)’ configuration
in <Default Internet Configuration(51p)>.
• In order to proceed to the next menu, use ST XW to
move to the menu button, and then click Next, or if you want to finish Wizard, click Finish.
NOTE. In order to move to Secondary DNS setting, click Prev, move to Internet Connection setting, and
then, click Next.
NOTE. If you use the IP Videophone on the network with Firewall, you can only communicate with the IP
Videophone inside the firewall but not with the one outside the firewall. It is because the firewall blocks the
Internet packet used by the IP Videophone.
C. ADSL Configuration
CIP-4500 User Manual 13
• This menu window is displayed if you selected
‘ADSL(PPP/PPPoE)’ in Internet Connection setting.
The window displays the current values. You can
change the value as described in ‘ADSL’ configuration
in <Default Internet Configuration(51p)>.
• In order to proceed to the next menu, use ST XW to
move to the menu button, and then click Next, or if you want to finish Wizard, click Finish.

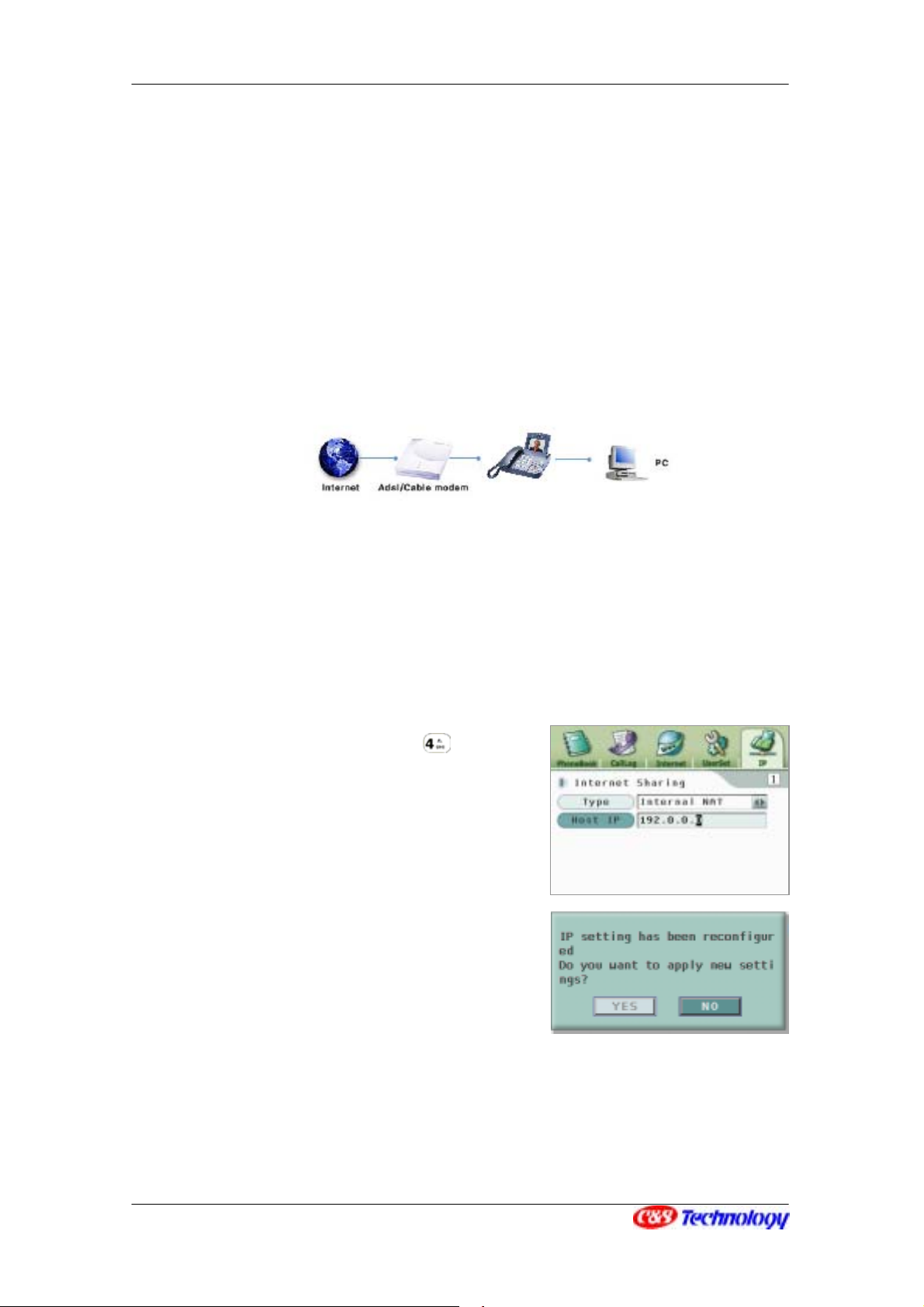

NOTE. In order to connect the IP Videophone to ADSL, you should use the external ADSL modem. Connect
the Internet line from the ADSL modem to the IP Videophone as illustrated in the following figure.
NOTE. In order to move to Secondary DNS Setting, click Prev, move to Internet Connection setting, and
then, click Next.
D. Secondary DNS setting
• This menu enables you to set up the secondary DNS
address in preparation for malfunction of the primary
DNS set in Internet Connection setting. You can
change the value as described in < Advanced Internet
Configuration(52p)>.
• In order to proceed to the next menu, use ST XW to
move to the menu button, and then click Next, or if you want to finish Wizard, click Finish.
NOTE. Click Prev, move to LAN(Static IP) setting / Internet Connection setting / ADSL setting depending
on the selection in Internet Connection setting, and click Next to move to Time Server setting.
E. Time Server setting
CIP-4500 User Manual 14
• This menu enables you configure the timeserver to acquire time information used in the IP
Videophone.
• Enter the server addresses in ‘Server1’ and ‘Server 2’.
NOTE. If you leave the TimeServers 1 and 2 empty, the IP
Videophone acquires the current time from the default time server.
• In ‘G.M.T’ and ‘D.S.T’ field, set the appropriate standard
time and summer time option, using XW.
• The setup in this menu is as described in < Time/Date Setting(48p)> of UserSet.
• In order to proceed to the ne xt menu, use ST XW to move to the menu button, and then click
Next, or if you want to finish Wizard, click Finish.
NOTE. Click Prev, move to Secondary DNS setting, and then, click Next to move to Internet Phone setting.
F1. Internet Phone setting (For H.323 protocol)
• This menu is used when you register the IP Videophone
to the Internet phone service. The menu consists of two
windows. The first one is the menu on which you shall
enter the Internet phone server address, and the second
one is the menu on which you shall enter H.323 ID /
E.164 / Password.
• Changing the value is as defined in <Internet Phone
Configuration (H.323) (52p)>.
• In order to proceed to the next menu, use ST XW to
move to the menu button, and then click Next, or if you
want to finish Wizard, click Finish.
NOTE. Because the IP Videophone conforms to H.323 international video communication standard, you can
register the unit to the Internet phone service. In order to connect the phone to the Internet phone service network,
you should set the H.323 ID to be used in the server address and authentication process, and the ID in the format
CIP-4500 User Manual 15
of phone number (E.164). Therefore, make sure to check them when you subscribing the phone to the IP phone
service network.
NOTE. If you click Prev in the first Internet Phone setting, you will move to Time Server setting menu. If you
click Next you will move to the second Internet Phone setting menu. In the second Internet Phone setting, if
you click Prev, you will move to the first Internet Phone setting, and if you click Next, you will move to Internet
Sharing setting.
NOTE. If you have not subscribed to the Internet phone service, leave the blank empty, and click Next to move to
Internet Sharing setting.
F2. Internet Phone setting (For SIP protocol)
• This menu is used when you register the IP Videophone to the Internet phone service. The menu
consists of three windows. The first one i s the menu on whi ch you shall ente r the user info rmation,
and the second and the third are the menus on which you shall set up the Internet phone server.
• The Internet Phone setting is the menu on which you
register the IP Videophone to the server or you enter the
user information for communication with the other party.
In this window, enter the user name , password, address
and alias. You can change the value as described in <
Internet Phone Configuration (SIP) (53p)>.
• Use ST to select Next, and press ‘ENT’, and then
register the Internet phone server. You may select either
Proxy or Registrar. Use ST to move between the items,
and use XW or ‘ENT’ to select an item.
• If you select Next using ST, and press ‘ENT’, the server
and port entering menu is displayed. You can change the
value as described in < Internet Phone Configuration
(SIP) (53p)>.
• In order to proceed to the next menu, use ST XW to
move to the menu button, and then click Next, or if you
want to finish Wizard, click Finish.
CIP-4500 User Manual 16
NOTE. Because the IP Videophone conforms to H.323 international video communication standard, you can
register the unit to the Internet phone service. In order to connect the phone to the Internet phone service network,
you should set the H.323 ID to be used in the server address and authentication process, and the ID in the format
of phone number (E.164). Therefore, make sure to check them when you subscribing the phone to the IP phone
service network.
NOTE. If you click Prev in the first Internet Phone setting, you will move to Time Server setting menu. If you
click Next you will move to the second Internet Phone setting menu. In the second Internet Phone setting, if
you click Prev, you will move to the first Internet Phone setting, and if you click Next, you will move to Internet
Sharing setting.
NOTE. If you have not subscribed to the Internet phone service, leave the blank empty, and click Next to move to
Internet Sharing setting.
G. Internet Sharing setting
• Select the Internet sharing method to be applied to IP
Videophone.
• Use ST to move between the items, and use XW or
‘ENT’ to select an item.
• In order to proceed to the next menu, use ST XW to
move to the menu button, and then click Next, or if you want to finish Wizard, click Finish.
NOTE. If you click Prev, you will move to the second Internet Phone setting. If you click Next, you will move to
Finish Wizard setting/External Sharing setting/Internal Sharing setting depending on the selected sharing
mode.
H. External Sharing setting
• The menu is used to set up the Global IP address when
you have selected ‘External NAT used’ in the Internet Sharing setting. Refer to < Internet Sharing
Configuration (55p)> for details.
CIP-4500 User Manual 17
• Enter the global IP address of the external sharer in ‘Global IP’.
• In order to proceed to the ne xt menu, use ST XW to move to the menu button, and then click
Next, or if you want to finish Wizard, click Finish.
NOTE. Click Prev to move to Internet Sharing setting, and click Next to move to Finish Wizard setting.
I. Internal Sharing setting
• This menu is used to set up the Host IP address when
you have selected ‘Internal NAT used’ at Internet Sharing setting. Refer to < Internet Sharing
Configuration (55p)> for details.
• Type the Host IP address of the IP Videophone to be
used in the internal private network on ‘Host IP’.
• In order to proceed to the ne xt menu, use ST XW to move to the menu button, and then click
Next, or if you want to finish Wizard, click Finish.
NOTE. Click Prev to move to Internet Sharing setting, and click Next to move to Finish Wizard setting.
Finish Wizard setting
J.
• The window indicates that the wizard is finished.
• If you click ‘Reboot’, the IP Videophone is rebooted. If you
click ‘Continue’, the IP Videophone becomes in the
standby mode.
NOTE. In order that Configuration Wizard is safely applied to the IP
Videophone, you are recommended to select ‘Reboot’ to reboot the IP Videophone.
2. IP Videophone-based Calling
Making a Call
There are seven ways to make a videophone call.
① Making a call using dialpad
• Pick up your handset or press ‘SPEAKER’.
• Press the IP address or p hone nu mber yo u want to make a
call. For character input, refer to <How to Enter a Character
(32p)>.
CIP-4500 User Manual 18
• After pressing the number, press ‘ENT’.
• When the dialing is started, the right figure is displayed.
NOTE. You can also make a call by pressing the last digit of the
phone number for a while. For example, if you try to make a call at
123.45.67.89, press ‘123.45.67.8’ and then for a moment.
② Making a call in waiting mode
• In waiting mode (when LCD is turned off), if you enter the IP address or the first digit of
the call number of the person you want to make a call, LCD is turned on, activating the
dialpad with the input number.
• Making a call by pressing remaining c all nu mber is the same process as <① Making a
call using dialpad>.
③ Making a call using redial
• Pick up your handset or press ‘SPEAKER’ .
• Press ‘REDIAL’ tomake a call at the number lastly connected.
NOTE. If IP videophone is in waiting mode, it is possible to make a call by pressing ‘REDIAL’
directly without picking up your handset.
④ Making a call from the latest calling list
• Pick up your handset or press ‘SPEAKER’ .
• Press S or T to display the latest calling list.
Select the number you want using ST.
• Press ‘ENT’ to make a call.
CIP-4500 User Manual 19
⑤ Speed dialing
• Pick up your handset or press ‘SPEAKER’ .
• Enter the hot key you want from your PhoneBook and press ‘ENT’.
NOTE. If the speed dial number is for ‘Internet’, you shall make a call on the Internet, and for
‘Mobile’ or ‘Public’, make a call using a normal phone.
NOTE. If you press the speed dial number for a while, you can make a call without pressing
‘ENT’.
⑥ One Click Call from the PhoneBook
• While browsing your PhoneBook, select the destination you want to call and press
‘ENT’.
NOTE. For detailed call process, refer to < PhoneBook(35p)>.
⑦ One Click Call from the Call Log
• While browsing your CallLog, select the destination you want to call and press ‘ENT’.
NOTE. For detailed call process, refer to <CallLog ( 39p)>.
Receiving a Call
If an incoming call is arrived, videophone begins ringing and the following animation is
shown on the LCD screen.
CIP-4500 User Manual 20
A.
Picking up handset
Pick up your handset as usual.
B. Answering a call in Speakerphone mode
Press ‘SPEAKER’, in which case you get into the speakerphone mode.
Rejecting a Call
Press ‘
’ to reject the incoming call.
Dropping a Call
To disconnect a call, hang up your handset.
If you are in speakerphone mode and the handset has already put on the phone, press
‘SPEAKER’.
NOTE. Your call data is stored in CallLog.
Call Forward
Call Forward allows you to forward a call from your phone to any other phone.
• Press ‘FLASH’ to display dialpad on the screen.
• Click phone number or IP address of the person to
CIP-4500 User Manual 21
whom you want to forward a call and press ‘ENT’.
NOTE. If a call is successfully transferred, the previous call is
automatically disconnected. If not, the previous call is returned.
NOTE. Call forward is successful only between CIP-4500.
Auto Answering Mode
① What is Auto Answering mode?
In auto answering mode, an incoming call is automatically received after ringing the
predefined times, and an absent message is delivered. In this case, if a caller leaves a
message, such the message is stored so that you can verify it in Auto Answering
Message of CallLog.
NOTE. In auto answering mode, you are reco mmended n ot to transmit image a nd voice dat a .
CIP-4500 User Manual 22
NOTE. If a called party answers a call while an absence message is delivered or a caller leaves a
message, the call may be connected.
NOTE. If there is not enough memory space to store messages, an absence message is delivered and
a call is disconnected automatically.
② Setting Auto Answering mode
You can set auto answering mode in Configuration.
NOTE. For detailed information, refer to <UserSet( 45p)>.
③ Monitoring Function
You can use monitoring function of IP videophone by assigning the number of ringing times
to “0” when setting auto answering mode in Us erSet. With this function, you are able to
monitor the local situation at the remote place.
Even though a caller makes a call, IP videophone seems not to operate and an absent
message is delivered to a called party. In this case, if the caller sends the password via
SMS while hearing the voice message, the IP videophone begins to send local video and
audio data. If the password is not matched with yours, the call is disconnected immediately.
NOTE. For use of this monitoring function, the IP videophone of a caller shall be able to send a
numeric information.
NOTE. How to send your password using IP videophone is described in <Short Message Service
(SMS)
(27p)>.
Useful Functions during a Call
You can use some useful functions even being on the line.
① Display
CIP-4500 User Manual 23
Press ‘
display mode may be changed in the following sequence:
② Mute
Press ‘
displayed on LCD screen and melody instead of your voice is sent to the other party.
DISPLAY’ to change display mode of the picture on your LCD screen. The
Dual Screen Mode
Full Screen Mode (of the
other party)
PIP(Picture-in-Picture)
PIP(Picture-in-Picture)
MUTE’ to prevent the other party from hearing your voice. “MUTE” message is
If you want to release mute, press ‘
MUTE’ again.
CIP-4500 User Manual 24
③ Privacy
Press ‘PRIVACY’ to keep your image from delivering to the other side. Instead of your
image, a logo image is displayed on the other party’s screen in the privacy mode.
If you want to release privacy mode, press ‘PRIVACY’ again.
④ Volume Control
1 You can control volume by pressin g S T during a call. The volume value icon is shown at
the bottom of LCD screen.
2 You can control volume in Setup menu during a call.
Press ‘
ENT’ to display the control menu.
Select the Volume Control menu using ST. Then, press ‘ENT’ to display phone
volume menu.
Select the volume using W X and press ‘ENT’ .
111.123.111.123 I-HAND
If you want to return to previous menu, press ‘
⑤ Video Quality Control
[ OP T I O N SET T IN G ]
VOLUME CONTROL
QUALITY CONTROL
INPUT SELECT
VOLUME CONTROL
3
111.123.111.123 I-HAND
EXIT’.
If video quality of the other side is not good or speed is too slow during videophone calling,
you can control video quality or speed of the other party so that you can get better images
and speeds.
Press ‘
ENT’ to display the control menu.
Select the Image Control menu using ST. Then, press ‘ENT’ to display detailed menu
items.
CIP-4500 User Manual 25
Select the item you want using ST, and then control the value using WX.
[ OPTION S ETTIN G ]
VOLUME CONTROL
QUALITY CONTROL
INPUT SELECT
111.123.111.123 I-HAND
NOTE. You are not allowed to control image quality if only voice connection is made between you
and the other party.
111.123.111.123 I-HAND
RE CEIVING SPEED
L M H
SENDING SPEED
L M H
1RECEIVING SPEED : As you select the higher value, you can use more bandwidth,
which guarantees enhanced image quality and better screen display.
NOTE. When the receiving speed is high with bad network connection, the image may be broken.
In this case, the receiving speed needs to be lowered.
NOTE. If the other party’s IP videophone model is different from yours, you have to control sending
speed instead of receiving speed.
2SENDING SPEED : As you select the higher value, you can use more bandwidth, which
guarantees enhanced image quality and better screen display.
NOTE. When the sending speed is high with bad network connection, the image may be broken. In
this case, the sending speed needs to be lowered.
After setting all the items you need to control, if you want to return to previous menu,
EXIT’.
press ‘
⑥ Audio/Video Input Path Setting
You can change the input path of audio and video during a call.
Press ‘ENT’ to display the control menu.
Select the Input menu using ST. Then, press ‘ENT’ to display detailed menu items.
Select the item you want using ST, and then control the value using W X.
CIP-4500 User Manual 26
[ OPTION SETT IN G ]
VOLUME CONTROL
QUALITY CONTROL
INPUT SELECT
111.123.111.123 I-HAN D
111.123.111.123 I-HAND
VIDEO INPUT
INT E XT
AUDIO INPUT
INT E XT
1VIDEO INPUT: If you select ‘INT’ from A/V Input menu, you can insert an image
through the camera of IP videophone, but if you choose ‘EXT’, an image is i nse rted from
the external camera connected to video input terminal of backside of the videophone
body.
NOTE. If you select ‘EXT’ when the external camera is not connected to the videophone, the receiving
image may look unclear. For the external video output, what you see on the current LCD screen is
also displayed on any external device such as TV or LCD monitor only when an external display is
connected to ‘VIDEO OUT’ port without special setting.
NOTE. When TV is connected to IP videophone, certain images may not be displayed according to
TV model.
2 AUDIO INPUT: If you select ‘INT’ from A/V Input m enu , you can in sert audi o throug h the
camera of IP videophone, but if you choose ‘EXT’, audio is inserted from the external
camera connected to audio input terminal of backside of the videophone body.
NOTE. If you connect the external speaker to ‘AUDIO OUT’ port, you can hear the same audio via
speaker. If you select ‘EXT’ when the external microphone is not connected, voice communication
may be impossible.
NOTE. If audio input is set to ‘EXT’, volume control is not available.
After setting all the items you want, if you want to return to previous menu, press ‘EXIT’.
⑦ Speakerphone Mode
Loading...
+ 58 hidden pages
You need points to download manuals.
1 point = 1 manual.
You can buy points or you can get point for every manual you upload.
