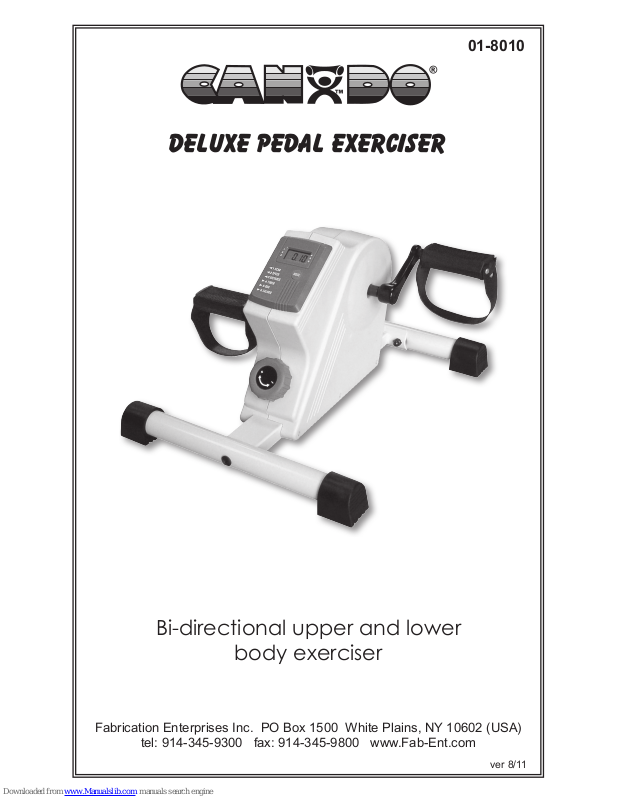

Page 1
01-8010
deluxe pedal exerciser
Bi-directional upper and lower
body exerciser
Fabrication Enterprises Inc. PO Box 1500 White Plains, NY 10602 (USA)
tel: 914-345-9300 fax: 914-345-9800 www.Fab-Ent.com
ver 8/11
Page 2
DELUxe PEDAL EXERCISER
No. Part Quantity
1 main body 1
2 digital display 1
3 front foot 1
4 rear foot 1
5 pedals 2
6 carriage bolts (M8 x 45mm) 2
7 carriage bolt nuts 2
8 cross-head bolt (M8 x 50mm) 1
9 tool 1
1
2
3
4
5
6
7
8
9
DIGITAL READOUT FEATURES
Mode Functions:
Scan - Scans settings for each of the modes every four seconds.
Speed - Displays the speed in miles per hour (m.p.h.) exerciser is
“traveling”.
Distance - Displays the distance “traveled” in miles for each session.
Timer - The time elapsed during exercise session.
Odometer - Total cumulative mileage recored by the exerciser.
Calories Burned - Estimated calories burned during a session.
Page 3
DELUxe PEDAL EXERCISER
2. Attach the rear foot (4) with the two carriage bolts (6)
and nuts (7).
Make sure the
feet are securely
tightened to the
exerciser.
ASSEMBLY
1. Attach the front foot (3)
onto the body using the cross
head bolt (8) and the tool (9).
3. Attach the pedals (5) to
the exerciser. Insert threaded
end of pedal onto the shaft
and tighten with the tool.
4. Digital display requires (2) AA batteries
(included). Remove display cover to install
batteries.
Auto Power ON/OFF
Auto Start/Stop Timer Turn timer on or off with a single touch
Machine shuts off automatically if unoperated for more than four (4)
minutes.
OPERATION
Push MODE key one time to change function of digital readout.
To reset all values, push MODE key and hold for three (3) seconds.
EXERCISES
Lower body exercise: (For strengthening muscles and increasing blood
circulation) Sit in a chair with the Cando® Deluxe Pedal Exerciser on
the oor in front of you. Position yourself so your legs are bent at 90°
Upper body exercise: (For strengthening muscles in the arms, wrists
and shoulder). Place the exerciser on a table in front of you. You may
sit at the table or stand. “Pedal” the exerciser with your hands.
Page 4
Fabrication Enterprises Inc.
PO Box 1500
White Plains, NY 10602 (USA)
Authorized CE representative:
RMS UK Ltd.
28 Trinity Road
Nailsea, Somerset BS48 4NU (UK)
tel: 914-345-9300 800-431-2830
fax: 914-345-9800 800-634-5370
www.Fab-Ent.com
Cando® and are trademarks of Goldberg
© 2011 FEI all rights reserved
CAUTIONS and WARNINGS
• Consult your healthcare professional before beginning an
exercise program with this machine.
• Protect unit from water and strong shock
• If display becomes unclear or blinks when keys are pressed, the
batteries may need to be replaced.
• DO NOT expose to direct sunlight for extended periods of time.
• WARNING: DO NOT stand on the exerciser.
90 Day Limited Warranty
