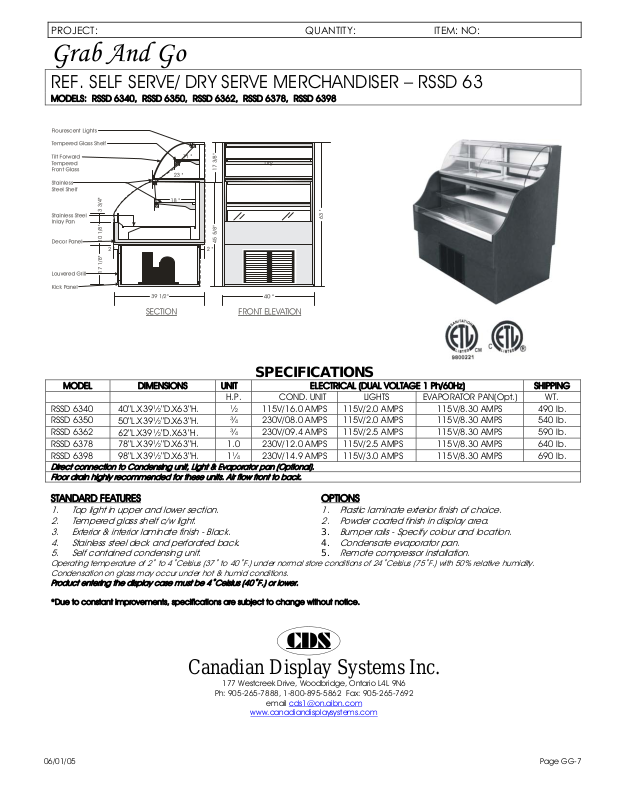

Canadian Display Systems Inc. RSSD 6340 Specification

PROJECT: QUANTITY: ITEM: NO:

Grab And Go

REF. SELF SERVE/ DRY SERVE MERCHANDISER – RSSD 63

MODELS: RSSD 6340, RSSD 6350, RSSD 6362, RSSD 6378, RSSD 6398

SPECIFICATIONS

MODEL DIMENSIONS UNIT ELECTRICAL (DUAL VOLTAGE 1 Ph/60Hz) SHIPPING
H.P. COND. UNIT LIGHTS EVAPORATOR PAN(Opt.) WT.
RSSD 6340
RSSD 6350
RSSD 6362
RSSD 6378
RSSD 6398

Direct connection to Condensing unit, Light & Evaporator pan (Optional).
Floor drain highly recommended for these units. Air flow front to back.

40″L.X39½″D.X63″H.
50″L.X39½″D.X63″H.
62″L.X39½″D.X63″H.
78″L.X39½″D.X63″H.
98″L.X39½″D.X63″H.

STANDARD FEATURES

1. Top light in upper and lower section.

2.

Tempered glass shelf c/w light.
Exterior & interior laminate finish - Black.

3.

4.

Stainless steel deck and perforated back.

5.

Self contained condensing unit.

Operating temperature of 2˚ to 4˚Celsius (37˚ to 40˚F.) under normal store conditions of 24˚Celsius (75˚F.) with 50% relative humidity.
Condensation on glass may occur under hot & humid conditions.
Product entering the display case must be 4˚Celsius (40˚F.) or lower.

*Due to constant improvements, specifications are subject to change without notice.

½ 115V/16.0 AMPS 115V/2.0 AMPS 115V/8.30 AMPS 490 lb.
¾ 230V/08.0 AMPS 115V/2.0 AMPS 115V/8.30 AMPS 540 lb.
¾ 230V/09.4 AMPS 115V/2.5 AMPS 115V/8.30 AMPS 590 lb.

1.0 230V/12.0 AMPS 115V/2.5 AMPS 115V/8.30 AMPS 640 lb.
1¼ 230V/14.9 AMPS 115V/3.0 AMPS 115V/8.30 AMPS 690 lb.

OPTIONS

1. Plastic laminate exterior finish of choice.

2.

Powder coated finish in display area.

3.

Bumper rails - Specify colour and location.

4.

Condensate evaporator pan.

5.

Remote compressor installation.

Canadian Display Systems Inc.

177 Westcreek Drive, Woodbridge, Ontario L4L 9N6

Ph: 905-265-7888, 1-800-895-5862 Fax: [phone]

06/01/05 Page GG-7
