P/N : 388028373
PRINTED IN KOREA
INSTRUCTION MANUAL
Professional IR 7000 Series
V/F Lens Day&Night IR Bullet Camera
SUPREME IMAGE
Video Surveillance Camera
SUPREME IMAGE
Video Surveillance Camera
CS-IRV7700
CS-IRV7800
CS-IRV7950
02
INFORMATION FOR USER
03
CONTENTS
1. Information for user
2. Contents
3. Composition
4. Features
5. Dimensions
6. Parts Name
7. Connection
8. Adjustments
9. Setup Menu
CS-IRV7700
CS-IRV7800
CS-IRV7950
10. Specifications
CS-IRV7700
CS-IRV7800
CS-IRV7950
11. Troubleshooting
2p
3p
4p
5p
6p
7p
8P
9P
10p
22p
34p
49p
43p
45p
47p
04
L-Wrench: Unscrew and tighten bracket screws for pan&tilt adjustment
of the camera.
Screws: Firmly attach the bracket to the wall or ceiling.
Bolt: Fix the sun-shield to the camera.
Driver: Unscrew the service port cap. Adjust the zoom/Focus screws.
Service monitor and control cable:
Monitors the display screen and set up OSD menu externally.
Confirm that the following parts are included:
T1 5x26
Composition
05
Features
- True WDR with model CS-IRV7800
- 2D + 3D Digital Noise Reduction
- Digital Slow Shutter
- High Light Compensation
- Intelligent Detection, Privacy Mask Function
- Horizontal, Vertical Mirror Supports
- Externally adjustable Focal length & Focus
- Built-in Service Monitor & OSD Control Port
- Cable managed bracket
- Weatherproof Housing (IP-66)
- DC 12V Operation (AC24V/DC12V option)
CS-IRV7700
CS-IRV7800 CS-IRV7950
Resolution
Lens
700 TV Lines
2.2 mega-pixel
2.8~12mm
2.8~11mm 2.8~10mm
Special function Defog Digital Image
Stabilizer
Defog,
Dead pixel
Compensation
WDR Digital WDR True WDR WDR
06
191.5
176
105
106
Ø29
140
Ø80
Ø101
118.5
Dimensions
07
1. Sun-shield Bolt
2. Sun-shield
3. Front Case
4. External Adjustment Screws
(Zoom/Focus Screws)
5. Rear Case
6. Service Monitor Output Cap
7. Bracket
8. Video/Power Cable
6
7
5
3
4
2
1
8
- Focus: Near(N) to Infinity( )
- Field of View: Wide(W) to Tele(T)
4 4
f=6.0~50mmf=2.8~11mm
Parts Name
08

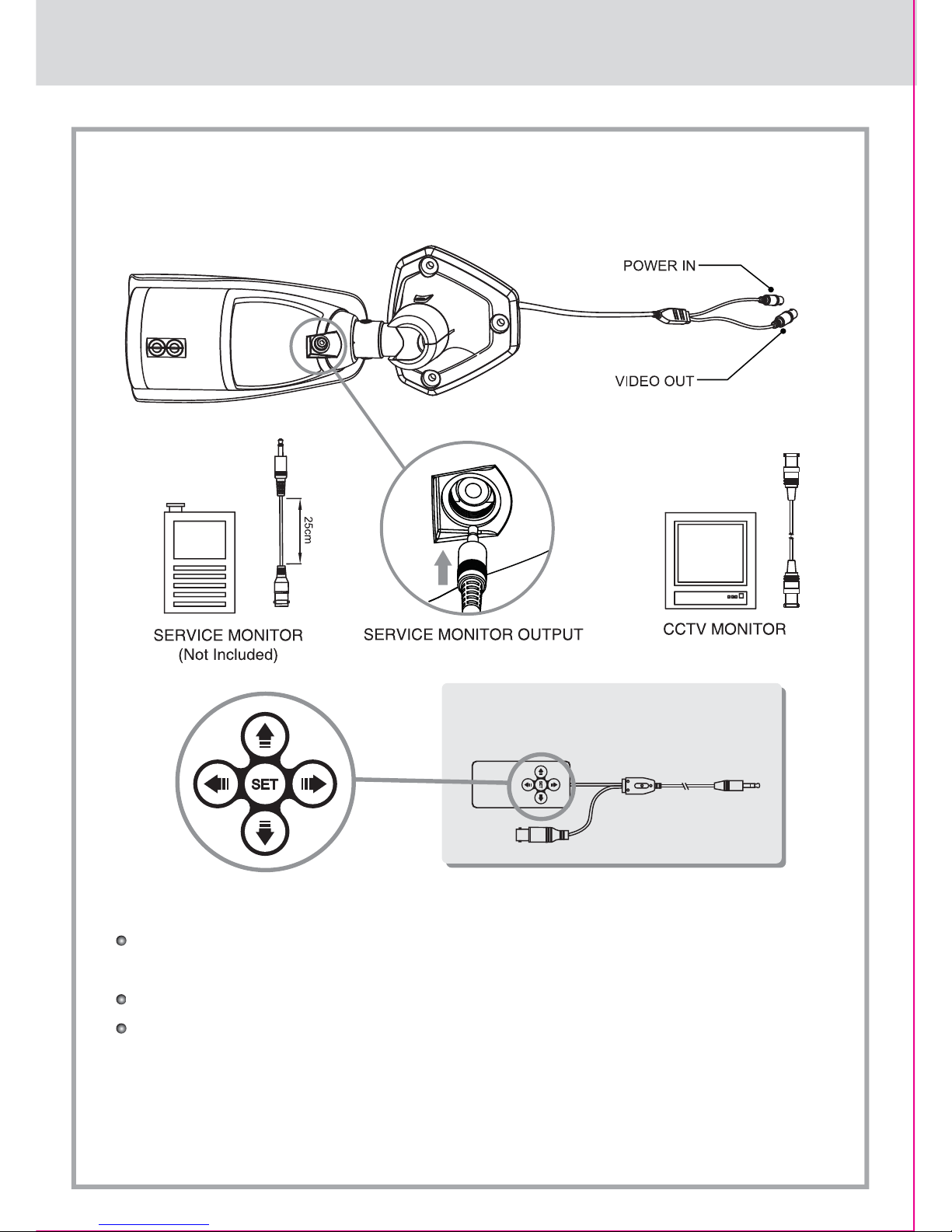

Service Monitor and Control Cable
Follow the diagram below to make proper connections to the monitor or
the service monitor.
Power Connection:
- DC12V type: Requires DC12V. (Polatity)
This camera is equipped with a service monitor output port.
To setup the OSD menu, connect the OSD controller and service cable
to the service monitor output port located at the base of the camera unit.
Connection
09
ROTATION : Adjusting screen view
TILT : Adjusting view angle
PAN : Adjusting view directions
Loosen the corresponding screws before attempting to make Pan, Tilt and
Rotation adjustments. (Using the supplied wrench)
- Check a picture position through the service monitor and adjust a viewing
angle and focus of the camera.
- After adjustment, tighten the cap back to protect water entering.
- To widen the viewing angle turn the Zoom screw to “W”(Wide) to obtain
a closer view turn it to “T”(Tele).
- Turn the Focus screw to “N”(Near) or “ ”(Far) until the sharpest focus
is made.
Bracket (Cable Managed Bracket)
Using Service Monitor
Zoom / Focus Adjustment
Adjustments
10
Setup Menu “CS-IRV7700”
MAIN MENU
The menu consists of the “Main Menu” and “Sub Menu”.
The main menu is 8 kinds of camera functions can be selected.
To the right of each main menu selection, the sub-menu is
displayed.
If you want save the menu, select [SAVE].
If you want not save the menu, select [RESTORE]
If you want factory default the menu, select [INITIAL]
MENU
EXPOSUREDC
DAY/NIGHT
WHITE BAL.
MONITOR
DNR
MOTION
SYSTEM
EXIT
ALC
EXTERN
ATW
MIDDLE
OFF
SAVE
※Note※
In Day/Night Menu, "EXTERN" is displayed for IR model
and “AUTO” is displyed for without IR model.
11
Setup Menu “CS-IRV7700”
EXPOSURE
◈ EXPOSURE : You can select exposure mode
▷ LENS : You can select lens type
▶ ALC / ELC
▷ BRIGHTNESS : You can adjust brightness level.
▶ 0 (dark) ~ 20 (bright) steps
▷ SHUTTER : You can set to auto or manual mode.
▶ AUTO, 1/60(50), FlK, 1/250, 1/500, 1/700, 1/1000, 1/1600,
1/2500, 1/5000, 1/7000, 1/10000, 1/30000, 1/60000,
1/120000sec
* If the lens is ALC, shutter is 1/60,1/50.
▷ FLICKERLESS : Select Flickerless mode
▶ OFF / ON (remove screen flicker)
▷ AGC : You can select auto gain control level.
▶ 0 ~ 20 steps
▷ SENSOR UP : You can select sensor up(Digital Slow Shutter)
level.
▶ LEVEL : OFF, x2~x512 steps
▷ IRIS OFFSET : You can select iris offset level .
▶ 0 ~ 20 steps
EXPOSURE
LENS
BRIGHTNESS
SHUTTER
FLK
AGC
SENSOR UP
IRIS OFFSET
ENTER - RETURN
ALC
10
1/60
OFF
19
OFF
10
EXPOSURE
LENS
BRIGHTNESS
SHUTTER
FLK
AGC
SENSOR UP
IRIS OFFSET
ENTER - RETURN
ELC
10
AUTO
OFF
19
OFF
NOT USED
MENU
EXPOSUREDC
DAY/NIGHT
WHITE BAL.
MONITOR
DNR
MOTION
SYSTEM
EXIT
ALC
EXTERN
ATW
MIDDLE
OFF
SAVE
12
Setup Menu “CS-IRV7700”
DAY & NIGHT
◈ DAY&NIGHT : You can select
day&night mode
▷ DAY : Day&Night only color mode
▷ AUTO : Day&Night auto mode
▷ NIGHT: Day&Night only night mode
▷ EXTERN : Day&Night EXT mode
▷ CDS : Day&Night IR LED mode
▶ AGC THRS : 0 ~ 20 steps
▶ AGC MARGIN : 0 ~ 20 steps
▶ D/N DELAY : 0 ~ 15 sec
▶ B/W BURST : OFF / ON
▶ EXTERN S/W : LOW / HIGH
▶ CDS D→N : 0 ~ 20 steps
▶ CDS N→D : 0 ~ 20 steps
▶ SMART IR : OFF / ON
► LED POWER : OFF / DIMMING /
FULL
► ANTI-SAT : 0 ~ 20 steps
► SAT. ATEA : 0 ~ 20 steps
DAY/NIGHT
MODE
AGC THRS
AGC MARGIN
D/N DELAY
B/W BURST
SMART IR
RETURN
AUTO
10
10
2 SEC
OFF
DAY/NIGHT
MODE
B/W BURST
SMART IR
RETURN
NIGHT
OFF
DAY/NIGHT
MODE
EXTERN S/W
D/N DELAY
B/W BURST
SMART IR
RETURN
EXTERN
LOW
2 SEC
OFF
DAY/NIGHT
MODE
CDS D N
CDS N D
D/N DELAY
B/W BURST
SMART IR
RETURN
CDS
10
10
2 SEC
OFF
MENU
EXPOSUREDC
DAY/NIGHT
WHITE BAL.
MONITOR
DNR
MOTION
SYSTEM
EXIT
ALC
EXTERN
ATW
MIDDLE
OFF
SAVE
13
Setup Menu “CS-IRV7700”
WHITE BALANCE
◈ WHITE BAL : You can select white balance mode.
▷ ATW / PUSH→SET / MANUAL(RED / BLUE)
▶ ATW : Automatically adjusts color according to
the available lighting.(2500°K → 9500°K)
▶ PUSH→SET : It is a fixed white balance mode that may
be automatically readjusted only by pressing SET Button
in ONE PUSH mode.
▶ MANUAL : Color can be corrected when the user
increases or decreases ”Red Gain" or "Blue Gain".
► RED GAIN : Adjust R gain value 0 ~ 20 steps
► BLUE GAIN : Adjust B gain value 0 ~ 20 steps
W.B. MANUAL
RED
BLUE
ENTER - RETURN
9
15
MENU
EXPOSUREDC
DAY/NIGHT
WHITE BAL.
MONITOR
DNR
MOTION
SYSTEM
EXIT
ALC
EXTERN
ATW
MIDDLE
OFF
SAVE
14
Setup Menu “CS-IRV7700”
MONITOR
◈ MONITOR : You can adjust camera image.
▷ GAMMA : You can adjust gamma on screen
▶ LEVEL : 0.35 / 0.40 / 0.45 / 0.50 / 0.55 / 0.60 / 0.65
/ 0.70 steps
▷ CHROMA: You can adjust chroma on screen
▶ LEVEL : 0 ~ 20 steps
▷ SHARPNESS : You can adjust sharpness on screen
▶ LEVEL : 0 ~ 20 steps
▷ SHADING : You can adjust lens shading on screen.
▶ LEVEL : 0 ~ 20 steps
▷ PED. LV. : You can adjust PED level on screen.
▶ LEVEL : 0 ~ 20 steps
MONITOR
GAMMA
CHROMA
SHARPNESS
SHADING
PED. LV.
ENTER - RETURN
0.45
13
10
0
8
MENU
EXPOSUREDC
DAY/NIGHT
WHITE BAL.
MONITOR
DNR
MOTION
SYSTEM
EXIT
ALC
EXTERN
ATW
MIDDLE
OFF
SAVE
15
Setup Menu “CS-IRV7700”
BACKLIGHT
CONTRAST
POSI/NEGA
H-MIRROR
PRIVACY
RETURN
OFF
OFF
POSI
OFF
OFF
BACKLIGHT
CONTRAST
POSI/NEGA
H-MIRROR
PRIVACY
RETURN
BLC
OFF
POSI
OFF
OFF
BACK LIGHT
MODE
LEVEL
DISPLAY
TOP
BOTTOM
LEFT
RIGHT
ENTER
BLC
MIDDLE
OFF
12
43
50
168
RETURN
◈ IMAGE : You can adjust camera image
▷ BACK LIGHT
▶ BLC : You can select BLC display
► LEVEL : LOW / MIDDLE / HIGH
► DISPLAY : OFF / ON
► TOP : 0 ~ 42 steps
► BOTTOM : 0 ~ 55 steps
► LEFT : 0 ~ 215 steps
► RIGHT : 0 ~ 218 steps
MENU
EXPOSUREDC
DAY/NIGHT
WHITE BAL.
MONITOR
DNR
MOTION
SYSTEM
EXIT
ALC
EXTERN
ATW
MIDDLE
OFF
SAVE
16
Setup Menu “CS-IRV7700”
BACKLIGHT
CONTRAST
POSI/NEGA
H-MIRROR
PRIVACY
RETURN
HLC
OFF
POSI
OFF
OFF
▶ HLC : You can select HLC display
► LEVEL : LOW / MIDDLE / HIGH
BACK LIGHT
MODE
LEVEL
HLC
HIGH
ENTER - RETURN
BACKLIGHT
CONTRAST
POSI/NEGA
H-MIRROR
PRIVACY
RETURN
OFF
D-WDR
POSI
OFF
OFF
▷ CONTRAST
▶ D-WDR : You can select D-WDR display
► D-WDR : AUTO / MANUAL
► LEVEL : LOW / MIDDLE / HIGH
CONTRAST
MODE
D-WDR
LEVEL
D-WDR
AUTO
LOW
ENTER - RETURN
17
Setup Menu “CS-IRV7700”
BACKLIGHT
CONTRAST
POSI/NEGA
H-MIRROR
PRIVACY
RETURN
OFF
DEFOG
POSI
OFF
OFF
▶ DEFOG : You can select defog display
► DEFOG : AUTO / MANUAL
► LEVEL : LOW / MIDDLE / HIGH
▶ POSI / NEGA : You can select POSI / NEGA display.
▶ H-MIRROR : You can select mirror display. (OFF/ON)
CONTRAST
MODE
DEFOG
LEVEL
DEFOG
AUTO
LOW
ENTER - RETURN
BACKLIGHT
CONTRAST
POSI/NEGA
H-MIRROR
PRIVACY
RETURN
OFF
OFF
POSI
OFF
ON
▷ PRIVACY : You can select privacy mask display.
▶ MASK LV : BLUE / RED / CYAN / MAGENTA / BLACK /
GRAY-1,2,3,4 / WHITE / YELLOW / GREEN
▶ AREA NO : 1 ~ 8 area
▶ DISPLAY : OFF / ON
▶ TOP : 0 ~ 61 steps
▶ BOTTOM : 0 ~ 62 steps
▶ LEFT : 0 ~ 236 steps
▶ RIGHT : 0 ~ 239 steps
PRIVACY
MASK LV
AREA NO.
DISPLAY
TOP
BOTTOM
LEFT
RIGHT
BLUE
1
OFF
4
32
7
52
ENTER - RETURN
18
Setup Menu “CS-IRV7700”
DNR
◈ DNR : You can select digital noise reduction display
▶ LEVEL : LOW / MIDDLE / HIGH
MENU
EXPOSUREDC
DAY/NIGHT
WHITE BAL.
MONITOR
DNR
MOTION
SYSTEM
EXIT
ALC
EXTERN
ATW
MIDDLE
OFF
SAVE
19
Setup Menu “CS-IRV7700”
MOTION
◈ MOTION : You can select motion detection display
▷ MOTION
▶ SENSITIVITY : 0 ~ 30 steps
▶ AREA NO : 1 ~ 4 area
▶ AREA USE : OFF / ON
▶ TOP : 0 ~ 64 steps
▶ BOTTOM : 0 ~ 65 steps
▶ LEFT : 0 ~ 209 steps
▶ RIGHT : 0 ~ 210 steps
MOTION
SENSITIVITY
AREA NO.
AREA USE
TOP
BOTTOM
LEFT
RIGHT
ENTER
29
1
ON
4
28
13
92
RETURN
MENU
EXPOSUREDC
DAY/NIGHT
WHITE BAL.
MONITOR
DNR
MOTION
SYSTEM
EXIT
ALC
EXTERN
ATW
MIDDLE
OFF
SAVE
20
Setup Menu “CS-IRV7700”
SYSTEM
◈ SYSTEM : You can select system display
▷ CAM TITLE : Select camera title
▶ Text edit
▷ CAM ID : Select the camera ID
▶ 1 ~ 255
▷ ID DISP : Select display item
▶ OFF/ON
▷ SYNC : Select camera sync
▶ INT / Line Lock (Option)
▷ BAUDRATE : Select serial communication speed
▶ 2400 / 4800 / 9600 / 57600 / 115200 bps
▷ LANGUAGE : Select camera language
▶ ENGLISH
SYSTEM
CAM TITLE
CAM ID
ID DISP.
SYNC
BAUDRATE
LANGUAGE
SPECIAL
RETURN
OFF
1
OFF
INT
115200
ENG
MENU
EXPOSUREDC
DAY/NIGHT
WHITE BAL.
MONITOR
DNR
MOTION
SYSTEM
EXIT
ALC
EXTERN
ATW
MIDDLE
OFF
SAVE
21
Setup Menu “CS-IRV7700”
SYSTEM
SYSTEM
CAM TITLE
CAM ID
ID DISP.
SYNC
BAUDRATE
LANGUAGE
SPECIAL
RETURN
OFF
1
OFF
INT
115200
ENG
▷ SPECIAL
▶ DEFECT DET : Select dead pixel compensation processing
► THRESHOLD LEVEL : 0 ~ 255 steps
▶ FONT COLOR : Select font color on screen
► COLOR GAIN : 0 ~ 8 steps
▶ VERSION : Factory version
(※ The camera version is displayed)
SPECIAL
DEFECT DET.
FONT COLOR
VERSION
RETURN
START
1
130621 0
22
Setup Menu “CS-IRV7800”
Functions can be setup using “Menu Key Command” of
Visca protocol or Menu Key Port input.
The menu consists of the “Main Menu” and “Sub Menu”.
The main menu is displayed where 7 camera functions can be
selected.
To the right of each main menu selection, the sub-menu is
displayed
If you want save the menu, select [SAVE].
If you want not save the menu, select [EXIT]
(After select , Power off -> on)
If you want default the menu, select [DFLT]
· MODEL : Select Model type of the “Auto Day&Night” function.
▶ TDN/COLOR : The “Auto Day&Night” function is performed
according to the brightness level.
/ IR : The “Auto Day&Night” function is performed according to
D/N-IN input.
MAIN MENU
[MENU]
MODEL
EXPOSURE
WHITE BAL
INTELLIGENCE
SPECIAL FUNC
DISPLAY
[EXIT] [SAVE] [DFLT]
TDN/COLOR
23
Setup Menu “CS-IRV7800”
[MENU]
MODEL
EXPOSURE
WHITE BAL
INTELLIGENCE
SPECIAL FUNC
DISPLAY
[EXIT] [SAVE] [DFLT]
TDN/COLOR
[EXPOSURE]
LENS
MODE
AGC
SHUT SPEED
DSS
FLICKERLESS
BRIGHTNESS
WDR
BLC
DAY/NIGHT
[BACK] [SAVE] [DFLT]
DC
. . .
ON
. . .
OFF
OFF
8
OFF
OFF
EXPOSURE
· LENS : Select lens type
▶ DC / VIDEO / MANUAL
· MODE : Select exposure mode with Manual Lens
▶ AUTO / SHUT.P / MANUAL
· AGC : Select Auto Gain Control
▶ OFF / ON
▶ 0/2/4/6/8/10/12/14/16/18/20/22/24/26/28/30dB
(Manual Lens and Manual Exposure Mode)
· SHUT SPEED : Can be set in SHUT.P or MANUAL mode.
▶ NTSC : x512, x128, x64, x32, x16, x8, x4, x2, 1/60, 1/90, 1/100,
1/180, 1/250, 1/500, 1/1000, 1/1500, 1/2000, 1/5000, 1/10000,
1/20000, 1/50000, 1/100000 sec
PAL : x512, x128, x64, x32, x16, x8, x4, x2, 1/50, 1/80, 1/120,
1/150, 1/250, 1/500, 1/1000, 1/1500, 1/2000, 1/5000, 1/10000,
1/20000, 1/50000, 1/100000 sec
※ Slow shutter speed (x2 ~ x512) can be set
in ELC MANUAL mode.
· DSS : Select Max DSS (Digital Slow Shutter)
▶ OFF / x2, x4, x8, x16, x32, x64, x128, x512
· FLICKERLESS : Select Flickerless mode
▶ OFF / ON (remove screen flicker)
24
Setup Menu “CS-IRV7800”
EXPOSURE
· BRIGHTNESS : Adjust brightness level
▶ 1 (dark) ~ 15 (bright) steps
· WDR : Select WDR (Wide Dynamic Range)
▶ OFF / ON
▷LEVEL : Select the WDR brightness level
▶ 1 ~ 7 steps
▷ATR : Select the contrast level of dark area.
▶ LOW / MID / HIGH
· BLC : Select BLC (Back Light Compensation)
▶ OFF / ON
▷MODE : Select BLC mode
▶ AUTO / MANUAL
▷AREA# : Select BLC area
▶ 1 ~ 9 areas
▷LEVEL : Select manual BLC level
▶ LOW / MID / HIGH
· DAY&NIGHT : Select Day&Night
▷Mode : Select Day&Night mode
▶ DAY / NIGHT / AUTO / EXT (MODEL : TDN/COLOR)
▶ DAY / NIGHT / AUTO (MODEL : IR)
[MENU]
MODEL
EXPOSURE
WHITE BAL
INTELLIGENCE
SPECIAL FUNC
DISPLAY
[EXIT] [SAVE] [DFLT]
TDN/COLOR
[EXPOSURE]
LENS
MODE
AGC
SHUT SPEED
DSS
FLICKERLESS
BRIGHTNESS
WDR
BLC
DAY/NIGHT
[BACK] [SAVE] [DFLT]
DC
. . .
ON
. . .
OFF
OFF
8
OFF
OFF
25
Setup Menu “CS-IRV7800”
EXPOSURE
▷Delay : Adjust the working time of the filter when Day&Night
operated.
▶ 1 ~ 60 sec (MODEL : TDN/COLOR)
▶ LOW / MID / HIGH (MODEL : IR)
▷THRS : Day↔Night switching level in Auto Mode.
(TDN/COLOR Model Only)
Switching in lower lux with higher threshold level.
▶ 1 ~ 29 steps
▷GAP : Margin between Day → Night switching level and Night
→ Day switching level. (TDN/COLOR Model Only)
▶ 1 ~ 5 steps
※ When you set up GAP too narrow, hunting might be happened.
▷BURST : You can burst off/on in Night mode
▶ OFF / ON
[MENU]
MODEL
EXPOSURE
WHITE BAL
INTELLIGENCE
SPECIAL FUNC
DISPLAY
[EXIT] [SAVE] [DFLT]
TDN/COLOR
[EXPOSURE]
LENS
MODE
AGC
SHUT SPEED
DSS
FLICKERLESS
BRIGHTNESS
WDR
BLC
DAY/NIGHT
[BACK] [SAVE] [DFLT]
DC
. . .
ON
. . .
OFF
OFF
8
OFF
OFF
26
Setup Menu “CS-IRV7800”
[MENU]
MODEL
EXPOSURE
WHITE BAL
INTELLIGENCE
SPECIAL FUNC
DISPLAY
[EXIT] [SAVE] [DFLT]
TDN/COLOR
· MODE : Select white balance mode
▶ ATW / ONE PUSH / INDOOR / OUTDOOR / MANUAL / AUTO
▷ATW : Automatically adjusts color according to the available
lighting.
▷ONE PUSH : It is a fixed white balance mode that may be
automatically readjusted only by pressing SET Button in
ONE PUSH mode.
▷OUTDOOR : Set color temperature to be Outdoor light
(5400°K.)
▷INDOOR : Set color temperature to be Indoor light
(3200°K.)
▷MANUAL : Color can be corrected when the user increases
or decreases ”Red Gain" or "Blue Gain".
▷ AUTO : Wide color temperature range (more ATW range)
· RED GAIN : Adjust R gain value
▶ 0 ~ 255 steps
· BLUE GAIN : Adjust B gain value
▶ 0 ~ 255 steps
· CHROMA : Select the chroma level
▶ LOW / MID / HIGH
[WHITE BALANCE]
[BACK] [SAVE] [DELT]
MODE
RED GAIN
BLUE GAIN
CHROMA
ATW
. . .
. . .
MID
WHITE BALANCE
27
Setup Menu “CS-IRV7800”
[MENU]
MODEL
EXPOSURE
WHITE BAL
INTELLIGENCE
SPECIAL FUNC
DISPLAY
[EXIT] [SAVE] [DFLT]
TDN/COLOR
[BACK]
[SAVE]
[DFLT]
[IMAGE]
HLC
DNR
HR
MIRROR
SHARPNESS
EFFECT
FREEZE
E.ZOOM
AUTO
3
OFF
8
OFF
OFF
OFF
· HLC : Enhances the visibility on strong light sources in dark
locations
▷ MODE : Select the HLC mode
▶ OFF / ON
▷ LEVEL : Select the HLC brightness level
▶ LOW / MID / HIGH
▷ CLIP LEVEL : You can adjust the HLC threshold level.
Block area is to be more sensitivity with lower level.
▶ 1 ~ 7 steps
· DNR : On screen digital noise reduction
▶ OFF
/ 1 ~ 10 (Select noise reduction level)
/ Auto (DNR level is adjusted automatically)
· HR : Select high resolution
▶ OFF / 1 ~ 7
· MIRROR : Select a flip mode
▶ OFF
/ V (You can flip the picture vertically on the screen)
/ H (You can flip the picture horizontally on the screen)
/ H&V (You can flip the picture horizontally
& vertically on the screen)
· SHARPNESS : Adjust sharpness level
▶ 1 ~ 16 steps
28
Setup Menu “CS-IRV7800”
[MENU]
MODEL
EXPOSURE
WHITE BAL
INTELLIGENCE
SPECIAL FUNC
DISPLAY
[EXIT] [SAVE] [DFLT]
TDN/COLOR
[BACK]
[SAVE]
[DFLT]
[IMAGE]
HLC
DNR
HR
MIRROR
SHARPNESS
EFFECT
FREEZE
E.ZOOM
AUTO
3
OFF
8
OFF
OFF
OFF
· EFFECT : Select the negative or B/W effect
▶ OFF / NEGATIVE / B/W
· FREEZE : Select real or still mode
▶ OFF / ON
· E.ZOOM : Select maximum digital zoom magnification.
▶ OFF / ON (max x2 ~ x19, x21, x23, x25, x28, x32)
▷ ZOOM : Adjust Digital Zoom Position
▷ PAN : Adjust Digital Pan position
▷ TILT : Adjust Digital Tilt position
29
Setup Menu “CS-IRV7800”
[MENU]
MODEL
EXPOSURE
WHITE BAL
INTELLIGENCE
SPECIAL FUNC
DISPLAY
[EXIT] [SAVE] [DFLT]
TDN/COLOR
[BACK]
[INTELLIGENCE]
PRIVACY
MOTION
OBJECT
INTELLIGENCE
· PRIVACY : Hide an area you want to hide on the screen
▶ MASK# : Select mask area number (1 ~ 16)
▶ ACT : Mask enable or disable (OFF / ON)
▶ COLOR : Select mask color (1 ~ 14)
▶ TRANSPARENCY : Select mask transparency level (0 ~ 3)
▶ POSITION : Adjust the mask position
▶ SIZE : Adjust the mask size
▶ MOSAIC : Mosaic display (OFF / ON)
▶ MOSAIC TYPE : Mosaic roughness setting (1 ~ 8)
· MOTION : When there is movement of the subject in the screen,
there will be an motion detection
▶ MODE : MD function enable or disable (OFF / ON)
▶ AREA# : Select MD area number (1 ~ 3)
▶ ACT : Activate or deactivate the each MD Area (OFF / ON)
▶ SENSITIVITY : Adjust sensitivity of MD (1 ~ 20)
▶ INTERVAL TIME : Select the alarm interval time (1 ~ 256sec)
▶ DWELL TIME : Select the duration time about changing
MD mode (1 ~ 256sec)
▶ POSITION : Adjust the MD position
▶ SIZE : Adjust the MD size
30
Setup Menu “CS-IRV7800”
[MENU]
MODEL
EXPOSURE
WHITE BAL
INTELLIGENCE
SPECIAL FUNC
DISPLAY
[EXIT] [SAVE] [DFLT]
TDN/COLOR
[BACK]
[INTELLIGENCE]
PRIVACY
MOTION
OBJECT
INTELLIGENCE
· OBJECT : Detect object appeared or removed the screen
▶ MODE : Object detection enable or disable (OFF / ON)
▶ AREA# : Select OD Area number (1 ~ 9)
▶ SENSITIVITY : Adjust sensitivity (1 ~ 5)
▶ DWELL TIME : Select the duration time about changing
OD mode (1 ~ 256sec)
31
Setup Menu “CS-IRV7800”
SPECIAL FUNCTION
[BACK] [SAVE] [DFLT]
[SPECIAL FUNC]
SYNC MODE
PHASE
DIS
DEFECT DET
DEFECT LEVEL
SCENE MODE
COMM
[MENU]
MODEL
EXPOSURE
WHITE BAL
INTELLIGENCE
SPECIAL FUNC
DISPLAY
[EXIT] [SAVE] [DFLT]
TDN/COLOR
INT
...
OFF
ONE PUSH
1
USER
· SYNC MODE : Select vertical sync source
▶ INT (Internal Sync) / LL (External sync)
· PHASE : Adjust external sync phase
▶ NTSC : 0 ~ 131 steps
PAL : 0 ~ 156 steps
· DIS : Select the DIS (Digital Image Stabilizer) mode
▶ OFF / ON
※ E.Zoom, Motion & Object detection could not turn on while
DIS function is working.
· DEFECT DET : Executes white pixel compensation.
▶ ONE PUSH↲
※ When you use the manual lens, you have to block the lens
for blocking lights into the lens.
· DEFECT LEVEL : The Threshold level of white pixel
compensation.
▶ 1 ~ 20
32
Setup Menu “CS-IRV7800”
SPECIAL FUNCTION
AE
D&N
AWB
Mode
WDR
DSS
Mode
Burst
Mode(Day)
Mode(Night)
Auto Auto Auto Auto Auto
OFF OFF ON OFF OFF
Max 4x Max 2x Max 4x Max 4x Max 4x
Auto Auto Day Auto Day
OFF ON OFF OFF OFF
ATW Auto Auto Auto Auto
ATW ATW Auto ATW Auto
Function Normal Traffic Back Day/ Casino
Light Night
· COMM : Set up the camera ID, baud rate, protocol
▷ID : Select the camera ID
▶ 1 ~ 255
▷BAUD RATE : Select serial communication speed
▶ 2400 / 4800 / 9600 / 19200 / 38400 / 57600 / 115200 bps
▷PROTOCOL : Select operating protocol
▶ VISCA / Pelco-D / Pelco-P
· SCENE MODE : Select scene preset
▶ USER / NORMAL / TRAFFIC / BACK LIGHT/ DAY/NIGHT / CASINO
33
Setup Menu “CS-IRV7800”
[MENU]
MODEL
EXPOSURE
WHITE BAL
INTELLIGENCE
SPECIAL FUNC
DISPLAY
[EXIT] [SAVE] [DFLT]
TDN/COLOR
[BACK] [SAVE] [DFLT]
[DISPLAY]
DISP SEL
SET TITLE
LANGUAGE
SETUP STATUS
ENGLISH
ON
DISPLAY
· DISP SEL : Select display item.
▶ OFF / ON
▶ ID : OFF / ON
▶ TITLE : OFF / ON
▶ ZOOM RATIO : OFF / ON
· SET TITLE : Select camera title menu (Text edit)
· LANGUAGE : Select language
▶ ENGLISH / KOREAN
· SETUP STATUS : Shows the current OSD Menu setup status
and compare the each values with the ones in Factory default.
34

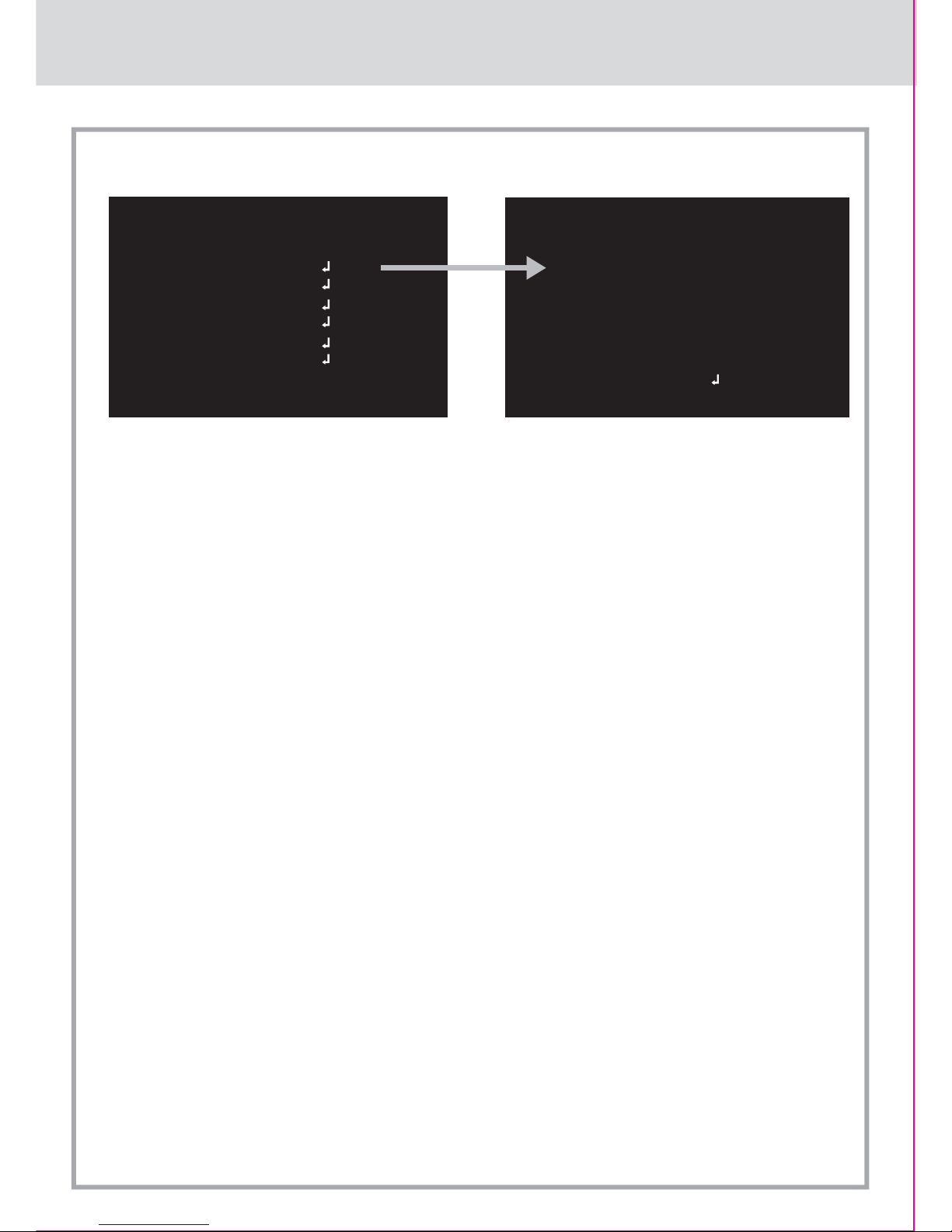

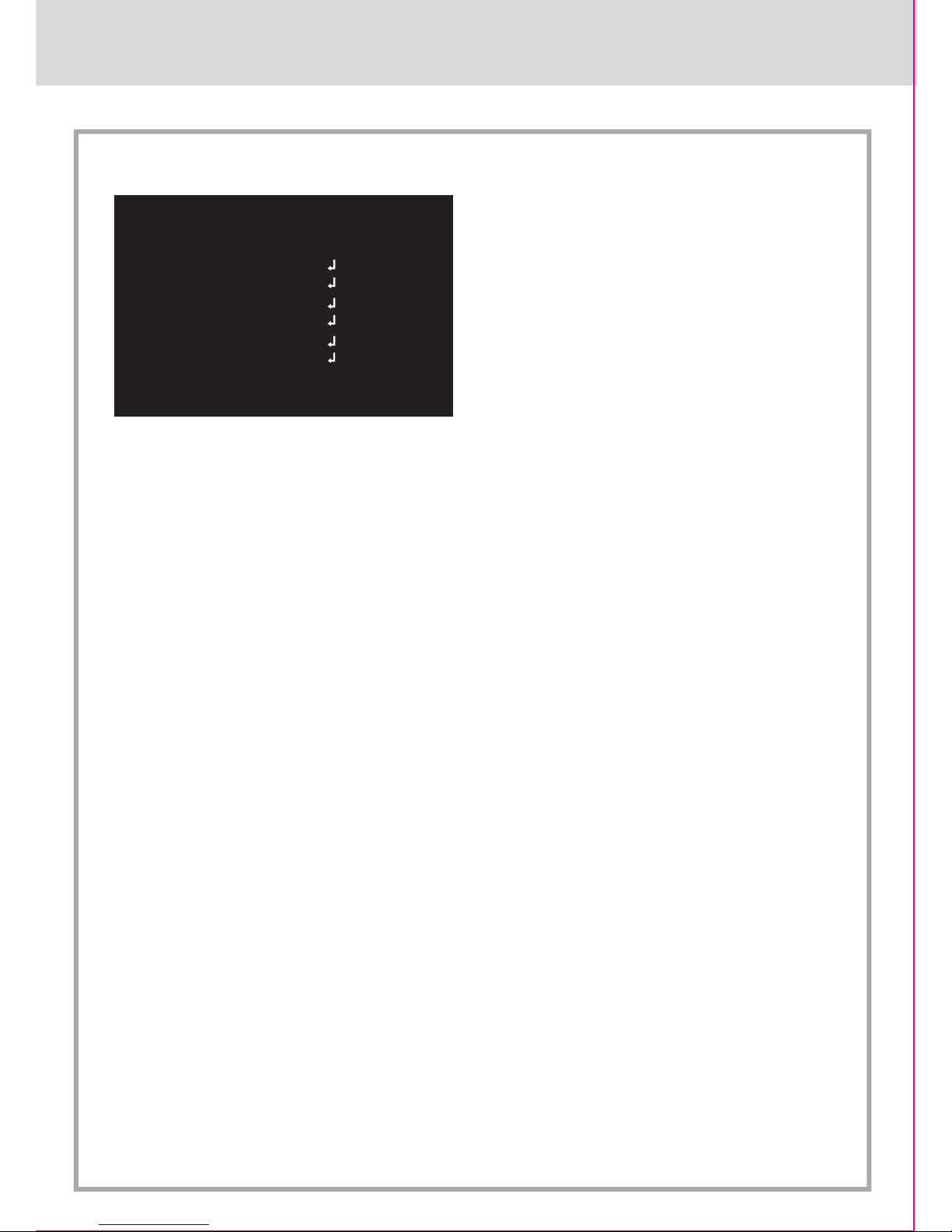

Setup Menu “CS-IRV7950”
MAIN MENU
Functions can be setup using “Menu Key Command”
of Visca protocol.
The menu consists of the “Main Menu” and “Sub Menu”.
The main menu is displayed where 7 camera functions
can be selected.
To the push of each main menu selection, the sub-menu is
displayed
If you want save the menu, select [SAVE].
If you want not save the menu, select [EXIT]
(After select, Power off -> on)
If you want default the menu, select [DFLT]
◆ MODEL
◈ MODEL : Select model
► D&N / COLOR / IR CDS
MENU
MODEL
EXPOSURE
WHITE BAL
INTELLIGENCE
SPECIAL FUNC
DISPLAY
[EXIT] [SAVE] [DFLT]
D&N
35

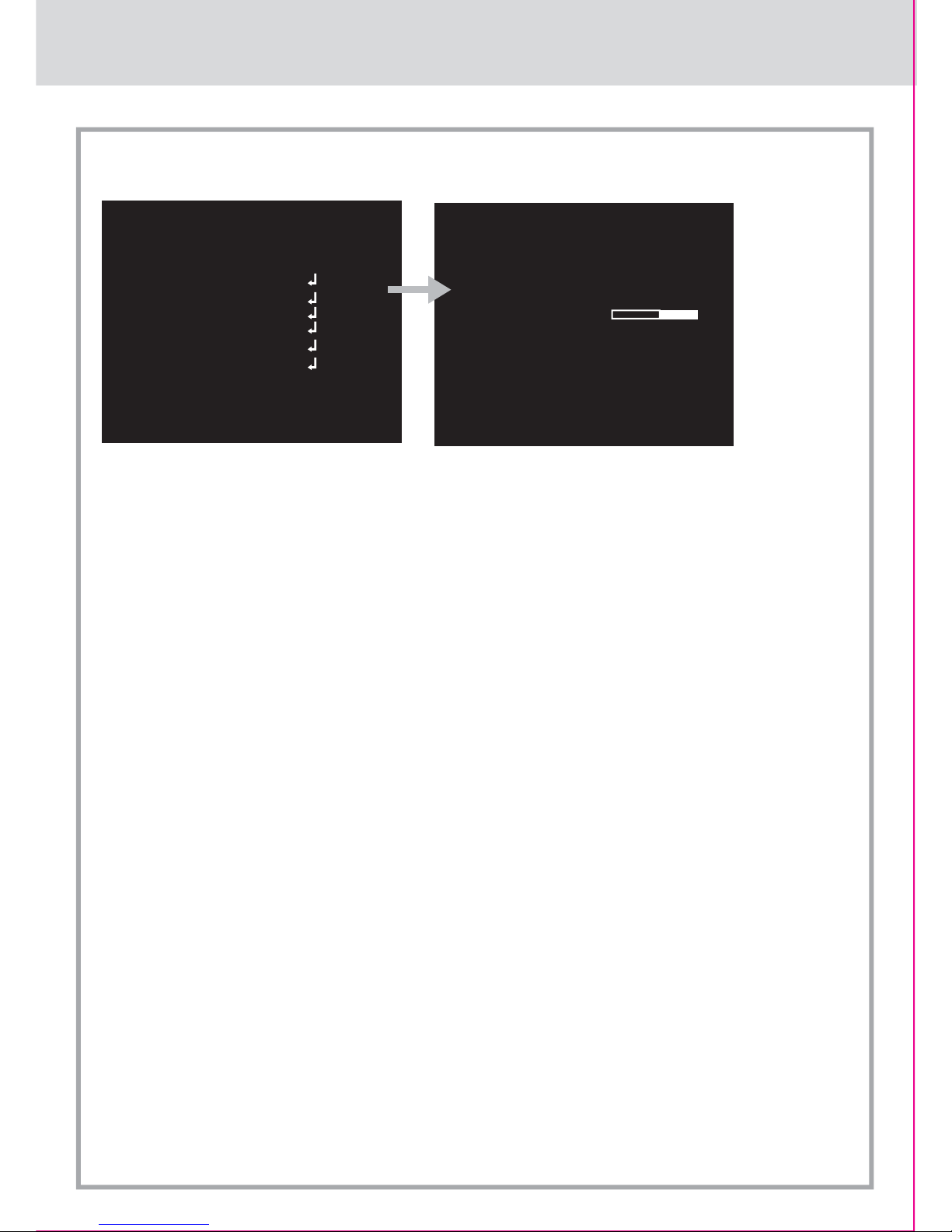

Setup Menu “CS-IRV7950”
EXPOSURE
◈ LENS : Select LENS type
► DC
▷ MODE : INDOOR, OUTDOOR, DEBLUR
► MANUAL
▷ MODE : NORMAL, DEBLUR
◈ BRIGHTNESS : Adjust brightness level
► 0(dark) ~ 20(bright) steps
◈ SHUT SPEED : Can be set in AUTO or MANUAL
► AUTO / x2, x3, x4, 1/30(25),1/60(50),1/120(100),1/240,
1/500, 1/1000,1/2000,1/4000,1/8000, 1/16000,1/30000,
1/60000 sec
◈ DSS : Select maximum DSS(Digital Slow Shutter)
► OFF / x2, x3, x4
◈ FLICKERLESS : Select Flickerless mode
► OFF / ON (remove screen flicker)
◈ AGC : Select Auto Gain Control
► OFF / ON
EXPOSURE
MODE
BRIGHTNESS
SHUT SPEED
DSS
AGC
FLICKERLESS
WDR/BLC
DAY&NIGHT
[BACK] [SAVE] [DFLT]
DC
AUTO
OFF
ON
OFF
OFF
8
MENU
MODEL
EXPOSURE
WHITE BAL
INTELLIGENCE
SPECIAL FUNC
DISPLAY
[EXIT] [SAVE] [DFLT]
D&N
36
Setup Menu “CS-IRV7950”
EXPOSURE
◈ WDR/BLC : Select WDR(Wide Dynamic Range)
or BLC(Back Light Compensation)
► WDR↲
▷ LEVEL : Adjust WDR level.
► LOW, MID-LOW, MIDDLE, MID-HIGH, HIGH
※ WDR doesn’t work in Shutter Manual Mode.
► BLC↲
▷ POSITION : Adjust the window position
▷ SIZE : Adjust the window size
※ Can’t use WDR and BLC at the same time.
(When WDR On, BLC is Off. And when BLC is On,
WDR is Off)
◈ DAY&NIGHT : Select Day&Night
▷ MODE : AUTO / EXT-IN / DAY / NIGHT
► AUTO↲ (When using IR-CDS model)
▷ POLARITY : ACTIVE LOW / HIGH
► EXT-IN↲ (When using D&N and COLOR model)
▷ POLARITY : ACTIVE LOW / HIGH
▷ DELAY : 0 ~ 255 sec
▷ THRS : 0 ~ 28
Day↔Night switching level in Auto Mode.
Switching in lower lux with higher threshold level.
▷ GAP : LOW, MID-LOW, MIDDLE, MID-HIGH, HIGH
Margin between Day →Night switching level and
Night →Day switching level.
▷ ANTI-SAT : LED saturation improves. (0~20)
▷ BURST : OFF / ON
37
Setup Menu “CS-IRV7950”
WHITE BALANCE
◈ AWB : Select WHITE BALANCE mode
► AUTO / ONE PUSH / MANUAL / INDOOR / OUTDOOR
▷ AUTO : Automatically adjusts color according to
the available lighting.
▷ ONE PUSH : It is a fixed white balance mode that
may be automatically readjusted only by pressing
ONE PUSH
▷ MANUAL↲ : Color can be corrected when the user
increases or decreases “RED GAIN” or “BLUE GAIN”.
▷ INDOOR : Set color temperature to be Indoor light
(3700°K)
▷ OUTDOOR : Set color temperature to be Outdoor light
(5100°K)
◈RED GAIN : Adjust R gain value
► 0 ~ 20 steps
◈BLUE GAIN : Adjust B gain value
► 0 ~ 20 steps
◈ CHROMA : Adjust CHROMA gain value
► 0 ~ 20 steps
WHITE BAL
MODE
RED GAIN
BLUE GAIN
CHROMA
[BACK] [SAVE] [DFLT]
AUTO
---
--10
MENU
MODEL
EXPOSURE
WHITE BAL
INTELLIGENCE
SPECIAL FUNC
DISPLAY
[EXIT] [SAVE] [DFLT]
D&N
38
Setup Menu “CS-IRV7950”
MENU
MODEL
EXPOSURE
WHITE BAL
INTELLIGENCE
SPECIAL FUNC
DISPLAY
[EXIT] [SAVE] [DFLT]
D&N
◈ HLC : Select High Light Compensation.
When extremely bright light is projected to the camera
masking is used on the portion to prevent partial saturation
on the monitor.
▷ MODE : OFF / ON / NIGHT
▷ LEVEL : 0 ~ 20 steps
▷ COLOR : 0 ~ 13 steps
◈ DNR : Select Digital Noise Reduction
► AUTO / OFF / LOW / MIDDLE / HIGH
◈ MIRROR : Select a flip mode
► OFF / H / V / H&V
▷ H : You can flip the picture horizontally on the screen
▷ V : You can flip the picture vertically on the screen
▷ H&V : You can flip the picture horizontally & vertically
on the screen
HLC
DNR
MIRROR
SHARPNESS
ACE
DEFOG
FREEZE
GAMMA
E.ZOOM
[BACK] [SAVE] [DFLT]
5
OFF
OFF
OFF
0.55
OFF
AUTO
OFF
39
Setup Menu “CS-IRV7950”
◈ SHARPNESS : Adjust sharpness level
► 0 ~ 10 steps
◈ ACE : Select Digital WDR (Wide Dynamic Range)
► OFF / LOW / MIDDLE / HIGH
◈ DEFOG : Carry out defog function
► OFF / ON↲
▷ MODE : AUTO / MANUAL
▷ LEVEL : LOW / MIDDLE / HIGH
※ Can’t use DEFOG and ACE at the same time
(When ACE On, DEFOG is Off. And when DEFOG is On,
ACE is Off)
◈ Freeze : Select real or still mode
► OFF / ON
◈ GAMMA : Select GAMMA
► 0.45 / 0.50 / 0.55 / 0.60 / 0.65
◈ E.ZOOM
► OFF / ON
▷ LIMIT : Max x2 ~ x19, x21, x23, x25, x28, x32
▷ POSITION : Select maximum digital zoom magnification.
※ Can’t use Digital Zoom when the motion detection is
turned on.
40
Setup Menu “CS-IRV7950”
◈ PRIVACY : Hide an area you want to hide on the screen
► OFF / ON↲
▷ MASK# : Select mask area number (1 ~ 24)
▷ MODE : Mask enable or disable (OFF / ON)
▷ POSITION : Adjust the mask position
▷ SIZE : Adjust the mask size
▷ COLOR : Select mask color (0 ~ 13)
▷ TRANS : Select mask transparency level (0 ~ 4)
◈ MOTION : When there is movement of the subject
in the screen, there will be an motion detection
► OFF / ON↲
▷ AREA# : Setting 3 areas(1~3) of motion detection
▷ MODE : OFF / ON
(Limit and define areas of motion detection)
▷ SENSITIVITY : Adjust sensitivity of MD (0 ~ 20 steps)
More sensitive to setting to low step with sensitivity
▷ POSITION : Adjust the Area position
▷ SIZE : Adjust the Area size
▷ INTERVAL TIME :Select the alarm interval time
(0 ~ 255sec)
▷ DWELL TIME : Select the duration time about changing
MD mode (0 ~ 255sec)
INTELLIGENCE
MENU
MODEL
EXPOSURE
WHITE BAL
INTELLIGENCE
SPECIAL FUNC
DISPLAY
[EXIT] [SAVE] [DFLT]
D&N
INTELLIGENCE
PRIVACY
MOTION
[BACK] [SAVE] [DFLT]
OFF
OFF
41
Setup Menu “CS-IRV7950”
◈ DEFECT : Compensates for bad pixels that may occur.
Occurs when the whole screen is in full black or if there is
bad pixelation and it changes the THRS values until
the screen is fixed.
◈ SYSTEM : Select NTSC(30fps) or PAL(25fps).(NTSC / PAL)
◈ HD FORMAT : Select Digital output 1080P or 720P.
(1080P / 720P)
◈ COMM : Set up the camera ID, baud rate, protocol
▷ ID : Select the camera ID
► 1 ~ 255
▷ BAUD RATE : Select serial communication speed
► 2400 / 4800 / 9600 / 19200 / 38400 / 57600 / 115200bps
▷ PROTOCOL : Select operating protocol
► VISCA / PELCO-D / PELCO-P / UPDATE
SPECIAL FUNC
MENU
MODEL
EXPOSURE
WHITE BAL
INTELLIGENCE
SPECIAL FUNC
DISPLAY
[EXIT] [SAVE] [DFLT]
D&N
SPECIAL FUNC
DEFECT
SYSTEM
HD FORMAT
COMM
[BACK] [SAVE] [DFLT]
NTSC
1080P
42
Setup Menu “CS-IRV7950”
◈ DISP SEL : Select display item.
► OFF / ON↲
▷ ID : OFF / ON
▷ TITLE : OFF / ON
▷ ZOOM RATIO : OFF / ON
▷ SYSTEM MSG : OFF / ON (MD Alarm and Wait message)
◈ SET TITLE : Select camera title menu (Text edit)
◈ INIT SEL : Select display initial message.
► OFF / ON↲
▷ ID : OFF / ON
▷ BAUDRATE : OFF / ON
▷ PROTOCOL : OFF / ON
▷ VERSION : OFF / ON
▷ INIT MSG : OFF / ON
◈ SET INIT MSG : modify initial message. (Text edit)
◈ LANGUAGE : Select language.
► English / Japanese
DISPLAY
MENU
MODEL
EXPOSURE
WHITE BAL
INTELLIGENCE
SPECIAL FUNC
DISPLAY
[EXIT] [SAVE] [DFLT]
D&N
DISPLAY
DISP SEL
SET TITLE
INIT SEL
SET INIT MSG
LANGUAGE
[BACK] [SAVE] [DFLT]
ON
ON
ENGLISH
※ Character Table of Text edit Mode
i
43
Model
PALNTSC
Image Sensor
Total Pixels
Effective pixels
Scanning system
Scanning Frequency
Sync. System
Horizontal Resolution
Min. illumination
Video Output
S/N Ratio
Exposure
Lens
Gain Control
Shutter Speed
Digital Slow Shutter
Flickerless
Brightness
Digital Wide Dynamic Range
Defog
Backlight Compensation
Highlight Compensation
Day & Night
White Balance
Gamma
Chroma
Digital Noise Reduction
Mirror
1020(H) × 508(V)
976(H) × 494(V)
15.734KHz(H),59.94Hz(V)
1/60 ~ 1/120,000 sec 1/50 ~ 1/120,000 sec
1020(H) x 596(V)
976(H) x 582(V)
15.625KHz(H),50Hz(V)
1/3” 2:1 Interlaced CCD
2:1 Interlace
Internal
Max 700 TV lines in color
Color : 0.3 Lux, BW : 0.1 lux
1.0 Vp-p (75 ohm, composite)
more than 50dB (AGC off)
ALC / ELC
DC / Manual
Off / On (0 ~ 20 steps)
Off / On (x2 ~ x512)
Off / On
1 ~ 20 steps
Off / Manual / Auto
Off / Manual / Auto
Off / On
Off / On
Day / Night / Auto / EXT / CDS
ATW / Push / Manual
0.35 ~ 0.70
1 ~ 20 steps
Off / Low / Middle /High
Off / On
Specifications “CS-IRV7700”
44
Specifications are subject to without notice.
1 ~ 20 steps
Positive / Negative
1 ~ 20 steps
Off / 8 positions
Off / 4 positions
One Push
Coaxial control, RS-485
COAX : Pelco-C / RS-485 : Palco-D, Pelco-P
Disp Sel / Set Title / Language / Setup Status
ID / Title
0 ~ 9 , A ~ Z , a ~ z
English
DC12V±10%
Max 480mA/DC12V, 9.6VA/AC24V (IR-LED On)
-10℃ ~ +50℃
0 ~ 86% (non-condencing)
-20℃ ~ +60℃
Model
PALNTSC
Sharpness
Effect
Shading
Privacy Mask
Motion Detection
Defect Detection
Communication
Protocol
Display
Disp Sel
OSD Text
Language
Power Source
Power Consumption
Operating Temperature
Operating Humidity
Storage Temperature
Specifications “CS-IRV7700”
45
Specifications “CS-IRV7800”
Model
Image Sensor
Total Pixels
Scanning system
Scanning Frequency
Sync. System
Resolution
Min. illumination
Video Output
S/N Ratio
Exposure
Lens
Gain Control
Shutter Speed
Digital Slow Shutter
Flickerless
Brightness
WDR
BLC
Day&Night
White Balance
Chroma
HLC
DNR
HR
Mirror
1/3" SONY Super HADⅡ(Double Scan) CCD
2:1 Interlace
Internal / External (V-Lock)
Max 700 TV lines in color @ HR 7 mode
(750TV lines in B/W @ HR 7 mode)
Color : 0.3 lux , BW : 0.1 lux
Color DSS : 0.0005 lux , BW DSS : 0.0002 lux
1.0 Vp-p (75 ohm, composite)
more than 50dB (AGC off)
Auto / Shutter PRI / Manual
DC / Video / Manual
Off / On (Max 30dB)
Off / Max x2 ~ x512
Off / On
1 ~ 15 steps
Off / On
Off / On
Day / Night / Auto / Ext
ATW / One Push / Indoor / Outdoor / Manual / Auto
Low / Mid / High
HLC / DNR / HR / Mirror / Sharpness / Effect / Freeze / E.Zoom
Off / On
Off / 1 ~ 10 steps / Auto
Off / 1 ~ 7 steps
Off / V / H / H&V
1028(H) × 508(V) 1028(H) x 596(V)
15.734KHz(H),59.94Hz(V) 15.625KHz(H),50Hz(V)
1/60 ~ 1/100,000 sec 1/50 ~ 1/100,000 sec
NTSC PAL
46
Specifications are subject to without notice.
Specifications “CS-IRV7800”
Model
Sharpness
Effect
Freeze
E.Zoom
Intelligent
Privacy Mask
Motion Detection
Object Detection
Special
Sync Mode
Phase
DIS
Defect Det
Scene Mode
Comm
Display
Disp Sel
Language
Power Source
Power Consumption
Operating Temperature
Operating Humidity
Storage Temperature
1 ~ 16 steps
Off / Negative / B/W
Off / On
E-Zoom (Max x2 ~ x32) / E-Pan / E-Tilt
Privacy / MD / OD
Off / 16 positions
Off / 3 positions
Off / 9 positions
Sync / Phase / DIS / Defect Det / Scene Mode / Comm
INT / LL
Off / On
One Push
User / Normal / Traffic / Back Light / Day/Night / Casino
Baud Rate : 2400 / 4800 / 9600 / 19200 / 38400 / 57600 / 115200
Protocol : VISCA / Pelco-D / Pelco- P
Disp Sel / Set Title / Language / Setup Status
ID / Title / Zoom Ratio
English / Korean
DC12V±10%
Max 480mA/DC12V, 9.6VA/AC24V (IR-LED On)
-10℃ ~ +50℃
0 ~ 86% (non-condencing)
-20℃ ~ +60℃
0 ~ 131 steps 0 ~ 156 steps
NTSC PAL
47
Specifications “CS-IRV7950”
Model
PALNTSC
Image Sensor
Total Pixels
Active pixels
Scanning system
Resolution
Min. illumination
Video Output
S/N Ratio
MODEL
LENS
Brigntness
Shutter speed
DSS
AGC
Flickerless
WDR/BLC
DAY&NIGHT
WHITE BAL
HLC
DNR
Mirror
Sharpness
ACE
1/3" Panasonic CMOS
2010(H) x 1108(V) = 2,227,080 (pixels)
1944(H) x 1092(V) = 2,122,848 (pixels)
Progressive
Digital ; 1920x1080p(1080p/30fps) ,
1280x720p(720p/30fps)
Analog : 700TVL
Color : 1.0 lux , BW : 0.5lux
Color DSS : 0.002 lux , BW DSS : 0.001 lux
HD : HD-SDI, BT.1120
Analog : NTSC / PAL (without WDR)
more than 50dB (AGC off)
D&N / COLOR / IR CDS
DC / Manual
0 ~ 20
Auto / Manual (x2, x3, x4, 1/30(1/25) ~ 1/60000 )
Off / x2 / x3 / x4
Off / On
Off / On
Off / WDR / BLC
Auto / Ext-in / Day / Night
Auto / One Push / Manual / Indoor / Outdoor
Off / On / Night
Off / Low / Middle / High / Auto
Off / H / V / H&V
0 ~ 10
Off / Low / Middle / High
48
Specifications are subject to without notice.
Specifications “CS-IRV7950”
Off / On (Auto / Manual)
Off / On
0.45 / 0.50 / 0.55 / 0.60 / 0.65
Off / Max x2 ~ x32
Off / On (24 points)
Off / On (3 points)
One Push
NTSC / PAL
1080P / 720P
Baud Rate : 2400 / 4800 / 9600 / 19200 /
38400 / 57600 / 115200
Protocol : VISCA / Pelco-D / Pelco-P / Update
ID / Title / Zoom Ratio / System Message
Text Edit
ID / Baud Rate / Protocol / Version / Init. Message
Text Edit
English / Japanese
0 ~ 9 , A ~ Z , a ~ z
DC12V±10%
Max 480mA/DC12V, 9.6VA/AC24V (IR-LED On)
-10℃ ~ +50℃ (Humidity : 0%RH ~ 80%RH)
-20℃ ~ +60℃ (Humidity : 0%RH ~ 90%RH)
Model
PALNTSC
Defog
Freeze
GAMMA
E.Zoom
PRIVACY
MOTION
Defect
System
HD Format
Comm
Disp Sel (Off / On)
Set Title
Init Sel (Off / On)
Set Init Msg
Language
OSD Text
Power Source
Power Consumption
Operating Temperature
Storage Temperature
49
Nothing appears on the screen.
- Please check the power connection.
- Please check the video signal line connection.
- Please check and make sure that the lens mode is set to DC(VIDEO)
when using a VIDEO(DC) lens.
The video image is not clear.
- Please clean the lens with a clean cloth or brush.
- Please adjust that the screen is not exposed directly to a bright light.
- Please move the camera if necessary.
- Please readjust the back-focus of the camera.
The screen is dark.
- Please adjust the contrast feature of the monitor.
- If you have an intermediate device, set the 75 Ω /Hi-Z properly, and check
the terminals.
- Please check if an auto iris lens is being used and adjust the brightness level.
The MOTION DETECTION function is not working.
- Please check if “MOTION DETECTION” mode is turned on.
- Please check if the MD Sensitivity is too low.
- Please check the setting of the MD AREA.
The WDR function is not working. (CS-IRV7800 model only)
- Please check if the WDR Level is too low.
- Please check if the AE Mode is set to MANUAL. The WDR doesn’t work in
MANUAL exposure mode.
Colors are not quite right.
- Please check if the camera is facing directly into sunlight or fluorescent light.
- Please check if an auto iris lens is being used.
- Please check the connection of the lens connector cable.
The Day&Night function doesn’t work.
- Please check if the AGC of EXPOSURE menu is set to OFF.
- The Auto Day&Night Function doesn’t work in AGC OFF.
Troubleshooting
Loading...
