Cam Scan CS-IPCB6000 User Manual

Download
001B0CWXZZA3
Full HD Multiple Streams Compact Box IP Camera
User’s Manual
1
Table of Contents
1. Overview ................................................................................................................................ 2
1.1 Features ...................................................................................................................... 2
1.2 Package Contents ....................................................................................................... 3
1.3 Dimensions .................................................................................................................. 5
1.4 Connectors .................................................................................................................. 7
2. Camera Cabling ..................................................................................................................... 8
2.1 Connect Power ............................................................................................................ 8
2.2 Connect Ethernet Cable............................................................................................... 8
2.3 Connect Alarm I/O ....................................................................................................... 9
3. System Requirements ........................................................................................................ 10
4. Access Camera ................................................................................................................... 11
5. Setup Video Resolution ...................................................................................................... 15
6. Configuration Files Export / Import ................................................................................... 16
Appendix A: Technical Specifications ................................................................ ...................... 17
Appendix B: Delete the Existing DC Viewer .............................................................................. 27
Appendix C: Setup Internet Security ......................................................................................... 28
Appendix D: Video Resolution ................................................................................................... 29
2M- Quad Streams ................................................................................................................ 29
2M- Triple Streams ................................................................................................................ 33
2M- Dual Streams ................................................................................................................. 35
2M- Single Stream ................................................................................................................ 35
2M Real time / 3M / 5M- Quad Streams ................................................................................ 36
2M Real time / 3M / 5M- Triple Streams ................................................................................ 41
2M Real time / 3M / 5M- Dual Streams .................................................................................. 44
2M Real time / 3M / 5M- Single Stream ................................................................................. 45
2
1. Overview
The Full HD Multiple Streams Compact Box IP Camera is a compact camera with an easy setup design. With microphone and speaker, two-way audio communication is allowed. Users can use the microphone to record audio with videos, and use the speaker for audio broadcasting. 5 Megapixel Resolution is available for providing high definition images. Quad Streams Compression (H.264 Baseline / Main / High Profile + MJPEG) are supported for efficient bandwidth and storage management. For dark environments, the camera has incorporated WDR, 3DNR and Day/Night ICR technologies to capture clear images in lowlight conditions.
1.1 Features
Progressive Scan CMOS Sensor  2M / 5M Resolution*  Board Lens / C/CS Mount Lens / 3x Zoom Lens*  Dual streaming- Full HD 1080P Real-Time + D1 Real-Time  Quad Streams Compression- H.264 Baseline / Main / High Profile + MJPEG  Multi-language Support  Tampering Alarm  Wide Dynamic Range  Motion Detection  Privacy Masks  Smart Picture Quality / 3D Noise Reduction  Vertical View Mode (image rotation by 90 degrees)  Smart IR Mode  Network Failure Detection  Day/Night (ICR)  IR LED Module (working distance up to 16m)*  Auto Iris Lens Support*  microSD Support  BNC Analog Output*  Built-in Microphone and Speaker / External Line In / Line Out*  ONVIF Support
(*) Optional
3
1.2 Package Contents
Please check the package contains the following items listed below.
Board Lens
Full HD Multiple Streams Compact Box IP Camera
(Board Lens)
Back Focus Adjuster
Quick Guide
CD
(bundled software and documentation)
3x Zoom Lens
Full HD Multiple Streams Compact Box IP Camera (3x Zoom Lens)
Quick Guide
CD
(bundled software and documentation)
4
C/CS Mount Lens- Single Board
Full HD Multiple Streams Compact Box IP Camera
(C/CS Mount Lens- Single Board)
Quick Guide
CD
(bundled software and documentation)
C/CS Mount Lens- Dual Board
Full HD Multiple Streams Compact Box IP Camera
(C/CS Mount Lens- Dual Board)
Quick Guide
CD
(bundled software and documentation)
5
1.3 Dimensions
The dimensions of the IP Camera are shown below.
Board Lens
3x Zoom Lens
6
C/CS Mount (Single Board)
C/CS Mount (Dual Board)
7
1.4 Connectors
The diagrams below show the connectors of the IP Camera. Definition for each connector is also given as follows.
Basic Primary General
Advanced microSD Card Slot / Default Button
No.
Connector
Definition
1
Alarm I/O
1
Alarm Input −
2
Alarm Input +
3
Alarm Output −
4
Alarm Output +
2
DC 12V Connector
For Power connection
3
PoE NETWORK
For Ethernet Cable and PSE connection
4
Network LEDs
Network connection and activity indication
5
LINE IN & LINE OUT (Primary / General / Advanced)
Two-way audio transmission
6
AUTO IRIS Connector (Advanced)
Connecting to the Auto iris lens
7
VIDEO (BNC Connector) (General / Advanced)
For video output
8
microSD Card Slot
For videos and snapshots storage
9
Default Button
Press the button with a proper tool to restore the system.
8
2. Camera Cabling
Please follow the instructions below to complete IP Camera connection.
2.1 Connect Power
Please refer to chapter 1.4 Connectors. Alternatively, connect the Ethernet Cable to the camera’s PoE port and plug the other end of the cable into a PoE switch.
NOTE: If PoE is used, make sure Power Sourcing Equipment (PSE) is in used in the network.
2.2 Connect Ethernet Cable
Use of Category 5 Ethernet Cable is recommended for network connection. To have best transmission quality, cable length shall not exceed 100 meters. Connect one end of the Ethernet Cable to the RJ-45 connector of the IP Camera, and the other end of the cable to the network switch or PC. The RJ-45 port networks without routing to the outside plant.
NOTE: In some cases, Ethernet Crossover Cable might be needed when connecting the IP Camera directly to the PC.
Check the status of the link indicator and activity indicator LEDs. If the LEDs are unlit, please check the LAN connection.
Green Link Light indicates good network connection. Orange Activity Light flashes for network activity indication.
9
2.3 Connect Alarm I/O
The camera equips one alarm input and one relay output for alarm application. Refer to alarm pin definition below to connect alarm devices to the IP Camera if needed.

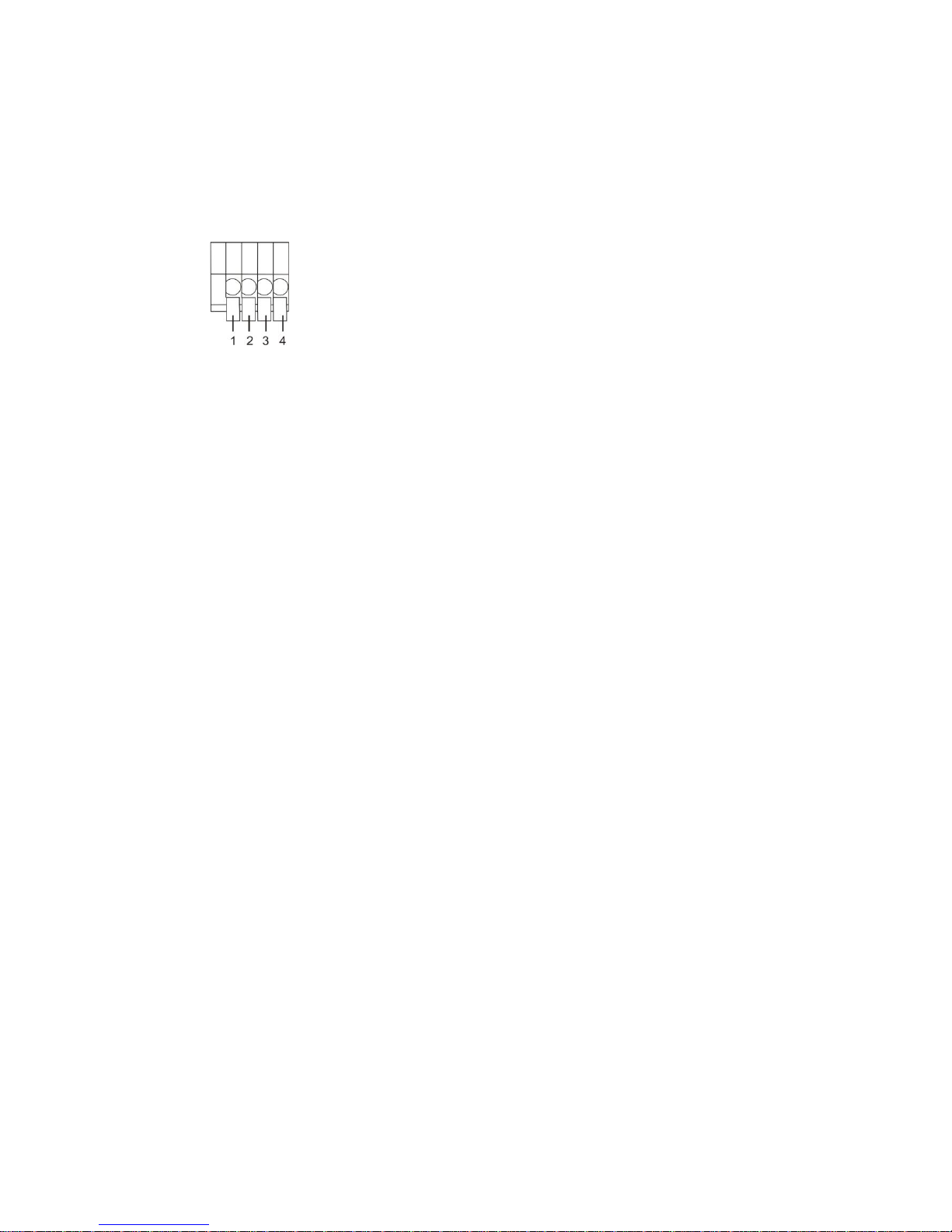

PIN 1: GND (Input −) PIN 2: Input + PIN 3: Output − PIN 4: Output +
10
3. System Requirements
To perform the IP Camera via web browser, please ensure the PC is in good network connection, and meet system requirements as described below.
Items
System Requirement
Personal Computer
1. Intel® Pentium® M, 2.16 GHz or Intel® CoreTM2 Duo, 2.0 GHz
2. 2 GB RAM or more
Operating System
Windows VISTA / Windows XP / Windows 7
Web Browser
Microsoft Internet Explorer 6.0 or later Firefox Chrome Safari
Network Card
10Base-T (10 Mbps) or 100Base-TX (100 Mbps) operation
Viewer
ActiveX control plug-in for Microsoft IE
11
4. Access Camera
For initial access to the IP Camera, users can search the camera through the installer program: DeviceSearch.exe, which can be found in “DeviceSearch” folder in the supplied CD.
Accessing Device Search Software Step 1: Double click on the program Device Search.exe. After its window
appears, click on the <Device Search> button on the top side.
Step 2: The security alert window will pop up. Click on <Unblock> to continue.
Device Search Step 3: Click on <Device Search> again, and all the finding IP devices
will be listed in the page. The IP Camera’s default IP address is:
192.168.0.250.
Step 4: Double click or right click and select <Browse> to access the camera
directly via web browser.
Step 5: A Prompt window requesting for default username and password will
appear. Please enter the default username and password shown below to login to the IP Camera.
Login ID
Password
Admin
1234
NOTE: ID and password are case sensitive.
NOTE: It is strongly advised that administrator’s password be
altered for the security concerns. Refer to Full HD Multiple
Streams IP Camera Menu Tree for further details.
12
Additionally, users can change the network property of the IP Camera to DHCP or Static IP directly in the device finding list. Refer to the following section for changing the network property of the IP Camera.
Example of Changing IP Camera’s Network Property
Users can directly change an IP Camera’s network property, ex. from static IP to DHCP, in the finding device list. The way to change the network property of the IP Camera is specified below:
Step 1: In the finding device list, click on the IP Camera that is wished to
change its network property. On the selected item, right click and select “Network Setup”. Meanwhile, record the MAC address of the IP Camera, for future identification.
Step 2: The “Network Setup” page will come out. Select “DHCP”, and press
“Apply” button down the page.
Step 3: Click on <OK> on the Note of setting change. Wait for one minute to
re-search the IP Camera.
Step 4: Click on the <Device Search> button to re-search all the devices.
Then select the IP Camera with the correct MAC address. Double click on the IP Camera, and the login window will come out.
Step 5: Enter User name and Password to access the IP Camera.
Installing DC Viewer Software Online
For the initial access to the IP Camera, a client program, DC Viewer, will be automatically installed to the PC when connecting to the IP Camera.
If the Web browser does not allow DC Viewer installation, please check the Internet security settings or ActiveX controls and plug-ins settings (refer to chapter Appendix C: Setup Internet Security) to continue the process.
The Information Bar (just below the URL bar) may come out and ask for permission to install the ActiveX Control for displaying video in browser. Right click on the Information Bar and select <Install ActiveX Control…> to allow the installation.
13
The download procedure of DC Viewer software is specified as follows.
Step 1: In the DC Viewer installation window, click on <Next> to start
installation.
Step 2: The status bar will show the installation progress. After the installation
is completed, click on <Finish> to exit the installation process.
Step 3: Click on <Finish> to close the DC Viewer installation page.

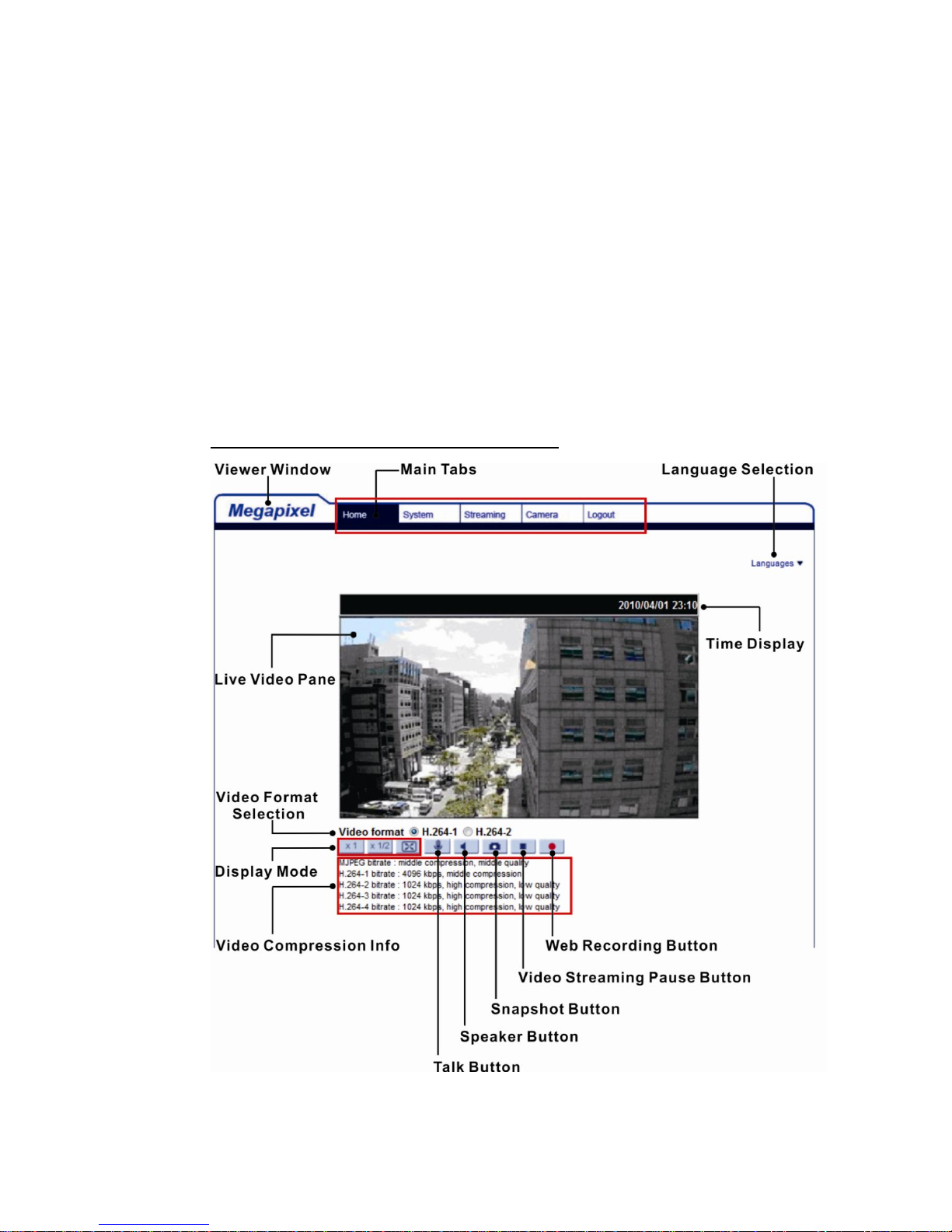

Once the DC Viewer is successfully installed, the IP Camera’s Home page will be able to correctly display as the figure below.
Board Lens and C/CS Mount Lens Models
14
3x Zoom Lens Models
Image and Focus Adjustment
The image will be displayed on the Home page when the IP Camera is successfully accessed. Adjust zoom and focus as necessary to get a clear image.
Note: Please refer to Full HD Multiple Streams IP Camera Menu Tree for more button function detail.
15
5. Setup Video Resolution

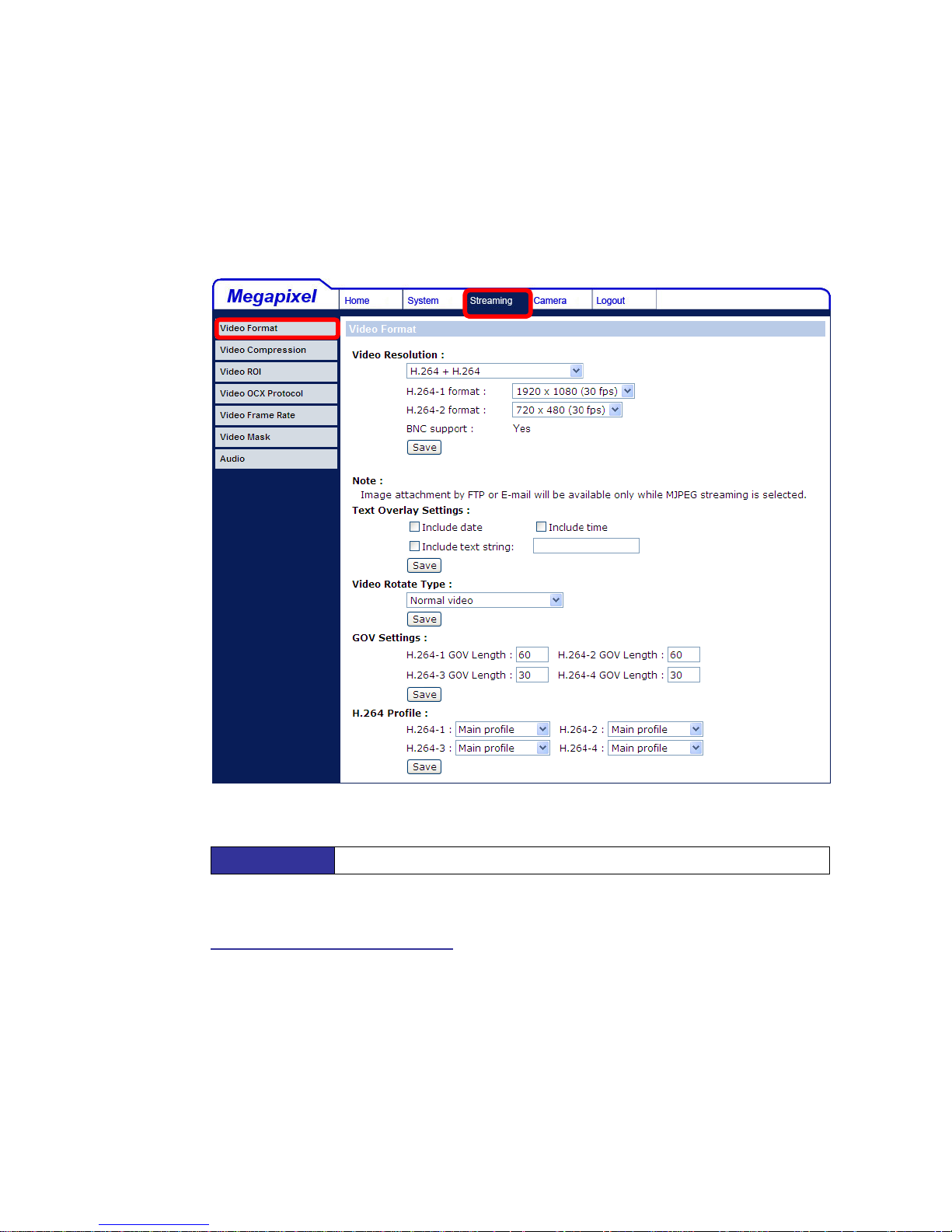

Users can setup Video Resolution on Video Format page of the user-friendly browser-based configuration interface.
Video Format can be found under this path: Streaming> Video Format.
The default value of Video Resolution is as below.
2M
H.264- 1920 x 1080 (30 fps) + H.264- 720 x 480 (30 fps)
For more Video Resolution combination details, please refer to chapter
Appendix D: Video Resolution. Click on <Save> to confirm the setting when
finish setting up the video resolution.
16
6. Configuration Files Export / Import
To export / import configuration files, users can access the Maintenance page on the user-friendly browser-based configuration interface.
The Maintenance setting can be found under this path: System> Maintenance.
Users can export configuration files to a specified location and retrieve data by uploading an existing configuration file to the IP Camera. This is especially convenient to make multiple cameras having the same configuration.
Export
Users can save the system settings by exporting the configuration file (.bin) to a specified location for future use. Click on the <Export> button, and the popup File Download window will come out. Click on <Save> and specify a desired location for saving the configuration file.
Upload
To upload an existing configuration file to the IP Camera, please first click on <Browse> to select the configuration file, and then click on the <Upload> button for uploading.
17
Appendix A: Technical Specifications
Camera
2M
2M Real time
Image Sensor
1/2.7” Progressive CMOS
Effective Pixels
1920 (H) x 1080 (V)
Minimum Illumination
Vari-focal / Motorized- 0.2 lux (Color) / 0.02 lux (B/W)
Board 2.8 mm- 0.1 lux (Color) / 4.0 mm- 0.1 lux (Color)
Shutter Speed
1 ~ 1/10000 sec.
Lens
Lens
C/CS Mount / Board 2.8 mm / Board 4.0 mm
Focal Length
Board- 2.8 mm / 4.0 mm
F Number
Board 2.8 mm- F2.0 / 4.0 mm- F1.5
FOV
Board 2.8 mm- 105º / 4.0 mm- 78º
Operation
Multiple Languages
English / French / German / Italian / Korean / Simplified Chinese /
Traditional Chinese / Russian / Spanish / Japanese / Portuguese
Image Setting
Backlight Compensation
On / Off
White Balance
Auto / Manual / ATW
Noise Reduction (3D)
On / Off
Wide Dynamic Range
On / Off
Privacy Mask
On / Off
Brightness
Manual
Exposure
Auto / Manual
Sharpness
Manual
Contrast
Manual
Saturation
Manual
Hue
Manual
Digital Zoom
Support
Motion Detection
On / Off / By Schedule
Privacy Mask Type
Color
ICR
Auto / On / Off / Smart
ICR + IR LED*
Auto / LED On / LED Off / Smart IR / Light Sensor
Tampering Alarm
On / Off / By Schedule
Audio* Two-way Audio
Built in Microphone and Speaker or Line In / Line Out
Compression
G.711 / G.726
Network
Interface
RJ-45, 10/100 Mbps Ethernet
Video Compression
H.264 / MJPEG
Video Streaming
Dual Streams- H.264 + MJPEG / H.264 + H.264
Quad Streams- H.264 x 3 + MJPEG / H.264 x 4
Video Resolution
H.264- Full HD 1080P / SXGA / HD 720P / XGA / SVGA / D1 / VGA / CIF
MJPEG- Full HD 1080P / SXGA / HD 720P / XGA / SVGA / D1 / VGA / CIF
Frame Rate
Single Stream
1080P (30/25 fps)
-
Dual Streams
1080P (15/13 fps) + 720P (30/25 fps)
1080P (30/25 fps) + D1 (30/25 fps)
Protocol
IPv4/v6, TCP/IP, UDP, RTP, RTSP, HTTP, HTTPS, ICMP, FTP, SMTP,
DHCP, PPPoE, UPnP, IGMP, SNMP, QoS, ONVIF
Security
HTTPS / IP Filter / IEEE 802.1x
Alarm
Input
1 Set, 5V 10kΩ pull up
Output
1 Set, Photo Relay Output 300V DC/AC
Event Notification
HTTP / FTP / SMTP
microSD
microSDHC 32GB support
Supported Web Browser
Internet Explorer (6.0+) / Chrome / Firefox / Safari
User Account
20
Password Levels
User and Administrator
18
Mechanical
Built-in IR Illuminator
Working distance
up to 16 m
Wavelength
850 nm
Number of LEDs
18
LED Indicator
Power / Link / ACT
Connectors
Auto Iris*
DC Drive
Alarm
4 Pin Terminal Block, Pitch 3.5 mm
Power
DC jack
Ethernet
RJ-45
Analog Video*
1.0 Vp-p / 75Ω, BNC
Audio*
Built in Microphone and Speaker or Line In / Line Out
General
Operating Temperature
TBD
Humidity
10% ~ 90%, No Condensation
Dimension
C/CS Mount (w/o lens)- 122 x 77 x 68 mm (Singled Board) /
122 x 77 x 75 mm (Dual Boards)
Board lens- 122 x 77 x 69 mm
Weight
C/CS Mount- TBD
Board lens- 230 g
Power Source
DC 12V / PoE
Power Consumption
System- max 3W
IR LED- max 3.6W
Regulatory
CE / FCC / RoHS
(*) Optional
19
Camera
5M
Image Sensor
1/2.5" 5M Progressive CMOS
Effective Pixels
2592 (H) x 1944 (V)
Minimum Illumination
TBD
Shutter Speed
1 ~ 1/10000 sec.
Lens
Lens
C/CS Mount / Board 4.0 mm / Board 6.0 mm
Focal Length
Board- 4.0 mm / 6.0 mm
F Number
Board 4.0 mm- F1.8 / 6.0 mm- F1.6
FOV
Board 4.0 mm- 90º / 6.0 mm- 57º
Operation
Multiple Languages
English / French / German / Italian / Korean / Simplified Chinese /
Traditional Chinese / Russian / Spanish / Japanese / Portuguese
Image Setting
Backlight Compensation
On / Off
White Balance
Auto / Manual / ATW
Noise Reduction (3D)
On / Off
Wide Dynamic Range
On / Off
Privacy Mask
On / Off
Brightness
Manual
Exposure
Auto / Manual
Sharpness
Manual
Contrast
Manual
Saturation
Manual
Hue
Manual
Digital Zoom
Support
Motion Detection
On / Off / By Schedule
Privacy Mask Type
Color
ICR
Auto / On / Off / Smart
ICR + IR LED*
Auto / LED On / LED Off / Smart IR / Light Sensor
Tampering Alarm
On / Off / By Schedule
Audio* Two-way Audio
Built in Microphone and Speaker or Line In / Line Out
Compression
G.711 / G.726
Network
Interface
RJ-45, 10/100 Mbps Ethernet
Video Compression
H.264 / MJPEG
Video Streaming
Dual Streams- H.264 + MJPEG / H.264 + H.264
Quad Streams- H.264 x 3 + MJPEG / H.264 x 4
Video Resolution
H.264- 2592 x 1944 (5M) / 2048 x 1536 (3M) / Full HD 1080P / SXGA /
HD 720P / XGA / SVGA / D1 / VGA / CIF
MJPEG- Full HD 1080P / SXGA / HD 720P / XGA / SVGA / D1 / VGA / CIF
Frame Rate
5M Dual Streams
H.264 2592 x 1944 (12 fps) + H.264 / MJPEG D1 (12 fps)
3M Dual Streams
H.264 2048 x 1536 (15/13 fps) + H.264 / MJPEG 720P (15/13 fps)
2M Dual Streams
H.264 1080P (30/25 fps) + H.264 / MJPEG D1 (30/25 fps)
Protocol
IPv4/v6, TCP/IP, UDP, RTP, RTSP, HTTP, HTTPS, ICMP, FTP, SMTP,
DHCP, PPPoE, UPnP, IGMP, SNMP, QoS, ONVIF
Security
HTTPS / IP Filter / IEEE 802.1x
Alarm
Input
1 Set, 5V 10kΩ pull up
Output
1 Set, Photo Relay Output 300V DC/AC
Event Notification
HTTP / FTP / SMTP
microSD
microSDHC 32GB support
Supported Web Browser
Internet Explorer (6.0+) / Chrome / Firefox / Safari
User Account
20
Password Levels
User and Administrator
20
Mechanical
Built-in IR Illuminator
Working distance
up to 16 m
Wavelength
850 nm
Number of LEDs
18
LED Indicator
Power / Link / ACT
Connectors
Auto Iris*
DC Drive
Alarm
4 Pin Terminal Block, Pitch 3.5 mm
Power
DC jack
Ethernet
RJ-45
Analog Video*
1.0 Vp-p / 75Ω, BNC
Audio*
Built in Microphone and Speaker or Line In / Line Out
General
Operating Temperature
TBD
Humidity
10% ~ 90%, No Condensation
Dimension
C/CS Mount (w/o lens)- 122 x 77 x 68 mm (Single Board) /
122 x 77 x 75 mm (Dual Boards)
Board lens- 122 x 77 x 69 mm
Weight
C/CS Mount- TBD
Board lens- 230 g
Power Source
DC 12V / PoE
Power Consumption
System- max 3W
IR LED- max 3.6W
Regulatory
CE / FCC / RoHS
(*) Optional
21
Camera
3x Optical Zoom- 2M
Image Sensor
1/2.8" Sony Progressive CMOS
1/2.7" Progressive CMOS
Effective Pixels
1920 (H) x 1080 (V)
Shutter Speed
1 ~ 1/10000 sec.
Lens
Lens
3x Optical Zoom, Auto Focus
FOV
90º (Wide); 30º(Tele)
108º (Wide); 41º (Tele)
Operation
Multiple Languages
English / French / German / Italian / Korean / Simplified Chinese /
Traditional Chinese / Russian / Spanish / Japanese / Portuguese
Image Setting
Iris control*
P-Iris / DC Iris
Backlight Compensation
On / Off
White Balance
Auto / Manual / ATW
Noise Reduction (3D)
On / Off
Wide Dynamic Range
Gamma WDR
Privacy Mask
On / Off
Brightness
Manual
Exposure
Auto / Manual
Sharpness
Manual
Contrast
Manual
Saturation
Manual
Hue
Manual
Digital Zoom
Support
Motion Detection
On / Off / By Schedule
Privacy Mask Type
Color
ICR
Auto / On / Off / Smart
ICR + IR LED*
Auto / LED On / LED Off / Smart IR / Light Sensor
Tampering Alarm
On / Off / By Schedule
Audio* Two-way Audio
Built in Microphone and Speaker or Line In / Line Out
Compression
G.711 / G.726
Network
Interface
RJ-45, 10/100 Mbps Ethernet
Video Compression
H.264 / MJPEG
Video Streaming
Dual Streams- H.264 + MJPEG / H.264 + H.264
Quad Streams- H.264 x 3 + MJPEG / H.264 x 4
Video Resolution
H.264- Full HD 1080P / SXGA / HD 720P / XGA / SVGA / D1 / VGA / CIF
MJPEG- Full HD 1080P / SXGA / HD 720P / XGA / SVGA / D1 / VGA / CIF
Protocol
IPv4/v6, TCP/IP, UDP, RTP, RTSP, HTTP, HTTPS, ICMP, FTP, SMTP,
DHCP, PPPoE, UPnP, IGMP, SNMP, QoS, ONVIF
Security
HTTPS / IP Filter / IEEE 802.1x
Alarm
Input
1 Set, 5V 10kΩ pull up
Output
1 Set, Photo Relay Output 300V DC/AC
Event Notification
HTTP / FTP / SMTP
microSD
microSDHC 32GB support
Supported Web Browser
Internet Explorer (6.0+) / Chrome / Firefox / Safari
User Account
20
Password Levels
User and Administrator
Mechanical
Built-in IR Illuminator
Working distance
up to 16 m
Wavelength
850 nm
Number of LEDs
18
LED Indicator
Power / Link / ACT
Connectors
Alarm
4 Pin Terminal Block, Pitch 3.5 mm
Power
DC jack
Ethernet
RJ-45
Analog Video*
1.0 Vp-p / 75Ω, BNC
Audio*
Built in Microphone and Speaker or Line In / Line Out
22
General
Operating Temperature
TBD
Humidity
10% ~ 90%, No Condensation
Dimension
122 x 77 x 112 mm
Weight
360 g
Power Source
DC 12V / PoE
Power Consumption
System- max 3W
IR LED- max 3.6W
3x AF- 3W
Regulatory
CE / FCC / RoHS
(*) Optional
23
Camera
3x Optical Zoom- 3M
Image Sensor
1/3" Progressive CMOS
Effective Pixels
2048 (H) x 1536 (V)
Shutter Speed
1 ~ 1/10000 sec.
Lens
Lens
3x Optical Zoom, Auto Focus
FOV
90º (Wide); 30º (Tele)
Operation
Multiple Languages
English / French / German / Italian / Korean / Simplified Chinese /
Traditional Chinese / Russian / Spanish / Japanese / Portuguese
Image Setting
Iris control*
P-Iris / DC Iris
Backlight Compensation
On / Off
White Balance
Auto / Manual / ATW
Noise Reduction (3D)
On / Off
Wide Dynamic Range
Gamma WDR
Gamma WDR / Shutter WDR
Privacy Mask
On / Off
Brightness
Manual
Exposure
Auto / Manual
Sharpness
Manual
Contrast
Manual
Saturation
Manual
Hue
Manual
Digital Zoom
Support
Motion Detection
On / Off / By Schedule
Privacy Mask Type
Color
ICR
Auto / On / Off / Smart
ICR + IR LED*
Auto / LED On / LED Off / Smart IR / Light Sensor
Tampering Alarm
On / Off / By Schedule
Audio* Two-way Audio
Built in Microphone and Speaker or Line In / Line Out
Compression
G.711 / G.726
Network
Interface
RJ-45, 10/100 Mbps Ethernet
Video Compression
H.264 / MJPEG
Video Streaming
Dual Streams- H.264 + MJPEG / H.264 + H.264
Quad Streams- H.264 x 3 + MJPEG / H.264 x 4
Video Resolution
H.264- 2048 x 1536 (3M) / Full HD 1080P / SXGA / HD 720P / XGA /
SVGA / D1 / VGA / CIF
MJPEG- Full HD 1080P / SXGA / HD 720P / XGA / SVGA / D1 / VGA / CIF
Protocol
IPv4/v6, TCP/IP, UDP, RTP, RTSP, HTTP, HTTPS, ICMP, FTP, SMTP,
DHCP, PPPoE, UPnP, IGMP, SNMP, QoS, ONVIF
Security
HTTPS / IP Filter / IEEE 802.1x
Alarm
Input
1 Set, 5V 10kΩ pull up
Output
1 Set, Photo Relay Output 300V DC/AC
Event Notification
HTTP / FTP / SMTP
microSD
microSDHC 32GB support
Supported Web Browser
Internet Explorer (6.0+) / Chrome / Firefox / Safari
User Account
20
Password Levels
User and Administrator
Mechanical
Built-in IR Illuminator
Working distance
up to 16 m
Wavelength
850 nm
Number of LEDs
18
LED Indicator
Power / Link / ACT
Connectors
Alarm
4 Pin Terminal Block, Pitch 3.5 mm
Power
DC jack
Ethernet
RJ-45
Analog Video*
1.0 Vp-p / 75Ω, BNC
Audio*
Built in Microphone and Speaker or Line In / Line Out
24
General
Operating Temperature
TBD
Humidity
10% ~ 90%, No Condensation
Dimension
122 x 77 x 112 mm
Weight
360 g
Power Source
DC 12V / PoE
Power Consumption
System- max 3W
IR LED- max 3.6W
3x AF- 3W
Regulatory
CE / FCC / RoHS
(*) Optional
25
Camera
3x Optical Zoom- 5M
Image Sensor
1/2.5" Progressive CMOS
Effective Pixels
2592 (H) x 1944 (V)
Shutter Speed
1 ~ 1/10000 sec.
Lens
Lens
3x Optical Zoom, Auto Focus
FOV
90º (Wide); 30º (Tele) @ 2048 (H) x1536 (V)
104º (Wide); 38º (Tele) @ 2592 (H) x 1944 (V)
Operation
Multiple Languages
English / French / German / Italian / Korean / Simplified Chinese /
Traditional Chinese / Russian / Spanish / Japanese / Portuguese
Image Setting
Iris control*
P-Iris / DC Iris
Backlight Compensation
On / Off
White Balance
Auto / Manual / ATW
Noise Reduction (3D)
On / Off
Wide Dynamic Range
Gamma WDR
Privacy Mask
On / Off
Brightness
Manual
Exposure
Auto / Manual
Sharpness
Manual
Contrast
Manual
Saturation
Manual
Hue
Manual
Digital Zoom
Support
Motion Detection
On / Off / By Schedule
Privacy Mask Type
Color
ICR
Auto / On / Off / Smart
ICR + IR LED*
Auto / LED On / LED Off / Smart IR / Light Sensor
Tampering Alarm
On / Off / By Schedule
Audio* Two-way Audio
Built in Microphone and Speaker or Line In / Line Out
Compression
G.711 / G.726
Network
Interface
RJ-45, 10/100 Mbps Ethernet
Video Compression
H.264 / MJPEG
Video Streaming
Dual Streams- H.264 + MJPEG / H.264 + H.264
Quad Streams- H.264 x 3 + MJPEG / H.264 x 4
Video Resolution
H.264- 2592 x 1944 (5M) / 2048 x 1536 (3M) / Full HD 1080P / SXGA /
HD 720P / XGA / SVGA / D1 / VGA / CIF
MJPEG- Full HD 1080P / SXGA / HD 720P / XGA / SVGA / D1 / VGA / CIF
Protocol
IPv4/v6, TCP/IP, UDP, RTP, RTSP, HTTP, HTTPS, ICMP, FTP, SMTP,
DHCP, PPPoE, UPnP, IGMP, SNMP, QoS, ONVIF
Security
HTTPS / IP Filter / IEEE 802.1x
Alarm
Input
1 Set, 5V 10kΩ pull up
Output
1 Set, Photo Relay Output 300V DC/AC
Event Notification
HTTP / FTP / SMTP
microSD
microSDHC 32GB support
Supported Web Browser
Internet Explorer (6.0+) / Chrome / Firefox / Safari
User Account
20
Password Levels
User and Administrator
Mechanical
Built-in IR Illuminator
Working distance
up to 16 m
Wavelength
850 nm
Number of LEDs
18
LED Indicator
Power / Link / ACT
Connectors
Alarm
4 Pin Terminal Block, Pitch 3.5 mm
Power
DC jack
Ethernet
RJ-45
Analog Video*
1.0 Vp-p / 75Ω, BNC
Audio*
Built in Microphone and Speaker or Line In / Line Out
26
General
Operating Temperature
TBD
Humidity
10% ~ 90%, No Condensation
Dimension
122 x 77 x 112 mm
Weight
360 g
Power Source
DC 12V / PoE
Power Consumption
System- max 3W
IR LED- max 3.6W
3x AF- 3W
Regulatory
CE / FCC / RoHS
(*) Optional
27
Appendix B: Delete the Existing DC Viewer
For users who have installed the DC Viewer in the PC previously, please first remove the existing DC Viewer from the PC before accessing to the IP Camera.
Deleting the DC Viewer
In the Windows <Start Menu>, activate <Control Panel>, and then double click on <Add or Remove Programs>. In the <Currently installed programs> list, select <DCViewer> and click on the button <Remove> to uninstall the existing DC Viewer.
Deleting Temporary Internet Files
To improve browser performance, it is suggested to clean up the all the files in the Temporary Internet Files.
The procedure is as follows:
Step 1: In the web browser, click on the <Tools> tab on the menu bar and select <Internet
Options>.
Step 2: Click on the <Delete> button under <Browsing history> section. Then tick the
box beside the <Temporary Internet Files>.
Step 3: Click on <Delete> to start deleting the files.
28
Appendix C: Setup Internet Security
If ActiveX control installation is blocked, please either set Internet security level to default or change ActiveX controls and plug-ins settings.
Internet Security Level: Default Step 1: Start the Internet Explorer (IE). Step 2: Click on the <Tools> tab on the menu bar and select <Internet Options>. Step 3: Click on the <Security> tab, and select <Internet> zone. Step 4: Down the page, click on the <Default Level> button, and click on <OK> to confirm
the setting. Close the browser window, and restart a new one later to access the IP Camera.
ActiveX Controls and Plug-ins Settings Step 1: Repeat Steps 1~3 of the previous section above. Step 2: Down the page, click on the <Custom Level> button to change ActiveX controls
and plug-ins settings. The Security Settings window will pop up.
Step 3: Under <ActiveX controls and plug-ins>, set ALL items (as listed below) to
<Enable> or <Prompt>. Please note that the items vary by IE version.
ActiveX controls and plug-ins settings:
1. Binary and script behaviors.
2. Download signed ActiveX controls.
3. Download unsigned ActiveX controls.
4. Allow previously unused ActiveX controls to run without prompt.
5. Allow Scriptlets.
6. Automatic prompting for ActiveX controls.
7. Initialize and script ActiveX controls not marked as safe for scripting.
8. Run ActiveX controls and plug-ins.
9. Only allow approved domains to use ActiveX without prompt.
10. Script ActiveX controls marked safe for scripting*.
11. Display video and animation on a webpage that does not use external media player.
Step 4: Click on <OK> to accept the settings. Then there will be a prompt window for
confirming the setting changes, click <Yes(Y)> and close the Security Settings window.
Step 5: Click on <OK> to close the Internet Options screen. Step 6: Close the browser window, and restart a new one later to access the IP Camera.
29
Appendix D: Video Resolution
2M- Quad Streams
H.264 + H.264 + H.264 + H.264 / MJPEG
H.264-1
H.264-2
H.264-3
H.264-4 / MJPEG
1920 x 1080 (15 fps)
1280 x 1024 (15 fps) 720 x 480 (15 fps)
352 x 240 (30 fps)
640 x 480 (15 fps)
352 x 240 (30 fps)
352 x 240 (30 fps)
352 x 240 (30 fps)
1280 x 720 (15 fps)
800 x 600 (15 fps) 720 x 480 (15 fps)
640 x 480 (15 fps)
352 x 240 (30 fps)
720 x 480 (15 fps) 720 x 480 (15 fps)
640 x 480 (15 fps)
720 x 480 (30 fps)
352 x 240 (30 fps)
640 x 480 (15 fps)
640 x 480 (30 fps)
640 x 480 (30 fps)
352 x 240 (30 fps)
352 x 240 (30 fps)
352 x 240 (30 fps)
1024 x 768 (15 fps)
800 x 600 (15 fps) 720 x 480 (15 fps)
640 x 480 (15 fps)
352 x 240 (30 fps)
720 x 480 (15 fps) 720 x 480 (30 fps)
640 x 480 (30 fps)
720 x 480 (30 fps)
352 x 240 (30 fps)
640 x 480 (15 fps)
640 x 480 (30 fps)
640 x 480 (30 fps)
352 x 240 (30 fps)
352 x 240 (30 fps)
352 x 240 (30 fps)
800 x 600 (15 fps) 800 x 600 (15 fps)
720 x 480 (30 fps)
640 x 480 (30 fps)
800 x 600 (30 fps)
352 x 240 (30 fps)
720 x 480 (15 fps)
720 x 480 (30 fps)
720 x 480 (30 fps)
640 x 480 (30 fps)
640 x 480 (30 fps)
640 x 480 (30 fps)
800 x 600 (30 fps) 720 x 480 (30 fps)
352 x 240 (30 fps)
640 x 480 (30 fps)
352 x 240 (30 fps)
352 x 240 (30 fps)
352 x 240 (30 fps)
720 x 480 (15 fps) 720 x 480 (30 fps) 720 x 480 (30 fps)
640 x 480 (30 fps)
640 x 480 (30 fps)
640 x 480 (30 fps)
720 x 480 (30 fps) 720 x 480 (30 fps)
352 x 240 (30 fps)
640 x 480 (30 fps)
352 x 240 (30 fps)
352 x 240 (30 fps)
352 x 240 (30 fps)
640 x 480 (30 fps) 640 x 480 (30 fps) 640 x 480 (30 fps)
352 x 240 (30 fps)
352 x 240 (30 fps)
352 x 240 (30 fps)
352 x 240 (30 fps)
352 x 240 (30 fps)
352 x 240 (30 fps)
30
H.264 + H.264 + H.264 + H.264 / MJPEG
H.264-1
H.264-2
H.264-3
H.264-4 / MJPEG
1280 x 1024 (15 fps)
1280 x 1024 (15 fps)
1280 x 720 (15 fps) 720 x 480 (30 fps)
640 x 480 (30 fps)
352 x 240 (30 fps)
800 x 600 (15 fps) 720 x 480 (30 fps)
640 x 480 (30 fps)
800 x 600 (30 fps)
352 x 240 (30 fps)
720 x 480 (15 fps)
720 x 480 (30 fps)
720 x 480 (30 fps) 640 x 480 (30 fps)
352 x 240 (30 fps)
640 x 480 (30 fps) 640 x 480 (30 fps)
352 x 240 (30 fps)
352 x 240 (30 fps)
352 x 240 (30 fps)
1280 x 720 (15 fps)
1280 x 720 (15 fps) 720 x 480 (30 fps)
640 x 480 (30 fps)
352 x 240 (30 fps)
800 x 600 (30 fps) 720 x 480 (30 fps)
640 x 480 (30 fps)
352 x 240 (30 fps)
720 x 480 (30 fps) 720 x 480 (30 fps)
640 x 480 (30 fps)
352 x 240 (30 fps)
640 x 480 (30 fps) 640 x 480 (30 fps)
352 x 240 (30 fps)
1280 x 720 (30 fps)
352 x 240 (30 fps)
352 x 240 (30 fps)
1024 x 768 (15 fps) 800 x 600 (30 fps)
720 x 480 (30 fps)
640 x 480 (30 fps)
352 x 240 (30 fps)
720 x 480 (30 fps) 720 x 480 (30 fps)
640 x 480 (30 fps)
640 x 480 (30 fps)
640 x 480 (30 fps)
1024 x 768 (30 fps) 720 x 480 (30 fps)
352 x 240 (30 fps)
640 x 480 (30 fps)
352 x 240 (30 fps)
352 x 240 (30 fps)
352 x 240 (30 fps)
800 x 600 (15 fps)
800 x 600 (30 fps)
720 x 480 (30 fps)
800 x 600 (30 fps)
800 x 600 (30 fps) 640 x 480 (30 fps)
352 x 240 (30 fps)
720 x 480 (30 fps) 720 x 480 (30 fps)
640 x 480 (30 fps)
352 x 240 (30 fps)
640 x 480 (30 fps) 640 x 480 (30 fps)
352 x 240 (30 fps)
720 x 480 (30 fps) 720 x 480 (30 fps) 720 x 480 (30 fps)
640 x 480 (30 fps)
352 x 240 (30 fps)
640 x 480 (30 fps) 640 x 480 (30 fps)
352 x 240 (30 fps)
640 x 480 (30 fps)
640 x 480 (30 fps) 640 x 480 (30 fps)
352 x 240 (30 fps)
1280 x 1024 (30 fps) 800 x 600 (30 fps)
352 x 240 (30 fps)
352 x 240 (30 fps)
720 x 480 (30 fps)
352 x 240 (30 fps)
352 x 240 (30 fps)
640 x 480 (30 fps)
352 x 240 (30 fps)
352 x 240 (30 fps)
352 x 240 (30 fps)
352 x 240 (30 fps)
352 x 240 (30 fps)
31
H.264 + H.264 + H.264 + H.264 / MJPEG
H.264-1
H.264-2
H.264-3
H.264-4 / MJPEG
1280 x 720 (15 fps)
1280 x 720 (15 fps)
1280 x 720 (15 fps) 720 x 480 (30 fps)
640 x 480 (30 fps)
1280 x 720 (30 fps)
352 x 240 (30 fps)
800 x 600 (30 fps) 720 x 480 (30 fps)
640 x 480 (30 fps)
720 x 480 (30 fps) 720 x 480 (30 fps)
640 x 480 (30 fps)
640 x 480 (30 fps)
640 x 480 (30 fps)
1280 x 720 (30 fps) 800 x 600 (30 fps)
352 x 240 (30 fps)
720 x 480 (30 fps)
352 x 240 (30 fps)
640 x 480 (30 fps)
352 x 240 (30 fps)
352 x 240 (30 fps)
352 x 240 (30 fps)
1024 x 768 (15 fps)
800 x 600 (30 fps) 720 x 480 (30 fps)
640 x 480 (30 fps)
1024 x 768 (30 fps)
800 x 600 (30 fps)
352 x 240 (30 fps)
720 x 480 (30 fps) 720 x 480 (30 fps)
640 x 480 (30 fps)
352 x 240 (30 fps)
640 x 480 (30 fps) 640 x 480 (30 fps)
352 x 240 (30 fps)
800 x 600 (30 fps) 800 x 600 (30 fps)
720 x 480 (30 fps)
640 x 480 (30 fps)
352 x 240 (30 fps)
720 x 480 (30 fps) 720 x 480 (30 fps)
640 x 480 (30 fps)
640 x 480 (30 fps)
640 x 480 (30 fps)
1280 x 720 (30 fps)
1024 x 768 (30 fps)
352 x 240 (30 fps)
352 x 240 (30 fps)
800 x 600 (30 fps) 720 x 480 (30 fps)
352 x 240 (30 fps)
640 x 480 (30 fps)
352 x 240 (30 fps)
352 x 240 (30 fps)
352 x 240 (30 fps)
720 x 480 (30 fps) 720 x 480 (30 fps)
720 x 480 (30 fps)
640 x 480 (30 fps)
352 x 240 (30 fps)
640 x 480 (30 fps) 640 x 480 (30 fps)
352 x 240 (30 fps)
352 x 240 (30 fps)
352 x 240 (30 fps)
640 x 480 (30 fps) 640 x 480 (30 fps) 640 x 480 (30 fps)
352 x 240 (30 fps)
352 x 240 (30 fps)
352 x 240 (30 fps)
352 x 240 (30 fps)
352 x 240 (30 fps)
352 x 240 (30 fps)
1024 x 768 (15 fps)
1024 x 768 (15 fps)
800 x 600 (30 fps) 720 x 480 (30 fps)
640 x 480 (30 fps)
1024 x 768 (30 fps) 800 x 600 (30 fps)
352 x 240 (30 fps)
720 x 480 (30 fps) 720 x 480 (30 fps)
640 x 480 (30 fps)
352 x 240 (30 fps)
640 x 480 (30 fps)
640 x 480 (30 fps)
800 x 600 (30 fps)
800 x 600 (30 fps) 720 x 480 (30 fps)
640 x 480 (30 fps)
32
H.264 + H.264 + H.264 + H.264 / MJPEG
H.264-1
H.264-2
H.264-3
H.264-4 / MJPEG
1024 x 768 (30 fps)
1024 x 768 (30 fps) 640 x 480 (30 fps)
352 x 240 (30 fps)
352 x 240 (30 fps)
352 x 240 (30 fps)
800 x 600 (30 fps)
800 x 600 (30 fps)
352 x 240 (30 fps)
720 x 480 (30 fps) 720 x 480 (30 fps)
640 x 480 (30 fps)
352 x 240 (30 fps)
640 x 480 (30 fps) 640 x 480 (30 fps)
352 x 240 (30 fps)
352 x 240 (30 fps)
352 x 240 (30 fps)
720 x 480 (30 fps) 720 x 480 (30 fps)
720 x 480 (30 fps)
640 x 480 (30 fps)
352 x 240 (30 fps)
640 x 480 (30 fps) 640 x 480 (30 fps)
352 x 240 (30 fps)
352 x 240 (30 fps)
352 x 240 (30 fps)
640 x 480 (30 fps) 640 x 480 (30 fps) 640 x 480 (30 fps)
352 x 240 (30 fps)
352 x 240 (30 fps)
352 x 240 (30 fps)
352 x 240 (30 fps)
352 x 240 (30 fps)
352 x 240 (30 fps)
800 x 600 (30 fps)
800 x 600 (30 fps)
800 x 600 (30 fps)
352 x 240 (30 fps)
720 x 480 (30 fps) 720 x 480 (30 fps)
640 x 480 (30 fps)
352 x 240 (30 fps)
640 x 480 (30 fps) 640 x 480 (30 fps)
352 x 240 (30 fps)
352 x 240 (30 fps)
352 x 240 (30 fps)
720 x 480 (30 fps) 720 x 480 (30 fps)
720 x 480 (30 fps)
640 x 480 (30 fps)
352 x 240 (30 fps)
640 x 480 (30 fps) 640 x 480 (30 fps)
352 x 240 (30 fps)
352 x 240 (30 fps)
352 x 240 (30 fps)
640 x 480 (30 fps) 640 x 480 (30 fps) 640 x 480 (30 fps)
352 x 240 (30 fps)
352 x 240 (30 fps)
352 x 240 (30 fps)
352 x 240 (30 fps)
352 x 240 (30 fps)
352 x 240 (30 fps)
720 x 480 (30 fps) 720 x 480 (30 fps)
720 x 480 (30 fps) 720 x 480 (30 fps)
640 x 480 (30 fps)
352 x 240 (30 fps)
640 x 480 (30 fps) 640 x 480 (30 fps)
352 x 240 (30 fps)
352 x 240 (30 fps)
352 x 240 (30 fps)
640 x 480 (30 fps) 640 x 480 (30 fps) 640 x 480 (30 fps)
352 x 240 (30 fps)
352 x 240 (30 fps)
352 x 240 (30 fps)
352 x 240 (30 fps)
352 x 240 (30 fps)
352 x 240 (30 fps)
640 x 480 (30 fps) 640 x 480 (30 fps) 640 x 480 (30 fps) 640 x 480 (30 fps)
352 x 240 (30 fps)
352 x 240 (30 fps)
352 x 240 (30 fps)
352 x 240 (30 fps)
352 x 240 (30 fps)
352 x 240 (30 fps)
352 x 240 (30 fps)
352 x 240 (30 fps)
352 x 240 (30 fps)
352 x 240 (30 fps)
33
2M- Triple Streams
H.264-1 + H.264-2 + H.264-3 / MJPEG
H.264-1
H.264-2
H.264-3 / MJPEG
1920 x 1080 (15 fps)
1280 x 1024 (15 fps) 800 x 600 (15 fps)
720 x 480 (15 fps)
640 x 480 (15 fps)
352 x 240 (30 fps)
1280 x 720 (15 fps) 1280 x 720 (15 fps)
800 x 600 (15 fps)
720 x 480 (30 fps)
640 x 480 (30 fps)
352 x 240 (30 fps)
1024 x 768 (15 fps) 800 x 600 (30 fps)
720 x 480 (30 fps)
640 x 480 (30 fps)
1024 x 768 (30 fps)
352 x 240 (30 fps)
800 x 600 (15 fps)
800 x 600 (30 fps)
800 x 600 (30 fps) 720 x 480 (30 fps)
640 x 480 (30 fps)
352 x 240 (30 fps)
720 x 480 (30 fps) 720 x 480 (30 fps)
640 x 480 (30 fps)
352 x 240 (30 fps)
640 x 480 (30 fps) 640 x 480 (30 fps)
352 x 240 (30 fps)
352 x 240 (30fps)
352 x 240 (30fps)
1280 x 1024 (15 fps)
1280 x 1024 (15 fps) 1280 x 720 (15 fps)
800 x 600 (30 fps)
720 x 480 (30 fps)
640 x 480 (30 fps)
352 x 240 (30 fps)
1280 x 720 (15 fps) 1280 x 720 (15 fps)
800 x 600 (30 fps)
1280 x 720 (30 fps) 720 x 480 (30 fps)
640 x 480 (30 fps)
352 x 240 (30 fps)
1024 x 768 (30 fps) 800 x 600 (30 fps)
720 x 480 (30 fps)
640 x 480 (30 fps)
352 x 240 (30 fps)
800 x 600 (30 fps) 800 x 600 (30 fps)
720 x 480 (30 fps)
640 x 480 (30 fps)
720 x 480 (30 fps)
720 x 480 (30 fps)
1280 x 1024 (30 fps)
800 x 600 (30 fps)
352 x 240 (30 fps)
720 x 480 (30 fps) 640 x 480 (30 fps)
352 x 240 (30 fps)
640 x 480 (30 fps) 640 x 480 (30 fps)
352 x 240 (30 fps)
352 x 240 (30 fps)
352 x 240 (30 fps)
1280 x 720 (15 fps)
1280 x 720 (15 fps)
1280 x 720 (30 fps)
1280 x 720 (30 fps) 800 x 600 (30 fps)
720 x 480 (30 fps)
640 x 480 (30 fps)
1024 x 768 (30 fps) 800 x 600 (30 fps)
720 x 480 (30 fps)
640 x 480 (30 fps)
34
H.264-1 + H.264-2 + H.264-3 / MJPEG
H.264-1
H.264-2
H.264-3 / MJPEG
1280 x 720 (30 fps)
1280 x 720 (30 fps)
352 x 240 (30 fps)
1024 x 768 (30 fps)
352 x 240 (30 fps)
800 x 600 (30 fps) 800 x 600 (30 fps)
720 x 480 (30 fps)
640 x 480 (30 fps)
352 x 240 (30 fps)
720 x 480 (30 fps) 720 x 480 (30 fps)
640 x 480 (30 fps)
352 x 240 (30 fps)
640 x 480 (30 fps) 640 x 480 (30 fps)
352 x 240 (30 fps)
352 x 240 (30 fps)
352 x 240 (30 fps)
1024 x 768 (15 fps)
1024 x 768 (30 fps)
800 x 600 (30 fps)
1024 x 768 (30 fps)
1024 x 768 (30 fps) 720 x 480 (30 fps)
640 x 480 (30 fps)
352 x 240 (30 fps)
800 x 600 (30 fps) 800 x 600 (30 fps)
720 x 480 (30 fps)
640 x 480 (30 fps)
352 x 240 (30 fps)
720 x 480 (30 fps) 720 x 480 (30 fps)
640 x 480 (30 fps)
352 x 240 (30 fps)
640 x 480 (30 fps) 640 x 480 (30 fps)
352 x 240 (30 fps)
352 x 240 (30 fps)
352 x 240 (30 fps)
800 x 600 (30 fps)
800 x 600 (30 fps) 800 x 600 (30 fps)
720 x 480 (30 fps)
640 x 480 (30 fps)
352 x 240 (30 fps)
720 x 480 (30 fps) 720 x 480 (30 fps)
640 x 480 (30 fps)
352 x 240 (30 fps)
640 x 480 (30 fps) 640 x 480 (30 fps)
352 x 240 (30 fps)
352 x 240 (30 fps)
352 x 240 (30 fps)
720 x 480 (30 fps) 720 x 480 (30 fps)
720 x 480 (30 fps)
640 x 480 (30 fps)
352 x 240 (30 fps)
640 x 480 (30 fps) 640 x 480 (30 fps)
352 x 240 (30 fps)
352 x 240 (30 fps)
352 x 240 (30 fps)
640 x 480 (30 fps) 640 x 480 (30 fps) 640 x 480 (30 fps)
352 x 240 (30 fps)
352 x 240 (30 fps)
352 x 240 (30 fps)
352 x 240 (30 fps)
352 x 240 (30 fps)
352 x 240 (30 fps)
35
2M- Dual Streams
H.264-1 + H.264-2 / MJPEG
H.264-1
H.264-2 / MJPEG
BNC SUPPORT
1920 x 1080 (15 fps)
1280 x 1024 (15 fps)
-
1280 x 720 (30 fps)
-
1024 x 768 (30 fps)
-
800 x 600 (30 fps)
-
720 x 480 (30 fps)
√
640 x 480 (30 fps)
√
352 x 240 (30 fps)
√
1280 x 1024 (30 fps)
1280 x 1024 (15 fps)
√
1280 x 720 (15 fps)
-
1024 x 768 (15 fps)
-
800 x 600 (30 fps)
-
720 x 480 (30 fps)
√
640 x 480 (30 fps)
√
352 x 240 (30 fps)
√
1280 x 720 (30 fps)
1280 x 720 (30 fps)
√
1024 x 768 (30 fps)
-
800 x 600 (30 fps)
-
720 x 480 (30 fps)
√
640 x 480 (30 fps)
√
352 x 240 (30 fps)
√
1024 x 768 (30 fps) 1024 x 768 (30 fps)
√
800 x 600 (30 fps)
-
720 x 480 (30 fps)
√
640 x 480 (30 fps)
√
352 x 240 (30 fps)
√
800 x 600 (30 fps) 800 x 600 (30 fps)
√
720 x 480 (30 fps)
√
640 x 480 (30 fps)
√
352 x 240 (30 fps)
√
720 x 480 (30 fps) 720 x 480 (30 fps)
√
640 x 480 (30 fps)
√
352 x 240 (30 fps)
√
640 x 480 (30 fps) 640 x 480 (30 fps)
√
352 x 240 (30 fps)
√
352 x 240 (30 fps)
352 x 240 (30 fps)
-
2M- Single Stream
H.264 Only
BNC SUPPORT
1920 x 1080 (15 fps) Low Latency
-
1920 x 1080 (15 fps)
√
1280 x 1024 (30 fps)
√
1280 x 720 (30 fps)
√
1024 x 768 (30 fps)
√
800 x 600 (30 fps)
√
720 x 480 (30 fps)
√
640 x 480 (30 fps)
√
352 x 240 (30 fps)
-
MJPEG Only
BNC SUPPORT
1920 x 1080 (15 fps)
√
1280 x 1024 (30 fps)
√
1280 x 720 (30 fps)
√
1024 x 768 (30 fps)
√
800 x 600 (30 fps)
√
720 x 480 (30 fps)
√
640 x 480 (30 fps)
√
352 x 240 (30 fps)
-
36
2M Real time / 3M / 5M- Quad Streams
H.264 + H.264 + H.264 + H.264 / MJPEG
H.264-1
H.264-2
H.264-3
H.264-4 / MJPEG
2592 x 1944 (12 fps) 720 x 480 (12 fps) 720 x 480 (12 fps)
352 x 240 (12 fps)
640 x 480 (12 fps) 640 x 480 (12 fps)
352 x 240 (12 fps)
352 x 240 (12 fps)
352 x 240 (12 fps)
640 x 480 (12 fps) 640 x 480 (12 fps) 640 x 480 (12 fps)
352 x 240 (12 fps)
352 x 240 (12 fps)
352 x 240 (12 fps)
*The resolution is for 5M Model only.
H.264 + H.264 + H.264 + H.264 / MJPEG
H.264-1
H.264-2
H.264-3
H.264-4 / MJPEG
2048 x 1536 (15 fps)
1280 x 720 (15 fps) 720 x 480 (15 fps)
640 x 480 (15 fps)
352 x 240 (15 fps)
640 x 480 (15 fps) 640 x 480 (15 fps)
352 x 240 (15 fps)
352 x 240 (15 fps)
352 x 240 (15 fps)
800 x 600 (15 fps)
800 x 600 (15 fps) 720 x 480 (15 fps)
640 x 480 (15 fps)
352 x 240 (15 fps)
720 x 480 (15 fps) 720 x 480 (15 fps)
640 x 480 (15 fps)
352 x 240 (15 fps)
640 x 480 (15 fps) 640 x 480 (15 fps)
352 x 240 (15 fps)
352 x 240 (15 fps)
352 x 240 (15 fps)
720 x 480 (15 fps) 720 x 480 (15 fps)
720 x 480 (15 fps)
640 x 480 (15 fps)
352 x 240 (15 fps)
640 x 480 (15 fps) 640 x 480 (15 fps)
352 x 240 (15 fps)
352 x 240 (15 fps)
352 x 240 (15 fps)
640 x 480 (15 fps) 640 x 480 (15 fps) 640 x 480 (15 fps)
352 x 240 (15 fps)
352 x 240 (15 fps)
352 x 240 (15 fps)
352 x 240 (15 fps)
352 x 240 (15 fps)
352 x 240 (15 fps)
*The resolution is for 3M & 5M Model only.
37
H.264 + H.264 + H.264 + H.264 / MJPEG
H.264-1
H.264-2
H.264-3
H.264-4 / MJPEG
1920 x 1080 (15 fps)
1280 x 1024 (15 fps)
1280 x 720 (15 fps) 720 x 480 (15 fps)
640 x 480 (15 fps)
352 x 240 (30 fps)
800 x 600 (15 fps) 720 x 480 (30 fps)
640 x 480 (30 fps)
800 x 600 (30 fps)
352 x 240 (30 fps)
720 x 480 (15 fps)
720 x 480 (30 fps)
720 x 480 (30 fps) 640 x 480 (30 fps)
352 x 240 (30 fps)
640 x 480 (30 fps) 640 x 480 (30 fps)
352 x 240 (30 fps)
352 x 240 (30 fps)
352 x 240 (30 fps)
1280 x 720 (15 fps)
1280 x 720 (15 fps) 720 x 480 (30 fps)
640 x 480 (30 fps)
352 x 240 (30 fps)
800 x 600 (30 fps) 720 x 480 (30 fps)
640 x 480 (30 fps)
352 x 240 (30 fps)
720 x 480 (30 fps) 720 x 480 (30 fps)
640 x 480 (30 fps)
640 x 480 (30 fps)
640 x 480 (30 fps)
1280 x 720 (30 fps) 720 x 480 (30 fps)
352 x 240 (30 fps)
640 x 480 (30 fps)
352 x 240 (30 fps)
352 x 240 (30 fps)
352 x 240 (30 fps)
1024 x 768 (15 fps) 800 x 600 (30 fps)
720 x 480 (30 fps)
640 x 480 (30 fps)
720 x 480 (30 fps) 720 x 480 (30 fps)
640 x 480 (30 fps)
640 x 480 (30 fps)
640 x 480 (30 fps)
1024 x 768 (30 fps) 800 x 600 (30 fps)
352 x 240 (30 fps)
720 x 480 (30 fps)
352 x 240 (30 fps)
640 x 480 (30 fps)
352 x 240 (30 fps)
352 x 240 (30 fps)
352 x 240 (30 fps)
800 x 600 (30 fps)
800 x 600 (30 fps) 720 x 480 (30 fps)
640 x 480 (30 fps)
352 x 240 (30 fps)
720 x 480 (30 fps) 720 x 480 (30 fps)
640 x 480 (30 fps)
352 x 240 (30 fps)
640 x 480 (30 fps) 640 x 480 (30 fps)
352 x 240 (30 fps)
352 x 240 (30 fps)
352 x 240 (30 fps)
720 x 480 (30 fps) 720 x 480 (30 fps)
720 x 480 (30 fps)
640 x 480 (30 fps)
352 x 240 (30 fps)
640 x 480 (30 fps) 640 x 480 (30 fps)
352 x 240 (30 fps)
352 x 240 (30 fps)
352 x 240 (30 fps)
640 x 480 (30 fps) 640 x 480 (30 fps) 640 x 480 (30 fps)
352 x 240 (30 fps)
352 x 240 (30 fps)
352 x 240 (30 fps)
1920 x 1080 (30 fps)
352 x 240 (30 fps)
352 x 240 (30 fps)
352 x 240 (30 fps)
38
H.264 + H.264 + H.264 + H.264 / MJPEG
H.264-1
H.264-2
H.264-3
H.264-4 / MJPEG
1280 x 1024 (15 fps)
1280 x 1024 (15 fps)
1280 x 720 (15 fps) 720 x 480 (30 fps)
640 x 480 (30 fps)
1280 x 720 (30 fps)
352 x 240 (30 fps)
800 x 600 (30 fps) 720 x 480 (30 fps)
640 x 480 (30 fps)
352 x 240 (30 fps)
720 x 480 (30 fps) 720 x 480 (30 fps)
640 x 480 (30 fps)
640 x 480 (30 fps)
640 x 480 (30 fps)
1280 x 1024 (30 fps) 720 x 480 (30 fps)
352 x 240 (30 fps)
640 x 480 (30 fps)
352 x 240 (30 fps)
352 x 240 (30 fps)
352 x 240 (30 fps)
1280 x 720 (15 fps)
1280 x 720 (30 fps) 720 x 480 (30 fps)
640 x 480 (30 fps)
352 x 240 (30 fps)
1280 x 720 (30 fps)
800 x 600 (30 fps) 720 x 480 (30 fps)
640 x 480 (30 fps)
352 x 240 (30 fps)
720 x 480 (30 fps) 720 x 480 (30 fps)
640 x 480 (30 fps)
352 x 240 (30 fps)
640 x 480 (30 fps) 640 x 480 (30 fps)
352 x 240 (30 fps)
352 x 240 (30 fps)
352 x 240 (30 fps)
1024 x 768 (30 fps)
800 x 600 (30 fps) 720 x 480 (30 fps)
640 x 480 (30 fps)
352 x 240 (30 fps)
720 x 480 (30 fps) 720 x 480 (30 fps)
640 x 480 (30 fps)
352 x 240 (30 fps)
640 x 480 (30 fps) 640 x 480 (30 fps)
352 x 240 (30 fps)
800 x 600 (30 fps) 800 x 600 (30 fps)
720 x 480 (30 fps)
640 x 480 (30 fps)
720 x 480 (30 fps) 720 x 480 (30 fps)
640 x 480 (30 fps)
1280 x 1024 (30 fps)
1024 x 768 (30 fps)
352 x 240 (30 fps)
352 x 240 (30 fps)
800 x 600 (30 fps) 800 x 600 (30 fps)
352 x 240 (30 fps)
720 x 480 (30 fps)
352 x 240 (30 fps)
640 x 480 (30 fps) 640 x 480 (30 fps)
352 x 240 (30 fps)
352 x 240 (30 fps)
352 x 240 (30 fps)
720 x 480 (30 fps) 720 x 480 (30 fps)
720 x 480 (30 fps)
640 x 480 (30 fps)
352 x 240 (30 fps)
640 x 480 (30 fps) 640 x 480 (30 fps)
352 x 240 (30 fps)
352 x 240 (30 fps)
352 x 240 (30 fps)
640 x 480 (30 fps) 640 x 480 (30 fps) 640 x 480 (30 fps)
352 x 240 (30 fps)
352 x 240 (30 fps)
352 x 240 (30 fps)
352 x 240 (30 fps)
352 x 240 (30 fps)
352 x 240 (30 fps)
1280 x 720 (15 fps)
1280 x 720 (15 fps)
1280 x 720 (30 fps) 720 x 480 (30 fps)
640 x 480 (30 fps)
1280 x 720 (30 fps)
1280 x 720 (30 fps)
352 x 240 (30 fps)
800 x 600 (30 fps) 720 x 480 (30 fps)
640 x 480 (30 fps)
720 x 480 (30 fps) 720 x 480 (30 fps)
640 x 480 (30 fps)
640 x 480 (30 fps)
640 x 480 (30 fps)
1024 x 768 (30 fps)
800 x 600 (30 fps) 720 x 480 (30 fps)
640 x 480 (30 fps)
39
H.264 + H.264 + H.264 + H.264 / MJPEG
H.264-1
H.264-2
H.264-3
H.264-4 / MJPEG
1280 x 720 (30 fps)
1280 x 720 (30 fps) 800 x 600 (30 fps)
352 x 240 (30 fps)
720 x 480 (30 fps)
352 x 240 (30 fps)
640 x 480 (30 fps)
352 x 240 (30 fps)
352 x 240 (30 fps)
352 x 240 (30 fps)
1024 x 768 (30 fps)
800 x 600 (30 fps)
352 x 240 (30 fps)
720 x 480 (30 fps) 720 x 480 (30 fps)
640 x 480 (30 fps)
352 x 240 (30 fps)
640 x 480 (30 fps) 640 x 480 (30 fps)
352 x 240 (30 fps)
352 x 240 (30 fps)
352 x 240 (30 fps)
800 x 600 (30 fps)
800 x 600 (30 fps) 720 x 480 (30 fps)
640 x 480 (30 fps)
352 x 240 (30 fps)
720 x 480 (30 fps) 720 x 480 (30 fps)
640 x 480 (30 fps)
352 x 240 (30 fps)
640 x 480 (30 fps) 640 x 480 (30 fps)
352 x 240 (30 fps)
352 x 240 (30 fps)
352 x 240 (30 fps)
720 x 480 (30 fps) 720 x 480 (30 fps)
720 x 480 (30 fps)
640 x 480 (30 fps)
352 x 240 (30 fps)
640 x 480 (30 fps) 640 x 480 (30 fps)
352 x 240 (30 fps)
352 x 240 (30 fps)
352 x 240 (30 fps)
640 x 480 (30 fps) 640 x 480 (30 fps) 640 x 480 (30 fps)
352 x 240 (30 fps)
352 x 240 (30 fps)
352 x 240 (30 fps)
352 x 240 (30 fps)
352 x 240 (30 fps)
352 x 240 (30 fps)
1024 x 768 (30 fps)
1024 x 768 (30 fps)
800 x 600 (30 fps) 720 x 480 (30 fps)
640 x 480 (30 fps)
352 x 240 (30 fps)
720 x 480 (30 fps) 720 x 480 (30 fps)
640 x 480 (30 fps)
352 x 240 (30 fps)
640 x 480 (30 fps) 640 x 480 (30 fps)
352 x 240 (30 fps)
352 x 240 (30 fps)
352 x 240 (30 fps)
800 x 600 (30 fps)
800 x 600 (30 fps) 720 x 480 (30 fps)
640 x 480 (30 fps)
352 x 240 (30 fps)
720 x 480 (30 fps) 720 x 480 (30 fps)
640 x 480 (30 fps)
352 x 240 (30 fps)
640 x 480 (30 fps) 640 x 480 (30 fps)
352 x 240 (30 fps)
352 x 240 (30 fps)
352 x 240 (30 fps)
720 x 480 (30 fps) 720 x 480 (30 fps)
720 x 480 (30 fps)
640 x 480 (30 fps)
352 x 240 (30 fps)
640 x 480 (30 fps) 640 x 480 (30 fps)
352 x 240 (30 fps)
352 x 240 (30 fps)
352 x 240 (30 fps)
640 x 480 (30 fps) 640 x 480 (30 fps) 640 x 480 (30 fps)
352 x 240 (30 fps)
352 x 240 (30 fps)
352 x 240 (30 fps)
352 x 240 (30 fps)
352 x 240 (30 fps)
352 x 240 (30 fps)
40
H.264 + H.264 + H.264 + H.264 / MJPEG
H.264-1
H.264-2
H.264-3
H.264-4 / MJPEG
800 x 600 (30 fps)
800 x 600 (30 fps)
800 x 600 (30 fps)
352 x 240 (30 fps)
720 x 480 (30 fps) 720 x 480 (30 fps)
640 x 480 (30 fps)
352 x 240 (30 fps)
640 x 480 (30 fps) 640 x 480 (30 fps)
352 x 240 (30 fps)
352 x 240 (30 fps)
352 x 240 (30 fps)
720 x 480 (30 fps) 720 x 480 (30 fps)
720 x 480 (30 fps)
640 x 480 (30 fps)
352 x 240 (30 fps)
640 x 480 (30 fps) 640 x 480 (30 fps)
352 x 240 (30 fps)
352 x 240 (30 fps)
352 x 240 (30 fps)
640 x 480 (30 fps) 640 x 480 (30 fps) 640 x 480 (30 fps)
352 x 240 (30 fps)
352 x 240 (30 fps)
352 x 240 (30 fps)
352 x 240 (30 fps)
352 x 240 (30 fps)
352 x 240 (30 fps)
720 x 480 (30 fps) 720 x 480 (30 fps)
720 x 480 (30 fps) 720 x 480 (30 fps)
640 x 480 (30 fps)
352 x 240 (30 fps)
640 x 480 (30 fps) 640 x 480 (30 fps)
352 x 240 (30 fps)
352 x 240 (30 fps)
352 x 240 (30 fps)
640 x 480 (30 fps) 640 x 480 (30 fps) 640 x 480 (30 fps)
352 x 240 (30 fps)
352 x 240 (30 fps)
352 x 240 (30 fps)
352 x 240 (30 fps)
352 x 240 (30 fps)
352 x 240 (30 fps)
640 x 480 (30 fps) 640 x 480 (30 fps) 640 x 480 (30 fps) 640 x 480 (30 fps)
352 x 240 (30 fps)
352 x 240 (30 fps)
352 x 240 (30 fps)
352 x 240 (30 fps)
352 x 240 (30 fps)
352 x 240 (30 fps)
352 x 240 (30 fps)
352 x 240 (30 fps)
352 x 240 (30 fps)
352 x 240 (30 fps)
41
2M Real time / 3M / 5M- Triple Streams
H.264-1 + H.264-2 + H.264-3 / MJPEG
H.264-1
H.264-2
H.264-3 / MJPEG
2592 x 1944 (12 fps) 720 x 480 (12 fps) 720 x 480 (12 fps)
640 x 480 (12 fps)
352 x 240 (12 fps)
640 x 480 (12 fps) 640 x 480 (12 fps)
352 x 240 (12 fps)
*The resolution is for 5M Model only.
H.264-1 + H.264-2 + H.264-3 / MJPEG
H.264-1
H.264-2
H.264-3 / MJPEG
2048 x 1536 (15 fps)
1280 x 720 (15 fps) 720 x 480 (15 fps)
640 x 480 (15 fps)
352 x 240 (15 fps)
800 x 600 (15 fps) 800 x 600 (15 fps)
720 x 480 (15 fps)
640 x 480 (15 fps)
352 x 240 (15 fps)
720 x 480 (15 fps) 720 x 480 (15 fps)
640 x 480 (15 fps)
352 x 240 (15 fps)
640 x 480 (15 fps) 640 x 480 (15 fps)
352 x 240 (15 fps)
352 x 240 (15 fps)
352 x 240 (15 fps)
*The resolution is for 3M & 5M Model only.
H.264-1 + H.264-2 + H.264-3 / MJPEG
H.264-1
H.264-2
H.264-3 / MJPEG
1920 x 1080 (15 fps)
1280 x 1024 (15 fps) 1280 x 720 (15 fps)
800 x 600 (30 fps)
720 x 480 (30 fps)
640 x 480 (30 fps)
352 x 240 (30 fps)
1280 x 720 (15 fps) 1280 x 720 (30 fps)
800 x 600 (30 fps)
1280 x 720 (30 fps) 720 x 480 (30 fps)
640 x 480 (30 fps)
352 x 240 (30 fps)
1024 x 768 (30 fps) 800 x 600 (30 fps)
720 x 480 (30 fps)
640 x 480 (30 fps)
352 x 240 (30 fps)
800 x 600 (30 fps) 800 x 600 (30 fps)
720 x 480 (30 fps)
640 x 480 (30 fps)
352 x 240 (30 fps)
720 x 480 (30 fps) 720 x 480 (30 fps)
640 x 480 (30 fps)
352 x 240 (30 fps)
640 x 480 (30 fps) 640 x 480 (30 fps)
352 x 240 (30 fps)
1920 x 1080 (30 fps)
352 x 240 (30 fps)
352 x 240 (30 fps)
42
H.264-1 + H.264-2 + H.264-3 / MJPEG
H.264-1
H.264-2
H.264-3 / MJPEG
1280 x 1024 (15 fps)
1280 x 1024 (15 fps) 1280 x 720 (30 fps)
800 x 600 (30 fps)
1280 x 1024 (30 fps) 720 x 480 (30 fps)
640 x 480 (30 fps)
352 x 240 (30 fps)
1280 x 720 (15 fps)
1280 x 720 (30 fps)
1280 x 720 (30 fps) 800 x 600 (30 fps)
720 x 480 (30 fps)
640 x 480 (30 fps)
1024 x 768 (30 fps) 800 x 600 (30 fps)
720 x 480 (30 fps)
1280 x 1024 (30 fps)
1280 x 720 (30 fps)
352 x 240 (30 fps)
1024 x 768 (30 fps) 640 x 480 (30 fps)
352 x 240 (30 fps)
800 x 600 (30 fps) 800 x 600 (30 fps)
720 x 480 (30 fps)
640 x 480 (30 fps)
352 x 240 (30 fps)
720 x 480 (30 fps) 720 x 480 (30 fps)
640 x 480 (30 fps)
352 x 240 (30 fps)
640 x 480 (30 fps) 640 x 480 (30 fps)
352 x 240 (30 fps)
352 x 240 (30 fps)
352 x 240 (30 fps)
1280 x 720 (15 fps)
1280 x 720 (30 fps)
1280 x 720 (30 fps)
1280 x 720 (30 fps)
1280 x 720 (30 fps) 800 x 600 (30 fps)
720 x 480 (30 fps)
640 x 480 (30 fps)
352 x 240 (30 fps)
1024 x 768 (30 fps) 800 x 600 (30 fps)
720 x 480 (30 fps)
640 x 480 (30 fps)
352 x 240 (30 fps)
800 x 600 (30 fps) 800 x 600 (30 fps)
720 x 480 (30 fps)
640 x 480 (30 fps)
352 x 240 (30 fps)
720 x 480 (30 fps) 720 x 480 (30 fps)
640 x 480 (30 fps)
352 x 240 (30 fps)
640 x 480 (30 fps) 640 x 480 (30 fps)
352 x 240 (30 fps)
352 x 240 (30 fps)
352 x 240 (30 fps)
1024 x 768 (30 fps)
1024 x 768 (30 fps) 800 x 600 (30 fps)
720 x 480 (30 fps)
640 x 480 (30 fps)
352 x 240 (30 fps)
800 x 600 (30 fps) 800 x 600 (30 fps)
720 x 480 (30 fps)
640 x 480 (30 fps)
352 x 240 (30 fps)
720 x 480 (30 fps) 720 x 480 (30 fps)
640 x 480 (30 fps)
352 x 240 (30 fps)
640 x 480 (30 fps) 640 x 480 (30 fps)
352 x 240 (30 fps)
352 x 240 (30 fps)
352 x 240 (30 fps)
43
H.264-1 + H.264-2 + H.264-3 / MJPEG
H.264-1
H.264-2
H.264-3 / MJPEG
800 x 600 (30 fps)
800 x 600 (30 fps) 800 x 600 (30 fps)
720 x 480 (30 fps)
640 x 480 (30 fps)
352 x 240 (30 fps)
720 x 480 (30 fps) 720 x 480 (30 fps)
640 x 480 (30 fps)
352 x 240 (30 fps)
640 x 480 (30 fps) 640 x 480 (30 fps)
352 x 240 (30 fps)
352 x 240 (30 fps)
352 x 240 (30 fps)
720 x 480 (30 fps) 720 x 480 (30 fps)
720 x 480 (30 fps)
640 x 480 (30 fps)
352 x 240 (30 fps)
640 x 480 (30 fps) 640 x 480 (30 fps)
352 x 240 (30 fps)
352 x 240 (30 fps)
352 x 240 (30 fps)
640 x 480 (30 fps) 640 x 480 (30 fps) 640 x 480 (30 fps)
352 x 240 (30 fps)
352 x 240 (30 fps)
352 x 240 (30 fps)
352 x 240 (30 fps)
352 x 240 (30 fps)
352 x 240 (30 fps)
44
2M Real time / 3M / 5M- Dual Streams
H.264-1 + H.264-2 / MJPEG
H.264-1
H.264-2 / MJPEG
BNC SUPPORT
2592 x 1944 (12 fps) 720 x 480 (12 fps)
-
640 x 480 (12 fps)
-
352 x 240 (12 fps)
-
*The resolution is for 5M Model only.
H.264-1 + H.264-2 / MJPEG
H.264-1
H.264-2 / MJPEG
BNC SUPPORT
2048 x 1536 (15 fps) 1280 x 720 (15 fps)
-
800 x 600 (15 fps)
-
720 x 480 (15 fps)
-
640 x 480 (15 fps)
-
352 x 240 (15 fps)
-
*The resolution is for 3M & 5M Model only.
H.264-1 + H.264-2 / MJPEG
H.264-1
H.264-2 / MJPEG
BNC SUPPORT
1920 x 1080 (15 fps) 1920 x 1080 (15 fps)
√
1280 x 1024 (30 fps)
-
1280 x 720 (30 fps)
-
1024 x 768 (30 fps)
-
800 x 600 (30 fps)
-
1920 x 1080 (30 fps) 720 x 480 (30 fps)
√
640 x 480 (30 fps)
√
352 x 240 (30 fps)
√
1280 x 1024 (30 fps)
1280 x 1024 (15 fps)
√
1280 x 720 (30 fps)
-
1024 x 768 (30 fps)
-
800 x 600 (30 fps)
-
720 x 480 (30 fps)
√
640 x 480 (30 fps)
√
352 x 240 (30 fps)
√
1280 x 720 (30 fps)
1280 x 720 (30 fps)
√
1024 x 768 (30 fps)
-
800 x 600 (30 fps)
-
720 x 480 (30 fps)
√
640 x 480 (30 fps)
√
352 x 240 (30 fps)
√
1024 x 768 (30 fps) 1024 x 768 (30 fps)
√
800 x 600 (30 fps)
-
720 x 480 (30 fps)
√
640 x 480 (30 fps)
√
352 x 240 (30 fps)
√
800 x 600 (30 fps) 800 x 600 (30 fps)
√
720 x 480 (30 fps)
√
640 x 480 (30 fps)
√
352 x 240 (30 fps)
√
720 x 480 (30 fps) 720 x 480 (30 fps)
√
640 x 480 (30 fps)
√
352 x 240 (30 fps)
√
640 x 480 (30 fps) 640 x 480 (30 fps)
√
352 x 240 (30 fps)
√
352 x 240 (30 fps)
352 x 240 (30 fps)
-
45
2M Real time / 3M / 5M- Single Stream
H.264 Only
BNC SUPPORT
2592 x 1944 (12 fps)*
-
2048 x 1536 (15 fps)**
-
1920 x 1080 (30 fps) Low Latency***
-
1920 x 1080 (30 fps)
√
1280 x 1024 (30 fps)
√
1280 x 720 (30 fps)
√
1024 x 768 (30 fps)
√
800 x 600 (30 fps)
√
720 x 480 (30 fps)
√
640 x 480 (30 fps)
√
352 x 240 (30 fps)
-
* The resolution is for 5M Model only. ** The resolution is for 3M & 5M Model only. *** 1920 x 1080 (30 fps) Low Latency does not support BNC, 3DNR, Motion Detection and digital zoom.
MJPEG Only
BNC SUPPORT
1920 x 1080 (30 fps)
√
1280 x 1024 (30 fps)
√
1280 x 720 (30 fps)
√
1024 x 768 (30 fps)
√
800 x 600 (30 fps)
√
720 x 480 (30 fps)
√
640 x 480 (30 fps)
√
352 x 240 (30 fps)
-
Loading...
Buy Points How it Works FAQ Contact Us Questions and Suggestions Privacy Policy Cookie Policy Terms of Use
