1. INTRODUCTION
1.1 Foreword
This manual provides a detailed introduction regarding the use of the
Camp Power SIM-700. Please read the user instructions thoroughly
in order to get the maximum benet from your SIM-700. Should any
questions arise during installation, please contact your installer or customer
support (see page i).
1.2 Product Description
This manual provides detailed instructions for the Camp Power SIM-
700. The SIM-700 is a smart, portable, home and camping, inverter. This
inverter has pure sine wave output, with exceptional compatibility, which
can be connected to refrigerators, electric fans, televisions, uorescent
lamps etc, without damage to devices or batteries. The SIM-700 is safe,
reliable, and easy to use.

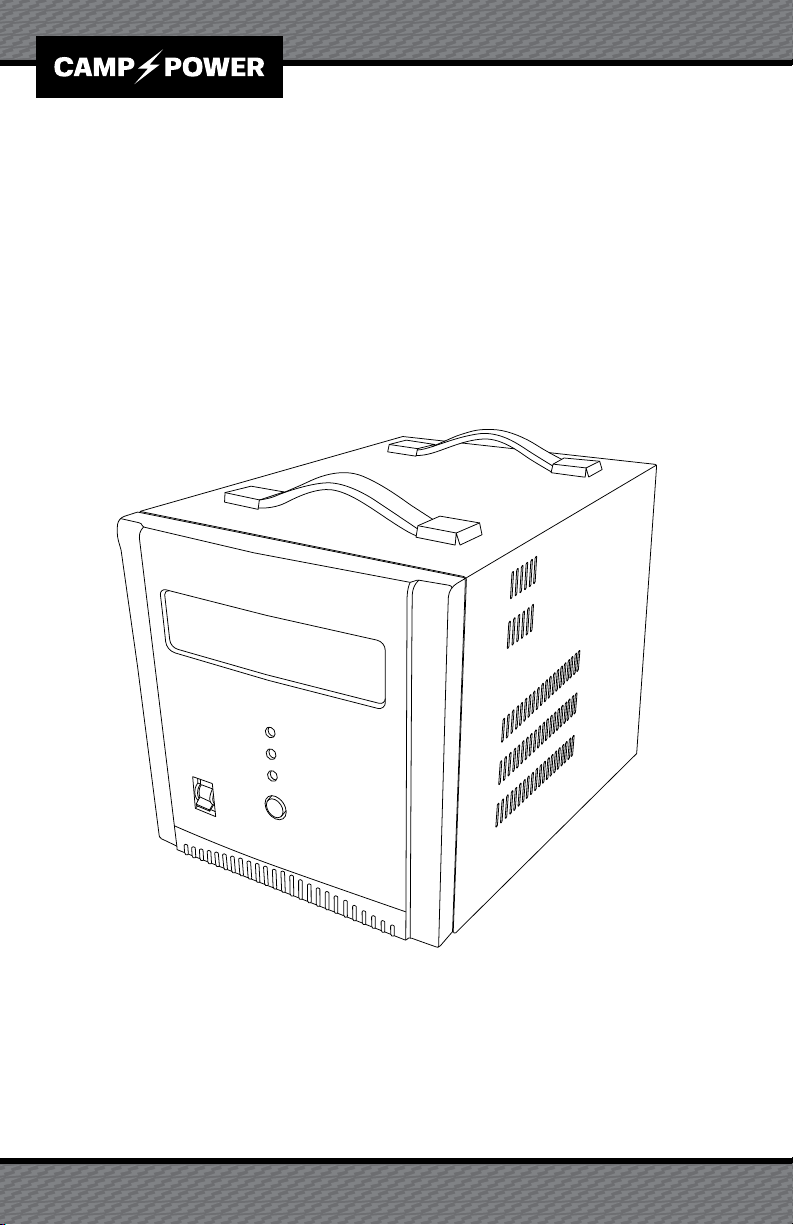

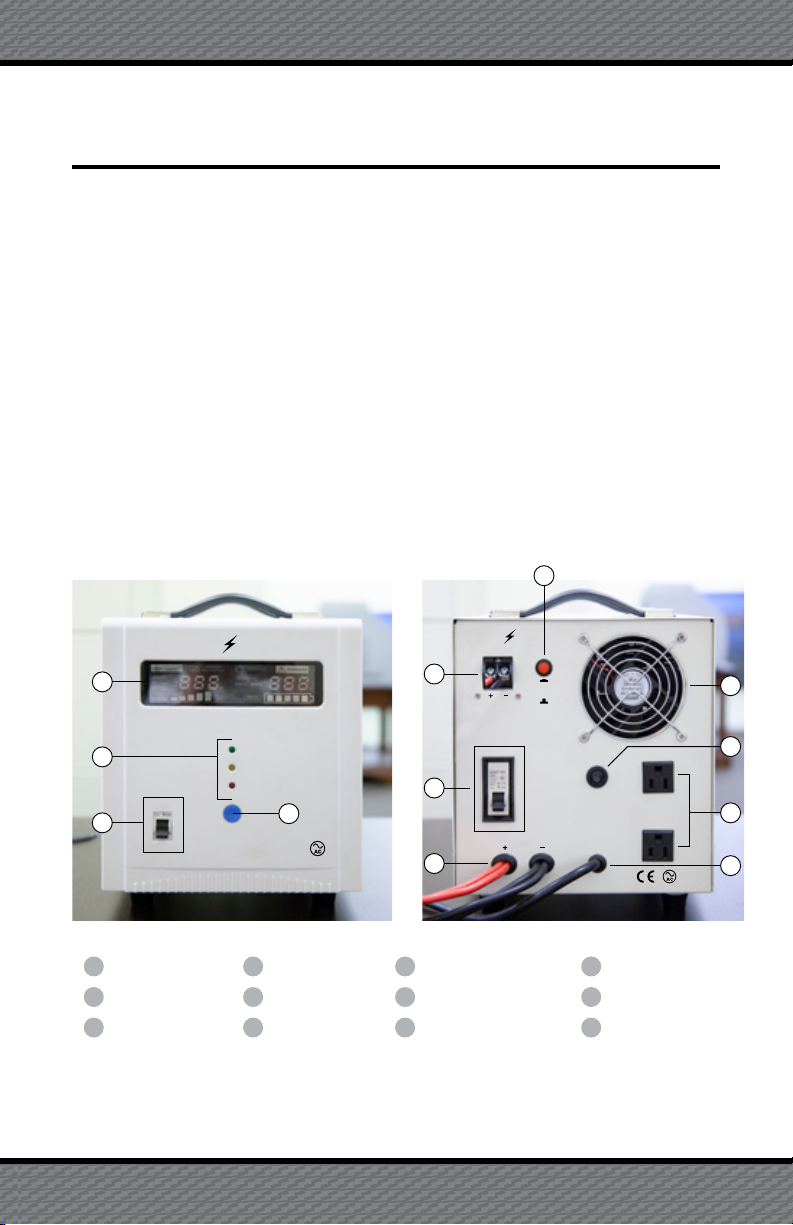

1.3 Product Diagram
8
5
6
7
CAMP POWER
PV SOLAR IN
PV PRIORITY
(Solar)
PV
15VDC~50VDC
AC PRIORITY
(Wall/Generator)
PV SOLAR
ON
OFF
BATTERY IN
12VDC
CIRCUIT BREAKER
AC POWER IN
AC OUTPUT
TOTAL OUTPUT
(700 Watts Max)
AC OUTPUT
CAMP POWER
1
2
AC POWER
SWITCH
ON
(Battery will charge)
3
OFF
1
LCD Display 4 ON/OFF 7 Battery 12VDC Cable 10 Circuit Breaker
Indicators 5 PV Solar Input 8 PV/AC Priority Switch 11 AC Outputs
2
SOLAR
BATTERY
FAULT
ON/OFF
4
SIM-700
SOLAR INVERTER MPPT
AC Power Switch 6 PV Solar Switch 9 Cooling Fan 12 AC Power In Cable3
11
9
10
11
12
1.4 Safety Precautions
1. Please read the “Safety Precautions” before use to ensure safe and
proper operation of the SIM-700. Keep this manual in a safe and
secure place. Warranty will be null and void if the user fails to follow
all warnings and cautions in this manual.
2. Please follow all warnings when operating this unit.
3. Keep the inverter away from direct sun, rain, and humid conditions.
4. Keep the inverter away from heat sources like, re, electric heaters,
ovens, furnaces, etc.
5. Keep a safe distance, approximately 4-6 inches, for ventilation and
follow the manual when installing.
6. When cleaning, always turn the power off. Use a clean dry cloth and
do not use liquids to clean this product.
7. In the event of electrical re, use only dry powder re extinguisher.
There is a danger of electric shock if a liquid re extinguisher is used.
8. DO NOT open the case or touch any internal parts or wiring. Only
connect cables to the provided external ports. Warranty is voided if
case is opened.
9. Please contact Camp Power for any maintenance needs. (See page i
for contact information)
2. OPERATING INSTRUCTIONS
2.1 Product Installation & Connection Steps
1. Please open the packaging carton to verify that product is
undamaged due to shipping.
2. ATTENTION: Always connect the battery properly to avoid serious
damage to the unit.
2
3. Always connect the solar panels properly, check the voltage, polarity
of positive and negative carefully;
4. Select the machine working mode; for solar energy systems, select
the PV priority, otherwise AC priority
5. Press the ON/OFF button to start, to ensure it can work normally and
connect the mains.
2.2 Precautions
1. Connect properly to the battery and solar panel, reversed or hight
voltage will cause serious damage.
2. Be connected to ground securely.
3. Don’t install this product outdoors. Placing in or near water may
cause electricution. Always place in a dry location.
4. ATTENTION: Device may become warm to the touch when
in use. Place unit atleast 50cm away from any person during use.
Ensure there is adequate ventilation around unit, and keep away from
ammable materials.
5. If the product malfunctions, disconnect the main input immediately,
and then shut unit down, Disconnect the battery and solar panel
switch, and take note of the failure and note any fault on the LCD
screen. In event of failure please contact your dealer promptly.
6. Disconnect all power inputs and outputs if the unit is hot. The unit has
a high temperature shutdown, if this happens it will give a beeping
sound. Disconnect output loads turn off solar (PV) and let the unit
cool down. After cool unit has cooled down you can restart the unit.
7. If more than 700W of load is connected the unit will give a beeping
warning. If a higher load is connected the unit will shut off.
3
3. OPERATING INSTRUCTIONS

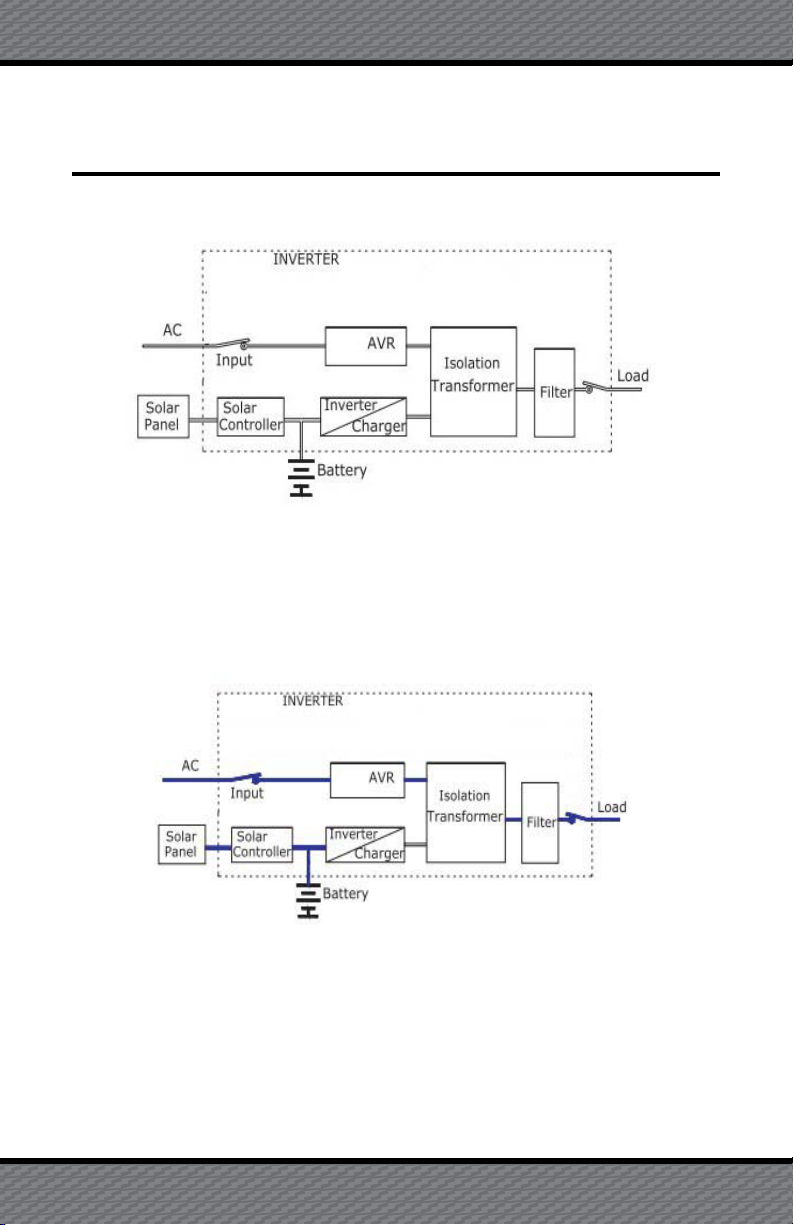

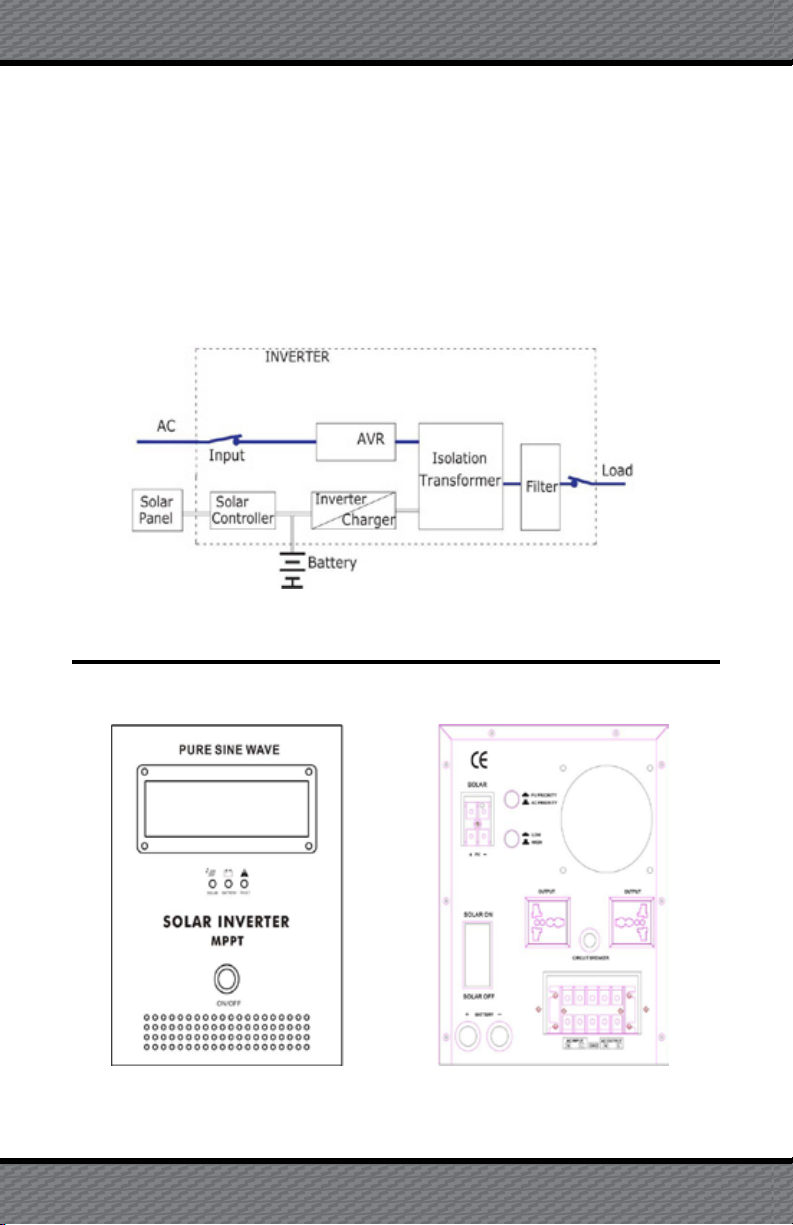

3.1 System Circuit Diagram
3.2 AC Priority Mode
When AC power supply is normal: AC input will provide power to AC
outputs through regulator. At this time, PV gives power to batteries only
through MPPT control system.
3.3 AC_Gen_Shore Is Cut Off
The system automatically acts as a UPS (Universal Power Supply) and
will convert the energy of battery and PV solar promptly, this allows the
constant power to AC output. If PV solar power is not strong enough,
then battery will continue to supply power to outlets until drained.
4
3.4 No AC or Solar Input
The system will convert to the battery to supply load promptly and give
constant power supply.

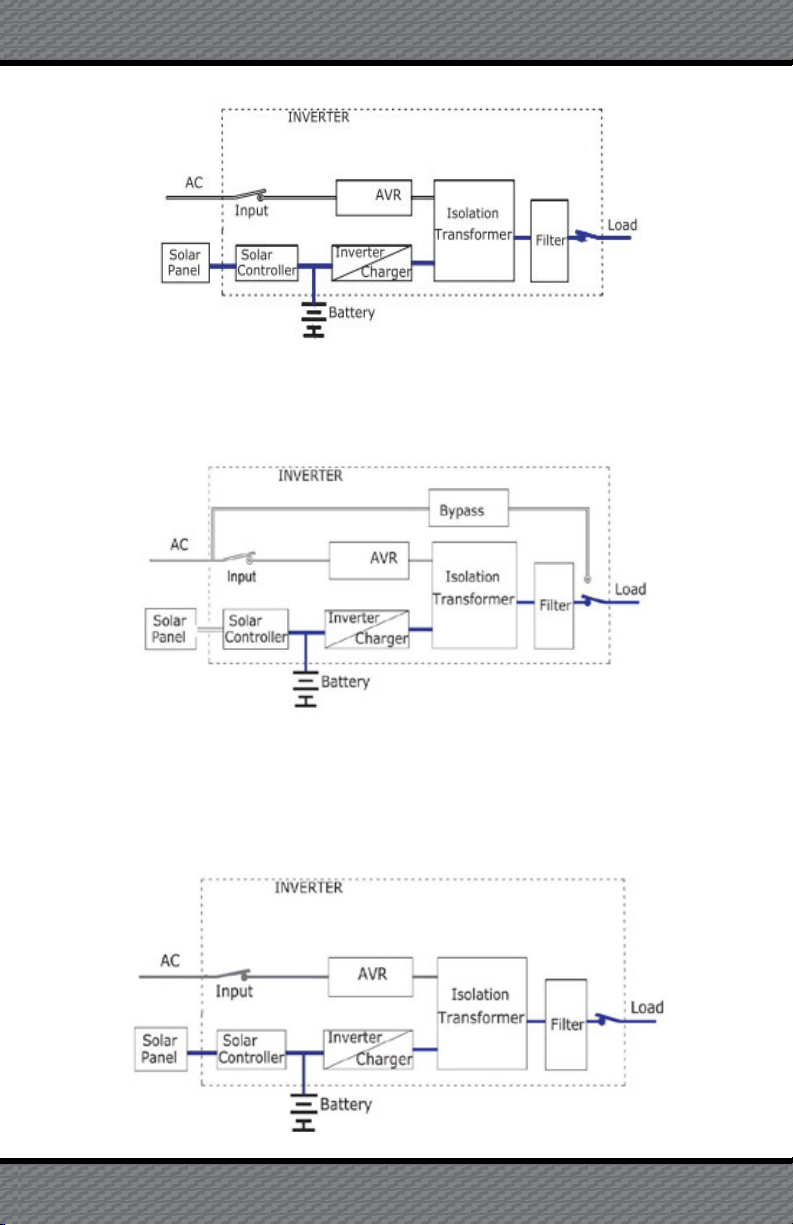

3.5 PV Solar Priority Mode
1. During the day, with ample sunlight, and AC Switch is non: solar panel
will adjust to the largest state through solar power controller and
give power to load through the inverter (AC input as a standby), and
charge the battery at the same time (see below diagram);
5
2. During the evening (or rainy days, with no sun), and switch is on:
system will provide power through battery rst, discharge until low
voltage protection, and then automatically switch to the AC Input
and provide the power to load through the regulator, and supplement
electricity to battery till the set value (reversed a certain power in case
of emergency situation, but not full charged), nally wait for solar panel
to charger it full.
4. PRODUCT PANEL & DISPLAY DETAILS
66
TOP Green LED: Solar panel connect state. Long light means normal.
Light off or ash means connect unusual
Middle Yellow LED: Battery connect state: long light means normal,
light off or ash means connect unusual
Bottom Red LED: Means abnormal state, light means solar part
abnormal.
5. ON/OFF INSTRUCTIONS
5.1 AC Priority
1. Turn On: When AC Switch is on, inverter will work in AC mode, and
while using AC charging will charge the battery.
2. Turn Off: Hold on/off for 3 seconds to put unit in standby/off mode.
Hold on/off for 3 second to power unit on.
5.2 PV Priority Switch
1. On: PV supplies to battery. AC output usses inverter to power loads.
PV solar is main input surpb.
2. Off: When inverter shut down and cut off the output, it will not switch
to the inverter mode. Note: currently in inverter mode, if AC input is
normal voltage you need cut off the AC switch to shut down; When
AC input voltage is low, it can switch to Mains mode after shut down
and no output.
3. AC charging is main charging for unit. If AC switch is on and battery
voltage is low unit will charge when AC Power is available.
5.3 Turning On Steps
1. Please ensure the battery connecting properly (positive/negative and
voltage parameters consistent with the products identication).
ATTENTION: Do not use unit unless connected to 12V battery.
7
2. Please ensure the PV solar panel is properly conncted (positive/
negative and voltage parameters consistent with the product
identication), and then turn on the solar input switch.
3. Press the button “On/Off” for 3 seconds, and start the inverter.
4. Turn on the solar panel input switch, and it will charge automatically.
5.4 Turning off steps
1. Turn off the loads or unplug.
2. Press the shut-down (“Off”) manually for 3 seconds, and cut the
output.
3. Unplug the power AC input cord.
4. Turn off the switch of solar panel on the real panel (If no need Solar
panel charging).
88
6. LCD DISPLAY

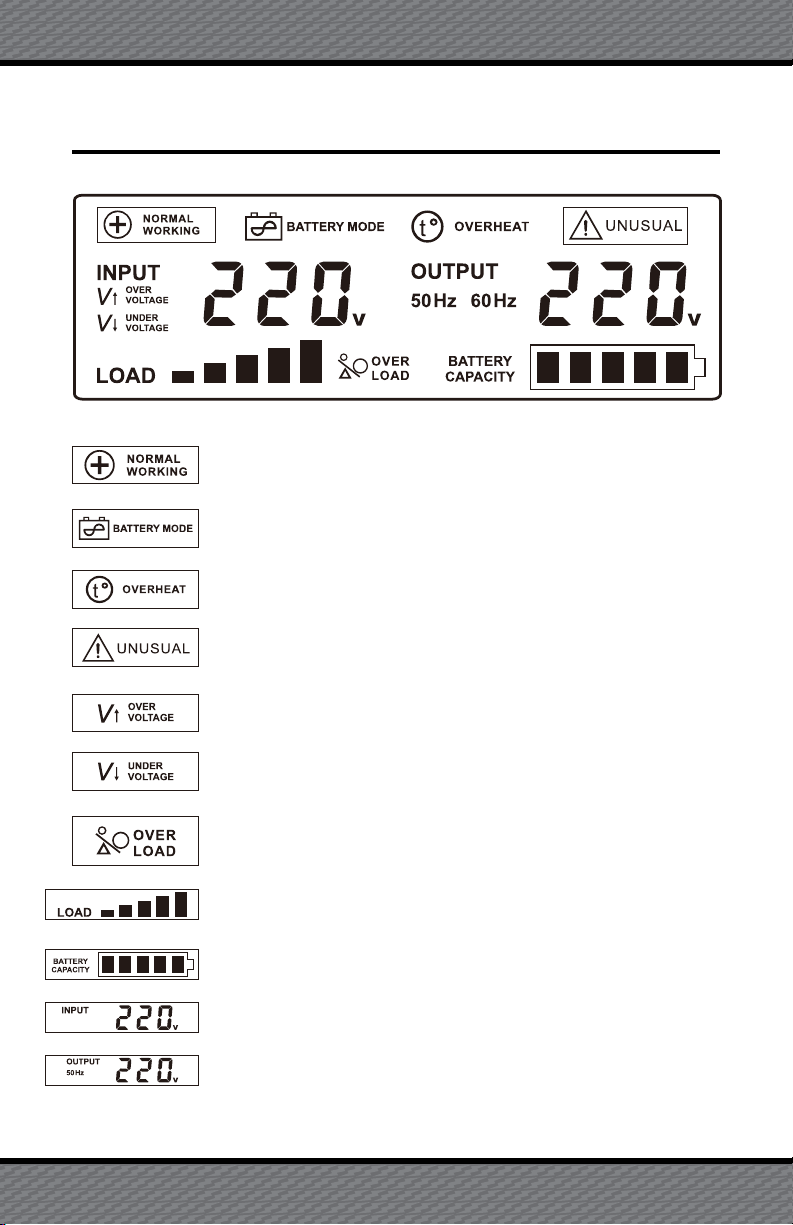

City power input normal, device though AVR supplies output.
City power input normal, battery through inverter supplies
AC output.
Temperature is to high, device cuts off output.
Battery over voltage, short circuit, high MOSFET’s temperature.
City power input is over voltage.
City power input is low voltage.
Loading exceeds device’s rated power.
Loading bar showing the loading situation.
Battery bar showing the battery capacity, when iin charging,
the bar will be ashing.
Input voltage indication.
Output voltage indication and frequency indication.
9
7. SPECIFICATIONS
ledoM
Power Capacity
Battery voltage
Working mode
PV
Display
Mains
status
(Optional)
Inverter
output
Input voltage
range
Max. charge
current
Max. Conversion
efficiency
Panel indicator
light
Input voltage
range
Input Frequency
range
Output voltage
range
Input PF.
(AC/DC)
Efficiency
tnerruc egrahC
daolrevo sniaM
tiucric trohS
Inverter output
voltage
Output power
factor
Wave form
distortion
PV-AC transfer
time
Efficiency
Inverter overload
tiucric trohS Systems automatically shut down
500VA
300W
12Vdc
PV(Photovoltaic priority) / AC (AC priority) Optional
12Vdc-25Vdc
10A/20A/30A//40A Optional
According to print on machine
98%
LED Graphic Screen LED lights
140Vac~275Vac
45-65 Hz (Automatically transfer to inverter
power when over frequency
190Vac~245Vac
98%
Mains mode ≥ 96%
10A / 15A / 20A
Warning until decrease load
Yes
220V±3%
ycneuqerf tuptuO
50 Hz / 60 Hz ± 0.3Hz frequency adaptive
≥ 0.8
Linear load ≤ 3%
4Ms typical value Max.6 Ms
Inverter mode ≥ 80%
110%-130% shutdown at 30s,
130%-150% shutdown at 3s
1010
Working mode
PV(Photovoltaic priority) / AC (AC priority) Optional
Input voltage
range
12Vdc-25Vdc
Max. charge
current
10A/20A/30A//40A Optional
According to print on machine
PV
Max. Conversion
efficiency
98%
Display
Panel indicator
light
LED Graphic Screen LED lights
Input voltage
range
140Vac~275Vac
Input Frequency
range
45-65 Hz (Automatically transfer to inverter
power when over frequency
Output voltage
range
190Vac~245Vac
Input PF.
(AC/DC)
98%
Efficiency
Mains mode ≥ 96%
≥ 0.8
Linear load ≤ 3%
Inverter mode ≥ 80%
tnerruc egrahC
daolrevo sniaM
Mains
status
(Optional)
tiucric trohS
Inverter output
voltage
ycneuqerf tuptuO
Output power
factor
Wave form
distortion
4Ms typical value Max.6 Ms
Efficiency
Inverter overload
110%-130% shutdown at 30s,
130%-150% shutdown at 3s
Inverter
output
tiucric trohS Systems automatically shut down
10A / 15A / 20A
Warning until decrease load
Yes
220V±3%
50 Hz / 60 Hz ± 0.3Hz frequency adaptive
PV-AC transfer
time
Alarm
Communication interface
Others
1 time / 1S, silence auto after 5S
yrettab woL
daolrevO
stekcos tuptuO
noitcetorp egruS
Ambient
temperature
Ambient humidity
Noise
1 time / 1S and flash battery last grid
1 time / 1S and display “overload” grid
RS232 (Optional)
Universal sockets / Customized
Optional
0°C ~ 40°C
≤ 50dB
10% ~ 90% (Non Condensed)
lamronba sniaM
11
1212
©2017 Camp Power LLC, All Rights Reserved
1374 West 200 South, Lindon UT, 84042
www.Camp Power.com • 040618
Camp Power is a registered trademark of Camp
Power, LLC
Publication Number: GO200-001
Loading...
