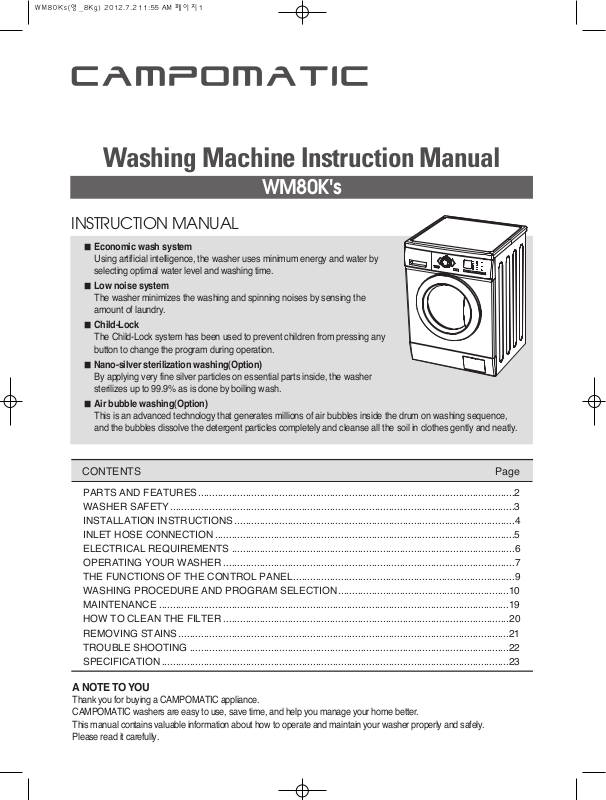

Campomatic WM80K User Manual

␊ Economic wash system

Using artificial intelligence, the washer uses minimum energy and water by selecting optimal water level and washing time.

␊ Low noise system

The washer minimizes the washing and spinning noises by sensing the amount of laundry.

␊ Child-Lock

The Child-Lock system has been used to prevent children from pressing any button to change the program during operation.

␊ Nano-silver sterilization washing(Option)

By applying very fine silver particles on essential parts inside, the washer sterilizes up to 99.9% as is done by boiling wash.

␊ Air bubble washing(Option)

This is an advanced technology that generates millions of air bubbles inside the drum on washing sequence, and the bubbles dissolve the detergent particles completely and cleanse all the soil in clothes gently and neatly.

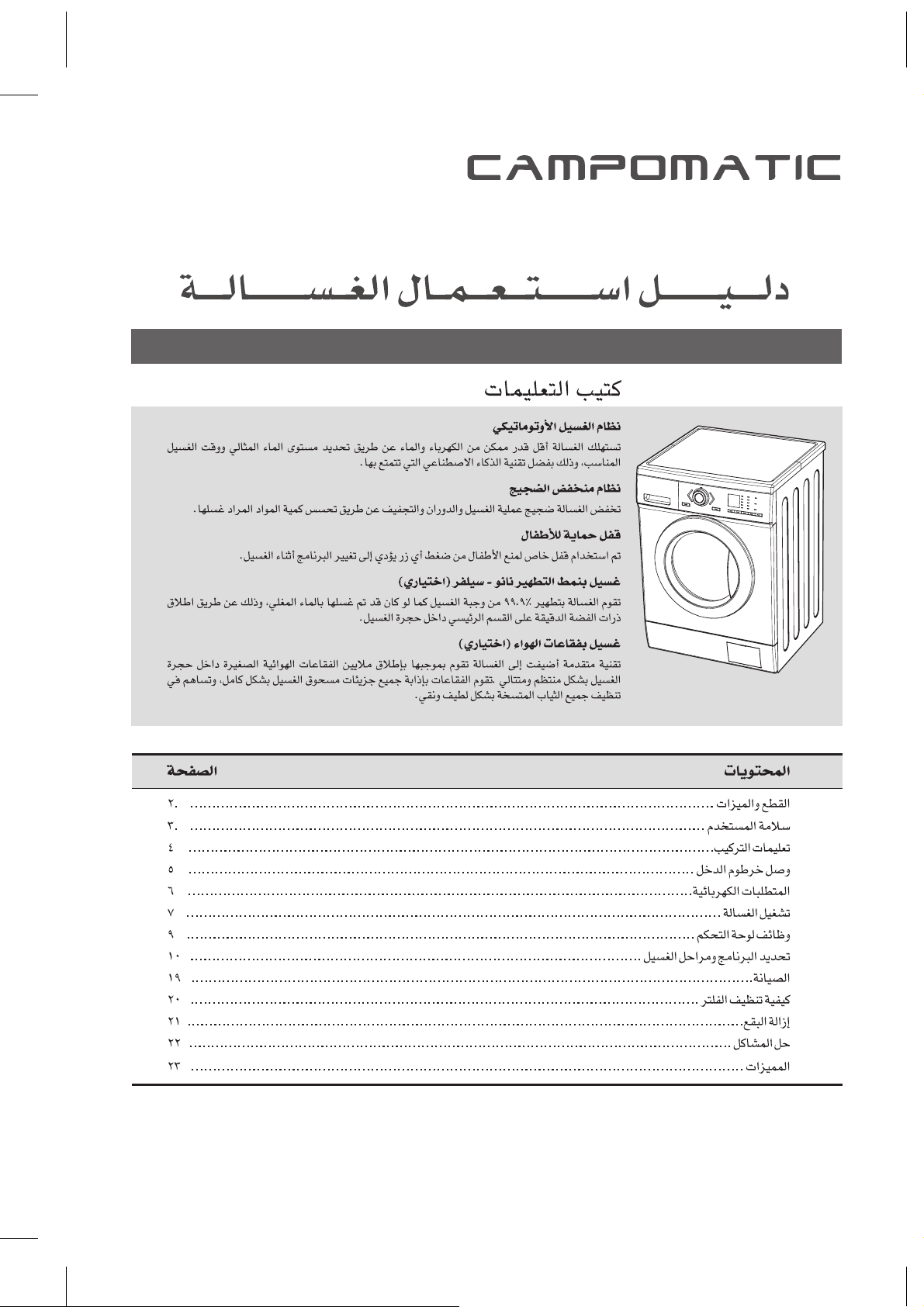

INSTRUCTION MANUAL

WM80K's

Washing Machine Instruction Manual

CONTENTS Page

A NOTE TO YOU

Thank you for buying a CAMPOMATIC appliance. CAMPOMATIC washers are easy to use, save time, and help you manage your home better. This manual contains valuable information about how to operate and maintain your washer properly and safely. Please read it carefully.

PARTS AND FEATURES.................................................................................................................2

WASHER SAFETY...........................................................................................................................3

INSTALLATION INSTRUCTIONS ....................................................................................................4

INLET HOSE CONNECTION ...........................................................................................................5

ELECTRICAL REQUIREMENTS .....................................................................................................6

OPERATING YOUR WASHER ........................................................................................................7

THE FUNCTIONS OF THE CONTROL PANEL...............................................................................9

WASHING PROCEDURE AND PROGRAM SELECTION.............................................................10

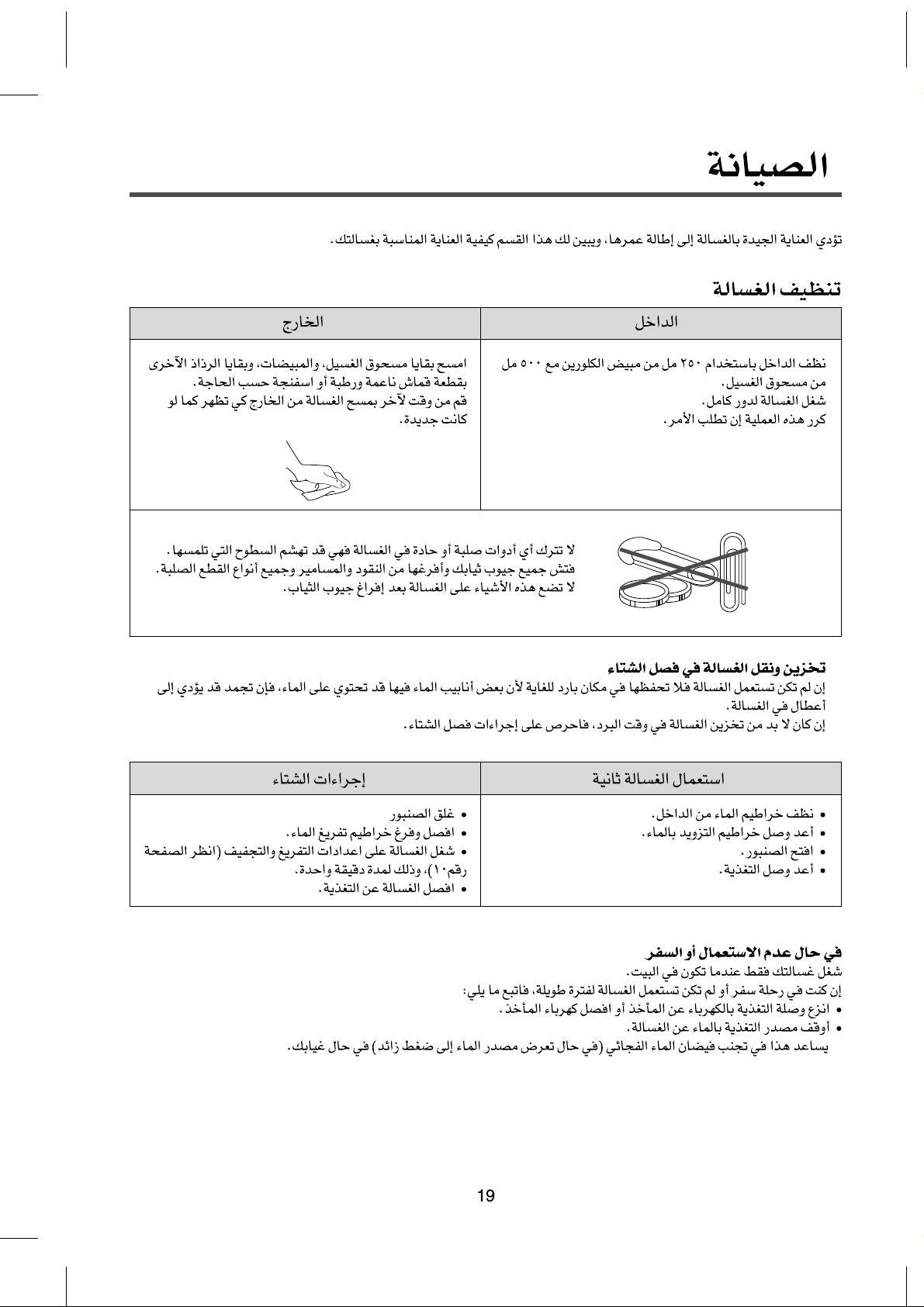

MAINTENANCE .............................................................................................................................19

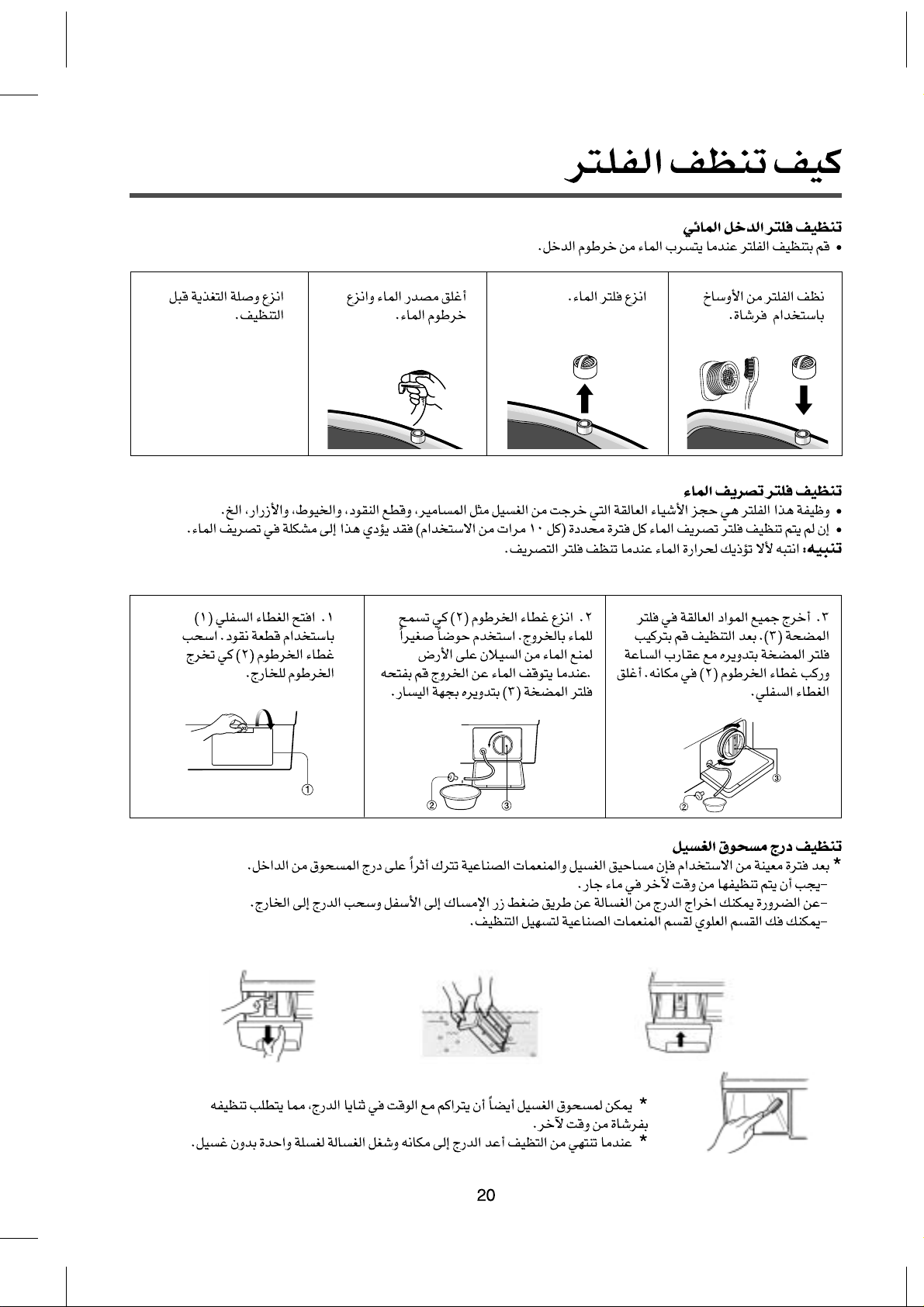

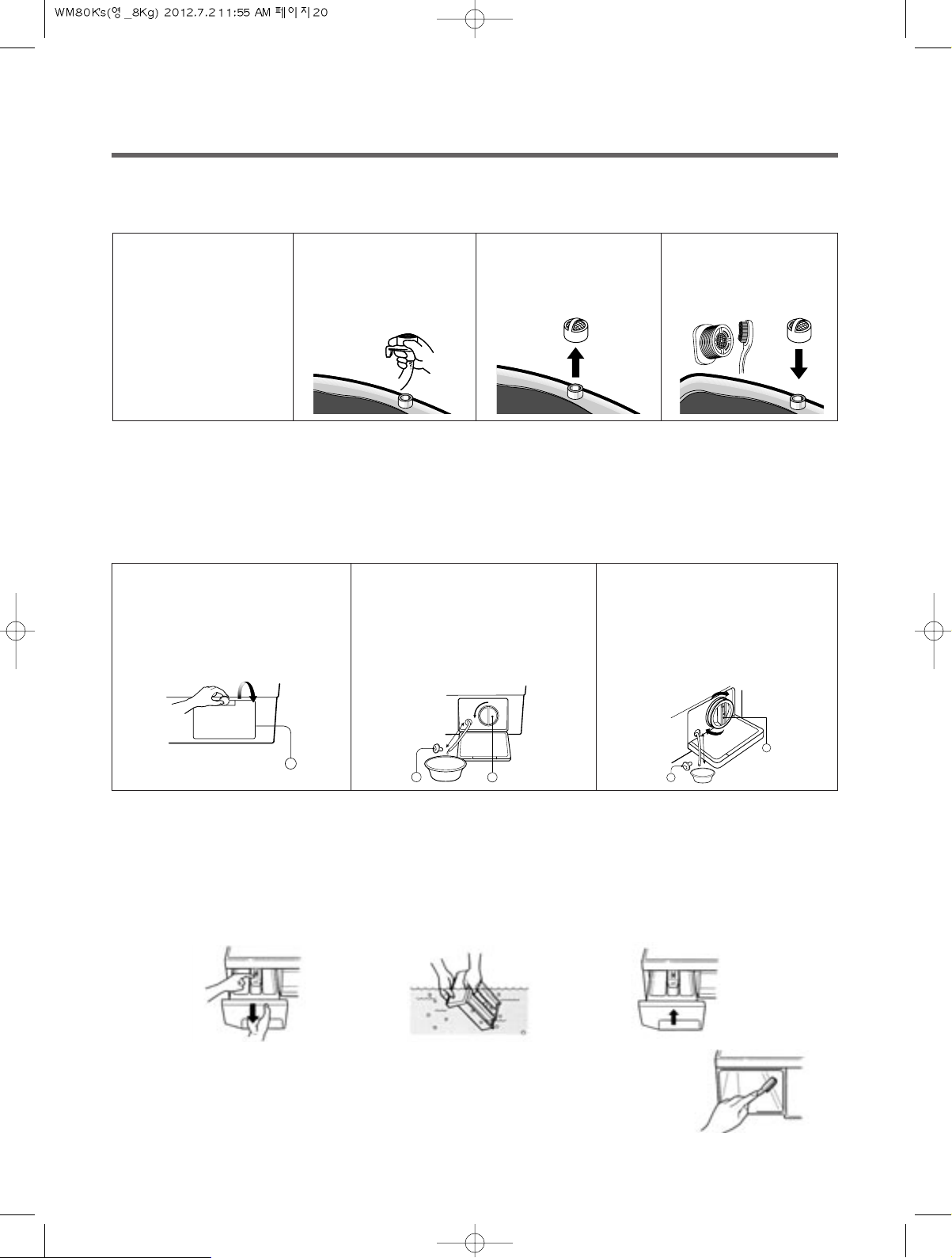

HOW TO CLEAN THE FILTER ......................................................................................................20

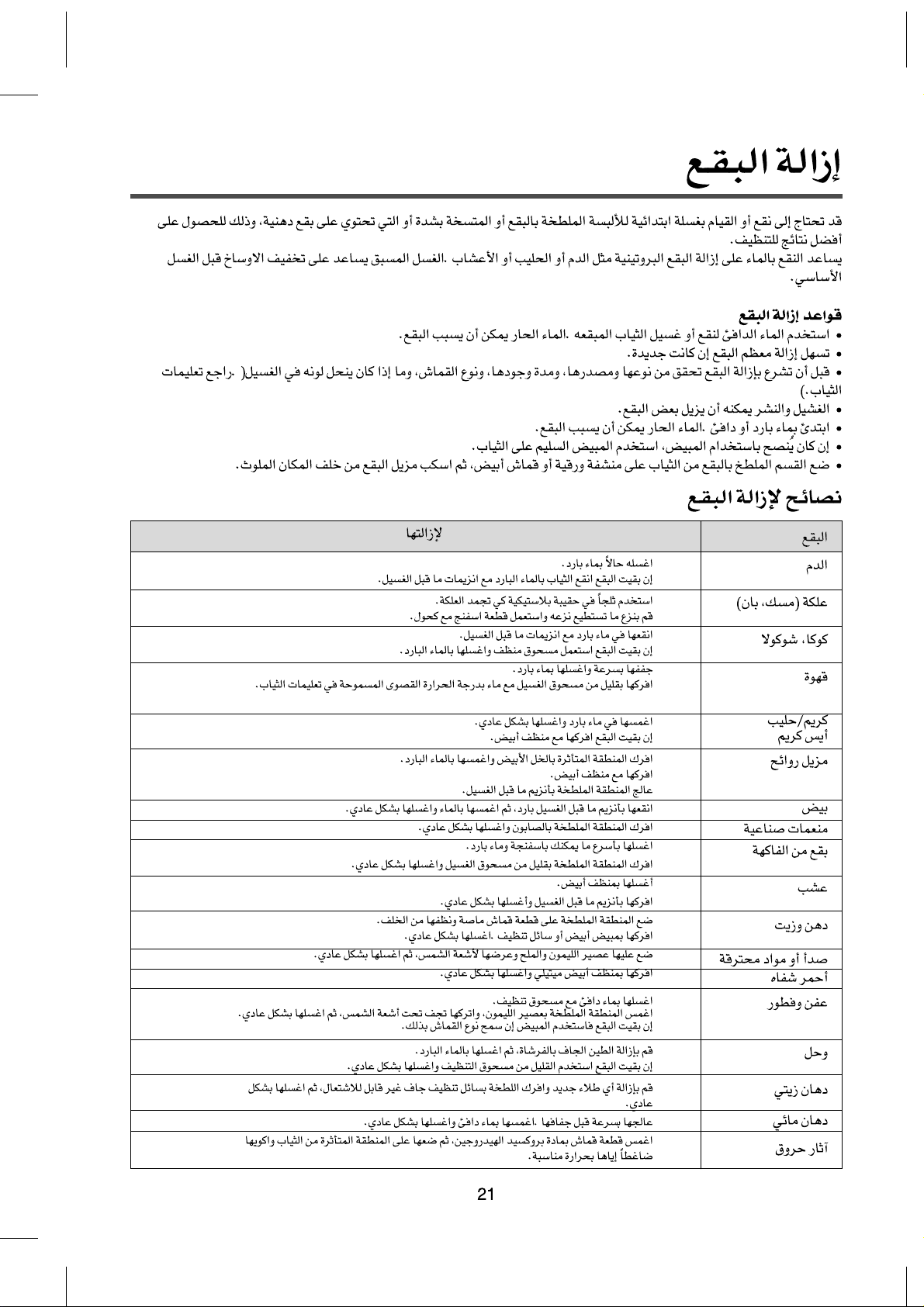

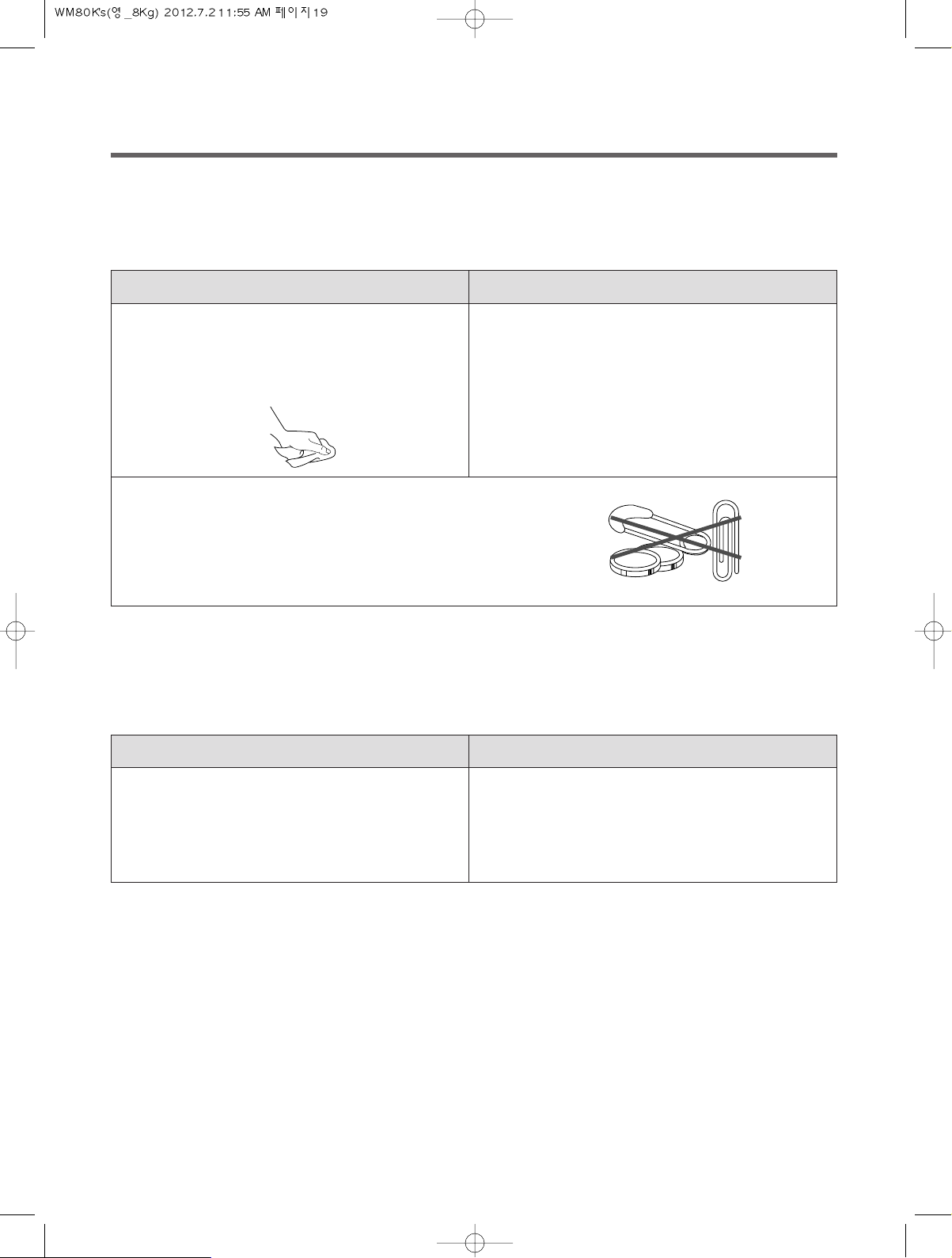

REMOVING STAINS ......................................................................................................................21

TROUBLE SHOOTING ..................................................................................................................22

SPECIFICATION ............................................................................................................................23

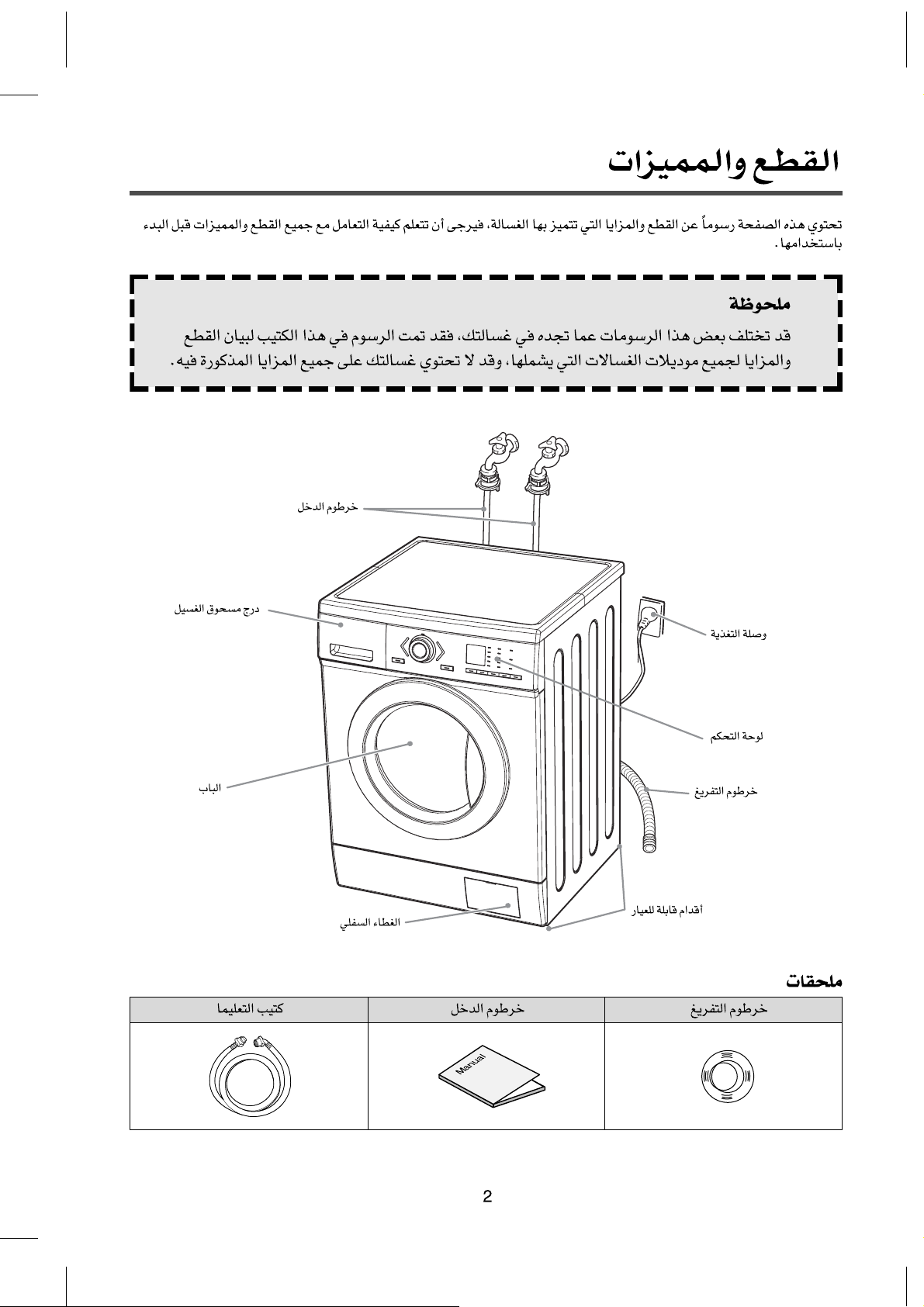

PARTS AND FEATURES

The parts and features of your washer are illustrated on the page. Become familiar with all parts and features before using your washer.

NOTE

The drawings in the book may vary from your washer model. They are designed to show the different features of all models coverd by this book. Your model may not include all features.

Accessories

DETERGENT CASE

INLET HOSE

HOT

(OPTION)

COLD

DOOR

LOWER COVER

ADJUSTABLE LEG

HOSE DRAIN

CONTROL PANEL

POWER CORD

Inlet hose Manual Cap holder(3EA)

Save these instructions

Your safety is important to us. To reduce the risk of fire, electrical shock, or injury when using your washer adhere to the following basic precautions.

Understanding your responsibilities

• Do not use chlorine bleach and ammonia or acid(such as vinegar or rust remover) in the same wash. Hazardous fumes can form.

• Unplug power supply cord before attempting to service your washer.

• Do not wash fiberglass material. Small particles can stick to fabrics washed in following loads and cause skin irritation.

• Do not spray water on the control panel of the washer. It could cause fire or an electric shock.

• In case of the dual valve model, if you connect only one water inlet valve, there can be water leakage from unconnected water inlet valve.

• This appliance must be grounded. To avoid electrical shock, use a metal pipe for the ground connection.

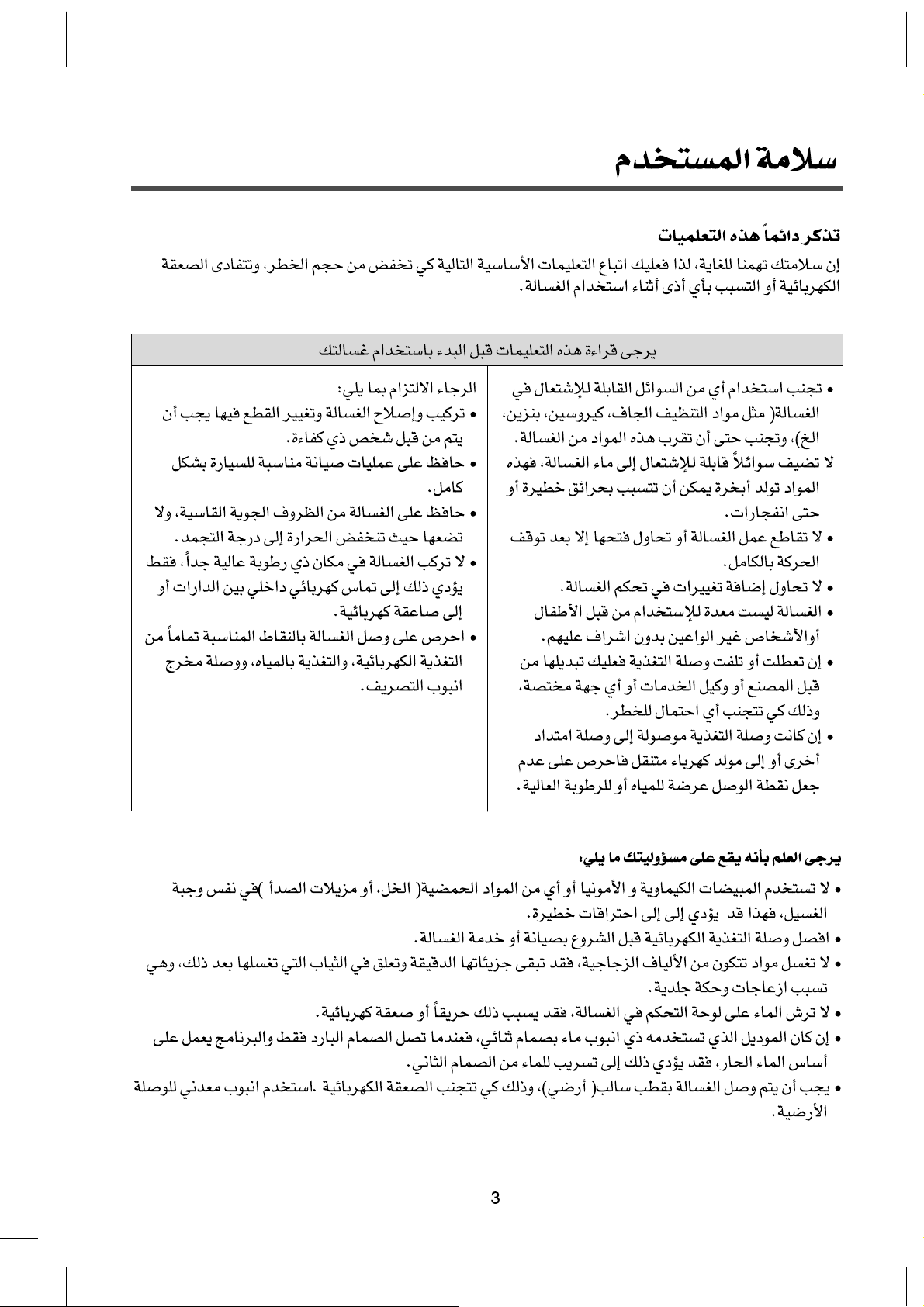

WASHER SAFETY

• Flammable fluids (dry-cleaning solvents, kerosene, gasoline, etc.) should not be used or stored in or near your washer. Do not add flammable fluids to your wash water.These substances give off vapors that can create a fire hazard or explosion.

• After starting a cycle, do not reach into the washer until all motions stop.

• Do not tamper with the controls.

• The appliance is not intended for use by young children or infirm persons without supervision.

• If the supply cord is damaged, it must be replaced by the manufacturer, or its service agent or a similarly qualified person in order to avoid a hazard.

• If the appliance is supplied from a cord extension set or electrical portable outlet device it should be positioned so that it is not subjected to splashing or ingress of moisture.

Please ...

• Have only a qualified person install, repair, or replace parts on washer.

• Maintain washer properly.

• Protect washer from the weather and keep it where the temperature will not fall below freezing.

• Do not install the washer at a place of extremely high humidity. It could cause an electric shock or a short circuit.

• Connect washer to the correct outlet, electrical supply, water supply, and drain supply.

Read all instructions before using your washer

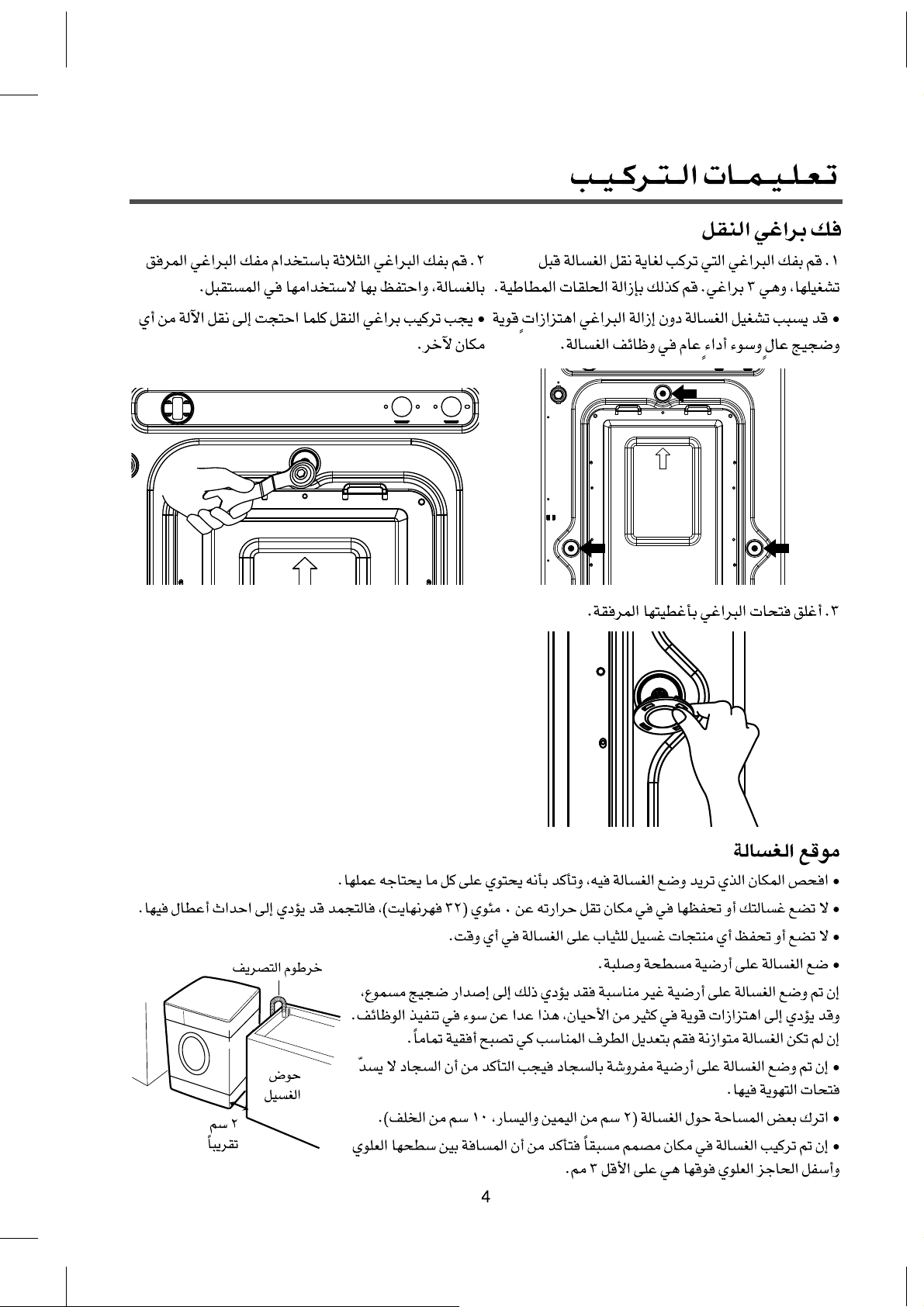

Removing transit bolts

1. Before operating the washer, remove the transit bolts(3ea) along with the rubber.

• If the bolts are not removed, it may cause heavy vibration, noise and malfunction.

2. Unscrew the 3 bolts with the 10mm hex wrench or spanner or cross-tip screwdriver. Keep the 3 bolts for a later time.

• When the appliance is transported, transit bolts will be re-used.

3. Close the holes with the cap holders supplied.

Location of washer

• Check location where the washer will be installed. Make sure you have everything necessary for correct installation.

• Do not place or store your washer below 0°C (32°F) to avoid any damage from freezing.

• Do not place or store laundry products on top of washer at any times.

• Install the washer on the horizontal solid floor.

If the washer is installed on an unsuitable floor, it could make considerable noise, vibrate severely and cause a malfunction. If the washer is not level, adjust leg up or down for horizontal installation.

• Ventilation openings must not be obstructed by carpeting when the washer is installed on a carpeted floor.

• Leave some space (right & left : 2cm, rear : 10cm).

• In case of built-in installation, the distance between top of the washer

and bottom of upper plate should be at least 3mm.

INSTALLATION INSTRUCTIONS

Laundry

Tub

Washer

approx.

2cm

Drain Hose

The washer should be connected to the water mains using new hose sets and old hose sets should not be reused. In using only one water tap or in case of only one water inlet valve, connect the inlet hose to the cold water inlet valve. Option : Be careful not to confuse hot water inlet and cold water inlet.

For Ordinary Tap

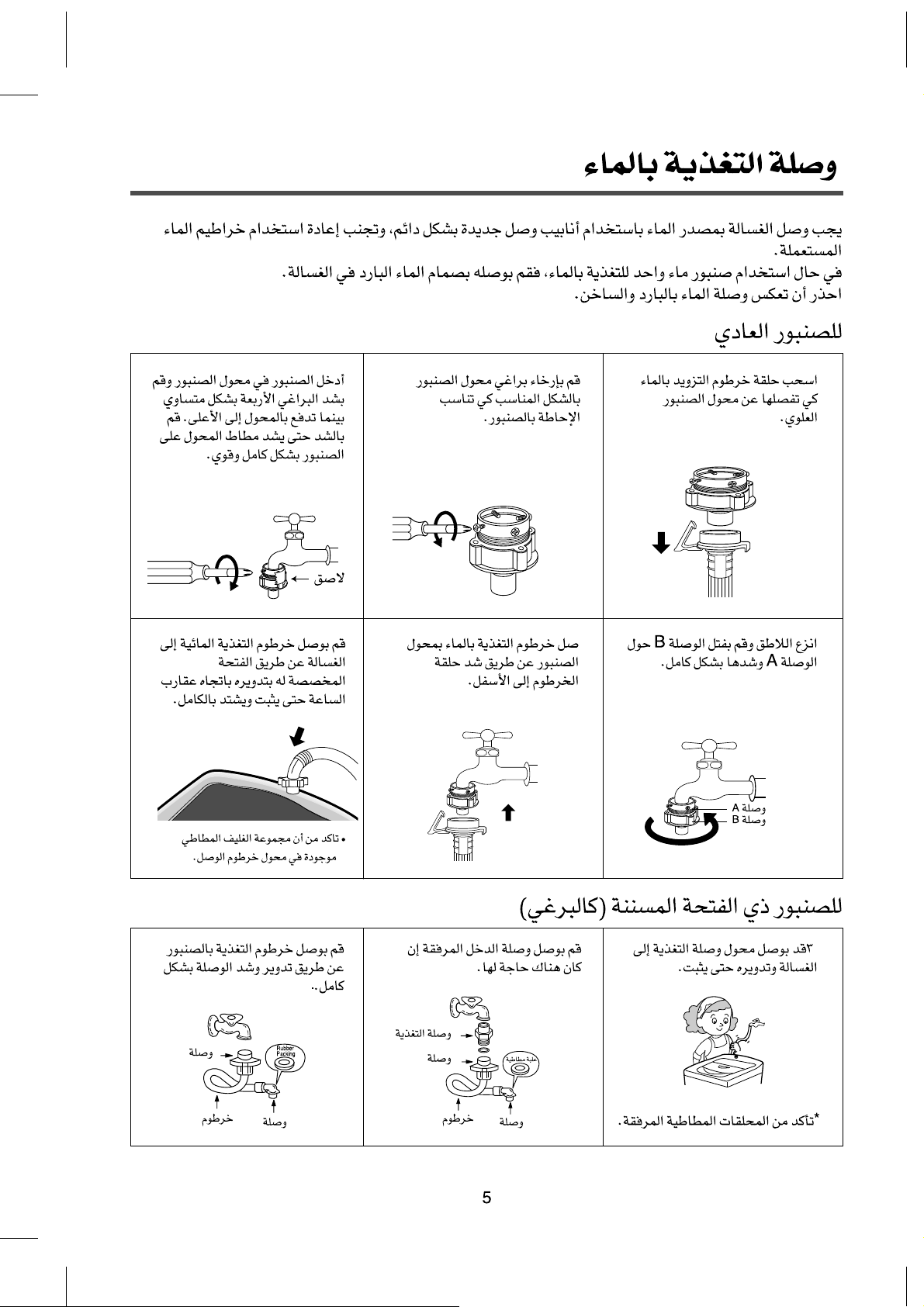

INLET HOSE CONNECTION

1 Pull down the collar of

the inlet hose to separate it from the water tap adapter.

2 Loosen the four screws

properly in fitting into water tap.

3 Fit the water tap adapter

into the water tap and tighten the four screws evenly while pushing up the adapter so that the rubber packing can attach to the water tap tightly.

1 Connect the inlet hose to

the water tap by screwing the connector tightly.

2 Connect the connector-

inlet supplied if necessary.

3 Insert the inlet hose

adapter into the water inlet of a washing machine and turn it to be fixed. .

4 Remove the tape, and

screw connector B into connector A tightly.

5 Connect the inlet hose to

the water tap adapter by pulling down the collar of the hose end.

6 Connect the inlet hose

adapter of the hose to the water inlet of the washing machine by turning it clockwise to be fixed tightly.

For Screw-Shaped Tap

• Please check the rubber packing inside the inlet hose adapter of the hose.

* Cheek the packing in the inlet

Connector A Connector B

Connector

Hose Connector

Rubber Packing

Connector

inlet

Connector

Hose Connector

Rubber Packing

TAPE

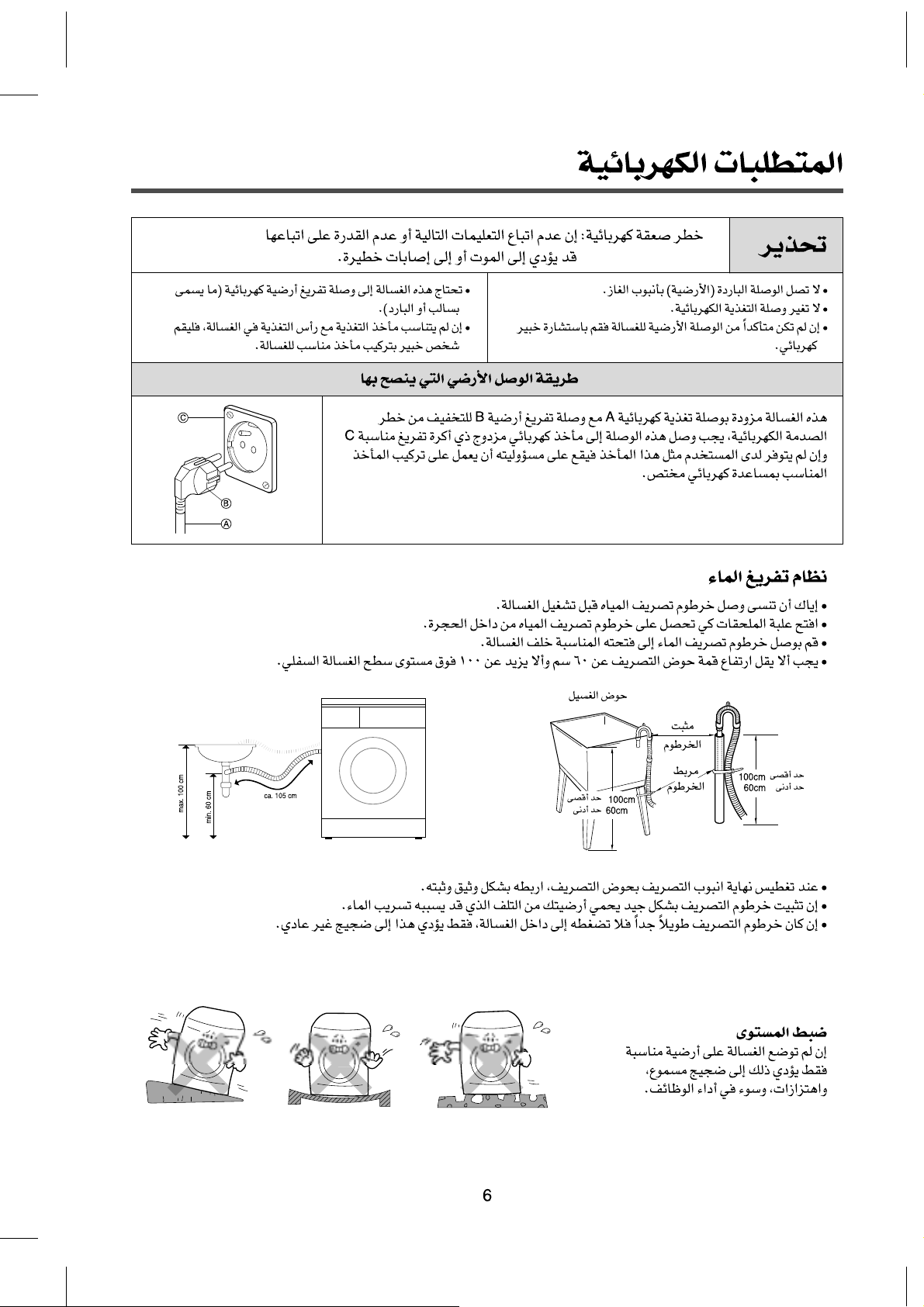

ELECTRICAL REQUIREMENTS

• Electrical earth is required on this washer.

• If it does not fit the outlet, have a proper outlet installed by a qualified electrician.

• Don’t earth to a gas pipe.

• Don’t change the power supply cord plug.

• Check with a qualified electrician if you are not sure the washer is properly earthed.

WARNING

Recommended earthing method

Electrical shock hazard : Failure to follow these instructions could result in

death or serious injury.

For your personal safety, this washer must be earthed. This washer is equipped with a power supply cord ‘A’ having a earthing plug ‘B’. To minimize possible shock hazard, the cord must be plugged into a mating earthing-type wall receptacle ‘C’. If a mating wall receptacle is not available, it is the personal responsibility and obligation of the customer to have the proper earthed wall receptacle installed by a qualified electrician.

Drain system

• Never forget to install drain hose before operating your washer.

• Open the packing box, and there is a drain hose inside the drum.

• Connect the drain hose to the drain outlet at the back side of the washer.

•

Top of laundry tub must be at least 60cm high and no higher than 100cm from bottom of washer.

• When installing the drain hose to tub(sink), secure it tightly with a string.

• Proper securing of the drain hose will protect the floor from damage due to water leakage.

• When the drain hose is too long, do not force it back into the washer. This will cause abnormal noise.

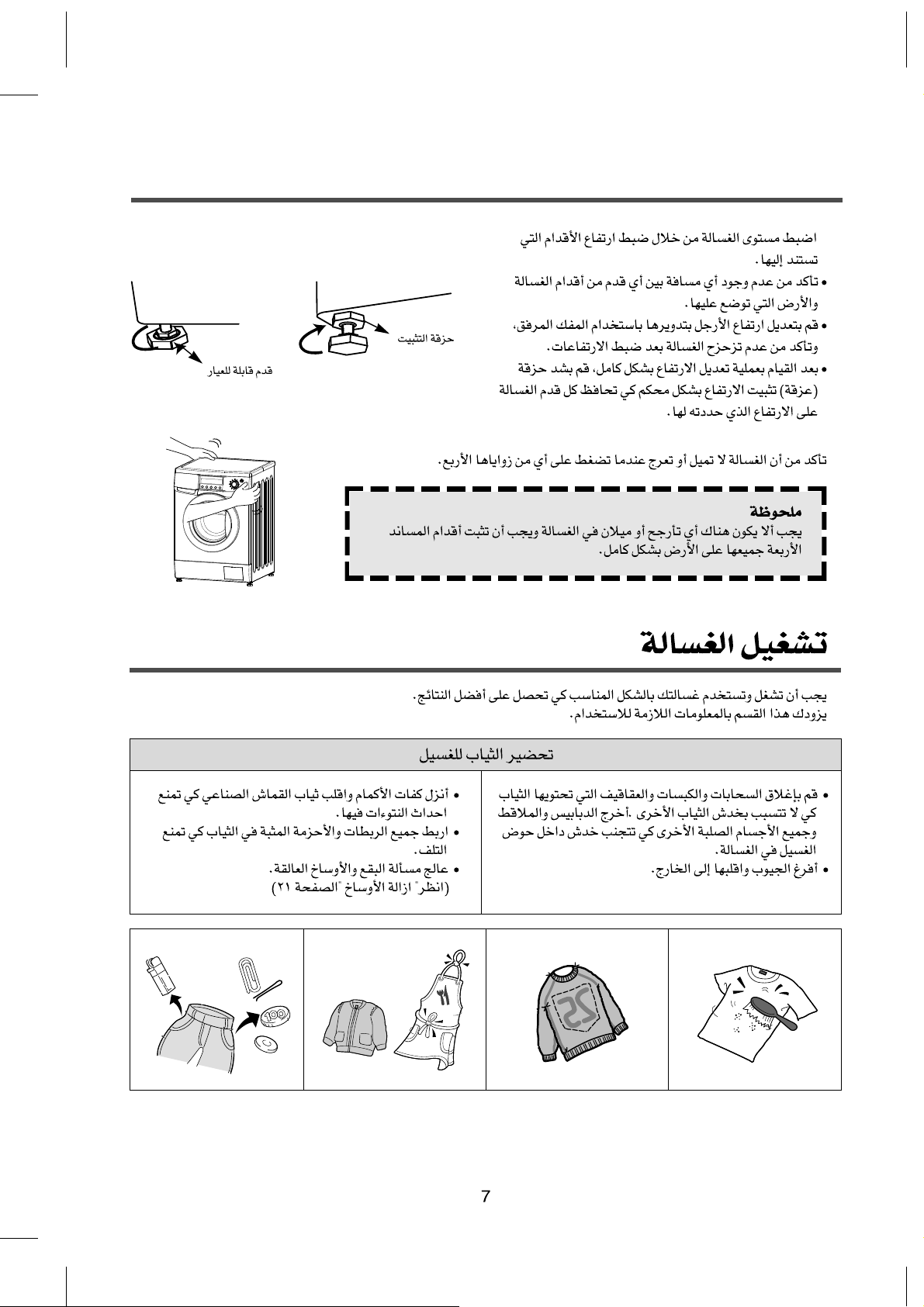

Level adjustment

1 If the washer is installed on an

unsuitable floor, it could make considerable noise, vibrate and cause a malfunction.

Laundry tub

max. 100 cm

min. 60 cm

ca. 105 cm

Tie

strap max. 100 cm min. 60cm

max. 100 cm min. 60cm

OPERATING YOUR WASHER

2 Adjust the level of washer using adjustable legs.

• Please check if there is any gap between the four adjustable legs and the floor.

• Adjust the level of washer by turning adjustable legs. And make it sure that there is no swaying of washer.

• After the adjustment is finished, turn the fixing nuts up tightly so that the washer maintains the adjustment.

3 Make it sure that the washer does not sway when you press

down the four corners of the washer's top plate.

adjustable leg

Fixing Nut

NOTE

There should be no swaying of washer and all the adjustable legs should stick to the floor closely.

To obtain the best washing results, you must operate your washer properly. This section gives you this important information.

• Close zippers, snaps, and hooks to avoid

snagging other items. Remove pin, buckles, and other hard objects to avoid scratching the washer interior.

• Empty pockets and pull them inside out.

• Turn down cuffs and turn synthetic knits inside out to avoid pilling.

• Tie strings and sashes to avoid tangling.

• Treat spots and stains. (See ‘Removing stains’ on page 21)

Preparing clothes for washing

• Drop items into washer loosely. Items should move easily through wash water for best cleaning and wrinkle-free results.

• Load washer properly and select correct load size setting. Overloading and selecting a setting too small for the wash load can :

- Cause poor cleaning

- Increase wrinkling

- Create excessive lint

- Wear out items faster (because of pilling)

• Mix large and small items in each load. Load evenly to maintain washer balance. An unbalanced load can make the washer vibrate during spin.

• Reduce wash time when using a small load size setting. Load with only a few small items needs less wash time.

• Use a large load size setting to reduce wrinkling with permanent press clothes and some synthetic knits. These items should have more room to move in the water than heavy items. (towels, jeans)

1 Detergent case 2 Adding fabric softener

• If desired, add measured liquid fabric softener to the softener inlet.

• Pour liquid fabric softener into the dispenser using the amount recommended on the package.

• Do not exceed the maximum fill line. Overfilling can cause early dispensing of the fabric softener which could stain clothes.

• Do not open the detergent case when water is supplied.

• Avoid pouring fabric softener directly on the clothes.

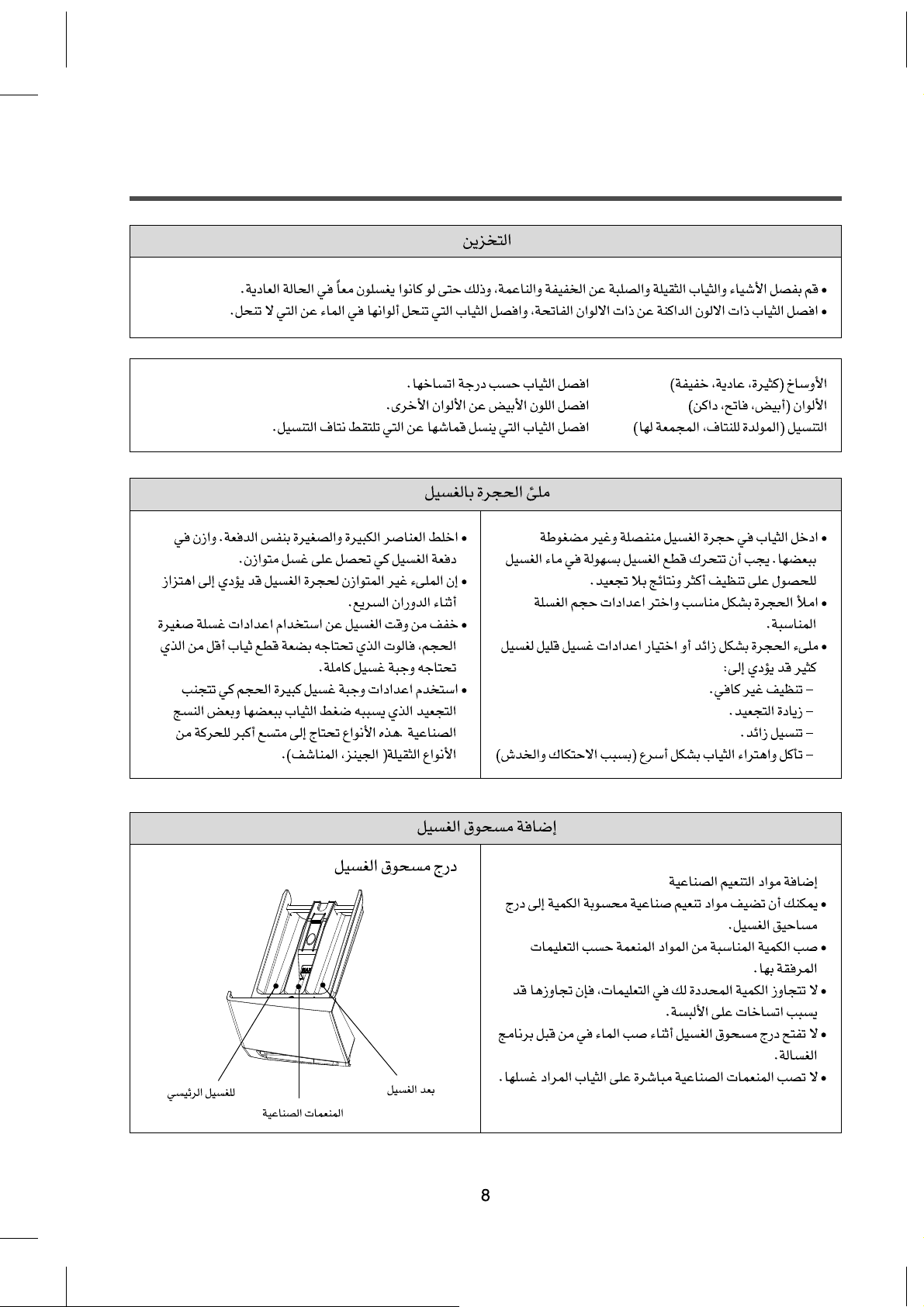

Adding detergent

• Separate heavily soiled items from lightly soiled ones, even if they would normally be washed together.

• Separate dark colors from light colors, colorfast items from non-colorfast item.

Sorting

Soil (Heavy, Normal, Light) Separate clothes according to amount of soil. Color (White, Lights, Darks) Separate white clothes from colored clothes. Lint (Lint producers, Collectors) Wash lint producers and lint collectors separately.

Main wash

Pre wash

Fabric softener

• Please use only the powder detergent for the front loader washing machine.

• Please use the proper amount of detergent in conformity with the instruction of the detergent manufacturer.

• A use of a large amount of detergent more than the recommended amount can cause many soapsuds and the overload to the motor. In addition to, this will deteriorate the washing and rinse performance.

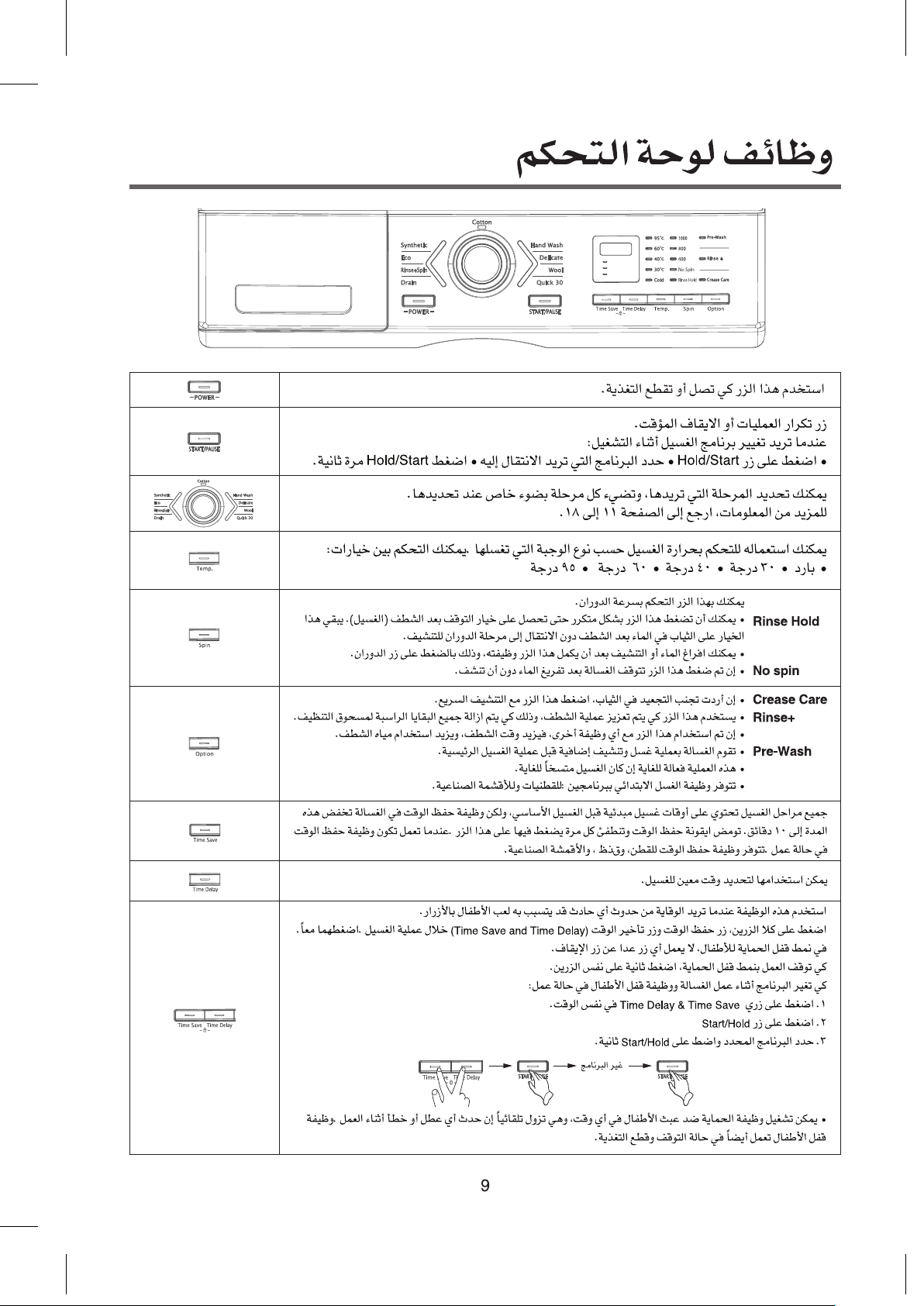

THE FUNCTIONS OF THE CONTROL PANEL

Press this switch to turn the power on or off.

Operation and temporary stop is repeated as it is pressed. When you want to change program in operating; press the ‘Start/Pause’ button ᵎ Select the program that you want to change ᵎ press the ‘Start/Pause’ button again.

You can select the course you want, and each lamp is turned on when that course is selected. For the more detailed information, please refer to the page 11~18.

It can be used to adjust temperature of water according to types of the load to be washed. As the button is pressed, temperature of water is selected by Cold ᵎ 30˚C ᵎ 40˚C ᵎ 60˚C ᵎ 95˚C

By pressing the spin button, the spin speed can be chosen. Rinse Hold •

Is selected by pressing the spin button repeatedly. This function leaves clothes in the machine; suspended in the water after a rinse without entering into spin.

• To proceed through to a drain or spin, after the Rinse Hold function is completed, use spin button.

Spin only •If you want only spin, you can operate spin only(See page 18).

Crease Care • If you want to prevent crease, select this button with spin speed. Rinse+ • Is used to add a rinse, which may assist in removing traces of detergent residue.

• By selecting Rinse+ function, the rinse time and the rinse water are increased.

Pre-Wash • The washer operates one additional wash and spin before the main wash.

• If the laundry is heavily soiled, Pre-Wash course is effective.

• Pre-Wash is available in Cotton and Synthetic programs.

All courses have pre-set washing times, but Time Save decreases it to 10 minutes. Each time this button is pressed the watch icon is repeated on and off. When it is on, the Time Save function is set. Time Save is available in Cotton, Eco and Synthetic programs.

It can be used to pre-engage time for wash.

Use this function when you want to protect any accident occurring from handling of washer by a child. During an operation of washer, press ‘Time Save’ and ‘Time Delay’ buttons simultaneously. In Child Lock mode, no button functions except Power button. In Child Lock mode, press ‘Time Save’ and ‘Time Delay’ buttons simultaneously like setting Child Lock and Child Lock is cancelled. To change to the desired program, while in Child Lock mode;

1. Press both the Time save and Time delay buttons together once again.

2. Press the Start/Pause button.

3. Select the desired program and press the Start/Pause button again.

* The Child Lock will be cancelled when power is off.

Change the desired program

1. COTTON IS AUTOMATICALLY SELECTED UPON POWER ON

• Press the Power button to start.

• Press the Start/Pause button.

• Initial condition;

- Program : Cotton

- Wash : main wash

- Rinse : 3 times

- Spin : 800 rpm

- Water temperature : 40˚C

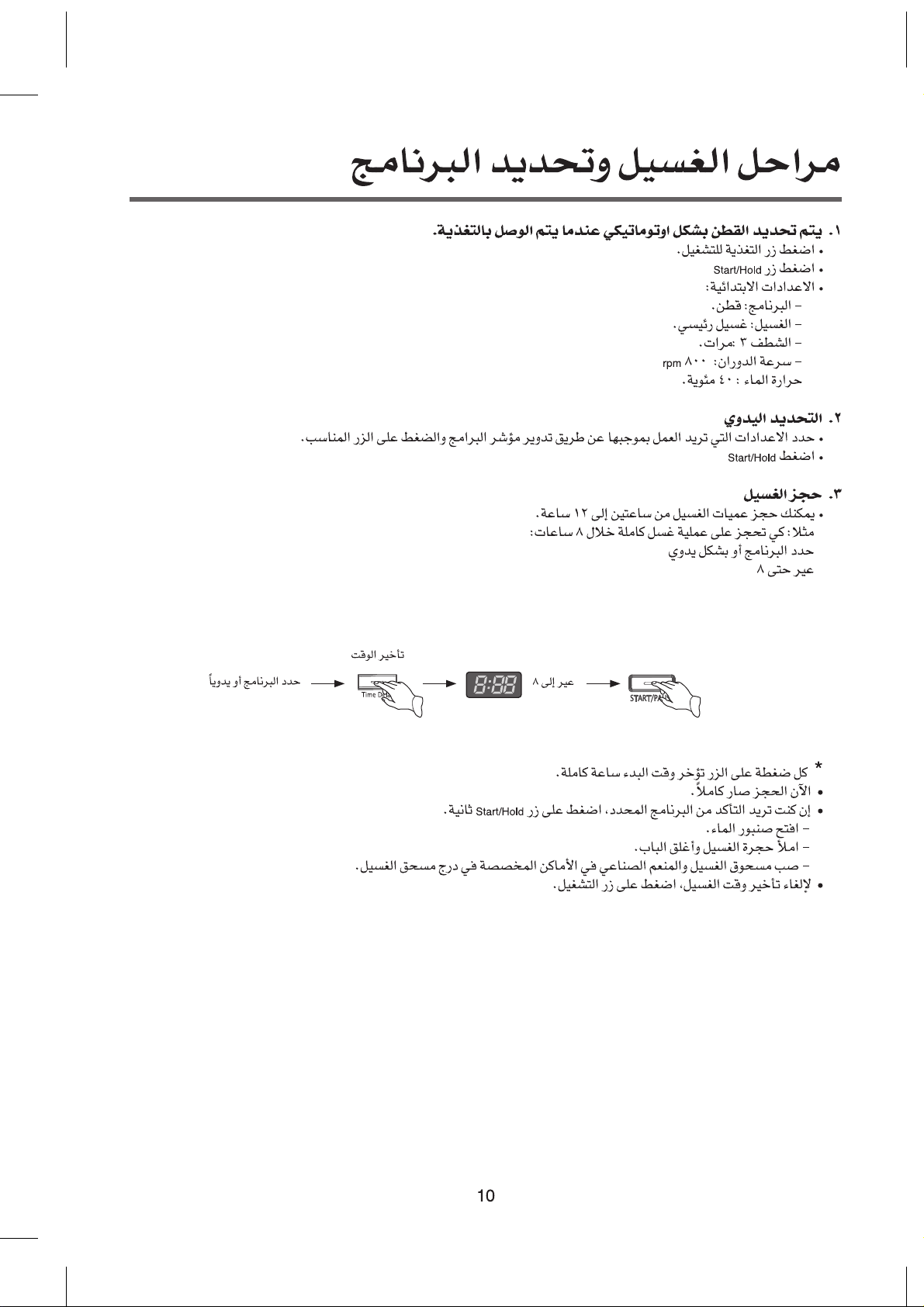

WASHING PROCEDURE AND PROGRAM SELECTION

2. MANUAL SELECTING

• Press the Power button to start.

• Select the conditions which you want to use by turning the program dial and pressing each button.

• Press the Start/Pause button.

3. RESERVED WASHING

• Reservation can be made from 2 hours to 12 hours. example) To make reservation to complete washing in 8 hours.

- Procedure to press the button.

* Each pressing of the button advances time delay by one hour.

• Now the reservation is made.

• If you want to check the selected program, press the ‘Start/Pause’ button again.

• Preparing washing before starting ‘Time Delay’ ;

- Turn on the water tap

- Load laundry and close the door

- Place the detergent and fabric softener in the detergent case.

• To cancel the time delay, press the Power button.

select the program or manual

adjust to "8"

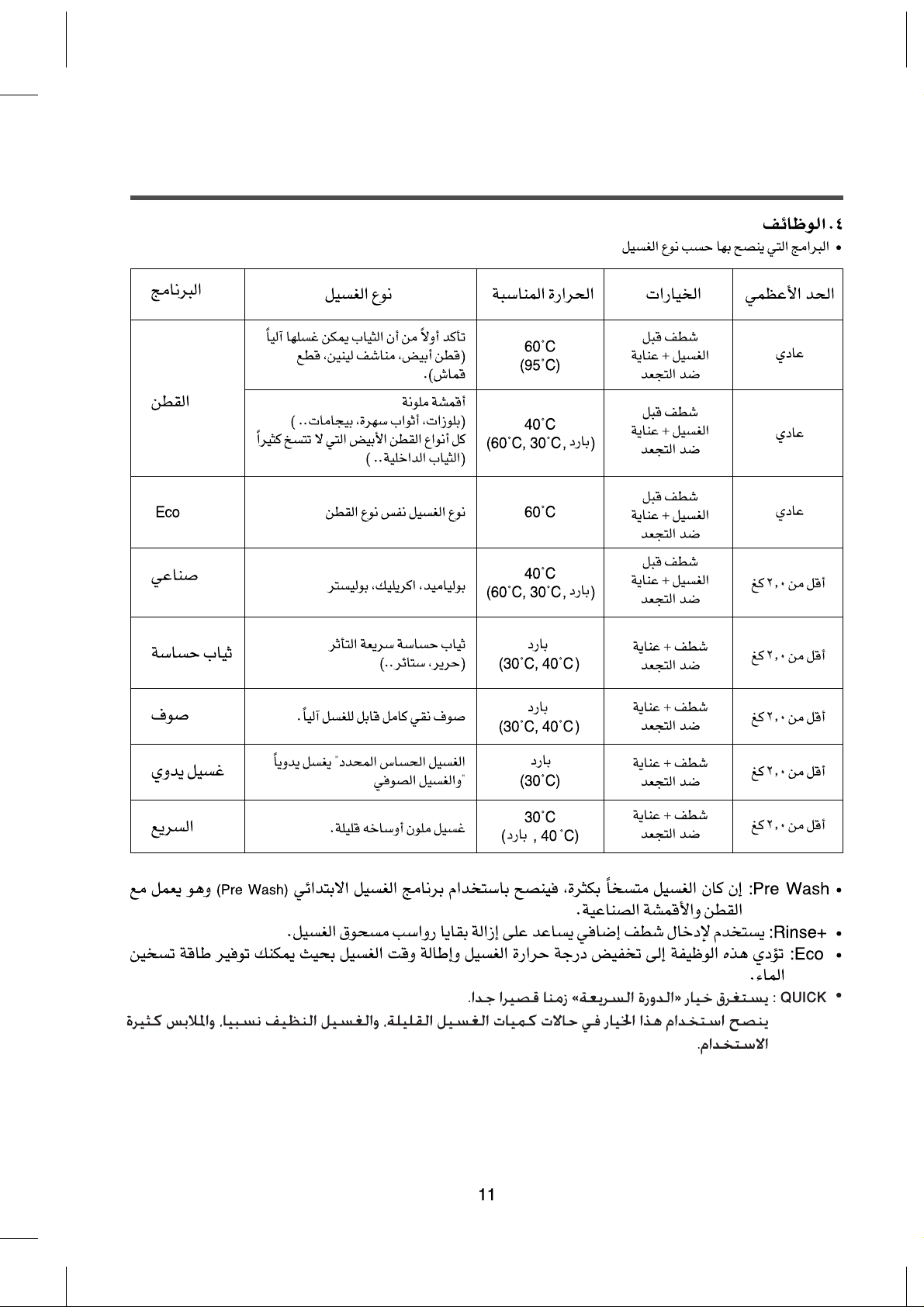

4. FUNCTION

• Recommended programs according to the laundry type

• Pre Wash : If the laundry is heavily soiled, “Pre Wash” program is recommended. Pre Wash is available in Cotton and Synthetic programs.

• Rinse+ : Used to introduce an additional rinse, which may assist in removing traces of detergent residue.

• Eco : By selecting Eco function, the water temperature is lowered and washing time is increased.

So you can economize your consumption of heating energy.

• Quick : “THE QUICK CYCLE” option has a very short cycle time.

Recommended uses include Small amount of the laundry, a relatively clean laundry, Frequentlyused clothes.

Fabirc

Type

First check if laundry is machine washable.(white cotton, linen towel and sheets..)

Colorfast garments (shirts, night dresses, pajamas..) and lightly soiled white cottons (underwear..)

60˚C

(95˚C)

Pre Wash

Rinse+

Crease Care

Rating

40˚C

(Cold, 30°C,

60°C)

Pre Wash

Rinse+

Crease Care

Rating

Laundry type is the same as Cotton.

60˚C

Rinse+

Crease Care

Rating

Proper Temp.

Option

Maximum

Load

Program

Cotton

Eco

Polyamide, Acrylic, Polyester

40˚C

(Cold, 30°C,

60°C)

Pre Wash

Rinse+

Crease Care

Less than

2.0kg

Synthetic

Delicate laundry easily damaged (silk, curtains..)

Cold

(30°C, 40°C)

Rinse+

Crease Care

Less than

2.0kg

Delicate

Machine washable woolens with pure new wool only.

Cold

(30°C, 40°C)

Rinse+

Crease Care

Less than

2.0kg

Wool

‘Hand wash’ marked delicate and wool laundry

Cold

(30˚C)

Rinse+

Crease Care

Less than

2.0kg

Hand Wash

Colored laundry which is lightly soiled fast.

30˚C

(Cold, 40˚C)

Rinse+

Crease Care

Less than

2.0kg

Quick 30

* COTTON PROGRAM

Note

• If you want to change the setting during operation, press the Start/Pause button to hold the operation and press the button you want.

• ‘Cold’, ‘30’ °C, ‘40’ °C, ‘60’ °C and ‘95’ ˚C washing temperatures are selectable with Cotton program.

• ‘Prewash’, ‘Rinse+’, and ‘Crease Care’ wash options are selectable with Cotton program.

Caution!

• If you select washing temperature ‘95’ ˚C, some cold water is supplied before the drain of main wash. This is to protect the user from the hazard of burn injury by lowering the temperature of hot wash water instead of directly draining it. Therefore this is not a malfunction. (Be careful with the draining water, since it can be still hot although the temperature is lowered.)

Put the laundry in the drum. Put detergent and softener into the detergent case. Then close the door.

•

Put detergent into the main wash and prewash compartments in the detergent case. Softener should be below the ‘MAX’ level.

•

Put detergent into the pre wash compartment only if you want to add prewash.

•

When you want to use bleach, put it into the main wash compartment with detergent.

Press the Power button.

•

The LED shows only ‘---’ and all Program Lights turn on.

Select the ‘Cotton’ program using program selection dial.

•

If you press Start/Pause button after power button without selecting program, the ‘Cotton’ program is selected as default program.

•

Washing temperature ‘40’ ˚C, spin ‘800’ rpm and rinse ‘3’ times are selected automatically.

•

If you want to change washing temperature, the spin velocity or add wash options (Prewash, Rinse+, Crease Care), press each button.

Press Start/Pause button.

•

The Door is locked. By sensing the weight of laundry and supplying wash water, The appliance starts washing.

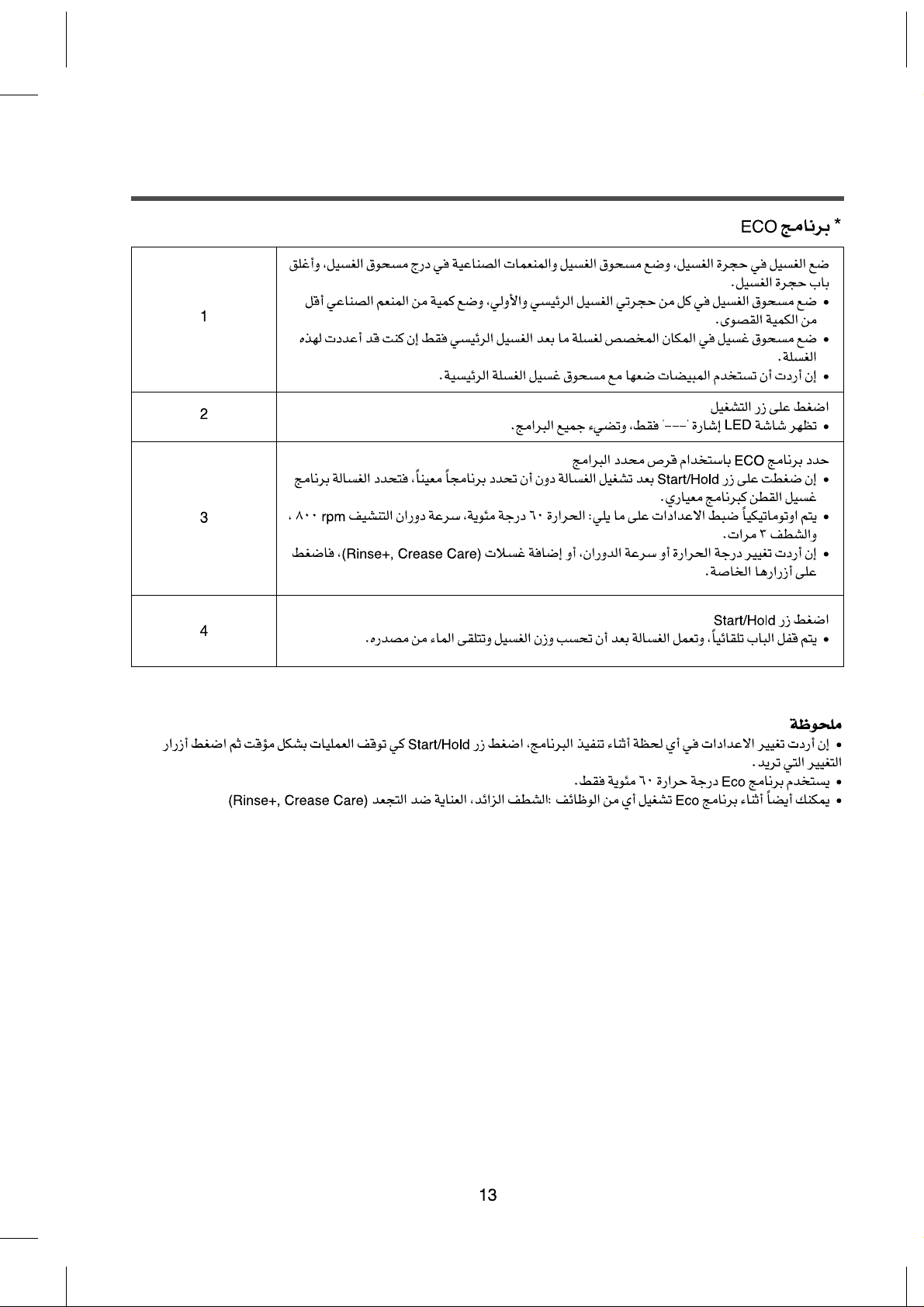

* ECO PROGRAM

Note

• If you want to change the setting during operation, press the Start/Pause button to hold the operation and press the button you want.

• Only ‘60’ ˚C washing temperature is selectable with Eco program.

• Only ‘Rinse+’ and ‘Crease Care’ of all wash options are selectable with Eco program.

Put the laundry in the drum. Put detergent and softener into the detergent case. Then close the door.

•

Put detergent into the main wash and prewash compartments in the detergent case. Softener should be below the ‘MAX’ level.

•

Put detergent into the pre wash compartment only if you want to add prewash.

•

When you want to use bleach, put it into the main wash compartment with detergent.

Press the Power button.

•

The LED shows only ‘---’ and all Program Lights turn on.

Select the ‘Eco’ program using program selection dial.

•

Washing temperature ‘60’ ˚C, spin ‘800’ rpm and rinse ‘3’ times are selected automatically.

•

If you want to change the spin velocity or add wash options (Rinse+, Crease Care), press each button.

Press Start/Pause button.

•

The Door is locked. By sensing the weight of laundry and supplying wash water, The appliance starts washing.

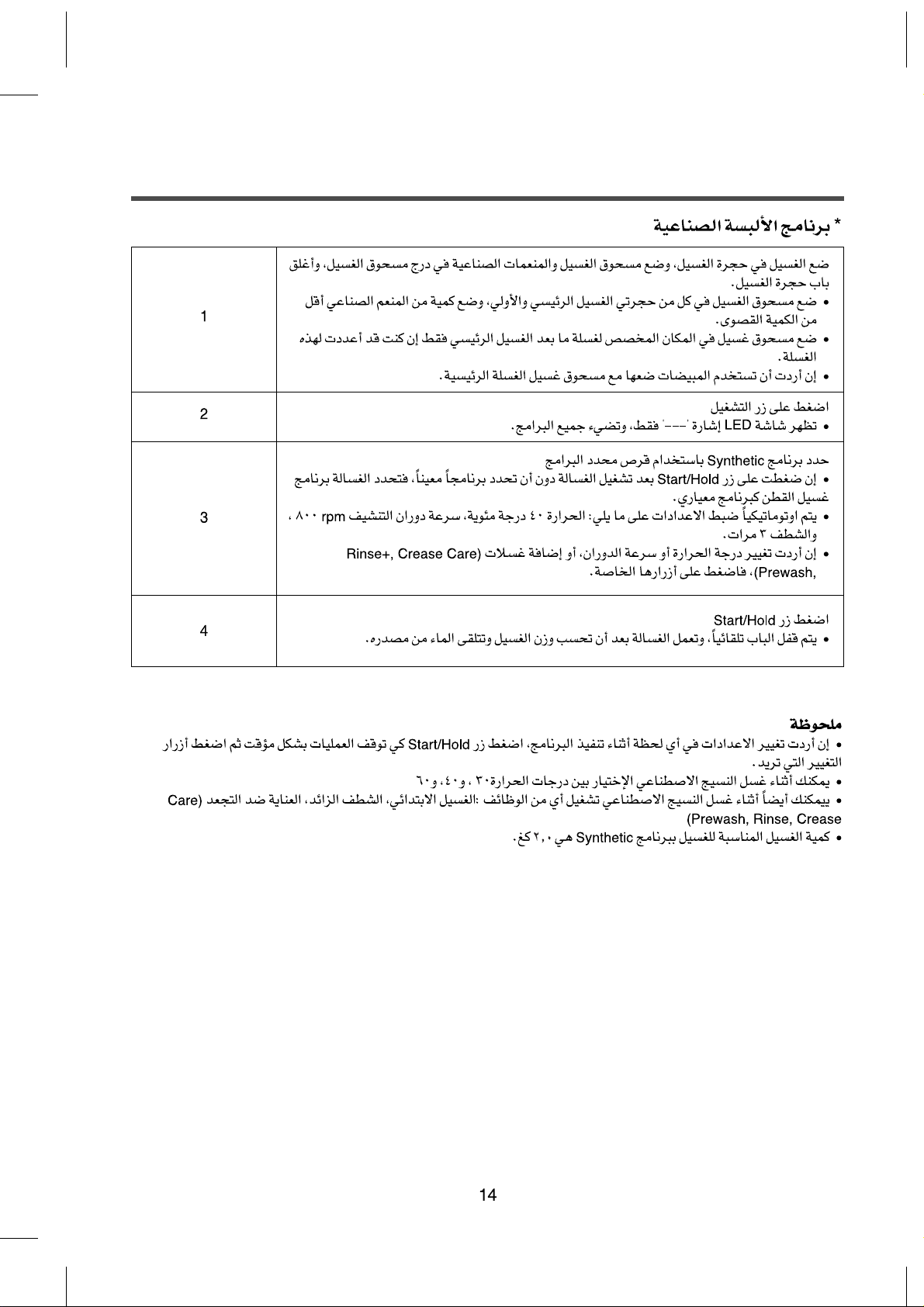

* SYNTHETIC PROGRAM

Note

• If you want to change the setting during operation, press the Start/Pause button to hold the operation and press the button you want.

• Only ‘Cold’, ‘30’°C, ‘40’°C and ‘60’ ˚C washing temperatures are selectable with Synthetic program.

• ‘Prewash’, ‘Rinse+’, and ‘Crease Care’ wash options are selectable with Synthetic program.

• The appropriate amount of laundry for Synthetic program is below 2.0kg.

Put the laundry in the drum. Put detergent and softener into the detergent case. Then close the door.

•

Put detergent into the main wash and prewash compartments in the detergent case. Softener should be below the ‘MAX’ level.

•

Put detergent into the pre wash compartment only if you want to add prewash.

•

When you want to use bleach, put it into the main wash compartment with detergent.

Press the Power button.

•

The LED shows only ‘---’ and all Program Lights turn on.

Select the ‘Synthetic’ program using program selection dial.

•

Washing temperature ‘40’ ˚C, spin ‘800’ rpm and rinse ‘3’ times are selected automatically.

•

If you want to change washing temperature, the spin velocity or add wash options (Prewash, Rinse+, Crease Care), press each button.

Press Start/Pause button.

•

The Door is locked. By sensing the weight of laundry and supplying wash water, The appliance starts washing.

+ 32 hidden pages
