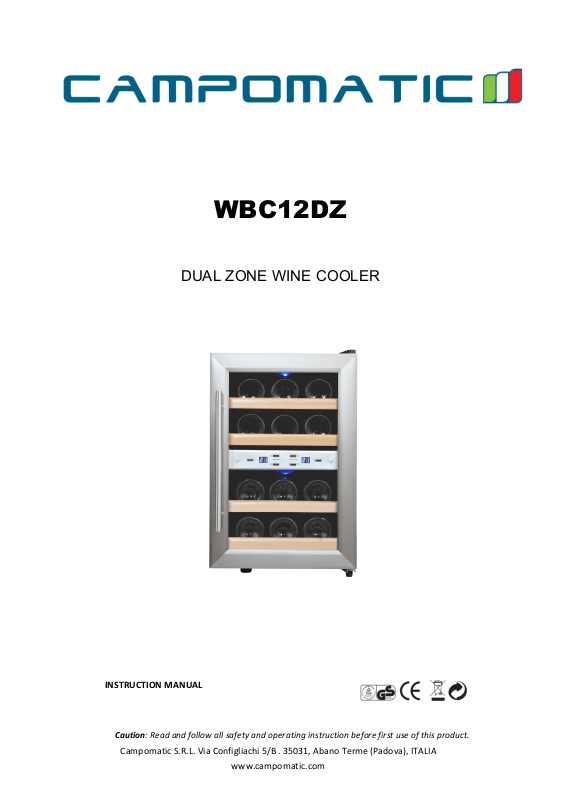

WBC12DZ
DUAL ZONE WINE COOLER
Caution:"Read"and"follow"all"safety "a n d "o p e ra t in g "in st ru ct io n "b e fo re "firs t"u s e"o f"t h is "p ro d u ct ."
Campomatic!S.R.L.!Via!Configliachi!5/B!.!35031,!Abano!Terme!(Padova),!ITALIA!
www.campomatic.com!
INSTRUCTION)M A N U A L ) )
Page 2
1!
Contents:!
1.!Your!Wine!Cooler!
2.!Technical!Data!
3.!Important!Safety!Instructions!
4.!Installation!Instructions!
5.!Electrical!Connection!
6.!Operation!
7.!Care!and!Maintenance!
8.!Troubleshooting!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
Page 3
2!
!
Your)Wine)Cooler)
!
1.!HINGE! ! ! ! ! 2.!LIGHT! ! ! ! 3.!TEMPE RA T U R E !CONTROLLER!
4.!TEMPERATURE!DISPLAY! ! 5.!FAN!MASK! ! ! ! ! ! ! 6.!SHELF! ! ! ! !
7.!FOOT!! ! ! ! ! 8.!DOOR!FRAME! ! ! ! ! ! ! 9.GALSS! ! ! ! ! ! ! ! ! !
10.!HANDLE! ! ! ! ! !
!
Technical)Data)
Model!no.!
WBC12DZ!
Capacity! !
33L(1.17!cuff)!
Voltage!
220V! !
Current!
1A(25℃) !
Protection!class!
Ⅰ!
Climate!class!
SN;N!
Input!power!
140W(25℃) !
Power!
Consumption(KW.h/24h)!
0.73(15℃) !
Max!Temperature!Difference!
﹥18℃!
Temperature!Control!Range!
7`18℃!
Net!weight!
14KG!
Gross!weight!
15.6KG!
Shape!size(W×H×D)!
34x53.4x51!CM!
Packing!size(W×H×D)!
38.2x55.7x55!CM!
!
!
!
Page 4
3!
!
Important)Safety)Instru ct io n s)
!
! Read!all!instructions!before!using!the!wine!cooler!
! Never!allow!children!to!operate!or!play!with!the!cooler!
! Never!clean!appliance!parts!with!flammable!fluids.!The!fumes!can!create!a!fire!hazard!or!explosion.!
! Do! not! store! or! use! gasoline! or! any! other! flammable! vapors! and! liquids! in! the! vicinity! of! this! or! any! other!
appliance.!The!fumes!can!create!a!fire!hazard!or!explosion.!
!
!!! Save)these)instructions)
Installation)Instructions)
Before!using!your!wine!cooler!
! Remove!the!exterior!and!interior!packing! !
! Check!to!be!sure!the!following!parts!are!included:!
" 4!Slide!out!shelves!
" 1!Instruction!manual!
! Before! connecting!the! appliance!to! the! power! source,! let! it! stand! upright! fo r! approximately! 2! hours.! T his ! will!
reduce!the!possibility!of!a!malfunction!in!the !coo ling!sy stem !from!handling!during!transportation.!
! Clean!the!interior!surface !w ith !lu ke warm!water!using!a!soft!cloth .!
!
! Place!your!appliance!o n !a!flo o r!th a t!is!st ro n g!e n ou g h !to !su p p o rt!th e !ap p lia n ce !w h e n !it!is!fu lly!lo a d ed .! !
To!level!your!appliance,!adjust!the!front!legs!at!the!bottom!of!the!appliance.!
! The)handle)installing) )
The! wine!cooler! comes! with! 1! metal!stainless! steel!handle.! To! install! simply! screw ! them! to!the! door! with!the!
supplied!screws!
!
! Installation!should!be!done!away!from!direct!sunlight!and!sources!of!heat!(stove,!heater,!radiator,!etc.).Direct!
sunlight!may!affect!the!acrylic!coating!and!heat!sources!m ay! increase!e lectrical!consumption.!Extreme!cold!or!
hot!ambient!temperatures!may!also!cause!the!appliances!not!to!perform!properly.!
! Designed!for!indoor!use!only!
!
)
)
)
To!reduce!the!risk!of!fire,!electrical!shock,!or!injury!when!using!your!
appliance,!follows!these!basic!precautions;!
Page 5
4!
)
Electrical)Connection)
!
!
!
!
!
This!unit!should!be!properly!grounded!for!your! safety.! The!power!cord!of!this!unit!is!equipped!with! a! 2`pin!plug!which!
matches!with!2`pin! w all! outlets!to!minimize! the! possibility!of!electrical!shock.! Do! not!under! any! circumstances! cut! or!
remove!the!ground!wire!from!the!power!cord!supplied.!
Use!of!extension!cords!is!not!recommended.!
This!unit!requires!a!standard!220V`50HZ!electrical!outlet!with!2`pin!plug.!
The!cord!should!be!secured!behind!the!wine!refrigerator!and!not!let!exposed!or!dangling!to!prevent!accidental!injury.!
!
Operation)
)
It!is!recommended!that! yo u!install!the!w ine !cooler!in! a !place!where!the!ambient!temperature!is!between!10`26°C!(50°
F! `80°F).!!If! the! ambient! tem p eratu re! is! above! or!below! recommended! temperatures,! the! performance! of! the!unit!
may!be!affected.! !
The!temperature! may! fluctuate!depending!on!whether!or! not! the! interior!light!is!on!or!off! or! whether!the!bottles!are!
located!on!the!upper,!m id d le!o r!lo w e r!se c tio n . !
!
How)to)use)the)pressFbuttons)on)the)Display)Panel:)
You!can!set!the!temperature!as!your!desire!by! p ressing!the! button.!There! are!three!press`button!on!the!panel!“ ”! and!
“ ”!to!adjust!the!temperature!by!1°C!among!7`18°C.!
You!can!turn!the!interior!light!on!or!off!by!pressing!the!“Light”!button.!
!
Care)and)Maintenance)
Cleaning)your)wine)cooler)
! Unplug!the!wine!cooler!and!remove!the!bottles.!
! Wash!the!inside!with!a!warm!water!and!baking!soda! solution.!The!solution!should!be! about! 2!tablespoons! of!baking!
soda!to!a!quart!of!water.!
! The!outside!of!wine!refrigerator!should!be!cleaned!with!mild!detergent!and!warm!water.!
! Draw!out!the!water!box!at!the!botto m ,!and !w ash .!
Moving)your)wine)cooler)
! Remove!all!the!bottles.!
! Securely!tape!down!all!loose!items!inside!your!wine!refrigerator.!
! Turn!the!leveling!legs!up!to!the!base!to!avoid!damage.!
! Tape!the!door.!
! Be!sure!the!wine!refrigerator!stays!in!the!upright!position!during!transportation.!
Warning)
Improper! use! of! the! grounded! plug! can! result! in! the! risk! of!electrical! shock.! If! the!
power!cord!is!damaged,!have!it!replaced!by!an!authorized!Products!service!center.!
Page 6
5!
!
Troubleshooting)
You! can! solve! many! common! wine! cooler! problems! easily,! saving! you! the! cost! of! a! possible! service! call.! Try! the!
suggestion!below!to!see!if!you!can!solve!the!problem!before!calling!the!service!center.!
!
PROBLEM)
POSSIBLE)CAUSE)
Wine!cooler!does!not!operate!
Not! plugged! in! using! different! voltage.! The! circuit!
breaker!tripped!or!a!blown!fuse.!
Wine!cooler!is!not!cold!eno u gh!
Check!the!temperature!control!setting.!
External!environment!may!require!a!higher!setting.!
The!door!is!open!too!often.!
The!door!is!not!closed!completely.!
The!door!seal!does!not!seal!properly.!
The!wine!cooler!does!not!have!the!correct!clearance.!
The!light!does!not!work!
Check!the!service!center.!
Vibrations!
Check!to!assure!that!the!wine!cooler!is!level.!
Too!noisy!
Check!to!assure!that!the!wine!cooler!is!level.!
Check!the!fan.!
The!door!will!not!close!properly!
Check!to!assure!that!the!wine!cooler!is!level.!
The!doors!were!reversed!and!not!properly!installed.!
The!seal!is!weak.!
LED!does!not!display!
Main!control!board!does!not!work.!
PCB!Problem.!
There!is!some!problem!with!the!plug.!
