Campfire Audio IO User Manual

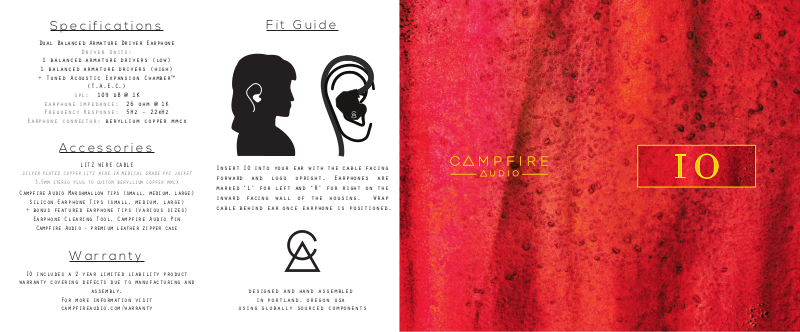

Specifications

Dual Balanced Armature Driver Earphone

1 balanced armature drivers (low)

1 balanced armature drivers (high)

+ Tuned Acoustic Expansion Chamber™

earphone impedance: 26 ohm @ 1K
Frequency Response: 5Hz - 22kHz

Earphone connector: beryllium copper mmcx

Driver Units:

(T.A.E.C.)

spl: 109 dB @ 1K

Accessories

silver plated copper litz wire in medical grade pvc jacket

3.5mm stereo plug to custom beryllium copper mmcx

Campfire Audio Marshmallow tips (small, medium, large)

Silicon Earphone Tips (small, medium, large)

+ bonus featured earphone tips (various sizes)

Earphone Clearing Tool, Campfire Audio Pin

Campfire Audio - premium leather zipper case

LITZ WIRE CABLE

Insert IO into your ear with the cable facing

forward and logo upright. Earphones are

marked ‘L’ for left and ‘R’ for right on the

inward facing wall of the housing. Wrap

cable behind ear once earphone is positioned.

Warranty

IO includes a 2 year limited liability product

warranty covering defects due to manufacturing and

assembly.
For more information visit
campfireaudio.com/warranty

Fit Guide

designed and hand assembled

in portland, oregon usa

using globally sourced components

Use Instructions Care Instructions

2

3

1

stainless steel spout

1

beryllium copper mmcx

2

24k gold plated tri-lobe screws

3

4 machined aluminum body

garnet red anodized finish

5

iem-cfa-io

To remove your earphone cable pull the cable

in the direction parallel to the earphone

connector. Avoid pulling the cable at an

4

angle, as this can damage the mmcx connectors

of the cable and/or the earphones.

5

Take care not to drop your earphones. Each

Campfire Audio earphone holds a sensitive

and finely tuned transducer. Sudden shocks

or impact to the shell can potentially cause

damage or alter the performance of the

earphone’s transducer.

Damage to the earphone transducers (drivers)

are not covered under the earphone’s warran-

ty protection and are subject to a reasonable

fee for repair.

Take special care to keep the earphone

openings clear of debris and wax. Carefully

use the clearing tool included with your

earphones to remove build up from the

earphone. Take extra care not to push any

foreign objects into the canal of the

earphone openings. Avoid moisture build up

on the surface and in the interior of the

earphone body.

Opening the body of the earphone will damage

the seal of the shell and alter the precision

tuning of your earphone. Tampering, opening,

or altering the shell will void the warranty

of your earphone.

Note that extended listening periods at high

listening levels can negatively impact your

hearing over time. Please enjoy your

earphones responsibly.

Questions or comments? Please contact us:

[e-mail]

thank you for purchasing io.

nicely done.

visit us at

campfireaudio.com

campfire audio® names and logos are

protected by USA Copyright and trademark

and other global copyright protections
