INSTRUCTION MANUAL

RF401-series and RF430-series

Spread Spectrum Data

Campbell Scientific, Inc.

Radios/Modems

Revision: 3/14

Warranty

“PRODUCTS MANUFACTURED BY CAMPBELL SCIENTIFIC, INC. are warranted by Campbell Scientific, Inc. (“Campbell”) to be free from defects in materials and workmanship under normal use and service for twelve (12) months from date of shipment unless otherwise specified in the corresponding Campbell pricelist or product manual. Products not manufactured, but that are re-sold by Campbell, are warranted only to the limits extended by the original manufacturer. Batteries, fine-wire thermocouples, desiccant, and other consumables have no warranty. Campbell’s obligation under this warranty is limited to repairing or replacing (at Campbell’s option) defective products, which shall be the sole and exclusive remedy under this warranty. The customer shall assume all costs of removing, reinstalling, and shipping defective products to Campbell. Campbell will return such products by surface carrier prepaid within the continental United States of America. To all other locations, Campbell will return such products best way CIP (Port of Entry) INCOTERM® 2010, prepaid. This warranty shall not apply to any products which have been subjected to modification, misuse, neglect, improper service, accidents of nature, or shipping damage. This warranty is in lieu of all other warranties, expressed or implied. The warranty for installation services performed by Campbell such as programming to customer specifications, electrical connections to products manufactured by Campbell, and product specific training, is part of Campbell’s product warranty. CAMPBELL EXPRESSLY DISCLAIMS AND EXCLUDES ANY IMPLIED WARRANTIES OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE. Campbell is not liable for any special, indirect, incidental, and/or consequential damages.”

Assistance

Products may not be returned without prior authorization. The following contact information is for US and international customers residing in countries served by Campbell Scientific, Inc. directly. Affiliate companies handle repairs for customers within their territories. Please visit

www.campbellsci.com to determine which Campbell Scientific company serves

your country.

To obtain a Returned Materials Authorization (RMA), contact CAMPBELL SCIENTIFIC, INC., phone (435) 227-9000. After an application engineer determines the nature of the problem, an RMA number will be issued. Please write this number clearly on the outside of the shipping container. Campbell Scientific’s shipping address is:

CAMPBELL SCIENTIFIC, INC. RMA#_____ 815 West 1800 North Logan, Utah 84321-1784

For all returns, the customer must fill out a “Statement of Product Cleanliness and Decontamination” form and comply with the requirements specified in it. The form is available from our web site at www.campbellsci.com/repair. A completed form must be either emailed to repair@campbellsci.com or faxed to (435) 227-9106. Campbell Scientific is unable to process any returns until we receive this form. If the form is not received within three days of product receipt or is incomplete, the product will be returned to the customer at the customer’s expense. Campbell Scientific reserves the right to refuse service on products that were exposed to contaminants that may cause health or safety concerns for our employees.

– CAUTION –

Where an AC adapter is used, CSI recommends

Item # 15966.

Any other AC adapter used must have a DC output not exceeding 16.5 Volts measured without a load to avoid

damage to the RF401/RF430 Series radio!

Over-voltage damage is not covered by factory warranty!

(See Section 4.2, Power Supplies, for AC adapter requirements)

Power plug polarity

PDF viewers: These page numbers refer to the printed version of this document. Use the PDF reader bookmarks tab for links to specific sections.

1. Introduction ................................................................. 1

1.1 RF401-series Radios ............................................................................ 2

1.2 RF430-series Radios ............................................................................ 2

1.3 Combination Mode Communications .................................................. 3

1.4 Retired Spread Spectrum Radios .......................................................... 4

1.4.1 RF400-series Radios ..................................................................... 4

1.4.2 CR205, CR210, CR215 Dataloggers ............................................ 4

2. Specifications ............................................................. 4

3. Installation ................................................................... 6

3.1 Site Considerations ............................................................................... 6

3.2 Quick Start (Point-to-Point or PakBus) ................................................ 6

3.2.1 Step 1 – Set Up Base RF401 or RF430 ......................................... 6

3.2.2 Step 2 – Set Up Remote RF401 .................................................... 9

3.2.3 Step 3 – LoggerNet Set-up .......................................................... 10

3.2.4 Step 4 – Connect ......................................................................... 11

3.3 Antenna Considerations ..................................................................... 12

3.3.1 Line of Sight ............................................................................... 12

3.3.2 Mounting ..................................................................................... 12

3.3.3 Antenna Cable Routing ............................................................... 12

3.3.4 Antenna Cable Weather Sealing ................................................. 12

4. System Components ................................................ 12

4.1 RF401 or RF430 Radios ..................................................................... 12

4.1.1 Indicator LEDs ............................................................................ 12

4.1.2 Radio Configuration .................................................................... 13

4.2 Power Supplies ................................................................................... 13

4.2.1 Base Radio Site (radio connected to a PC) ................................. 13

4.2.2 Remote Sites with Datalogger ..................................................... 15

4.2.3 Non-datalogger Remote Site ....................................................... 15

4.3 Serial and USB Cables ....................................................................... 15

4.4 Compatible Antennas ......................................................................... 16

4.5 Antenna Cables and Surge Protection ................................................ 21

4.5.1 Antenna Cables ........................................................................... 21

4.5.2 Electro-static Issues..................................................................... 21

4.5.3 Antenna Surge Protector Kit ....................................................... 21

5. Software ..................................................................... 22

5.1 DevConfig .......................................................................................... 22

5.1.1 Using DevConfig ........................................................................ 22

5.1.2 RF401/RF411/RF416 or RF430/RF431/RF432 Tab ................... 23

5.1.2.1 Active Interface ................................................................ 24

5.1.2.2 SDC Address or CSDC Address ...................................... 24

5.1.2.3 Protocol ............................................................................ 24

Table of Contents

5.1.2.4 RS-232 Baud Rate ........................................................... 25

5.1.2.5 CS I/O ME Baud Rate ..................................................... 26

5.1.2.6 Hop Sequence .................................................................. 26

5.1.2.7 Net Address ..................................................................... 26

5.1.2.8 Radio Address ................................................................. 26

5.1.2.9 Power Modes ................................................................... 27

5.1.2.10 Retry Level ...................................................................... 27

5.1.3 PakBus Tab ................................................................................ 28

5.2 LoggerNet .......................................................................................... 29

5.2.1 Setup Screen ............................................................................... 29

5.2.1.1 Standard Setup (RF400) .................................................. 31

5.2.1.2 Standard Setup (RF400 Remote) ..................................... 33

5.2.2 Network Planner ......................................................................... 34

5.2.3 PakBus Graph ............................................................................. 35

6. Troubleshooting ........................................................ 36

Appendices

Part 15 FCC Compliance Warning ......................... A-1

B. Advanced Setup Menu ............................................ B-1

B.1 Accessing the Advanced Menu ....................................................... B-1

B.2 Error Handling and Retries .............................................................. B-3

B.2.1 Number of Retries .................................................................... B-3

B.2.2 Number of Time Slots for Random Retry ................................ B-3

B.2.3 Number of Bytes Transmitted before Delay ............................. B-3

B.2.4 Sync Timer Setting ................................................................... B-3

B.2.5 Number of Retry Failures ......................................................... B-3

B.3 Received Signal Strength ................................................................ B-4

B.4 Advanced Setup Standby Modes ..................................................... B-4

C. Address and Address Mask ................................... C-1

D. Setting Up RF401-to-CR206(X) Communications ... D-1

D.1 CR206(X) Setup Information .......................................................... D-1

D.2 Example Setup 1 - LoggerNet to CR206(X) ................................... D-4

D.3 Example Setup 2 - Router to CR206(X) .......................................... D-7

E. Port Pin Descriptions .............................................. E-1

F. Non-PakBus Example Configurations .................. F-1

F.1 Direct PC to RF401 Series Base Station Setup (Transparent

Protocol) ....................................................................................... F-1

F.2 Remote Station Setup (Transparent Protocol) .................................. F-2

F.3 LoggerNet Configuration (Transparent Protocol) ............................ F-3

F.4 PC208W Configuration .................................................................... F-4

G. Short-Haul Modems ................................................ G-1

Table of Contents

H. Distance vs. Antenna Gain, Terrain, and Other

Factors ................................................................... H-1

I. Phone to RF401 Series ............................................. I-1

I.1 PakBus Network................................................................................ I-1

I.2 Non-PakBus Network ....................................................................... I-7

J. Monitor CSAT3 via RF401 Series ........................... J-1

K. RF401/RF411 Pass/Fail Tests ................................ K-1

L. RF401/RF411 Average Current Drain

Calculations .......................................................... L-1

M. PakBus Networking Details ................................... M-1

M.1 PakBus Aware, PakBus Node, and RF PakBus .............................. M-1

M.2 Minimizing the Number of Small Link State Packets ..................... M-1

M.3 Maximizing the RF Packet Size ...................................................... M-1

M.4 Establishing an Ad Hoc Point-to-Point Link ................................... M-2

M.5 Net and Radio Address Settings ...................................................... M-2

M.6 Hop Metric, Signal Strength, and Standby Modes .......................... M-2

M.6.1 Hop Metric Code ...................................................................... M-3

M.7 RF Router ........................................................................................ M-3

M.8 Optimization .................................................................................... M-4

M.9 Idiosyncrasies .................................................................................. M-4

Figures

1-1. The RF411 is one of the models available of our RF401-series

radios. ............................................................................................... 2

1-2. RF430 has a USB port allowing it to be connected directly to a

PC’s USB port. ................................................................................. 3

3-1. RF401 Basic Point-to-Point Network ................................................... 9

3-2. Point-to-Point or PakBus communications, select direct connect as

the connection type. ........................................................................ 10

3-3. The Baud Rate in LoggerNet must match the radio’s RS-232 baud

rate. ................................................................................................. 11

4-1. Item #14310 900 MHz Omnidirectional 1/4 Wave Whip, 0 dBd ..... 17

4-2. Item #14204 900 MHz Omnidirectional 1/2 Wave Whip, 0 dBd ..... 17

4-3. Item #14201 900 MHz Yagi, 9 dBd w/Mounts ................................. 18

4-4. Item #14205 900 MHz Yagi, 6 dBd w/Mounts ................................. 18

4-5. Item #14221 900 MHz Omnidirectional Collinear, 3 dBd w/

Mounts ............................................................................................ 18

4-6. Item #15970 900 MHz Indoor Dipole, 1 dBd Window/Wall

Mounted .......................................................................................... 19

4-7. Item #16005 2.4 GHz Omnidirectional 1/2 Wave Whip, 0 dBd ...... 19

4-8. Item #16755 2.4 GHz Enclosed Yagi, 13 dBd w/Mounts ................. 20

4-9. Example COAX RPSMA-L Cable for Yagi or Omni Colinear ......... 20

4-10. Antenna Surge Protector .................................................................... 20

4-11. Enclosure with Antenna Surge Protector for RF401 .......................... 22

iii

Table of Contents

5-1. Default DevConfig Screen for Setting Up the RF401 radios (OS4

or higher) ....................................................................................... 23

5-2. PakBus tab in DevConfig (with Default Settings) ............................. 28

5-3. Select RF4XX for connection type for a multipoint (non PakBus)

network. ......................................................................................... 30

5-4. For the datalogger settings, the baud rate must match the radio’s

RS-232 baud rate. .......................................................................... 30

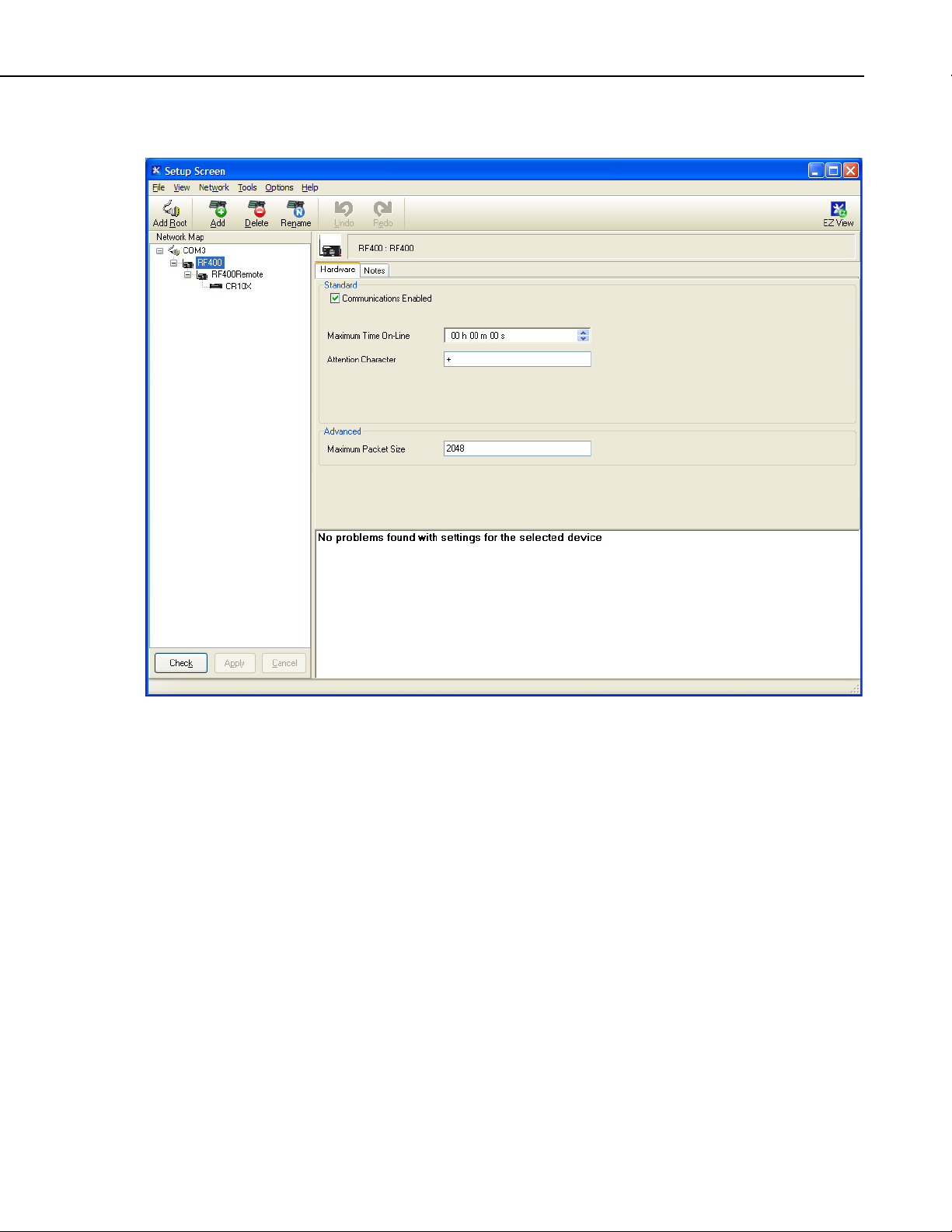

5-5. Default Screen for the RF400 Standard Setup in LoggerNet 4 ......... 31

5-6. Default Screen for the RF400 Remote Standard Setup in

LoggerNet 4 ................................................................................... 33

5-7. Point to Multi-Point Network with Two Routers .............................. 35

5-8. Point to Multi-Point Network as Displayed in PakBus Graph ......... 35

D-1. CR206 Setup Main Menu ................................................................ D-1

D-2. This graph represents a transmitting radio that uses a long header

and a receiving radio that is in a sleep cycle. The length of the wake-up initializer exceeds the time interval of cyclic sleep ensuring that the receiver detects the wake-up initializer and

receives the payload (i.e., transmitted data). ................................ D-3

D-3. This graph represents a radio that transmits a wake-up initializer

that is shorter than the cyclic sleep of the receiving radio. The receiver does not detect the wake-up initializer and remains

asleep—missing the data transmission. ........................................ D-3

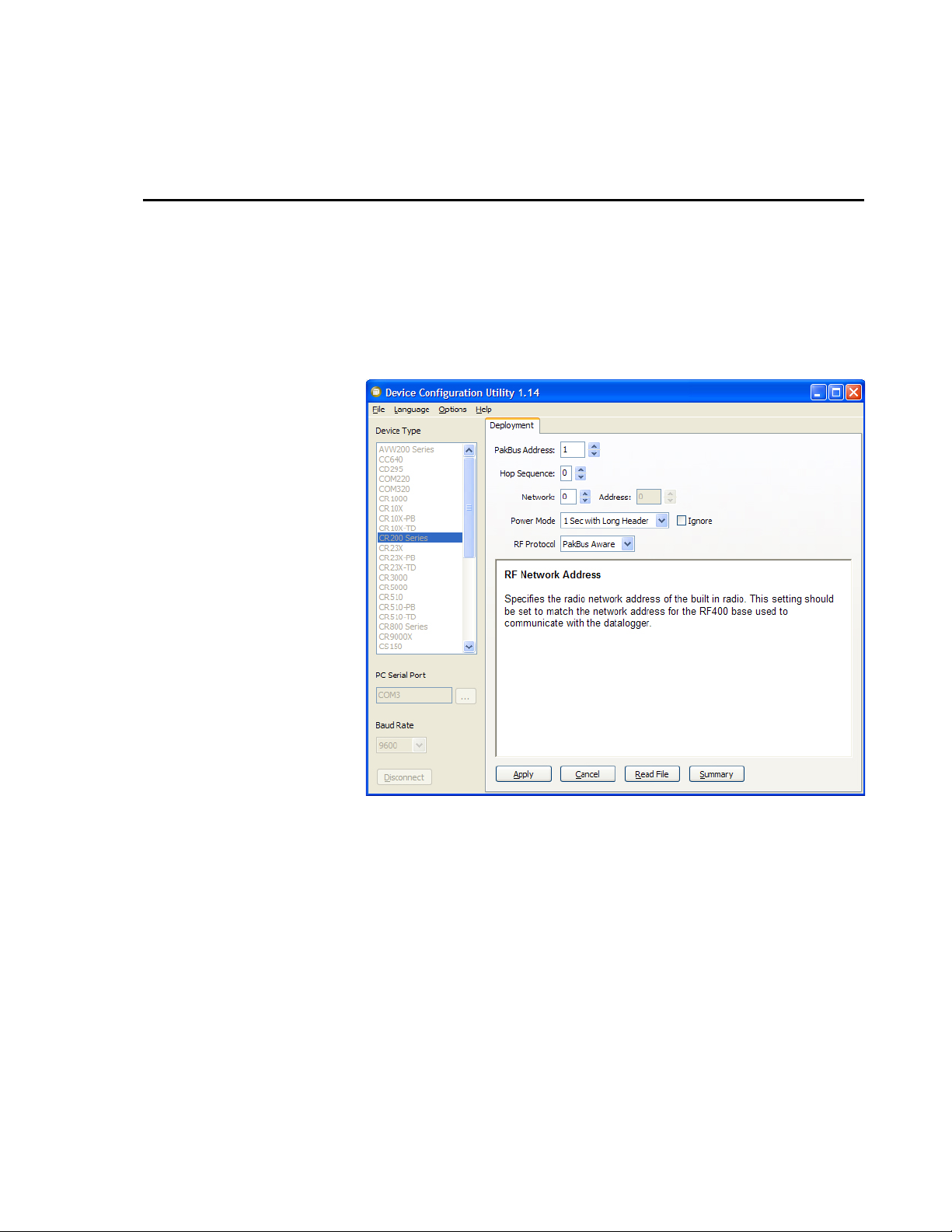

D-4. DevConfig Deployment panel showing the CR206(X) setup for

Example 1. ................................................................................... D-5

D-5. DevConfig Deployment panel showing the RF401 setup for

Example 1. ................................................................................... D-6

D-6. DevConfig Deployment panel for CR206(X) Example Setup 2 ..... D-7

D-7. DevConfig Deployment panel showing the RF401#1 setup for

Example 2. ................................................................................... D-8

D-8. DevConfig Deployment panel showing the RF401#2 setup for

Example 2. ................................................................................... D-9

F-1. Point-to-Multipoint System .............................................................. F-4

F-2. PC208W Datalogger Generic Dial String ......................................... F-6

G-1. Short-Haul Modem to RF401 Setup ................................................ G-1

I-1. Configuring a phone-to –RF401 network using the Network

Planner Tool. The Network Planner is available in LoggerNet

version 4 or higher. ........................................................................ I-1

I-2. Phone base configuration. ................................................................. I-4

I-3. Enter the base site’s phone number. .................................................. I-5

I-4. Enter 250 for the Maximum Packet Size. .......................................... I-6

I-5. LoggerNet Point-to-Multipoint Setup ............................................... I-9

K-1. Loop-back Test without Antennas ................................................... K-4

K-2. Vertically Polarized 9 dBd 900 MHz Yagi ...................................... K-6

K-3. 3 dBd 900 MHz Collinear Omni Antenna ....................................... K-6

Tables

3-1. PC Driver Installation .......................................................................... 7

3-2. Lacking 12 V on CS I/O Pin 8 ........................................................... 10

4-1. 15966’s Voltage Regulation .............................................................. 14

5-1. Standard Setup Menu ........................................................................ 27

5-2. Standard Retry Levels ....................................................................... 27

B-1. Advanced Setup Menu .................................................................... B-5

D-1. CR206(X) Power Modes and the Recommended Corresponding

RF401 Power Modes ................................................................... D-2

Table of Contents

H-1. 900 MHz Distance vs. Path Loss (Lp in dB) per Three Path

Types ........................................................................................... H-6

H-2. Path Type vs. Path Characteristics Selector .................................... H-6

K-1. 900 MHz Gain Antenna Test Distances .......................................... K-6

L-1. Advanced Setup Menu ..................................................................... L-1

Table of Contents

NOTE

CAUTION

RF401-series and RF430-series Spread Spectrum Radio/Modems

1. Introduction

This manual discusses the RF401-series and RF430-series spread spectrum radios. Spread spectrum radios spread the normally narrowband information signal over a relatively wide band of frequencies. This allows the communications to be more immune to noise and interference from RF sources such as pagers, cellular phones and multipath. The RF401-series and RF430series radios reduce susceptibility to RF interference from other spread spectrum devices by providing user-selectable frequency hopping patterns.

You do not need a communications authority license for the RF401-series or RF430-series configurations described in this manual including U.S. Government Agencies regulated by NTIA Annex K. Spread spectrum radios, like all FCC Part 15 devices, are not allowed to cause harmful interference to licensed radio communications and must accept any interference that they receive. Most Campbell Scientific users operate in open or remote locations where interference is unlikely. If there is a problem, interference can be reduced using methods such as moving the device, reorienting or using a different type of antenna, or adding RF shielding.

The RF401-series and RF430-series radios can provide up to one mile transmission range when using an inexpensive whip antenna. The radios can provide up to 10 mile transmission range when using a higher gain directional antenna at ideal conditions. Compatible antennas are described in Section 4.4.

Line-of-sight obstructions and RF interference will affect the transmission distance. See Appendix H, Distance vs. Antenna Gain, Terrain, and Other Factors, for a discussion of antenna gain and other factors affecting distance.

You may test the radio communications onsite by using the 21107 900 MHz Spread Spectrum Demo Kit; contact Campbell Scientific for more information.

Campbell Scientific does not recommend using RF401series and RF430-series radios in networks containing RF450 radios. The RF450 radios will interfere with the transmission of the RF401-series and RF430-series radios.

No product using the 24XStream radio, including the RF416 and RF432, will be available for sale in Europe after 1/1/2015 due to changes in EU legislation. Consequently, purchase of the RF416 or RF432 is not recommended for use in Europe in new networks that may require future expansion.

RF401-series and RF430-series Spread Spectrum Radio/Modems

NOTE

1.1 RF401-series Radios

The RF401-series radios have a CS I/O port and an RS-232 port (see FIGURE 1-1). These radios can serve as a field modem/radio while connected to the datalogger or as a base station modem/radio when connected to a PC’s RS-232 port. The following models are available:

• RF401 915 MHz Spread Spectrum Radio—transmits data to another

RF401 radio, an RF430 radio, a CR206(X) datalogger, or an AVW206 interface. The 915 MHz frequency is used in the US/Canada.

• RF411 922 MHz Spread Spectrum Radio—transmits data to another

RF411 radio, an RF431 radio, a CR211(X) datalogger, or an AVW211 interface. The 922 MHz frequency is used in Australia/Israel.

• RF416 2.4 GHz Spread Spectrum Radio—transmits data to another RF416

radio, an RF432 radio, a CR216(X) datalogger, or an AVW216 interface. The RF416 is intended mainly for certain European and Asian markets.

FIGURE 1-1. The RF401 is one of the models available of our RF401-

series radios.

Unless specified otherwise, throughout this manual RF401 refers to the RF401, RF411, and RF416 radios.

1.2 RF430-series Radios

The RF430-series radios have a USB port and an RS-232 port (see FIGURE 1-2). The RF430 can only be configured through the USB port. Usually, these radios connect to a PC’s USB port to serve as base station modems/radios. The RF430-series radios may also connect to the datalogger’s RS-232 port to serve as a field modem (requires a null modem cable and a field power cable). The following models are available:

RF401-series and RF430-series Spread Spectrum Radio/Modems

NOTE

• RF430 915 MHz Spread Spectrum Radio—transmits data to another

RF430 radio, RF401 radio, or a CR206(X) datalogger. The 915 MHz frequency is used in the US/Canada.

• RF431 922 MHz Spread Spectrum Radio—transmits data to another

RF431 radio, an RF411 radio, or a CR211(X). The 922 MHz frequency is used in Australia/Israel.

• RF432 2.4 GHz Spread Spectrum Radio—transmits data to another RF432

radio, an RF416 radio, or a CR216(X). The RF432 is intended mainly for certain European and Asian markets.

If the RF430’s operating system is prior to OS2, its USB port will only communicate at 38.4 kbps. Therefore, the RF430 operating system will need to be updated to a newer version if the network will contain dataloggers that do not support 38.4 kbps. Operating system updates are available from

www.campbellsci.com/downloads.

FIGURE 1-2. RF430 has a USB port allowing it to be connected

directly to a PC’s USB port.

Unless specified otherwise, throughout this manual RF430 refers to the RF430, RF431, and RF432 radios.

1.3 Combination Mode Communications

Besides the “direct” to PC communications described in the Quick Start and Installation sections, it is possible to combine methods in datalogger communications. Some examples:

• Phone to RF401: PC to external modem to COM220 to RF401 to

datalogger (see Appendix I, Phone to RF401 Series)

RF401-series and RF430-series Spread Spectrum Radio/Modems

CAUTION

• Short Haul modem to radio: PC to short haul modems to radios to

datalogger (see Appendix G, Short-Haul Modems)

• Ethernet network to radio: PC to Internet to NL100 to radio to datalogger

(use LoggerNet IPPort, remote IP address, port number)

1.4 Retired Spread Spectrum Radios

1.4.1 RF400-series Radios

On May 2, 2005, the RF401, RF411, and RF416 replaced the RF400, RF410, and RF415, respectively. The newer radios have a choice of three communication protocol settings. The three protocol settings are Transparent, PakBus Aware, and PakBus Node. Transparent is the protocol used by the RF400. RF401 and RF430 radios in networks that also have RF400 radios must use the Transparent protocol setting. Transparent is the default setting for RF401 radios with operating systems of OS3 or lower.

Do not mix the “Transparent” protocol with any of the PakBus protocols. This will produce RF traffic without any RF communications.

The PakBus Aware and PakBus Node settings make the radios easier to use in a PakBus network. Radios set to PakBus Aware and radios set to PakBus Node can be in the same network. PakBus Aware is the default setting for RF430 radios and RF401 radios with an operating system of OS4 or higher. The PakBus Aware setting is the simplest to use and does not require a PakBus address. The PakBus Node setting is intended for radios used as stand-alone routers.

RF400 radios can be upgraded to RF401 radios by sending the RF400 to Campbell Scientific; an RMA is required.

1.4.2 CR205, CR210, CR215 Dataloggers

On September 15, 2005, the CR206, CR211, and CR216 dataloggers replaced the CR205, CR210, and CR215 dataloggers, respectively. The newer dataloggers’ internal radios have two RF Protocol settings, which are PakBus and Transparent. The PakBus setting is used with RF430 radios and RF401 radios set to PakBus Aware or PakBus Node. The Transparent RF protocol setting is required when the network contains older equipment (e.g., RF400s, CR205s).

2. Specifications

Power Voltage: 9 to 16 VDC Current: 75 mA typical during transmit (RF401 series)

78 mA typical during transmit (RF430 series) 24 mA typical receiving a signal (RF401, RF411) 36 mA typical receiving a signal (RF416) 26 mA typical receiving a signal (RF430, RF431) 40 mA typical receiving a signal (RF432)

Quiescent Current in Standby Modes*

Avg. Quiescent Current (mA)

Advanced Setup

Standby Mode

Standard

Setup

RF401/

RF411

RF416

RF430/

RF431

RF432

24.0

33.0

26.2

39.8

0 (no duty cycling)

3.9

5.5

5.7

9.2 3 2

2.0

2.8

2.4

3.8 4 3

1.1

1.5

1.6

2.4 5

0.64

0.84

1.1

1.5 6

0.40

0.50

0.60

0.75

* Not receiving a signal nor transmitting

Physical

Size: 12.1 x 7.0 x 3.3 cm (4.75 x 2.75 x 1.3 in) Weight: 225 g (0.5 lb) Operating temp. range: –25°C to +50°C Humidity: 0 to 95% RH, non-condensing

RF/Interface Transceiver modules: MaxStream

RF401, RF430 – 9XStream XO9-009 RF411, RF431 – 9XStream XH9-009 RF416, RF432 – 24XStream X24-009 Frequency bands: RF401, RF430 – 910.5 to 917.7 MHz RF411, RF431 – 920.0 to 927.2 MHz RF416, RF432 – 2.45015 to 2.45975 GHz Interface ports: CS I/O 9 pin (RF401 series only) RS-232 9-pin (4 wire: Tx, Rx, CTS, GND) USB Port (RF430 series only)

RS-232 baud rates: 38.4 k (default), 19.2 k, 9600, 4800, 1200 bps USB baud rate: 38.4 k (default), 19.2 k, 9600, 4800, 1200 bps;

Mode: Frequency hopping spread spectrum (FHSS),

Channel capacity: 65,535 addresses Transmitter output: 100 mW nominal (50 mW RF416, RF432) Receiver sensitivity: −110 dBm at 10

(−104 dBm for RF416)

Antenna impedance: 50 Ω, unbalanced (SMA male connector) Interference reject: 70 dB at pager and cellular phone frequencies

RF packet size: up to 64 bytes, half-duplex Error handling: RF packet CRC failure detection/rejection or

RF401-series and RF430-series Spread Spectrum Radio/Modems

OS1 only supported 38.4 kbps

25 hop channels, 7 hopping sequences, direct FM frequency control

-4

bit error rate

(RF401, RF411, RF430, RF431)

configurable retry levels

RF401-series and RF430-series Spread Spectrum Radio/Modems

3. Installation

3.1 Site Considerations

Location of a radio near commercial transmitters, such as at certain mountaintop sites, is not recommended due to possible “de-sensing” problems for the radio. A powerful signal of almost any frequency at close range can simply overwhelm a receiver. Lower power and intermittent repeater sites may not be a problem. Test such a site with a representative setup before committing to it (see Section 6, Troubleshooting). Keep in mind that commercial sites tend to evolve. Such a site may work now but could change in the future with the addition of new equipment.

3.2 Quick Start (Point-to-Point or PakBus)

This section is intended to serve as a “primer” enabling you to quickly build a simple system and see how it operates. This section describes in four steps how to set up a pair of radios in a direct connect, point-to-point or PakBus network. We recommend that you do this before undertaking field installation. For additional help on point-to-point networks and for help on creating pointto-multipoint networks, refer to Section 5, Software, and Appendix F, NonPakBus Example Configurations.

For this system you will need the following hardware or the equivalent:

1. Two radios (either two RF401s or an RF430 and an RF401)

2. Two antennas

3. AC adapter (Item # 15966)

4. RS-232 serial cable or USB cable

5. SC12 cable (included with RF401)

6. Datalogger (e.g., CR800, CR1000, CR3000)

7. Field Power Cable (Item # 14291) if datalogger or wiring panel doesn’t have 12 V on pin 8 of CS I/O port

You will also need:

• An IBM

• LoggerNet installed on PC

compatible PC with one available COM port or USB port

3.2.1 Step 1 – Set Up Base RF401 or RF430

a. Connect an antenna (or antenna cable with Yagi or omnidirectional

antenna attached) to the radio’s antenna jack. The main objective is to provide an antenna. If you should transmit without an antenna attached, there will be no equipment damage as the transmitter is protected against load mismatch. The separation between the base radio antenna and the remote radio antenna can be any convenient distance. (See Sections 3.3, Antenna Considerations, and 4.4, Compatible Antennas, for antenna considerations and options.)

b. If using an RF430, go to step c. If using an RF401, use the RS-232 serial

cable to connect the RF401’s RS-232 port to the PC’s RS-232 port. Then go to step d.

RF401-series and RF430-series Spread Spectrum Radio/Modems

TABLE 3-1. PC Driver Installation

NOTE

c. If using an RF430, install the USB drivers to the PC by doing the

following procedures. Install drivers BEFORE connecting the RF430 to the PC.

You cannot use the RS-232 port to configure the radio.

• Obtain software drivers from one of the following sources.

Source 1: Insert the CD supplied with a new RF430. The CD should auto run and present a menu (if not, open AutoRun.exe). Click on [Install Drivers] button.

Source 2: Obtain the file at www.campbellsci.com/downloads, and copy it to a PC drive. Open the file and follow the prompts.

• Follow the on-screen prompts to copy driver files to the PC.

• Install drivers for RF430 as outlined in TABLE 3-1. PC Driver

Installation. Procedures differ for different Windows® operating systems and assume driver files have been copied to the PC.

Windows® XP Windows® Vista Windows® 7

1. Connect the RF430

radio to a computer USB port via the USB cable

2. The Found New

Hardware Wizard

window will open. Select “No, not this time,” when asked to connect to Windows® Update, then click Next.

3. Select “Install the

software automatically,”

1. Connect the

RF430 radio to a computer USB port via the USB cable

2. The Found New

Hardware

window will open. Click on “Locate and install driver software.”

3. If the Windows®

Security window appears, select “Install this driver software anyway.”

1. Connect the

RF430 radio to a computer USB port via the USB cable

2. Windows® 7

configures the driver automatically.

then click Next.

4. If the Windows®

Security window appears, select “Install this driver software anyway” to continue.

5. Click Finish to

close the found

New Hardware Wizard window.

RF401-series and RF430-series Spread Spectrum Radio/Modems

NOTE

d. If using an RF401, plug AC adapter into AC outlet and plug barrel

connector into the base radio’s “Power” jack. The RF430 is powered through its USB port. After connecting the radio to its power source, you will see the red “Pwr/TX” LED light immediately followed by the green RX LED in about 5 seconds. The green LED goes off after a second and the red after ten seconds indicating a successful power-up. The red LED then begins to flash on and off. The red LED flashes once every half second in the default “< 4 mA, ½ sec Cycle” standby mode as the radio wakes up briefly and listens for RF transmissions with an average current consumption less than 4 mA.

e. Access the Device Configuration (DevConfig) Utility to configure radio

(see Section 5.1, DevConfig, for more information).

• Active Interface: Use AutoSense (default).

• Protocol: Use PakBus Aware (default for RF430s and RF401s with

OS4 or higher) if remote radio is connected to a PakBus datalogger (CR200(X), CR800, CR1000, CR3000). Otherwise, use Transparent (default for RF401’s with OS3 or lower).

• SDC or CSDC Address: Use default “7” (only needed if remote radio

is connected to a PakBus datalogger).

• RS-232 Baud Rate: Use 38.4 kbps setting if the datalogger attached to

the remote radio supports 38.4 kbps. Use 9600 kbps setting if the datalogger does not support 38.4 kbps (e.g., CR200(X), CR10X, CR510). The 38.4 kbps setting is default for RF401 radios with OS4 or higher and all RF430 radios. RF430 radios with OS1 only support

38.4 kbps.

www.campbellsci.com/downloads.

• Net Address: Use “0” (default) unless there is a neighboring network.

• Radio Address: Use “0” (default); only used when Protocol setting is

Transparent.

• Hop Sequence: Use “0” (default) unless there is a neighboring

network.

• Standby Mode: < 4 mA ½ second (default)

• Retry Level: Use Low (default)

RF401-series and RF430-series Spread Spectrum Radio/Modems

LoggerNet

AC Adapter

RS-232

CS I/O

Datalogger CS I/O

- RX LED Test -

To determine if there is a neighboring radio network in operation using the same hopping sequence as yours, stop communications on your network and observe your radio’s green LED for activity. A flashing green LED would indicate that there is a nearby network using the same hopping sequence.

• Click apply after changing settings.

FIGURE 3-1. RF401 Basic Point-to-Point Network

3.2.2 Step 2 – Set Up Remote RF401

a. Connect an antenna (or antenna cable with Yagi or omnidirectional

antenna attached) to the RF401 antenna jack. The separation between the base RF401 antenna and the remote RF401 antenna can be any convenient distance (see Sections 3.3, Antenna Considerations, and 4.4, Compatible Antennas).

b. Use the SC12 serial cable to connect the datalogger CS I/O port to the

remote RF401 radio’s CS I/O port. The CS I/O port on newer dataloggers applies power to the remote RF401.

With older dataloggers lacking 12 V on pin 8 (see TABLE 3-2), you can

power the RF401 using a Field Power Cable (see above hardware list) between the datalogger’s 12 V (output) terminals and the RF401’s “Power” jack.

RF401-series and RF430-series Spread Spectrum Radio/Modems

TABLE 3-2. Lacking 12 V on CS I/O Pin 8

EQUIPMENT

SERIAL NUMBER

CR500

< 1765

CR7 700X Bd.

< 2779

21X

< 13443

CR10 Wiring Panels

All (black, gray, silver)

PS512M Power Supply

< 1712

When you connect power to the RF401 (through the SC12 cable or the

optional Field Power Cable) you should see the power-up sequence of red and green LEDs described in Step 1 (assuming datalogger is powered).

Current dataloggers and wiring panels (not mentioned in TABLE 3-2)

provide 12 V on pin 8. For older products not listed, check for 12 V between CS I/O connector pin 8 and pin 2 (GND) or contact Campbell Scientific.

c. Configure the remote radio using the same settings as the base radio (see

“e” in Section 3.2.1, Step 1 – Set up Base RF401 or RF430). This assumes the base radio is set to AutoSense.

3.2.3 Step 3 – LoggerNet Set-up

a. The next step is to run LoggerNet and configure it to connect to the

datalogger via the radio’s point-to-point or PakBus network you have set up. For point-to-point and PakBus communications, the radios are represented as direct connect in LoggerNet (see FIGURE 3-2). Refer to Section 5.2, LoggerNet, for the LoggerNet setup of point-to-multipoint.

FIGURE 3-2. Point-to-Point or PakBus communications, select direct

connect as the connection type.

RF401-series and RF430-series Spread Spectrum Radio/Modems

CAUTION

b. For the datalogger settings, set the Baud Rate to match the radio’s RS-232

baud rate. (The radio’s default RS-232 baud rate is 38.4 kbps.) The datalogger “Extra Response Time” can be left at 0 (see FIGURE 3-3).

For safety, maintain 20 cm (8 inches) distance between antenna and any nearby persons while the radio is transmitting.

FIGURE 3-3. The Baud Rate in LoggerNet must match the radio’s RS-

232 baud rate.

3.2.4 Step 4 – Connect

You are now ready to connect to your datalogger using the LoggerNet Connect screen. After you connect, notice the flashing of the green LEDs on both radios. This indicates that RF packets with the same hopping sequence are being received by the radios. The red LEDs light solid while the connection lasts. When you Disconnect, the red LEDs remain on for five seconds, which is the default setting of the “Time of Inactivity to Sleep.”

Datalogger program transfer and data collection are now possible. Refer to Appendix H, Distance vs. Antenna Gain, Terrain, and Other Factors, for a treatment of communication distance vs. factors in the RF path.

RF401-series and RF430-series Spread Spectrum Radio/Modems

3.3 Antenna Considerations

3.3.1 Line of Sight

The single most important factor in radio performance is antenna placement. As Appendix H, Distance vs. Antenna Gain, Terrain, and Other Factors, states, “height is everything.” The two radios must be able to ‘see’ each other if distances over a mile or two are required. This can be accomplished with a mast or tower.

3.3.2 Mounting

The higher the gain of a yagi antenna, the more important it is to aim the yagi precisely and mount the yagi solidly to prevent movement due to strong winds, large birds, etc.

3.3.3 Antenna Cable Routing

The antenna cable should be routed in a protected area and made secure against damage from wildlife, wind, and vandalism.

3.3.4 Antenna Cable Weather Sealing

The presence of water inside the antenna cable’s plastic sheath can attenuate your transmitted and received signals significantly. The RF energy, instead of traveling the length of the cable with little loss, is absorbed according to the amount of water present (like in a microwave oven). A small amount of water can ruin a once good communication link.

When moisture gets inside the sheath it is very difficult to remove. Some careful cable handling (even pinholes can let in significant amounts of water), thoughtful cable routing, and good weather-proofing can prevent this.

Apply a 1/8 inch thick coat of pure silicone rubber compound (RTV) 1) where the cable connector screws onto the antenna connector (apply after the connector is in place allowing future removal) and 2) at the junction between plastic cable sheath and cable connector. If carefully done this should last for years. An alternative approach is to wrap self-vulcanizing rubber tape around these same areas of the antenna connector, cable connector and cable sheath. This tape can be purchased at most electrical supply stores (see Section 6, Troubleshooting, item 6).

4. System Components

4.1 RF401 or RF430 Radios

4.1.1 Indicator LEDs

The radios have a red LED labeled “Pwr/TX” and a green LED labeled “RX.” When 12V power is applied the red LED lights for ten seconds. About 3 seconds after power-up the green LED lights for a second. Ten seconds after power-up the selected standby mode begins to control the red LED. The red LED lights to indicate when the receiver is actively listening. When the receiver detects RF traffic (header or data with the same hopping sequence), the red LED will light steadily. When the RF401 is transmitting, the red LED will pulse OFF as the RF packets are transmitted (it will not be on solid).

RF401-series and RF430-series Spread Spectrum Radio/Modems

NOTE

Green LED activity indicates that there is an RF signal being received whose hopping sequence corresponds to the configured hopping sequence of the RF401. This does not necessarily mean that the network/radio address of the received packet corresponds with that of the RF401 (where a neighboring network exists it is a good idea to choose a unique hopping sequence).

4.1.2 Radio Configuration

The RF401 and RF430 radios are designed to be easily installed, and for many applications, the radios work out of the box using the default settings. RF401s with operating systems of OS4 or higher and RF430s are configured for PakBus networks. These radios have a Protocol setting of PakBus Aware and an RS-232 Baud Rate of 38.4 K. RF401 radios with an operating system of OS3 or lower have a Protocol setting of Transparent and an RS-232 baud rate of 9600. The 9600 baud rate needs to be used if the network contains older dataloggers (e.g., CR510, CR10X) or other devices that do not support the

38.4 K baud rate.

www.campbellsci.com/downloads.

If the default settings need to be changed, our Device Configuration Utility (DevConfig) is often the preferred method to use (see Section 5.1, DevConfig). DevConfig provides the settings for the standard setup (see Appendix B, Advanced Setup Menu, for the advanced setup menu).

If the spread spectrum radios are used in a PakBus network, the radios may also be configured using the Network Planner or PakBus Graph. The Network Planner assists you in designing PakBus networks. Refer to Sections 5.2.2, Network Planner, and 5.2.3, PakBus Graph, for more information.

4.2 Power Supplies

Appendix L, RF401/RF411 Average Current Drain Calculations, provides information about calculating current drain for your system.

4.2.1 Base Radio Site (radio connected to a PC)

The USB port supplies power to the RF430. If an RF401 is used as a base radio, the #15966 wall charger typically supplies 12 Vdc power to the radio. The barrel connector of the wall charger connects to the radio’s Power jack.

TABLE 4-1 shows the CSI AC adapter Item # 15966 voltage regulation (typical) while plugged into an AC outlet delivering 120.0 VAC:

RF401-series and RF430-series Spread Spectrum Radio/Modems

TABLE 4-1. 15966’s Voltage Regulation

Current Drain

(mA)

Resistive Load

(Ohms)

AC Adapter Output

(Volts)

0 (no load)

∞ (open circuit)

12.22

122

100 Ω

12.20

807

15 Ω

12.11

CAUTION

The voltage regulation of the 15966 is exceptionally good.

Power connector polarity: inner conductor positive (+)

There are many AC adapters available with barrel connectors (plugs) that will fit the RF401 or RF430. Some of these (including the CSI AC adapter Item # 272) will cause immediate damage if plugged into the RF401 or RF430 even briefly. It is also possible to damage the RF401 or RF430 with an AC adapter labeled as low as “12 VDC” because it may output an open-circuit (no current drain) voltage exceeding the maximum. The very low quiescent current (170 µA) of the RF401 or RF430 in its default and other standby modes allows the supply voltage to rise at times virtually to its open-circuit level.

The RF401 or RF430 radio will sustain damage if the Power jack voltage ever

exceeds 18 Volts!

120 VAC line voltages vary from location to location and from time to time so observing a 16.5 VDC maximum is wise. Unconsidered AC adapter selection raises the specter of over-voltage damage to the RF401 and non-warranty repairs!

There are several things to consider. Beware of AC adapters outputting an AC voltage. An AC adapter can output the correct voltage but the wrong polarity. The center conductor of the barrel connector must be positive (+). The AC adapter must also be capable of supplying the instantaneous peak currents demanded by the RF401 transmitter. The best approach is to obtain the AC adapter recommended by CSI (Item #15966). If this is not possible, obtain an AC adapter that matches the voltage vs. current characteristics shown below.

To be sure that the candidate AC adapter’s “no load” voltage is below the 16.5 VDC recommended maximum, measure the output with a DC voltmeter while the AC adapter is plugged into the outlet but not powering anything.

RF401-series and RF430-series Spread Spectrum Radio/Modems

NOTE NOTE

4.2.2 Remote Sites with Datalogger

At the remote site, an RF401 radio is usually powered by the datalogger through its CS I/O port. Alternatively, the #14291 Field Cable can be used to connect the radio to an appropriate 12 Vdc power supply. The 14291 Field Cable connects to the radio’s Power jack.

The field cable is required for the following situations:

• RF401-series radio connected to the datalogger’s RS-232 port instead of

the CS I/O port

• RF430-series radio connected to the datalogger (RF430-series radios do

not have a CS I/O port)

• Datalogger purchased before December 1997 (see TABLE 3-2 in Section

3, Installation)

If ac power is available, the #15966 wall charger may also be used to power the radio (see Section 4.2.1, Base Radio Site).

If powering the RF401 from the CS I/O port but communicating via the RS-232 port, be sure to select RS-232 as the Active Interface so that the CS I/O port is not automatically selected by Auto Sense.

4.2.3 Non-datalogger Remote Site

Radio-to-MD485 networks and radio-to-phone networks require a power supply with a null modem port at the non-datalogger site. An A100 adapter used with a PS100 power supply provides this capability. The PS100 is recharged via a wall charger or a solar panel.

4.3 Serial and USB Cables

An RF401 base station must use the included 10873 RS-232 cable to connect the RF401’s RS-232 port to the PC COM port. An RF430 base station normally uses the included USB cable to connect the RF430’s USB port to the PC’s USB port. An RF430 base station can also be connected to the PC COM port via the 10873 RS-232 cable.

A remote RF401 normally uses the included SC12 cable to connect the RF401’s CS I/O port to the datalogger’s CS I/O port. A remote RF401 can also be connected to the datalogger’s RS-232 port via the 14392 null modem cable.

A remote RF430 must use the 14392 null modem cable to connect the RF430’s RS-232 port to the datalogger’s port.

Radios connected to the datalogger’s RS-232 port must use a 12Vdc field cable (item #14291) or AC adapter to furnish 12 V to the Power connector on the radio.

RF401-series and RF430-series Spread Spectrum Radio/Modems

NOTE

CAUTION

4.4 Compatible Antennas

The 900 MHz antennas are compatible with the RF401, RF411, RF430, and RF431. The 2.4 GHz antennas are compatible with the RF416 and RF432.

Several antennas are offered to satisfy the needs for various base station and remote station requirements. These antennas have been tested at an authorized FCC open-field test site and are certified to be in compliance with FCC emissions limits. All antennas (or antenna cables) have an RPSMA female connector for connection to the radio. The use of an unauthorized antenna could cause transmitted field strengths in excess of FCC rules, interfere with licensed services, and result in FCC sanctions against user. The antennas are listed below. Photographs of some of the antennas are shown in FIGURE 4-1 through FIGURE 4-8.

An FCC authorized antenna is a REQUIRED component. You must pick one of the antennas listed below.

CSI Item Number Description

14310 900 MHZ, 0 dBd ANTENNA, OMNI ¼ WAVE WHIP,

RPSMA STRAIGHT, LINX, 3.2 inches long.

14204 900 MHZ, 0 dBd ANTENNA, OMNI ½ WAVE WHIP,

RPSMA RT ANGLE, ASTRON, 6.75 inches long.

14221 900 MHZ, 3 dBd ANTENNA, OMNI COLLINEAR,

ANTENEX FG9023, 24 inches tall, W/FM2 MOUNTS, fits 1 in. to 2 in. O.D. mast (requires an antenna cable; see Section 4.5, Antenna Cables and Surge Protection).

15970 900 MHZ, 1 dBd ANTENNA, INDOOR OMNI ½

WAVE DIPOLE, 10 ft. cable with SMA connector to attach to the radio, window or wall mounted by sticky back, 4 inches wide.

14205 900 MHZ, 6 dBd ANTENNA, YAGI, LARSEN

YA6900 TYPE N-F, boom length 17.25 inches, longest element 7.25 inches, W/MOUNTS, fits 1 in. to 2 in. O.D. mast (requires an antenna cable; see Section 4.5, Antenna Cables and Surge Protection).

14201 900 MHZ, 9 dBd ANTENNA, YAGI, MAXRAD

BMOY8905 TYPE N-F, boom length 21.4 inches, longest element 6.4 inches, W/MOUNTS, fits 1 in. to 2 in. O.D. mast (requires an antenna cable; see Section

4.5, Antenna Cables and Surge Protection).

16005 2.4 GHz, 0 dBd ANTENNA, OMNI ½ WAVE WHIP,

RPSMA RT ANGLE, LINX ANT-2.4-CW-RCT-RP,

4.5 inches long.

RF401-series and RF430-series Spread Spectrum Radio/Modems

CAUTION

16755 2.4 GHz, 13 dBd ANTENNA, ENCLOSED YAGI,

allows vertical or horizontal polarization, MAXRAD WISP24015PTNF, boom length 17 inches, diameter 3 inches, W/ END MOUNT to fit 1 to 2 in. O.D. mast (requires antenna cable and possibly a surge protector; see Section 4.5, Antenna Cables and Surge Protection).

FCC OET Bulletin No. 63 (October 1993)

Changing the antenna on a transmitter can significantly increase, or decrease, the strength of the signal that is ultimately transmitted. Except for cable locating equipment, the standards in Part 15 are not based solely on output power but also take into account the antenna characteristics. Thus, a low power transmitter that complies with the technical standards in Part 15 with a particular antenna attached can exceed the Part 15 standards if a different antenna is attached. Should this happen it could pose a serious interference problem to authorized radio communications such as emergency, broadcast, and air-traffic control communications.

In order to comply with the FCC RF exposure requirements, the RF401 and RF430 may be used only with approved antennas that have been tested with these radios and a minimum separation distance of 20 cm must be maintained from the antenna to any nearby persons.

Read Appendix A, Part 15 FCC Compliance Warning, of this manual for important FCC information.

FIGURE 4-1. Item #14310 900 MHz Omnidirectional 1/4 Wave Whip,

0 dBd

FIGURE 4-2. Item #14204 900 MHz Omnidirectional 1/2 Wave Whip,

0 dBd

RF401-series and RF430-series Spread Spectrum Radio/Modems

FIGURE 4-3. Item #14201 900 MHz Yagi, 9 dBd w/Mounts

FIGURE 4-4. Item #14205 900 MHz Yagi, 6 dBd w/Mounts

FIGURE 4-5. Item #14221 900 MHz Omnidirectional Collinear,

3 dBd w/Mounts

RF401-series and RF430-series Spread Spectrum Radio/Modems

FIGURE 4-6. Item #15970 900 MHz Indoor Dipole, 1 dBd

Window/Wall Mounted

FIGURE 4-7. Item #16005 2.4 GHz Omnidirectional 1/2 Wave Whip,

0 dBd

RF401-series and RF430-series Spread Spectrum Radio/Modems

FIGURE 4-8. Item #16755 2.4 GHz Enclosed Yagi, 13 dBd w/Mounts

FIGURE 4-9. Example COAX RPSMA-L Cable for Yagi or Omni

Colinear

FIGURE 4-10. Antenna Surge Protector

RF401-series and RF430-series Spread Spectrum Radio/Modems

4.5 Antenna Cables and Surge Protection

4.5.1 Antenna Cables

The 14201, 14203, 14205, 14221, and 16755 antennas require an antenna cable; either (1) the COAXRPSMA or (2) the COAXNTN with surge protector (see FIGURE 4-9 and FIGURE 4-10). Indoor omnidirectional antennas are either supplied with an appropriate cable or connect directly to the radio.

4.5.2 Electro-static Issues

Many radio installations are out of doors and therefore susceptible to lightning damage, especially via the antenna system. Also, depending on climate and location, electro-statically charged wind can damage sensitive electronics if sufficient electric charge is allowed to accumulate on the antenna and cable. To protect against this CSI offers the Item # 14462 Antenna Surge Protection Kit.

The COAXNTN-L cable is a low-loss RG8 coaxial cable that requires the 14462 surge protector in order to connect to the radio. The RG8 / Antenna Surge Protector are recommended in preference to the COAXRPSMA in the following applications:

• When the antenna cable length exceeds 10 feet

• When use of COAXRPSMA would result in too much signal loss (see

page H-3)

• When the radio will be used in an environment susceptible to lightning or

electro-static buildup

4.5.3 Antenna Surge Protector Kit

The Surge Protector Kit for the RF401 and RF430 radios includes the following:

• Polyphaser protector

• 18 inches of COAX RPSMA to connect the ‘tail end’ of surge protector to

the RF401 or RF430

• Ground wire lead

• Screw and grommet to secure ground wire and polyphaser to backplate of

enclosure

The surge protector has female type N connectors on both ends; one for connection to the COAXNTN-L cable and the other for connection to the 18 inch length of COAXRPSMA cable included in the kit. The COAXRPSMA cable is an LMR195 type that terminates in a type N Male connector on the ‘antenna end’ and a Reverse Polarity SMA (RPSMA) connector on the radio end.

RF401-series and RF430-series Spread Spectrum Radio/Modems

5. Software

5.1 DevConfig

5.1.1 Using DevConfig

FIGURE 4-11. Enclosure with Antenna Surge Protector for RF401

RF401s with operating systems of OS4 or higher and RF430s are configured for PakBus networks. If the default settings need to be changed, our Device Configuration Utility (DevConfig) is often the preferred method to use. DevConfig provides the settings for the standard setup (see Appendix B, Advanced Setup Menu, for the advanced setup menu).

DevConfig is included with Campbell Scientific’s PC400 and LoggerNet datalogger support software, and can also be downloaded at no charge from our website. DevConfig is intended to facilitate the setup process.

The following are the steps required for accessing DevConfig:

(1) Power the radio. Typically this is done by using the AC wall charger.

(2) Connect the radio to the PC. A standard 9-pin serial cable is used to

connect the radio’s RS-232 port to the PC’s RS-232 port. If using an RF430, the radio must be connected to the PC’s USB port via the USB cable.

(3) Launch DevConfig.

(4) Click on “RF401” or “RF430” for the device type in DevConfig.

RF401-series and RF430-series Spread Spectrum Radio/Modems

(5) Select the port matching the COM or USB port on the PC in which the

radio is connected.

(6) Click on the “Connect” button on the bottom left of the DevConfig screen.

(7) Press the “Setup” button on the radio, and DevConfig will display the

Deployment panel—defaulting to the RF401/RF411/RF416 or RF430/RF431/RF432 tab (see FIGURE 5-1).

(8) Click Apply after changing settings.

5.1.2 RF401/RF411/RF416 or RF430/RF431/RF432 Tab

FIGURE 5-1. Default DevConfig Screen for Setting Up the RF401

radios (OS4 or higher)

RF401-series and RF430-series Spread Spectrum Radio/Modems

CAUTION

5.1.2.1 Active Interface

The only Active Interface settings that are available for the RF430 radios are Auto Sense and RS-232. When changing the RF430 active interface, it is necessary to cycle power to the RF430 for the change to take effect.

The factory default setting for Active Interface is “Auto Sense.” It is designed to automatically configure the radio’s port for common user situations. For the RF401, Auto Sense determines whether or not a datalogger (or PS100 with an A100 adapter) is connected to the radio by looking for 5 V on the CS I/O pin 1. If 5 V is present, Auto Sense selects the RF401’s CS I/O port. Not finding 5 V on CS I/O pin 1, Auto Sense selects the RS-232 port. For the RF430, AutoSense looks for activity on the USB port. If activity is present, AutoSense selects the USB port.

If powering an RF401 from the CS I/O port but communicating via the RS-232 port, the RS-232 setting needs to be chosen. The RS-232 setting can also be chosen if the radio is connected to a datalogger’s RS-232 port.

The Datalogger SDC and Datalogger Modem Enable settings are used when an RF401 is connected to the datalogger’s CS I/O port. Choose the SDC setting if the RF401 is connected to a PakBus datalogger (CR800, CR850, CR1000, CR3000). Choose ME if the RF401 is connected to a mixed-array datalogger (CR510, CR10(X), CR23X).

The ME Master setting should be chosen if a COM200-series phone modem or another ME configured device is connected to a base RF401’s CS I/O port. The baud rate of both the COM200-series modem (or other device) and the RF401 radio must be the same (see Section 5.1.2.5, CS I/O ME Baud Rate).

PakBus Router should be chosen if the radio will be used as a standalone RF router (repeater). When this is chosen, the Protocol should be set to PakBus Node (see Section 5.1.2.3, Protocol).

5.1.2.2 SDC Address or CSDC Address

This parameter is called SDC Address for RF401 radios with OS4 or higher and RF430 radios. It’s called CSDC Address for RF401 radios with OS3 or lower. The parameter is used when the radio is connected to a PakBus datalogger (e.g., CR200(X), CR800, CR850, CR1000, or CR3000). Valid settings are 7, 8, 10, or 11; the default is 7.

5.1.2.3 Protocol

The protocol choices are Transparent, PakBus Aware, and PakBus Node. The default setting is PakBus Aware (RF401s with OS4 or higher or RF430s) or Transparent (RF401s with OS3 or lower). The Transparent setting must be chosen if the network contains the retired CR205 dataloggers or the retired RF400 radios. When the Transparent protocol is used, all CR206(X) dataloggers, RF401 radios, and RF430 radios must be set to Transparent.

The PakBus Aware and PakBus Node protocols are designed to work in conjunction with PakBus to compensate for the interference and collision problems inherent in RF networks. These protocols accomplish this primarily

RF401-series and RF430-series Spread Spectrum Radio/Modems

CAUTION

by using RF level packet acknowledgements and retries. This is done for any size network.

Do not mix the “Transparent” protocol with any of the PakBus protocols. This will produce RF traffic without any RF communications.

One of the PakBus protocols is preferable when using dataloggers with the PakBus operating system (e.g., CR200(X)s, CR800, CR850, CR1000, CR3000) as it greatly increases the reliability of the RF communications compared to using the Transparent mode (which is the only protocol of the RF400). When the PakBus protocols are used, for most networks, all radios can be set up identically.

The "PakBus Aware" setting is the simplest mode and does not require a PakBus address. The "PakBus Node" protocol is useful when a standalone router is required, where the radio is assigned its own PakBus Address (see Section 5.1.3, PakBus Tab). The "PakBus Node" protocol also allows our software to access the radio’s RSSI (received signal strength indication).

To summarize, the advantages of using the PakBus Aware and PakBus Node Protocols, compared to the Transparent protocol, are:

• Greater immunity to interference and RF collisions (by using RF retries)

• Ability to have standalone RF router/repeaters (up to 8 repeaters)

• Ability to use the duty cycling modes when the network is composed of

• Reduced power consumption by the datalogger, as the radios perform

• Faster communication due to elimination of some of the small “link state

• Automatic selection of the best RF path when there is a marginal RF link

Detailed information on the PakBus Aware and PakBus Node protocols is provided in Appendix M, PakBus Networking Details.

5.1.2.4 RS-232 Baud Rate

If the Active Interface setting is "AutoSense" or "RS-232", enter the “RS-232 Baud Rate”. The default setting is 38.4 K for RF401 radios with OS4 or higher and for RF430 radios. The default is 9600 for RF401s with older operating systems. The 9600 baud rate needs to be used if the network contains CR200(X) dataloggers, older dataloggers (e.g., CR510, CR10X), or other devices that do not support the 38.4 K baud rate.

more than one RF hop (RF400 networks needed to be in “Always ON” mode)

“packet address filtering”

packets”

in parallel with a good RF path (based on RF signal strength)

RF401-series and RF430-series Spread Spectrum Radio/Modems

NOTE NOTE

www.campbellsci.com/downloads.

When the radio is connected to a PC, the baud rate selections in LoggerNet Datalogger Support Software must agree with the baud rate setting for the radio. In the "AutoSense" mode, if the RF401 is connected to a datalogger's CS I/O port, the RS-232 Baud Rate is irrelevant since the RF401 communicates with the datalogger in the "SDC" mode.

5.1.2.5 CS I/O ME Baud Rate

This setting is only used if the active interface is set to Datalogger Modem Enable or ME Master. The default value of 9600 is typically used if the active interface setting is Datalogger Modem Enable. When the active interface is ME Master, this baud rate must match the baud rate of the COM200-series modem (or other device).

5.1.2.6 Hop Sequence

5.1.2.7 Net Address

5.1.2.8 Radio Address

The hopping sequence must be the same for all radios in your network. The default value of 0 is typically used, unless there are neighboring RF401/RF430 networks. Ideally, neighboring radio networks use different hop sequences to prevent interference. Valid entries are 0 to 6.

To determine if there is a neighboring RF401/RF430 network in operation using the same hopping sequence as yours, stop communications on your network and observe the radio’s green LED for activity. A flashing green LED indicates that there is a nearby network using the same hopping sequence.

Use the default net address of 0 unless a neighboring RF401/RF430 network is using this setting. All spread spectrum radios in your network must have the same net address setting. Valid entries are 0 to 3 for radios set to "PakBus Aware" or "PakBus Node"; valid entries are 0 to 63 for the "Transparent" protocol. Refer to Appendix C, Address and Address Mask, for more information about the Net Address.

The radio address setting is only used when the radio’s protocol setting is Transparent. For two radios to communicate, their radio addresses must be set to the same number. The factory default radio address is “0” (zero); valid addresses are 0 to 1023. For simple point-to-point installations, the radio’s default settings should work unless there is a neighboring network which uses the default setting. Refer to Appendix C, Address and Address Mask, for more information about the Radio Address.

5.1.2.9 Power Modes

TABLE 5-1. Standard Setup Menu

Cycle

Setting

Mode

Delay*

17%

< 4 mA ½ sec

600 ms

TABLE 5-2. Standard Retry Levels

NOTE

RF401-series and RF430-series Spread Spectrum Radio/Modems

The radio’s average idle current can be set with the following Standby Modes (default setting shaded):

Duty

DevConfig

Advanced

Standby

Maximum

Response

100% < 24 mA – always on 0 100 ms

4% < 2 mA 1 sec 6 1100 ms

2% < .4 mA 8 sec 7 8100 ms

*Maximum time it takes to get an RF Packet sent and for the other radio to respond.

The Standard Setup standby modes automatically configure:

• Time of Inactivity to Sleep

• Time of Inactivity to Long Header

• Long Header Time

The default mode is the Standard Setup menu selection of “< 4 mA and ½ sec Cycle.” There are standby modes available in addition to those in the above table. They can be accessed in the Advanced Setup menu; however, if you configure one of those, it will be necessary to also configure each of the three bulleted parameters above. In any case, be sure to select the same Standby Mode for all of the radios in the network. For more details see Appendix B.4, Advanced Setup Standy Modes.

5.1.2.10 Retry Level

For point-to-multipoint networks, the retry level must be set to none if an RF401 radio has an operating system of OS3 or lower and the protocol setting is Transparent.

There are four Retry Level settings available in DevConfig (seeTABLE 5-2). All radios in the network should be configured for the same Retry Level. The default setting is Low (RF401 radios with OS4 or higher and RF430 radios) or “None” (RF401 radios with OS3 or lower). Further choices are available in the Advanced Setup menu (see Appendix B.2, Error Handling and Retries).

Retry Level

Maximum

Retries

Time-Slots for

Random Retry

Bytes Transmitted

Before Delay

None 0 0 65535

Low 3 1 400

Medium 5 2 400

High 7 3 400

RF401-series and RF430-series Spread Spectrum Radio/Modems

5.1.3 PakBus Tab

FIGURE 5-2. PakBus tab in DevConfig (with Default Settings)

The settings entered in DevConfig’s PakBus tab are only used when the radio is set to the PakBus Node protocol. The PakBus Node protocol setting is for standalone RF routers (repeaters). In this mode, the radio is not attached to any datalogger or PC; it is ONLY a RF router. Each standalone router in a network needs a unique PakBus address.

RF401-series and RF430-series Spread Spectrum Radio/Modems

Defaults can often be used for the other settings provided in the PakBus tab. The default settings are shown in FIGURE 5-2.

Beacon Interval Setting, in units of seconds, governs the rate at which the radio will broadcast PakBus messages in order to discover any new PakBus neighboring nodes. For the router configuration, this is broadcast over RF; otherwise it is broadcast on the wired port. It will also govern the default verification interval if the value of the Verify Interval XXX setting is zero.

Verify Interval Setting specifies the interval, in units of seconds, that will be reported as the link verification interval in the PakBus hello transaction messages. It will indirectly govern the rate at which the radio will attempt to start a hello transaction with a neighbor if no other communication has taken place within the interval.

Central Router Setting specifies a PakBus address for a router that is able to work as Central Router. By specifying this setting, the radio will be configured as a Branch Router meaning that it will not be required to keep track of neighbors of any routers except those in its own branch. Configured in this fashion, the radio will ignore any neighbor lists received from addresses in the central router setting and will forward any messages that it receives to the central router if it does not have the destination address for those messages in its routing table.

5.2 LoggerNet

5.2.1 Setup Screen

If the radio is being used in a point-to-point network (one base radio to one remote radio) or in a PakBus network, where all of the settings in the radios are identical, then the communications link can be depicted on the device map as a direct connection (COM Port with datalogger or PakBus routing device attached -- no radios shown in the device map). However, in a point-tomultipoint network where all remote radios have a separate address, the radios are depicted on the device map. (See FIGURE 5-3 and FIGURE 5-4.)

RF401-series and RF430-series Spread Spectrum Radio/Modems

FIGURE 5-3. Select RF4XX for connection type for a multipoint (non

PakBus) network.

FIGURE 5-4. For the datalogger settings, the baud rate must match the

radio’s RS-232 baud rate.

RF401-series and RF430-series Spread Spectrum Radio/Modems

5.2.1.1 Standard Setup (RF400)

FIGURE 5-5. Default Screen for the RF400 Standard Setup in

LoggerNet 4

Communication Enabled - Before communication can take place, all devices in the chain must be enabled. When this box is selected, the radio is enabled for communication.

Maximum Time On-Line – This field is used to define a time limit for maintaining a connection to the device. (This may be useful in avoiding costly communication costs, in the event that a connection to a station is inadvertently maintained for a long period of time.) Maximum Time On-Line applies to both scheduled connections and manual connections. However, for manual connections from the Connect Screen, it is always best to manually disconnect rather than relying on LoggerNet to disconnect for you.

When the device is contacted on a schedule, communication with the device will be terminated once this time limit is exceeded. A value of 0 in this field indicates that there is no time limit on maintaining a connection to the device.

When the device is connected in the Connect Screen and the time limit approaches, a dialog box is displayed warning the user that Max Time On-Line is about to be exceeded. The dialog box has Reset Max Time and Don’t Reset

RF401-series and RF430-series Spread Spectrum Radio/Modems

NOTE

buttons. If the Reset Max Time button is pressed, the Max Time On-Line counter will be reset. If the Don’t Reset button is pressed or if no button is pressed, the connection will be terminated when Max Time On-Line is reached.

The format for this field is 00 h(ours) 00 m(inutes) 00 s(econds).

If you are using LoggerNet Admin or LoggerNet Remote 4.0 or higher and using the Connect Screen to connect to a remote server that is running an older version of LoggerNet, the behavior will be different than described above. When connecting to a LoggerNet

3.4.1 server, you will be disconnected with no advanced warning

when Max Time On-Line is reached. A message will be displayed indicating that Max Time On-Line has been reached. When connecting to servers older than LoggerNet 3.4.1, the behavior will be variable. Generally, you will be disconnected at some point, but the timing of the disconnect will not be predictable.

Attention Character - Enter the character that will be used to reset the radio modem. By default, the radios are programmed to use the + character as the Attention Character. However, if the radio is being used in a communications link that includes a phone modem, you will most likely need to change this character in the radio setup and on LoggerNet's Setup Screen. Most phone modems use + as the reset character, and sending this character unexpectedly will reset the modem and terminate the communications link.

Advanced

Maximum Packet Size - Data is transferred in "chunks" called packets. For most devices the default value is 2048 byes. The value entered in this field can be changed in 32 byte increments. If a communications link is marginal, reducing the packet size may improve reliability.

RF401-series and RF430-series Spread Spectrum Radio/Modems

5.2.1.2 Standard Setup (RF400 Remote)

FIGURE 5-6. Default Screen for the RF400 Remote Standard Setup in

LoggerNet 4

Communication Enabled - Before communication can take place, all devices in the chain must be enabled. When this box is selected, the RF400 radio is enabled for communication.

RF401-series and RF430-series Spread Spectrum Radio/Modems

NOTE

The format for this field is 00 h(ours) 00 m(inutes) 00 s(econds).

If you are using LoggerNet Admin or LoggerNet Remote 4.0 and using the Connect Screen to connect to a remote server that is running an older version of LoggerNet, the behavior will be different than described above. When connecting to a LoggerNet

3.4.1 server, you will be disconnected with no advanced warning

Network Address - Enter the network address that is set up in the RF400 radio. A unique network address is required only if there is more than one network of dataloggers within the communication range of the network you are configuring; otherwise, the default of 0 can be used. All devices in a network must have the same radio network address. Valid Radio Net Addresses are 0 through 63.

Radio Address - This is the unique radio address for the remote radio. Valid addresses are 0 through 65,535.

Advanced

5.2.2 Network Planner

LoggerNet 4.0 or higher includes the Network Planner, a tool for designing PakBus Datalogger Networks. First, PakBus devices are selected from a list and placed on the network design palette. You then use a link tool to draw lines indicating the physical communication links between devices, and an activity tool to indicate activities that will take place between devices (schedule data collection, call-back, one-way data messages, or get/set variable transactions between dataloggers).

The Network Planner calculates the optimum settings for each device in the network and then allows you to send these settings to the device, or save them for later download via the Network Planner or the Device Configuration utility. If any change is made to a device in the network, that change is propagated to any other devices in the network that are affected. The configuration can then be imported into LoggerNet’s network map, providing a start-to-finish solution for PakBus network setup. Refer to the LoggerNet manual for more information on the Network Planner.

5.2.3 PakBus Graph

[4] Site4

[5] Site5

[2] Site2

[4094]

LN Server

[1] Site1

[3] Site3

PakBus Graph is a LoggerNet utility that graphically depicts the devices and connections in a PakBus datalogger network. In PakBus graph, the LoggerNet server is typically represented by PakBus address 4094, and each of the PakBus dataloggers that have been configured in Setup will be shown by the PakBus address in brackets followed by its name assigned through LoggerNet setup.

Because the radio networking protocols are used to direct packets, not PakBus protocols, the network's representation in PakBus Graph may be significantly different than one would expect. FIGURE 5-7 depicts the physical network of six dataloggers and one LoggerNet server. Dataloggers numbered 1 and 2 route packets to other dataloggers from the LoggerNet server.

RF401-series and RF430-series Spread Spectrum Radio/Modems

FIGURE 5-7. Point to Multi-Point Network with Two Routers

This same network will be depicted in PakBus Graph as shown in FIGURE 5-8. The radios are doing the networking, not the PakBus dataloggers.

FIGURE 5-8. Point to Multi-Point Network as Displayed in

PakBus Graph

RF401-series and RF430-series Spread Spectrum Radio/Modems

6. Troubleshooting

If you can’t connect, check out these possible causes:

1. Datalogger or Wiring Panel lacks 12 V power on pin 8 of CS I/O port.

The RF401 should go through its initialization with red and green LEDs

lighting (see Section 4.1.1, Indicator LEDs) when serial cable is connected if 12 V is present on CS I/O connector (see Quick Start Table

2). If needed obtain the optional Field Power Cable (CSI Item # 14291) to connect between datalogger 12 V output terminals and RF401 “Power” jack to supply power to the RF401.

2. Active Interface is set wrong.

This setting should normally be “Auto Sense” unless you have a phone to

radio base station with COM220 phone modem which requires the “ME Master” setting or you have a PakBus datalogger requiring “Datalogger SDC” due to another M.E. peripheral present. You could set the Active Interface to RS-232 or Datalogger Modem Enable if that is its permanent assignment, otherwise “Auto Sense” may be better.

3. Radio has low or weak battery voltage or 12 VDC supply voltage.

The power supply battery may not be charging properly due to solar panel

orientation, poor connection, or due to a charging transformer problem. The battery itself may have discharged too low too many times, ruining the battery. Lead acid batteries like to be topped off.

Power supply must be able to sustain at least 9.6 V (datalogger minimum)

even during 75 mA transmitter bursts lasting only a few milliseconds.

4. Radio is lightning damaged.

Swap in a known good radio with the same settings and see if this cures

the problem. Lightning damage can occur leaving no visible indications. A “near miss” can cause damage as well as a more direct hit with evidence of smoke (see Appendix K, RF401/RF411 Pass/Fail Tests, for pass/fail tests).

5. Antenna and/or cable is lightning damaged.

Swap in a known good antenna and/or cable. Hidden damage may exist.

6. Moisture is in coaxial antenna cable.

It is possible that moisture has penetrated inside the plastic sheath of the

coaxial cable. Water inside the cable can absorb RF energy and attenuate the transmitted signal; the received signal would also be attenuated. It is difficult to dry out the interior of a coaxial cable. Substitution of a dry cable is recommended.

Placing a wet cable in a conventional oven at 160°F for a couple of hours should dry it out. Shield the antenna cable against damage from radiated heat from the oven element by placing the coiled cable on a large cookie sheet or a sheet of aluminum foil. See Section 3.3.4, Antenna Cable Weather Sealing, for information on weatherproofing the antenna cable.

RF401-series and RF430-series Spread Spectrum Radio/Modems

7. Radio receiver is “de-sensing” from nearby transmitter.

This problem can be observed from LED behavior when operating a handheld radio near an RF401 or RF430 that is receiving collected data from a remote station. If you key a hand-held 150 MHz or 450 MHz transmitter, even though its frequency of operation is far removed from the 900 MHz band, its close proximity to the base RF401 or RF430 can overwhelm (desense) the RF401 or RF430 receiver resulting in failed packets and LoggerNet retries. This problem could also occur if your radios are at a site near commercial transmitters or repeaters. In general it is best to avoid such sites, especially the high-power FM or AM transmitter antenna sites which can change at any time with added equipment.

It is possible to avoid de-sensing in some cases if the RF401 or RF430 link is solid enough due to: the proximity of your remote radios; high antenna gains and directionality; high elevation; and sufficient distance separation between the RF401 and RF430 and commercial transmitter antenna. Try horizontal polarization of antennas. A field test in such situations is essential.

8. There is insufficient signal strength.

There are some things you can try to get that extra few dBs of signal

strength sometimes necessary for a dependable RF link. The drop in signal going from Winter (no deciduous tree leaves) to Spring sometimes requires a little more signal.

a. Raise the antenna height using a mast, tower or higher terrain. Often

a little extra height makes the difference.

b. Change to a higher gain antenna

c. If in a multi-path situation such as inside a reflective building or

canyon, try pointing the antenna in unlikely directions while looping back data (see Appendix K, RF401/RF411 Pass/Fail Tests) from the remote radio and typing characters in HyperTerminal. Sometimes a particular reflected signal will be stronger than the direct wave.

d. Change polarization (element orientation) of all antennas in your

network (yagi or collinear) from vertical to horizontal or vice versa.

9. Radios are experiencing interference from neighboring 900 MHz transmitters.

There are some measures you can take to reduce interference from

neighboring 900 MHz transmitters:

a. Move base station as far as possible from offending transmitter

antenna.

b. Install 9 dBd Yagi and position station so that offending transmitter is

located behind or to the side of the yagi to take advantage of yagi’s front-to-back or front-to-side ratio (back and side signal rejection).

RF401-series and RF430-series Spread Spectrum Radio/Modems

c. Change polarization (element orientation) of all yagi and collinear

antennas in your network to see if that reduces effects of offending transmitter.

10. PC208W.dnd file is corrupted.

The remote possibility exists that this file has become corrupted in your

PC. After you create the Network Map in PC208W, you can back up PC208W.dnd in case this should happen. If this appears likely, exit PC208W and copy and paste your backup file over the suspect .dnd file to restore proper operation.

11. Radio has wrong Network Address, Radio Address, Hopping Sequence, or Standby Mode.

It is improbable that a radio that has been working would ever change

address, hopping sequence or other settings. However, check the settings for the unlikely event this may have happened. Try “Restore Defaults” and set up the radio again from that point.

Appendix A. Part 15 FCC Compliance Warning

Changes or modifications to the RF401 series radio systems not expressly approved by Campbell Scientific, Inc. could void the user’s authority to operate this product.

Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and receiver.

• Connect the equipment into an outlet on a circuit different from that to

which the receiver is connected.

• Consult the dealer or an experienced radio/TV technician for help.

This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions:

1) This device may not cause harmful interference, and

2) This device must accept any interference received, including interference

that may cause undesired operation.

A-1

Appendix A. Part 15 FCC Compliance Warning

A-2

Appendix B. Advanced Setup Menu

B.1 Accessing the Advanced Menu

The standard Setup Menu is described in Section 5.1, DevConfig. The advanced Setup Menu can be accessed by configuring a terminal emulator program such as Procomm Connect the radio to the PC via the RS-232 or USB cable and press the Setup button on the radio. The advanced setup menu is shown below.

1) Advanced Setup

a) Radio Parameters

i) Radio Address Parameters

(1) Net Address (0 – 63)

(2) Radio Address (0 – 1023)

(3) Net Address Mask (0 – 3fh)

or HyperTerminalTM to 9600 baud (8-N-1).

(4) Radio Address Mask (0 – 3ffh)

(5) Hop Table (0 – 6)

ii) Radio Standby Modes

(1) Standby Mode

(0 => 24 mA Always ON 3 => 4 mA 1/2 sec Cycle) (4 => 2 mA 1 sec Cycle 5 => 1 mA 2 sec Cycle) (6 => .6 mA 4 sec Cycle 7 =>.4 mA 8 sec Cycle) (1 => Pin Sleep (PakBus Only))

(2) Time of Inactivity to Sleep (units of 100 msec; 1 – 32767)

(3) Time of Inactivity to Long Header (units of 100 msec; 0 – 65535) Select 0 to always use long header Select 65535 to never use long header

(4) Long Header Time (units of 100 msec; 0 – 255)

iii) Radio AT Command Sequence Setup Menu

(1) AT Command Sequence Character (any ASCII character)

(2) Silence time before Command Sequence (units of 100 msec; 1 – 32767)

(3) Silence time after Command Sequence (units of 100 msec; 1 – 32767)

B-1

Appendix B. Advanced Setup Menu

(4) AT Command Mode Timeout (units of 100 msec; 1 – 32767)

iv) Radio Diagnostics

Number of Retry Failures:

Received Signal Strength:

v) Radio Retry Settings

(1) Number of Retries (0 – 255)

(2) Number of time slots for random retry (units of 38 msec; 0 – 255)

(3) Number of bytes transmitted before delay (1 – 65535)

(4) Sync Timer Setting; (units of 100 msec; 0 – 255)

vi) Configure RF401 for Firmware Download

b) Interface Parameters

i) SDC Address (Not Active): (7 or 8)

ii) RS-232 Auto Power Down Enable 0 => RS-232 always active to power RS-232 devices 1 => RS-232 TX automatically powers down when no activity for 30 sec

iii) RS-232 Parameters

(1) RS-232 Baud Rate: 0 => 1200 1 => 4800 2 => 9600 3 => 19.2k 4 => 38.4k

(2) RS-232 Parity: 0 => None 1 => Odd 2 => Even

(3) RS-232 Character Length: 0 => 8 bits 1 => 7 bits

(4) RS-232 Stop Bits: 0 => 1 1 => 2

2) Restore Defaults

B-2

3) Show All Current and Default Settings

4) Save All Parameters and Exit Setup

9) Exit Setup without Saving Parameters

This is a blank page.

B.2 Error Handling and Retries

In the RF module received packets are analyzed for data corruption with an embedded CRC. The radio rejects a received packet (doesn’t send it out a port) if the packet’s header address fails to match the radio address, if an RF module receive error is detected, or if the RF packet’s CRC test fails.

B.2.1 Number of Retries

This setting specifies the maximum number of times an RF401 will re-send a packet failing to get an ACK response. The default setting is zero which inactivates retries. The allowable range is 0 to 255. Entering a number greater than zero activates retries. A receiving radio responds to the sending radio with an ACK packet for every RF packet that it receives, addressed to it, that has a valid CRC.

B.2.2 Number of Time Slots for Random Retry

This setting is active when the Number of Retries is greater than zero. It specifies the number of 38 ms time slots to create among which to randomly re-send a packet which has failed to get an ACK packet response. The allowable range is 0 to 255.

Appendix B. Advanced Setup Menu

If packets are failing because of periodic noise or signals, specifying more time slots for random retries will improve the chances for successful retry packet delivery. Increasing the number of time slots, however, results in longer average retry delays which will lower data throughput.

B.2.3 Number of Bytes Transmitted before Delay

This feature prevents radios which have lots of data to transfer from tying up a network until it is finished. The range of settings is 1 to 65535. The default value is 400 (bytes). This setting forces an RF401 to pause long enough, after sending the specified number of bytes, for another radio to send some data.

B.2.4 Sync Timer Setting

This setting determines how often sent packets will include hop synchronization information in the headers. The default setting is 0 which specifies that every packet will contain hop sync information. A value greater than zero specifies the interval at which a packet will contain hop sync information. The allowable range is 0 to 255 in units of 100 ms. All radios in the network should have the same Sync Timer Setting.

For example, if you input a value of 50, then packets with hop sync info will be sent out every 5 seconds improving (shortening) the response time of a transmit/response sequence. Even though this shortens the time required to send x amount of data, the throughput is still affected by the CS I/O or RS-232 port baud rate setting.

B.2.5 Number of Retry Failures

This reading is available in Setup Menu/Advanced Setup/Radio Parameters/Radio Diagnostics. It indicates the number of times that the RF401 has re-transmitted the specified Number of Retries but failed to get an ACK packet from the receiving radio. For example, if the Number of Retries is set

B-3

Appendix B. Advanced Setup Menu

to 3, the transmitting radio will send the same packet up to 3 times; each time looking for an ACK packet back from the receiving radio. If it does not receive an ACK packet after sending the packet 3 times, the transmitting radio will increment its Number of Retry Failures count. If a radio is configured to do retries, it will produce an ACK packet for every RF packet that it receives, addressed to it, that has a valid CRC. If 0 retries are configured, the receiving radio will simply throw away any packet that fails the CRC. This reading is cleared upon exiting Setup Menu or cycling radio 12 V power.

B.3 Received Signal Strength

Beginning with SW Version 6.420 the radios provide a means of knowing the signal strength of the last packet received, addressed to it, that had a valid CRC. To see this reading enter the radio’s Setup Menu /Advanced Setup/Radio Parameters/Radio Diagnostics menu. RSS readings are cleared upon exiting the Setup Menu or cycling the radio’s 12 Volt power.

The RSS reading is a relative signal level indication expressed in dB (decibels). Readings may vary up to 10 dB from radio to radio for a given received signal level. The weakest signal reading is around 25 dB and the strongest signal reading is near 86 dB. Although the RSS readings are not absolute, they will be of value in such activities as:

• determining the optimal direction to aim a yagi antenna

• seeing the effects of antenna height, location

• trying alternate (reflective) paths

• seeing the effect of seasonal tree leaves

B.4 Advanced Setup Standby Modes

The Standard Setup menu selections should fill the majority of user needs. The following information is given in case you need to program a non-standard standby mode.

The Standard Setup menu selections do not correspond with Advanced Setup menu entries. For example: selecting a “3” in the Standard Setup menu selects (< 2 mA 1 sec Cycle) whereas entering a “3” in the Advanced Setup menu selects (< 4 mA 1/2 sec Cycle).

B-4

Appendix B. Advanced Setup Menu

TABLE B-1. Advanced Setup Menu

STANDBY

MODE

STANDBY

AVG RECEIVE

CURRENT

Wake-up Interval

(red LED flash interval)

MAX.

RESPONSE

DELAY

01 < 24 mA 0 (constant) 0 sec

32 < 4 mA ½ sec ½ sec

43 < 2 mA 1 sec 1 sec

5 < 1 mA 2 sec 2 sec

6 < 0.6 mA 4 sec 4 sec

74 < 0.4 mA 8 sec 8 sec

Shaded modes 1, 2 not available

Standard Setup menu selection 1

Standard Setup menu selection 2

Standard Setup menu selection 3

Standard Setup menu selection 4

Standard Setup automatically configures the following three parameters appropriately. If you configure a standby mode from the Advanced Setup menu you must also manually configure these parameters according to the following guidelines:

(1) Time of Inactivity to Sleep

(2) Time of Inactivity to Long Header

(3) Long Header Time

The first two parameters should be set to about the same value. What this value is will depend upon the nature of the anticipated activity. The defaults are 5 seconds and 4.8 seconds, so if you go more than 4.8 seconds without activity, a long header is sent, and a corresponding 5 second receive delay will be experienced.

In general, these inactivity timers should be set so that the RF401 stays on (receiving or transmitting, not in standby mode) longer than the quiet times during communication. You can experiment with this to see how it works.

TIME OF INACTIVITY TO SLEEP The amount of receiver inactivity time desired before entering Standby Mode. This number is only valid in receive and duty cycling modes. Valid numbers range from 1 to 65535. The default number is 50 (for 5 seconds).

TIME OF INACTIVITY TO LONG HEADER Set time before Long Header occurs. The time of inactivity on the wireless modem’s receive pin before a long header is issued. The valid number range is from 0 to 65535. 65535 selects no long header at all. The default is 48 (for 4.8 seconds).

B-5

Appendix B. Advanced Setup Menu

LONG HEADER TIME Sets long header duration in tenths of a second. The default is 7 (for 0.7 seconds). If changed from the default of 7, this number should be set to the “Max. Response Delay” indicated in TABLE B-1 for the standby mode you are using plus 200 milliseconds (0.2 seconds). For example, if your standby mode delay is 2 seconds, set the long header time to 2.2 seconds. The valid number range is from 0 to 255. The longest long header time you should ever need is

8.2 seconds.

B-6

Appendix C. Address and Address Mask

Address

The address is 16 bits:

(0 - 1111,1111,1111,1111) binary (0 - ffffh) hexadecimal 0 – 65535) decimal

The two parts of the address are the “Network Address” and the “Radio Address.” The six most significant bits of the address are the “Network Address”, and the ten least significant bits are the “Radio Address.”

Network Address Radio Address (0 - 11,1111) (0 - 11,1111,1111) binary (0 - 3fh) (0 - 3ffh) hexadecimal (0 – 63) (0 – 1023) decimal

Address mask

Example 1

Example 2

The radio has a user programmable 16-bit address mask. Like the address, the address mask is divided into two parts. The six most significant bits are the Network Address Mask and the remaining ten bits are the Radio Address Mask.

When an incoming packet header’s address is compared with the RF401’s address, only the address bits that correspond to address mask “1”s are used in the comparison.

Incoming Packet’s Header Address xxxx xxxx xxxx xxxx RF401’s Network Address Mask 1111 11 RF401’s Network Address yyyy yy RF401’s Radio Address Mask 11 1111 1111 RF401’s Radio Address zz zzzz zzzz

Since the address mask is all “1”s, all of the incoming Packet Header Address bits are compared against the corresponding radio’s address bits.

Incoming Packet’s Header Address xxxx xxxx xxxx xxxx RF401’s Network Address Mask 1111 11 RF401’s Network Address yyyy yy RF401’s Radio Address Mask 11 1111 0000 RF401’s Radio Address zz zzzz zzzz

In this example, only the twelve most significant incoming Packet Header Address bits are used in the comparison with the radio’s twelve most significant address bits because the entire address mask (Radio Address Mask appended to Network Address Mask) is 1111,1111,1111,0000. Since the last

C-1

Appendix C. Address and Address Mask

0 0 0000

0 1 0001

0 2 0002

0 3 0003

0 4 0004

0 5 0005

0 6 0006

0 7 0007

0 8 0008

0 9 0009

000A

000B

000C

000D

000E

000F

0010

0011

0012

0013

0014

0015

0016

0017

0018

0019

000A

000B

000C

four bits are not compared, any remote radio with Radio Address of 0 to 1111 (decimal 0 to 15) will be received by the base station.

This allows multiple remotes in a network to be received by the base without changing the base Radio Address (the remotes cannot receive the base, however).

Auto-Sense pre-configures as many settings as possible (including the address mask). If you have an RF401 connected to a PC’s RS-232 port and a remote RF401 connected to a datalogger’s CS I/O port, Auto-Sense will configure the remote’s address mask to (3fh, 3ffh) so that it will only receive a 16-bit address match (Network and Radio), but the base’s address mask to (3fh, 0h) so it will receive any packet that has the same Network Address (and hopping sequence) regardless of Radio Address.

Combined Network/ Radio Addresses

If programming PC208W for Point-to-Multipoint networks, the Generic Dial Strings require the combined 16-bit addresses of the RF401s to be called. The RF401 Setup Menu (in Standard Setup, Radio Address) calculates and displays the combined network and radio address when you enter the network and radio address values. Following are some examples.

NET ADDRESS

(decimal)

RADIO ADDRESS

(decimal)

COMBINED 16-BIT ADDRESS

(hexadecimal)

C-2

Appendix C. Address and Address Mask

001D

001E

001F

0020

1022

03FE

1023

03FF

1 0 0400

1 1 0401

2 0 0800

2 1 0801

3 0 0C00

3 1 0C01

4 0 1000

4 1 1001

5 0 1400

5 1 1401

6 0 1800

6 1 1801

7 0 1C00

7 1 1C01

8 0 2000

8 1 2001

9 0 2400

9 1 2401

10 0 2800

10 1 2801

11 0 2C00

11 1 2C01

12 0 3000

12 1 3001

13 0 3400

13 1 3401

14 0 3800

14 1 3801

NET ADDRESS

(decimal)

RADIO ADDRESS

(decimal)

COMBINED 16-BIT ADDRESS

(hexadecimal)

C-3

Appendix C. Address and Address Mask

15 0 3C00

15 1 3C01

16 0 4000

16 1 4001

NET ADDRESS

(decimal)

RADIO ADDRESS

(decimal)

COMBINED 16-BIT ADDRESS

(hexadecimal)

C-4

Appendix D. Setting Up RF401-toCR206(X) Communications

Certain CR206(X) settings must match the RF401 settings for communications between the datalogger and radio to be successful. The factory default settings of these devices may not match.

D.1 CR206(X) Setup Information

1. Access the Deployment panel in DevConfig (see FIGURE D-1).

FIGURE D-1. CR206 Setup Main Menu

2. PakBus Address: Must match the PakBus Address in LoggerNet.

3. RF Protocol: Select PakBus Aware if the RF401s and RF430s in your

network are set to PakBus Aware or PakBus Node. The Transparent setting must be used if your network includes CR205 dataloggers or RF400 radios. If Transparent is used, all dataloggers and radios in the network must be set to Transparent.

4. Hop Sequence: Must match all of the RF401 and RF430 radios and other

CR206(X) dataloggers in the network.

5. Network: must match the Network Address setting for all RF401 or

RF430 radios in the Network. All other CR206(X) dataloggers must also have the same Network setting.

D-1

Appendix D. Setting Up RF401-to-CR206(X) Communications

TABLE D-1. CR206(X) Power Modes and the Recommended

6. Address: Enter 0 if the RF Protocol setting is PakBus. If the RF Protocol

setting is Transparent, enter a number from 0 to 1023. This number must match the Radio Address setting for all RF401 radios in the network. The Address setting must also match the setting for all other CR206(X) dataloggers in the network.

7. Power Mode: Enter a radio “Power Mode” that works with the RF401's

power mode (see TABLE D-1). Typically, the power mode setting should be "1 Sec with Long Header" or "8 Sec with Long Header". Although these power modes introduce 1 second or 8 seconds (respectively) of latency, they use less power than the "always on" modes. With settings other than “always on”, the radio receivers turn on periodically for 100 milliseconds. It is therefore necessary for the transmitting radio to send a long header to assure that the duty cycling receiver on the other end hears it (see FIGURE D-2 and FIGURE D-3).

Corresponding RF401 Power Modes

CR206(X) Power Mode Recommended RF401 Power Mode

Always On <24ma Always On - No header

Pin Enabled <24ma Always On - No header

1 Sec <24 ma Always On - 1 Sec Header

1 Sec with Long Header < 2ma 1 Sec Header

8 Sec <24ma Always On - 8 Sec Header

8 Sec with Long Header <0.4ma 8 Sec Header

D-2

Appendix D. Setting Up RF401-to-CR206(X) Communications

NOTES

FIGURE D-2. This graph represents a transmitting radio that uses a

long header and a receiving radio that is in a sleep cycle. The length of the wake-up initializer exceeds the time interval of cyclic sleep ensuring that the receiver detects the wake-up initializer and receives the payload (i.e., transmitted data).

FIGURE D-3. This graph represents a radio that transmits a wake-up

initializer that is shorter than the cyclic sleep of the receiving radio. The receiver does not detect the wake-up initializer and remains asleep—missing the data transmission.

1. Any radio that is transmitting to a sleeping radio must have a long header that spans the sleep duty cycle.

2. When a CR206(X) (or RF401) transmits to another CR206(X) (or RF401), the receiving radio knows when the originally transmitting radio is awake and not duty cycling. This allows the radio to only transmit a long header when it is needed.

D-3

Appendix D. Setting Up RF401-to-CR206(X) Communications

Below is a description of all of the Power Mode options:

• No Radio—datalogger model has no radio (not used with this application).

• Always ON—radio always on; 25 mA continuous current drain; does not

transmit wakeup header (alternatively you may check the "Ignore” box to disregard the Power Mode setting and keep the radio always on).

• 1 Sec—radio wakes up every second for 100 msec to look for wakeup

header; 2 mA current drain; does not transmit wakeup header. This option has the minimum latency but should not be used if the receiving radio has a sleep cycle.

• 1 Sec with Long Header—radio wakes up every second for 100 msec to

look for wakeup header; 2 mA current drain; transmits a 1.2 second wakeup header if needed.

• 8 Sec with Long Header—radio wakes up every 8 seconds for 100 msec to

look for wakeup header; 0.5 mA current drain; transmits a 8.2 second wakeup header if needed.

• 8 Sec—radio wakes up every 8 seconds for 100 msec to look for wakeup

header; 0.5 mA current drain; does not transmit wakeup header. This option should not be used if the receiving radio has a sleep cycle.

• Pin Enabled—radio is program controlled; does not transmit wakeup

header.

D.2 Example Setup 1 - LoggerNet to CR206(X)

The following is a typical setup for an RF401 connected to PC with a link to a CR206(X) (always a leaf node, never a router) in a PakBus network.

CR206(X) Setup for Example 1 (see FIGURE D-4):

1. Enter PakBus Address 1.

2. Select PakBus Aware for RF Protocol.

3. Select Hop Sequence 0.

4. Select Network (Address) 0.

5. The Radio Address is fixed at 0 when the RF Protocol is PakBus Aware.

D-4

6. Select Power Mode 1 Sec with Long Header to economize station power.

Appendix D. Setting Up RF401-to-CR206(X) Communications

FIGURE D-4. DevConfig Deployment panel showing the CR206(X)

setup for Example 1.

D-5

Appendix D. Setting Up RF401-to-CR206(X) Communications

RF401 Setup for Example 1 (see FIGURE D-5):

1. Since the RF401 will connect to a PC, select AutoSense or RS-232 Active

Interface.

2. Choose PakBus Aware for the Protocol.

3. Must use 9600 baud rate to communicate with a CR206(X). The baud rate

setting in the LoggerNet Setup screen must also be set to 9600.

4. Select Hop Sequence 0, which matches the CR206(X)'s hop sequence.

FIGURE D-5. DevConfig Deployment panel showing the RF401 setup

for Example 1.

5. Select Net Address 0, which matches the CR206(X)'s address.

6. The Radio Address is fixed at 0 when the Protocol is "PakBus Aware".

7. Select <2ma - 1 Sec Header for the Power Mode.

8. Select Retry Level Low.

9. Entry of a PakBus Address is disabled in DevConfig for the "PakBus

Aware" protocol.

D-6

Appendix D. Setting Up RF401-to-CR206(X) Communications

D.3 Example Setup 2 - Router to CR206(X)

The following is a typical setup of an RF401 cabled to a router datalogger and linked to a CR206(X) in a PakBus network.

CR206(X) Example Setup 2 (see FIGURE D-6)

1. Enter PakBus Address 1.

2. Select PakBus Aware for RF Protocol.

3. Select Hop Sequence 0.

4. Select Network (Address) 0.

5. The Radio Address is fixed at 0 when the RF Protocol is PakBus.

6. Select Power Mode 1 Sec with Long Header to economize station power.

FIGURE D-6. DevConfig Deployment panel for CR206(X) Example

Setup 2

D-7

Appendix D. Setting Up RF401-to-CR206(X) Communications

RF401 #1 Setup for Example 2 (see FIGURE D-7)

1. Since RF401 #1 will connect to a PC, select AutoSense or RS-232 Active

Interface.

2. Choose PakBus Aware for the Protocol.

3. Use 9600 k baud rate to communicate with the CR206. The baud rate

setting in the LoggerNet Setup screen must also be set to 9600.

4. Select Hop Sequence 0, which matches the CR206(X)'s hop sequence.

5. Select Net Address 0, which matches the CR206(X)'s address.

6. The Radio Address is fixed at 0 when the Protocol is "PakBus Aware".

7. Select <2ma - 1 Sec Header for the Power Mode.

8. Select Retry Level Low.

9. Entry of a PakBus Address is disabled in DevConfig for the "PakBus

Aware" protocol.

D-8

FIGURE D-7. DevConfig Deployment panel showing the RF401#1

setup for Example 2.

Appendix D. Setting Up RF401-to-CR206(X) Communications

RF401 #2 Setup for Example 2 (see FIGURE D-8)

1. For RF401 #2 , select Datalogger SDC 7 (or 8, 10, 11).

2. Set the RF401 Protocol to "PakBus Aware".

3. Select Hop Sequence 0, which matches the CR206(X)'s and RF401 #1's

hop sequence.

4. Select Net Address 0, which matches the CR206(X)'s and RF401 #1's

address.

5. The Radio Address is fixed at 0 in PakBus modes.

6. Select Power Mode < 2ma 1 second to work with the CR206(X).

7. Select Retry Level Low.

8. PakBus Address entry is disabled in DevConfig for the PakBus Aware

protocol.

FIGURE D-8. DevConfig Deployment panel showing the RF401#2

setup for Example 2.

D-9

Appendix D. Setting Up RF401-to-CR206(X) Communications

D-10

GND

CTS

Appendix E. Port Pin Descriptions

RS-232 Port

The “RS232” port is a partial implementation of RS-232C. It is configured as Data Communications Equipment (DCE) for direct cable connection to Data Terminal Equipment (DTE) such as an IBM-PC serial port.

RS-232 CONNECTOR, 9-PIN D-SUB FEMALE

PIN I/O DESCRIPTION

I = Signal Into the radio, 0 = Signal Out of the radio

Only CTS is implemented for flow control. If data arrives (say from a PC) faster than the radio transmits it, the radio will de-assert CTS when the 640 byte port buffer is full. If the PC continues to send data, the buffer will accept it and may wrap around over-writing oldest data. LoggerNet monitor CTS to prevent buffer over-run.

The radio can transmit RF packets slightly in excess of 9600 baud. When RF packets are received by the radio, that data is immediately sent to the “active interface” port without flow control (no RTS).

For many applications, the radio works fine with no flow control. The need for flow control arises when longer standby modes are used, where more data could be sent than the 640 byte buffer can hold before transmittal. For example, if the radios are in Standby Mode 6 (see Appendix B.4, Advanced Setup Standby Modes), the radio needs to buffer incoming RS-232 data for up to 8 seconds while waiting for the other radio to wake up before transmitting it. Also, if the radio is doing a lot of retries, that can take extra time and require flow control to avoid buffer over-run.

CS I/O Port

The RF401’s CS I/O port is Campbell Scientific's input/output port. It is not a standard RS-232 pin-out. The following table provides pin-out information on the port when connected to a datalogger.

E-1

Appendix E. Port Pin Descriptions

Sources 5 VDC to power peripherals

GND

GND for pin 1 and signals

Ring

Raised by modem to put datalogger into telecommunications mode

Serial data receive line

Modem Enable

Raised when datalogger determines

ring line

Synchronous Device

Used by datalogger to address

CLK/Handshake

I/O

Used by datalogger with SDE and

synchronous devices

12V supplied by

datalogger

PWR

Sources 12 VDC to power peripherals

Serial data transmit line

CS I/O CONNECTOR, 9-PIN D-SUB MALE

PIN FUNCTION I/O DESCRIPTION

that associated modem raised the

Enable

synchronous devices; can be used as a printer enable

TX lines to transfer data to

I = Signal Into the RF401, 0 = Signal Out of the RF401

E-2

Appendix F. Non-PakBus Example Configurations

The following procedures explain how to build a basic RF401 point-to-point network and a point-to-multipoint network with base station connected directly to the PC COM port. The PC should be running LoggerNet or PC208W. The remote station can consist of a radio connected to a datalogger.

F.1 Direct PC to RF401 Series Base Station Setup

(Transparent Protocol)

1. Connect the radio’s RS-232 port to a PC COM port using a straight through serial cable Item # 10873, or equivalent. Use a 25-pin to 9-pin adapter if necessary. This hardware configuration can serve (1) to do the set-up of the radio, and (2) for base station communications with datalogger(s) in point-to-point or point-to-multipoint networks.

2. Access DevConfig (see Section 5.1, DevConfig).

a. Leave Active Interface in “Auto Sense” (default setting) for most

applications. In Auto Sense the RF401 will test for 5 V on CS I/O port (pin 1) to determine if a datalogger is present and if so select the CS I/O port.

b. Use Transparent Protocol.

c. Select a Net Address from (0 – 63). Unless there is a neighboring

network, leave network address “0.” The Network Address must be the same throughout the network of RF401s.

d. Select a Radio Address (0 – 1023). The radio addresses must be the

same in point-to-point communications (for point-to-multipoint communications you could set the base RF401 to 0 and the remotes to 1, 2, 3, etc.).

It is a good idea to label each RF401 indicating the configured network address, radio address, hopping sequence, etc.

e. Select a Hopping Sequence (0 – 6). The hopping sequence must be

the same for all RF401s in the network.

If there happens to be a neighboring RF401 network using the same hopping sequence, you should change to a different one in case their network and radio addresses happen to match yours and to reduce retries.

F-1

Appendix F. Non-PakBus Example Configurations

To determine if there is a neighboring RF401 network in operation using the same hopping sequence as yours, stop communications on your network and observe an RF401 green LED for activity. A flashing green LED would indicate that there is a nearby network using the same hopping sequence.

f. Select 9600 for RS-232 Baud Rate.

g. Select desired Standby mode (< 24 mA Always on, < 4 mA ½ sec

Cycle, etc.) according to your power budget. All RF401s in the network must be in the same Standby Mode. The default setting is a good starting point (< 4 mA ½ sec Cycle).

h. Select desired Retry Level (None, Low, Medium or High) according

to the level of RF ‘collisions’ you expect. This depends on how many neighboring RF401s in and out of your network and the frequency of transmissions. Retries can, for example, reduce pauses in real-time monitoring of Input Locations.

i. Click the Apply button.

- RX LED Test -

F.2 Remote Station Setup (Transparent Protocol)

1. Point-to-point

a. Complete the steps above making the remote station’s Network

Address, Radio Address, and Hopping Sequence the same as the base station’s.

b. While in DevConfig verify that the Active Interface configuration is

“Auto Sense” and set the Standby Mode the same as the base RF401 (default “2” ok).

c. Save your configuration by clicking the Apply button.

2. Point-to-multipoint

a. Complete the steps in Appendix F.1, Direct PC to RF401 Series Base

Station Setup, making the remote stations’ Network Addresses and Hopping Sequences the same as the base station’s.

b. While in DevConfig verify that the active interface is “Auto Sense”

and give each remote RF401 a unique Radio Address.

You should label each RF401 (with masking tape) indicating the configured network address, radio address, hopping sequence, etc.

F-2

c. Save your configuration by click the Apply button.

Appendix F. Non-PakBus Example Configurations

F.3 LoggerNet Configuration (Transparent Protocol)

There are two ways of configuring the Setup map for a point-to-point ‘network.’ You can represent the RF401s in the Setup map (as RF400s) or simply leave them off. The simple map usually results in a quicker connection and requires less typing.

(1) Point-to-point (not represented)

(a) Setup map:

ComPort_1 CR10X

(2) Point-to-point (represented)

(a) Setup map:

ComPort_1

RF400 RF400Remote CR10X

(3) The station’s Maximum Baud Rate is typically 9600

(4) Extra Response Times are typically 0 s

In the case of point-to-multipoint, the RF401s are always represented in the LoggerNet Setup map (as an RF400) so that LoggerNet can temporarily change the base RF401’s Radio Address to communicate with one out of a group of remote RF401s.

(1) Point-to-multipoint

(a) Setup map:

ComPort_1 RF400 RF400Remote_1 CR10X_1 RF400Remote_2 CR10X_2 RF400Remote_3 CR10X_3

(2) All RF400Remotes have the same Network Address but each

RF400Remote must have a unique Radio Address.

F-3

Appendix F. Non-PakBus Example Configurations

6 dBd Yagi

CS I/O

9 dBd Yagi

CS I/O

0 dBd Half-wave

3 dBd Omni Collinear

RS-232

AC Adapter

(3) Extra Response Times are typically 0 s

FIGURE F-1. Point-to-Multipoint System

F.4 PC208W Configuration

For point-to-multipoint operation the RF401 can temporarily be put into AT Command Mode by sending a string of three ASCII characters. The default sequence to enter AT Command mode is:

1. No characters sent for one second (before command character)

2. “+++”characters sent (default command mode entry character)

3. No characters sent for one second (after command mode character)

4. RF401 responds by sending “OK” <CR>

The AT Command mode characters are sent by PC208W along with other commands to change the base RF401’s Radio Address to talk to the desired remote RF401 (see point-to-multipoint below).

a. Point-to-point

(1) Device Map - COM1 CR10X1

(2) Set station CR10X1 baud rate to 9600 baud in network map

(3) Datalogger extra response time – 0 mS

b. Point-to-multipoint (Transparent Protocol)

(1) Device Map - COM1 Generic1 10X3001 10X3005

(2) Set Generic Modem baud rate to 9600 in device map.

F-4

Appendix F. Non-PakBus Example Configurations

(3) Generic Modem Settings

(a) √ “Make DTR Active”

(b) √ “Hardware Flow Control”

200 ms; see TABLE D-1)

(i) 0 mS with 24 mA Standby Mode

(ii) 1200 mS with 1/2 sec cycle default Standby Mode delay

(iii) 4200 mS with 2 sec cycle Standby Mode delay

(4) Datalogger Station Settings

(a) Example “Dialed Using Generic Dial String”:

D1000 T"+++" R"OK"9200 T"ATDT3001^m"R"OK"1200

T"ATCN^m"R"OK"1200

(i) D1000 creates a 1 second delay

(ii) T sends quoted string w/o waiting for a character echo

(iii) +++ is string sent to put RF401 in AT Command mode (use other character if phone modems in path)

(iv) R”OK”9200 waits up to 9.2 sec for RF401 “OK” response

(v) ATDT3001 changes radio address to talk to remote RF401

with network address of 12 and radio address of 1. This is a hexadecimal number (see Appendix C, Address and Address Mask, for example combined hexadecimal network/radio addresses) and is calculated by Setup Menu at Main Menu, Standard Setup, Radio Address.

(vi) ATCN ends RF401 AT Command mode

(b) Datalogger extra response time – 0 mS

F-5

Appendix F. Non-PakBus Example Configurations

FIGURE F-2. PC208W Datalogger Generic Dial String

F-6

SRM-5A Short-haul Modems

Datalogger CS I/O

CS I/O

DCE

DTE

RS-232

AC Adapter

Appendix G. Short-Haul Modems

Set SRM-5A at PC end to “DCE” mode. Set SRM-5A at RF401 end to “DTE” mode.

The PC to SRM-5A cable is typically a 9-pin female to 25-pin male (CSI Item # 7026). The SRM-5A to RF401 cable is 25-pin male to 9-pin male available as CSI Item # 14413.

Setup LoggerNet as direct connect (refer to Section 3.2.3, Step 3 – LoggerNet Set-up).

FIGURE G-1. Short-Haul Modem to RF401 Setup

Configure RF401s for point-to-point (see Section 3.2, Quick Start). Default settings should work unless there is a neighboring network.

- RX LED Test -

To determine if there is a neighboring RF401 network in operation using the same hopping sequence as yours, stop communications on your network and observe RF401 green LEDs for activity. At this point, any green LED activity would indicate that there is a nearby network using the same hopping sequence.

12 V power for the base RF401 is typically supplied using the AC adapter (shown in FIGURE G-1).

G-1

Appendix G. Short-Haul Modems

NOTE

The remote RF401 is typically powered via the datalogger’s CS I/O port. Refer to Section 4.2, Power Supplies, for more information about power supplies.

With short-haul modems it is necessary to configure the base station RF401’s “RS-232 Auto Power Down Enable” (in the Advanced Setup \ Interface Parameters menu) to mode "0" which will maintain the radio's RS-232 port always active. This results in an additional constant 2 mA current drain by the RF401. If you don’t do this, the base RF401’s RS-232 port will turn off 30 seconds after activity and the attached SRM-5A (which gets its power from the port) will not receive any messages from the PC. Refer to about the Advanced Setup menu.

Appendix B, Advanced Setup Menu, for information

G-2

RF Path Examples

Distance

(miles)

14204 OMNI ½ Wave 0 dBd* Whip

14204 OMNI ½ Wave 0 dBd Whip

Virtual line-of-sight on valley floor with

14204 OMNI ½ Wave 0 dBd Whip

Line-of-sight across a valley (on foothills

floor on each end).

14204 OMNI ½ Wave 0 dBd Whip

14201 9 dBd YAGI

Line-of-sight across a valley (on foothills

floor on each end).

NOTE

Appendix H. Distance vs. Antenna Gain, Terrain, and Other Factors

You may test the radio communications by using the 21107 900 MHz Spread Spectrum Demo Kit; contact Campbell Scientific for more information.

Achieved

* dBd = decibel level compared to a simple dipole antenna

Antennas

Path Between Radios

wetland foliage.

approximately 300 feet above the valley

LINE-OF-SIGHT

You should arrange for a line-of-sight signal path between radios. At 900 MHz or 2.4 GHz there is little signal bending, however, there is reflection from hills, water, and conductive objects. Sometimes reflections provide a helpful path around an obstacle. There can be some trees and bushes in the signal path (with reduction in signal strength), but a hill will block the signal effectively. Thick trees can limit range to as little as 800 feet. Where possible avoid buildings and other man-made structures in the signal path as they absorb or reflect some of the direct wave, possibly below the level needed for communications.

ANTENNA HEIGHT

In situations where the radio antennas are situated virtually line-of-sight, the elevation of antennas (by choice of site or by installing a tower or mast) can substantially increase signal strengths. The amount of increase depends on factors in the propagation path between the radios including terrain, foliage, and man-made structures. Elevating one or both of the antennas essentially raises the signal path allowing the direct wave to better avoid absorption or reflection which can sometimes be more helpful than adding higher gain antennas.

GAIN ANTENNAS

Increasing antenna gains improves signal strength and distance. For example, the substitution of a 9 dBd yagi antenna where a 0 dBd omnidirectional existed

H-1

Appendix H. Distance vs. Antenna Gain, Terrain, and Other Factors

Cable

Loss

Antenna

Gain

Free Space

Loss

Antenna

Gain

Cable

Loss

Radio

Receiver

Radio

Transmitter

Pt - Lt + Gt - Lp + Gr - Lr = Pr

theoretically extends the attainable distance by a factor of 2.8. Adding 9 dBd yagi antennas on both ends in place of 0 dBd whip antennas theoretically extends the distance by a factor of 7.9. The higher the yagi’s gain, the narrower the beam width and the more critical it is that it be aimed right on target.

How Far Can You Go?

Distance Estimates for Spread Spectrum Radios

Overview

There is a great deal of interest in estimating the distance you can expect to achieve with the RF401 radios. Also of interest are the effects of cable length, antenna gain, and terrain. Some of these items are easy to quantify (cable loss, for instance); others are difficult to quantify (such as the effect of ground reflections). They are all important, though, and affect how well the RF system performs.

Probably the best approach to take in making range estimates is to do a site survey that considers the topography, location of antennas and radios, and cable lengths, make some assumptions about the path losses, and see if there is still some net gain. If there is, or if it is close, the next course is to actually try it out.

Link Analysis

In an RF system, there are gains (transmitter power, antenna gains, and receiver sensitivity “gain”) and losses (cable loss and path loss). If the gains exceed the losses, you have a connection; any excess is the “link margin”.

Parenthetical values pertain to 2.4 GHZ

EXAMPLE GAINS EXAMPLE LOSSES

Transmitter Power 20 (17) Transmitter Cable 3 Transmitter Antenna 6 Free Space 120 Receiver Antenna 6 Receiver Cable 3 Receiver Sensitivity “gain” 110 (104)

TOTAL GAINS =142 (133) dB TOTAL LOSSES = 126 dB

Link Margin = (Total Gains) – (Total Losses) = 142 (133) – 126 = 16 (7) dB

A minimum of 6 dB of link margin is recommended.

Here is a block diagram of the various components of gain/loss:

H-2

Where:

Transmitter Power (Pt)

(milliWatts)

dBm

1 0 10

50 (RF416, RF432)

100 (RF401, RF411, RF430, RF431)

1000

5000

Cable Type

Outside Diameter

Loss (dB/100’) @ 900 MHz

Loss (dB/100’) @ 2.4 GHz

RG-58A/U

.195”

21.1

COAX RPSMA-L

.195”

11.1

18.8

RG-8

.405”

6.9

COAX NTN-L

.405”

4.5

8.1

LMR-400

.405”

3.9

6.7

Pt => transmitter output power, in dBm (20 dBm in the case of the RF401

Lt => cable loss between transmitter and antenna in dB (see Cable Loss section) Gt => transmit antenna gain in dBi (dBi = dBd + 2.15) Lp => path loss between isotropic antennas in dB (see TABLE H-1, TABLE

Gr => receive antenna gain in dBi Lr => cable loss between antenna and receiver in dB Pr => signal power at the radio receiver in dBm

The signal power at the receiver (Pr) must exceed the receiver sensitivity (−110 or –104 dBm) by a minimum of 6 dB for an effective link. The amount that Pr exceeds –110 dBm or –104 dBm (2.4 GHz) is the link margin.

All of these elements are known, or are easily determined, with the exception of Lp. Unfortunately, signal path loss can make the difference between a marginal link ½ mile apart, and a reliable link 10 miles apart!

Transmitter Power

Transmitter output power is often expressed in dBm, which is a decibel power rating relative to 1 milliWatt. The formula is: dBm = 10 log (Pt) with Pt expressed in milliWatts.

Appendix H. Distance vs. Antenna Gain, Terrain, and Other Factors

or RF411)

H-2)

Cable Loss

Cable loss is a function of cable type, length, and frequency and is usually specified as attenuation (dB) per 100’ of cable. Using a low loss cable becomes very important as the cable run distances increase. Here are some typical cable types and their properties:

*CSI stocked antenna cables are shaded.

H-3

Appendix H. Distance vs. Antenna Gain, Terrain, and Other Factors

LENGTH

(ft.)

LOSS

(dB)

100

11.1

5.6

2.8

1.1 6 0.7

Mfg.

Antenna Type

Band

Model

CSI Item #

dBd Gain

dBi Gain

Size

Astron

Omni (1/2 wave)

900 MHz

AXH900 RP SMA R

14204

2.15

6.75”

Antenex

Collinear

900 MHz

FG9023

14221

5.15

24”

MaxRad

Yagi

900 MHz

BMOY8905

14201

11.15

21.4”

LINX

Omni (1/2 wave)

2.4 GHz

ANT-2.4-CW-RCT-RP

16005

2.15

4.5”

MaxRad

Enclosed Yagi

2.4 GHz

WISP24015PTNF

16755

15.1

17”

CSI’s “COAX RPSMA-L” uses LMR-195 antenna cable. Cable loss is proportional to length as the following table illustrates.

LMR-195 Cable Loss vs. Length @ 900 MHz

Antenna Gain

Antenna gain is specified either in dBi (decibels of gain relative to an isotropic radiator) or in dBd (decibels of gain relative to a dipole). The relationship is:

dBi = dBd + 2.15

Some antennas that are FCC approved for use with the RF401 series are:

Receiver Sensitivity

Receiver sensitivity is usually specified in dBm for a specific bit error rate (BER). The transceiver module used in the RF401, RF411, RF430, or RF431 is specified at –110 dBm at ~10

If the received signal strength is greater than the receiver sensitivity, a link can be established. Any excess signal strength above the receiver sensitivity is “link margin”, and is a very good thing; a minimum of 6 dB of link margin should be sought.

Path Loss

We have combined in this section the normal “free space” path loss (only seen in mountaintop to mountaintop scenarios) with loss due to ground reflections, diffraction, leaf/forest absorption, etc. It is all loss!

A starting point is the “free space” path loss. Here are two equations for this:

Lp (dB) = 32.4 + 20 x log( f ) + 20 x log ( d ) dB (f in MHz, d in km) Lp (dB) = 36.6 + 20 x log( f ) + 20 x log ( d ) dB (f in MHz, d in miles)

-4

raw BER.

H-4

Appendix H. Distance vs. Antenna Gain, Terrain, and Other Factors

Frequency

Distance

1 mi.

2 mi.

4 mi.

8 mi.

10 mi.

16 mi.

22 mi.

26 mi.

30 mi.

400 MHz

101

107

109

113

115

117

118

915 MHz

102

108

114

116

120

123

124

125

2.4 GHz

104

110

116

122

124

128

131

133

134

Here is a table showing the free space path loss (in dB). Note the effect of frequency.

Notice the relationship between path loss and distance: each time you double the distance, you lose 6 dB of signal under free space conditions. Or, put another way, if you add 6 dB of gain (for example with 6 dB of additional antenna gain, or 6 dB less cable loss), you can double the distance for free space conditions.

As mentioned before, free space conditions are the ideal, but seldom actually seen. The higher the antenna height relative to the terrain in the line of sight path, the closer to free space conditions. Antenna height is everything!

Here are some additional propagation effects that increase the path losses:

Diffraction

This is caused by objects close to the line of sight path. Real world examples of this would be hills, buildings, or trees. The object may not be in the direct line-of-sight, but if it is close enough, it will cause the RF to diffract around the object, giving additional path loss. “Close enough” is a function of frequency, path length, and position of the obstacle along the path.

An example at 900 MHz: a 10 mile path length with an obstacle halfway along the path will see diffraction “losses” from an obstacle within ~70 ft. of line-of sight. The amount of loss would be from 6 dB to 20 dB, depending on the obstacle surface. A sharp edge (like a rock cliff) would give the minimum loss (6 dB), while a rounded hill would give the maximum loss (20 dB).

Ground Reflections

These are caused by the RF signal being reflected from the ground (or water), and undergoing a phase shift so that it destructively interferes with the line of sight signal. The conditions that cause this the most are propagation over water, or over a low-lying fogbank. The reflected signal suffers little attenuation, gets out of phase, and interferes with the main signal. If antennas need to be sited near water, they should be positioned away from the water’s edge so that the ground vegetation attenuates the reflected RF.

The result of the reflection and interference (worst case) is that the path loss

increases as the 4

power of the distance, instead of the 2nd power. This changes the distance term in the path loss equation to: 40 x log ( d ) dB. Then, with each doubling of distance, the path loss increases by 12 dB, instead of 6 dB.

Vegetation

Losses due to vegetation (trees, bushes, etc) cause the path loss to increase by

to 4th power of the distance, instead of the 2nd power. This is just like in

the 3 the severe ground reflection case above.

H-5

Appendix H. Distance vs. Antenna Gain, Terrain, and Other Factors

TABLE H-1. 900 MHz Distance vs. Path Loss (Lp in dB) per Three Path Types

Path Type

2 mi.

4 mi.

6 mi.

8 mi.

10 mi.

14 mi.

18 mi.

22 mi.

26 mi.

30 mi.

2nd power

102

108

111

114

116

119

121

123

124

125

3rd power

105

114

119

123

126

130

133

136

138

140

4th power

108

120

127

132

136

142

146

149

152

155

TABLE H-2. Path Type vs. Path

Path Type

Path Characteristics

2nd power

Mountaintop to mountaintop

Line-of-sight

3rd power

Dominantly line-of-sight

Some trees

4th power

At water’s edge (very reflective)

Lots of Trees (absorptive)

Rain, Snow, and Fog

Below 10 GHz, these don’t have much effect on path loss (see Ground Reflections).

Real World Distance Estimates

From the above discussion of departures from the ideal “free space” path loss,

it is clear that we should usually use something other than the 2

power

distance table.

Here is a table which gives calculated path loss (Lp) values at 900 MHz for the

, 3rd, and 4th powers of distance; the equations (for 915 MHz) are:

Lp (2

power) = 95.8 + 20 × log ( d ) dB (d in miles)

power) = 95.8 + 30 × log ( d ) dB (d in miles)

Lp (3

power) = 95.8 + 40 × log ( d ) dB (d in miles)

Lp (4

Example calculated Lp values (in dB)

The following table helps select a Path Type in the above “Distance vs. Path Loss” table to best fit your situation.

Characteristics Selector

Examples

H-6

or Tall antenna towers

Low antenna heights

Across field of grain (reflective)

Some examples will help illustrate the tradeoffs in a link analysis. These examples will all use the RF401 900 MHz radio, and will use –107 dBm as the required power level at the radio receiver. This is 3 dB higher than the quoted sensitivity of –110 dBm, which will give us a 3 dB margin.

Appendix H. Distance vs. Antenna Gain, Terrain, and Other Factors

Here’s the equation we will use, from the first page:

Pt - Lt + Gt - Lp + Gr - Lr = Pr

Example #1

Antenex FG9023 antennas on each end, 20’ of LMR195 cable on one end, 10’ of LMR195 on the other end, antennas at 10’ height, fairly open terrain with a few trees. How far can I go?

Pt = 20 dBm Lt = 20’ x (11.1 dB/100 ft) = 2.22 dB Gt = Gr = 3 dBd = 5.15 dBi Lr = 10’ x (11.1 dB/100 ft) = 1.11 dB

Use –107 dBm for Pr, solve for Lp: Lp = 135 dB

Use the 3

to 4th power tables: Range from ~9 (4th power) to ~22 (3rd power)

miles

Example #2

Base has MaxRad BMOY8905 Yagi, with 50’ of LMR195 cable on a 30’ tower, also a lightening protection device with a VSWR of 1:1.75; remote also has a MaxRad BMOY8905 Yagi with 5’ of LMR195 cable on a 4’ pole. Terrain is mostly flat, with sagebrush. How far can I go?

Pt = 20 dBm Lt = 50’ x (11.1 dB/100 ft) = 5.55 dB Gt = 9 dBd = 11.15 dBi Lr = 5’ x (11.1 dB/100 ft) = .55 dB Gr = 9 dBd = 11.15 dBi

Need to include the loss from the surge arrestor: VSWR of 1:1.75 = .34 dB loss

Use –107 dBm for Pr, solve for Lp: Lp = 143 dB

Use the 3

to 4th power tables: Range from ~14 (4th power) to 30+ (3rd power)

miles

Example #3

You need to run 125’ of cable for the transmitter: How much loss if I use LMR195 cable? 125’ x (11.1 dB/100’) = 13.9 dB How much loss if I use LMR400 cable? 125’ x (3.9 dB/100’) = 4.9 dB

If I am using path loss from the 2

power table, and operating fine at 8 miles with LMR195 cable, how much more range could I expect if I use LMR400 cable (assuming similar terrain)?

13.9 dB – 4.9 dB => 9 dB more link margin

Loss at 8 miles: 114 dB; could tolerate 114 + 9 dB = 123 dB loss =>>> 22 miles (14 miles more)

H-7

Appendix H. Distance vs. Antenna Gain, Terrain, and Other Factors

H-8

Appendix I. Phone to RF401 Series

I.1 PakBus Network

Use of the Network Planner may be the easiest method of configuring a phoneto-RF401 PakBus network (see FIGURE I-1). The Network Planner is a tool available in LoggerNet 4.0 or higher. In the Network Planner, select each device from a list and use the link tool to indicate physical communication. The Network Planner calculates the optimum settings for each device and can send the settings to each device. Refer to the LoggerNet manual for more information about the Network Planner.

FIGURE I-1. Configuring a phone-to –RF401 network using the

Network Planner Tool. The Network Planner is available in LoggerNet version 4 or higher.

The following configuration provides both point-to-point and point to multipoint communications. A PakBus datalogger can be placed at the phoneto-RF location, which eliminates the need for the null modem. The datalogger needs to be set up as a router with beaconing. Typically, the COM220 phone modem is set as SDC7 and the RF401 as SDC8.

I-1

Appendix I. Phone to RF401 Series

1. HARDWARE REQUIREMENTS

2. POINT-TO-MULTI-POINT COMMUNICATIONS (PakBus Protocol)

a. RF401s with OS4 or greater b. COM220 c. A100/PS100 or CH100 d. AC charger (CSI Item # 9591) or solar panel e. Two SC12 cables (one included with RF401 and one with COM220)

PC-Modem ----- COM220-A100/PS100-RF401 ------ RF401-PakBus DL

(null-modem)

LoggerNet SETUP

a. Setup:

ComPort_1 (choose appropriate ComPort) PhoneBase PhoneRemote PakBus Port CR1000_1 CR1000_2

b. ComPort_1 – default settings

c. PhoneBase (see FIGURE I-2)

1) Maximum Baud Rate – 38400

2). Modem Pick List – per PC’s phone modem

3) Extra Response Time – 0 s

d. PhoneRemote – input base site’s phone number (see FIGURE I-3)

e. PakBus Port – Maximum Baud Rate: 38400

f. CR1000_1 (see FIGURE I-4)

1) PakBus Address (enter address for this CR1000)

2) Maximum Packet Size: 250

g. CR1000_2

1) PakBus Address (enter address for this CR1000)

2) Maximum Packet Size: 250

RF401 CONFIGURATION

a. Base RF401

1) Active Interface: ME Master

2) Protocol: PakBus Aware

3) CS I/O ME Baud Rate: 38.4 K

I-2

b. Remote RF401

1) Active Interface: Datalogger SDC

2) SDC Address 7

3) Protocol: PakBus Aware

Appendix I. Phone to RF401 Series

NOTE NOTE

If there is a neighboring RF401 network, you should change the Hopping Sequence of base and remote RF401s to a new setting to avoid interference.

- RX LED Test -

3. COM220 Dip Switches

Dip Switch Position 1 Open 2 Open 3 Open 4 Closed 5 Open 6 Open 7 Open 8 Open

Refer to the COM220 manual for more information about the COM220 Dip Switches.

I-3

Appendix I. Phone to RF401 Series

FIGURE I-2. Phone base configuration.

I-4

Appendix I. Phone to RF401 Series

FIGURE I-3. Enter the base site’s phone number.

I-5

Appendix I. Phone to RF401 Series

FIGURE I-4. Enter 250 for the Maximum Packet Size.

4. HARDWARE

After configuring LoggerNet and the RF401s you are ready to set up hardware. The A100 null-modem connectors connect via SC12 cables to the COM220 and the base RF401 CS I/O port. Connect the site phone line to COM220. Connect power to the PS100. Connect antenna to RF401. When you turn on the PS100 supply, the RF401 receives 12V power and you will see the LEDs light in their power-up sequence.

Remote RF401s normally connect to datalogger CS I/O ports via SC12 cables. Powering up the datalogger will start the RF401 operating. Install an antenna (or antenna cable and yagi or collinear) and you are ready to collect data.

I-6

I.2 Non-PakBus Network

Where a phone to RF401 Base is desired in a non-PakBus network, the following configurations will provide Point-to-Point or Point-to-Multipoint communications (using the RF401 Transparent protocol). To have a base datalogger in this configuration requires that another RF401 be added at the base.

1. HARDWARE REQUIREMENTS

a. RF401s b. COM220 c. A100 Null Modem and either the PS100 or CH100 d. AC charger (CSI Item # 9591) or solar panel e. Two SC12 cables (one included with RF401 and one with COM220)

2. POINT-TO-POINT COMMUNICATIONS (Transparent Protocol)

PC-Modem -- COM220-A100/PS100-RF401 --- RF401-Mixed-array Datalogger

(null-modem)

LoggerNet SETUP

Appendix I. Phone to RF401 Series

a. Setup:

ComPort_1 PhoneBase PhoneRemote RF401 RF401Remote CR10X

b. ComPort_1 – default settings

c. PhoneBase

1) Maximum Baud Rate – 9600

2). Modem Pick List – per PC’s phone modem

3) Extra Response Time – 0 s

d. PhoneRemote – input base site’s phone number

f. RF401 – make Attention Character: “-“ ; leave the rest defaults

g. RF401Remote – Radio Address: “0” ; leave the rest defaults

g. CR10X – default settings, schedule collections as desired

RF401 CONFIGURATION

a. Base RF401

1) Active Interface: ME Master

2) Protocol: Transparent

3) CS I/O ME Baud Rate: 9600

b. Remote RF401

1) Active Interface: ME

2) Protocol: Transparent

3) CS I/O Baud Rate: 9600

I-7

Appendix I. Phone to RF401 Series

NOTE

If there is a neighboring RF401 network, you should change the Hopping Sequence of base and remote RF401s to a new setting to avoid interference.

3. POINT-TO-MULTIPOINT COMMUNICATIONS (Transparent Protocol)

- RX LED Test -

PC-Modem --------- COM220-A100/PS100-RF401 --------- RF401-DL1

------------ RF401-DL2

LoggerNet SETUP

a. Setup:

ComPort_1 PhoneBase PhoneRemote RF401 RF401Remote CR10X RF401Remote_2 CR10X_2

b. ComPort_1 – default settings

c. PhoneBase

1) Maximum Baud Rate – 9600

2) Modem Pick List – per PC’s phone modem

3) Extra Response Time – 0 s

d. PhoneRemote – input base site’s phone number

e. RF401 – make Attention Character: “-“ ; leave the rest defaults

f. RF401Remote – make Radio Address: “1“ ; leave the rest defaults

g. RF401Remote_2 – make Radio Address: “2“ ; leave the rest defaults

h. Dataloggers – default settings, schedule collections as desired

RF401 CONFIGURATION

a. Base RF401

I-8

1) Active Interface: ME Master

2) Protocol: Transparent

3) CS I/O ME Baud Rate: 9600

4) All other settings: defaults

Appendix I. Phone to RF401 Series

NOTE

b. Remote RF401s

1) Radio Addresses: 1, 2, etc. (unique for each remote RF401 and must agree with respective RF401Remote settings)

2) Protocol: Transparent

3) CS I/O Baud Rate: 9600

4) All other settings: default

If there is a neighboring RF401 network, you should change the Hopping Sequence of base and remote RF401s to a new setting to avoid interference.

FIGURE I-5. LoggerNet Point-to-Multipoint Setup

I-9

Appendix I. Phone to RF401 Series

NOTE

4. COM220 Dip Switches

Dip Switch Position 1 Open 2 Open 3 Open 4 Open 5 Open 6 Open 7 Open 8 Open

Refer to the COM220 manual for more information about the COM220 Dip Switches.

5. HARDWARE

After configuring LoggerNet and the RF401s you are ready to set up hardware. The A100 null-modem connectors (it’s not important which connector goes to which unit) connect via SC12 cables to the COM220 and the base RF401 CS I/O port. Connect the site phone line to COM200. Connect power to the PS100. Connect antenna to RF401. When you turn on the PS100 supply, the RF401 receives 12V power and you will see the LEDs light in their power-up sequence.

I-10

Campbell Scientific RF401 User Manual
