1. General Description

Environmental enclosures protect our dataloggers and peripherals from water and most pollutants. Our standard enclosures include the ENC10/12, ENC10/12R, ENC12/14, ENC14/16, and ENC16/18. For cable entry, Campbell Scientific offers a choice of one 1.5" diameter conduit, two horizontally-arranged 1.5" diameter conduits, two vertically-arranged 1.5" conduits (ENC16/18 only), or individual compression fittings. Multiple cables can use the conduit(s) whereas each cable uses a separate compression fitting. The individual compression fittings provide a more water-tight seal.
Besides our standard enclosures, Campbell Scientific offers prewired enclosures that combine flexibility with ease of use. Prewired enclosures include the PWENC12/14, PWENC14/16, and PWENC16/18. Customers have the flexibility to choose their system components, but installation is easy because sensors are simply attached to prewired connectors on the outside of the enclosure.
Most of the information provided in this manual pertains to the prewired enclosures. Prewired enclosures are shipped with the same enclosure supply kit (Section 2) and use the same brackets for mounting to a tripod or tower (Section 4). The maintenance information (Sections 5 and 6) is also applicable to our prewired enclosures.
Campbell Scientific enclosures are manufactured with non-corrosive polyester and reinforced with fiberglass. These white UV-stabilized enclosures reflect solar radiation reducing temperature gradients inside the enclosure without requiring a separate radiation shield. A door gasket, external grounding lug, stainless steel hinge, and lockable hasp are included. Our enclosures were rated NEMA 6P before being modified to include conduit(s) or compression fittings.
Dataloggers, peripherals, and brackets are mounted to an internal plate punched with a grid of one-inch-on-center holes. (The ENC10/12 and ENC10/12R have a grid of one-half-inch-on-center holes, allowing a CR1000 datalogger to be mounted horizontally within the enclosure.) An internal backplate is included with each ENC10/12, ENC10/12R, ENC12/14, and ENC14/16 enclosure. Two internal mounting plate options are offered for the ENC16/18. The -SB option provides a backplate similar to the one included with the other enclosures. The
-EB option provides both a backplate and a sideplate.
1
ENC10/12, ENC10/12R, ENC12/14, ENC14/16, ENC16/18, PWENC12/14, PWENC14/16, and PWENC16/18

1.1 Specifications

Conduit Size (options “-SC”, “-DC”, “-VC”): 1.5 in diameter
ENC10/12 Internal Dimensions: 25.4 x 30.5 x 11.4 cm (10 x 12 x 4.5 in) Weight: 4.1 kg (9 lb) Entry Seals (option “-ES”): (1) Medium—accepts 6 mm (0.231 in) to
10 mm (0.394 in) cables (2) Small—accepts 3 mm (0.118 in) to
7 mm (0.275 in) cables
ENC10/12R Internal Dimensions: 25.4 x 30.5 x 14 cm (10 x 12 x 5.5 in) Weight: 4.1 kg (9 lb) Entry Seals (option “-ES”): (1) Medium—accepts 6 mm (0.231 in) to
10 mm (0.394 in) cables
(2) Small—accepts 3 mm (0.118 in) to
7 mm (0.275 in) cables
ENC12/14 Internal Dimensions: 30.5 x 35.6 x 14 cm (12 x 14 x 5.5 in) Weight: 5 kg (11.2 lb) Entry Seals (option “-ES”): (2) Medium—accepts 6 mm (0.231 in) to
10 mm (0.394 in) cables
(4) Small—accepts 3 mm (0.118 in) to
7 mm (0.275 in) cables
ENC14/16 Internal Dimensions: 35.6 x 40.6 x 14 cm (14 x 16 x 5.5 in) Weight: 6.2 kg (13.6 lb) Entry Seals (option “-ES”): (2) Large—accepts 6 mm (0.236 in) to
13 mm (0.512 in) cables (2) Medium—accepts 6 mm (0.231 in) to 10 mm (0.394 in) cables (3) Small—accepts 3 mm (0.118 in) to
7 mm (0.275 in) cables
ENC16/18 Internal Dimensions: 40.6 x 45.7 x 22.9 cm (16 x 18 x 9 in) Weight: 7.7 kg (17 lb) Entry Seals (option “-ES”): (2) Large—accepts 6 mm (0.236 in) to
13 mm (0.512 in) cables (2) Medium—accepts 6 mm (0.231 in) to 10 mm (0.394 in) cables (2) Small—accepts 3 mm (0.118 in) to
7 mm (0.275 in) cables
PWENC12/14 Internal Dimensions: 30.5 x 35.6 x 14 cm (12 x 14 x 5.5 in) Weight: 5 kg (11.2 lb)
2
ENC10/12, ENC10/12R, ENC12/14, ENC14/16, ENC16/18, PWENC12/14, PWENC14/16, and PWENC16/18
PWENC14/16 Internal Dimensions: 35.6 x 40.6 x 14 cm (14 x 16 x 5.5 in) Weight: 6.2 kg (13.6 lb)
PWENC16/18 Internal Dimensions: 40.6 x 45.7 x 22.9 cm (16 x 18 x 9 in) Weight: 7.7 kg (17 lb)

2. Enclosure Supply Kit

Each of our enclosures is shipped with a sealed plastic bag containing an Enclosure Supply Kit. This kit provides the materials used to seal and desiccate the enclosures. Please note that some of the items should be saved for future use. The contents of the enclosure supply kit are the following.
Part # Description
Qty.
8 505 #6 x 32 x .375" screws 8 6044 grommets 4 2376 3 cm cable tie tabs 6 2207 4" cable ties 6 4005 8" cable ties 1 28878 humidity indicator card 2 6596 4 oz container of sealing putty 4 4905 4-unit desiccant packs 1 6290 Phillips screwdriver 1 25745 PVC coupling
Desiccant Pack
INDICATORHUMIDITY
MS20003-2
EXAMINE
ITEM
IF PINK
CHANGE
DESICCANT
IF PINK
WARNING
IF PINK
DISCARD IF CIRCLES OVERRUN
AVOID METAL CONTACT
Screwdriver
DO NOT EAT
UNITED DESICCANTS-GATES
101CHRISTINE, BELEN, NEW MEXICO 87002
DESI PAK
SPECIFICATION MIL-D-3464 TYPE I &II
REACTIVATION TIME IN-BAG 16 HOURS AT 250 F
DESICCANT
CONTENTS
ACTIVATED BAGGED FOR
DESICCANT ACTIVATED BAGGED FOR
DO NOT EAT
UNITED DESICCANTS-GATES
101CHRISTINE, BELEN, NEW MEXICO 87002
DESI PAK
SPECIFICATION MIL-D-3464 TYPE I &II
REACTIVATION TIME IN-BAG 16 HOURS AT 250 F
CONTENTS
UNITS
UNITS
4
4
PACKAGE USE
AND STATIC
DEHUMIDIFICATION
PACKAGE USE
AND STATIC
DEHUMIDIFICATION
8” Cable Tie
PVC Coupling
4” Cable Tie Cable Tie Tab
FIGURE 2-1. Components of the Enclosure Supply Kit
Humidity Indicator Card
Humidial Corp., Colton Calif.
Putty
Grommets
#6 Screws
3
ENC10/12, ENC10/12R, ENC12/14, ENC14/16, ENC16/18, PWENC12/14, PWENC14/16, and PWENC16/18

3. Mounting Equipment Inside the Enclosure

3.1 Enclosures with One or Two 1.5" Conduits

1. If installing the optional Door Switch Indicator, follow the procedure
described in Appendix A.
2. If installing the 25458 or 28532 DIN-Rail Terminal Kit, follow the
procedure described in Appendix B. The 25458 kit facilitates wiring when many wires need to be connected to one terminal.
3. If installing the 28960 Stack Mounting Kit, follow the procedure described
in Appendix C. The 28906 kit allows components to be raised 3 in above the back plate, allowing one component to be stacked above another to save space. Raising a component from the back plate is also done to improve access to a component that may be partially blocked by other, taller equipment mounted in the enclosure.
4
NOTE

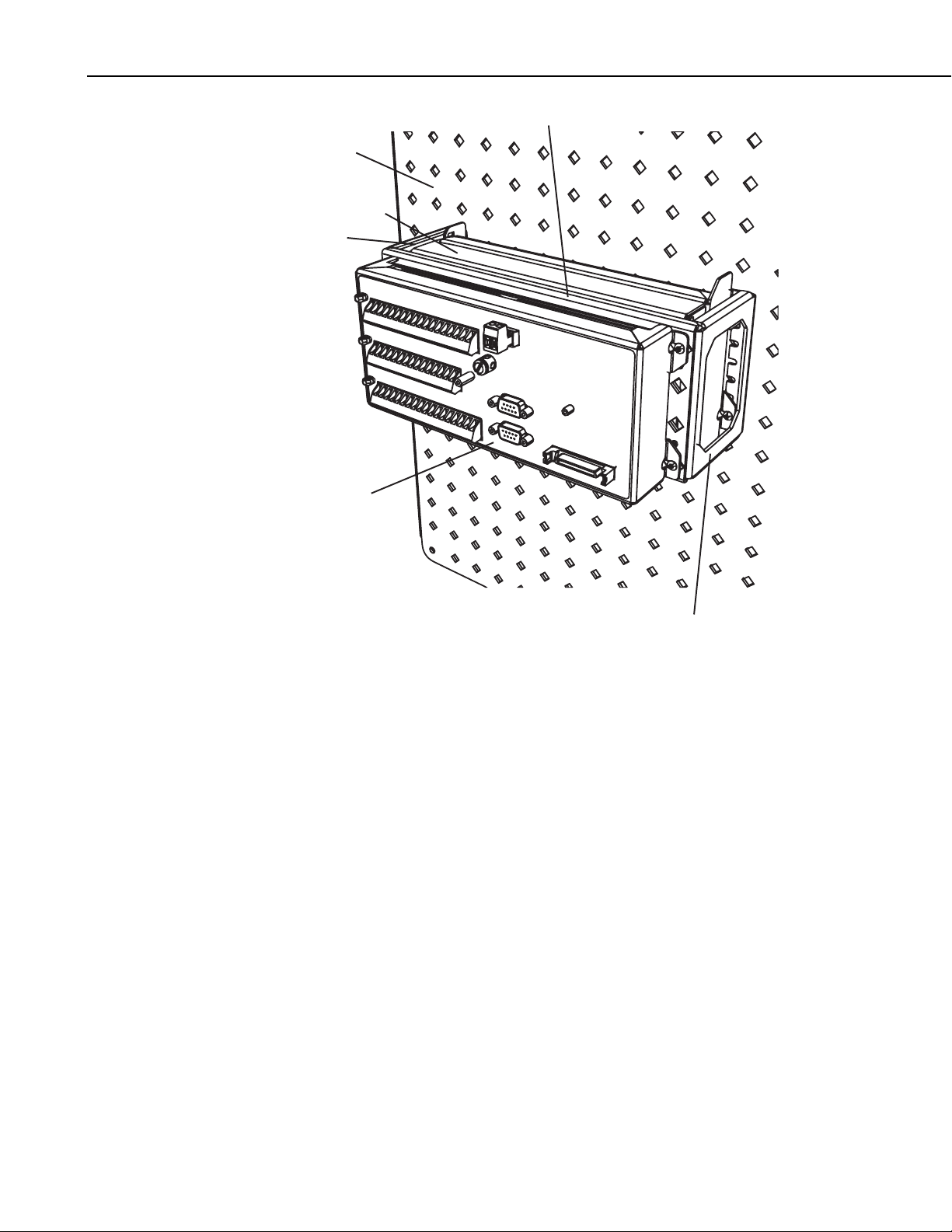

FIGURE 3-1. Securing components to the enclosure backplate
Remember to allow space for cables and cable connectors.
ENC10/12, ENC10/12R, ENC12/14, ENC14/16, ENC16/18, PWENC12/14, PWENC14/16, and PWENC16/18
4. If desired, insert the 25745 PVC coupling to reduce the conduit’s diameter
to 0.5". Route the sensor leads through the enclosure conduit to the datalogger and peripheral terminal strips.
5. Connect sensors and peripherals to the datalogger as described in the
sensor and peripheral manuals.
6. Secure sensor and peripheral leads to the side of the enclosure using 8"
cable ties and cable tie tabs (see FIGURE 3-2).
NOTE
The adhesive of the cable tie tab may not stick during extremely cold temperatures or extremely high humidity. In these situations, fasten the cable tie tab to the backplate using a #6 screw and grommet or run the cable tie through two of the enclosure backplate holes.
7. Strain relief the sensor leads to the datalogger’s strain relief flanges with
the 4" cable ties.
8. Place two of the desiccant packs from the Enclosure Supply Kit inside of
the enclosure. Reseal the other two inside the plastic bag to use later (see Section 5).
9. Remove the backing from the humidity indicator card and attach the card
to the right side of the enclosure.
10. Place a roll of putty around the sensor leads where they enter the
enclosure.
11. Press the putty around the leads and into the conduit to form a tight seal.
5
ENC10/12, ENC10/12R, ENC12/14, ENC14/16, ENC16/18, PWENC12/14, PWENC14/16, and PWENC16/18
6
FIGURE 3-2. Securing cables to the cable tie tabs
ENC10/12, ENC10/12R, ENC12/14, ENC14/16, ENC16/18, PWENC12/14, PWENC14/16, and PWENC16/18
FIGURE 3-3. An ENC12/14 with one 1.5" conduit houses a CR1000
datalogger and BP24 power supply. Door not shown.

3.2 Enclosures with Individual Compression Fittings

1. If installing the optional Door Switch Indicator, follow the procedure
described in Appendix A.
2. Use the #6 screws and plastic grommets (FIGURE 3-1A) to mount
additional peripherals to the enclosure backplate (FIGURE 3-1B). Dataloggers, power supplies, and most peripherals are usually attached to the backplate prior to shipment from the factory or are supplied with additional screws and grommets.
To insert the grommet, push the points of the flanges into the center of any square hole. To remove a grommet without damage, remove the enclosure backplate and use pliers to pinch the grommet flanges together.
NOTE
Remember to allow space for cables and cable connectors.
7
ENC10/12, ENC10/12R, ENC12/14, ENC14/16, ENC16/18, PWENC12/14, PWENC14/16, and PWENC16/18
3. Route each sensor and peripheral lead through a unique compression
fitting (see FIGURE 3-4).
4. Connect sensors and peripherals to the datalogger as described in the
sensor and peripheral manuals.
5. Secure sensor and peripheral leads to the side of the enclosure using 8"
cable ties and cable tie tabs (see FIGURE 3-2).
NOTE
The adhesive of the cable tie tab may not stick during extremely cold temperatures or extremely high humidity. In these situations, fasten the cable tie tab to the backplate using a #6 screw and grommet or run the cable tie through two of the enclosure backplate holes.
6. Strain relief the sensor leads to the datalogger’s strain relief flanges with
the 4" cable ties.
7. Place two of the desiccant packs from the Enclosure Supply Kit inside of
the enclosure. Reseal the other two inside the plastic bag to use later (see Section 5).
8. Remove the backing from the humidity indicator card and attach the card
to the right side of the enclosure.
9. Rotate each compression fitting so that the fitting clamps tightly against
the sensor cable to provide a water-tight seal (see FIGURE 3-4).
2
8
1
3
FIGURE 3-4. Cable inserted into compression fitting
ENC10/12, ENC10/12R, ENC12/14, ENC14/16, ENC16/18, PWENC12/14, PWENC14/16, and PWENC16/18
4” Cable Tie Secures Cable to CR1000
FIGURE 3-5. This ENC16/18 enclosure with the “-ES” option houses
the equipment commonly used in a GOES satellite system

4. Attachment to an Instrument Mount

4.1 Tripod Mast

The “-MM” mount option is intended for mounting our enclosures to the mast of any of our tripods. An enclosure ordered with this option will be shipped with a three-piece bracket mounted to the top of the enclosure and an identical three-piece bracket mounted to the bottom of the enclosure (see FIGURE 4-1 FIGURE 4-2, and FIGURE 4-3).
Attach the enclosure to the mast as follows:
1. Position the enclosure on the north side of the mast.
2. Place the enclosure at the desired height. Please note that the
recommended lead lengths for our sensors assume the bottom of the enclosure is mounted 3 ft from the ground.
3. Use the furnished 2" u-bolts to secure the enclosure to the tripod mast.
Com Fittin
pression
gs
4. Route the 14 AWG wire from the brass tripod grounding clamp to the
enclosure grounding lug. Strip one inch of insulation from each end of the wire and insert the end of the wire into the grounding lugs and tighten.
9
ENC10/12, ENC10/12R, ENC12/14, ENC14/16, ENC16/18, PWENC12/14, PWENC14/16, and PWENC16/18
FIGURE 4-1. An enclosure with the “-MM” mounting option attaches
to a tripod mast via u-bolts
10
FIGURE 4-2. This exploded view shows the components of
a “-MM” bracket
ENC10/12, ENC10/12R, ENC12/14, ENC14/16, ENC16/18, PWENC12/14, PWENC14/16, and PWENC16/18
FIGURE 4-3. An enclosure attached to a tripod mast

4.2 UT10 10 ft Tower

The “-TM” option is used to attach our enclosures to a UT10 tower. An enclosure ordered with the “-TM” option will be shipped with a three-piece bracket mounted to the top of the enclosure and an identical three-piece bracket mounted to the bottom of the enclosure. This mounting bracket option uses the same three-piece brackets as the “-MM” option, except the pieces are rearranged so that the flanges are on the side of the bracket instead of in the middle. The distance between the centers of each flange needs to be 10.25" (see FIGURE 4-4, FIGURE 4-5, and FIGURE 4-6).
Attach the enclosure to the UT10’s tower legs as follows:
1. Position the enclosure on the north side of the tower.
2. Place the enclosure at the desired height. Please note that the
recommended lead lengths for our sensors assume the bottom of the enclosure is mounted 3 ft from the ground.
3. Use the furnished 1.5" u-bolts to secure the enclosure to the tower legs.
4. Route the 14 AWG wire from the brass tower grounding clamp to the
enclosure grounding lug. Strip one inch of insulation from each end of the wire and insert the end of the wire into the grounding lugs and tighten

4.3 UT20 or UT30 Tower

The “-TM” option is used to attach our enclosures to a UT20 or UT30 tower. An enclosure ordered with the “-TM” option will be shipped with a three-piece bracket mounted to the top of the enclosure and an identical three-piece bracket mounted to the bottom of the enclosure. This mounting bracket option uses the
11
ENC10/12, ENC10/12R, ENC12/14, ENC14/16, ENC16/18, PWENC12/14, PWENC14/16, and PWENC16/18
same three-piece brackets as the “-MM” option, except the pieces are rearranged so that the flanges are on the side of the bracket instead of in the middle. The distance between the centers of each flange needs to be 17" (see FIGURE 4-4, FIGURE 4-5, and FIGURE 4-6).
NOTE
Enclosures with the “-TM” option are shipped configured for the UT10 tower. Steps 1 through 3 of the following procedure are for configuring the bracket for attachment to a UT20 or UT30 tower.
Attach the enclosure to a UT20 or UT30 tower as follows:
1. Remove the bolts and nuts connecting the bracket to the enclosure.
2. Slide out the flange sections so that the distance between the centers of
each flange is 17" (see FIGURE 4-4).
3. Reattach the bracket to the enclosure using the original bolts and nuts.
4. Position the enclosure on the north side of the mast.
5. Place the enclosure at the desired height. Please note that the
recommended lead lengths for our sensors assume the bottom of the enclosure is 3 ft from the ground.
6. Use the furnished 1.5" u-bolts to secure the enclosure to the tower legs.
7. Route the 14 AWG wire from the brass tower grounding clamp to the
enclosure grounding lug. Strip one inch of insulation from each end of the wire and insert the end of the wire into the grounding lugs and tighten.
12
D
FIGURE 4-4. Enclosure brackets configured for a tower mount
ENC10/12, ENC10/12R, ENC12/14, ENC14/16, ENC16/18, PWENC12/14, PWENC14/16, and PWENC16/18
The default configuration is for attaching to a UT10 tower (i.e., D = 10.25"). To attach to a UT20 or UT30 tower, move the flange sections of the bracket so that D = 17".
Flange Section
Flange Section
FIGURE 4-5. This exploded view shows the components of
a “-TM” bracket option
FIGURE 4-6. An enclosure attached to two tower legs
13
ENC10/12, ENC10/12R, ENC12/14, ENC14/16, ENC16/18, PWENC12/14, PWENC14/16, and PWENC16/18

4.4 Tripod Leg Base

The “-LM” mount option is intended for attaching an enclosure to the leg base of a CM106, CM106K, CM110, CM115, or CM120 tripod.
NOTE
NOTE
The ENC16/18 can be mounted to the leg base of a CM106 or CM106K only.
An enclosure ordered with this option will be shipped with a bracket attached to each side of the enclosure and a u-bolt bracket. A 19124 bracket must also be attached to some tripods (see FIGURE 4-7).
For tripods requiring 19124 bracket, the bracket may not be pre­installed on the tripod at the factory. In this situation, the 19124 bracket and mounting hardware will be shipped with the tripod and will need to be installed as shown in FIGURE 4-7.
The CM106 and CM106K tripods have flanges built into the body of the tripod and do not require the 19124 bracket.
Attach the enclosure to the leg base as follows:
1. Slide the keyhole notches in the upper and lower corners of the –LM
bracket over the two extended Phillips head screws located on the tripod. The CM106 and CM106K have hooks extending from the tripod body in place of the Phillips screws.
2. Place the flange of the tripod’s bracket into a notch in one of the
enclosure’s brackets (see FIGURE 4-7, FIGURE 4-8, and FIGURE 4-10).
3. Attach the u-bolt bracket on the other enclosure bracket (see FIGURE
4-9).
4. Use the furnished 2.5" u-bolt to secure the enclosure bracket to a tripod leg
(see FIGURE 4-9 and FIGURE 4-10). The CM106K requires a user­supplied 5/16-18 x 1.5000" u-bolt due to the tripod’s smaller leg size.
5. Route the 14 AWG wire from the brass tripod grounding clamp to the
enclosure grounding lug. Strip one inch of insulation from each end of the wire and insert the end of the wire into the grounding lugs and tighten.
14
ENC10/12, ENC10/12R, ENC12/14, ENC14/16, ENC16/18, PWENC12/14, PWENC14/16, and PWENC16/18
Flange
FIGURE 4-7. The 19124 bracket attached to a CM110 tripod
Notch
FIGURE 4-8. An ENC14/16 enclosure with a “-LM” Bracket
15
ENC10/12, ENC10/12R, ENC12/14, ENC14/16, ENC16/18, PWENC12/14, PWENC14/16, and PWENC16/18

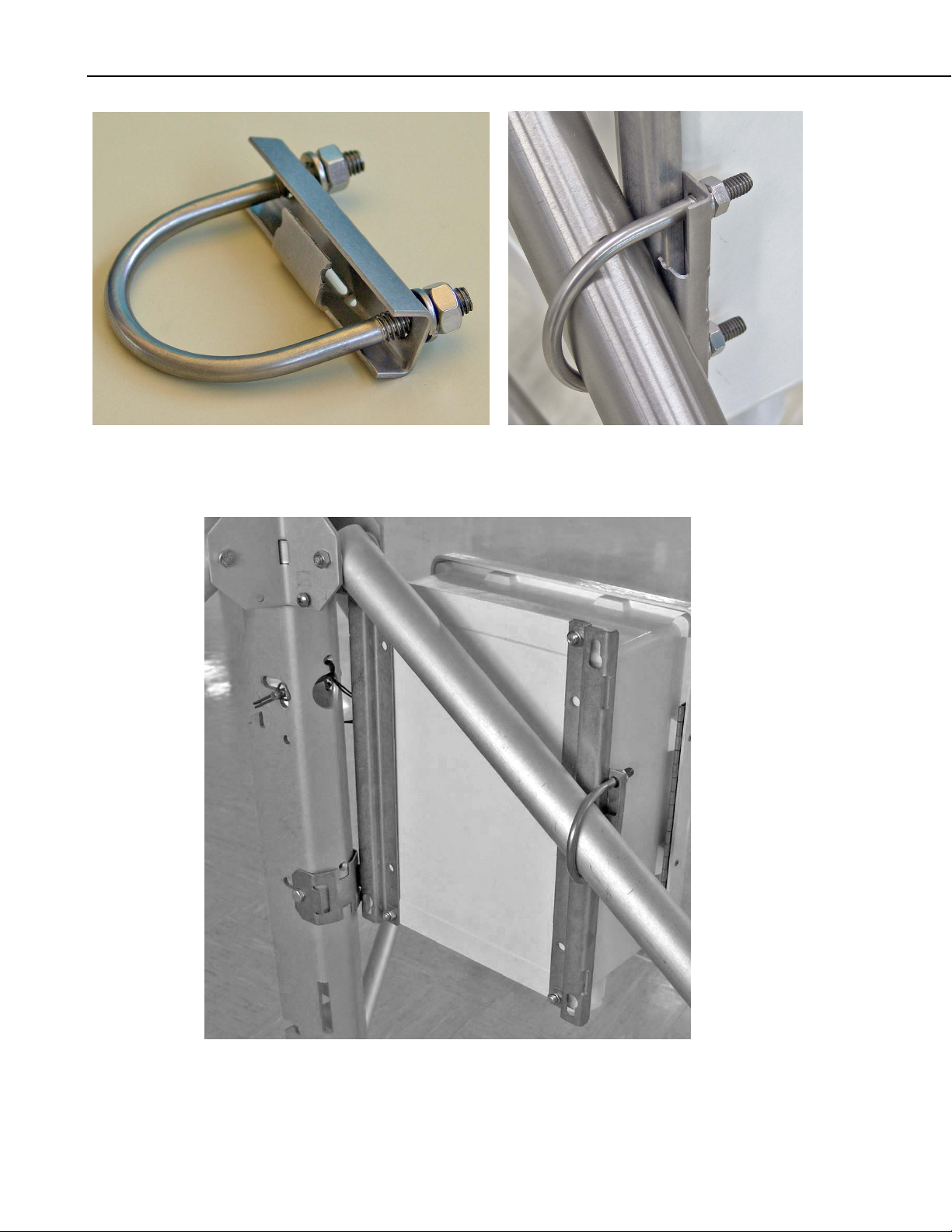

FIGURE 4-9. The u-bolt bracket
16
FIGURE 4-10. An enclosure attached to the leg base of a CM110
tripod
ENC10/12, ENC10/12R, ENC12/14, ENC14/16, ENC16/18, PWENC12/14, PWENC14/16, and PWENC16/18

4.4.1 Mounting More Than One Enclosure on a Tripod Leg (CM110, CM115, CM120)

It is possible to mount two enclosures back-to-back on the CM110, CM115, and CM120 tripods. If the enclosures are different sizes, mount the smaller enclosure first, followed by the larger enclosure. If the enclosures are the same size, use two 5/16-18 x 3.50" bolts in place of u-bolts to anchor the two enclosures together.
FIGURE 4-11. Mounting two enclosures on a single tripod leg

4.5 Pole Mount

The “-PM” mount option is intended for mounting our enclosures to a vertical pole. An enclosure ordered with this option will be shipped with the brackets, metal bands, and mounting hardware needed to secure the enclosure. The metal bands are routed through the brackets, and then around a vertical pole. They are then anchored in place using screw clamps.
Attach the enclosure to a vertical tube as follows:
1. Position a bracket at the top of the enclosure as shown in FIGURE 4-12.
Secure it with a bolt, washer, and locknut at each end. Attach the lower bracket in the same manner, rotating the bracket so it extends below the enclosure.
17
ENC10/12, ENC10/12R, ENC12/14, ENC14/16, ENC16/18, PWENC12/14, PWENC14/16, and PWENC16/18
Enclosure
Washer
Bolt
LockNut
Bracket
FIGURE 4-12. Attaching the pole mount bracket
2. Feed a metal band through the openings in each bracket as shown in
FIGURE 4-13. Use the closest set of holes for smaller poles and the farthest set of holes for larger poles.
Mounting Bracket
Band
FIGURE 4-13. Inserting the metal band
3. Position the enclosure on the north side of the tower.
4. Place the enclosure at the desired height. Please note that the
recommended lead lengths for our sensors assume the bottom of the enclosure is mounted 3 ft. from the ground.
18
ENC10/12, ENC10/12R, ENC12/14, ENC14/16, ENC16/18, PWENC12/14, PWENC14/16, and PWENC16/18
5. Insert the tab on the end of the Screw Threads (FIGURE 4-14) into the
hole at one end of the upper strap.
Mounting Pole
Enclosure
Band
Screw Clamp
Screw Threads
FIGURE 4-14. Securing the enclosure to a pole
6. Pull the strap tight around the pole to determine which hole to insert the
Screw Clamp at the other end of the strap. Insert the clamp into this hole.
7. Use metal shears to remove any excess strap, leaving a small amount for
adjustments.
8. Insert the Screw Threads into the Screw Clamp and tighten, using a
flathead screwdriver or nut driver.
9. Repeat steps 4–7 for the lower strap.
10. Ensure the enclosure is properly grounded through the use of a ground rod
or similar device.
19
ENC10/12, ENC10/12R, ENC12/14, ENC14/16, ENC16/18, PWENC12/14, PWENC14/16, and PWENC16/18

5. When to Replace Desiccant

The humidity indicator card or optional CS210 Humidity Sensor indicate when the desiccant needs to be replaced.
CAUTION
Because desiccant is inexpensive, Campbell Scientific recommends replacing desiccant packets once they become saturated rather than attempting to reactivate the desiccant. This prevents the possibility of the desiccant packets exploding during the reactivation process due to heating the desiccant packets too rapidly.

5.1 Humidity Indicator Card

The humidity indicator card has three colored circles that indicate the percentage of humidity. Desiccant packets inside the enclosure should be replaced with fresh packets when the upper dot on the indicator begins to turn pink. The indicator card does not need to be replaced unless the colored circles overrun.

5.2 Optional CS210 Humidity Sensor

The CS210 Enclosure Humidity Sensor contains an Elan HM2000 series precision bulkpolymer relative humidity sensor to measure relative humidity inside an enclosure. When the measurements exceed 35% relative humidity, replace the desiccant packets. Refer to the CS210 manual for sensor specifications, installation procedures, and programming information.

6. Resistance to Weathering

Our enclosures are coated to protect them from UV rays and other weathering. However, the outer surface of enclosures exposed to extreme weather (rain, wind, and/or UV rays) may erode so that glass fibers become apparent. The depth of the erosion is superficial and only affects the aesthetic appeal (i.e., does not reduce the effectiveness in protecting equipment).
Customers who are worried about weathering can periodically rub the enclosure with petroleum jelly or a Canuba-based car wax. The appearance of an enclosure that has already been eroded can be sprayed with clear acrylic paint or coated with primer and white paint. Follow the procedure provided in either Section 6.1 or Section 6.2 to ensure proper bonding.

6.1 Clear Acrylic Paint

1. Use a rag and possibly a solvent to clean the outside of the enclosure.
Solvents that can be used include rubbing alcohol, a water solution of alkaline or caustic salts, domestic cleaning products such as Spic & Span, aromatic hydrocarbon solvents (benzene, xylene), butyl acetate, and glycol acetate.
2. If a solvent was used, carefully rinse and dry enclosure.
20
ENC10/12, ENC10/12R, ENC12/14, ENC14/16, ENC16/18, PWENC12/14, PWENC14/16, and PWENC16/18
3. Use a fine grain sandpaper to gently sand the enclosure surface; if the
surface of the enclosure is sufficiently rough, this step may be skipped.
4. Spray with clear acrylic paint.
CAUTION
Properly ventilate the area while using solvent and paint. Wear safety goggles, mask, and gloves while sanding.

6.2 Primer and White Paint

1. Use a rag and possibly a solvent to clean the outside of the enclosure.
Solvents that can be used include rubbing alcohol, a water solution of alkaline or caustic salts, domestic cleaning products such as Spic & Span, aromatic hydrocarbon solvents (benzene, xylene), butyl acetate, and glycol acetate.
2. If a solvent was used, carefully rinse and dry enclosure.
3. Use a fine grain sandpaper to gently sand the enclosure surface; if the
surface of the enclosure is sufficiently rough, this step may be skipped.
4. Spray with primer that is compatible with fiberglass.
5. Paint the enclosure with a white paint that is compatible with fiberglass
and resistant to extreme weather. The paint must be white because the white color reflects solar radiation.
CAUTION
Properly ventilate the area while using solvent and paint. Wear safety goggles, mask, and gloves while sanding.
21
ENC10/12, ENC10/12R, ENC12/14, ENC14/16, ENC16/18, PWENC12/14, PWENC14/16, and PWENC16/18
22

Appendix A. Door Switch

A.1 Installation Procedure

1. The Door Open Indicator Kit contains several small brackets that are used
to mount the sensor and magnet to the enclosure case and door. Which brackets are used depends on the style of enclosure. Use the following guide to determine the proper brackets:
a. The Door Open Indicator is mounted at the upper right corner of
the enclosure. The enclosure DOOR determines which bracket is used to mount the sensor inside the enclosure CASE. If there is an offset near the edge of the enclosure door (see below), the sensor will be mounted with the brackets shown.
Door Edge
Door Edge
Weather Stripping
Sensor Magnet
Offset
Weather Stripping
Sensor Magnet
Large Bracket Insert
Sensor
Large Bracket
b. If there is not an offset near the edge of the enclosure door, use
the bracket as shown below.
Small Bracket
Sensor
No Offset
A-1
Appendix A. Door Switch
Sensor
c. The bracket used for mounting the sensor magnet in the door
depends on the depth of the door. If the door face is flat, the sensor magnet is mounted as shown below.
Large Bracket Insert
Large Bracket
d. If the door face is extended, the sensor magnet is mounted as
shown below.
Small Bracket
Magnet
2. Using the brackets determined in step 1, assemble the sensor and place it
in the upper right corner of the enclosure case. Align the top of the sensor with the inside edge of the sensor case as shown. Do not allow the sensor to extend beyond the edge of the enclosure case. Using a marker, mark the locations for two mounting holes to secure the sensor bracket.
A-2
Appendix A. Door Switch
3. Assemble the sensor magnet with the bracket determined in step 1. Place
the bracket in position so the edge of the sensor magnet does not extend beyond the internal edge of the door. Mark the locations for two mounting holes to secure the sensor magnet bracket. Important: The mounting holes
for the sensor magnet bracket must align with the holes for the sensor bracket for the door open switch to function properly.
Extended Door
Flat Door
Mounting Holes
Mounting Holes
4. Drill small pilot holes for all four mounting holes from the inside of the
case.
5. Drill the final holes for the brackets from the outside of the enclosure
using a #22 (.157") drill bit.
NOTE
Drilling the holes in this manner will ensure the enclosure finish does not crack.
6. From the outside of the enclosure, insert two screws through the newly
drilled holes in the case.
A-3
Appendix A. Door Switch
7. Place the assembled sensor bracket over the two screws, making sure the
sensor is aligned with the inside edge of the case. Secure the bracket in place with two lock-nuts.
Enclosure
Mounting Bracket
Screw
Lock Nut
Sensor
8. From the outside of the enclosure door, insert two screws through the new
holes in the enclosure door.
9. Place the assembled sensor magnet bracket over the two screws, making
sure the sensor magnet is aligned with the inside edge of the door. Secure the bracket in place with two lock-nuts.
A-4

A.2 Example Programs

A.2.1 CRBasic

'Program name: DOOR SWITCH CR1000.CR1 'Date written: 11/7/2005 ' ' Door Switch Wiring ' +5V black - power to door switch ' C1 black - signal to control port 3
'\\\\\\\\\\\\\\\\\\\\\\\\\ DECLARATIONS ///////////////////////// Public DOOR_open_1 Public DOOR_output
'\\\\\\\\\\\\\\\\\\\\\\\\ OUTPUT SECTION //////////////////////// DataTable(Table101,true,-1) OpenInterval DataInterval(0,5,Min,10) Sample(1, DOOR_output, FP2) EndTable
DataTable(Table102,true,-1) OpenInterval DataInterval(0,5,Min,10) Histogram(DOOR_open_1, FP2, 0, 1,001, 1 , 0.5, 1.5) EndTable
'\\\\\\\\\\\\\\\\\\\\\\\\\\\ PROGRAM //////////////////////////// BeginProg Scan(1,Sec, 3, 0) ' Configure control ports as inputs or outputs PortsConfig (&B11111111,&B00000000)
' Measure Door switch ' (0=low=closed, 1=high=open) If CheckPort(1) = true then DOOR_open_1 = 1 Else DOOR_open_1 = 0 EndIf
' Two of many possible methods to output the status of the door open switch ' - assumes 5 minute data:
' Method #1: If the door is open even one reading during the output interval, ' output a 1 for the Door variable ' If (DOOR_open_1 = 1) Then DOOR_output = 1 EndIf CallTable Table101 ' Reset door status after output interval If TimeInToInterval(0,5,Min) Then DOOR_output = 0 EndIf
' Method #2: Door open status may be recorded as a fraction of the output ' interval (between 0 and 1) using the Histogram instruction. CallTable Table102
NextScan EndProg
Appendix A. Door Switch
A-5
Appendix A. Door Switch

A.2.2 Edlog

;{CR10X}
; File name = Door Switch CR10X.csi 7Nov2005
; Door Switch Wiring ; +5V black - power to door switch ; C1 black - signal to control port 3
*Table 1 Program 01: 1 Execution Interval (seconds)
1: Set Port(s) (P20) ; Configure control ports as inputs or outputs 1: 9999 C8..C5 = nc/nc/nc/nc 2: 9998 C4..C1 = nc/nc/nc/input
; Measure Door switch
2: If Flag/Port (P91) ; (0=low=closed, 1=high=open) 1: 41 Do if Port 1 is High 2: 30 Then Do
3: Z=F x 10^n (P30) 1: 1 F 2: 00 n, Exponent of 10 3: 1 Z Loc [ DOORopen1 ]
4: Else (P94)
5: Z=F x 10^n (P30) 1: 0 F 2: 00 n, Exponent of 10 3: 1 Z Loc [ DOORopen1 ]
6: End (P95)
; Two of many possible methods to output the status of the door open switch ; - assumes 5 minute data: ; Method #1: If the door is open even one reading during the output interval, output a 1 ; for the Door variable ; Method #2: Door open status may be recorded as a fraction of the output interval ; (between 0 and 1) using the Histogram instruction.
; Method #1 ==================================
7: If (X<=>F) (P89) 1: X Loc [ DOORopen1 ] 2: 1 = 3: 1 F 4: 30 Then Do
8: Z=F x 10^n (P30) 1: 1 F 2: 00 n, Exponent of 10 3: 2 Z Loc [ DOOR_out ]
A-6
9: End (P95)
10: If time is (P92) 1: 0 Minutes (Seconds --) into a 2: 5 Interval (same units as above) 3: 10 Set Output Flag High (Flag 0)
11: Set Active Storage Area (P80) 1: 1 Final Storage Area 1 2: 101 Array ID
12: Sample (P70) 1: 1 Reps 2: 2 Loc [ DOOR_out ]
; Reset door status after output interval
13: If time is (P92) 1: 0 Minutes (Seconds --) into a 2: 5 Interval (same units as above) 3: 30 Then Do
14: Z=F x 10^n (P30) 1: 0.0 F 2: 00 n, Exponent of 10 3: 2 Z Loc [ DOOR_out ]
15: End (P95)
; Method #2 ==================================
16: If time is (P92) 1: 0 Minutes (Seconds --) into a 2: 5 Interval (same units as above) 3: 10 Set Output Flag High (Flag 0)
17: Set Active Storage Area (P80) 1: 1 Final Storage Area 1 2: 102 Array ID
18: Histogram (P75) 1: 1 Reps 2: 1 No. of Bins 3: 1 Closed Form 4: 1 Bin Select Value Loc [ DOORopen1 ] 5: 0 Frequency Distribution 6: 0.5 Low Limit 7: 1.5 High Limit
*Table 2 Program 02: 0 Execution Interval (seconds)
*Table 3 Subroutines
End Program
Appendix A. Door Switch
A-7
Appendix A. Door Switch
A-8

Appendix B. 25458/28532 DIN-Rail Terminal Kits

B.1 Introduction

The 25458 (5-inch) or 28532 (9-inch) kit can facilitate wiring when many wires need to be connected to one terminal. The kit contains one 15906 5-inch DIN-Rail (or one 28531 9-inch DIN-Rail) Mounting Bracket, 505 screws, 6044 grommets, and 15908 DIN-Rail Stoppers. A complete configuration will also include #15920 Terminal Strips, #15907 End Plates, and #15909 Jumpers. The stoppers, terminal strips, and end plates are mounted onto the DIN-Rail bracket. The DIN-Rail bracket is mounted to an enclosure backplate using the kit’s screws and grommets.
One 15920 terminal strip consists of three spring-loaded “guillotine” terminals that provide connection points for individual wires. Up to 20 of these terminal strips may be fastened to the 25458 DIN-Rail bracket. The 28532 DIN-Rail bracket holds up to 36. The 15907 End Plates separate the terminal strips. The 15909 jumpers are used to electrically connect the terminals. A stopper needs to be on each end of the terminal strip assembly.

B.2 Installation Procedure

1. Mount the 15908 DIN-Rail Stoppers, 15920 Terminal Strips, and 15907 End Plates onto the DIN-Rail Bracket (see FIGURE B-1 through FIGURE B-3).
FIGURE B-1. 15908 DIN-Rail Stopper installation
B-1
Appendix B. 25458/28532 DIN-Rail Terminal Kits
FIGURE B-2. 15920 Terminal Strip installation
B-2
FIGURE B-3. 15907 End Plate installation
Appendix B. 25458/28532 DIN-Rail Terminal Kits
2. Insert the 15909 Jumpers in the terminal strips as shown in FIGURE B-4.
NOTE
FIGURE B-4. 15909 Jumper installation
3. Mount the DIN-Rail bracket onto the enclosure backplate using two 505 screws and two 6044 grommets (see FIGURE B-5).
The 28532 includes three screws and three grommets. Use the third screw and grommet to secure the 9-pin DIN-Rail at its center.
FIGURE B-5. DIN-Rail bracket mounted onto an enclosure backplate
B-3
Appendix B. 25458/28532 DIN-Rail Terminal Kits
4. Connect the wires to the terminals (see FIGURE B-6 and FIGURE B-7). The 8125 flat-bladed screwdriver is used to open the terminals’ guillotines for wire entry.
FIGURE B-6. An installed and wired 25458 DIN-Rail Terminal Kit
FIGURE B-7. The 25458 DIN-Rail Terminal Kit facilitates wiring of
multiple sensors
B-4

Appendix C. 28960 Stack Mounting Kit

C.1 Introduction

The 28960 Stack Mounting Kit is used to raise a component 3 in above the surface of the back plate. This is beneficial when an enclosure nears its holding capacity of components. Using the Stack Mounting Kit allows one component to be stacked above another, saving space in the enclosure. For example, FIGURE C-1 and FIGURE C-2 show a CR1000 mounted above an AM16/32B. Any component mounted below the Top Grid must be fully wired prior to installing the Top Grid. Note that in this example, the four grommets used to mount the CR1000 to the Top Grid pass through the Top Grid into the Legs using the same hole pattern as the CR1000.
Screw
Top Grid
Grommet
Enclosure Back Plate
Leg
Screw
Grommet
Grommet
Leg
Grommet
Screw
CR1000
Screw
AM16/32B
FIGURE C-1. Exploded view of a CR1000 and AM16/32B mounted on
a 28960 Stack Mounting Kit
C-1
Appendix C. 28960 Stack Mounting Kit
A
Enclosure Back Plate
M16/32B
Leg
CR1000
Top G r i d
Leg
FIGURE C-2. Assembled view of CR1000 and AM16/32B mounted on
a 28960 Stack Mounting Kit
The Stack Mounting Kit consists of a Top Grid, two Legs, eight Grommets, and eight Screws (FIGURE C-3). Besides the standard one-inch-on-center holes, the Top Grid also contains sixteen smaller, round holes. These holes are used by wire-ties to secure any loose wiring.
If the Stack Mounting Kit is only being used to raise a single component, the Top Grid is optional. The component can be mounted directly to the two Legs using the Grommets and Screws. This allows the raised area to be tailored to the component's size. FIGURE C-4 shows a CR1000 mounted to the Legs without using the Top Grid.
C-2
Leg
Screw
(8)
Appendix C. 28960 Stack Mounting Kit
Grommet
(8)
Leg
Top Grid

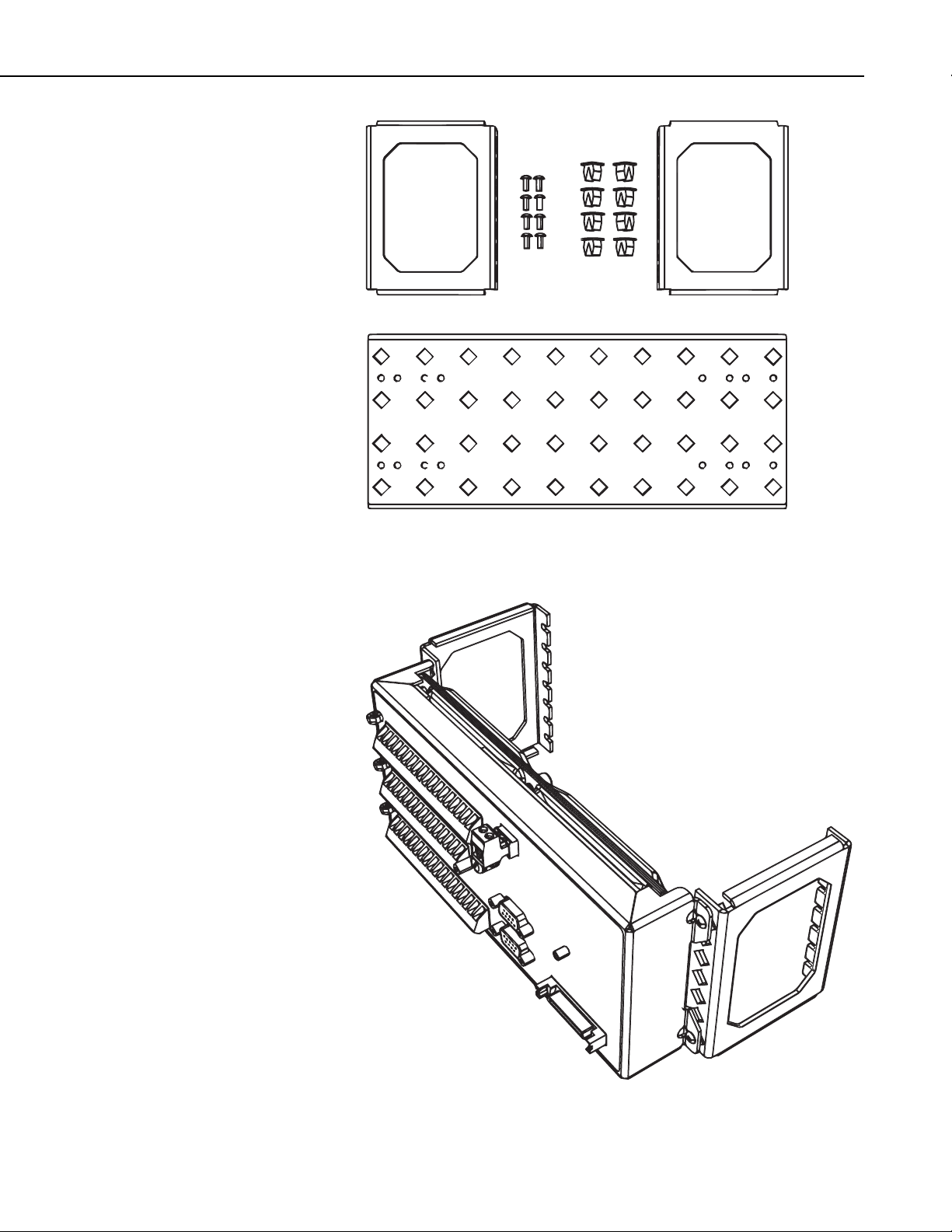

FIGURE C-3. Contents of 28960 Stacking Kit
FIGURE C-4. CR1000 mounted to Stack Mounting Kit legs
C-3
Appendix C. 28960 Stack Mounting Kit

C.2 Mounting Procedure

1. Determine the spacing needed between the two legs.
2. Secure the legs to the back plate using screws and grommets. If a
component is to be mounted under another and shares the same mounting holes as the leg, mount the pieces in the following order.
Back Plate < Grommet < Leg < Component < Screw
3. Fully wire the bottom component before proceeding.
4. Place the Top Grid in position over the Legs. Insert Grommets where
required for the component to be mounted. If the Top Grid is not going to be used, insert the Grommets directly into the top of the Legs.
5. Place the top component in position and secure it with Screws.
C-4

Appendix D. Keeping Insects Out Of the Enclosure

Campbell Scientific has published an application note regarding how to keep pests away from the equipment. It is found on the Campbell Scientific website (www.campbellsci.com/app-notes) and is called “Keeping Pests Away from Equipment (5-Y).”
Here are two methods from the application note on how to keep insects out of the enclosure.
1. Place moth balls or crystals in enclosures to prevent fire ants, wasps,
spiders, and other insects from nesting.
CAUTION
The fumes of moth balls or crystals could be hazardous. Therefore, enclosures that contain moth balls or crystals should be opened in a well-ventilated area.
2. Put animal ear tags in the enclosure. Apparently, some ear tags are treated
with an insecticide. Talk with personnel in an agricultural store to determine the best ear tag for controlling the pests in your area. (This technique originated in Southern Texas.)
D-1
Appendix D. Keeping Insects Out Of the Enclosure
D-2

Campbell Scientific Companies

Campbell Scientific, Inc. (CSI)
815 West 1800 North
Logan, Utah 84321
UNITED STATES
www.campbellsci.com
Campbell Scientific Africa Pty. Ltd. (CSAf)
Somerset West 7129
SOUTH AFRICA
www.csafrica.co.za
Campbell Scientific Australia Pty. Ltd. (CSA)
Garbutt Post Shop QLD 4814
www.campbellsci.com.au
Campbell Scientific do Brazil Ltda. (CSB)
Rua Luisa Crapsi Orsi, 15 Butantã
CEP: 005543-000 São Paulo SP BRAZIL
www.campbellsci.com.br
Campbell Scientific Canada Corp. (CSC)
11564 - 149th Street NW
Edmonton, Alberta T5M 1W7
www.campbellsci.ca
Campbell Scientific Centro Caribe S.A. (CSCC)
300 N Cementerio, Edificio Breller
Santo Domingo, Heredia 40305
www.campbellsci.cc
Campbell Scientific Ltd. (CSL)
Shepshed, Loughborough LE12 9GX
UNITED KINGDOM
www.campbellsci.co.uk
Campbell Scientific Ltd. (France)
3 Avenue de la Division Leclerc
92160 ANTONY
www.campbellsci.fr
Campbell Scientific Spain, S. L.
Avda. Pompeu Fabra 7-9, local 1
www.campbellsci.es
Please visit www.campbellsci.com to obtain contact information for your local US or interna tional representative.
• info@campbellsci.com
PO Box 2450
• cleroux@csafrica.co.za
PO Box 8108
AUSTRALIA
• info@campbellsci.com.au
• suporte@campbellsci.com.br
CANADA
• dataloggers@campbellsci.ca
COSTA RICA
• info@campbellsci.cc
Campbell Park
80 Hathern Road
• sales@campbellsci.co.uk
FRANCE
• info@campbellsci.fr
08024 Barcelona
SPAIN
• info@campbellsci.es
Loading...
